USER MANUAL Duothek Therm F2704299F KRUPS

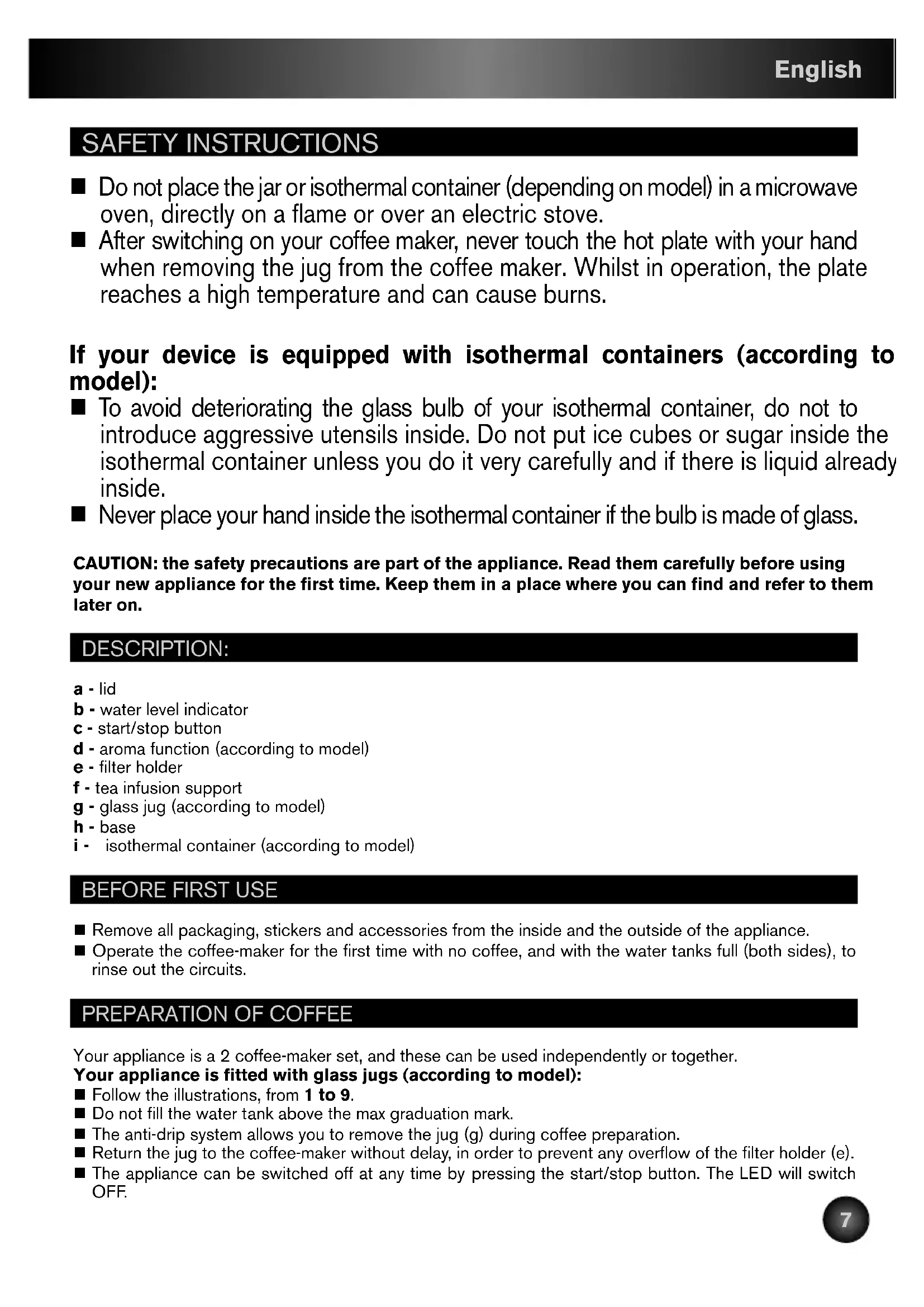

SAFETY INSTRUCTIONS n Do not place the jar or isothermal container (depending on model) in a microwave oven, directly on a flame or over an electric stove. n After switching on your coffee maker, never touch the hot plate with your hand when removing the jug from the coffee maker. Whilst in operation, the plate reaches a high temperature and can cause burns. If your device is equipped with isothermal containers (according to model): n To avoid deteriorating the glass bulb of your isothermal container, do not to introduce aggressive utensils inside. Do not put ice cubes or sugar inside the isothermal container unless you do it very carefully and if there is liquid already inside. n Never place your hand inside the isothermal container if the bulb is made of glass. CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on. DESCRIPTION: a - lid b - water level indicator c - start/stop button d - aroma function (according to model) e - filter holder f - tea infusion support g - glass jug (according to model) h - base i - isothermal container (according to model)

n Remove all packaging, stickers and accessories from the inside and the outside of the appliance. n Operate the coffee-maker for the first time with no coffee, and with the water tanks full (both sides), to rinse out the circuits.

PREPARATION OF COFFEE

Your appliance is a 2 coffee-maker set, and these can be used independently or together. Your appliance is fitted with glass jugs (according to model): n Follow the illustrations, from 1 to 9. n Do not fill the water tank above the max graduation mark. n The anti-drip system allows you to remove the jug (g) during coffee preparation. n Return the jug to the coffee-maker without delay, in order to prevent any overflow of the filter holder (e). n The appliance can be switched off at any time by pressing the start/stop button. The LED will switch OFF. KR_DUOTECK_NC00125274 15/07/14 08:58 Page7n At the end of the cycle (i.e. when there is no more water in the tank), the heat will be maintained until it turns off automatically after about 30 minutes for glass jugs and three minutes for thermal jugs. Your appliance is fitted with thermal jugs (according to model): n Follow the illustrations from 10 to 18. n Do not fill the water tank above the max graduation mark. n For better keep warm performances, rinse the thermal jug (i) in hot water before use. n Remove the filter holder (e), and turn the lid firmly to the right (figure 17). n To pour, rotate the cover one quarter turn to the left (figure 18). n At the end of the cycle your appliance will stop automatically. Your appliance is equipped with a “reinforced aroma” system on the left side of the appliance, for one to three cups (according to model): The aroma system provide flavoured coffee when you want only 1,2 or 3 cups. For 1 to 3 cups, put the switch (d) to the AROMA 1-3 position (figure 24). For 4 cups or more, keep the switch (d) in OFF position. MAKING TEA (ACCORDING TO MODEL) n Follow the illustrations from 19 to 23. n Proceed as you would when making coffee. n Set the desired position for the automatic preparation of tea. Position 2-5 for two to five cups, and position 5 max for 5 cups and over (figure 23). CLEANING Disconnect the appliance from the power supply. n Do not clean the appliance when still hot. n Clean with a damp cloth or sponge. n Never put the appliance into water on under running water. n To remove the used grounds or leaves, remove the filter holder from the coffee-maker. n The glass jugs (g), their lids, and the filter holder (e) can be placed in the dishwasher. Cleaning the thermal jugs (according to model) n These should be handled with care. Add a little washing-up liquid and water, and shake gently. Stubborn stains can be removed using a soft brush. n Never clean them with hard objects. Scratches on the glass can cause the interior to break. n Never put them in the dishwasher, and never immerse them in water. The lids can be placed in the dishwasher. DESCALING n De-scale your appliance once every 40 cycles of use (very hard water) or 80 cycles (soft water). You can use: - either one sachet of scale remover which can be purchased from a hardware store diluted in 2 large glasses of water, - or 2 large glasses of white vinegar commercially available Place the mixture into the water tank of the coffee- maker (without coffee grounds or tea leaves). Allow the equivalent of one glassful to run into the jug (g) or the thermal jug (i) (according to model), and then switch off the coffee-maker. Leave the mixture to work in the appliance for one hour. Restart your coffee-maker to allow the remainder of the mixture to run through. Before using again, operate the appliance 2 or 3 times with clean water, without drinking it (full water tank). Warning: Do not leave the sachet of de-scaler within the reach of children. Our guarantee excludes coffee-makers which fail to operate due to a lack of descaling. English

KR_DUOTECK_NC00125274 15/07/14 08:58 Page8IN CASE OF PROBLEMS n Check the following: - The power cord is well plugged into the means, - The Start/Stop button light on the working side of the appliances is switched ON n If the running time of the water is too long or there is excessive noise: - de-scale the coffee-maker. n If your appliance still does not work, contact an approved Krups service centre (see the list in the “Krups Service” booklet). ACCESSORIES You can obtain the following accessories from your usual retailer or from any approved Krups service centre: Glass jug ref 034 Spare tea filter ref 308 n Environment protection first ! i Your appliance contains valuable materials that can be recovered or recycled. ‹ Leave it at a local civic waste collection point. English
