USER MANUAL HOVEN 500 HOZ3150INE HOOVER

Parameter	Value	Tolerance	Comment
Basis Weight	50 to 90 g/m2	+/- 4 g/m2	As specified by Customer
Bulk / Volume	1.6 / 16 to 2.3 / 23		As specified by Customer
Caliper	80 to 180 micron	+/- 3 micron	180 micron maximum
Brightness	75 iso	+/- 0.75
Shade	9 (Cream)	+/- 0.5	As specified by customer
Opacity	84 to 94	+/- 1	Dependant on grammage/caliper
Moisture	8%	+/- 0.5
Tear	275 to 450 Nm	+/- 0.4
Tensile	2.75 to 4.50 kN/m	+/- 0.4
Main furnish	85 to 90% mechanical groundwood		Produced from Norwegian Spruce
Secondary furnish	10 to 15% Cellulose (Spruce)		Purchased from Rottneros, Sweden
Wrapping	Kraft wrappers		2 layers
Cores	76mm strawboard		152mm cores on request
Joins	Maimum 2 joins per reel		Marked by red line on reel
Reel Diameter	1000mm or 1150mm		As specified by customer
Accreditation	FSC	Volume Credit	FSC Paper on request

MATERIALS IN COMPLIANCE WITH REQUIREMENTS OF EU DIRECTIVE 2002/95/CE + AMENDMENTS
ALL RIGHTS RESERVED, THE REPRODUCTION OF ANY PART WITHOUT OUR WRITTEN CONSENT IS FORBIDDEN

	E
	D
	C
	B
	A
CL N° REV. DATE			MODIFY DESCRIPTION							MODIFIED BY
SPECIFICATION			DATE SIGNATURE				PROPERTYOF CANDY·HOOVER GROUP
GENERAL TOLERANCEISO 2768 - m			DRAWN09.05.2019 Y.GÜLTÜRK
							NAMEUSER MANUAL H HNTTF08
			CHECKED09.05.2019 -
BASE CODE			FORHOOVER OVEN				(LOCAL LANGUAGE)KULLANMA KILAVUZU H HNTTF08
-
			WEIGHT SCALE			PART CODE				SHEET
TREATMENT			Kg.	1:1		4 2 8 3 1 6 9 9				1/1
-
MATERIAL			SIZE			REPLACE No ORIGIN CL No Class Specification
70 gr/m2			A5	FR		-----		55196	SC 000-000

RELEASE LEVEL
PRODUCTION RELEASED

HOOVER

• HOZ3150
  • HOZ6901

USER INSTRUCTIONS

OVENS EN 02

NOTICE D'EMPLOI ET D'INSTALLATION

DES FOURS ENCASTRABLES FR 15

MANUALE D'ISTRUZIONI

FORNO IT 29

INSTRUCCIONES DE USO

HORNOS EMPOTRABLES ES 42

BEDIENUNGSANLEITUNG

BACKOFEN DE 55

KULLANIM KILAVUZU

FIRINLAR TR 68

POKYNY PRO UŽIVATELE

TROUBY CZ 83

INSTRUKJA OBSŁUGI

PIEKARNIKI DO ZABUDOWY PL 96

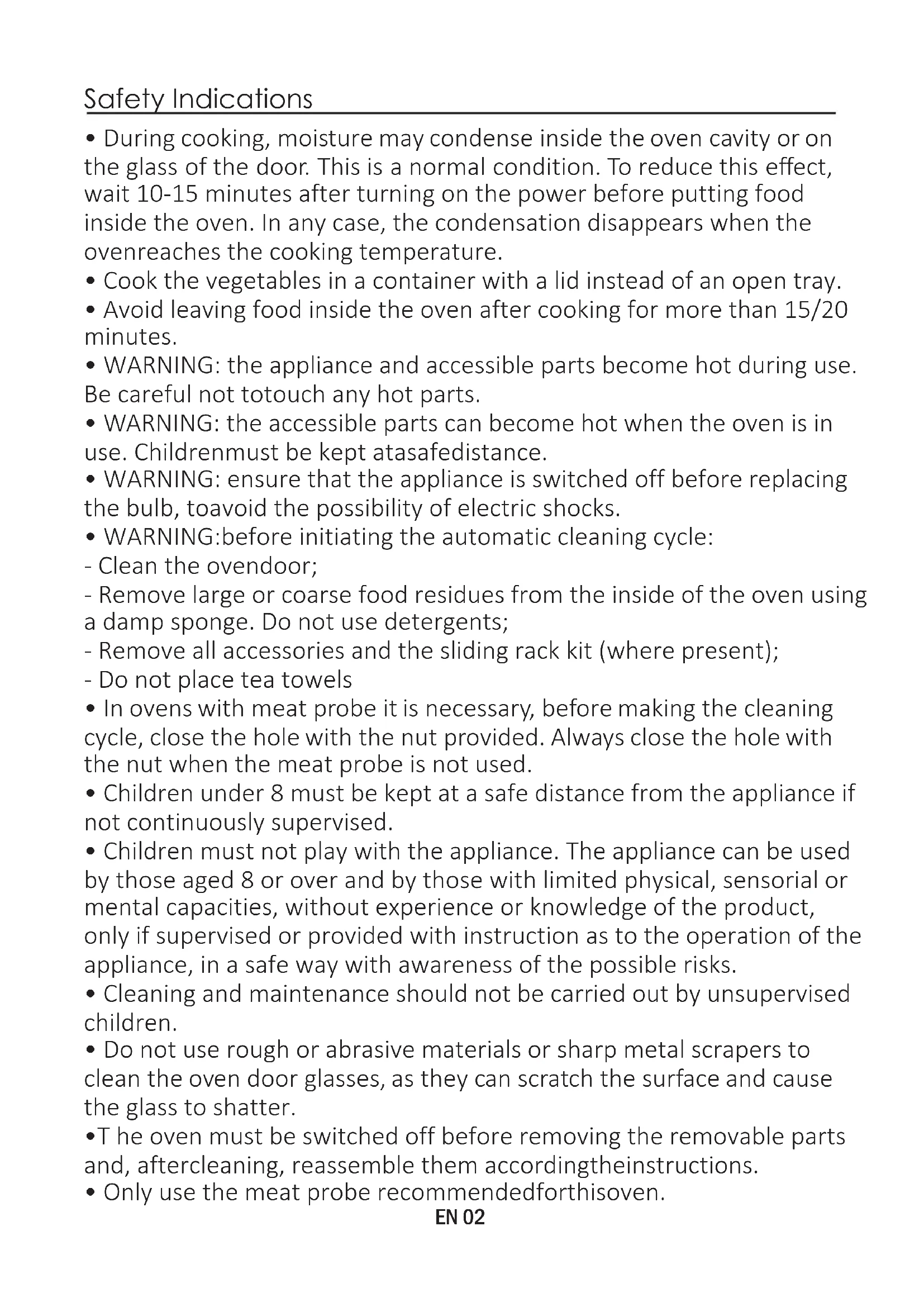

Safety Indications

- During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the ovenreaches the cooking temperature.

- Cook the vegetables in a container with a lid instead of an open tray.

- Avoid leaving food inside the oven after cooking for more than 15/20 minutes.

- WARNING: the appliance and accessible parts become hot during use. Be careful not to touch any hot parts.

- WARNING: the accessible parts can become hot when the oven is in use. Children must be kept at asafedistance.

- WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.

- WARNING: before initiating the automatic cleaning cycle:

- Clean the ovendoor;

- Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;

- Remove all accessories and the sliding rack kit (where present);

- Do not place tea towels

- In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.

- Children under 8 must be kept at a safe distance from the appliance if not continuously supervised.

- Children must not play with the appliance. The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks.

- Cleaning and maintenance should not be carried out by unsupervised children.

- Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass to shatter.

- The oven must be switched off before removing the removable parts and, aftercleaning, reassemble them accordingtheinstructions.

- Only use the meat probe recommendedforthisoven.

- Do not use a steamcleanerforcleaning operations. - Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductoris yellow-green in colour. This operations should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

- The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

- If the power cable is damaged, it must be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department.

- The type of power cable must be H05V2V2-F.

- Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee.

- Anyexcess of spilled materialshouldberemovedbefore cleaning.

- During the pyrolytic cleaning process, surfaces can heat up more than usual, children must therefore be kept at a safe distance.

- The appliance must not be installed behind a decorative door in order to avoid overheating.

- When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity.

The shelf must be inserted completely into the cavity

- WARNING: Do not line the oven walls with aluminum foil or single-use protection available from stores. Aluminum foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.

- WARNING: Never remove the oven door seal.

- No additional operation/setting is required in order to operate the appliance atthe ratedfrequencies.

General Instructions

5

1.1 Safety indications
1.2 Electrical safety
1.3 Recommendations
1.4 Installation
1.5 Waste management
1.6 Conformity declaration

Product Description

7

2.1 Overview
2.2 Accessories
2.3 First use

Use of the Oven

8

3.1 Display description
3.2 Cooking modes

Oven Cleaning and Maintenance

11

4.1 General notes on cleaning
4.2 Steam cleaning
4.3 Maintenance

• Removal and cleaning of grills
• Removal of the oven window
• Removal and cleaning of the glass door

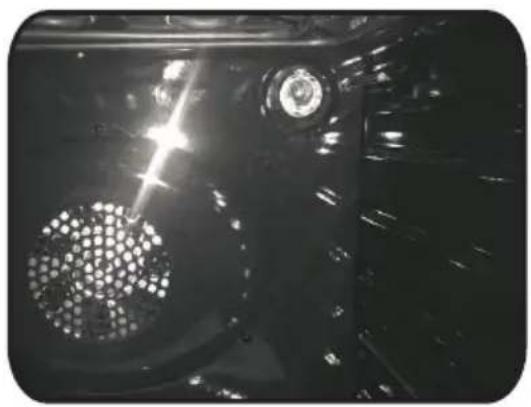

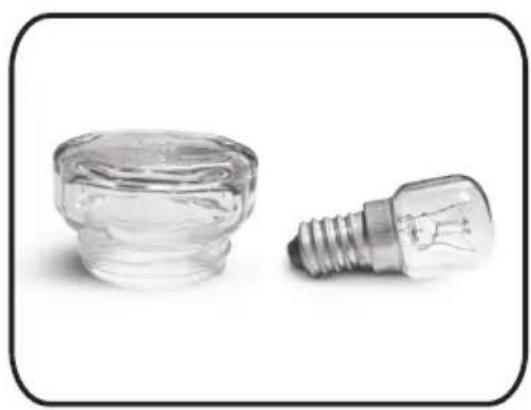

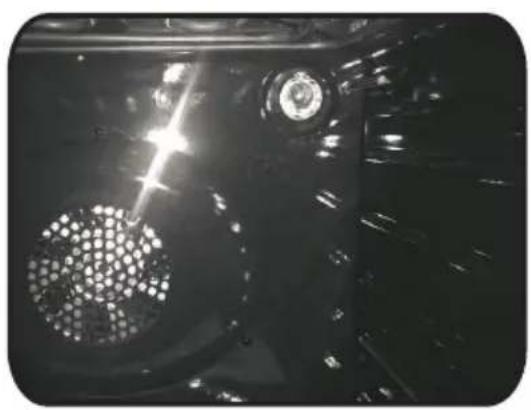

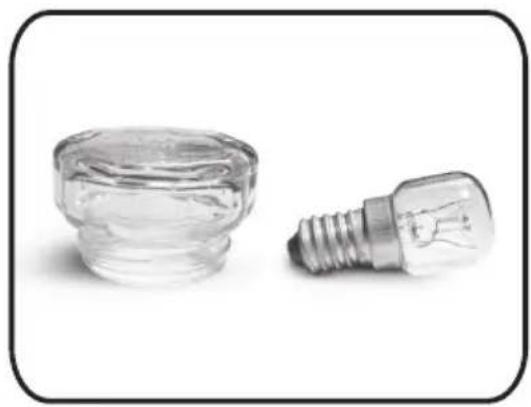

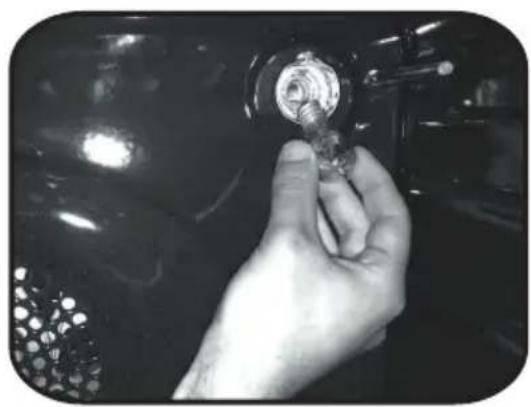

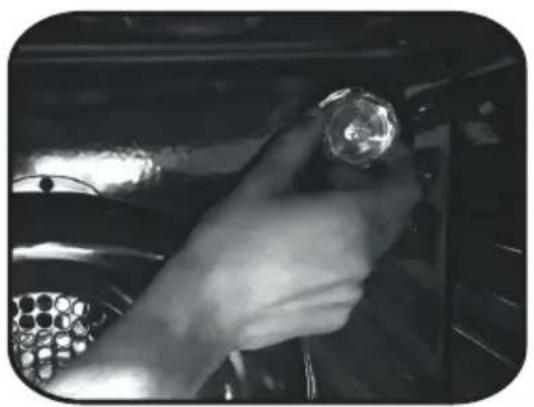

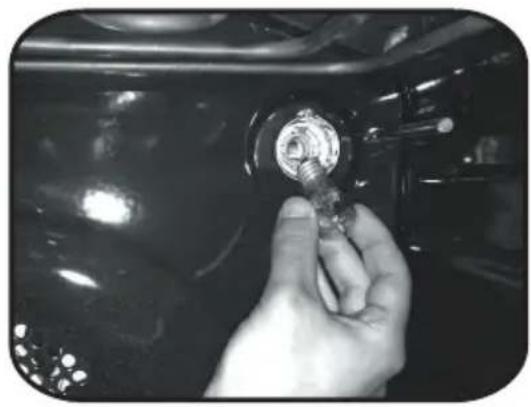

• Changing the bulb

Troubleshooting

5.1 F.A.Q.

14

1. General Instructions

We thank you for choosing one of our products. For the best results with your oven, you should read this manual carefully and retain it for future reference. Before installing the oven, take note of the serial number so that you can give it to customer service staff if any repairs are required. Having removed the oven from its packaging, check that it has not been damaged during transportation. If you have doubts, do not use the oven and refer to a qualified technician for advice. Keep all of the packaging material (plastic bags, polystyrene, nails) out of the reach of children. When the oven is switched on for the first time, strong

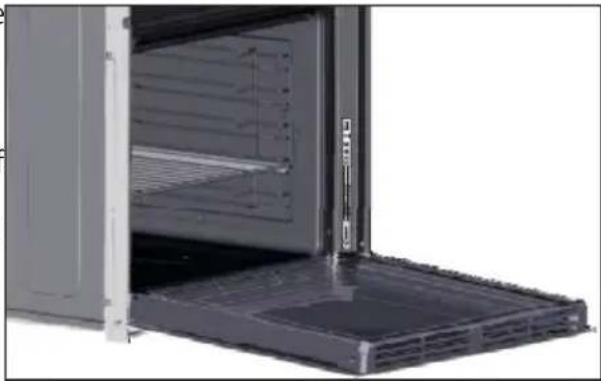

Interior view of a stainless steel oven with open door and side panel (no visible text or symbols)

smelling smoke can develop, which is caused by the glue on the insulation panels surrounding the oven heating for the first time. This is absolutely normal and, if it occurs, you should wait for the smoke to dissipate before putting food in the oven. The manufacturer accepts no responsibility in cases where the instructions contained in this document are not observed.

NOTE: the oven functions, properties and accessories cited in this manual will vary, depending on the model you have purchased.

1.1 Safety Indications

Only use the oven for its intended purpose, that is only for the cooking of foods; any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrector unreasonable usage.

The use of anyelectrical appliance implies the observance of some fundamental rules:

• do not pull on the power cable to disconnect the plug from the socket;
• do not touch the appliance with wet or damp hands or feet;
• in general the use of adaptors, multiple sockets and extension cables is not recommended;
• in case of malfunction and/or poor operation, switchoff the appliance and do not tamper with it.

1.2 Electrical Safety

ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS.

The power supply to which the oven is connected must conform with the laws in force in the country of installation. The manufacturer accepts no responsibility for any damage caused by the failure to observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensure correct supply to the oven.

CONNECTION

The oven is supplied with a power cable that should only be connected to an electrical supply with 220-240 Vac 50 Hz power between the phases or between the phase and neutral. Before the oven is connected to the electrical supply, it is important to check:

• power voltage indicated on the gauge;
• the setting of the disconnector.

The grounding wire connected to the oven's earth terminal must be connected to the earth terminal of the power supply.

WARNING

Before connecting the oven to the powersupply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to connect the oven to the earth terminal or by an earth connection that has defective continuity.

NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalent qualifications.

1.3 Recommendations

After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.

Do not line the oven walls with aluminium foilor single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides. In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. In addition to the accessories supplied with the oven, we advise you only use dishes and baking moulds resistant to overhight temperatures.

1.4 Installation

The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.

The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Makethe openings specified on lastpage accordingtothetype of fitting.

1.5 Waste management and environmental protection

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the ovencontinuestogenerate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving more simple, moving the cooking process to start at the reduced tariff time slot.

1.6 Declaration of compliance

The parts of this appliance that may come into contact with foodstuffscomply with the provisionsof EEC Directive89/109.

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation forth this product.

2. Product Description

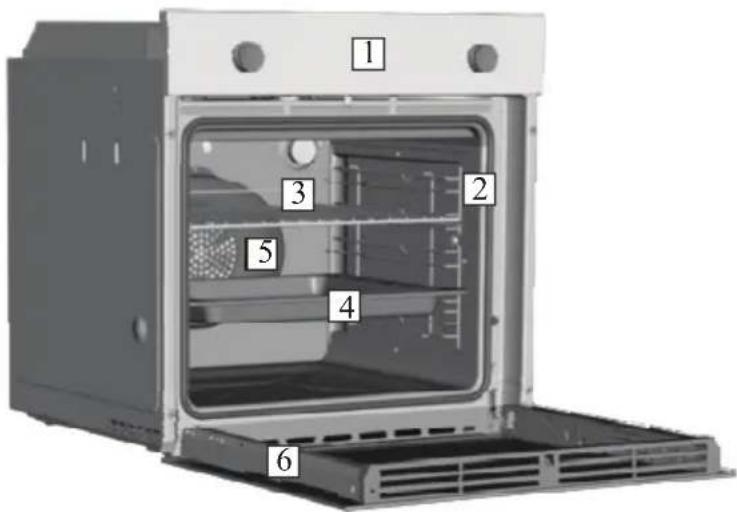

2.1 Overview

Diagram of an oven with numbered parts labeled 1 through 6, showing internal structure and ventilation slots.

1. Control panel
2. Shelf positions
   (lateral wire grid if included)
3. Metal grill
4. Drip pan
5. Fan (behind the steel plate)
6. Oven door

2.2 Accessories

1 Drip pan

3D rendering of a gray rectangular tray with side brackets and a flat center (no text or symbols)

Collects the residuesthatdripduringthecooking of foodson the grills.

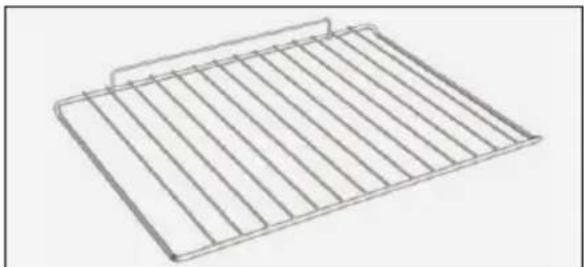

2 Metal grill

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

Holds baking trays and plates.

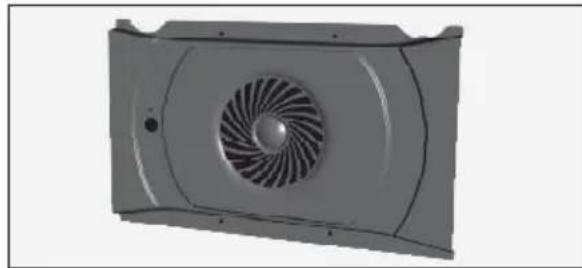

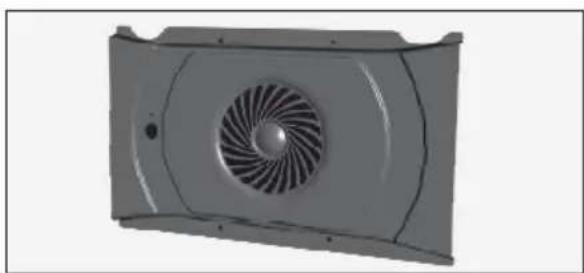

3 Chef Panel

3D rendering of a mechanical fan or vent component with no visible text or symbols

All ovens with this technology boast a function typical of professional models, the fruit of innovative technologies and the vast experience acquired by the Candy Hoover Group in this sector. The Chef Panel is an air conveyor that increases air circulation inside the oven. This allows for an increase in oven cooking performance, more standard cooking of food at all temperatures, shorter cooking times and, lastly, a uniform temperature distribution inside the oven.

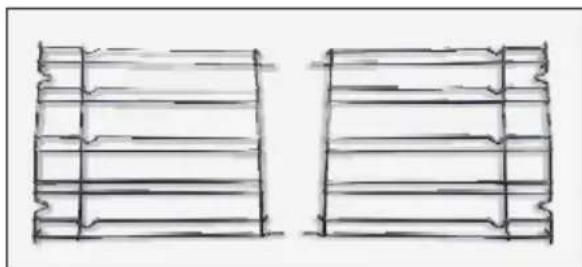

4 Lateral wire grids

Two hand-drawn sketch-style panels showing horizontal lines with serrated edges, no text or symbols present.

Lateral wire grid if included.

2.3 First Use

PRELIMINARYCLEANING

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

3. Use of the Oven

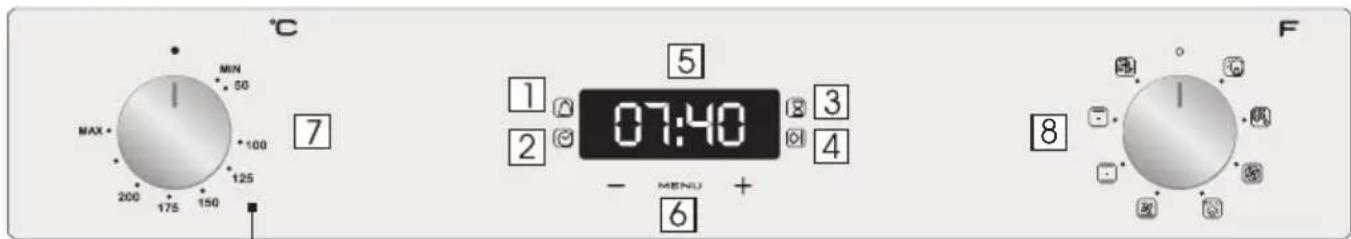

3.1 Display description

°C MIN 50 MAX 100 125 200 175 150 7 5 1 2 07:40 3 4 - MENU + 6 8 F

1. Minute minder
2. Clock setting
3. Cooking time
4. End of cooking
5. Temperature or clock display
6. LCD display adjustment controls
7. Thermostat selector knob
8. Function selector knob

WARNING : the first operation to carry out after the oven has been installed or following the interruption of power supply (this is recognizable the display pulsating and showing 12:00 ) is setting the correct time. This is achievedas follows.

• Push the central button.
• Set time with "-" "+" buttons.
• Releaseall buttons.

ATTENTION: The ovenwill only operateprovidingthe clock is set.

FUNCTION	HOW TO DEACTIVATE WHAT IT DOES WHY IT IS NEEDEDHOW TO USE
KEY LOCK	Child Lock function is activated by touching Set (+) for a minimum of 5 seconds. From this moment on all other function are locked and the display will flash STOP and preset time intermittently.	Child Lock function is deactivated by touching touchpad Set (+) again for a minimum of 5 seconds. From this moment on all functions areselectableagain.
MINUTE MINDER	Push the central button 1 timesPress the buttons "-" "+" to set the required timeRelease all the buttons	When the set time as elapsed an audible alarm is activated (this alarm will stop on its own, however it can be stopped immediately by pressing the button) SELECT.	Sounds an alarm at the end of the set time.During the process, the display shows the remaining time.	Allows to use the oven as alarm clock (could be activated either with operating the oven or with out operatingthe oven)
COOKING TIME	Push the central button 2 timesPress the buttons "-" or "+"to set the lenght of cookingrequiredRelease all buttonsSet the co function with the oven function selector	Push any button to stop the signal. Push the central button to return to the clock function.king	It allows to preset the cooking time required for the recipe chosen.To check how long is left to run press the SELECT button2Times.To alter/change the preset time press SELECT and "-" "+" buttons.	When the time is elapsed the oven will switch off automatically.Should you wish to stop cooking earlier either turn the function selector to 0, or set time to 0:00 (SELECTand "-" "+"buttons)
END OF COOKING	Push the central button 3 timesPress the buttons "-" "+" to set the time at which you wish the oven to switch offReleasethe buttonsSet the cooking function with the oven function selector.	At the times oven will switch off. To switch off manually, turn the oven function selectorto position O.	Enable you to set the end of cooking timeTo check the preset time push the central button3timesTo modify the preset time press buttons SELECT+" "+"	This function is typically used with "cooking time" function.For example if the dish has to be cooked for 45 minutes and needs to be ready by 12:30, simply select the required function, set the cooking time to 45 minutes and the end of cooking time to12:30.At the end of the cooking set time, the oven will switch off automatically and an audible alarm will ring.Cooking will start automatically at 11:45 (12:30 minus 45 mins) and will continue until the pre-set end-of-cooking-time, when the oven will switch itself off automatically.WARNING.If the END of cooking is selected without setting the length of cooking time, the oven will start cooking immediately and it will stop at the END of cooking time set.

3.2 Cooking Modes

Function Dial	T °C default	T °C range	Function (Depends on the oven model)
			LAMP: Turns on the oven light.
	40	40 ÷ 40	DEFROST: When the dial is set to this position. The fan circulates air at room temperature around the frozen food so that it defrosts in a few minutes without the protein content of the food being changed or altered.
	180	50 ÷ 240	FAN COOKING: We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells are not mixed.Allow about ten minutes extrawhen cooking foods at the same time.
	210	50 ÷ 240
*	220 50	÷ 280	CONVENTIONAL COOKING: Both top and bottom heating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditional roasting and baking. For seizing redmeats, roast beef, leg of lamb, game, bread, foil wrapped food (papillotes), flaky pastry. Place the food and its dish on a shell in mid position.
	210 50	÷ 230	BOTTOM: Using the lower element. Ideal for cooking all pastry based dishes. Use this for flans, quiches, tarts, pate and any cooking that needs more heat from below.
	210	50 ÷ 230	FAN + LOWER ELEMENT: The bottom heating element is used with the fan circulating the air inside the oven. This method is ideal for juicy fruit flans, tarts, quiches and pâté.It prevents food from drying and encourages rising in cakes, bread dough and other bottom-cooked food.Place the shelf in the bottom position.
	200	150 ÷ 220	FAN ASSISTED GRILL: use the turbo-grill with the door closed.The top heating element is used with the fan circulating the air inside the oven. Preheating is necessary for red meats but not for white meats. Ideal for cooking thick food items, whole pieces such as roast pork, poultry, etc. Place the food to be grilled directly on the shelf centrally, at the middle level. Slide the drip tray under the shelf to collect the juices. Make sure that the food is not too close to the grill. Turn the foodover halfway through cooking.
	L3	L1 ÷ L5	GRILL: use the grill with the door closed.The top heating element is used alone and you can adjust the temperature. Five minutes preheating is required to get the elements red-hot. Success is guaranteed forgrills, kebabs and gratin dishes. White meats should be put at a distance from the grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneath. The oven has two grill positions:Grill: 2140 W Barbecue: 3340 W
	220 50	÷ 230	PIZZA - With this function hot air circulated in the oven to ensure perfect result fordishessuch as pizzaoor cake.
*	190 50	÷ 230	The "ECO" function allows you to cook in a healthier way, by reducing the amount of fat or oil required. Thanks to the use of the grill and fan combined with a pulsating cycle of air, it will retain the moisture content of the food, grilling the surface and using a shorter cooking time, without compromising on taste.It is particularly suitable for cooking meat, roasted vegetables and omelettes. The cycle of pulsed air keeps the humidity inside the oven and the moisture content of the food, preserving the nutritional values and ensuring a rapid uniform cooking process.Try all your recipes and reduce the amount of dressing you usually use and experience the lightness of this new function!

*Tested in accordance with the CENELEC EN 60350-1 used for definition of energy class.

4. Oven cleaning and maintenance

4.1 General notes on cleaning

The lifecycle of the appliance can be extended through regular cleaning. Wait for the oven to cool before carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. Use only water, soap or bleach-based detergents (ammonia).

GLASS PARTS

It is advisable to clean the glass window with absorbent kitchen towel after every use of the oven. To remove more obstinate stains, you can use a detergent-soaked sponge, well wrung out, and then rinse with water.

OVENWINDOW SEAL

If dirty, theseal can be cleaned with a slightlydampsponge.

ACCESSORIES

Clean accessories with a wet, soapy sponge before rinsing and drying them: avoid using abrasive detergents.

DRIP PAN

After using the grill, remove the pan from the oven. Pour the hot fat intoa container and wash the pan in hot water, using a spongeandwashing-up liquid.

If greasy residues remain, immerse the pan in water and detergent. Alternatively, you can wash the pan in the dishwasheroruseacommercial oven detergent. Never put a dirty pan back intotheoven.

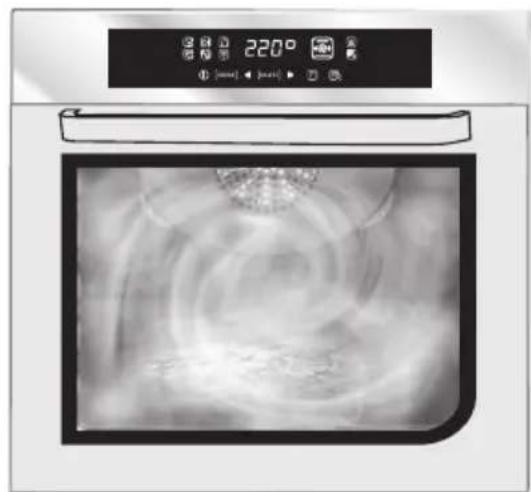

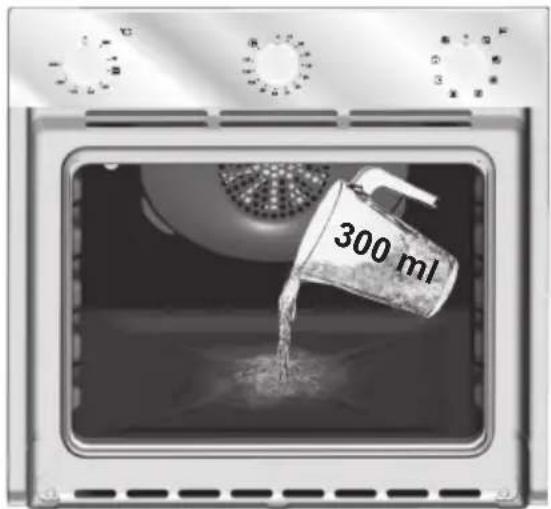

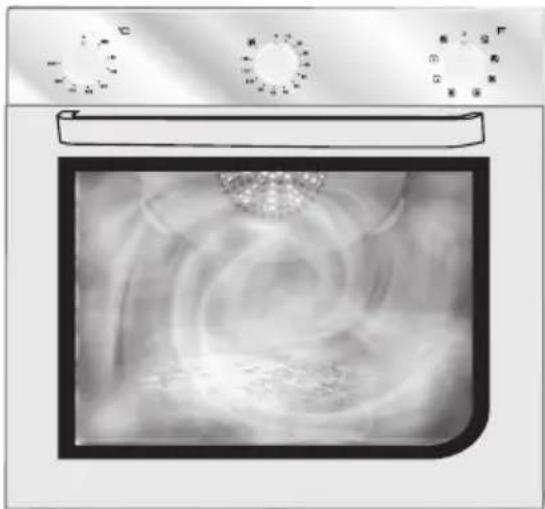

4.2 Steam Cleaning

This procedure uses steam to help remove remaining fat and food particles from the oven.

1. Pour 300 ml of water into the bottom of the oven.
2. Set the oven function to Static (☐) or Bottom heater (☐).
3. Set the temperature at 90°C.
4. Allow the program to operate for 30 minutes.
5. After 30 minutes switch off the program and allow the oven to cool down.
6. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

Warning: Make sure that the appliance is cool before you touch it.

Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

300 ml

Interior view of a microwave oven with control knobs and a close-up of the interior (no visible text or symbols)

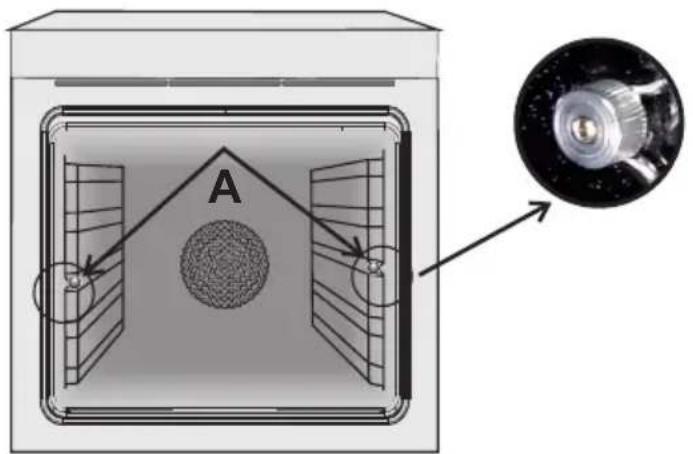

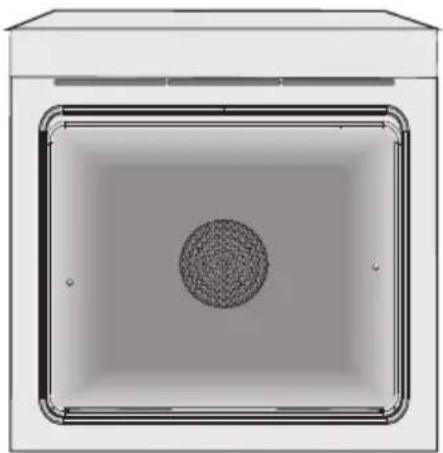

REMOVAL AND CLEANINGOFTHESIDERACKS

1. Unscrewtheboltinananti-clockwise direction.
2. Remove the side racks by pulling them towards you.
3. Clean the side racks in a dishwasherorwithawet sponge andthendrythemimmediately.
4. Having cleaned the side racks, put them back in and reinsert the bolts, ensuring that they are fully tightened.

A

Top-down view of a rectangular enclosure with a central circular pattern and no visible text or symbols

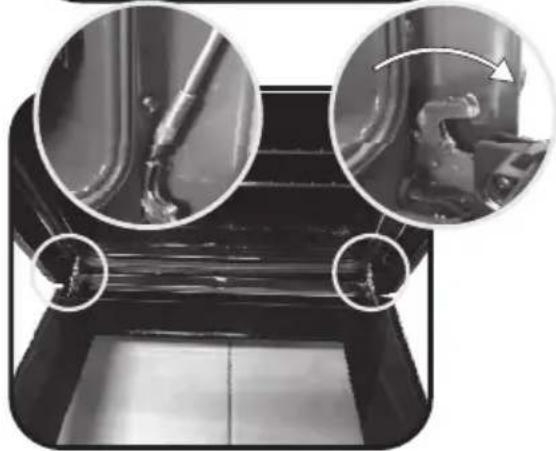

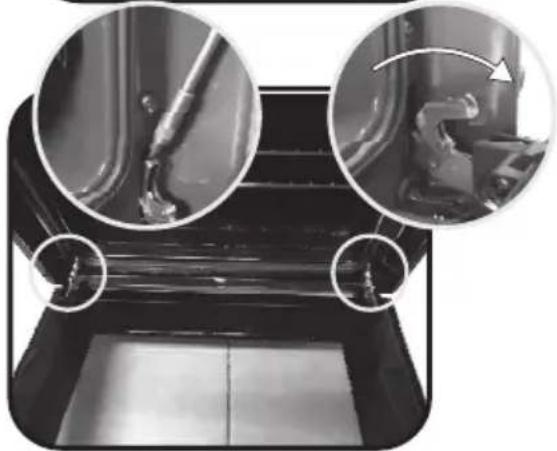

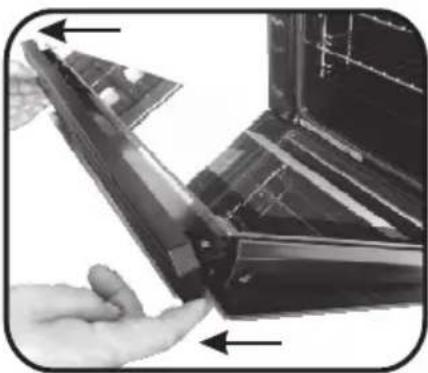

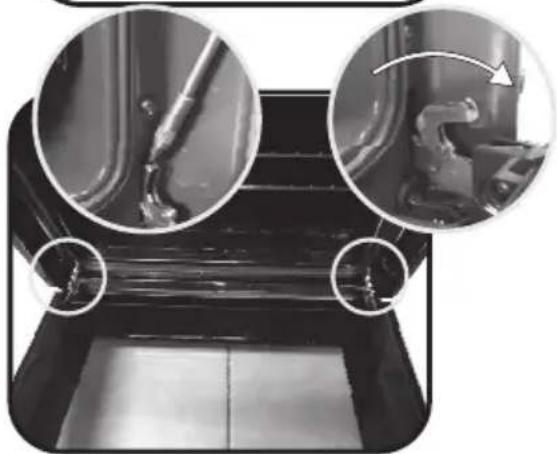

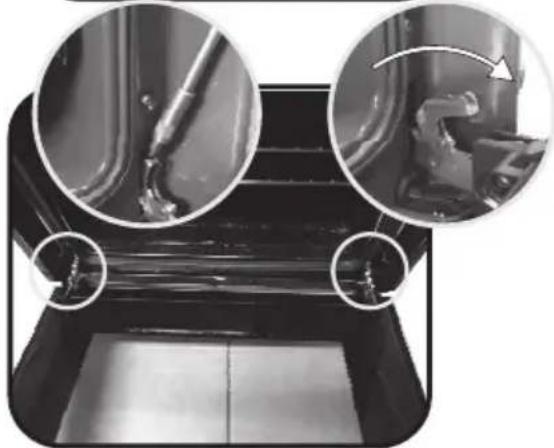

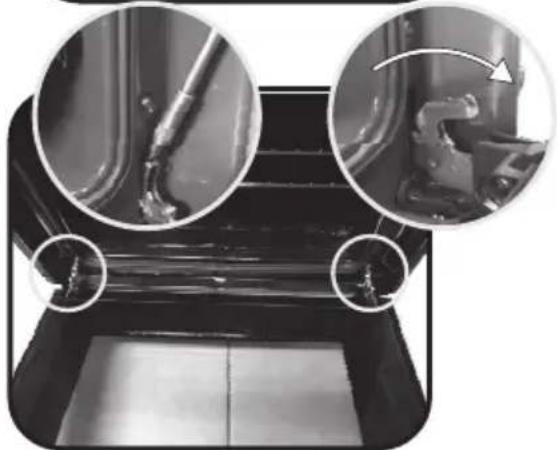

REMOVAL OF THE OVENWINDOW

1. Open the front window.
2. Open the clamps of the hinge housing on the right and left side of the front window by pushing them downwards.
3. Replacethewindowby carryingouttheprocedureinreverse.

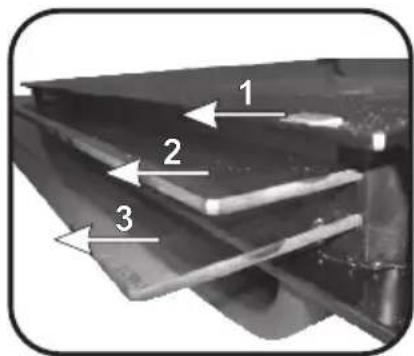

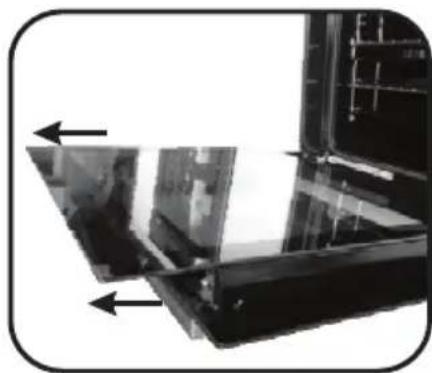

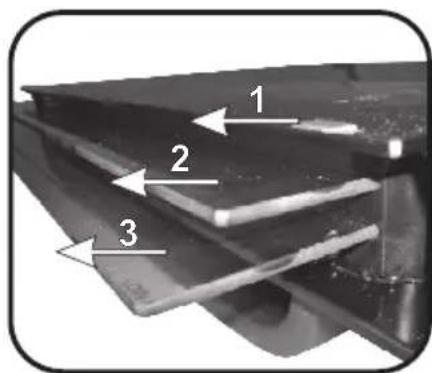

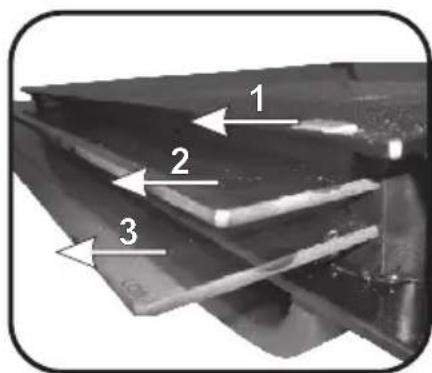

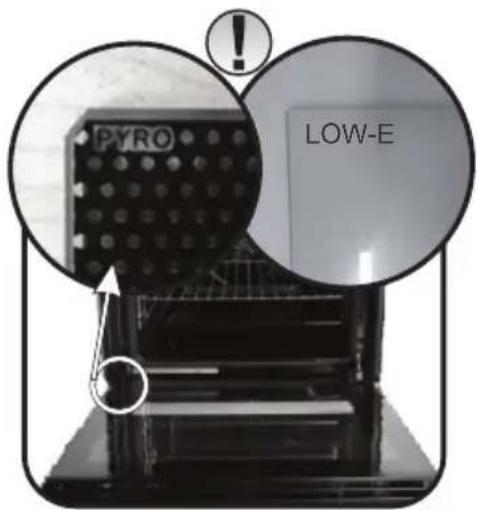

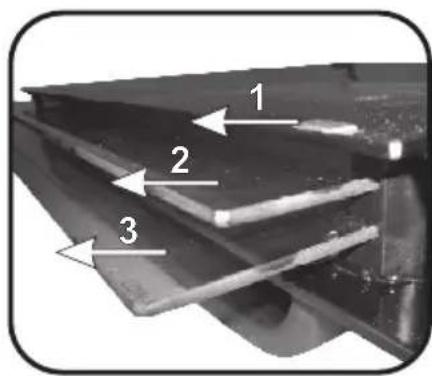

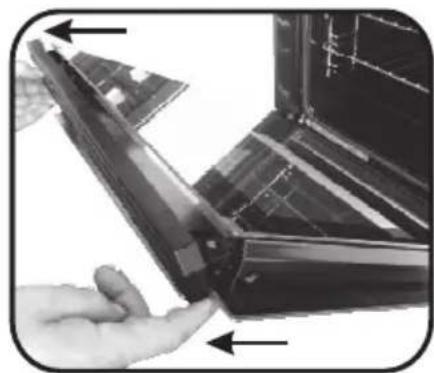

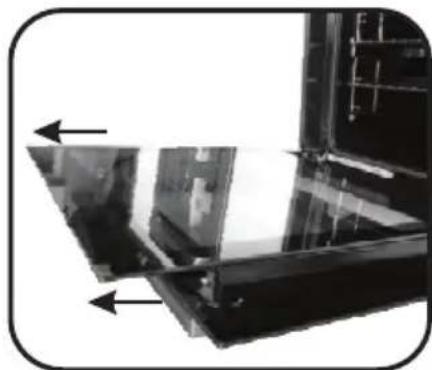

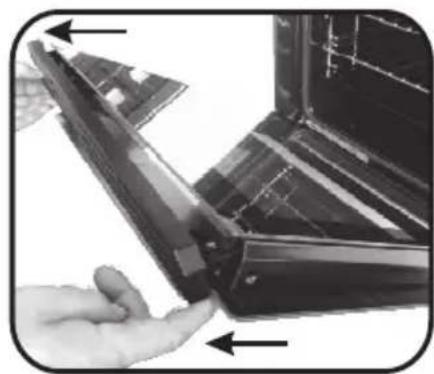

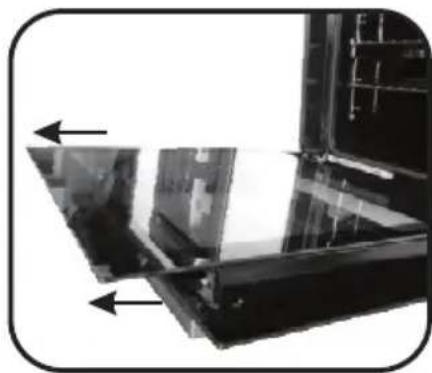

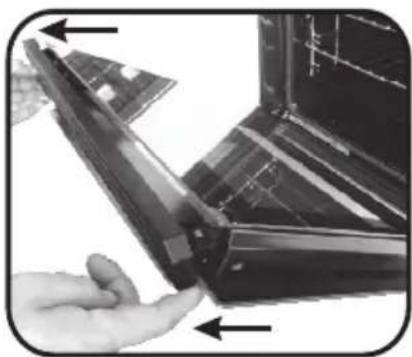

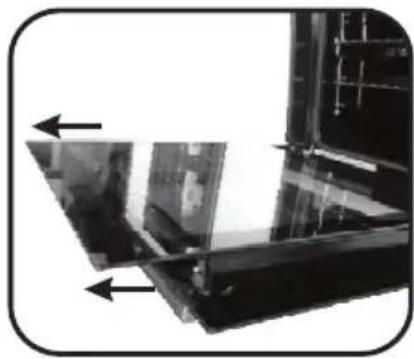

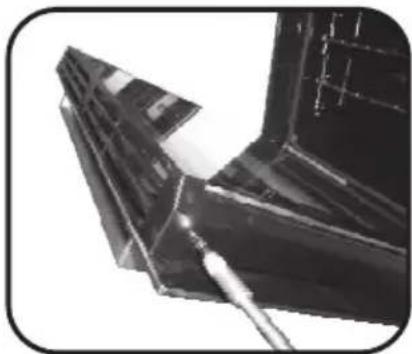

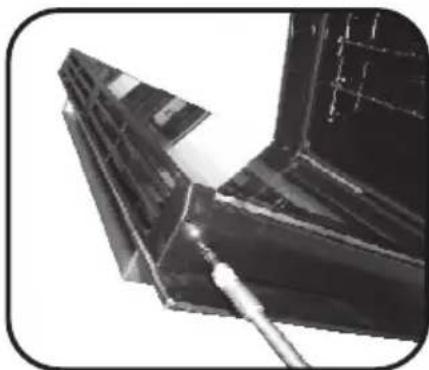

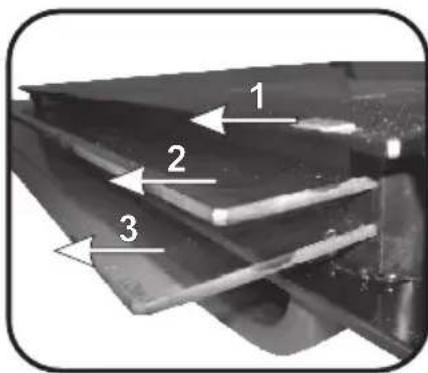

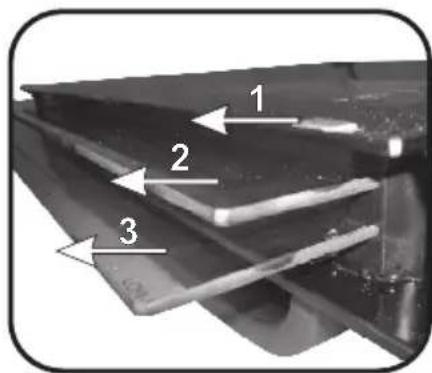

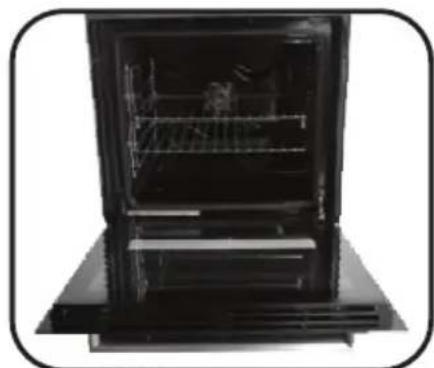

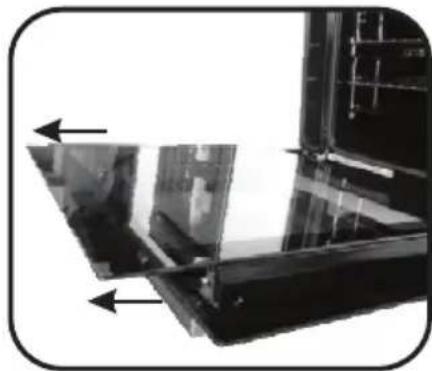

REMOVAL AND CLEANINGOFTHEGLASSDOOR

1. Open the ovendoor.

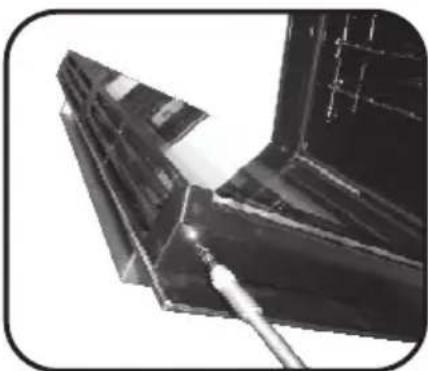

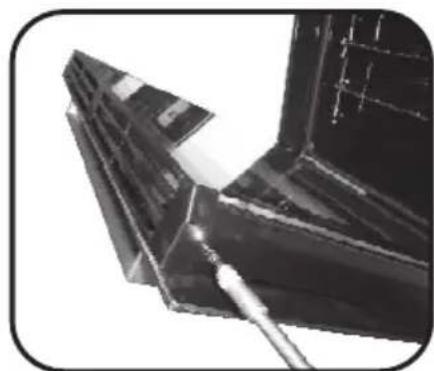

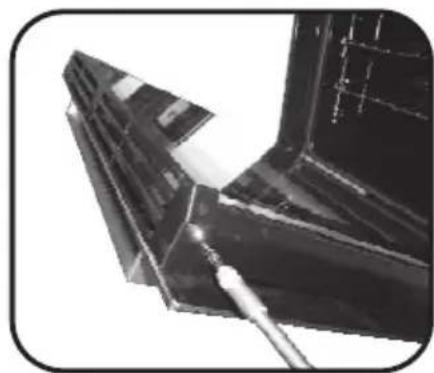

   2.3.4. Lock the hinges, remove the screws and remove the upper metalcoverbypullingitupwards.
   5.6. Remove the glass, carefully extracting it from the oven door (NB: in pyrolytic ovens, also remove the secondandthirdglass(if present)).
2. Atthe end of cleaning or substitution, reassemble the parts in reverseorder.

On all glass, the indication "Pyro" must be legible and positioned on the left side of the door, close to the left-hand lateralhinge. In this way,the printed label of the first glass will be inside the door.

1.

Interior view of a black oven or oven unit with visible internal structure and ventilation grilles (no text or symbols)

5.

Close-up of a metallic mechanical component with two arrows pointing to features (no visible text or symbols)

2.

Close-up of mechanical components with circular insets showing internal parts (no visible text or symbols)

6.

1 2 3

3.

Close-up of a metallic mechanical component with a tool inserted, showing no visible text or symbols.

7.

PYRO LOW-E

4.

Close-up of a hand holding a flexible electronic device with a close-up view of its internal components (no text or symbols visible)

CHANGING THE BULB

1. Disconnecttheovenfromthemainssupply.
2. Undo the glass cover, unscrewthebulbandreplace it with a new bulb of the same type.
3. Once the defectivebulbisreplaced, replacetheglasscover.

Close-up of a hand holding a small metallic object inside a vehicle (no visible text or symbols)

Close-up of a hand holding a small metallic object, possibly a knob or dial, against a dark background (no visible text or symbols)

Close-up of a mechanical component with a circular perforated part and a mounted gauge (no visible text or symbols)

Two transparent plastic components: a cylindrical cap and a standard light bulb, shown against a plain background (no text or symbols visible)

5. Troubleshooting

5.1 FAQ

PROBLEM POSSIBLE CAUSE SOLUTION
The oven does not heat up	The clock is not set Set the	clock
The oven does not heat up	The child lock is on	Deactivate the child lock
The oven does not heat up	A cooking function and temperature has not been set	Ensure that the necessary settings are correct
No reaction of the touch user interface	Steam and condensation on the user interface panel	Clean with a microfiber cloth the user interface panel to remove the condensation layer

Exterior view of a modern kitchen oven with open door and side panel (no visible text or symbols)

3D rendering of a gray rectangular tray with cutouts (no text or symbols)

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

Two hand-drawn sketch-style grid-like structures with no text or symbols

Grille fil latéral si inclus.

Interior view of a microwave oven with control knobs and a visible dish (no text or symbols)

4.3 Entretien

RETRAIT ET NETTOYAGEDESGRADINSFILS

Top-down view of a rectangular enclosure with a central circular pattern and a textured inner area (no text or symbols)

RETRAIT DE LA PORTE DU FOUR

Interior view of a black oven or oven with visible internal structure and ventilation grilles (no text or symbols)

1.

Close-up of a mechanical component with two arrows pointing to specific areas (no visible text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of parts (no visible text or symbols)

1.

1 2 3

1.

Close-up of a metallic structural component with visible steel beams and joints (no text or symbols)

1.

PYRO LOW-E

1.

Close-up of a hand interacting with a dark plastic panel or bracket (no visible text or symbols)

FR 27

REMPLACEMENTDE L'AMPOULE

Close-up of a hand holding a small metallic object inside a vehicle (no visible text or symbols)

Close-up of a hand holding a small metallic object, possibly a knob or dial, against a dark background (no visible text or symbols)

Interior view of a laboratory or industrial chamber with circular perforated elements and two circular light sources (no visible text or symbols)

Two transparent plastic components: a cylindrical lid and a standard incandescent light bulb, shown against a plain background (no text or symbols visible).

5. Dépannage

5.1 FAQ

Exterior view of a modern kitchen oven with open door and side panel (no visible text or symbols)

3D rendering of a gray rectangular tray or baking tray with side brackets (no text or symbols)

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

3 Chef Panel

3D rendering of a gray industrial fan or vent with a circular vent, shown from an angle (no text or symbols visible)

Two identical wireframe diagrams of rectangular grids, no text or symbols present

Interior view of a microwave oven with visible fan and control knobs (no text or symbols)

Simple 3D diagram of a square frame with a central circular pattern, no text or symbols present.

RIMOZIONEDELLOSPORTELLO DEL FORNO

Interior view of a black appliance with visible internal structure and ventilation grilles (no text or symbols)

5.

Close-up of a metallic panel or fixture with two arrows pointing to specific components (no visible text or symbols)

2.

Close-up of mechanical components with circular insets showing internal parts (no visible text or symbols)

6.

1 2 3

3.

Close-up of a metallic structural joint or bracket component (no visible text or symbols)

7.

PYRO LOW-E

4.

Close-up of a hand holding a dark plastic panel with arrows indicating direction (no text or symbols visible)

Close-up of a hand holding a small metallic object inside a vehicle (no visible text or symbols)

Close-up of a hand holding a small mechanical component, possibly a valve or knob, inside a dark vehicle (no visible text or symbols)

Interior view of a laboratory or industrial facility with circular components and a central light source (no visible text or symbols)

Two transparent plastic components: a cylindrical lid and a standard incandescent light bulb, both shown against a plain background (no text or symbols visible).

Interior view of a stainless steel oven with open door and side panel (no visible text or symbols)

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

3D rendering of a gray rectangular tray with dashed side panels (no text or symbols)

3D rendering of a gray industrial fan or vent with a circular grille and mounting flanges (no text or symbols visible)

Interior view of a microwave oven with visible cooling fans and fan controls (no text or symbols)

4.3 Mantenimiento

Top-down view of a square enclosure with a central circular pattern (no text or symbols)

Interior view of a black oven with visible grating and insulation (no text or symbols)

5.

Close-up of a metallic mechanical component with two arrows pointing to features (no visible text or symbols)

2.

Close-up of mechanical components with circular insets showing close-ups of parts (no visible text or symbols)

6.

1 2 3

3.

Close-up of a metallic mechanical component with a tool inserted, showing no visible text or symbols.

7.

PYRO LOW-E

4.

Close-up of a hand holding a flexible electronic device with a close-up view of its screen (no text or symbols visible)

Close-up of a hand holding a small metallic object inside a vehicle (no visible text or symbols)

Close-up of a hand holding a small metallic object, possibly a knob or dial, against a dark background (no visible text or symbols)

Interior view of a dimly lit industrial or laboratory chamber with circular vent and two circular control elements (no visible text or symbols)

Two transparent plastic components: a cylindrical cap and a standard light bulb, shown against a plain background (no text or symbols visible)

Exterior view of a modern stainless steel oven with open lid and metal tray (no visible text or symbols)

3D rendering of a gray rectangular tray or baking tray with side brackets (no text or symbols)

Line drawing of a rectangular metal grate or rack with vertical slats (no text or symbols)

3D rendering of a gray industrial fan or vent with a circular blade and central hub (no text or symbols visible)

Two identical wireframe diagrams of rectangular frames, no text or symbols present

Interior view of a microwave oven with a close-up of the interior (no visible text or symbols)

4.3 Wartung

Top-down view of a rectangular enclosure with a central circular pattern (no text or symbols)

ENTFERNEN DESBACKOFENFENSTERS

Interior view of a black oven or oven with visible internal structure and ventilation grilles (no text or symbols)

1.

Close-up of a metallic panel or fixture with two arrows pointing to specific components (no visible text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of pipe and valve (no text or symbols visible)

1.

1 2 3

1.

Close-up of a metallic mechanical component with visible cutting edge and base (no text or symbols)

1.

PYRO LOW-E

1.

Close-up of a hand holding a flexible electronic device with visible internal components (no text or symbols)

WECHSELNDER GLÜHBIRNE

Close-up of a hand holding a small metallic object inside a vehicle (no visible text or symbols)

Close-up of a hand holding a small metallic object, possibly a knob or dial, against a dark background (no visible text or symbols)

Interior view of a laboratory or industrial chamber with circular perforated elements and two circular light sources (no visible text or symbols)

Two transparent plastic components: a cylindrical lid and a standard incandescent light bulb, shown against a plain background (no text or symbols visible).

5. Fehlerbehebung

Exterior view of a modern kitchen oven with metal grilles and a red label on the door (no visible text or symbols)

Labeled diagram of an oven with numbered parts for identification

3D rendering of a gray rectangular tray with dashed cutouts (no text or symbols)

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

3D rendering of a gray industrial fan or vent with a circular blade and central hub (no text or symbols visible)

Two hand-drawn sketch-style panels showing horizontal lines with serrated edges, no text or symbols present.

Interior view of a microwave oven with control knobs and a close-up of the interior (no visible text or symbols)

YAN RAFLARIN ÇIKARILMASI VE TEMİZLENMESİ

Top-down view of a rectangular enclosure with a central circular pattern (no text or symbols)

FIRIN KAPAĞININ SÖKÜLMESİ

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a mechanical component with two arrows pointing to specific areas (no visible text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of parts (no visible text or symbols)

1.

1 2 3

1.

Close-up of a metallic mechanical component with a tool inserted, showing no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand holding a flexible electronic device with a close-up view of internal components (no text or symbols visible)

Close-up of a hand holding a small metallic object inside a vehicle (no visible text or symbols)

Close-up of a hand holding a small metallic object, possibly a knob or dial, against a dark background (no visible text or symbols)

Close-up of a mechanical component with a circular perforated part and a mounted gauge (no visible text or symbols)

Two transparent plastic components: a cylindrical cap and a standard light bulb, shown against a plain background (no text or symbols visible)

5. Sorun Giderme

5.1 Sorun giderme

Tel: [phone] • Fax: [phone]

www.candy-group.com

GARANTI BELGESI

ANKASTRE FIRIN

Interior view of a stainless steel oven with open door and side panel (no visible text or symbols)

Labeled diagram of an oven with numbered parts for identification

3D rendering of a gray rectangular baking tray with side brackets (no text or symbols)

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

3D rendering of a mechanical fan component with visible blades and mounting holes (no text or symbols)

Two hand-drawn sketch-style grid-like structures with no text or symbols

X-ray image of a vintage kitchen appliance showing internal components (no visible text or labels)

4.3 Údržba

DEMONTÁŽ A ČIŠTĚNÍBOČNIC

Top-down view of a rectangular chamber with a central spherical object, no text or symbols visible

DEMONTÁŽ OKNA TROUBY

Black oven with open door and side panel, no visible text or symbols

1.

Close-up of a metallic mechanical component with two arrows pointing to features (no visible text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of a pipe and valve (no text or symbols visible)

1.

1 2 3

1.

Close-up of a metallic mechanical component with a tool inserted, no visible text or symbols

1.

PYRO LOW-E

1.

Close-up of a hand holding a flexible electronic device with visible internal components (no text or symbols)

VÝM ěNA ŽÁROVKY

Close-up of a hand holding a small metallic object inside a vehicle (no visible text or symbols)

Close-up of a hand holding a small metallic object, possibly a knob or dial, against a dark background (no visible text or symbols)

Close-up of a mechanical component with a circular perforated part and a circular head, under bright light (no visible text or symbols)

Two transparent plastic components: a cylindrical cap and a standard light bulb, shown against a plain background (no text or symbols visible)

5. Řešení potíží

Exterior view of a modern kitchen oven with open door and side panel (no visible text or symbols)

Labeled diagram of an oven with numbered components for identification

3D rendering of a gray rectangular tray or baking tray with dashed edges (no text or symbols)

Line drawing of a rectangular metal grate or rack structure (no text or symbols)

3D rendering of a gray industrial fan or vent with a spiral blade pattern on the side (no text or symbols visible)

Two hand-drawn sketch-style grid-like structures with no text or symbols

220° [mm] [mm] 300 ml

Interior view of a microwave oven with digital temperature display (no text or symbols on the oven itself)

4.3 Konserwacja

Top-down view of a rectangular enclosure with a central circular pattern (no text or symbols)

WYJMOWANIEDRZWICZEK PIEKARNIKA

Black oven with open door and side panel, no visible text or symbols

1.

Close-up of a metallic panel or bracket with two arrows pointing to specific components (no visible text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of pipe and bracket (no text or symbols visible)

1.

1 2 3

1.

Close-up of a metallic structural component with visible joints and grooves (no text or symbols)

1.

PYRO LOW-E

1.

Close-up of a hand holding a dark rectangular object with directional arrows indicating movement or assembly (no visible text or symbols)

WYMIANA ŻARÓWKI

Close-up of a hand holding a small metallic object inside a vehicle (no visible text or symbols)

Close-up of a hand holding a small metallic object, possibly a knob or dial, against a dark background (no visible text or symbols)

Close-up of a mechanical component with a circular perforated part and a mounted gauge (no visible text or symbols)

Two transparent plastic components: a cylindrical cap and a standard light bulb, shown against a plain background (no text or symbols visible)

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

FR
