USER MANUAL Airblade HU02 DYSON
Free 5 year limited guarantee
Register your guarantee at www.dysonairblade.com
dyson airblade
THANK YOU FOR CHOOSING TO BUY A DYSON AIRBLADE V HAND DRYER
DYSON CUSTOMER CARE
Your Dyson hand dryer is covered for 5 years from the date of purchase, subject to the terms of the limited guarantee.
Register your guarantee now at www.dysonairblade.com
If you have any questions about your Dyson hand dryer, call the Dyson Helpline with your serial number and details of where and when you bought the unit.
WARNING
A comprehensive installation guide is enclosed with the hand dryer packaging. This contains detailed information on the correct installation of the unit, which MUST be adhered to completely, including routing of electrical cables. Damage caused by incorrect installation is not covered by your guarantee. Installation MUST be by a qualified electrician.
The instructions in this manual and the installation guide must be followed completely, as failure to do so may result in incorrect operation, damage to property and/or personal injury.
Dyson will not be held liable for any damage to properly or personal injury, or any loss of business or revenue, if you, your staff, your installer or service engineers have not followed the instructions given in this manual and the installation guide.
MERCI D'AVOIR CHOISI LE SÈCHE-MAINS DYSON AIRBLADE V
SERVICE CLIENTS DYSON
ZAHVALUJEIMO VAM NA KUPNII SUŠILA ZA RUKE DYSON AIRBLADE V
DYSON KORISNIČKA PODRŠKA
DYSON-ASIAKASPÄLYELU
PAKKA PÉR FYRIR AD VELJA DYSON AIRBLADE V HANDPURRKU
PJÓNUSTA VID VIDSKIPTAVINI DYSON
TACK FÖR ATT DU VALT ATT KÖPA EN DYSON AIRBLADE V HANDTORK
DYSON KUNDTJÄNST
THANK YOU FOR CHOOSING TO BUY A DYSON AIRBLADE V HAND DRYER
DYSON CUSTOMER CARE
Your hand dryer is covered for 5 years from the date of purchase, subject to the terms of the limited guarantee.
Register your warranty now at www.dysanairblade.com
If you have any questions about your hand dryer, call the Dyson Helpline with your serial number and details of where and when you bought the unit.
WARNING
A comprehensive installation guide is enclosed with the hand dryer packaging. This contains detailed information on the correct installation of the unit, which MUST be adhered to completely, including routing of electrical cables. Damage caused by incorrect installation is not covered by your warranty. Installation and servicing MUST be by a qualified electrician and plumber.
The instructions in this manual and the installation guide must be followed completely, as failure to do so may result in incorrect operation, damage to property and/or personal injury. It is recommended that an isolation valve is fitted with this product during installation.
Dyson will not be held liable for any damage to property or personal injury, or any loss of business or revenue, if you, your staff, your installer or service engineers have not followed the instructions given in this manual and the installation guide.
NOUS VOUS REMERCIONS D'AVOIR CHOISI D'ACHETER UN SÉCHE-MAINS DYSON AIRBLADE V ASSISTANCE À LA CLIENTÈLE DYSON
DYSON AIRBLADE V HAND DRYER mup'nnaw by ntn
DYSON 5w mmphn mww
Note your serial number here for future reference.
Your serial number can be found on the rating plate which is on the base of the hand dryer. It is also on the large information sticker on the front of the unit when it is unpacked.
Note your serial number here for future reference.
Your serial number can be found on the bottom right hand corner of the backplate, on a registration sheet in the box, and also on the large information sticker which can be found around the tap when the unit is unpacked.
This illustration is for example purposes only.
This illustration is for example purposes only.
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
BEFORE INSTALLING OR USING THIS UNIT READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN THIS MANUAL AND THE INSTALLATION GUIDE
WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
- Do not allow the hand dryer to be used for any purpose other than drying hands. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
- Before servicing, switch the power off at the service panel. Ensure the switch is locked to prevent the power from being switched on accidentally. If the means of switching off the power cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel
- Do not use any jetwash equipment for cleaning on or near this unit.
-
All metal parts in contact with this unit MUST be earthed, including any wall covering.
-
Do not seal the unit to the wall.
DO NOT USE ANY JETWASH EQUIPMENT FOR CLEANING ON OR NEAR THIS UNIT.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS APPLIANCE WITH ANY SOLID-STATE SPEED CONTROL DEVICE
CAUTION
Your hand dryer should be located indoors. Operating temperature range 0^ C ( 32^ F) to 40^ C ( 104^ F).
To reduce the risk of fire or electric shock, do not expose the internal mechanisms/components of this unit to moisture.
FR
LISEZ ATTENTIVEMENT ET CONSERVEZ CES CONSIGNES
CONSIGNES DE SÉCURITÉ IMPORTANTES
AVANT D'INSTALLER OU D'UTILISER CET APPAREIL, LISEZ TOUTES LES INSTRUCTIONS ET LES MISES EN GARDE FIGURANT DANS CE MANUEL ET LE GUIDE D'INSTALLATION
VAŽNE SIGURNOSNE UPUTE
PRIJE UGRADNJE ILI KORISTENJA OVOG UREDAJA PROČITAJTE SVE UPUTE I OZNAKE UPOZORENJA U OVOM PRIRUČNIKU I VODIĆU ZA UGRADNJU.
PRI UPORABI ELEKTRIČNOG APARATA UVIJEK JE POTREBNO POŠTIVATI OSNOVNE MJERE OPREZA, UKLIJUČUJUĆI SLJEDEĆE:
⚠ UPOZORENJE
DA BISTE SMANJILI RIZIK OD VATRE, ELEKTRIČNOG UDARA ILI OSOBNIH OZLJEDA, PRIDRŽAVAJTE SE SLJEDEĆIH STAVKI:
DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY
PRED MONTÁŽOU ALEBO POUŽITÍM ZARIADENIA SI PREČÍTAJTE VŠETKY POKYNY A VAROVNÉ OZNAČENIA V TOMTO NÁVODE A NÁVODE NA MONTÁŽ.
PRI POUŽÍVANÍ ELEKTRICKÉHO ZARIADENIA VŽDY DODRŽIAVAJTE NASLEDUJÚCE ZÁKLADNÉ OPATRENIA:
⚠️ VÝSTRAHA
V ZÁUJME ZNÍŽENIE RIZIKA VZNIKU POŽIARU, ZÁSAHU ELEKTRICKÝM PRÚDOM ALEBO ÚRAZU DBAJTE NA NASLEDUJÚCE SKUTOČNOSTI:
ARAHAN KESELAMATAN PENTING
SEBELUM MEMASANG ATAU MENGGUNAKAN UNIT INI, BACA SEMUA ARAHAN DAN TANDA AWASAN DALAM MANUAL INI DAN PANDUAN PEMASANGAN.
APABILA MENGGUNA PERKAKAS ELEKTRIK, AWASAN ASAS HARUS DIPATUHI TERMASUK PERKARA BERIKUT:
! AMARAN
UNTUK MENGURANGKAN RISIKO KEBAKARAN, RENJATAN ELEKTRIK ATAU KECEDERAAN KEPADA TUBUH BADAN, PATUHI PERKARA BERIKUT:
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
BEFORE INSTALLING OR USING THIS UNIT READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN THIS MANUAL AND THE INSTALLATION GUIDE
WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
- Do not allow the hand dryer to be used for any purpose other than drying hands. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
- Before servicing, switch the power off at the service panel. Ensure the switch is locked to prevent the power from being switched on accidentally. If the means of switching off the power cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
- Do not use sealant when fixing the unit to the wall.
- All metal parts in contact with this unit MUST be grounded, including any wall covering.
DO NOT USE ANY PRESSURE WASHING EQUIPMENT FOR CLEANING ON OR NEAR THIS UNIT.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS APPLIANCE WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
WARNING: RISK OF ELECTRIC SHOCK!
All electrical repair work must be done by qualified electrician(s) or Dyson Service Engineers in accordance with all federal, state and local laws and applicable codes and standards, including fire-rated construction. If casing is removed or handled improperly the internal components of the unit may cause harm or become permanently damaged.
CAUTION
Your hand dryer should be located indoors. Operating temperature range 32^ F ( 0^ C) to 104^ F ( 40^ C). To reduce the risk of fire or electric shock, do not expose the internal mechanisms/components of this unit to moisture.
WARNING
This unit may contain substances known to the state of California to cause cancer, birth defects and other reproductive harm. Wash hands after installation or repair of this unit.
USES
LEA Y GUARDE ESTAS INSTRUCCIONES
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
BEFORE INSTALLING OR USING THIS UNIT READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN THIS MANUAL AND THE INSTALLATION GUIDE
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. The appliance can be used by children
aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
- Do not allow the hand dryer to be used for any purpose other than drying hands. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
- Before servicing, switch the power off at the service panel. Ensure the switch is locked to prevent the power from being switched on accidentally. If the means of switching off the power cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
- Do not use sealant when fixing the unit to the wall.
- All metal parts in contact with this unit MUST be grounded, including any wall covering.
DO NOT USE ANY PRESSURE WASHING EQUIPMENT FOR CLEANING ON OR NEAR THIS UNIT.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS APPLIANCE WITH ANY SOLID-STATE SPEED CONTROL DEVICE
WARNING: RISK OF ELECTRIC SHOCK!
All electrical repair work must be done by qualified electrician(s) or Dyson Service Engineers in accordance with all federal, state and local laws and applicable codes and standards, including fire-rated construction. If casing is removed or handled improperly the internal components of the unit may cause harm or become permanently damaged.
CAUTION
Your hand dryer should be located indoors. Operating temperature
range 32°F (0°C) to 104°F (40°C). To reduce the risk of fire or electric shock, do not expose the internal mechanisms/components of this unit to moisture.
CAFR
LIRE ET CONSERVER CES INSTRUCTIONS
CONSIGNES DE SÉCURITÉ IMPORTANTES
AVANT D'INSTALLER OU D'UTILISER CET APPAREIL, VOUS ÉTES TENU DE LIRE TOUTES LES INSTRUCTIONS ET MISES EN GARDE CONTENUES DANS LE PRÉSENT GUIDE ET CELUI DE L'INSTALLATION
LORSQUE VOUS UTILISEZ UN APPAREIL ÉLECTRIQUE, VOUS DEVEZ TOUJOURS SUIVRE LES PRÉCAUTIONS DE BASE SUIVANTES :
⚠ CONSIGNES DE SÉCURITÉ IMPORTANTES
POUR RÉDUIRE TOUT RISQUE D'INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURE, VOUS ÊTES TENU DE RESPECTER LES INSTRUCTIONS SUIVANTES :
LOOKING AFTER YOUR DYSON HAND DRYER
HOW TO USE
Place your hands beneath the Dyson hand dryer and it will start automatically, creating sheets of air to scrape water from your hands.
For best dry time results:
- Keep your hands flat and parallel to the machine surface approximately 5mm from the blade, drawing your hands through the airflow from your wrists to finger tips.
- Move your hands slowly through the airflow keeping a consistent speed, approx. 2.5 seconds per side alternating between front and back each time.
- Keep your hands flat, close the gaps between your fingers and keep your thumbs in to ensure that the whole of your hand is drawn through the airflow.

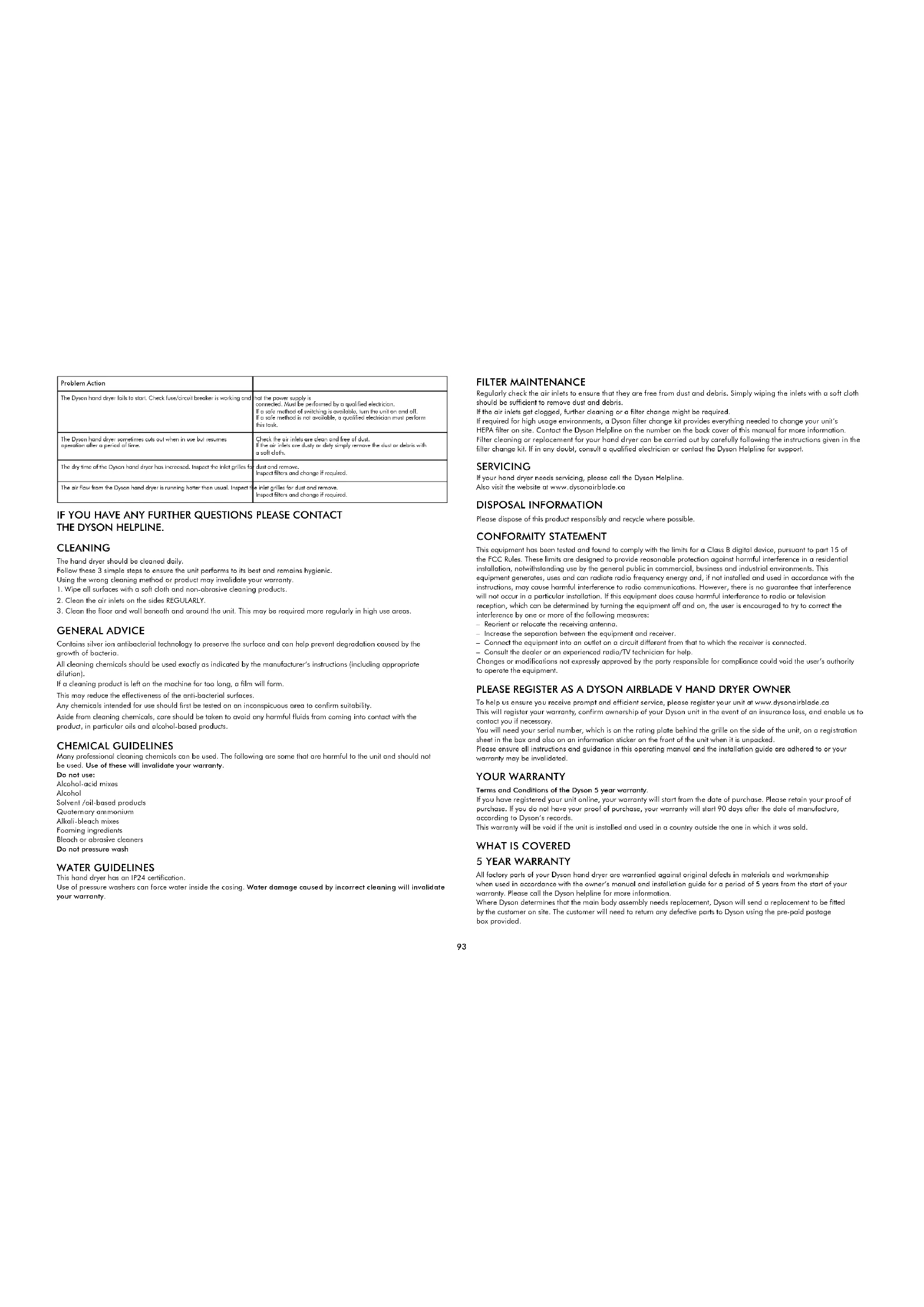

TROUBLESHOOTING GUIDE
| Problem Action | |
| The Dyson hand dryer fails to start. Check fuse/circuit breaker is working and | that the power supply is connected.Must be performed by a qualified electrician.If a safe method of switching is available, turn the unit on and off.If a safe method is not available, a qualified electrician must perform this task. |
| The Dyson hand dryer sometimes cuts out when in use but resumes operation after a period of time. | Check the air inlets are clean and free of dust.If the air inlets are dusty or dirty simply remove the dust or debris with a salt cloth. |
| The dry time of the Dyson hand dryer has increased. Inspect the inlet grilles for | dust and remove.Inspect filters and change if required. |
| The air flow from the Dyson hand dryer is running hotter than usual. Inspect the inlet grilles for dust and remove.Inspect fibers and change if required. | |
If you have any further questions please contact the Dyson Helpline
CLEANING
The Dyson hand dryer should be cleaned daily.
Follow these 3 simple steps to ensure the machine performs to its best and remains hygienic. Using the wrong cleaning method or product may invalidate your guarantee.
- Wipe all surfaces with a soft cloth and non-abrasive cleaner.
- Clean the air inlets on the sides REGULARLY.
- Clean the floor and wall beneath and around the machine. This may be required more regularly in high use areas.
GENERAL ADVICE
Contains silver ion antibacterial technology to preserve the surface and can help prevent degradation caused by the growth of bacteria.
All cleaning chemicals should be used exactly as indicated by the manufacturer's instructions (including appropriate dilution).
If a cleaning product is left on the machine for too long, a film will farm.
This may reduce the effectiveness of the anti-bacterial surfaces.
Any chemicals intended for use should first be tested on an inconspicuous area to confirm suitability.
Aside from cleaning chemicals, care should be taken to avoid any harmful fluids from coming into contact with the product, in particular oils and alcohol-based products.
CHEMICAL GUIDELINES
Many professional cleaning chemicals can be used. The following are some that are harmful to the machine and should not be used. Use of these will invalidate your warranty.
Do not use:
Alcohol-acid mixes
Alcohol
Solvent / oil-based products
Quaternary ammonium
Alkali-bleach mixes
Foaming ingredients
Bleach or abrasive cleaners
Do not pressure wash
WATER GUIDELINES
This Dyson hand dryer has an IP24 certification.
Use of pressure washers can force water inside the casing. Water damage caused by incorrect cleaning will invalidate your guarantee.
FILTER MAINTENANCE
Regularly check the air inlets to ensure that they are free from dust and debris. Simply wiping the inlet with a soft cloth should be sufficient to remove dust and debris.
If the air inlets get clogged, further cleaning or a filter change might be required.
If required for high usage environments, a Dyson filter change kit provides everything needed to change your unit's
HEPA filters on site. Contact the Dyson Helpline on the number on the back cover of this manual for more information.
Filter cleaning or replacement for your Dyson hand dryer can be carried out by carefully following the instructions given in the filter change kit. If in any doubt, consult a qualified electrician or contact the Dyson Helpline for support.
DISPOSAL INFORMATION
Dyson products are made from high grade recyclable materials. Please dispose of this product responsibly and recycle where possible.
This marking indicates that this product should not be disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
PLEASE REGISTER AS A DYSON HAND DRYER OWNER
To help us ensure you receive prompt and efficient service, please register your unit at www.dysonairblade.com
This will register your guarantee, confirm ownership of your Dyson unit in the event of an insurance loss, and enable us to contact you if necessary.
You will need your serial number, which is on the rating plate behind the grille on the side of the hand dryer, on a
registration sheet in the box and also on an information sticker on the front of the unit when it is unpacked.
Please ensure all instructions and guidance in this operating manual, the installation guide and cleaning guide are adhered to or your guarantee may be invalidated.
YOUR GUARANTEE
TERMS AND CONDITIONS OF THE DYSON 5 YEAR GUARANTEE.
If you have registered your unit online, your guarantee will start from the date of purchase. Please retain your proof of purchase. If you do not have your proof of purchase, your guarantee will start 90 days after the date of manufacture, according to Dyson's records.
Where this unit is sold within the EU, this guarantee will only be valid (i) if the unit is installed and used in the country in which it was sold or [ii], if the unit is installed and used in Austria, Belgium, France, Germany, Ireland, Italy, Netherlands, Spain or the United Kingdom and the same model as this unit is sold at the same voltage rating in the relevant country. Where this unit is sold outside of the EU, this guarantee will only be valid if the unit is installed and used in the country in which it was sold.
WHAT IS COVERED
5 YEAR GUARANTEE
All factory parts of your hand dryer are guaranteed against original defects, material and workmanship when used in
accordance with the owner's manual and installation guide for a period of 5 years from the start of your guarantee. Please call the Dyson Helpline for more information.
Where Dyson determines that the main body assembly needs replacement, Dyson will send a replacement to be fitted by the customer on site. The customer will need to return any defective parts to Dyson using the pre paid passage box provided.
Any replaced parts must be returned to Dyson or an administration fee will be levied.
Where a filter change is required, Dyson will provide a filter change kit to be installed on site by the customer.
- Any parts which are returned and replaced by Dyson will become the property of Dyson.
- The replacement of any part of your unit under guarantee will not extend the period of guarantee.
• The guarantee provides benefits which are additional to and do not affect any statutory rights you may have as a consumer.
WHAT IS NOT COVERED
Dyson does not guarantee the repair or replacement of a product as a result of:
- Accidental damage, faults caused by negligent use or care, unintentional or deliberate misuse, neglect, vandalism, careless operation or handling of the unit which is not in accordance with the Dyson operating manual.
- Use of parts not assembled or installed in accordance with the instructions of Dyson.
• Use of parts and accessories which are not genuine Dyson components. - Faulty installation, or installation that does not precisely follow the installation instructions supplied by Dyson (except where installed by Dyson).
• Repairs or alterations carried out other than in accordance with instructions by Dyson. - Damage from external sources such as transit, weather, electrical outages or power surges.
• Normal wear and tear (e.g. fuse, etc.). - Damage caused by cleaning which is not in line with the instructions in this manual: for example, cleaning with chemicals or products listed as harmful to the unit.
• Damage caused by water ingress due to cleaning or treatment prohibited in this manual. - Any electrical, flooding or structural damage, or any loss of business or revenue as a result of product failure.
If you are in any doubt as to what is covered by your guarantee, please contact Dyson (details on the back cover).
ABOUT YOUR PRIVACY
- Your information will be held by Dyson and its agents for promotional, marketing and servicing purposes.
- If your details change, if you change your mind about any of your marketing preferences or if you have any queries about how we use your information, please contact Dyson.
• For more information on how we protect your privacy, please see our privacy policy on the Dyson website.
FR/BE/CH
ENTRETIEN DU SÈCHE-MAINS DYSON
CONSEILS D'UTILISATION
INFORMATIONS DE MISE AU REBUT
Service Clients Dyson
supportairblade.france@dyson.com
DER SCHUTZ IHRER DATEN
DER SCHUTZ IHRER DATEN
PROBLEEMOPLOSSINGSGIDS
MEDHÖNDLUN DYSON-HANDPURRKU
NOTKUN
UPPLÝSINGAR UM FÖRGUN
SKRÁDU PIG SEM EIGANDA DYSON HANDPURRKU
VEDLIKEHOLD AV FILTER
GWARANCJA NIE OBEJMUJE:
TROUBLESHOOTING GUIDE
BẢO TRÌ THIẾT BỊ LỌC
Place your hands beneath the Dyson hand dryer and it will start automatically, creating sheets of air to scrape water from your hands.
For best dry time results:
- Keep your hands flat and parallel to the machine surface approximately 5mm from the blade, drawing your hands through the airflow from your wrists to finger tips.
- Move your hands slowly through the airflow keeping a consistent speed, approx. 2.5 seconds per side alternating between front and back each time.
- Keep your hands flat, close the gaps between your fingers and keep your thumbs in to ensure that the whole of your hand is drawn through the airflow.
TROUBLESHOOTING GUIDE
⚠ WARNING: RISK OF ELECTRIC SHOCK.
| Problem Action | |
| The Dyson hand dryer fails to start. Check fuse/circuit breaker is working and | Not the power supply is connected. Must be performed by a qualified electrician.If a safe method of switching is available, turn the unit on end off.If a safe method is not available, a qualified electrician must perform this task. |
| The Dyson hand dryer sometimes cuts out when in use but resumes operation after a period of time. | Check the air inlets are clean and free of dust.If the air inlets are dusty or dirty simply remove the dust or debris with a soft dirt. |
| The dry time of the Dyson hand dryer has increased. Inspect the inlet grilles fat | dust and remove.Inspect filters and change if required. |
| The air flow from the Dyson hand dryer is running hotter than usual. Inspect the | the inlet grilles for dust and remove.Inspect filters and change if required. |
IF YOU HAVE ANY FURTHER QUESTIONS PLEASE CONTACT THE DYSON HELPLINE.
CLEANING
The hand dryer should be cleaned daily.
Follow these 3 simple steps to ensure the unit performs to its best and remains hygienic.
Using the wrong cleaning method or product may invalidate your warranty.
1. Wipe all surfaces with a soft cloth and non-abrosive cleaning products.
2. Clean the air inlets on the sides REGULARLY.
3. Clean the floor and wall beneath and around the unit. This may be required more regularly in high use areas.
GENERAL ADVICE
Contains silver ion antibacterial technology to preserve the surface and can help prevent degradation caused by the growth of bacteria.
All cleaning chemicals should be used exactly as indicated by the manufacturer's instructions (including appropriate dilution).
If a cleaning product is left on the machine for too long, a film will form.
This may reduce the effectiveness of the anti-bacterial surfaces.
Any chemicals intended for use should first be tested on an inconspicuous area to confirm suitability.
Aside from cleaning chemicals, care should be taken to avoid any harmful fluids from coming into contact with the product, in particular oils and alcohol-based products.
CHEMICAL GUIDELINES
Many professional cleaning chemicals can be used. The following are some that are harmful to the unit and should not be used. Use of these will invalidate your warranty.
Do not use:
Alcohol-acid mixes
Alcohol
Solvent /oil-based products
Quaternary ammonium
Alkali-bleach mixes
Foaming ingredients
Bleach or abrasive cleaners
Do not pressure wash
WATER GUIDELINES
This hand dryer has an IP24 certification.
Use of pressure washers can force water inside the casing. Water damage caused by incorrect cleaning will invalidate your warranty.
FILTER MAINTENANCE
Regularly check the air inlets to ensure that they are free from dust and debris. Simply wiping the inlets with a soft cloth should be sufficient to remove dust and debris.
If the air inlets get clogged, further cleaning or a filter change might be required.
If required for high usage environments, a Dyson filter change kit provides everything needed to change your unit's
HEPA filter on site. Contact the Dyson Helpline on the number on the back cover of this manual for more information.
Filter cleaning or replacement for your hand dryer can be carried out by carefully following the instructions given in the filter change kit. If in any doubt, consult a qualified electrician or contact the Dyson Helpline for support.
SERVICING
If your hand dryer needs servicing, please call the Dyson Helpline.
Also visit the website at www.dysonairblade.ca
DISPOSAL INFORMATION
Please dispose of this product responsibly and recycle where possible.
CONFORMITY STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. Those limits are designed to provide reasonable protection against harmful interference in a residential installation, notwithstanding use by the general public in commercial, business and industrial environments. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
PLEASE REGISTER AS A DYSON AIRBLADE V HAND DRYER OWNER
To help us ensure you receive prompt and efficient service, please register your unit at www.dysonairblade.ca This will register your warranty, confirm ownership of your Dyson unit in the event of an insurance loss, and enable us to contact you if necessary.
You will need your serial number, which is on the rating plate behind the grille on the side of the unit, on a registration sheet in the box and also on an information sticker on the front of the unit when it is unpacked.
Please ensure all instructions and guidance in this operating manual and the installation guide are adhered to or your warranty may be invalidated.
YOUR WARRANTY
Terms and Conditions of the Dyson 5 year warranty.
If you have registered your unit online, your warranty will start from the date of purchase. Please retain your proof of purchase. If you do not have your proof of purchase, your warranty will start 90 days after the date of manufacture, according to Dyson's records.
This warranty will be void if the unit is installed and used in a country outside the one in which it was sold.
WHAT IS COVERED
5 YEAR WARRANTY
All factory parts of your Dyson hand dryer are warranted against original defects in materials and workmanship when used in accordance with the owner's manual and installation guide for a period of 5 years from the start of your warranty. Please call the Dyson helpline for more information.
Where Dyson determines that the main body assembly needs replacement, Dyson will send a replacement to be filled by the customer on site. The customer will need to return any defective parts to Dyson using the pre-paid postage box provided.
Any replaced parts must be returned to Dyson or an administration fee will be levied.
Where a filter change is required, Dyson will provide a filter change kit to be installed on site by the customer.
- Any parts which are returned and replaced by Dyson will become the property of Dyson.
- The replacement of any part of your unit under warranty will not extend the period of warranty.
- The warranty provides benefits which are additional to and do not affect any statutory rights you may have as a consumer.
WHAT IS NOT COVERED
Dyson does not warranty the repair or replacement of a unit as a result of:
- Accidental damage, faults caused by negligent use or core, unintentional or deliberate misuse, neglect, vandalism, careless operation or handling of the unit which is not in accordance with the Dyson operating manual.
- Use of parts not assembled or installed in accordance with the instructions of Dyson.
- Use of parts and accessories which are not genuine Dyson components.
- Faulty installation, or installation that does not precisely follow the installation instructions supplied by Dyson (except where installed by Dyson).
• Repairs or alterations carried out other than in accordance with instructions by Dyson.
- Damage from external sources such as transit, weather, electrical outages or power surges.
• Normal wear and tear (e.g. fuse).
- Damage caused by cleaning which is not in line with the instructions in this manual: for example, cleaning with chemicals or products listed as harmful to the unit.
- Damage caused by water ingress due to cleaning or treatment prohibited in this manual.
Dyson shall not be liable for any electrical, flooding or structural damage or any loss of business or revenue which occurs as a result of a product failure.
If you are in any doubt as to what is covered by your warranty, please contact Dyson (details on the back cover).
ABOUT YOUR PRIVACY
- Your information will be held by Dyson Limited and its agents for promotional, marketing and servicing purposes.
- If your details change, if you change your mind about any of your marketing preferences or if you have any queries about how we use your information, please contact Dyson Limited.
• For more information on how we protect your privacy, please see our privacy policy on the Dyson website.
CA
LOOKING AFTER YOUR HAND DRYER
HOW TO USE
Place your hands beneath the Dyson hand dryer and it will start automatically, creating sheets of air to scrape water from your hands.
For best dry time results:
-
Keep your hands flat and parallel to the machine surface approximately 5mm from the blade, drawing your hands through the airflow from your wrists to finger tips.
-
Move your hands slowly through the airflow keeping a consistent speed, approx. 2.5 seconds per side alternating between front and back each time.
-
Keep your hands flat, close the gaps between your fingers and keep your thumbs in to ensure that the whole of your hand is drawn through the airflow.
TROUBLESHOOTING GUIDE
⚠ WARNING: RISK OF ELECTRIC SHOCK.
| Problem Solution | |
| The hand dyer fails to start. Check fuse/circuit breaker is working and that the power supply is connected. Must be performed by a qualified electrician.If a safe method of switching is available, turn the unit on and off. If a safe method is not available, a qualified electrician must perform this task. | |
| The hand dyer sometimes cuts out when in use but resumes operation after a period of time. | Check the air inlets one clean and free of dust. If the air inlets are dusty or dirty simply remove the dust or debris with a soft coin. |
| The dry time of the hand dyer has increased. Impact the air risks for dust and remove. | |
| The air flow from the hand dyer is running better than overt. | Impact filters and change if required. |
If you have any further questions please contact the Dyson Helpline.
CLEANING
The hand dryer should be cleaned daily.
Follow these 3 simple steps to ensure the unit performs to its best and remains hygienic.
Using the wrong cleaning method or product may invalidate your warranty.
-
Wipe all surfaces with a soft cloth and non-abrasive cleaning products.
-
Clean the air inlets on the sides REGULARLY.
-
Clean the floor and wall beneath and around the unit. This may be required more regularly in high use areas.
GENERAL ADVICE
Contains silver ion antibacterial technology to preserve the surface and can help prevent degradation caused by the growth of bacteria.
All cleaning chemicals should be used exactly as indicated by the manufacturer's instructions (including appropriate dilution).
If a cleaning product is left on the machine for too long, a film will form.
This may reduce the effectiveness of the anti-bacterial surfaces.
Any chemicals intended for use should first be tested on an inconspicuous area to confirm suitability.
Aside from cleaning chemicals, care should be token to avoid any harmful fluids from coming into contact with the product, in particular oils and alcohol-based products.
CHEMICAL GUIDELINES
Many professional cleaning chemicals can be used. The following are some that are harmful to the unit and should not be used. Use of these will invalidate your warranty.
Do not use:
Alcohol-acid mixes
Alcohol
Solvent /oil-based products
Quaternary ammonium
Alkali-bleach mixes
Foaming ingredients
Bleach or abrasive cleaners
Do not pressure wash
WATER GUIDELINES
This hand dryer has on IP24 certification.
Use of pressure washers can force water inside the casing. Water damage caused by incorrect cleaning will invalidate your warranty.
FILTER MAINTENANCE
Regularly check the air inlets to ensure that they are free from dust and debris. Simply wiping the inlets with a soft cloth should be sufficient to remove dust and debris.
If the air inlets get clogged, further cleaning or a filter change might be required.
If required for high usage environments, a Dyson filter change kit provides everything needed to change your unit's HEPA filler on site. Contact the Dyson Helpline on the number on the back cover of this manual for more information. Filter cleaning or replacement for your hand dryer can be carried out by carefully following the instructions given in the filler change kit. If in any doubt, consult a qualified electrician or contact the Dyson Helpline for support.
SERVICING
If your hand dryer needs servicing, please call the Dyson Helpline.
Also visit the website at www.dysonairblade.co
DISPOSAL INFORMATION
Please dispose of this product responsibly and recycle where possible.
CONFORMITY STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation, notwithstanding use by the general public in commercial, business and industrial environments. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
PLEASE REGISTER AS A DYSON AIRBLADE V HAND DRYER OWNER
To help us ensure you receive prompt and efficient service, please register your unit at www.dysonairblade.ca This will register your warranty, confirm ownership of your Dyson unit in the event of an insurance loss, and enable us to contact you if necessary.
You will need your serial number, which is on the rating plate behind the grille on the side of the unit, on a registration sheet in the box and also on an information sticker on the front of the unit when it is unpacked.
Please ensure all instructions and guidance in this operating manual and the installation guide are adhered to or your warranty may be invalidated.
YOUR WARRANTY
Terms and Conditions of the Dyson 5 year warranty.
If you have registered your unit online, your warranty will start from the date of purchase. Please retain your proof of purchase. If you do not have your proof of purchase, your warranty will start 90 days after the date of manufacture, according to Dyson's records.
This warranty will be void if the unit is installed and used in a country outside the one in which it was sold.
WHAT IS COVERED
5 YEAR WARRANTY
All factory parts of your Dyson hand dryer are warranted against original defects in materials and workmanship when used in accordance with the owner's manual and installation guide for a period of 5 years from the start of your warranty. Please call the Dyson helpline for more information.
Where Dyson determines that the main body assembly needs replacement, Dyson will send a replacement to be fitted by the customer on site. The customer will need to return any defective parts to Dyson using the pre-paid postage box provided.
Any replaced parts must be returned to Dyson or an administration fee will be levied.
Where a filter change is required, Dyson will provide a filter change kit to be installed on site by the customer.
- Any parts which are returned and replaced by Dyson will become the property of Dyson.
- The replacement of any part of your unit under warranty will not extend the period of warranty.
- The warranty provides benefits which are additional to end do not affect any statutory rights you may have as a consumer.
WHAT IS NOT COVERED
Dyson does not warranty the repair or replacement of a unit as a result of:
- Accidental damage, faults caused by negligent use or care, unintentional or deliberate misuse, neglect, vandalism, careless operation or handling of the unit which is not in accordance with the Dyson operating manual.
- Use of parts not assembled or installed in accordance with the instructions of Dyson.
- Use of parts and accessories which are not genuine Dyson components.
- Faulty installation, or installation that does not precisely follow the installation instructions supplied by Dyson (except where installed by Dyson).
• Repairs or alterations carried out other than in accordance with instructions by Dyson.
- Damage from external sources such as transit, weather, electrical outages or power surges.
• Normal wear and tear (e.g. fuse).
- Damage caused by cleaning which is not in line with the instructions in this manual: for example, cleaning with chemicals or products listed as harmful to the unit.
- Damage caused by water ingress due to cleaning or treatment prohibited in this manual.
Dyson shall not be liable for any electrical, flooding or structural damage or any loss of business or revenue which occurs as a result of a product failure.
If you are in any doubt as to what is covered by your warranty, please contact Dyson (details on the back cover).
ABOUT YOUR PRIVACY
- Your information will be held by Dyson Canada Limited and its agents for promotional, marketing and servicing purposes.
- If your details change, if you change your mind about any of your marketing preferences or if you have any queries about how we use your information, please contact Dyson Limited or Dyson Canada Limited.
- For more information on how we protect your privacy, please see our privacy policy on the Dyson website.
CAFR
SOINS À APPORTER À VOTRE SÈCHE-MAINS
COMMENT L'UTILISER
| Problem Action | |
| The Dyson hand dryer fails to start. Check fuse/circuit breaker is working and | not the power supply is connected.Must as performed by a qualified electrician.If a safe method of switching is available, turn the unit on and off.If a safe method is not available, a qualified electrician must perform this task. |
| The Dyson hand dryer sometimes cuts out when in use but resumes operation after a period of time. | Check the or inlets are clean and free of dust.If the or inlets are dusty or dirty simply remove the dust or debris with a soft cloth. |
| The dry time of the Dyson hand dryer has increased. Inspect the inlet grikes for | dust and remove.Inspect filters and change if required. |
| The air flux from the Dyson hand dryer is running further than usual. Inspect the mid grikes for dust and remove.Inspect filters and change if required. | |
Mélanges acide-alcool
Alcool
DÉCLARATION DE CONFORMITÉ
The NSF logo is a registered trademark of NSF International Corporation.
The Carbon Reduction logo is a registered trade mark of the Carbon Trust.
