USER MANUAL DJM250BTMKII IBIZA SOUND

©Copyright LOTRONIC 2015 DJM250BT-MKII 1

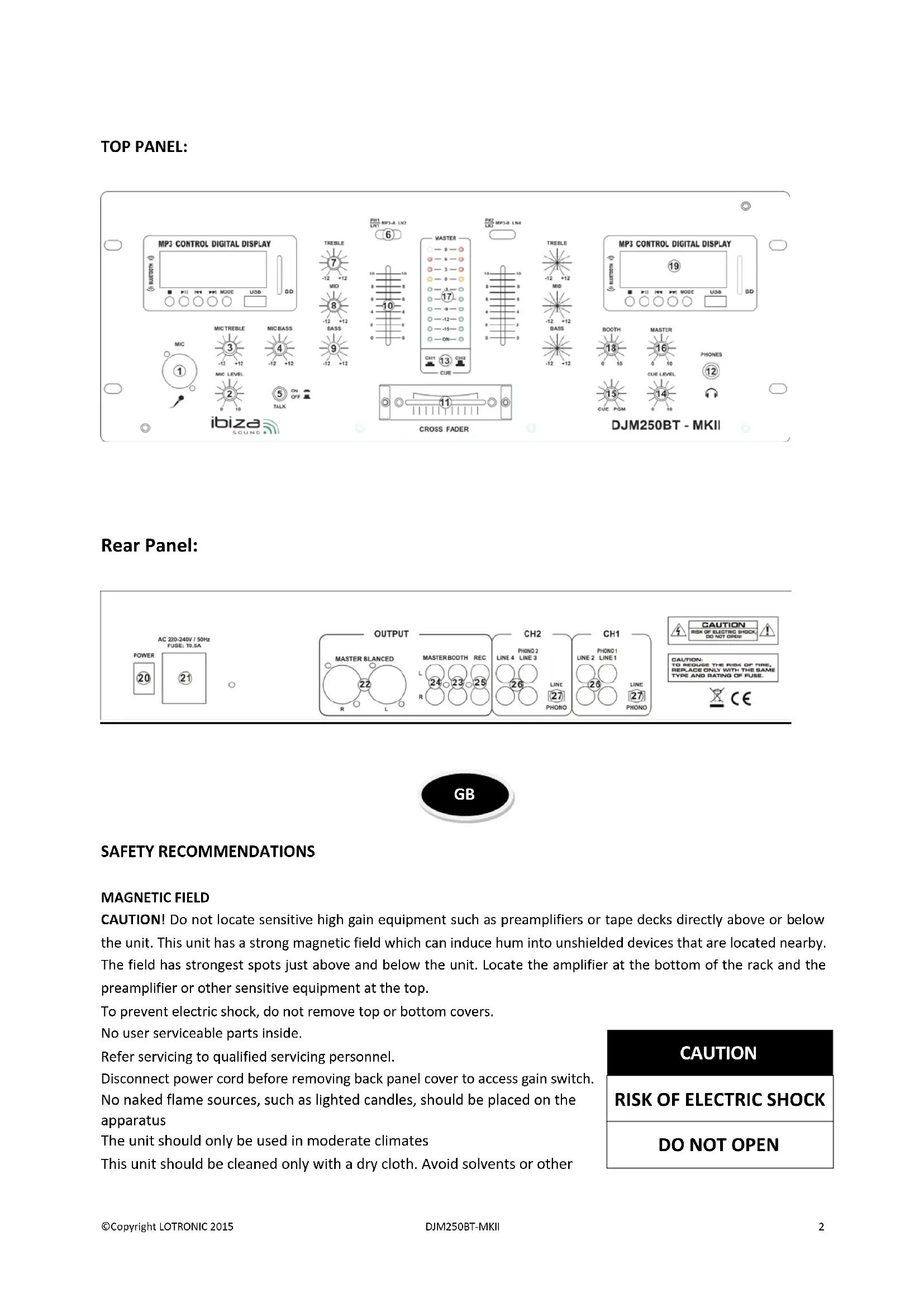

SAFETY RECOMMENDATIONS MAGNETIC FIELD CAUTION! Do not locate sensitive high gain equipment such as preamplifiers or tape decks directly above or below the unit. This unit has a strong magnetic field which can induce hum into unshielded devices that are located nearby. The field has strongest spots just above and below the unit. Locate the amplifier at the bottom of the rack and the preamplifier or other sensitive equipment at the top. To prevent electric shock, do not remove top or bottom covers. No user serviceable parts inside. Refer servicing to qualified servicing personnel. Disconnect power cord before removing back panel cover to access gain switch. No naked flame sources, such as lighted candles, should be placed on the apparatus The unit should only be used in moderate climates This unit should be cleaned only with a dry cloth. Avoid solvents or other CAUTION

GB©Copyright LOTRONIC 2015 DJM250BT-MKII 3 cleaning detergents A minimum distance of 0.5m around the unit must be kept to ensure sufficient ventilation and avoid overheating WARNING! To reduce the risk of electric shock, do not expose this equipment to rain or moisture! The exclamation point triangle is used to alert the user to important operating or maintenance instructions The lightning bolt triangle is used to alert the user to the risk of electric shock Controls

Connect your microphone with 1/4” jack plug here.

Used to increase or lower the microphone’s higher frequencies.

Used to increase or lower the microphone’s lower frequencies.

Press this button if you want to use your microphone. When the button is pressed, all other signal sources will be attenuated by 14dB, so that the microphone can be clearly heard. In the OFF position, all signals returns to their original level.

6. Phono/Line Switch

Use this switch to select the input to be sent to the individual channel.

Used to increase or lower the HIGHS of the input channel.

Used to increase or lower the MIDS of the input channel.

Used to increase or lower the LOWS of the input channel

Used to adjust the level of each channel.

Mixes the signals of one channel with another. If the crossfader is in the center position. Both channels can be heard.

12. Headphone Socket

Connect your headphone with impedance between 8 and 600 Ohms to this connector.

Use this button in order to select the channel(s) to be monitored by headphones.

14. HEADPHONE LEVEL CONTROL

Let you to control the volume level of headphone

15. HEADPHONE CUE/PGM CONTROL

Allows you to listen simultaneously or separately to the CUE material or the active program.

Adjust the level of the master-output.©Copyright LOTRONIC 2015 DJM250BT-MKII 4

17. Master Level Display

The LED display shows the level of the left and right master output

This knob controls the overall output level leaving the booth unbalanced RCA outputs.

Press down the button to turn on this unit. The LED will illuminate when the power is on.

Connect the mixer to a receiver via cables with XLR plugs

23. BOOTH OUTPUT JACKS

Connect the mixer to a second amplifier powering speakers in the DJ booth or in a remote location

Master output connects to the main amplifier (DJ final mix after crossfader section), accepts RCA jacks。

25. RECORD OUTPUT JACKS

Connect the mixer to a recorder to record your mix. The output signal is the same as on the MASTER jacks.

26. Phono/Line Inputs Sockets

These inputs, for ch1-ch2 and accept RCA-plug connectors. Use phono input socket for phonograph turntables. Use line socket for CD/MP3 players. Line level musical instruments with stereo outputs such as rhythm machines or samplers should also be connected with the line input socket.

Set these switches based on what is plugged into Phono/ Line input jacks

Insert your SD card into this slot. Note: Before you eject the SD card, please set the playback in pause mode or select another playback support (USB or Bluetooth)

The LCD display shows information as playback support, file name, elapsed time, total time, file number, total file number, file system ( MP3 or WMA ) and playback mode ( Repeat one, repeat all, or random. ) Note: In Bluetooth mode, LCD display shows only connection status (connected or disconnected). All playback information is on the Bluetooth device.

Connect your USB key to this slot. Note: Before you eject the USB key, please set the unit in pause mode or select another playback support (SD card or Bluetooth).

4. STOP: Use this button to stop playback.

5. PLAY / PAUSE BUTTON

This button is used to start the playback or to enter in pause mode.©Copyright LOTRONIC 2015 DJM250BT-MKII 5 6.|<< PREVIOUS Use this button to select the previous track. 7.>>| NEXT Use this button to select the next track.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.©Copyright LOTRONIC 2015 DJM250BT-MKII 6
