USER MANUAL Fusion 178150 MANHATTAN

FUSION WIRELESS HEADPHONES INSTRUCTIONS

MODELS 178150, 178167

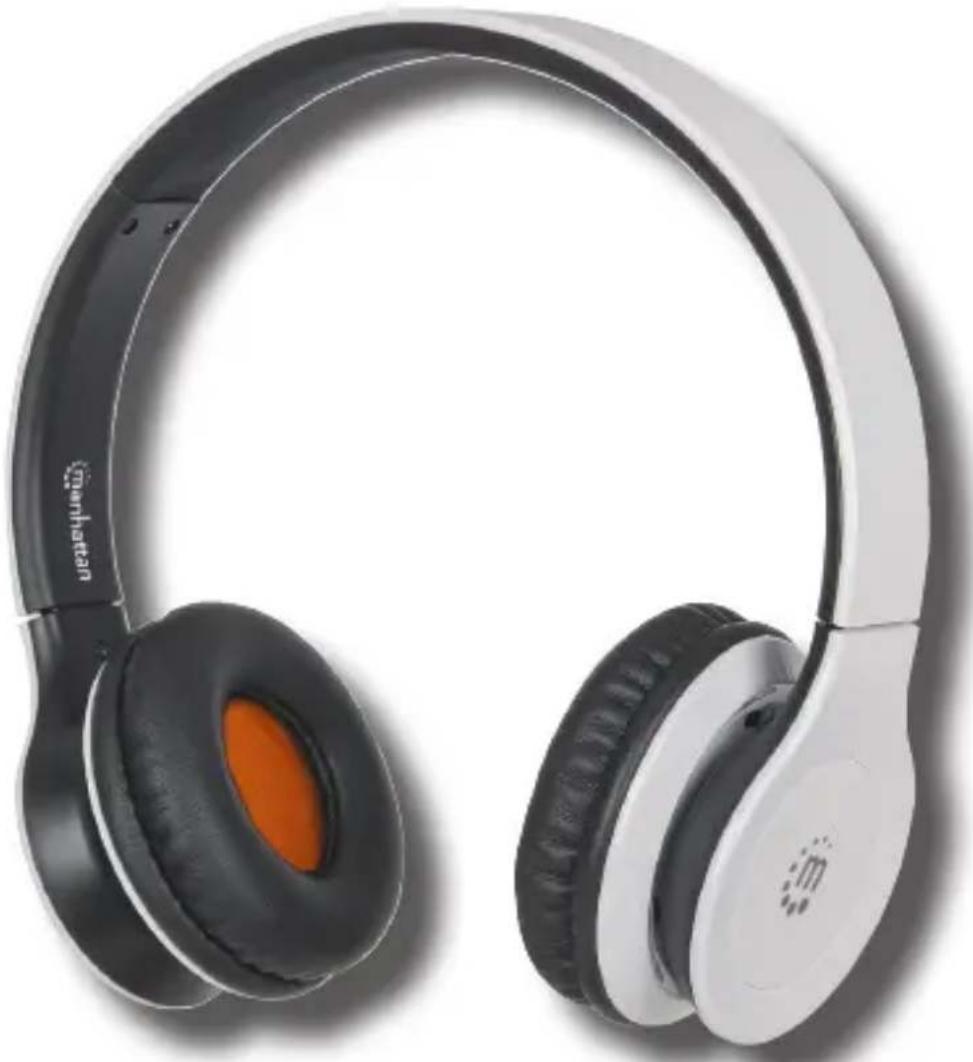

White and black multi-band headphones with orange ear cover, no visible text or symbols on the device itself.

manhattan® Life just got easier.

manhattan-products.com

Important: Read before use. • Importante: Leer antes de usar.

FUSION WIRELESS HEADPHONES

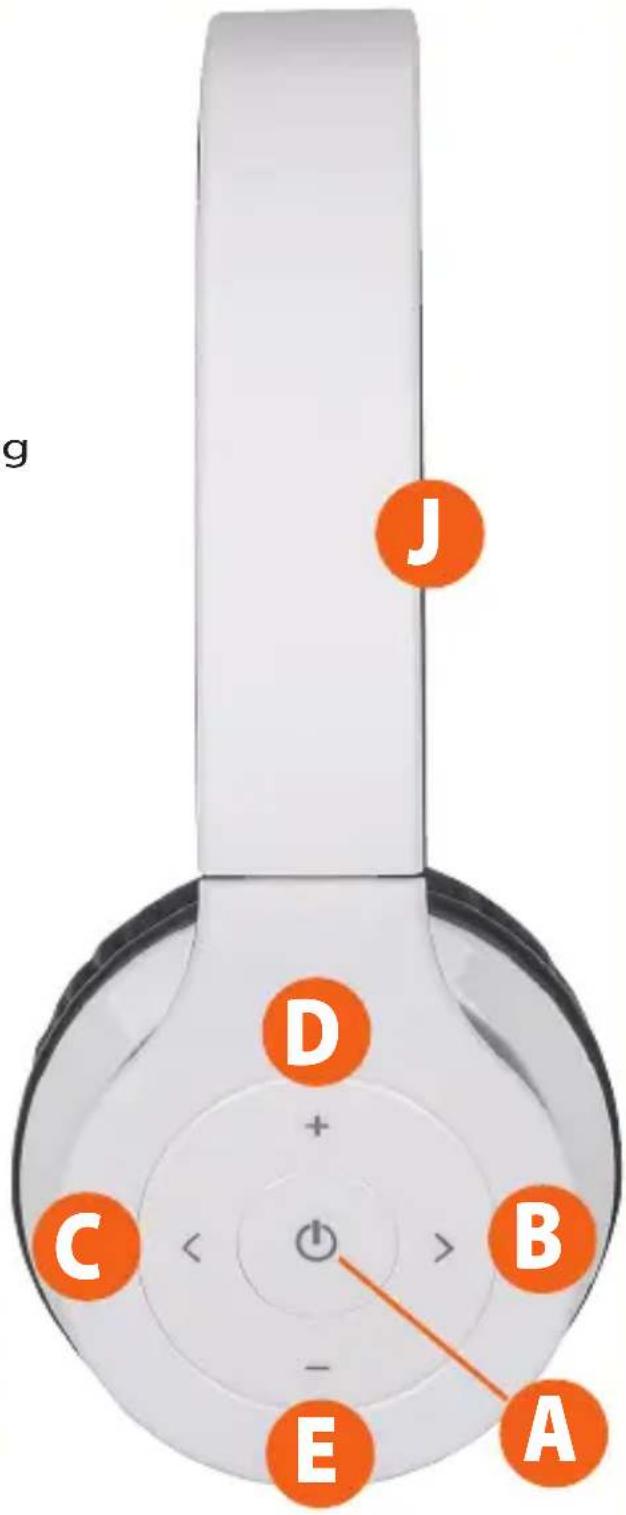

A Multifunction
- On/Off
- Play/Pause
- Answer/End Calls
- Voice Dial
- Redial Last Number
- Begin Bluetooth Pairing
B Next Track
C Previous Track
D Volume Up
E Volume Down

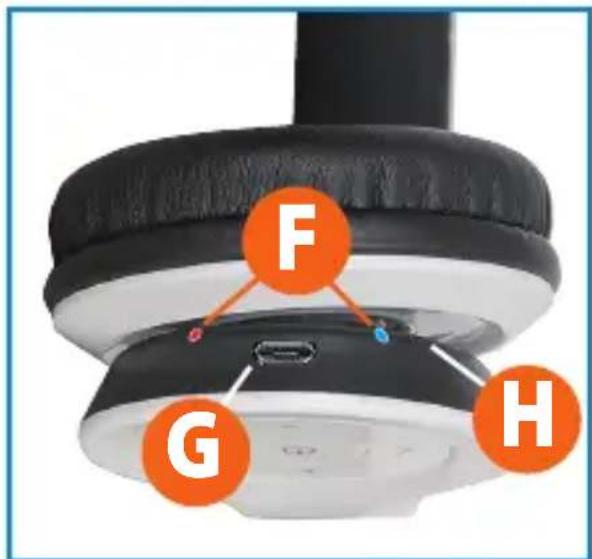

F LEDs (blue and red)
G Micro USB port
H Built-in microphone
J Adjustable headband

Not shown:

USB type A-to-micro charging cable

F G H

g J D + C < B - E A

Range: 10 m

Music: up to 10 hours

Talk: up to 11 hours

Standby: 250 hours

Initial Setup / Built-in Battery Charging

Prior to initial use as a wireless headset, the built-in battery needs to be charged. A full charge can take up to 3 hours, but you can listen to music or make phone calls while charging.

1 Use the included USB-to-micro USB cable to connect the headset (G) to a powered computer or other charging device.
2 The red LED (F) lights while charging; the blue LED (F) lights when the charge is complete. Note: The red LED flashes twice to indicate low voltage. Recharge the battery as soon as you can.

Bluetooth Pairing & Operation

This product utilizes the latest in Bluetooth wireless technology; wireless performance may vary from device to device. If using this product with a Mac or PC, ensure that your Bluetooth driver is up to date. If it isn't, visit your computer manufacturer's website for details and updates.

1 Press the Multifunction button (A) for about 7 seconds, until the LEDs (F) alternately flash red and blue. Note: Pressing the Multifunction button for just 3 seconds will put the headset in Standby mode (the blue LED flashes).
2 With the headset LEDs (F) alternately flashing red and blue, activate your device's Bluetooth function and search for Bluetooth devices. Refer as needed to the manual of your phone, tablet, computer, etc. regarding its Bluetooth operation.
3 Once the device finds "manhattanFUSION" an on-screen prompt will ask if you're ready for pairing. Click or press OK or Confirm to continue. Note: If the device prompts you to enter a PIN, enter 0000 and click or press Yes or Confirm to continue.

- After a successful connection is made, the blue LED (F) will flash and the headset will beep. If the pairing has failed and the LEDs are still alternately flashing red and blue, the pairing procedure needs to be re-initiated on your source device.

- This headset can connect with two types of devices: those using a Hands-Free or Headset Profile (HFP or HSP), such as smartphones; and those using an Advanced Audio Distribution or Audio/Video Remote Control Profile (A2DP or AVRCP), such as laptops.

- Every time the headset is turned on, it will automatically connect to the last connected device.

Quick Reference Guide

Power on / Standby* Press the Multifunction button (A) about 3 seconds. The blue LED (F) flashes.

Power off* Press the Multifunction button (A) about 5 seconds. Both the red and the blue LEDs (F) flash with an audio confirmation.

Pairing* Press the Multifunction button (A) about 7 seconds (until the LEDs alternately flash red and blue).

Answer/End a call* Briefly press the Multifunction button (A).

Last number redial In Standby mode, press the Multifunction button (A) twice.

Play/Pause Press the Multifunction button (A) to play or pause music.

Volume up/down Press + (D) or - (E) to increase or decrease the volume.

Previous Briefly press < () to play the previous song in a playlist.

Next Briefly press > (B) to play the next song in a playlist.

Voice dial In Standby mode, press the Multifunction button (A) and listen for the beep that indicates you can start to voice dial. (Not all phones feature this option.)

* with voice prompt

English: For warranty information, go to:

manhattan-products.com/warranty

Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems)

English: This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be taken

applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. If your equipment contains easily removable batteries or accumulators, dispose of these separately according to your local requirements. The recycling of materials will help to conserve natural resources. For details about recycling this product, contact

your local city office, your household waste disposal service or the shop where you purchased this product. Outside the EU: To discard this product, contact your local authorities and ask for the correct manner of disposal.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and the receiver; connect the equipment to an outlet on a circuit different from the receiver; or consult the dealer or an experienced radio/TV technician.

CE / R&TTE

English: This device complies with the requirements of R&TTE Directive 1999/5/EC. The Declaration of Conformity for this product is available at:

manhattan-products.com

North & South America

IC Intracom Americas

550 Commerce Blvd.

Oldsmar, FL 34677 USA

Asia & Africa

IC Intracom Asia

Far Eastern Technology Center

7-F No. 125, Section 2, Da Tong Rd.

Shijr, Taipei • Taiwan, ROC

Europe

IC Intracom Europe

Löhbacher Str. 7

D-58553 Halver, Germany

All trademarks and trade names are the property of their respective owners. For specifications, go to manhattan-products.com.

© IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
