Flex 178693 - Headphones MANHATTAN - Free user manual and instructions

Product type	Wireless headset
Brand	Manhattan
Model	Flex 178693
Connection technology	Bluetooth
Power supply	Built-in rechargeable battery, charges via micro-USB cable
Charging time	Up to 4 hours
Playback battery life	About 6 hours
Weight	About 150 g
Dimensions	About 17 x 15 x 5 cm
Main features	Hands-free calls, music playback control, voice dialing, multipoint pairing
Buttons	Multifunction, volume +/-, previous/next track
LED indicator	Red (charging), blue (connected), red/blue flashing (pairing)
Care and cleaning	Clean with a soft, dry cloth, do not use abrasive products
Safety	Compliant with European directives (R&TTE 1999/5/EC, WEEE)
Spare parts and repairability	No spare parts available from the manufacturer
Warranty	Check the manufacturer's website for warranty information

Frequently Asked Questions - Flex 178693 MANHATTAN

How do I charge the battery of the Manhattan Flex 178693 headset?

Use the provided USB to micro-USB cable to connect the headset to a powered computer or a power adapter. The red LED indicates charging; it turns off when charging is complete (about 4 hours). You can listen to music while charging.

How do I pair the headset with a smartphone?

Press the multifunction button for about 7 seconds until the LED flashes red and blue. Enable Bluetooth on your smartphone and search for 'manhattanFLEX'. Select it and confirm pairing. If a code is requested, enter 0000.

What should I do if the headset does not turn on?

Make sure the battery is charged. If the LED does not light up, connect the headset to the charger for at least 30 minutes. If the problem persists, contact customer service.

How do I adjust the volume and change tracks?

Use the + (C) and - (D) buttons to adjust the volume. Briefly press ◀◀ (E) to go back to the previous track, or ▶▶I (F) to go to the next track.

How do I answer or reject a call?

To answer, briefly press the multifunction button. To reject, press and hold the button for about 2 seconds until you hear a beep.

How do I use voice dialing?

In standby mode, quickly press the multifunction button twice. Wait for the beep, then say the contact's name. Note that this function depends on your phone.

How do I know if the battery is low?

The LED flashes red when the battery is low. Recharge the headset as soon as possible.

Can I connect the headset to a computer?

Yes, if your computer has Bluetooth. Make sure the Bluetooth driver is up to date. Follow the standard pairing procedure.

How do I clean the headset?

Clean it with a soft, dry cloth. Do not use liquids or abrasive products.

What should I do if the headset does not connect automatically?

Make sure Bluetooth is enabled on your device and the headset is on. If the headset is already paired, it should connect automatically. Otherwise, repeat the pairing procedure.

USER MANUAL Flex 178693 MANHATTAN

FLEX WIRELESS HEADPHONES INSTRUCTIONS

MODEL 178693

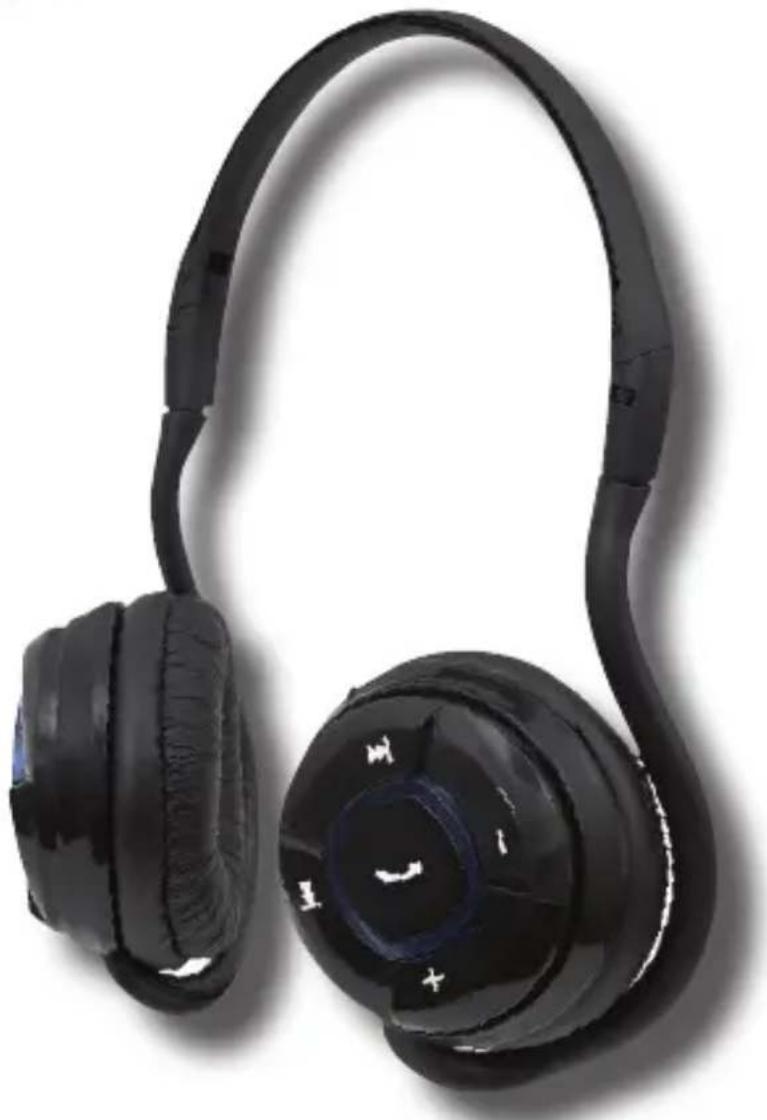

Black and white photo of a pair of black multi-band headphones with earphones and control buttons (no visible text or symbols)

manhattan-products.com

Important: Read before use. • Importante: Leer antes de usar.

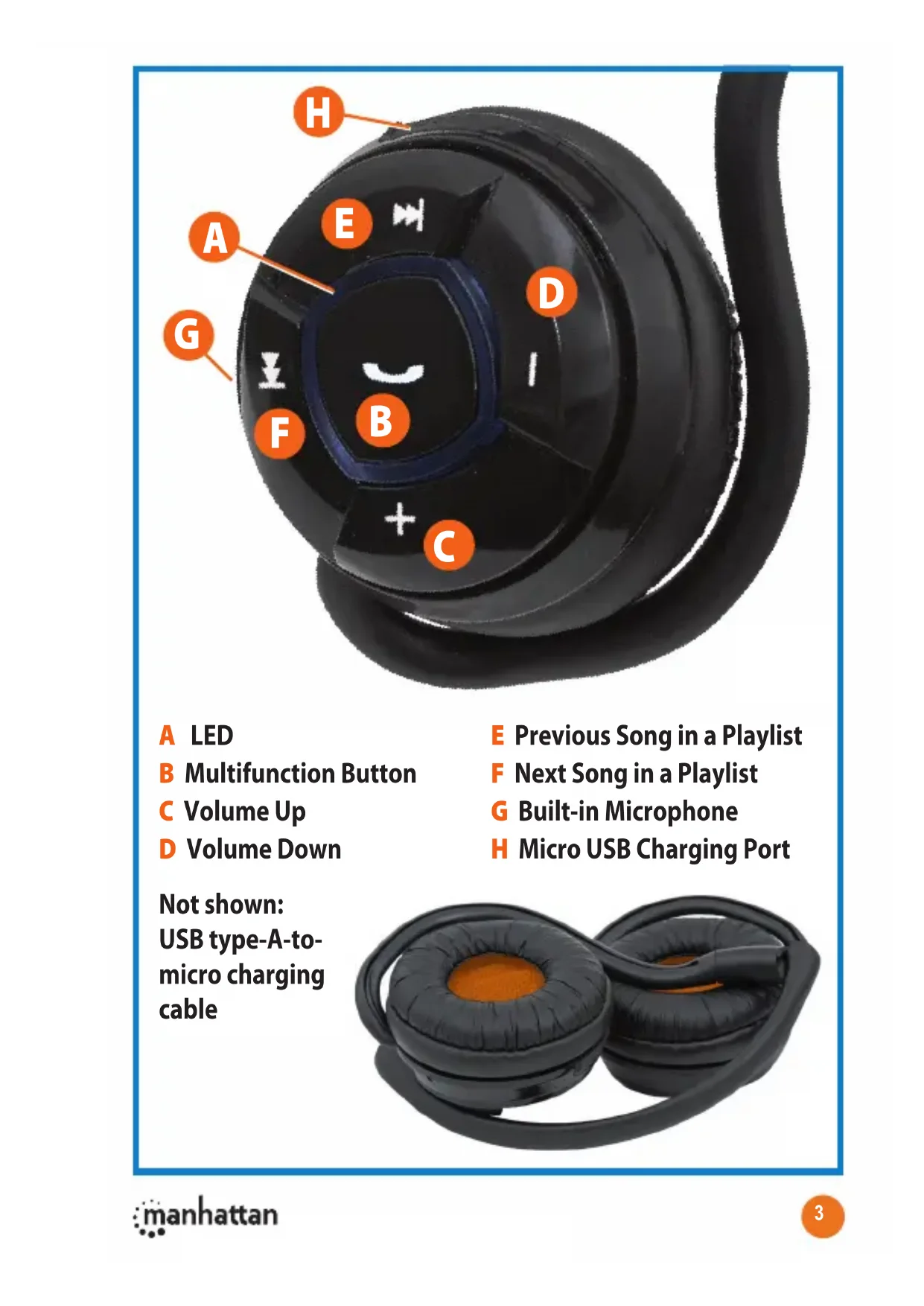

A LED
B Multifunction Button
C Volume Up
D Volume Down

Not shown: USB type-A-to-micro charging cable

E Previous Song in a Playlist
F Next Song in a Playlist
G Built-in Microphone
H Micro USB Charging Port

Close-up of black headbuds with orange centers, resting on a black strap (no text or symbols visible)

Initial Setup / Built-in Battery Charging

Prior to initial use as a wireless headset, the built-in battery needs to be charged. A full charge can take up to 4 hours, but you can listen to music or make phone calls while charging.

1 Use the included USB-to-micro USB cable to connect the headset (H) to a powered computer or other charging device.
2 The LED (A) lights red while charging and turns off when the charge is complete. Note: The LED flashes red to indicate low voltage. Recharge the battery as soon as you can.

Bluetooth Pairing & Operation

This product utilizes the latest in Bluetooth wireless technology; wireless performance may vary from device to device. If using this product with a Mac or PC, ensure that your Bluetooth driver is up to date. If it isn't, visit your computer manufacturer's website for details and updates.

1 Press the Multifunction button (B) for about 7 seconds, until the LED (A) alternately flashes red and blue. Note: Pressing the Multifunction button for just 3 seconds will put the headset in Standby mode (the LED flashes blue).
2 With the headset LED (A) alternately flashing red and blue, activate your device's Bluetooth function and search for Bluetooth devices. Refer as needed to the manual of your phone, tablet, computer, etc. regarding the Bluetooth operation of your source device.

3 Once the device finds "manhattanFLEX," an on-screen prompt will ask if you're ready for pairing. Click or press OK or Confirm to continue. Note: If the device prompts you to enter a PIN, enter 0000 and click or press Yes or Confirm to continue.

- After a successful connection is made, the LED (A) will flash blue and the headset will beep. If the pairing has failed and the LED is still alternately flashing red and blue, the pairing procedure needs to be re-initiated on your source device.

- This headset can connect with two types of devices: those using a Hands-Free or Headset Profile (HFP or HSP), such as smartphones; and those using an Advanced Audio Distribution or Audio/Video Remote Control Profile (A2DP or AVRCP), such as laptops.

- Every time the headset is turned on, it will automatically connect to the last connected device.

Quick Reference Guide

Power on / Standby	Press the Multifunction button (B) about 3 seconds. The LED (A) flashes blue.
Power off confirmation.	Press the Multifunction button (B) about 3 seconds. The LED (A) turns red with an audio
Pairing blue).	Press the Multifunction button (B) about 7 seconds (until the LED alternately flashes red and
Answer/End a call	Briefly press the Multifunction button (B).
Reject a call	Press the Multifunction button (B) for about 2 seconds (until you hear a beep).
Last number redial	In Standby mode, press the Multifunction button (B) for about 2 seconds (until it beeps).
Play/Pause	Press the Multifunction button (B) to play or pause music.
Volume up/down	Press + (C) or - (D) to increase or decrease the volume.
Previous Briefly press	◀◀ (E) to play the previous song in a playlist.
Next	Briefly press ▶▶I (F) to play the next song in a playlist.
Voice dial*	In Standby mode, double-press the Multifunction button (B) and listen for the beep that indicates you can start to voice dial. *Not all phones feature this option.
Voice transfer	During a call, press the Multifunction button (B) for about 2 seconds (until you hear a beep).The beep indicates you've switched between music and phone call modes.

English: For warranty information, go to:

manhattan-products.com/warranty

Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems)

English: This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. If your equipment contains easily removable batteries or accumulators, dispose of these separately according to your local requirements. The recycling of materials will help to conserve natural resources. For details about recycling this product, contact your local city office, your household waste disposal service or the shop where you purchased this product. Outside the EU: To discard this product, contact your local authorities and ask for the correct manner of disposal.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and the receiver; connect the equipment to an outlet on a circuit different from the receiver; or consult the dealer or an experienced radio/TV technician.

CE / R&TTE

English: This device complies with the requirements of R&TTE Directive 1999/5/EC. The Declaration of Conformity for this product is available at:

manhattan-products.com

manhattan® Life just got easier.™

North & South America	Asia & Africa	Europe
IC Intracom Americas550 Commerce Blvd.Oldsmar, FL 34677USA	IC Intracom AsiaFar Eastern Technology Center7-F No. 125, Section 2, Da Tong Rd.Shijr, Taipei • Taiwan, ROC	IC Intracom EuropeLöhbacher Str. 7D-58553 HalverGermany

All trademarks and trade names are the property of their respective owners. For specifications go to manhattan-products.com.
