FreeStyle 178747 - Headphones MANHATTAN - Free user manual and instructions

Product Type	Wireless Bluetooth headset
Brand	Manhattan
Model	FreeStyle 178747
Power supply	Integrated rechargeable battery, charges via USB to micro-USB cable
Charging time	Up to 12 hours
Battery life	Listening possible while charging; battery life not specified
Connectivity	Bluetooth, HFP/HSP and A2DP/AVRCP profiles
Bluetooth range	Approximately 10 meters
Controls	Multifunction button (power on/off, pairing, play/pause, answer/end call), volume +/-, next/previous track
LED indicator	Red when charging, red and blue when pairing, flashing blue when connected
Phone functions	Answer, end, reject incoming calls
Audio functions	Play/pause, track navigation, volume adjustment
Compliance	R&TTE Directive 1999/5/EC
Recycling	Compliant with WEEE Directive 2002/96/EC
Warranty	Check manufacturer's website
Maintenance	Clean with a soft, dry cloth; do not use abrasive products
Spare parts	Contact customer service for more information

Frequently Asked Questions - FreeStyle 178747 MANHATTAN

How to charge the Manhattan FreeStyle 178747 headset?

Use the provided USB to micro-USB cable to connect the headset (port A) to a powered computer or USB charger. The LED indicator (G) lights up red during charging and turns off when the battery is full. A full charge can take up to 12 hours.

How to pair the headset with my smartphone?

Press the multifunction button (F) for approximately 8 seconds until the LED flashes red and blue. Activate Bluetooth on your smartphone and search for devices. Select "MH Freestyle" from the list. If a PIN is requested, enter 0000.

What to do if the headset does not turn on?

Make sure the battery is charged. Connect the headset to the charger for at least 10 minutes, then try turning it on again by pressing and holding the multifunction button for 3 seconds.

The LED is flashing red, what to do?

The red flashing indicates a low battery. Recharge the headset as soon as possible by connecting it to a charger via the micro-USB cable.

Can I use the headset while charging?

Yes, you can listen to music or make calls while the headset is charging. The LED remains red during charging.

How to adjust the volume?

Use the + (D) button to increase volume and - (E) to decrease. A brief press is enough.

How to skip to the next song?

Briefly press the > (C) button to go to the next track in a playlist. Press < (B) to go back to the previous track.

How to answer a call?

Briefly press the multifunction button (F) to answer an incoming call. To end it, press again briefly. To reject a call, press and hold for 2 seconds.

The headset disconnects frequently, what to do?

Make sure the battery is sufficiently charged and that you are within 10 meters of the source device. Avoid metallic obstacles. Reset the pairing by deleting the device from your device and repeating the pairing procedure.

Where to find the complete manual for the headset?

The complete manual is available for free download in PDF format on the website notice-facile.com or on the Manhattan manufacturer's website. You can also request a translation by email.

USER MANUAL FreeStyle 178747 MANHATTAN

FREESTYLE WIRELESS HEADPHONES INSTRUCTIONS

MODELS 178747, 178754 & 178761

manhattan-products.com

Important: Read before use. • Important: Leer antes de usar.

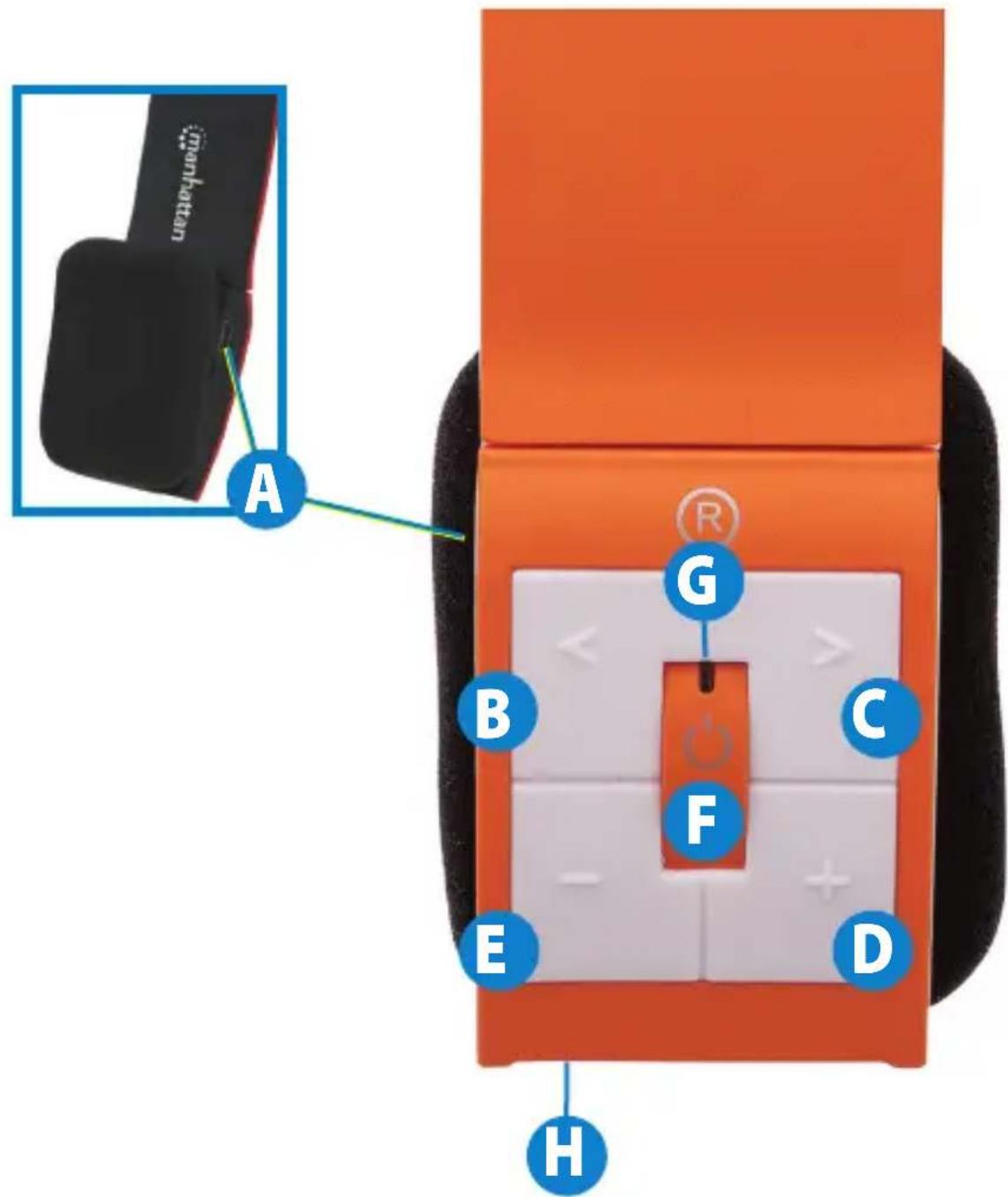

A Micro USB Charging Port

E Volume Down

B Previous Song in a Playlist

F Multifunction Button

C Next Song in a Playlist

G LED

D Volume Up

H Built-in Microphone

Not shown: USB type-A-to-micro charging cable

Initial Setup / Built-in Battery Charging

Prior to initial use as a wireless headset, the built-in battery needs to be charged. A full charge can take up to 12 hours, but you can listen to music or make phone calls while charging.

1 Use the included USB-to-micro USB cable to connect the headset (A) to a powered computer or other charging device.
2 The LED (G) lights red while charging and turns off when the charge is complete. Note: The LED flashes red to indicate low voltage. Recharge the battery as soon as you can.

Bluetooth Pairing & Operation

This product utilizes the latest in Bluetooth wireless technology; wireless performance may vary from device to device. If using this product with a Mac or PC, ensure that your Bluetooth driver is up to date. If it isn't, visit your computer manufacturer's website for details and updates.

1 Press the Multifunction button (F) for about 8 seconds, until the LED (G) alternately flashes red and blue.
2 With the headset LED (G) alternately flashing red and blue, activate your device's Bluetooth function and search for Bluetooth devices. Refer as needed to the manual of your phone, tablet, computer, etc. regarding the Bluetooth operation of your source device.
3 Once the device finds "MH Freestyle," an on-screen prompt will ask if you're ready for pairing. Click or press OK or Confirm to continue. Note: If the device prompts you to enter a PIN, enter 0000 and click or press Yes or Confirm to continue.
- After a successful connection is made, the LED (G) will flash blue and the headset will beep. If the pairing has failed and the LED is still alternately flashing red and blue, the pairing procedure needs to be re-initiated on your source device.
- This headset can connect with two types of devices: those using a Hands-Free or Headset Profile (HFP or HSP), such as smartphones; and those using an Advanced Audio Distribution or Audio/Video Remote Control Profile (A2DP or AVRCP), such as laptops.
- Every time the headset is turned on, it will automatically connect to the last connected device.

Quick Reference Guide

Power on Press the Multifunction button (F) about 3 seconds. The LED (G) lights red, then flashes blue with an audio confirmation.

Power off Press the Multifunction button (F) about 3 seconds. The LED (G) lights red, then turns off with an audio confirmation.

Pairing Press the Multifunction button (F) about 8 seconds (until the LED alternately flashes red and blue).

Answer / Briefly press the Multifunction button (F). Note: Press for about 2 End a call seconds to block incoming calls when playing music.

Play/Pause Press the Multifunction button (F) to play or pause music.

Volume up/ Press + (D) or - (E) to increase or decrease the volume. down

Previous Briefly press < (B) to play the previous song in a playlist.

Next Briefly press > (C) to play the next song in a playlist.

English: For warranty information, go to:

manhattan-products.com/warranty

Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems)

English: This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. If your equipment contains easily removable batteries or accumulators, dispose of these separately according to your local requirements. The recycling of materials will help to conserve natural resources. For details about recycling this product, contact your local city office, your household waste disposal service or the shop where you purchased this product. Outside the EU: To discard this product, contact your local authorities and ask for the correct manner of disposal.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and the receiver; connect the equipment to an outlet on a circuit different from the receiver; or consult the dealer or an experienced radio/TV technician.

CE/R&TTE

English: This device complies with the requirements of R&TTE Directive 1999/5/EC. The Declaration of Conformity for this product is available at:

manhattan-products.com
