USER MANUAL GECG 18100 Li EINHELL

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

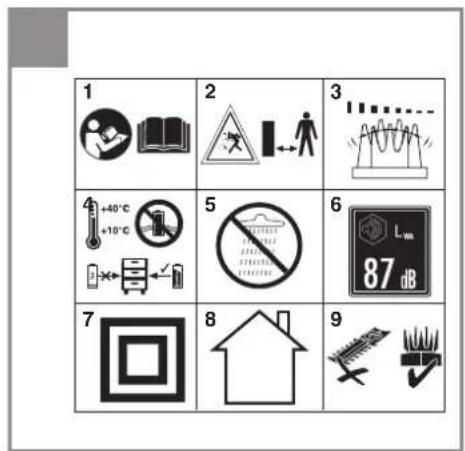

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. This equipment is not intended to be used by children, persons with reduced physical, sensory or mental capacities or with a lack of experience and knowledge, or persons who are not familiar with the instructions. Children should be supervised so that they do not play with the equipment. Children are not allowed to carry out the cleaning or maintenance. Explanation of the symbols (see Fig. 12)

1. Danger! Read the operating instructions and

follow the warnings and safety instructions.

2. Keep all other persons away from the danger

3. Danger! The cutter blades continue to run

after the motor is switched off . Wait for the blades to come to a standstill. Risk of injury!

4. Store the battery only in dry rooms with an

ambient temperature of +10°C to +40°C. Place only fully charged batteries in storage (charged at least 40-60%).

5. Protect the equipment from rain and moisture!

8. For use in dry rooms only

9. Extension only with grass cutter blade! It

is prohibited to use the extension with the hedge cutter blade!

2. Layout and items supplied

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Cordless grass and shrub shears

Original operating instructions

Grass shears: The equipment is designed for cutting the edges of lawns and small areas of grass in private and hobby gardens. The long handle (Fig. 2/Item 5) may only be used together with the grass shears. Shrub shears: The equipment is designed for cutting small hedges and shrubs in private and hobby gardens. The long handle (Fig. 2/Item 5) may only be used together with the shrub shears. Equipment de- signed for use in private and hobby gardens is regarded as unsuitable for use in public facilities, parks and sports centers, along roadways, or in agriculture and forestry. The operating instructions as supplied by the manufacturer must be obeyed to ensure that the equipment is used properly. Warning! This equipment must not be used for composting purposes (shredding) as this could result in injury or damage to property. The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manu- facturer will be liable for any damage or injuries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

• .6 m/s² Uncertainty K p. 1
• .3 m/s² Weight p. 1
• .56 kg Sound pressure level at the operator‘s ear p. 74
• dB (A) Uncertainty K dB Caution! The equipment is supplied without re- chargeable batteries and without a charger and is allowed to be used only with the lithium-ion batte- ries of the Power X-Change series. The lithium-ion batteries of the Power X-Change series are allowed to be charged only with the Power-X charger. p. 3

The vibration emission level has been measu- red in accordance with a set of standardized criteria and can be used to compare one po- wer tool with another;

The specified emission level can also be used to make an initial assessment of the ex- posure to vibration. Warning! The vibration value changes according to the area of application of the electric equipment and may exceed the specifi ed value in exceptional circumstances. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use.

Wear protective gloves. Limit the operating time! All stages of the operating cycle must be conside- red (for example, times in which the electric tools are switched off and times in which the tool is switched on but operates without load). Caution! Residual risks Even if you use this electric power tool in accordance with instructions, certain resi- dual risks cannot be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

3. Health damage caused by hand-arm vib-

longed period or is not properly guided and maintained. Danger! The electric power tool generates an electro- magnetic fi eld during operation. Under certain circumstances this fi eld may actively or passively impede medical implants. To reduce the risk of serious or fatal injuries, we recommend persons with medical implants to consult their doctor and the manufacturer of the medical implant prior to using the equipment.

5. Before starting the equipment

The equipment is supplied without batteries and without a charger.

5.1 Charging the battery (Figure 3)

1. Take the battery pack out of the equipment.

Press the pushlock button (Fig. 4/ Item C).

2. Check that your mains voltage is the same as

that marked on the rating plate of the battery charger. Insert the power plug of the charger into the socket outlet. The green LED will then begin to fl ash.

3. Insert the battery pack onto the battery char-

will fi nd a table with an explanation of the LED indicator on the charger. The battery pack can become a little warm during the charging. This is normal. If the battery pack fails to charge, check:

whether there is voltage at the socket outlet

whether there is good contact at the charging contacts If the battery pack still fails to charge, send

and the battery pack to our customer service center. To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased. When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res. To ensure that the battery pack provides long ser- vice, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully di- scharged. This will cause it to develop a defect.

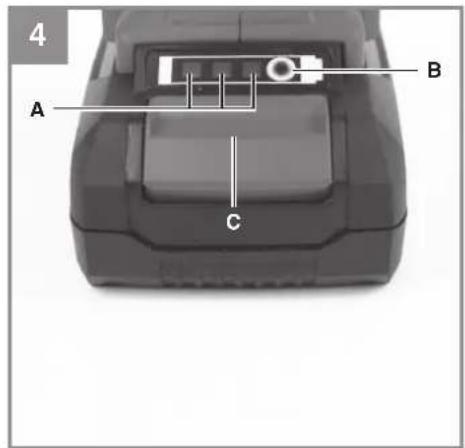

5.2 Battery capacity indicator (Fig. 4)

Press the button for the battery capacity indicator (Item B). The battery capacity indicator (Item A) shows the charge status of the battery using 3 LEDs. All 3 LEDs are lit: The battery is fully charged. 2 or 1 LED(s) are lit: The battery has an adequate remaining charge. 1 LED blinks: The battery is empty, recharge the battery. All LEDs fl ash: The battery pack has undergone exhaustive di- scharge and is defective. Do not use or charge a defective battery pack. Warning! Any foreign bodies must be com- pletely cleared away from the area to be worked on. Warning! The switching devices installed on the tool by the manufacturer are not allowed to be removed or bypassed, e.g. by fi tting a swit- ching button to the handle, as this may result in risk of injury and the tool will no longer switch off automatically.

6.1 Using the equipment as grass shears

Allow the grass shears to glide over the ground. The best cutting performance is achieved on dry lawns. The blade guard hood must be slid over the blade and the rechargeable battery removed when the equipment is not being used. Anl_GE_CG_18_100_Li_T_SPK9.indb 19Anl_GE_CG_18_100_Li_T_SPK9.indb 19 09.11.2020 10:47:1309.11.2020 10:47:13GB

The grass shears is supplied ready assembled.

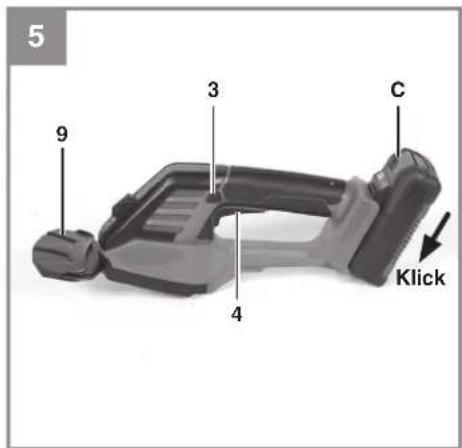

1. (Fig. 5) Push the battery into the battery

mount provided (Fig. 2/Item 10) until you hear the catch click into position. To take out the battery, press the pushlock button (Item C) and remove the battery.

(Item 3) and press the On/Off switch (Item 4) at the same time.

4. To switch off , let go of the On/Off switch.

6.1.2 Grass shears with long handle

Caution! Carry out all the following assembly, dis- mantling and adjustment work without a recharge- able battery – risk of injury. Use protective gloves and the blade guard hood which is supplied with the equipment.

6.1.2.1 Assembly and adjustment

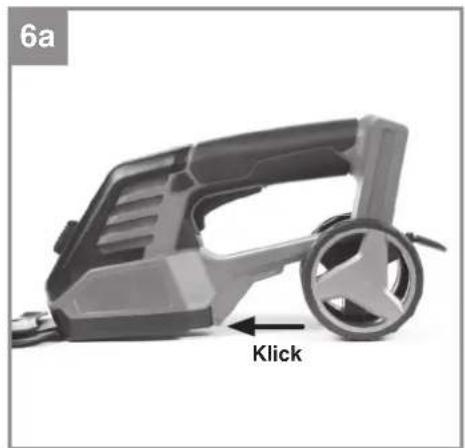

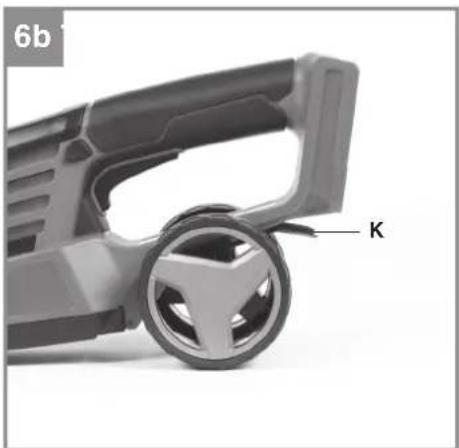

1. (Fig. 6a/Fig. 6b) Push the wheel holder (Fig.

2/Item 2) onto the grass shears until you hear the catch click into position.

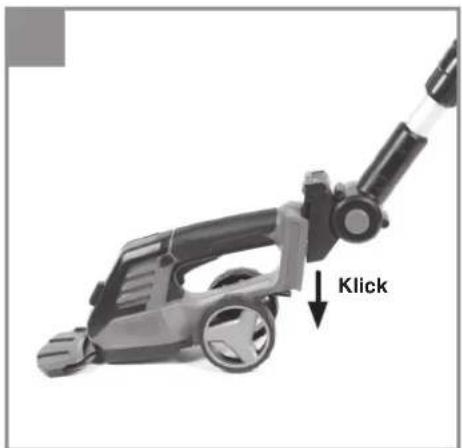

2. (Fig. 7a/Fig. 7b) Push the fi tting (Fig. 2/Item

8) of the long handle into the battery mount of

the grass shears until you hear the catch click into position.

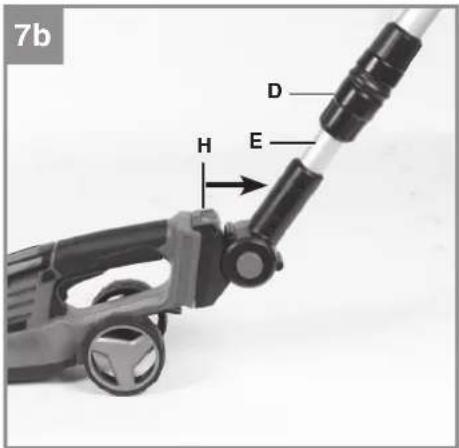

3. (Fig. 7b) To adjust the height, turn the locking

nut (Item D) to the left (OPEN) and pull the te- lescopic bottom handle (Item E) out as far as you want to meet your requirements (max. 30 cm). Turn the locking nut (Item D) to the right (LOCK) to fasten it again.

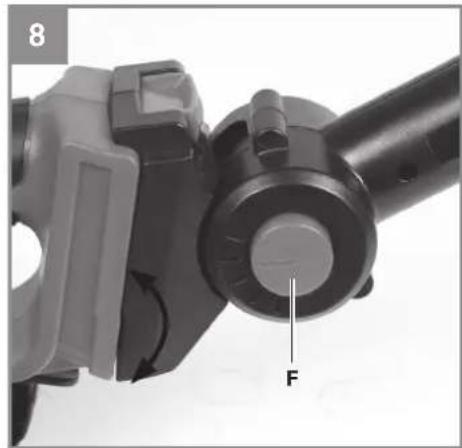

4. (Fig. 8) To adjust the angle, press the locking

button (Item F) and adjust it to your require- ments (max. 5 positions). To lock it at the set angle, release the locking button.

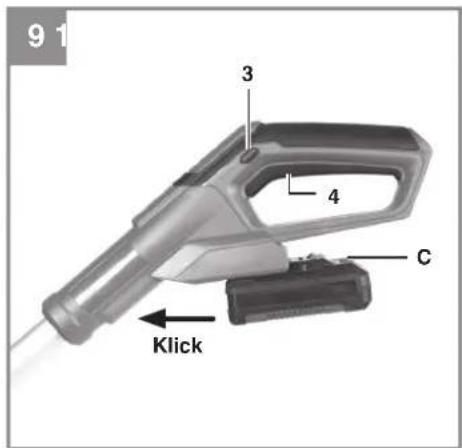

5. (Fig. 9) Push the battery into the battery

mount provided until you hear the catch click into position.

6. Remove the blade guard hood.

6.1.3 Switching on/off .

Note: When the long handle is fi tted, the grass shears can only be switched on and off using the On/Off switch on the long handle.

1. (Fig. 9) To switch on, press the safety lock-off

(Item 3) and press the On/Off switch (Item 4) at the same time.

2. To switch off , let go of the On/Off switch.

1. Fit the blade guard hood.

2. (Fig. 9) Press the pushlock button (Item C)

and remove the battery.

down and pull off the wheel holder.

6.2 Using the equipment as shrub shears

Hold the shrub shears slightly tilted in the direc- tion of the shrub you wish to cut. Start by cutting the sides of the shrub working from the bottom up, and fi nally cut the top of the shrub. The blade guard hood must be slid over the blade and the rechargeable battery removed when the equip- ment is not being used.

Shrubs which loose their leaves in the autumn should be cut in June and October.

Evergreen shrubs should be cut in April and August.

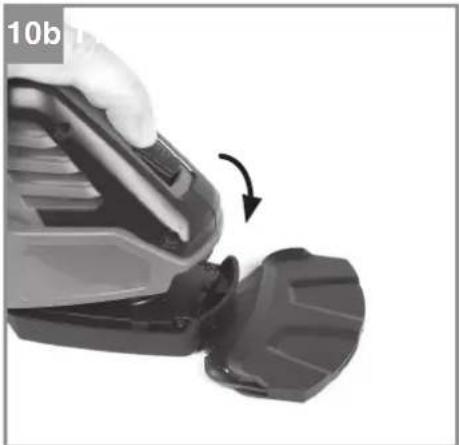

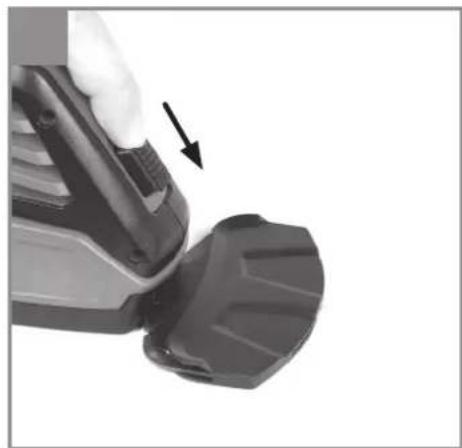

Since the equipment is supplied as grass shears (see section 6.1.1), the grass cutting blade has to be swapped over for the shrub cutter blade which is supplied with the product. Caution! Carry out all the following assembly, dismantling and adjust- ment work without a rechargeable battery – risk of injury. Use protective gloves and the blade guard hood which is supplied with the equipment.

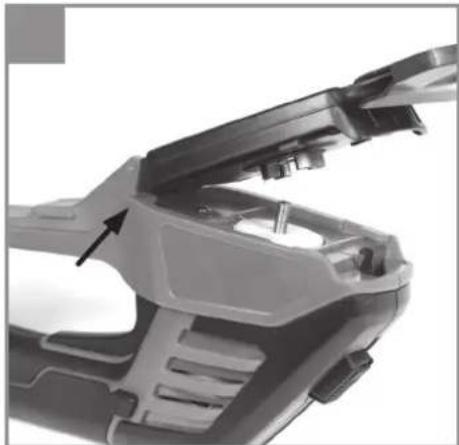

2. (Fig. 11a) Slide the blade housing into the

mount on the equipment housing.

3. Push the blade release mechanism forward

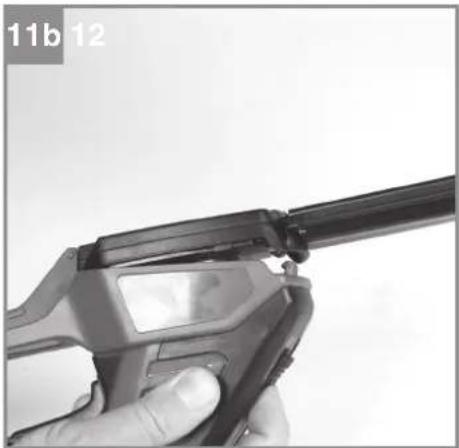

again, press down on the upper section (Fig. 11b) and press the blade into the lock at the same time. The drive unit on the equipment is now connected to the blade.

4. Push the battery into the battery mount provi-

ded until you hear the catch click into positi- on.

5. Remove the blade guard hood.

7. Cleaning, maintenance and

ordering of spare parts Danger! Remove the rechargeable battery!

Keep all safety devices, air vents and the mo- tor housing free of dirt and dust as far as pos- sible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

Clean the equipment regularly with a moist cloth. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

The shears should be cleaned thoroughly every time before and after use. A few drops of oil (for example sewing machine oil) ap- plied to the blades improve the cutting perfor- mance. However, never apply grease to the blades.

To guarantee a constant exact cut it is ne- cessary that grass residues and dirt are also removed from the top and bottom blades. Caution! Because of the risk of injury or damage to property, never clean the product with run- ning water, especially not with a pressure hose. Store the cordless shears in a dry and frost-free location. The storage place must be inaccessible to children.

For good cutting performance the blades should always be sharp. They can be therefo- re be resharpened with a whetstone. In parti- cular we recommend to remove notches and ridges which are produced on the blades by stones or the like.

There are no other parts inside the equipment which require maintenance.

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. The unit and its accessories are made of various types of material, such as metal and plastic. De- fective components must be disposed of as spe- cial waste. Ask your dealer or your local council.

9. Storage and transport

Remove the rechargeable battery. Store the equipment and its accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

Always hold the equipment on the handle,

Secure the equipment against slipping if you transport it in a vehicle.

As far as possible, use the original packaging for transporting the equipment.

Use a transport guard for the grass and shrub shears.

The equipment does not work

Check that the battery is charged (push but- ton „B“ on the battery) and whether the char- ging unit is working.

Check that the rechargeable battery is pu- shed fully into the battery mount on the equip- ment/long handle and is locked in position. If the equipment will not work in spite of the volta- ge supply being OK, please send it to the custo- mer service address below. Anl_GE_CG_18_100_Li_T_SPK9.indb 21Anl_GE_CG_18_100_Li_T_SPK9.indb 21 09.11.2020 10:47:1309.11.2020 10:47:13GB

Indicator status Explanations and actions Red LED Green LED Off Flashing Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger On Off Charging The charger is charging the battery pack in quick charge mode. The char- ging times are shown directly on the charger. Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge. Off On The battery is charged and ready for use. The unit then changes over to gentle charging mode until the battery is fully charged. To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer. Action: Take the battery pack out of the charger. Disconnect the charger from the mains supply. Flashing Off Adapted charging The charger is in gentle charging mode. For safety reasons the charging is performed less quickly and takes more time. The reasons can be: - The rechargeable battery has not been used for a very long time. - The battery temperature is outside the ideal range. Action: Wait for the charging to be completed; you can still continue to charge the battery pack. Flashing Flashing Fault Charging is no longer possible. The battery pack is defective. Action: Never charge a defective battery pack. Take the battery pack out of the charger. On On Temperature fault The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0° C). Action: Remove the battery pack and keep it at room temperature (approx. 20° C) for one day . Anl_GE_CG_18_100_Li_T_SPK9.indb 22Anl_GE_CG_18_100_Li_T_SPK9.indb 22 09.11.2020 10:47:1309.11.2020 10:47:13GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EU concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers ac- companying products is permitted only with the express consent of the Einhell Germany AG. Subject to technical changes Anl_GE_CG_18_100_Li_T_SPK9.indb 23Anl_GE_CG_18_100_Li_T_SPK9.indb 23 09.11.2020 10:47:1309.11.2020 10:47:13GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Carbon brushes, Battery Consumables* Blade Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction. Anl_GE_CG_18_100_Li_T_SPK9.indb 24Anl_GE_CG_18_100_Li_T_SPK9.indb 24 09.11.2020 10:47:1409.11.2020 10:47:14GB

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product

neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. To make a claim under the guarantee, please register the defective device at:

www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identifi cation will not be possible. If the defect is co- vered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_GE_CG_18_100_Li_T_SPK9.indb 25Anl_GE_CG_18_100_Li_T_SPK9.indb 25 09.11.2020 10:47:1409.11.2020 10:47:14F

Annex V Annex VI Noise: measured L

= 84 dB (A); guaranteed L
