USER MANUAL Sansa 2In1 Joie

Line drawing of a baby car seat with adjustable arms and buttons (no text or symbols)

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

10 CLICK

15

11 2 1 1 12

Two technical line drawings of a car interior, showing top and side views with no text or symbols.

13 ①

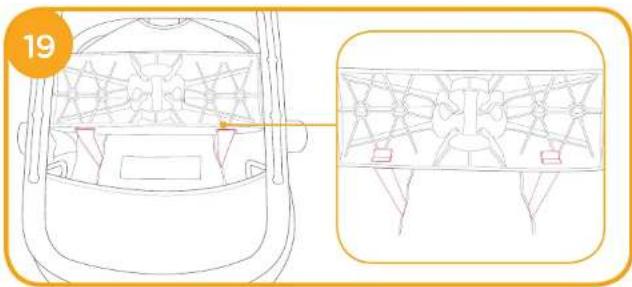

19

Diagram of a car interior showing hand positioning and directional arrows (no text or symbols)

21

Use Buckle

Line drawing of a baby car seat with handle and seatbelt (no text or symbols)

Illustration of a person wearing a seatbelt with a hand adjusting the seatbelt (no text or symbols)

24 1 2 3 CLICK

Use Shoulder Harnesses

25 1 3 2

26

27

Line drawing of a baby in a full-body seatbelt car seatbelt (no text or symbols)

Adjust Recline

Line drawing of a car seat with a highlighted seat (no text or symbols)

Line drawing of a manual pliers or tool with a 30-degree angle indicator (no text or symbols on the diagram itself)

To stabilize the rocker

Line drawing of a hand gripping a car seat with an orange arrow indicating rotation (no text or symbols)

34

Handle Adjustment

31 1 2 1

Use Vibration

Line drawing of a car seatbelt with a highlighted side panel and directional arrow (no text or symbols)

Use Electronic Module

35

36

37

38

42 or or

39 40

43

Use Wall Plug

Line drawing of a device with a circular head and internal components, showing a close-up of its internal structure (no text or symbols)

Accessories (May not be included)
Accessories may be sold separately or may not be available depending on region.

Three simple line drawings of abstract shapes: two circles with handles, a symmetrical oval shape, and a rounded rectangular shape (no text or symbols)

Use Toy

Diagram of a car interior showing two circular components with upward arrows, no text or symbols present

Use Infant Insert

Illustration of a hand pressing a button on a vertical panel, with an open padlock icon nearby (no text or symbols)

Use Head Support

47

Illustration of a hand pressing down on a mechanical component with a lock icon (no text or symbols)

49

Remove Soft Goods

Illustration of a hand pressing a lock on a mechanical component (no text or symbols)

51

Line drawing of a car interior with arrows indicating movement or flow, no text or symbols present

Top-down line drawing of a car's front and rear compartments with an arrow indicating direction (no text or symbols)

Line drawing of a baby bathtub with a hand adjusting the interior (no text or symbols)

Line drawing of a backpack seatbelt with two orange arrows indicating upward movement (no text or symbols)

Diagram of a helmet with arrows indicating movement or force direction (no text or symbols)

Illustration of a person wearing a cap and holding a chair, with an upward arrow indicating motion (no text or symbols)

NOTE

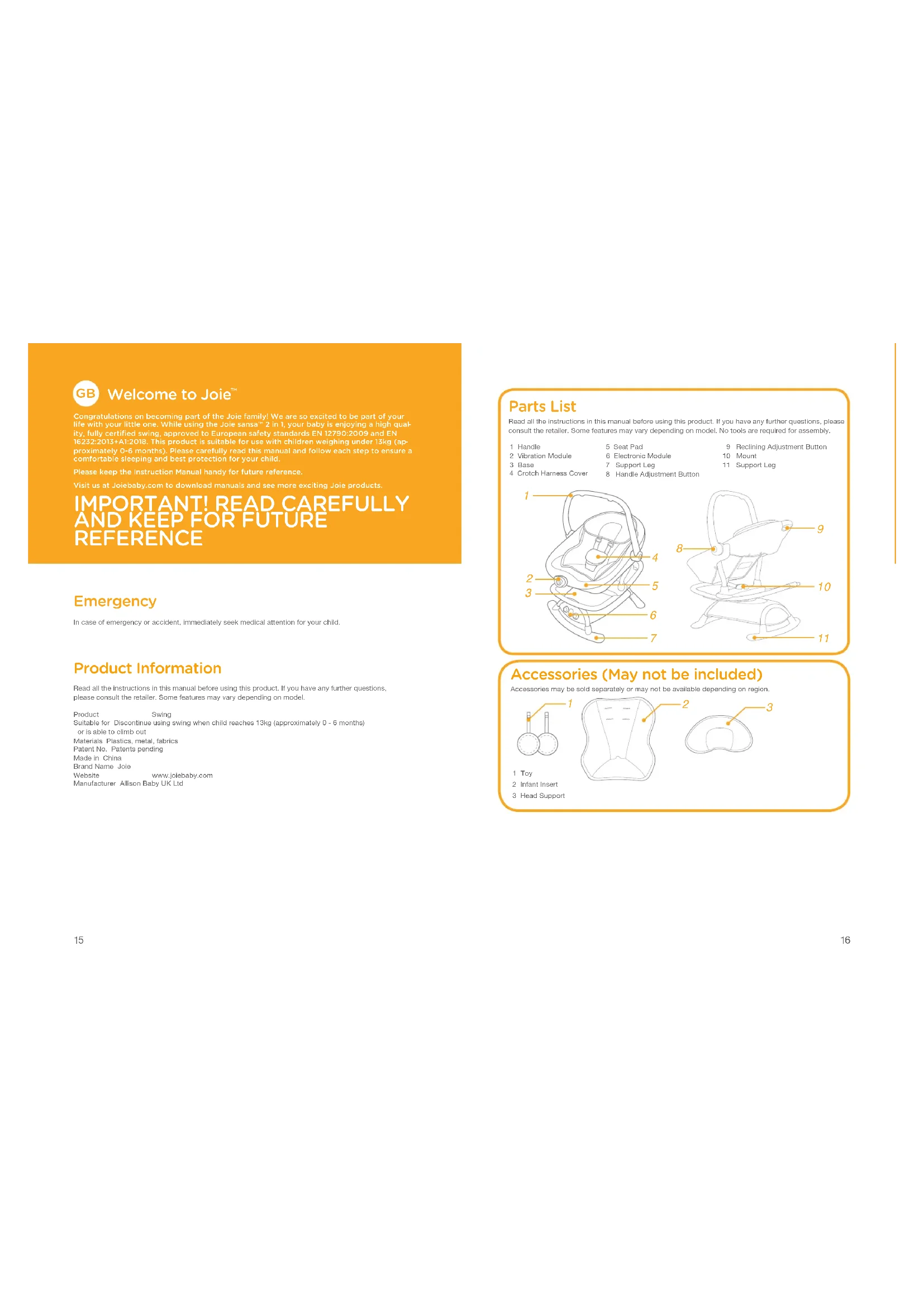

Welcome to Joie

Congratulations on becoming part of the Joie family! We are so excited to be part of your life with your little one. While using the Joie sansa™ 2 in 1, your baby is enjoying a high quality, fully certified swing, approved to European safety standards EN 12790:2009 and EN 16232:2013+A1:2018. This product is suitable for use with children weighing under 13kg (approximately 0-6 months). Please carefully read this manual and follow each step to ensure a comfortable sleeping and best protection for your child.

Please keep the instruction Manual handy for future reference.

Visit us at Joiebaby.com to download manuals and see more exciting Joie products.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Emergency

In case of emergency or accident, immediately seek medical attention for your child.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model.

Product Swing

Suitable for Discontinue using swing when child reaches 13kg (approximately 0 - 6 months) or is able to climb out

Materials: Plastics, metal, fabrics

Patent No. Patents pending

Made in China

Brand Name: Joie

Website www.joiebaby.com

Manufacturer Allison Baby UK Ltd

Parts List

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model. No tools are required for assembly.

1. Handle

2 Vibration Module

3 Base

4 Crotch Harness Cover

1. Seat Pad

2. Electronic Module

7 Support Leg

B. Handle Adjustment Button

9 Reclining Adjustment Button

10 Mount

11 Support Leg

1 2 3 4 5 6 7

Diagram of a car seat with numbered labels pointing to different seat positions

Accessories (May not be included)

Accessories may be sold separately or may not be available depending on region.

1 2 3 Toy Infect brand

1 Toy
2 Infant Insert
3 Head Support

WARNING

! NEVER leave the child unattended. Always keep your child in view.
Do NOT use this product once your child can sit up unaided or weights more than 13kg (approximately 0–6 months).
Do not use the product once your child can sit unaided.
! It is dangerous to use this product on an elevated surface e.g. a table.
! Never use this product on an elevated surface(e.g.a table).
! Always use the restraint system.
! This product is not intended for prolonged periods of sleeping.
! DO NOT let children play with this product.
! DO NOT move or lift this product with the baby inside it.
! To avoid injury ensure that children are kept away when unfolding and folding this product.
This product does not replace a cot or a bed, when your child needs to sleep, it should be placed in a suitable cot or bed.
! Be aware of the risk of open fire and other sources of strong heat such as electric bar fires, gas fires, etc in the vicinity of the product.
! To avoid strangulation, DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
All assembly fittings should be unfolded completely and tightened properly before using the product.
! DO NOT use the product if any parts are broken, torn or missing.
! DO NOT use accessories or replacement parts other than those approved by the manufacturer.
! Non-rechargeable batteries are not to be recharged.
! Rechargeable batteries are to be removed from the product before being charged.
! Rechargeable batteries are only to be charged under adult supervision.
Different types of batteries or new and used batteries are not to be mixed.
! Batteries are to be inserted with the correct polarity.
! Exhausted batteries are to be removed from the product.
! The supply terminals are not to be short-circuited.
! Change batteries when product ceases to operate satisfactorily.
! Keep the batteries out of children's reach.
To prevent possible injury by entanglement, remove the toys when the child starts trying to get up on its hands and knees in a crawling position.
To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
! Transformers used with the product are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they must not be used.
! The product must only be used with the recommended transformers.

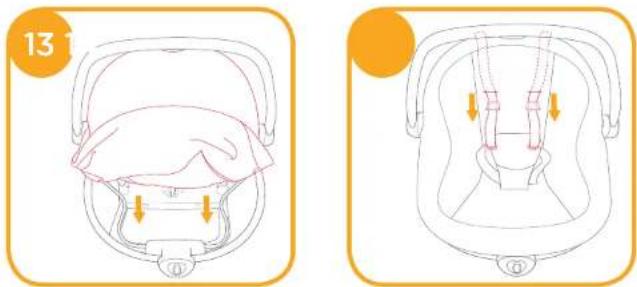

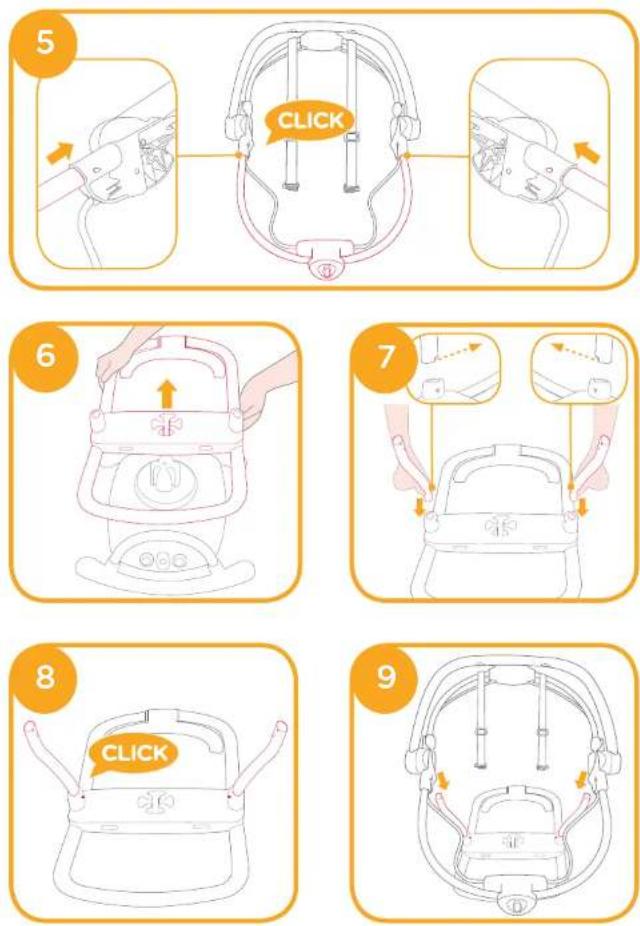

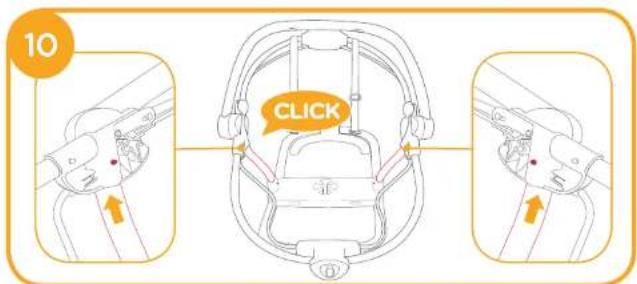

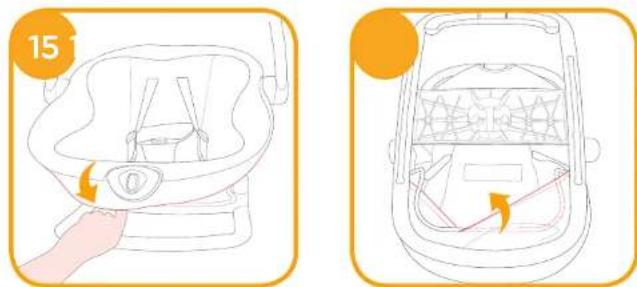

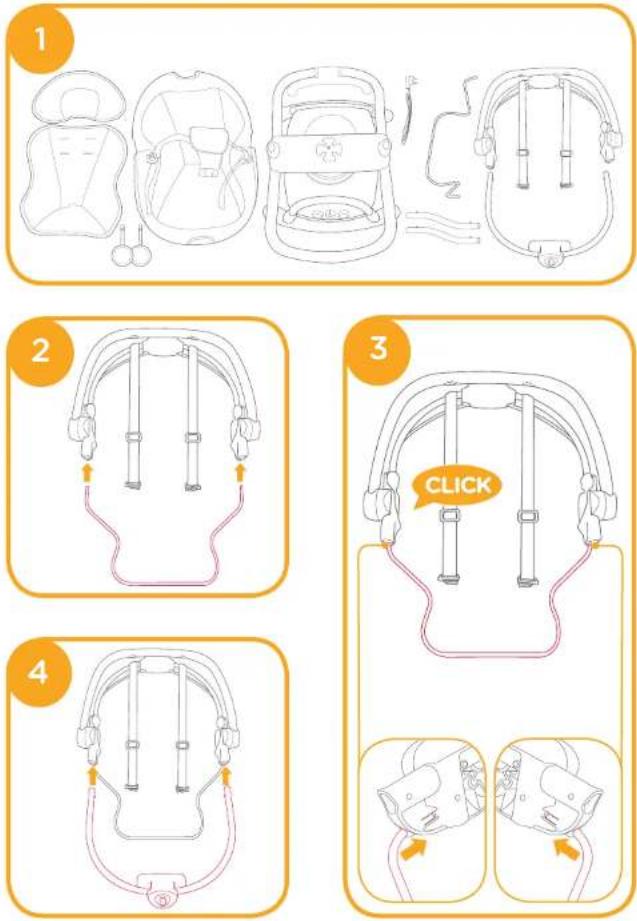

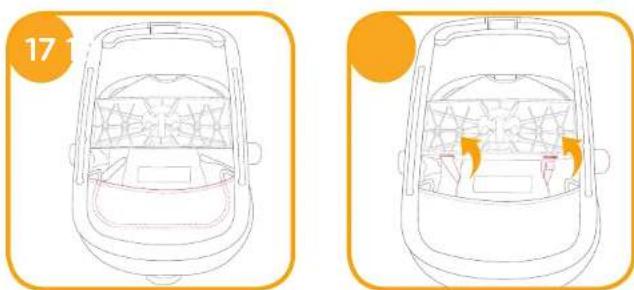

Swing Assembly

see images 1 - 22

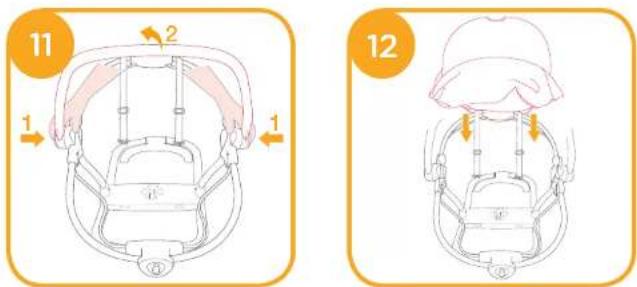

! Rotate the handle up first to the most upright angle. 11

Use Buckle

see images 23 - 25

Release Buckle

Press the center button to release the buckle. 23

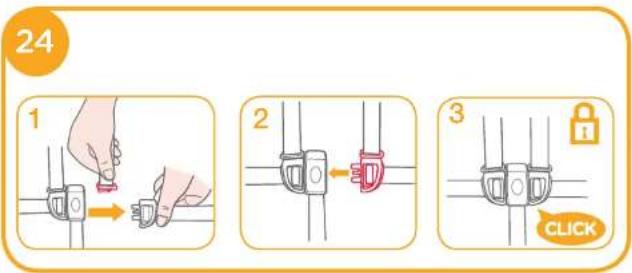

Lock Buckle

Match the waist belt buckle with the shoulder buckle 24 -1, and click into the center buckle. 24 -2

A "click" sound means the buckle is locked completely. ^24 -3

! To avoid serious injury from falling or sliding out, always secure your child with harness.
! Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.
! Do not cross the shoulder belts. This will cause pressure on the child's neck.

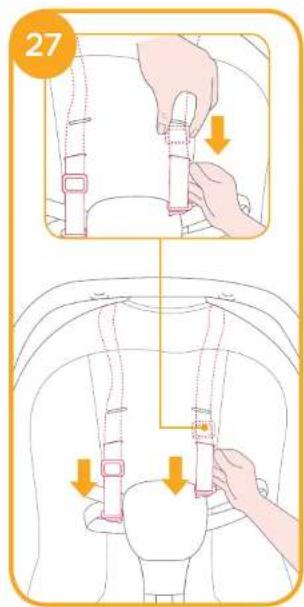

Use Shoulder Harnesses

see images 20 - 28

Adjust Recline

see images 2 - 31

There are 3 recline positions.

Squeeze button on the back of seat and push down or pull up to adjust the seat back to a desired recline position.

! Make sure the recline is set properly for use.

Handle Adjustment

see images 31

Handle can be adjusted to 2 positions.

To adjust the handle, press the left and right handle adjustment buttons at the same time, and rotate the handle to a desirable position.

! Please keep the handle in upright status for use.

To stabilize the rocker

see images

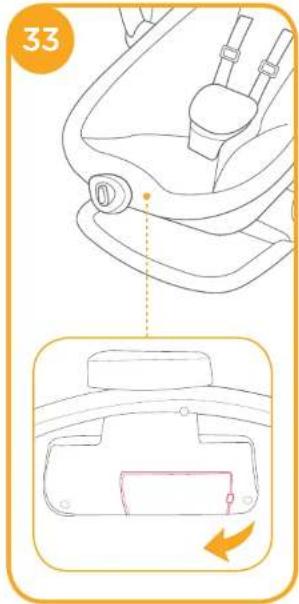

Use Vibration

see images Ⓜ - Ⓜ

Recommended type batteries-alkaline disposables, size D (1.5V).

Vibration Speed Down

Vibration Off

Vibration Speed Up

! Batteries not included.

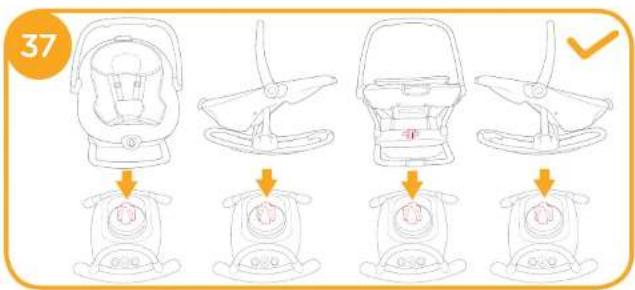

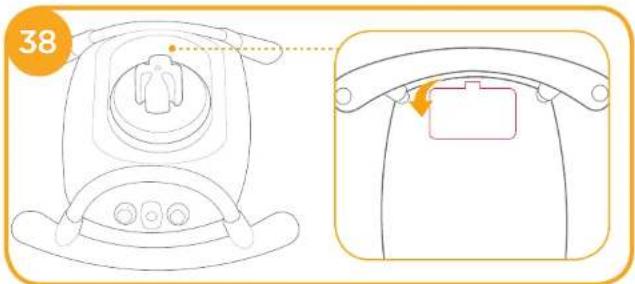

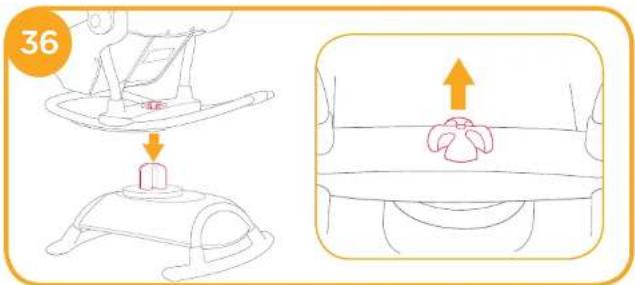

Use Electronic Module

see images © - ©

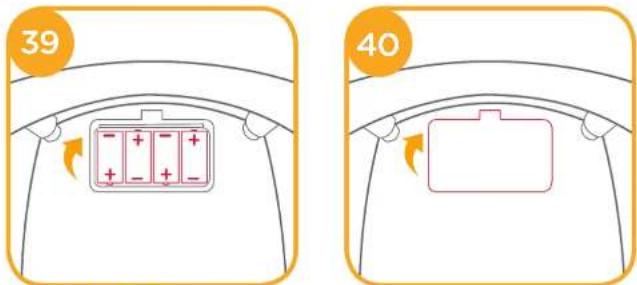

Recommended type batteries-alkaline disposables, size D (4X1.5V). NEVER mix battery types.

Main Power OFF/ON

Nature Sound

Speaker

Swing Speed UP/DOWN

Music

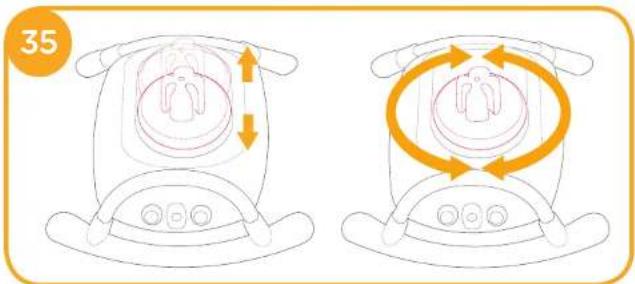

Horizontal Straight Motion

Horizontal Rotation Motion

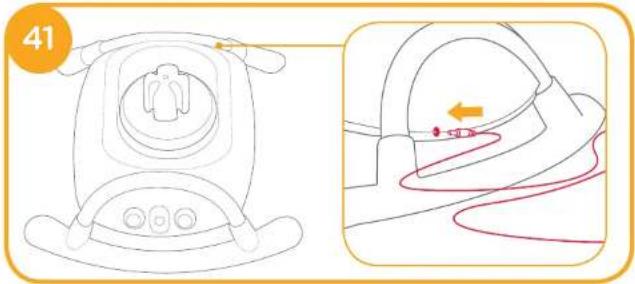

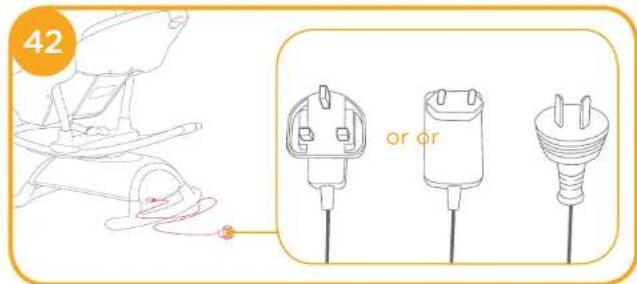

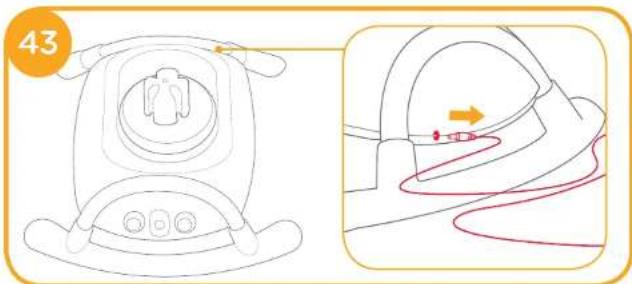

Use Wall Plug

see images 41 - 42

Product does not recharge batteries. When AC adapter is in use, batteries will automatically shut off.
DO NOT place product near water and moisture. Do not use the product near possible wet areas, such as a bathtub, shower, wash basin, sink, laundry tub, swimming pool, wet basement, etc.
DO NOT use the AC adaptor if it has been exposed to liquids, has been dropped, or is damaged.
Protect the power cord. Place it so it is not walked on or pinched by furniture or other items.
Keep this cord out of the reach of children. DO NOT use with an extension cord.
! Use only power cord provided.

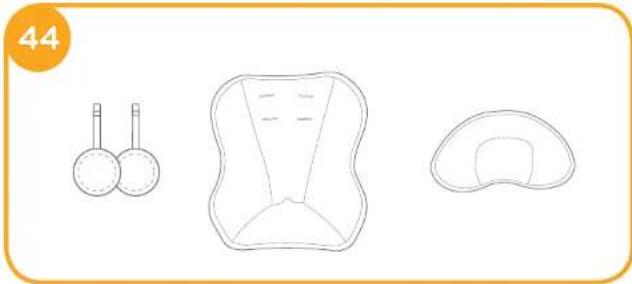

Accessories (May not be included)

Accessories may be sold separately or may not be available depending on region.

see images

Use Toy

see images

Use Infant Insert

see images 48 - 47

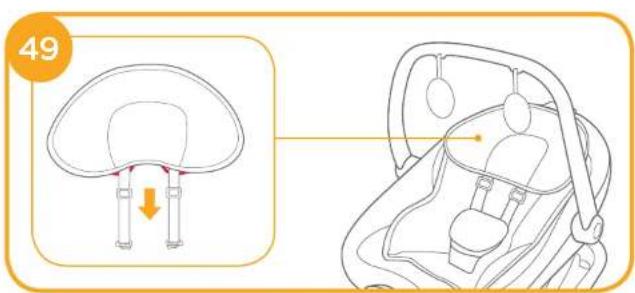

Use Head Support

see images -

Remove Soft Goods

see images -

! Open the buckle, and remove the head support and infant insert from the webbing.
To reattach the soft goods please repeat the above steps in the reverse order.

Care and Maintenance

1. Your product can be spot cleaned with a sponge and soapy water.
2. Do not use undiluted neutral detergent, gasoline or other organic solvent to wash the product. It may cause damage to the product.
3. Do not use bleach.
4. From time to time, check your product for worn parts, torn material or stitching. Replace or repair the parts as needed.
5. If the product is not in use for a long period of time, please store it in the shade where your child cannot access it.

Please recycle this product.

Fabricant Allison Baby UK Ltd

Liste des pièces

Diagram of a baby seat with numbered labels pointing to different seat positions

1 Jouet 2 Currant non-bulb

Diagram of a baby car seat with numbered labels pointing to different seat positions

Fabricante Allison Baby UK Ltd

Lista de piezas

Diagram of a baby car seat with numbered labels pointing to different seat positions

Fabricante Allison Baby UK Ltd

Lista de Peças

Energia Principal Desligada/Ligada

Som da Natureza Alto- plantes

Remover as partes macias

ver imagens 67 - 5

Diagram of a car seat with numbered labels pointing to different seat positions

Recycle oil product.

Diagram of a car seat with numbered labels pointing to different seat positions

Diagram of a baby seat with numbered labels pointing to different seat positions

Diagram showing two labeled anatomical or structural views with numbered annotations

UYARI

Materialy Plasty, kov, textile

Labeled diagram of a car interior with numbered parts for identification

Diagram of a car seat with numbered labels pointing to different seat positions

Diagram of a car seat with numbered labels pointing to different seat positions

Producent Allison Baby UK Ltd

Wykaz części

Labeled diagram of a car interior with numbered parts for identification

Diagram of a car seat with numbered labels pointing to different seat positions

Producent Allison Baby UK Ltd

Liste over dele

Diagram of a car seat with numbered labels pointing to different seat positions

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ
