USER MANUAL Serina 2In1 Joie

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Swing Assembly

Line drawings of two car seat components with a cord and plug, no text or symbols present

2 3 CLICK

4 CLICK 5

6 1 2

Use Buckle

7 8 1 2

9 1 2 3 3 CLICK

Use Shoulder Harnesses

10

11

Diagram illustrating a sewing process on a car seat, showing hand positioning and needle insertion steps with arrows indicating direction.

Line drawing of a baby sitting inside a car seat (no text or symbols)

Rotate the seat

Line drawing of a baby seat with three sequential steps showing body positioning and movement (no text or symbols)

Use Wheels

Line drawing of a baby seat with hand and feet, no text or symbols present

Adjust Recline

16 2 1

Use Electronic Module

Simple line drawing of a person standing on a circular base with a loop, no text or symbols present

To stabilize the rocker

Line drawing of a baby seat with handle and seatbelt, no text or symbols present

Handle Adjustment

17 1 2 1

19

Diagram showing a device connected to a plug with a magnified view highlighting internal components.

Use Vibration

Illustration of a handbag being inserted into a device, with an inset showing the basket and handle (no text or symbols)

21

Use Wall Plug

22

Three types of electrical plug connectors shown in line drawings, no text or symbols present

23

Accessories (May not be included)

Accessories may be sold separately or may not be available depending on region.

24

Simple line drawings of four abstract shapes: a cartoon character, a stylized figure, a circular object, and a dome-like shape (no text or symbols)

Use Toy

25

Simple line drawing of two cartoon animals inside a car, no text or symbols present

Use Infant Insert
26

Line drawing of a car seat with straps and a hand adjusting the seat (no text or symbols)

Use Head Support
27

Diagram showing a mushroom-shaped object being lifted by a cable, with an arrow indicating the motion direction.

Remove Soft Goods

Line drawing of a car seatbelt with no text or symbols

29

32

Line drawing of a car seat with an upward arrow indicating motion (no text or symbols)

30

Line drawing of a baby bottle with handle and seat (no text or symbols)

31

G1 2 2

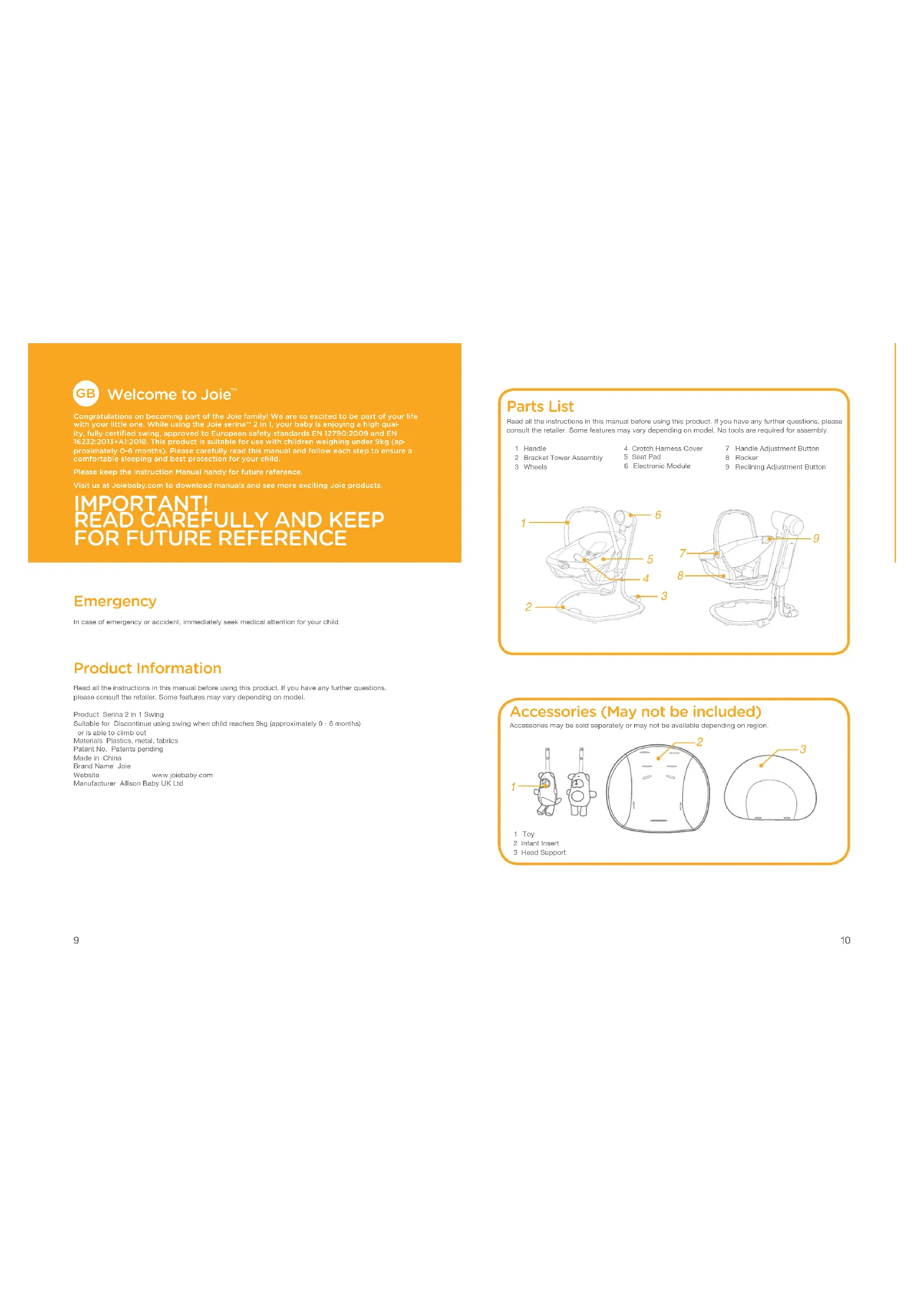

Welcome to Joie

Congratulations on becoming part of the 'Joie family! We are so excited to be part of your life with your little one. While using the Joie serina™ 2 in 1, your baby is enjoying a high quality, fully certified swing, approved to European safety standards EN 12790:2009 and EN 16232:2013+A1:2018. This product is suitable for use with children weighing under 9kg (approximately 0-6 months). Please carefully read this manual and follow each step to ensure a comfortable sleeping and best protection for your child.

Please keep the instruction Manual handy for future reference.

Visit us at Joiebaby.com to download manuals and see more exciting Joie products.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Emergency

In case of emergency or accident, immediately seek medical attention for your child.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model.

Product Serina 2 in 1 Swing

Suitable for Discontinue using swing when child reaches 9kg (approximately 0 - 6 months)

or is able to climb out

Materials Plastics, metal, fabrics

Patent No. Patents pending

Made in China

Brand Name Joie

Website www.jolebaby.com

Manufacturer Allison Baby UK Ltd

Parts List

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model. No tools are required for assembly.

1 Handle

2 Bracket Tower Assembly

3 Wheels

4 Crotch Harness Cover

5 Seat Pad

6 Electronic Module

7 Handle Adjustment Button

8 Rocker

9 Reclining Adjustment Button

1 2 3 4 5 6

Diagram of a baby seat with numbered labels pointing to different seat positions

Accessories (May not be included)

Accessories may be sold separately or may not be available depending on region.

1 2 3 1. Toy

1 Toy
2 Infant Insert
3 Head Support

WARNING

! NEVER leave the child unattended. Always keep your child in view.
! Do NOT use this product once your child can sit up unaided or weighs more than 9kg (approximately 0-6 months).
! Never use this product on an elevated surface(e.g.a. table)
! Always use the restraint system.
This product is not intended for prolonged periods of sleeping.
! DO NOT let children play with this product.
! DO NOT move or lift this product with the baby inside it.
! To avoid injury ensure that children are kept away when unfolding and folding this product.
This product does not replace a cot or a bed, when your child needs to sleep, it should be placed in a suitable cot or bed.
! Be aware of the risk of open fire and other sources of strong heat such as electric bar fires, gas fires, etc in the vicinity of the product.
To avoid strangulation, DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
All assembly fittings should be unfolded completely and tightened properly before using the product.
! DO NOT use the product if any parts are broken, torn or missing.
! DO NOT use accessories or replacement parts other than those approved by the manufacturer.
! Non-rechargeable batteries are not to be recharged.
! Rechargeable batteries are to be removed from the product before being charged.
! Rechargeable batteries are only to be charged under adult supervision.
Different types of batteries or new and used batteries are not to be mixed.
! Batteries are to be inserted with the correct polarity.
! Exhausted batteries are to be removed from the product.
! The supply terminals are not to be short-circulted.
! Change batteries when product ceases to operate satisfactorily.
! Keep the batteries out of children's reach.
To prevent possible injury by entanglement, remove the toys when the child starts trying to get up on its hands and knees in a crawling position.
To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
! Transformers used with the product are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they must not be used.
! The product must only be used with the recommended transformers.
! It is dangerous to use this product on an elevated surface e.g. a table.
! Do not use the reclined cradle once your child can sit unaided.

Swing Assembly

see images 1 - 6

! Rotate the handle up first to the most upright angle. 4 -1

Use Buckle

see images 7 - 9

Release Buckle

Press the center button to release the buckle.

Lock Buckle

Match the waist belt buckle with the shoulder buckle ⚪ -1, and click into the center buckle. ⚪ -2

A "click" sound means the buckle is locked completely. ♂ -3

! To avoid serious injury from falling or sliding out, always secure your child with harness.
! Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.
! Do not cross the shoulder belts. This will cause pressure on the child's neck.

Use Shoulder Harnesses

see images 10 - 12

Rotate the seat

see images 13

! The seat can be rotated by 180 degrees from side to side.

Use Wheels

see images 14

To stabilize the rocker

see images 15

Adjust Recline

see images 16

There are 3 recline positions.

Squeeze button on the back of seat and push down or pull up to adjust the seat back to a desired recline position.
1 Make sure the recline is set properly for use.

Handle Adjustment

see images

Handle can be adjusted to 2 positions.

To adjust the handle, press the left and right handle adjustment buttons at the same time, and rotate the handle to a desirable position.

Please keep the handle in upright status for use.

Use Electronic Module

see images 14 - 15

Recommended type batteries-alkaline disposables, size D (4X1.5V). NEVER mix battery types.

Main Power OFF/ON

Nature Sound

Music

Volume UP/DOWN

ng Speed UP/DOWN

Mute

If the top left light on the motor is flashing blue, please check to ensure that you are using the correct adaptor (adaptor supplied or approved by the manufacturer).

Use Vibration

see images ② - ③

Recommended type batteries-alkaline disposables, size D (1.5V).

Vibration Speed Down

Vibration Off

Vibration Speed Up

Batteries not included

Use Wall Plug

see images ② - ③

Product does not recharge batteries. When AC adapter is in use, batteries will automatically shut off.
DO NOT place product near water and moisture. Do not use the product near possible wet areas, such
as a bathtub, shower, wash basin, sink, laundry tub, swimming pool, wet basement, etc.
DO NOT use the AC adaptor if it has been exposed to liquids, has been dropped, or is damaged.
Protect the power cord. Place it so it is not walked on or pinched by furniture or other items.
Keep this cord out of the reach of children, DO NOT use with an extension cord.
Use only power cord provided.

Accessories (May not be included)

Accessories may be sold separately or may not be available depending on region.

see images 24 - 27

Use Toy

see images

Use Infant Insert

see images

Use Head Support

see images ②

Remove Soft Goods

see images -

Open the buckle, and remove the head support and infant insert from the webbing.
To reattach the soft goods please repeat the above steps in the reverse order.

Care and Maintenance

1. Your product can be spot cleaned with a sponge and soapy water.
2. Do not use undiluted neutral detergent, gasoline or other organic solvent to wash the product.
   It may cause damage to the product.
3. Do not use bleach.
4. From time to time, check your product for worn parts, torn material or stitching. Replace or repair the parts as needed.
5. If the product is not in use for a long period of time, please store it in the shade where your child cannot access it.

Please recycle this product.
