Product Type	Air Purifier
Brand	HOMEDICS
Model	TotalClean APT30EU
Filtration Technology	True HEPA filter, pre-filter, activated carbon filter, UV-C, ionizer
Number of speeds	3 (low, medium, high)
Built-in timer	2, 4, 8, or 12 hours
Maximum coverage area	84 m² (ceiling height 2.43 m)
Airflow rate	204.1 m³/h
Air changes per hour	1 time per hour for 84 m²
UV-C technology	Yes, with switch (eliminates germs, viruses, bacteria)
Ionizer	Yes, with switch (participates in purification)
Essential oil tray	Yes, with 3 pads included (essential oils not included)
Lighting	3 modes (blue, off, button lights)
Filter replacement indicator	Yes
UV-C bulb end of life indicator	Yes (UV-C button turns red)
Power supply	Mains (standard plug)
Maintenance	Clean pre-filter with vacuum once a month; replace True HEPA filter every 12 months; replace UV-C bulb after approximately 10,000 hours
Available replacement parts	True HEPA filter (AP-T30FL), UV-C bulb (AP-UVC1), essential oil tray (AP-T30WTARM), essential oil pads (ARM-PAD3), cover and screws (APUVCCV)
Safety	Do not use water on the HEPA filter; do not operate without UV shield; ozone <0.05 ppm; caution with pets

Frequently Asked Questions - TotalClean APT30EU HOMEDICS

How to replace the True HEPA filter?

Unplug the device. Pull on the recesses on each side of the protective grille to remove it. Remove the used filter by pulling on the tabs. Insert the new True HEPA filter with the tabs facing outward. Replace the grille and plug in the device. Press the ION button on the ionizer for 3 seconds to reset the filter replacement indicator.

How to clean the pre-filter?

Unplug the device. Remove the True HEPA filter as indicated for replacement. Vacuum the outside of the True HEPA filter using a brush attachment. Replace the filter and grille. It is recommended to clean the pre-filter once a month under normal use conditions.

How often should the True HEPA filter be replaced?

For optimal performance, replace the True HEPA filter every 12 months under normal use conditions. The filter replacement indicator lights up when replacement is needed based on hours of use.

How to use the essential oil tray?

Open the tray located on the side of the device, above the light ring. Place a diffuser pad (provided) in the tray and add 5 to 7 drops of essential oil onto the pad. Do not put oil directly into the tray. Close the tray. The fragrance diffuses automatically when the device is operating.

What to do if the filter replacement indicator remains lit after changing the filter?

The indicator must be reset. Press the ION ionizer button for 3 seconds until the indicator turns off.

How to activate the UV-C technology?

Press the UV-C button on the control panel. The blue LED lights up to indicate the UV-C technology is on. Press again to turn it off. The UV-C technology eliminates germs, viruses, and bacteria.

How to use the ionizer?

Press the ION button on the ionizer. The blue light turns on to indicate it is working. Press again to turn it off. The ionizer charges particles to facilitate their capture. Note: the ozone produced is less than 0.05 ppm.

What to do in case of excessive noise?

Check that the device is installed on a flat and level surface. Excessive noise may be due to tilting. Place the device on a stable surface.

How to set the timer?

Press the timer button until the indicator for the desired duration lights up. Options are: 2 hours, 4 hours, 8 hours, 12 hours. To cancel, press until the LEDs turn off. Without timer, the device runs continuously.

How to change the UV-C bulb?

Unplug the device and remove the True HEPA filter. Use a Phillips screwdriver to unscrew the 2 screws of the UV-C bulb cover. Remove the cover, gently push on the sides of the bulb and turn to remove it. Replace with a new bulb (ref. AP-UVC1). Replace the cover, filter, and grille. The UV-C bulb contains mercury.

USER MANUAL TotalClean APT30EU HOMEDICS

Removes up to 99.97% of airborne particles as small as 0.3 microns, such as allergens, pollen, dust, germs, pet dander, odour, mould spores, and smoke from air that passes through the filter.

CARBON ODOUR FILTRATION

Reduces household odours and VOCs (volatile organic compounds)/gases as shown by independent laboratory testing.

PRE-FILTER

Captures large particles.

UV-C TECHNOLOGY WITH ON/OFF

When on, the UV-C technology light kills germs, viruses, and bacteria.

IONISER WITH ON/OFF

When on, the ioniser assists in the air purification process.

3 SPEEDS

Low, medium, and high.

BUILT-IN TIMER

Choose from 2, 4, 8, or 12 hours.

REPLACE FILTER INDICATOR

Illuminates when it is time to replace the filter.

SUGGESTED ROOM SIZE

84M^2 /H / 888FT^2 /H Portable air purifiers will be more effective in rooms where all the doors and windows are closed.

AIR CHANGES PER HOUR

This air purifier will purify the air in a 84M^2 /888FT^2 room (assuming an 2.43 M/8 FT ceiling) once per hour on high speed in a closed room. The airflow rate is 204.1M^3 /H/ 7104FT^3 /H

OIL TRAY

Includes 3 essential oil pads. Use with essential oil (not included) to deliver scent into the air.

OPERATING INSTRUCTIONS

BEFORE TURNING THE UNIT ON

• Take the air purifier out of the box and remove the clear protective plastic bag.
• Place the air purifier on a firm, level surface.
• Plug the power cord into a standard AC outlet.

POWER BUTTON AND FAN SPEED SETTINGS

• To turn the air purifier on, press the power button.
• This air purifier has 3 fan speed settings: low (1), medium (2), and high (3). The higher the fan speed setting, the faster the air will be purified. To select or change fan speed, press the fan speed button until the desired setting is reached.

UV-C TECHNOLOGY WITH ON/OFF

The optional UV-C technology kills germs, viruses, and bacteria by penetrating its DNA, resulting in the microorganism's death or the inability to reproduce. Press the UV-C button to turn the UV-C technology on. The blue LED will glow. Press the UV-C button again to turn the UV-C technology off.

IONISER SETTING WITH ON/OFF

Ion particles have a positive or negative charge that attach to airborne particles, making them easier to be captured by the filtration system. Press the ioniser ION button to turn the ioniser on. The blue light will glow to indicate the ioniser is in use. Press the ioniser ION button again to turn the ioniser off.

NOTE: Dust particles may accumulate on surfaces around the air purifier when the ioniser is in use. These dust particles can be vacuumed or wiped away with a soft, damp cloth.

NOTE: You may hear occasional popping sounds when the ioniser is used. This is normal.

NOTE: The ioniser produces less ozone than the UL-established limits of 0.05 ppm. Ozone may be harmful around birds and small pets. To prevent ozone buildup, use the ioniser feature in a well-ventilated area.

NIGHTLIGHT

The nightlight has 3 options. Press the nightlight button once to turn the blue nightlight on. Press again to turn the blue nightlight ring and the display lights off. Press a third time to turn the display lights on.

TIMER

Press the timer button until the desired timer setting is lit on the display. The timer button will cycle through the following settings: 2 hours, 4 hours, 8 hours, 12 hours, and off. To cancel the timer at any time, press the timer button until all timer LEDs are off. The air purifier will run continuously when the timer function is off.

OIL TRAY

Use essential oil (not included) to deliver scent into the air.

NOTE: For use with the included HoMedics essential oil pads only. Do not add essential oils anywhere else in the unit as it may cause damage.

NOTE: Do not leave a filled essential oil pad in the air purifier if it will be out of use for a long period of time.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS?

We should always exercise caution when using essential oils around our pets. Keep all essential oil and aromatherapy products (like diffusers) out of reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don't like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

ADDING ESSENTIAL OILS

This air purifier has been certified by the European Centre for Allergy Research Foundation (ECARF) as an allergy-friendly product. Please note that allergy friendliness is no longer guaranteed if the Essential Oil Scent Tray function is used, since essential oils may lead to allergic reactions.

WARNING: Putting oil anywhere but the oil tray will damage the air purifier.

ated on the side of the

air purifier above the nightlight ring.

remove the tray.

d (3 included) into

essential oil to the

more or less.
onal preference.

WARNING: Only place essential oil directly into the tray.

FILTER REPLACEMENT

REPLACE FILTER LIGHT

The replace filter light illuminates when it is time to replace the True HEPA filter based on the air purifier's hours of use.

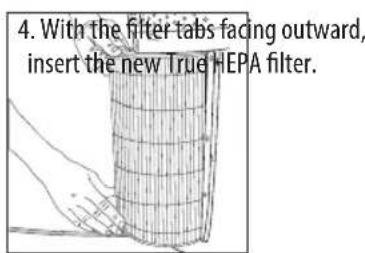

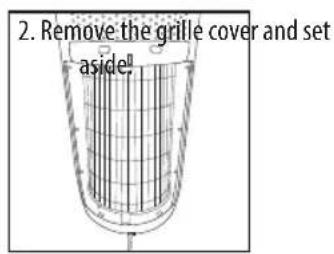

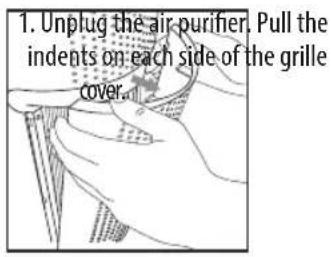

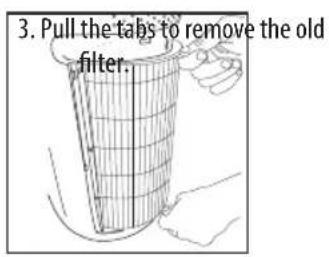

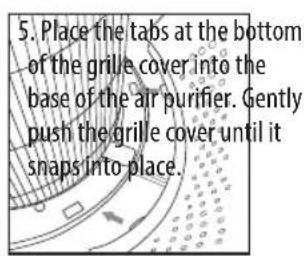

REPLACING THE TRUE HEPA FILTER

For optimal performance, replace every 12 months under normal usage conditions.

UV-C BULB REPLACEMENT

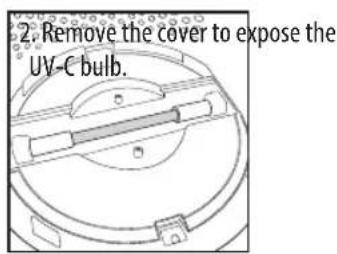

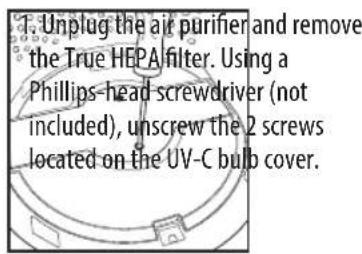

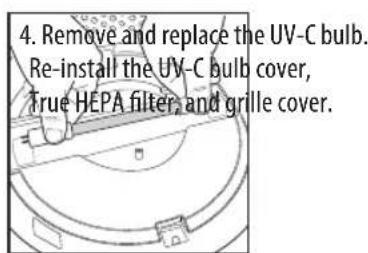

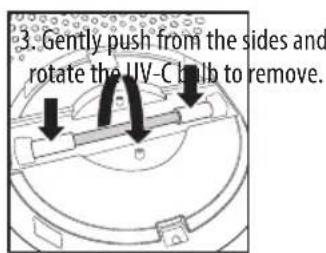

REPLACING THE UV-C BULB

The UV-C bulb is designed to last for approximately 10,000 hours of use. The UV-C button on the control panel will flash RED when the UV-C bulb burns out and needs to be replaced. The UV-C button will change to blue once the bulb has been replaced.

NOTE: The air purifier will continue to operate without the UV-C function when the UV-C bulb burns out.

CAUTION: Do not operate the air purifier without the protective UV-C bulb cover.

CAUTION: Unplug the power cord before servicing or replacing the UV-C bulb.

NOTE: The UV-C bulb contains mercury (Hg).

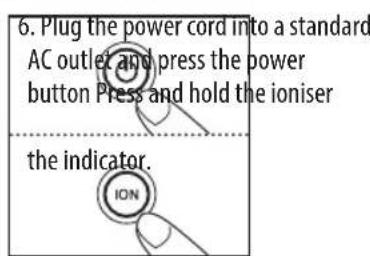

ION button for 3 seconds to reset

CLEANING & MAINTENANCE

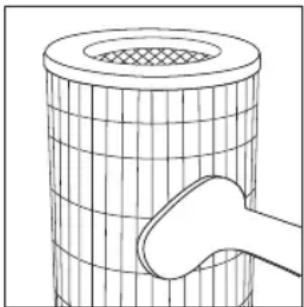

CLEANING THE PRE-FILTER

NOTE: For best performance, vacuum the pre-filter once a month under normal usage.

1. Unplug the air purifier.
2. Remove the True HEPA-type filter as described in the Replacing the True HEPA filter section.
3. Vacuum the outside of the True HEPA filter using the brush attachment of your vacuum cleaner, cleaning it thoroughly.
4. Place the True HEPA filter back into the air purifier and close grille.
5. Plug the power cord into a standard AC outlet.

TO CLEAN THE OIL TRAY

Open the oil tray and remove the pad. Essential oil pads should be changed when switching to a different essential oil scent. If continuing to use the same scent, set the essential oil pad aside for reuse. Wipe down the inside of

the oil tray with a soft cloth. Place the essential oil pad back in the tray and close.

NOTE: Leave the essential oil pad out of the oil tray when storing.

FOR BEST PERFORMANCE

• NEVER use water or any household cleaners or detergents to clean the True HEPA filter.
• Clean off the outside of the unit with a dry cloth as needed.
• NEVER use water, wax, polish, or any chemical solution to clean the outside of the unit.
• Clean off the grille cover using a damp cloth or the brush attachment of your vacuum as needed.
• Vacuum the pre-filter monthly under normal usage conditions.
• Replace the True HEPA filter every 12 months under normal usage conditions.
• Always use a genuine HoMedics replacement filter for optimal performance.

To purchase genuine HoMedics replacement/spare parts please visit www.homedics.co.uk

3 Pack of aroma pads - ARM-PAD3

Aroma tray - AP-T30WTARM

HEPA filter - AP-T30FL

UV-C Bulb - AP-UVC1

Cover & screws - APUVCCV

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Unit will not operate · Unit is not plugged in · Power button not pressed · No power to unit · True HEPA filter is not installed correctly · Grille cover is not installed correctly		Plug unit in · Press the power button to turn the power on · Check fuses, try a different outlet · Reinstall the True HEPA filter · Reinstall the grille cover
Reduced airflow · The back grille may be blocked · Pre-filter needs vacuuming · The True HEPA filter needs to be replaced		Check to make sure nothing is blocking the back grille and air outlet · Vacuum the pre-filter with the brush attachment of your vacuum cleaner · Replace the True HEPA filter
Reduced odour removal	· The True HEPA filter needs to be replaced	Replace the True HEPA filter
Excessive noise · The unit is not level	· Place the unit on a flat, level surface
Replace filter light remains lit after filter replacement	· The replace filter indicator needs to be reset	Press and hold the ioniser button for 3 seconds until the replace filter light turns off
Display lights are off · Nightlight setting	· Press the nightlight button until the desired lights are on/off

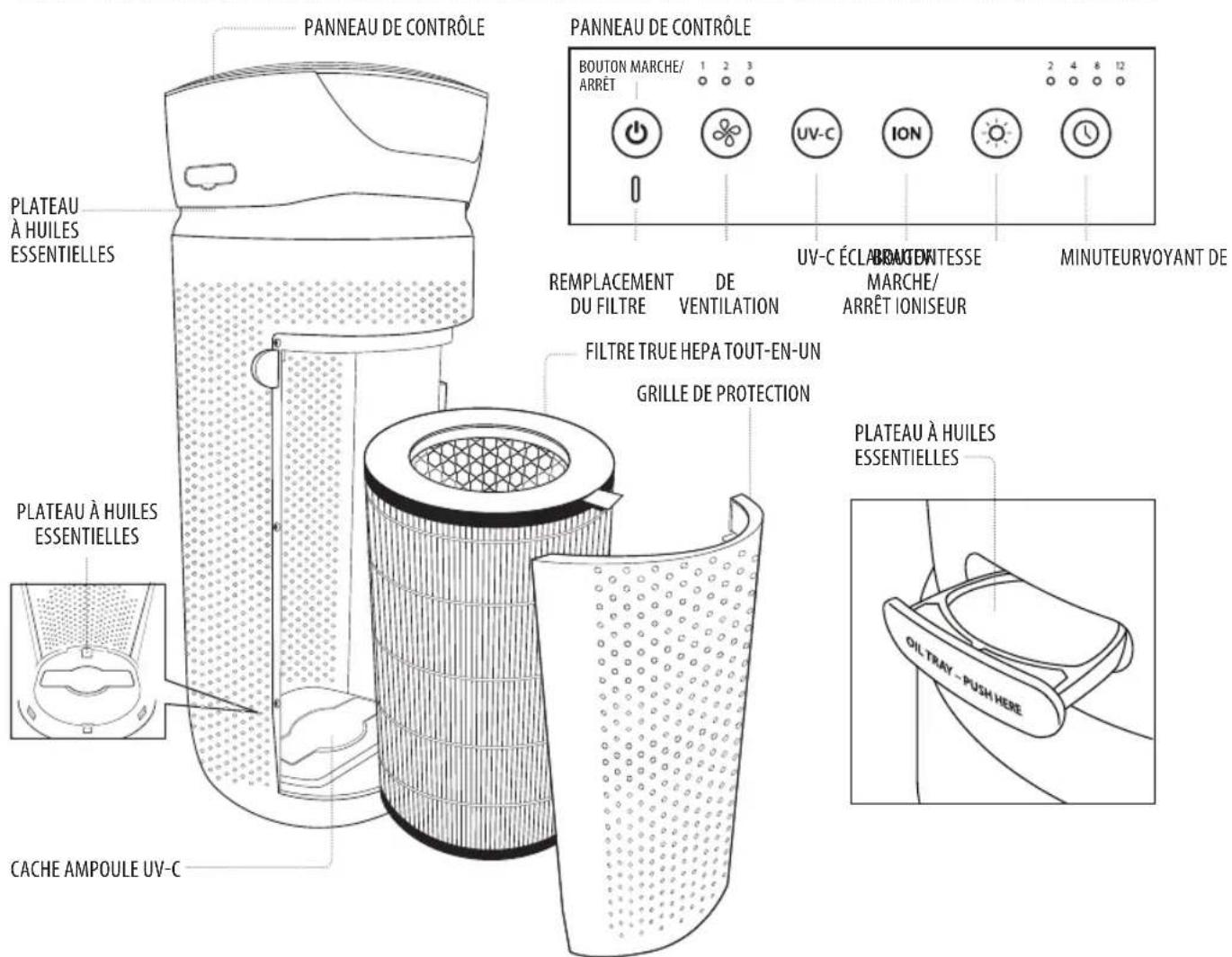

CHARACTERISTIQUES DU PRODUIT

SYSTÉME DE FILTRATION TRUE HEPA TOUT-EN-UN

FILTRATION TRUE HEPA TOUT-EN-UN

REEMPLACEMENT DE L'AMPOULE UV-C

REMPPLICER L'AMPOULE UV-C

True HEPA-Filter - AP-T30FL

UV-C-Lampe - AP-UVC1

True HEPA-filter - AP-T30FL

UV-C lamp - AP-UVC1

Deksel en schroeven - APUVCCV

PROBLEMEN OPLOSSEN

UHLIKOVÁ FILTRACE ZAPACHU

AZ UV-C IZZO CSERÉJE

RESERVGLÖDLAMPA FÖR UV-C-LAMPA

BYTE AV UV-C-GLODLAMPAN

3-pack aromkuddar - ARM-PAD3

Aromfack - AP-T30WTARM

True HEPA-filter - AP-T30FL

UV-C-glodlampa-AP-UVC1

FOR APPARATET SLÅS PÅ

• Ta luftrenseren ut av esken og fjern den gjennomsiktige, beskyttende plastposen.
• Plasser luftrenser på en fast, jevn overflate.
  Koble strømledningen til en standard stikkontakt.

STRÖMKNAPP OG INNSTILLINGER FOR VIFTEHASTIGHT

Trykk pa stromknappen for a sla pa luftrenseren
- Viften på这部分 luftrenseren har tre hastighetsinnstillinger: lav (1), middels (2) og høy (3). Jo høyere viftehastighet er stilt inn,esto raskere vil luften bl renset. Hvis du vil velge aller endre viftehastighet,trykker du pa viftehastighetsknappen ^念 til du fär onsket innstilling.

UV-C-TEKNOLOGIMEDAV/PA-FUNKSJON

IONISERER-INNSTILLING MED AV-PA-FUNKSJON

Aromabeholder - AP-T30WTARM

HEPA-filter - AP-T30FL

UV-C-paere - AP-UVC1

HEPA-suodatin - AP-T30FL

UV-C-polttimo - AP-UVC1
