Product Type	Air Purifier
Brand	HoMedics
Model	TotalClean PetPlus AP-PET35FL
Dimensions (H x W x D)	18.5 x 12.2 x 12.2 inches
Weight	Approximately 10.5 lbs
Power Supply	120V AC, 60Hz
Coverage Area	Up to 160 square feet
Filtration System	3-stage: Washable Pre-Filter, Activated Carbon Filter, HEPA-Type Filter
Pet-Specific Features	Pet dander reduction, odor absorption
Fan Speeds	3 speeds (Low, Medium, High)
Timer	2, 4, or 8 hours
Noise Level	As low as 30 dB on low setting
Filter Replacement Indicator	Yes
Replacement Filter Model	AP-FIL35PET
Filter Change Interval	Every 6 months (approximately)
Energy Star Rated	Yes
Safety Features	Automatic shut-off when front cover is removed
Certifications	CARB certified, ETL listed
Warranty	3-year limited warranty

Frequently Asked Questions - TotalClean PetPlus AP-PET35FL HOMEDICS

How often should I replace the filter?

The filter should be replaced approximately every 6 months, or when the filter replacement indicator lights up. For best performance, replace the filter regularly, especially if you have pets.

Can I wash the pre-filter?

Yes, the washable pre-filter can be cleaned with water. Allow it to dry completely before reinserting. Do not wash the HEPA-type or carbon filters.

What is the coverage area of this air purifier?

The TotalClean PetPlus AP-PET35FL is designed for rooms up to 160 square feet, ideal for bedrooms, living rooms, or small offices.

Is the air purifier safe to leave on overnight?

Yes, it is safe to operate continuously. The unit is energy-efficient and operates quietly on low speed, making it suitable for overnight use.

How do I reset the filter replacement indicator?

After replacing the filter, press and hold the filter reset button (usually located on the control panel) for 3 seconds until the indicator light turns off.

Does the purifier remove pet odors?

Yes, the activated carbon filter is specifically designed to absorb common household odors, including pet odors, smoke, and cooking smells.

What type of filter does the AP-PET35FL use?

It uses a 3-stage filtration system: a washable pre-filter, an activated carbon filter, and a HEPA-type filter. The replacement filter model is AP-FIL35PET.

Can I use this air purifier in a large room?

For optimal performance, use it in rooms up to 160 sq ft. In larger spaces, the air exchange rate will be lower, reducing efficiency.

How do I clean the unit?

Unplug the unit and use a soft, dry cloth to wipe the exterior. Wash the pre-filter every 2-4 weeks. Do not use water or cleaners on the main unit.

Does the air purifier produce ozone?

No, this model uses mechanical filtration and does not produce ozone. It is CARB certified and safe for use around people and pets.

USER MANUAL TotalClean PetPlus AP-PET35FL HOMEDICS

REPLACE FILTER LIGHT

The replace filter light illuminates when it is time to replace the True HEPA filter based on the air purifier's hours of use.

REPLACING THE TRUE HEPA FILTER

For optimal performance, replace every 12 months under normal usage conditions.

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

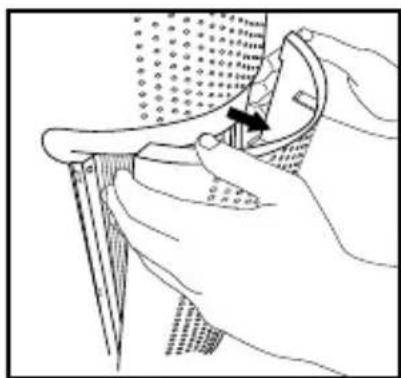

1. Unplug the air purifier. Pull the indents on each side of the grille cover.

Technical line drawing of a cylindrical device with internal grid structure (no text or symbols)

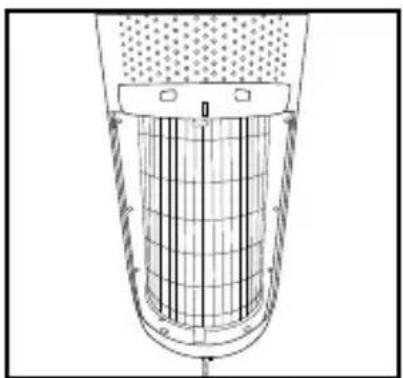

1. Remove the grille cover and set aside.

Line drawing of hands holding a filter or grating device (no text or symbols)

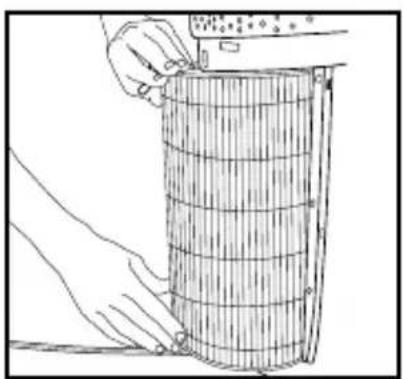

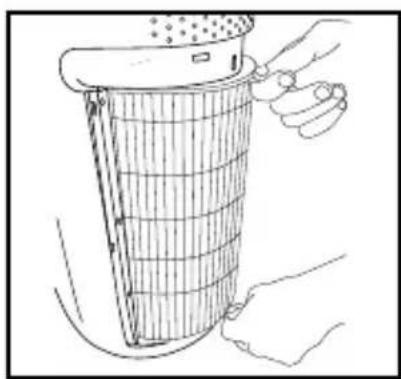

1. Pull the tabs to remove the old filter.

Line drawing of hands holding a cylindrical object with a ruler above, no text or symbols present

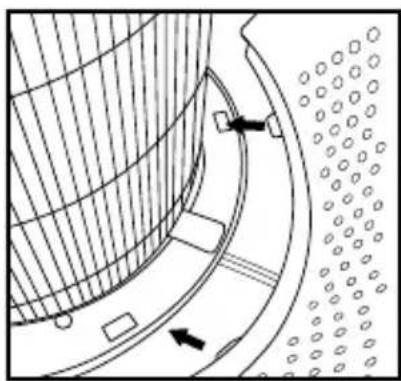

1. With the filter tabs facing outward, insert the new True HEPA filter.

To purchase genuine HoMedics replacement True HEPA filters, model AP-PET35FL, go back to your retailer where you purchased your air purifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

Technical line drawing of a curved mechanical component with internal components and directional arrows (no text or symbols)

1. Place the tabs at the bottom of the grille cover into the base of the air purifier. Gently push the grille cover until it snaps into place.

Hand holding a power button icon with a finger, no text or symbols present

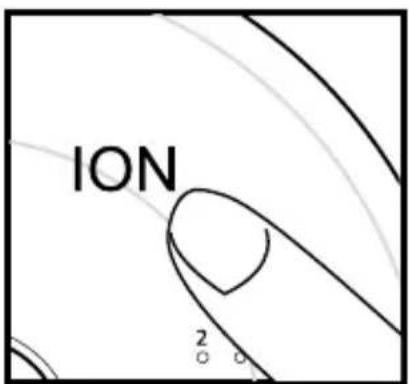

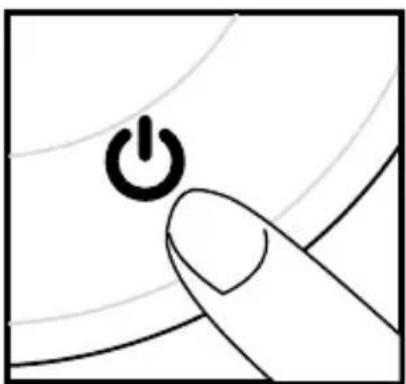

1. Plug the power cord into a standard AC outlet and press the power button. Press and hold the ionizer ION button for 3 seconds to reset the indicator.
