Product Type	CD player with AM/FM tuner
Brand	Sony
Model	CXS-M2016
Dimensions (W × H × D)	178 × 50 × 179 mm
Weight	1.2 kg
Power supply	Boat battery 12 V DC (negative ground)
Maximum output power	52 W × 4 (at 4 ohms)
FM range	87.5 – 108.0 MHz (switchable interval 50/100/200 kHz)
AM range	531 – 1,710 kHz (switchable interval 9/10 kHz)
Supported CD formats	CD-DA, CD-R, CD-RW (MP3/WMA)
Signal-to-noise ratio (CD)	120 dB
Frequency response (CD)	10 – 20,000 Hz
Radio functions	RDS (PTY, CT), BTM, manual memory
Special playback (CD)	Repeat (track/album), random playback (album/disc)
Equalizer	EQ3 with 7 presets (XPLOD, VOCAL, etc.) and custom
Audio outputs	Speakers (switchable rear/subwoofer), REM OUT
Inputs	AUX (stereo mini-jack), SiriusXM, remote control, antenna
Supplied accessories	Remote control RM-X201, installation and connection kit
Optional accessories	SiriusXM receiver SXV100, marine remote control RM-X11M
Maintenance	Cleaning connectors with cotton swab; replacing the CR2025 lithium battery of the remote control
Safety	Detachable anti-theft faceplate; warning alarm; support for SiriusXM parental control
Repairability	Replaceable fuse; spare parts available at Sony dealer
General information	Manual available in French, English, Spanish; support via Sony dealer

Frequently Asked Questions - CXS-M2016 SONY

How to cancel the demonstration mode (DEMO)?

Press and hold the select button. Turn the dial until DEMO appears, press it, then select DEMO-OFF and confirm. Press (BACK) to exit.

How to set the clock?

Press and hold the select button. Turn the dial until CLOCK-ADJ, press. Use (SEEK) -/+ to change hours/minutes, then press the dial to confirm. To display the time, press DSPL.

Why is the sound cut off or very low?

Check that the ATT (attenuation) function is not activated. If using an external amplifier, make sure the REAR/SUB setting is correct. Also check the front/rear balance (FADER) and the subwoofer level (SW LEVEL).

How to store a radio station?

Tune to the desired station, then press and hold the number button (1 to 6) until MEM appears. You can also use the BTM (automatic memory) function via the setup menu.

The CD does not play or the unit displays 'ERROR'?

Clean the disc with a cloth from the center outward. Check that it is not scratched or inserted upside down (printed side up). If the problem persists, try another disc or remove it by pressing c (eject).

How to activate RDS (Radio Data System)?

RDS is automatically active on compatible FM stations. To display information, press DSPL. To search by program type (PTY), press PTY/CAT in FM mode, turn the dial to select the genre, then confirm.

The remote control no longer works, what to do?

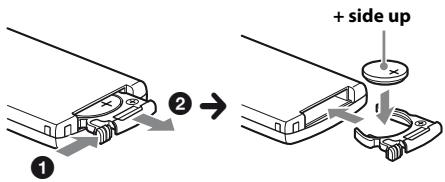

Replace the lithium battery (CR2025) observing polarity. If the unit is off and the display is off, first turn on the unit with the SOURCE/OFF button or insert a disc.

How to clean the faceplate connectors?

Remove the faceplate (press SOURCE/OFF then the release button). Use a dry cotton swab to gently clean the connectors on the unit and faceplate. Do not touch the connectors with fingers or metal objects.

The unit does not turn on or the fuse blows?

Check the fuse (located at the back of the unit): if blown, replace with a fuse of the same rating. Also check the battery connection (12 V DC, negative ground) and the power cable.

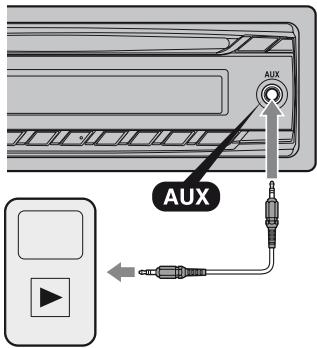

How to use an external device (AUX)?

Connect the audio device (player, smartphone) to the AUX input (3.5 mm mini-jack) on the faceplate. Press SOURCE/OFF repeatedly until AUX appears. Set the volume of the external device, then adjust the input level via the setup menu (AUX VOL).

USER MANUAL CXS-M2016 SONY

FM/AM Compact Disc Player

Operating Instructions US

Mode d'emploi FR

The model and serial numbers are located on the bottom of the unit.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer

regarding this product.

Model No. CDX-M20 Serial No.

To cancel the demonstration (DEMO) display, see page 6.

Be sure to install this unit in the dashboard of the boat for safety. For installation and connections, see the supplied installation/connections manual.

Warning

FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.

POUR LES CONSOMMATEURS AUX ETATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUEBEC.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

CAUTION

The use of optical instruments with this product will increase eye hazard.

For the State of California, USA only
Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate
Perchlorate Material: Lithium battery contains perchlorate

CLASS 1 LASER PRODUCT

This label is located on the bottom of the chassis.

Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Applicable accessory: Remote commander

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

((SiriusXM))

SiriusXM subscriptions and Connect Tuner are sold separately. www.siriusxm.com.

Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All other marks and logos are the property of their respective owners. All rights reserved.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Note on the lithium battery

Do not expose the battery to excessive heat such as direct sunlight, fire or the like.

Warning if your boat's ignition has no ACC position

Be sure to set the Auto Off function (page 14). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the Auto Off function, press and hold SOURCE/OFF until the display disappears each time you turn the ignition off.

Table of contents

Getting Started 6

Switching the FM/AM tuning step 6

Canceling the DEMO mode 6

Setting the clock 6

Detaching the front panel 7

Location of controls. 8

Main unit. 8

RM-X201 Remote commander 8

Radio 10

Storing and receiving stations. 10

RDS. 10

CD. 12

Playing a disc. 12

Playing tracks in various modes. 12

Sound Settings and Setup Menu. 13

Changing the sound settings. 13

Adjusting setup items 14

Memory backup 14

Using optional equipment. 15

Auxiliary audio equipment 15

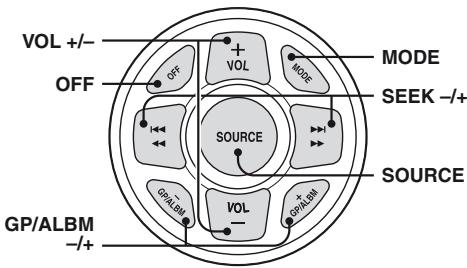

Marine remote commander RM-X11M 15

SiriusXM Connect tuner 16

Additional Information. 17

Precautions 17

Maintenance 18

Specifications. 19

Troubleshooting 20

Getting Started

Switching the FM/AM tuning step

The FM/AM tuning step is factory-set to the 200kHz (FM)/10 kHz (AM) position. If the frequency allocation system of your country is based on 50kHz (FM)/9 kHz (AM) or 100 kHz (FM)/10 kHz (AM) step, set the tuning step before use.

This setting appears when turned off.

1 Press and hold the select button. The setup display appears.
2 Rotate the control dial until "TUNER- STP" appears, then press it.
3 Rotate the control dial to select from "50K/9K," "100K/10K" or "200K/10K," then press it.

Receivable frequency by selected frequency setup:
FM 50 kHz: 87.50 MHz, 87.55 MHz, 87.60 MHz...
FM 100 kHz: 87.5 MHz, 87.6 MHz, 87.7 MHz...
FM 200 kHz: 87.5 MHz, 87.7 MHz, 87.9 MHz...
AM 9 kHz: 531 kHz, 540 kHz, 549 kHz...
AM 10 kHz: 530 kHz, 540 kHz, 550 kHz...

Canceling the DEMO mode

You can cancel the demonstration display which appears during turning off.

1 Press and hold the select button. The setup display appears.
2 Rotate the control dial until "DEMO" appears, then press it.
3 Rotate the control dial to select "DEMO-OFF," then press it. The setting is complete.
4 Press (BACK).

Setting the clock

The clock uses a 12-hour digital indication.

1 Press and hold the select button. The setup display appears.
2 Rotate the control dial until "CLOCK-ADJ" appears, then press it. The hour indication flashes.
3 Rotate the control dial to set the hour and minute. To move the digital indication, press (SEEK) - / +
4 After setting the minute, press the select button. The setup is complete and the clock starts.

To display the clock, press DSPL.

Detaching the front panel

You can detach the front panel of this unit to prevent theft.

1 Press and hold (SOURCE/OFF) ①.

The unit is turned off.

2 Press the front panel release button ② then pull it off towards you.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

Note

Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a moored boat.

Attaching the front panel

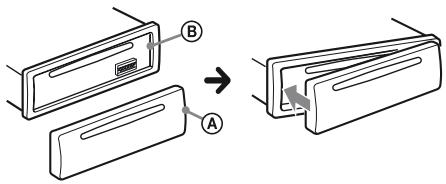

Engage part A of the front panel with part B of the unit, as illustrated, and push the left side into position until it clicks.

Location of controls

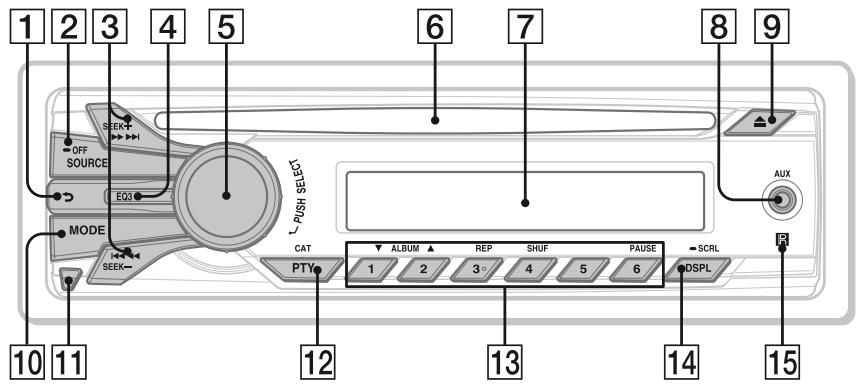

Main unit

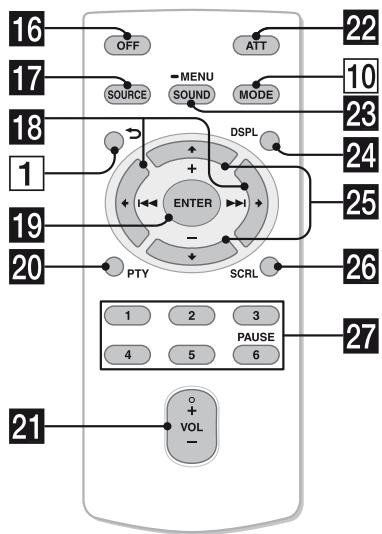

RM-X201 Remote commander

Remove the insulation film before use.

This section contains instructions on the location of controls and basic operations.

1 (BACK) button

To return to the previous display.

2 SOURCE/OFF button*1

Press to turn on the power/change the source (Radio/CD/AUX).

Press and hold for 1 second to turn off the power.

Press and hold for more than 2 seconds to turn off the power and the display disappears.

3 SEEK+/-buttons

Radio:

To tune in stations automatically (press); find a station manually (press and hold).

CD:

To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); reverse/fast-forward a track (press and hold).

4 EQ3 (equalizer) button page 13

To select an equalizer type (XPLOD, VOCAL, EDGE, CRUISE, SPACE, GRAVITY, CUSTOM or OFF).

5 Control dial/select button

To adjust volume (rotate); select setup items (press and rotate).

6 Disc slot

Insert the disc (label side up), playback starts.

7 Display window

AUX input jack page 15

9 (eject) button

To eject the disc.

10 MODE button*1 page 10

To select the radio band (FM/AM).

11 Front panel release button page 7

12 PTY/CAT+2 button page 10, 16

To select PTY in RDS.

13 Number buttons

Radio:

To receive stored stations (press); store stations (press and hold).

CD:

①/②: ALBUM▼/▲ (during MP3/

WMA playback)

To skip albums (press); skip albums continuously (press and hold).

To pause playback. To cancel, press again.

14 DSPL(display)/SCRL scroll) button

page 10, 12, 16

To change display items (press); scroll the display item (press and hold).

15 Receptor for the remote

commander

16 OFF button

To turn off; stop the source.

17 SOURCE button*1

To turn on the power; change the source (Radio/CD/AUX).

18 (I ) / ( I) buttons

To control radio/CD, the same as -/+ on the unit.

Setup, sound setting, etc., can be operated by

19 ENTER button

To apply a setting.

20 PTY button

21 VOL (volume) +*3/- button

22 ATT (attenuate) button

To attenuate the sound. To cancel, press again.

23 SOUND/MENU button

To enter sound setting (press); enter menu (press and hold).

24 DSPL(display) button

25 ↑ (+)/ (-) buttons

To control CD, the same as 1 / 2 (ALBUMV/▲) on the unit.

Setup, sound setting, etc., can be operated by

26 SCRL (scroll) button

27 Number buttons

To receive stored stations (press); store stations (press and hold).

To pause playback (press 6 ).

*1 If a SiriusXM Connect tuner is connected: when SOURCE/OFF is pressed, the connected device ("SIRIUSXM") will appear on the display. Press MODE to select the desired SiriusXM Connect tuner band.

*2 When a SiriusXM Connect tuner is connected.

*3 This button has a tactile dot.

Note

If the unit is turned off and the display disappears, it cannot be operated with the remote commander unless SOURCE/OFF on the unit is pressed, or a disc is inserted to activate the unit first.

Radio

Storing and receiving stations

Tuning step setting is required (page 6).

Note

If the tuning step setting is changed, the stored stations will be erased.

Caution

When tuning in stations while driving, use Best Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1 Press SOURCE/OFF repeatedly until "TUNER" appears.

To change the band, press MODE repeatedly. You can select from FM1, FM2, FM3, AM1 or AM2.

2 Press and hold the select button.

The setup display appears.

3 Rotate the control dial until "BTM" appears, then press it.

The unit stores stations in order of frequency on the number buttons.

Storing manually

1 While receiving the station that you want to store, press and hold a number button (① to ⑥) until “MEM” appears.

Receiving the stored stations

1 Select the band, then press a number button (① to ⑥).

Tuning automatically

1 Select the band, then press + / - to search for the station.

Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.

Tip

If you know the frequency of the station you want to listen to, press and hold + / - to locate the approximate frequency, then press + / - repeatedly to fine adjust to the desired frequency (manual tuning).

RDS

FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.

Notes

• Depending on the country/region, not all RDS functions may be available.
• RDS will not work if the signal strength is too weak, or if the station you are tuned to is not transmitting RDS data.

Changing display items

Press DSPL.

Selecting PTY (Program Types)

Displays the currently received program type. Also searches your selected program type.

1 Press PTY during FM reception. The current program type name appears if the station is transmitting PTY data.
2 Rotate the control dial until the desired program type appears, then press it. The unit starts to search for a station broadcasting the selected program type.

Type of programs (tuner step: 200 kHz/10 kHz)

NEWS (News), INFORM (Information), SPORTS (Sports), TALK (Talk), ROCK (Rock), CLS ROCK (Classic Rock), ADLT HIT (Adult Hits), SOFT RCK (Soft Rock), TOP 40 (Top 40), COUNTRY (Country), OLDIES (Oldies), SOFT (Soft), NOSTALGA (Nostalgia), JAZZ (Jazz), CLASSICL (Classical), R AND B (Rhythm and Blues), SOFT R B (Soft Rhythm and Blues), LANGUAGE (Foreign Language), REL MUSC (Religious Music), REL TALK (Religious Talk), PERSNLY (Personality), PUBLIC (Public), COLLEGE (College), WEATHER (Weather)

Type of programs (tuner step: 100kHz / 10 kHz 50kHz / 9kHz)

NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIORED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATIONAL M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)

Note

You may receive a different radio program from the one you select.

Setting CT (Clock Time)

The CT data from the RDS transmission sets the clock.

1 Set "CT-ON" in setup (page 14).

Note

The CT function may not work properly even though an RDS station is being received.

CD

Playing a disc

This unit can play CD-DA (also containing CD TEXT) and CD-R/CD-RW (MP3/WMA files (page 18)).

1 Insert the disc (label side up).

Playback starts automatically.

To eject the disc, press .

Changing display items

Displayed items may differ depending on the model, disc type, recording format and settings.

Press DSPL.

Playing tracks in various modes

You can listen to tracks repeatedly (repeat play) or in random order (shuffle play).

1 During playback, press (3) (REP) or (4) (SHUF) repeatedly until the desired play mode appears.

Repeat play

Select	To play
TRACK	track repeatedly.
ALBUM*	album repeatedly.
OFF	track in normal order (Normal play).

Shuffle play

Select	To play
SHUF ALBUM*	album in random order.
SHUF DISC	disc in random order.
SHUF OFF	track in normal order (Normal play).

• When an MP3/WMA is played.

Sound Settings and Setup Menu

Changing the sound settings

Adjusting the sound characteristics

1 During reception/playback, press the select button.
2 Rotate the control dial until the desired menu item appears, then press it.
3 Rotate the control dial to select the setting, then press it.
4 Press (BACK).

The following items can be set:

EQ3 LOW*1 (page 13)

EQ3 MID*1 (page 13)

EQ3 HIGH*1 (page 13)

BALANCE

Adjusts the sound balance: "RIGHT-15 (R15)" - "CENTER (0)" - "LEFT-15 (L15)."

FADER

Adjusts the relative level: "FRONT-15 (F15)" - "CENTER (0)" - "REAR-15 (R15)."

SW LEVEL*2 (Subwoofer Level)

Adjusts the subwoofer volume level: +10dB - "0dB - -10dB ("ATT" is displayed at the lowest setting.)

AUX VOL*3 (AUX Volume level)

Adjusts the volume level for each connected auxiliary equipment: +18 dB" -0dB - -8dB

This setting negates the need to adjust the volume level between sources.

1 When EQ3 is activated (page 13).
2 When the audio output is set to "SUB-OUT" (page 14).

"ATT" is displayed at the lowest setting, and can be adjusted up to 21 steps.

*3 When AUX source is activated (page 15).

Customizing the equalizer curve — EQ3

"CUSTOM" of EQ3 allows you to make your own equalizer settings.

1 During reception/playback, press 3 repeatedly to select "CUSTOM," then press .
2 Press the select button.
3 Rotate the control dial until "EQ3 LOW," "EQ3 MID" or "EQ3 HIGH" appears, then press it.
4 Rotate the control dial to adjust the selected item, then press it.

The volume level is adjustable in 1 dB steps, from -10 dB to +10 dB.

LOW

+

EdB

Repeat steps 2 and 3 to adjust the equalizer curve.

To restore the factory-set equalizer curve, press and hold the select button before the setting is complete.

5 Press

(BACK).

Adjusting setup items

1 Press and hold the select button. The setup display appears.
2 Rotate the control dial until the desired item appears, then press it.
3 Rotate the control dial to select the setting, then press it.*
4 Press (BACK).

• For CLOCK-ADJ, TUNER-STP and BTM settings, step 4 is not necessary.

The following items can be set depending on the source and setting:

CLOCK-ADJ (Clock Adjust) (page 6)

TUNER-STP (Tuner Step) (page 6)

CT (Clock Time) Activates the CT function: "ON," "OFF" (page 11).

BEEP

Activates the beep sound: "ON," "OFF."

CAUT ALM*1 (Caution Alarm)

Activates the caution alarm: "ON," "OFF" (page 7).

AUX-A*1 (AUX Audio)

Activates the AUX source display: "ON," "OFF" (page 15).

AUTO OFF

Shuts off automatically after a desired time when the unit is turned off: "NO," "30S (Seconds)," "30M (Minutes)," "60M (Minutes)."

REAR/SUB*1

Switches the audio output: "REAR-OUT" (power amplifier), "SUB-OUT" (subwoofer).

DEMO (Demonstration)

Activates the demonstration: "ON," "OFF."

DIMMER

Changes the display brightness: "ON," "OFF."

M.DISPLAY (Motion Display)

• "SA": to show moving patterns and spectrum analyzer.
• "OFF": to deactivate the Motion Display.

AUTO SCR (Auto Scroll)

Scrolls long items automatically: "ON," "OFF."

LPF^*2 (Low Pass Filter)

Selects the subwoofer cut-off frequency: "OFF," "80Hz," "100Hz," "120Hz," "140Hz," "160Hz."

SW PHASE*2 (Subwoofer Phase)

Selects the subwoofer phase: "SUB NORM," "SUB REV."

HPF (High Pass Filter)

Selects the front/rear speaker cut-off frequency: "OFF," "80Hz," "100Hz," "120Hz," "140Hz," "160Hz."

LOUDNESS

Reinforces bass and treble for clear sound at low volume levels: "ON," "OFF."

PARENTAL\*

Sets the parental lock to "ON" or "OFF," and edits the passcode (page 16).

BTM (page 10)

1 When the unit is turned off.
2 When the audio output is set to "SUB-OUT."
*3 When the SiriusXM source is activated.

Memory backup

Your last settings are stored automatically. Sound settings (except volume), setup items (except clock, Parental Lock setting and passcode) and tuner presets are stored in the internal memory of the unit.

Using optional equipment

Auxiliary audio equipment

By connecting an optional portable audio device to the AUX input jack (stereo mini jack) on the unit and then simply selecting the source, you can listen on your speakers.

Connecting the portable audio device

1 Turn off the portable audio device.
2 Turn down the volume on the unit.
3 Connect the portable audio device to the unit with a connecting cord (not supplied)*.

• Be sure to use a straight type plug.

Adjusting the volume level

Be sure to adjust the volume for each connected audio device before playback.

1 Turn down the volume on the unit.
2 Press (SOURCE/OFF) repeatedly until "AUX" appears.
3 Start playback of the portable audio device at a moderate volume.
4 Set your usual listening volume on the unit.
5 Adjust the input level (page 13).

Marine remote commander RM-X11M

Location of controls

The corresponding buttons on the marine remote commander control the same functions as those on this unit.

RM-X11M

The following controls on the marine remote commander require a different operation from the unit.

VOLUME (VOL) + / - button(s)

The same as the control dial on the unit.

GP/ALBM - / + button(s)

Radio:

To receive stored stations.

SiriusXM Connect tuner

By connecting an optional SiriusXM Connect Tuner, you can use the features and functions of the SiriusXM satellite radio (SiriusXM subscriptions sold separately). For more details on services, visit the following web site: http://www.siriusxm.com/

Note

Select "SIRIUSXM" by pressing the SOURCE/OFF button beforehand.

Selecting channels

1 Press + / - to select the desired channel.

Selecting channels from categories

1 Press PTY/CAT to enter browse mode.
2 Rotate the control dial to select the desired category, then press it.
3 Rotate the control dial to select the desired channel, then press it.

Storing channels

1 While receiving the channel that you want to store, press and hold a number button (① to ⑥) until “MEM” appears.

To receive the stored channel, select SX1, SX2 or SX3 by pressing MODE, then press a number button (1 to 6).

Parental control

Some SiriusXM channels contain content that is not suitable for children. You can enable a parental control passcode for these channels.

1 On the set up menu (page 14), rotate the control dial to select "PARENTAL," then press it.
2 Rotate the control dial to select "LOCK SEL," then press it.

3 Rotate the control dial to select "LOCKON," then press it.

To unblock the channels, select "OFF" in step 3, then enter the passcode. The initial passcode is "0000."

Changing the passcode

1 On the set up menu (page 14), rotate the control dial to select "PARENTAL," then press it.
2 Rotate the control dial to select "CODEEDIT," then press it.
3 On the current passcode input display, enter the current passcode, then press the control dial. The initial passcode is "0000."
4 On the new passcode input display, enter new 4-digit passcode, then press the control dial.

Displaying the SiriusXM Radio ID

During playback, press (SEEK) +/- to select the channel "0."

Changing display items

Press DSPL.

Additional Information

Precautions

Cool off the unit beforehand if your boat has been moored in direct sunlight.
- Do not leave the front panel or audio devices brought in inside the boat, or it may cause malfunction due to high temperature in direct sunlight.
- Power antenna (aerial) extends automatically.

Moisture condensation

Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.

To maintain high sound quality

Do not splash liquid onto the unit or discs.

Notes on discs

• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a boat moored in direct sunlight.
• Before playing, wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.
• This unit is designed to play back discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.

- Discs that this unit CANNOT play

• Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc.
• Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit.
• 8cm (3^1 / 4 in) discs.

Notes on CD-R/CD-RW discs

The maximum number of: (CD-R/CD-RW only)

• folders (albums): 150 (including root folder)
• files (tracks) and folders: 300 (may less than 300 if folder/file names contain many characters)
  displayable characters for a folder/file name: 32 (Joliet)/64 (Romeo)
• If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played back.

- Discs that this unit CANNOT play

• CD-R/CD-RW of poor recording quality.
• CD-R/CD-RW recorded with an incompatible recording device.
• CD-R/CD-RW which is finalized incorrectly.
• CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi-session.

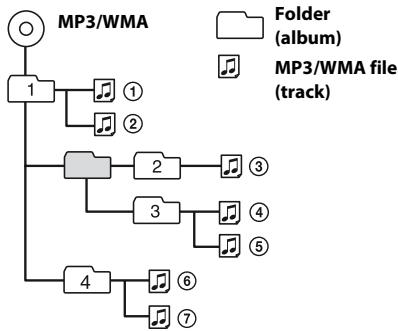

Playback order of MP3/WMA files

About MP3 files

• MP3, which stands for MPEG-1 Audio Layer-3, is a music file compression format standard. It compresses audio CD data to approximately 1/10 of its original size.
• ID3 tag versions 1.0, 1.1, 2.2, 2.3 and 2.4 apply to MP3 only. ID3 tag is 15/30 characters (1.0 and 1.1), or 63/126 characters (2.2, 2.3 and 2.4).
• When naming an MP3 file, be sure to add the file extension ".mp3" to the file name.
• During playback or fast-forward/reverse of a VBR (Variable Bit Rate) MP3 file, elapsed playing time may not display accurately.

Note

If you play a high-bit-rate MP3, such as 320 kbps, sound may be intermittent.

About WMA files

• WMA, which stands for Windows Media Audio, is a music file compression format standard. It compresses audio CD data to approximately 1/22^* of its original size.
  WMA tag is 63 characters.
• When naming a WMA file, be sure to add the file extension ".wma" to the file name.

• During playback or fast-forward/reverse of a VBR (Variable Bit Rate) WMA file, elapsed playing time may not display accurately.

• only for 64 kbps

Note

Playback of the following WMA files is not supported.

• lossless compression
  copyright-protected

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery of the remote commander

When the battery becomes weak, the range of the remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

Notes on the lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to assure a good contact.
• Be sure to observe the correct polarity when installing the battery.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated.
Do not recharge, disassemble, or dispose of in fire.

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 7) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Specifications

FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.

POUR LES CONSOMMATEURS AUX ETATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUEBEC.

AUDIO POWER SPECIFICATIONS

CEA2006 Standard

Power Output: 17 Watts RMS × 4 at

4 Ohms < 1% THD+N

SN Ratio: 80 dBA

(reference: 1 Watt into 4 Ohms)

Tuner section

FM

Tuning range:

87.5 - 108.0 MHz (at 50kHz step)

87.5 - 108.0 MHz (at 100kHz step)

87.5 - 107.9 MHz (at 200kHz step)

FM tuning step:

50kHz / 100kHz / 200kHz switchable

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 25kHz

Usable sensitivity: 8 dBf

Selectivity: 75dB at 400kHz

Signal-to-noise ratio: 80 dB (stereo)

Separation: 50dB at 1kHz

Frequency response: 20 - 15,000Hz

AM

Tuning range:

531 - 1,602 kHz (at 9 kHz step)

530 - 1,710 kHz (at 10 kHz step)

AM tuning step: 9kHz / 10kHz switchable

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency:

9,124.5 kHz or 9,115.5 kHz/4.5 kHz

(at 9kHz step)

9,115 kHz or 9,125 kHz/5 kHz

(at 10kHz step)

Sensitivity: 26 V

CD Player section

Signal-to-noise ratio: 120 dB

Frequency response: 10 - 20,000Hz

Wow and flutter: Below measurable limit

Power amplifier section

Output: Speaker outputs

Speaker impedance: 4 - 8 ohms

Maximum power output: 52W× 4 (at 4 ohms)

General

Outputs:

Audio outputs terminal (rear/sub switchable)

Power antenna (aerial)/Power amplifier control terminal (REM OUT)

Inputs:

SiriusXM input terminal

Remote controller input terminal

Antenna (aerial) input terminal

Mid: ± 10 dB at 1kHz (XPLOD)

High: ± 10 dB at 10kHz (XPLOD)

Power requirements: 12 V DC boat battery (negative ground (earth))

Dimensions: Approx. 178 × 50 × 179 ~mm

(7^1 / 8× 2× 7^1 / 8 in) (w / h / d)

Mounting dimensions: Approx. 182 × 53 × 162 ~mm

(7^1 / 4× 2^1 / 8× 6^1 / 2in)(w / h / d)

Mass: Approx. 1.2kg (2 lb 11 oz)

Supplied accessories*:

Remote commander: RM-X201

Parts for installation and connections (1 set)

Optional accessories/equipment*:

SiriusXM tuner: SXV100

Marine remote commander: RM-X11M

• Accessories/equipment other than the marine remote commander RM-X11M are not waterproof. Do not subject them to water.

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

For details on using the fuse and removing the unit from the dashboard, refer to the installation/connections manual supplied with this unit.

General

No power is being supplied to the unit.

Check the connection or fuse.
If the unit is turned off and the display disappears, it cannot be operated with the remote commander.

• Turn on the unit.

The power antenna (aerial) does not extend.

The power antenna (aerial) does not have a relay box.

No sound.

The ATT function is activated.
The position of the fader control "FAD" is not set for a 2-speaker system.

No beep sound.

The beep sound is canceled (page 14).
An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

The power supply lead or battery has been disconnected or it is not connected properly.

Stored stations and correct time are erased. The fuse has blown.

Makes noise when the position of the ignition is switched.

The leads are not matched correctly with the boat's accessory power connector.

During playback or reception, demonstration mode starts.

If no operation is performed for 5 minutes with "DEMO-ON" set, demonstration mode starts.
- Set "DEMO-OFF" (page 14).

The display disappears from/does not appear in the display window.

The dimmer is set to "DIMMER-ON" (page 14).
The display disappears if you press and hold SOURCE/OFF

• Press (SOURCE/OFF) on the unit until the display appears.

The connectors are dirty (page 18).

The Auto Off function does not operate.

The unit is turned on. The Auto Off function activates after turning off the unit.
- Turn off the unit.

Radio reception

The stations cannot be received. The sound is hampered by noises.

The connection is not correct.

• Connect a power antenna (aerial) control lead (blue/white-striped) or accessory power supply lead (red) to the power supply lead of a boat's antenna (aerial) booster (only when your boat has built-in FM/AM antenna (aerial)).
• Check the connection of the boat antenna (aerial).
• If the auto antenna (aerial) will not go up, check the connection of the power antenna (aerial) control lead.

The tuning step setting has been erased.

• Set the tuning step again (page 6).

Preset tuning is not possible.

Store the correct frequency in the memory.
The broadcast signal is too weak.

Automatic tuning is not possible.

The broadcast signal is too weak.
- Perform manual tuning.

RDS

PTY displays"--

The current station is not an RDS station.
RDS data has not been received.
The station does not specify the program type.

CD playback

The disc cannot be loaded.

Another disc is already loaded.
The disc has been forcibly inserted upside down or in the wrong way.

The disc does not play back.

Defective or dirty disc.
The CD-Rs/CD-RWs are not for audio use (page 17).

MP3/WMA files cannot be played back.

The disc is incompatible with the MP3/WMA format and version (page 17).

MP3/WMA files take longer to play back than others.

The following discs take a longer time to start playback.

• a disc recorded with a complicated tree structure.
• a disc recorded in Multi Session.
• a disc to which data can be added.

The display items do not scroll.

For discs with very many characters, those may not scroll.
"AUTO SCR" is set to "OFF."

• Set "AUTO SCR-ON" (page 14).
• Press and hold DSPL (SCRL).

The sound skips.

Installation is not correct.
- Install the unit at an angle of less than 45^ in a sturdy part of the boat.
Defective or dirty disc.

The disc will not eject.

Press (eject) (page 8).

Error displays/Messages

ERROR

The disc is dirty or inserted upside down. Clean or insert the disc correctly.
A blank disc has been inserted.
The disc cannot play due to a problem. - Insert another disc.
Press (eject) to remove the disc.

FAILURE

The connection of speakers/amplifiers is incorrect.

• See the installation/connections manual of this model to check the connection.

NO MUSIC

The disc does not contain a music file.

• Insert a music CD in this unit.

NO NAME

A disc/album/artist/track name is not written in the track.

OFFSET

There may be an internal malfunction.

• Check the connection. If the error indication remains on in the display, consult your nearest Sony dealer.

PUSH EJT (Push Eject)

The disc cannot be ejected.

• Press (eject) (page 8).

READ

The unit is reading all track and album information on the disc.

• Wait until reading is complete and playback starts automatically. Depending on the disc structure, it may take more than a minute.

"LLL" or "7777"

During reverse or fast-forward, you have reached the beginning or the end of the disc and you cannot go any further.

"一

The character cannot be displayed with the unit.

For SiriusXM:

CH LOCKD (Channel Locked)

The selected channel is locked by the parental control function.

CH UNAVL (Channel Unavailable)

The selected channel is not available.
The active channel has become unavailable.

CH UNSUB (Channel Unsubscribed)

There is no subscription to the selected channel.
The subscription to the active channel has been terminated.

CHK TUNR (Check Tuner)

The SiriusXM Connect tuner is not functioning properly.

• Disconnect the SiriusXM Connect tuner, and connect it again.

CHEK ANT (Check Antenna)

The antenna (aerial) is not being used properly.

• Make sure the antenna (aerial) is connected and being used properly.

CODE ERROR

Passcode inputs failed.

NOSIGNAL

The service is stopped due to a signal interruption.

SUB UPDT (Subscription Updated), PRESS SELECT

Your subscription has been updated.

• Press the select button.

If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

CLASS 1 LASER PRODUCT

Appareil principal 7

DEMO (Demonstration)

CLASS 1 LASER PRODUCT

If you have any questions/problems regarding this product, try the following:

1 Read Troubleshooting in these Operating Instructions.
2 Please contact (U.S.A. only); Call 1-800-222-7669 URL http://www.SONY.com
