USER MANUAL CXS-G1269U SONY

Operating Instructions

GB

To cancel the demonstration (DEMO) display, see page 10.

To switch the FM/AM tuning step, see page 6.

For the connection/installation, see page 20.

For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use. For details, see "Connection/Installation" (page 20).

Laser Diode Properties

• Emission Duration: Continuous
• Laser Output: Less than 53.3 W (This output is the value measurement at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture.)

The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.

WARNING: Do not ingest battery, Chemical Burn Hazard.

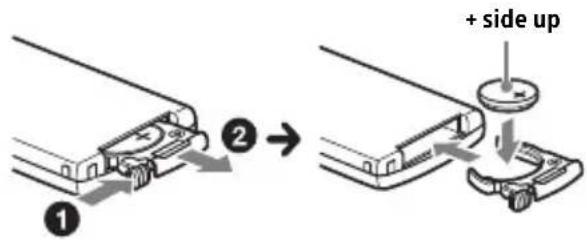

The remote commander contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Note on the lithium battery

Do not expose the battery to excessive heat such as direct sunlight, fire or the like.

Warning if your car's ignition has no ACC position

Be sure to set the AUTO OFF function (page 10). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.

Table of Contents

Guide to Parts and Controls.... 4

Getting Started

Detaching the Front Panel 6

Resetting the Unit. 6

Switching the FM/AM Tuning Step (except for Argentine models) 6

Setting the Clock.... 6

Connecting a USB Device....7

Connecting Other Portable Audio Device 7

Listening to the Radio

Listening to the Radio 7

Using Radio Data System (RDS)....8

Playback

Playing a Disc 8

Playing a USB Device 8

Searching and Playing Tracks 9

Settings

Canceling the DEMO Mode ..... 10

Basic Setting Operation 10

General Setup (GENERAL) 10

Sound Setup (SOUND) 11

Display Setup (DISPLAY).... 12

Additional Information

Updating the Firmware 13

Precautions 13

Maintenance 14

Specifications 14

Troubleshooting 16

Messages.... 18

Connection/Installation

Cautions 20

Parts List for Installation 20

Connection 21

Installation 24

Guide to Parts and Controls

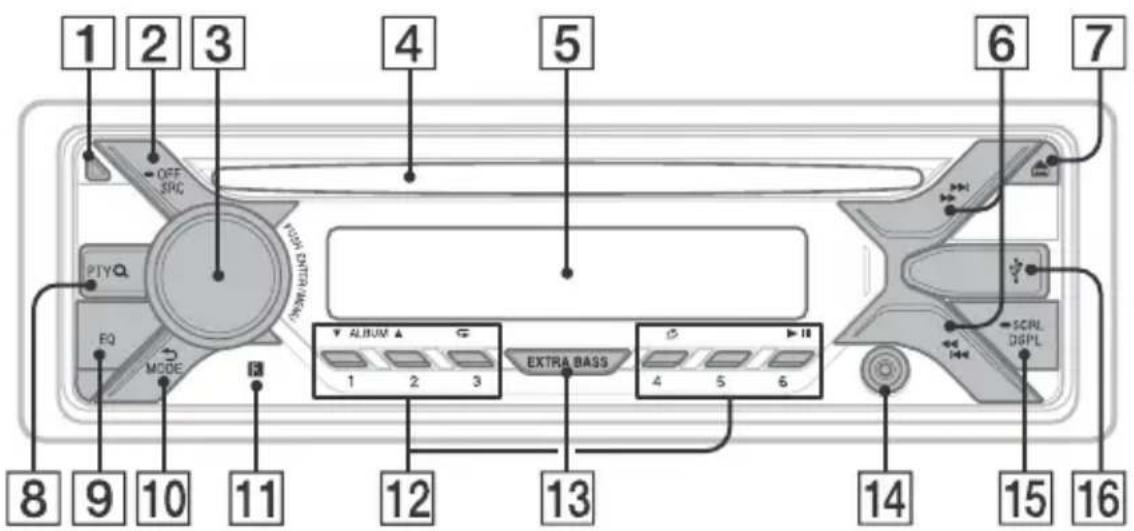

Main unit

1 2 3 4 5 6 7 OFF SRC KEY PTYQ EQ MODE R ALBUM 1 2 3 EXTRA BASS 4 5 6 SCRL DGPL 8 9 10 11 12 13 14 15 16

1 Front panel release button
2 SRC (source)

Turn on the power.

Change the source.

OFF

Press and hold for 1 second to turn the source off and display the clock.

Press and hold for more than 2 seconds to turn off the power and the display.

If the unit is turned off and the display disappears, operation by the remote commander is not available.

3 Control dial

Rotate to adjust the volume.

PUSH ENTER

Enter the selected item.

MENU

Open the setup menu.

4 Disc slot

5 Display window

6 / ( S E E K - / + )

Tune in radio stations automatically.

Press and hold to tune manually.

◀◀/▶▶I (prev/next)

◀◀/▶▶ (fast-reverse/fast-forward)

7 ▲ (disc eject)

8 PTY (program type)

Select PTY in RDS.

Q (browse) (page 9)

Enter the browse mode during playback.

(Not available when a USB device in Android™ mode is connected.)

9 EQ (equalizer)

Select an equalizer curve.

10 (back)

Return to the previous display.

MODE (page 7)

11 Receptor for the remote commander

12 Number buttons (1 to 6)

Receive stored radio stations. Press and hold to store stations.

ALBUM ▼/▲

Skip an album for audio device. Press and hold to skip albums continuously.

(Not available when a USB device in

Android mode is connected.)

⊂ (repeat)

(Not available when a USB device in Android mode is connected.)

(shuffle)

(Not available when a USB device in Android mode is connected.)

▶II (play/pause)

13 EXTRA BASS

Reinforces bass sound in synchronization with the volume level. Press to change the EXTRA BASS setting: [1], [2], [OFF].

14 AUX input jack

15 DSPL (display)

Change display items.

- SCRL (scroll)

Press and hold to scroll a display item.

16 USB port

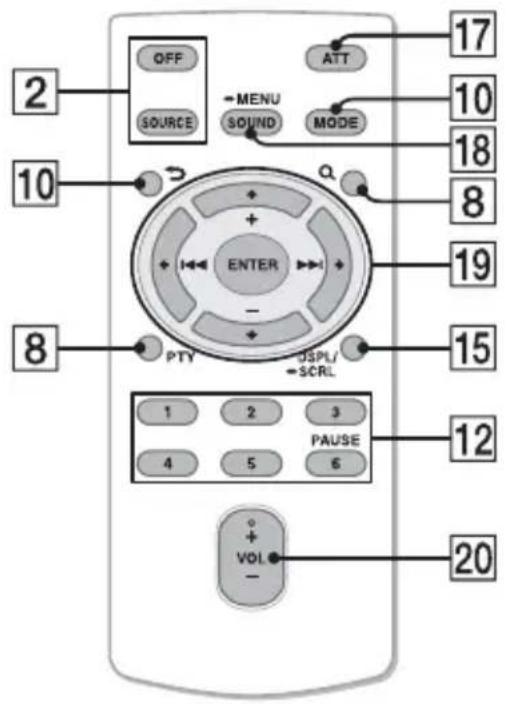

RM-X211 Remote commander

2 OFF SOURCE MENU SOUND ATT 17 10 18 8 19 15 10 ENTER Q + - PSY USPL/ - SCRL 1 2 3 4 5 6 PAUSE 12 20 + + VOL -

The VOL (volume) + button has a tactile dot.

17 ATT (attenuate)

Attenuate the sound. Press again to cancel the attenuation.

18 SOUND

Open the SOUND menu directly.

MENU

Press and hold to open the setup menu.

19 ← /↑/↓/→

Select a setup item, etc.

ENTER

Enter the selected item.

◀◀/▶▶I (prev/next)

+/- (album +/-)

20 VOL (volume) +/-

Remove the insulation film before use.

Simple line drawing of a device with a paper clip and two circular ports (no text or symbols)

Getting Started

Detaching the Front Panel

You can detach the front panel of this unit to prevent theft.

1 Press and hold OFF ① until the unit turns off, press the front panel release button ②, then pull the panel towards you to remove.

Diagram showing a hand holding a device with labeled parts ① and ②, likely illustrating a mechanical or electrical component.

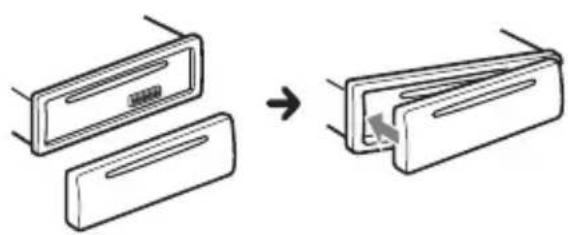

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

Attaching the front panel

Diagram showing two views of a car door being folded into a closed panel (no text or symbols)

Resetting the Unit

Before operating the unit for the first time, or after replacing the car battery or changing connections, you must reset the unit.

1 Press DSPL and (back)/MODE for more than 2 seconds.

Note

Resetting the unit will erase the clock setting and some stored contents.

Setting the display language (except for India models)

After resetting the unit, the display language setting display appears.

1 Press ENTER while [SET LANGUAGE] is displayed.

The display language currently set appears.

2 Rotate the control dial to select [ENGLISH] or [SPANISH], then press it.

The setting is complete and the clock is displayed.

This setting can be configured in the general setup menu (page 10).

Switching the FM/AM Tuning Step (except for Argentine models)

Set the FM/AM tuning step of your country. This setting appears only while the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [GENERAL], then press it.

2 Rotate the control dial to select [SET TUNER-STP], then press it.

3 Rotate the control dial to select from [SET 50K/9K], [SET 100K/10K] or [SET 200K/10K], then press it.

Setting the Clock

1 Press MENU, rotate the control dial to select [GENERAL], then press it.

2 Rotate the control dial to select [SET CLOCK-ADJ], then press it.

The hour indication flashes.

3 Rotate the control dial to set the hour and minute.

To move the digital indication, press SEEK +/-.

4 After setting the minute, press MENU.

The setup is complete and the clock starts.

Connecting a USB Device

1 Turn down the volume on the unit.
2 Connect the USB device to the unit.

Diagram showing a device's internal components with numbered labels and directional arrows indicating flow or movement.

Connecting Other Portable Audio Device

1 Turn off the portable audio device.
2 Turn down the volume on the unit.
3 Connect the portable audio device to the AUX input jack (stereo mini jack) on the unit with a connecting cord (not supplied)*.

* Be sure to use a straight type plug.

Line drawing of a mechanical component with a cable inserted (no text or symbols)

4 Press SRC to select [AUX].

To match the volume level of the connected device to other sources

Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit. Press MENU, then select [SOUND] → [SET AUX VOL] (page 12).

Listening to the Radio

Listening to the Radio

Tuning step setting is required (except for Argentine models) (page 6).

To listen to the radio, press SRC to select [TUNER].

Storing automatically (BTM)

1 Press MODE to change the band (FM1, FM2, FM3, AM1 or AM2).
2 Press MENU, rotate the control dial to select [GENERAL], then press it.
3 Rotate the control dial to select [SET BTM], then press it.
The unit stores stations in order of frequency on the number buttons.

Tuning

1 Press MODE to change the band (FM1, FM2, FM3, AM1 or AM2).
2 Perform tuning.
To tune manually
Press and hold SEEK +/- to locate the approximate frequency, then press SEEK +/- repeatedly to fine adjust to the desired frequency.
To tune automatically
Press SEEK +/-.
Scanning stops when the unit receives a station.

Storing manually

1 While receiving the station that you want to store, press and hold a number button (1 to 6) until [MEM] appears.

Receiving the stored stations

1 Select the band, then press a number button (1 to 6).

Using Radio Data System (RDS)

Selecting program types (PTY)

1 Press PTY during FM reception.
2 Rotate the control dial until the desired program type appears, then press it.

The unit starts to search for a station broadcasting the selected program type.

Type of programs

NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)

Setting clock time (CT)

The CT data from the RDS transmission sets the clock.

1 Set [SET CT-ON] in [GENERAL] (page 11).

Playback

Playing a Disc

1 Insert the disc (label side up).

Hand holding a CD inside a refrigerator with an arrow indicating upward motion (no text or symbols)

Playback starts automatically.

Playing a USB Device

AOA (Android Open Accessory) 2.0, MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices* compliant with the USB standard can be used. Depending on the USB device, the Android mode or MSC/MTP mode can be selected on the unit.

Some digital media players or Android smartphones may require setting to MTP mode.

* e.g., a USB flash drive, digital media player, Android smartphone

Notes

• For details on the compatibility of your USB device, visit the support site on the back cover.
• Smartphones with Android OS 4.1 or higher installed support Android Open Accessory 2.0 (AOA 2.0). However, some smartphones may not fully support AOA 2.0 even if Android OS 4.1 or higher is installed.

For details on the compatibility of your Android smartphone, visit the support site on the back cover.

• Playback of the following files is not supported. MP3/WMA/FLAC:
• copyright-protected files
• DRM (Digital Rights Management) files
• Multi-channel audio files MP3/WMA:
• lossless compression files

Before making a connection, select the USB mode (Android mode or MSC/MTP mode) depending on the USB device (page 11).

1 Connect a USB device to the USB port (page 7).

Playback starts.

If a device is already connected, to start playback, press SRC to select [USB].

2 Adjust the volume on this unit.

To stop playback

Press and hold OFF for 1 second.

To remove the device

Stop playback, then remove the device.

Searching and Playing Tracks

Repeat play and shuffle play

Not available when a USB device in Android mode is connected.

1 During playback, press (repeat) or 📋 (shuffle) repeatedly to select the desired play mode.

Playback in the selected play mode may take time to start.

Available play modes differ depending on the selected sound source.

Searching a track by name (Quick-BrowZer™)

Not available when a USB device in Android mode is connected.

1 During CD or USB playback, press (browse)* to display the list of search categories.

When the track list appears, press (back) repeatedly to display the desired search category.

* During USB playback, press (browse) for more than 2 seconds to directly return to the beginning of the category list.

2 Rotate the control dial to select the desired search category, then press it to confirm.

3 Repeat step 2 to search the desired track.

Playback starts.

To exit the Quick-BrowZer mode Press 🔒 (browse).

Searching by skipping items (Jump mode)

Not available when a USB device in Android mode is connected.

1 Press Q (browse).
2 Press SEEK +.
3 Rotate the control dial to select the item.

The list is jumped in steps of 10 % of the total number of items.

4 Press ENTER to return to the Quick-BrowZer mode.

The selected item appears.

5 Rotate the control dial to select the desired item, then press it.

Playback starts.

Settings

Canceling the DEMO Mode

You can cancel the demonstration display which appears when the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [GENERAL], then press it.
2 Rotate the control dial to select [SET DEMO], then press it.
3 Rotate the control dial to select [SET DEMO-OFF], then press it. The setting is complete.

4 Press ↩ (back) twice.

The display returns to normal reception/play mode.

Basic Setting Operation

You can set items in the following setup categories:

General setup (GENERAL), Sound setup (SOUND), Display setup (DISPLAY)

1 Press MENU.
2 Rotate the control dial to select the setup category, then press it.
The items that can be set differ depending on the source and settings.
3 Rotate the control dial to select the options, then press it.

To return to the previous display

Press ↩ (back).

General Setup (GENERAL)

LANGUAGE (except for India models) Changes the display language: [ENGLISH], [SPANISH].

DEMO (demonstration) Activates the demonstration: [ON], [OFF].

CLOCK-ADJ (clock adjust) (page 6)

TUNER-STP (tuner step) (page 6) (except for Argentine models) (Available only while the source is off and the clock is displayed.)

CAUT ALM (caution alarm) Activates the caution alarm: [ON], [OFF] (page 6). (Available only while the source is off and the clock is displayed.)

BEEP Activates the beep sound: [ON], [OFF].

AUTO OFF Shuts off automatically after a desired time when the unit is turned off: [ON] (30 minutes), [OFF].

STEERING Registers/resets the setting of the steering wheel remote control. (Available when connected with the connection cable (not supplied).) (Available only while the source is off and the clock is displayed.) STR CONTROL (steering control) Selects the input mode of the connected remote control. To prevent a malfunction, be sure to match the input mode with the connected remote control before use.

CUSTOM

Input mode for the steering wheel remote control

PRESET

Input mode for the wired remote control excluding the steering wheel remote control (automatically selected when [RESET CUSTOM] is performed.)

EDIT CUSTOM

Registers the functions (SOURCE, ATT, VOL +/-, SEEK +/-) to the steering wheel remote control:

1 Rotate the control dial to select the function you want to assign to the steering wheel remote control, then press it.
2 While [REGISTER] is blinking, press and hold the button on the steering wheel remote control you want to assign the function to. When registration is complete, [REGISTERED] is displayed.
③ To register other functions, repeat steps ① and ②.

(Available only when [STR CONTROL] is set to [CUSTOM].)

RESET CUSTOM

Resets the setting of the steering wheel remote control: [YES], [NO].

(Available only when [STR CONTROL] is set to [CUSTOM].)

Notes

• While making settings, only button operation on the unit is available. For safety, park your car before making this setting.
• If an error occurs while registering, all the previously-registered information remains. Restart registration from the function where the error occurred.
• This function may not be available on some vehicles. For details on the compatibility of your vehicle, visit the support site on the back cover.

USB MODE

Changes the USB mode: [ANDROID], [MSC/MTP]. (Available only when the USB source is selected.)

CT (clock time)

Activates the CT function: [ON], [OFF].

BTM (best tuning memory) (page 7) (Available only when the tuner is selected.)

FIRMWARE

(Available only while the source is off and the clock is displayed.) Checks/updates the firmware version. For details, visit the support site on the back cover.

FW VERSION (firmware version) Displays current firmware version.

FW UPDATE (firmware update)

Enters firmware update process: [YES], [NO].

Updating the firmware takes a few minutes to complete. During the update, do not turn the ignition to the OFF position, nor remove the USB device.

Sound Setup (SOUND)

This setup menu can also be opened by pressing SOUND.

EQ10 PRESET

Selects an equalizer curve from 10 equalizer curves or off: [OFF], [R&B], [ROCK], [POP], [HIP-HOP], [ELECTRONICA], [JAZZ], [REGUETON], [SALSA], [KARAOKE]*, [CUSTOM]. For India models: [BOLLYWOOD], [R&B], [ROCK], [POP], [HIP-HOP], [ELECTRONICA], [JAZZ], [REGUETON], [KARAOKE]*, [CUSTOM], [OFF].

The equalizer curve setting can be memorized for each source.

* [KARAOKE] reduces the vocal sound but cannot be fully removed during playback. Also, using a microphone is not supported.

EQ10 CUSTOM

Sets [CUSTOM] of EQ10. Setting the equalizer curve: [BAND1] 32 Hz, [BAND2] 63 Hz, [BAND3] 125 Hz, [BAND4] 250 Hz, [BAND5] 500 Hz, [BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8] 4 kHz, [BAND9] 8 kHz, [BAND10] 16 kHz. The volume level is adjustable in 1 dB steps, from -6 dB to +6 dB.

BALANCE

Adjusts the sound balance: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER

Adjusts the relative level: [FRONT-15] - [CENTER] - [REAR-15].

([ATT] is displayed at the lowest setting.)

Selects the subwoofer phase: [NORM], [REV].

LPF FREQ (low pass filter frequency)

Selects the subwoofer cut-off frequency: [80Hz], [100Hz], [120Hz].

HPF FREQ (high pass filter frequency)

Selects the front/rear speaker cut-off frequency: [OFF], [80Hz], [100Hz], [120Hz].

AUX VOL (AUX volume level)

Adjusts the volume level for each connected auxiliary device: [+18 dB] - [0 dB] - [-8 dB] .

This setting negates the need to adjust the volume level between sources.

(Available only when the AUX is selected.)

Display Setup (DISPLAY)

BLK OUT (black out)

Turns off the illumination automatically if no operation is performed for 5 seconds when any source is selected: [ON], [OFF]. To turn the light back on, press any button on the unit or the remote commander.

DIMMER

Changes the display brightness: [ON], [OFF], [CLK].

To set this function to be active only during a fixed period, select [CLK], then set the start and end times.

- To set the brightness when the dimmer function is activated:

Set [DIMMER] to [ON], then adjust [BRIGHTNESS].

- To set the brightness when the dimmer function is deactivated:

Set [DIMMER] to [OFF], then adjust [BRIGHTNESS].

The brightness setting is stored and applied when the dimmer function is activated or deactivated.

BRIGHTNESS

Adjusts the display brightness. The brightness level is adjustable: [1] - [10].

SND SYNC (sound synchronization)

Activates the synchronization of the illumination with the sound: [ON], [OFF].

AUTO SCR (auto scroll)

Scrolls long items automatically: [ON], [OFF].

(Not available when the AUX or tuner is selected.)

Additional Information

Updating the Firmware

To update the firmware, visit the support site on the back cover, then follow the online instructions.

Notes

• Using a USB device (not supplied) is required for updating the firmware. Store the updater in the USB device, and connect the device to the USB port, then perform the update operation.
• Updating the firmware takes a few minutes to complete. During the update, do not turn the ignition to the OFF position, nor remove the USB device.

Precautions

• Cool off the unit beforehand if your car has been parked in direct sunlight.
• Do not leave the front panel or audio devices brought in inside the car, or it may cause malfunction due to high temperature in direct sunlight.
• Power antenna (aerial) extends automatically.

Moisture condensation

Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.

To maintain high sound quality

Do not splash liquid onto the unit or discs.

Notes on discs

- Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.

- Before playing, wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.

Illustration of hands holding a CD or DVD disc with arrows indicating rotation (no text or symbols)

- This unit is designed to play discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.

- Discs that this unit CANNOT play - Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc. - Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit. - 8 cm (124 in) discs.

Notes on CD-R/CD-RW discs

• If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played.
  •Discs that this unit CANNOT play
• CD-R/CD-RW of poor recording quality.
• CD-R/CD-RW recorded with an incompatible recording device.
• CD-R/CD-RW which is finalized incorrectly.
• CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi-session.

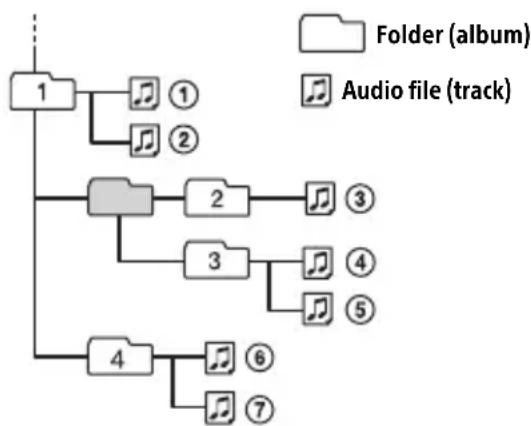

Playback order of audio files

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery of the remote commander

Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.)

When the battery becomes weak, the range of the remote commander becomes shorter.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type.

① ② + side up

Notes on the lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to ensure a good contact.
• Be sure to observe the correct polarity when installing the battery.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 6) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

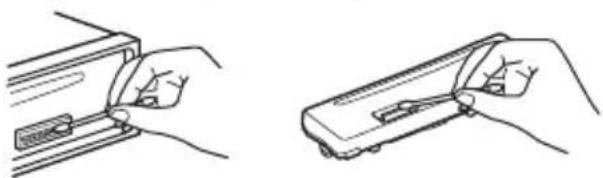

Line drawings of two hands holding a device, one with a scroll wheel and the other with a handle (no text or symbols)

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Specifications

Tuner section

FM

Tuning range: 87.5 MHz – 108.0 MHz (at 50 kHz step) 87.5 MHz – 108.0 MHz (at 100 kHz step) 87.5 MHz – 107.9 MHz (at 200 kHz step) For Argentine models: 87.5 MHz – 107.9 MHz

FM tuning step (except for Argentine models): 50 kHz/100 kHz/200 kHz switchable

Antenna (aerial) terminal: External antenna (aerial) connector

Intermediate frequency: FM CCIR: -1,956.5 kHz to -487.3 kHz and +500.0 kHz to +2,095.4 kHz

Usable sensitivity: 7 dBf Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 73 dB Separation: 50 dB at 1 kHz

Frequency response: 20 Hz – 15,000 Hz

AM

Tuning range: 531 kHz – 1,602 kHz (at 9 kHz step) 530 kHz – 1,710 kHz (at 10 kHz step) For Argentine models: 530 kHz – 1,710 kHz

AM tuning step (except for Argentine models): 9 kHz/10 kHz switchable

Antenna (aerial) terminal: External antenna (aerial) connector Sensitivity: 26 μV

CD Player section

Signal-to-noise ratio: 95 dB Frequency response: 10 Hz – 20,000 Hz Wow and flutter: Below measurable limit The maximum number of: (CD-R/CD-RW only)

– folders (albums): 150 (including root folder)
- files (tracks) and folders: 300 (may less than 300 if folder/file names contain many characters)
- displayable characters for a folder/file name: 32 (Joliet)/64 (Romeo)

Corresponding codec: MP3 (.mp3) and WMA (.wma)

USB Player section

Interface: USB (Full-speed)

Maximum current: 500 mA

The maximum number of recognizable tracks:

– folders (albums): 256

- files (tracks) per folder: 256

Compatible Android Open Accessory protocol (AOA): 2.0

Corresponding codec:

MP3 (.mp3)

Bit rate: 8 kbps – 320 kbps (Supports VBR (Variable Bit Rate))

Sampling rate: 16 kHz – 48 kHz

WMA (.wma)

Bit rate: 32 kbps – 192 kbps (Supports VBR (Variable Bit Rate))

Sampling rate: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac)

Bit depth: 16 bit, 24 bit

Sampling rate: 44.1 kHz, 48 kHz

Power amplifier section

Output: Speaker outputs

Speaker impedance: 4 Ω - 8 Ω

Maximum power output: 55 W × 4 (at 4 Ω)

General

Outputs:

Audio outputs terminal (REAR, SUB)

Power antenna (aerial)/Power amplifier control terminal (REM OUT)

Inputs:

Remote controller input terminal

Antenna (aerial) input terminal

Power requirements: 12 V DC car battery (negative ground (earth))

Rated current consumption: 10 A

Dimensions:

Approx. 178 mm × 50 mm × 177 mm

(7 1/8 in × 2 in × 7 in) (w/h/d)

Mounting dimensions:

Approx. 182 mm × 53 mm × 160 mm

(7 1/4 in × 2 1/8 in × 6 5/16 in) (w/h/d)

Mass: Approx. 1.2 kg (2 lb 11 oz)

Package contents:

Main unit (1)

Remote commander (1): RM-X211

Parts for installation and connections (1 set)

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Copyrights

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Android is a trademark of Google Inc.

libFLAC

Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

For details on using the fuse and removing the unit from the dashboard, see "Connection/Installation" (page 20). If the problem is not solved, visit the support site on the back cover.

General

No power is being supplied to the unit.

→ If the unit is turned off and the display disappears, the unit cannot be operated with the remote commander.
-Turn on the unit.

No sound or the sound is very low.

→ The position of the fader control [FADER] is not set for a 2-speaker system.
→ The volume of the unit and/or connected device is very low.
- Increase the volume of the unit and connected device.

No beep sound.

→ An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

→ The power supply lead or battery has been disconnected or not connected properly.

Stored stations and correct time are erased.

The fuse has blown.

Makes a noise when the position of the ignition is switched.

→ The leads are not matched correctly with the car's accessory power connector.

During playback or reception, the demonstration mode starts.

→ If no operation is performed for 5 minutes with [DEMO-ON] set, the demonstration mode starts.
- Set [DEMO-OFF] (page 10).

The display disappears from/does not appear in the display window.

→ The dimmer is set to [DIM-ON] (page 12).
→ The display disappears if you press and hold OFF.
- Press OFF on the unit until the display appears.
→ The connectors are dirty (page 14).

The display disappears while the unit is operating.

→ [BLK OUT] (black out) is set to [B.OUT-ON] (page 12).

The display/illumination flashes.

→ The power supply is not sufficient.
- Check that the car battery supplies enough power to the unit. (The power requirement is 12 V DC.)

The operation buttons do not function. The disc will not eject.

→ Press DSPL and (back)/MODE for more than 2 seconds to reset the unit.
The contents stored in memory are erased.
For your safety, do not reset the unit while you are driving.

Radio reception

Stations cannot be received. The sound is hampered by noises.

→ The connection is not correct.
- If your car has built-in radio antenna (aerial) in the rear/side glass, connect an REM OUT lead (blue/white striped) or accessory power supply lead (red) to the power supply lead of a car's antenna (aerial) booster. (except for Argentine models)
- Check the connection of the car antenna (aerial).
- If the auto antenna (aerial) will not extend, check the connection of the power antenna (aerial) control lead.

→ The tuning step setting has been erased. - Set the tuning step again (page 6). (except for Argentine models)

Preset tuning is not possible.

→ The broadcast signal is too weak.

RDS

PTY displays [----].

→ The current station is not an RDS station.
→ RDS data has not been received.
→ The station does not specify the program type.

CD playback

The disc does not play.

→ Defective or dirty disc.
→ The CD-R/CD-RW is not for audio use (page 13).

MP3/WMA files cannot be played.

→ The disc is incompatible with the MP3/WMA format and version. For details on playable discs and formats, visit the support site on the back cover.

MP3/WMA files take longer to play than others.

→ The following discs take a longer time to start playback.
– A disc recorded with a complicated tree structure.
– A disc recorded in Multi Session.
- A disc to which data can be added.

The sound skips.

→ Defective or dirty disc.

USB device playback

You cannot play items via a USB hub.

→ This unit cannot recognize USB devices via a USB hub.

A USB device takes longer to play.

→ The USB device contains files with a complicated tree structure.

The sound is intermittent.

→ The sound may be intermittent at a high-bit-rate.
→ DRM (Digital Rights Management) files may not be playable in some cases.

Audio file cannot be played.

→ USB device formatted with file systems other than FAT16 or FAT32 are unsupported.*

* This unit supports FAT16 and FAT32, but some USB device may not support all of these FAT. For details, refer to the operating instruction of each USB device or contact the manufacturer.

Operations for skipping an album, skipping items (Jump mode), and searching a track by name (Quick-BrowZer) cannot be performed.

→ These operations cannot be performed when a USB device in Android mode is connected.

- Set [USB MODE] to [MSC/MTP] (page 11).

→ The USB mode of the device is not set to the appropriate mode.

- Make sure that the USB mode of the device is set to MSC/MTP mode.

The sound cannot be output during playback in Android mode.

→ While the unit is in Android mode, the sound outputs only from the Android smartphone.
- Check the status of the audio playback application on the Android smartphone.
- Playback may not perform properly depending on the Android smartphone.

Messages

The following messages may appear or flash during operation.

CD ERROR: The disc cannot be played. The disc will be ejected automatically.

→ Clean or insert the disc correctly, or make sure the disc is not blank or defective.

CD NO MUSIC: There is no playable file. The disc will be ejected automatically.

→ Insert a disc containing playable files (page 14).

CD PUSH EJT: The disc could not be ejected properly.

→ Press ≧ (eject).

HUB NO SUPRT: USB hubs are not supported.

INVALID

→ The selected operation could be invalid.

NOT SUPPORT - ANDROID MODE

→ A USB device not supporting AOA (Android Open Accessory) 2.0 is connected to the unit while [USB MODE] is set to [ANDROID].

- Set [USB MODE] to [MSC/MTP] (page 11).

OVERLOAD: The USB device is overloaded.

→ Disconnect the USB device, then press SRC to select another source.
→ The USB device has a fault, or an unsupported device is connected.

READ: Now reading information.

→ Wait until reading is complete and playback starts automatically. This may take some time depending on the file organization.

USB ERROR: The USB device cannot be played.

→ Connect the USB device again.

USB NO DEV: A USB device is not connected or recognized.

→ Make sure the USB device or USB cable is securely connected.

USB NO MUSIC: There is no playable file.

→ Connect a USB device containing playable files (page 15).

USB NO SUPRT: The USB device is not supported.

→ For details on the compatibility of your USB device, visit the support site on the back cover.

LLLL or : The beginning or the end of the disc has been reached.

_ (underscore): The character cannot be displayed.

For steering wheel remote control operation:

ERROR: An error occurred during the function registration.

→ Register again from the function where the error occurred (page 11).

TIMEOUT: The function registration failed due to a timeout.

→ Try completing the registration while [REGISTER] is blinking (about 6 seconds) (page 11).

If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

Connection/Installation

Cautions

• Run all ground (earth) leads to a common ground (earth) point.
• Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing).
• Before making connections, turn the car ignition off to avoid short circuits.
• Connect the yellow and red power supply leads only after all other leads have been connected.
  For Argentine models: Connect the power supply lead ⑦ to the unit and speakers before connecting it to the auxiliary power connector.
• Be sure to insulate any loose unconnected leads with electrical tape for safety.

Precautions

• Choose the installation location carefully so that the unit will not interfere with normal driving operations.
• Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
• Use only the supplied mounting hardware for a safe and secure installation.

Note on the power supply lead (yellow)

When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.

Mounting angle adjustment

Adjust the mounting angle to less than 45^ .

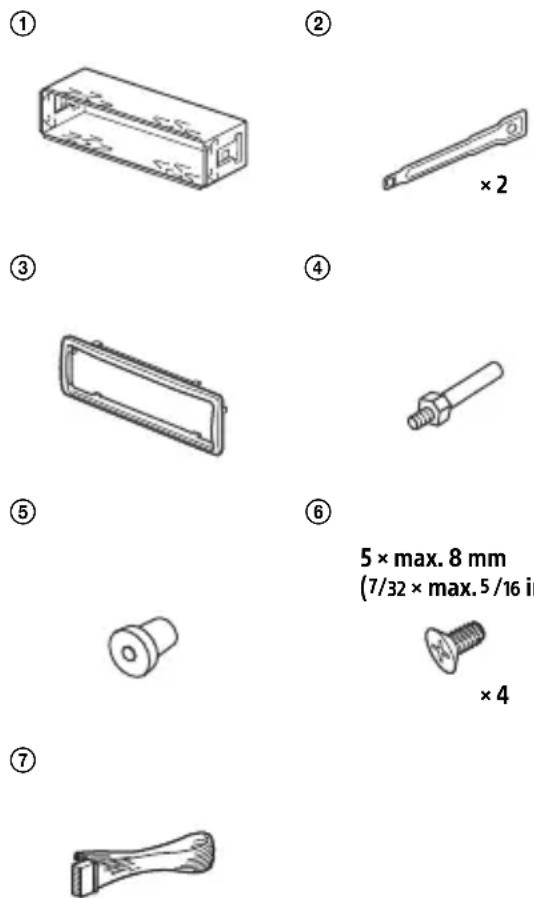

Parts List for Installation

5 × max. 8 mm (7/32 × max. 5/16 in)

For Argentine models
⑦
⑧

• This parts list does not include all the package contents.
• The bracket ① and the protection collar ③ are attached to the unit before shipping. Before mounting the unit, use the release keys ② to remove the bracket ① from the unit. For details, see “Removing the protection collar and the bracket” (page 24).
• Keep the release keys ② for future use as they are also necessary if you remove the unit from your car.

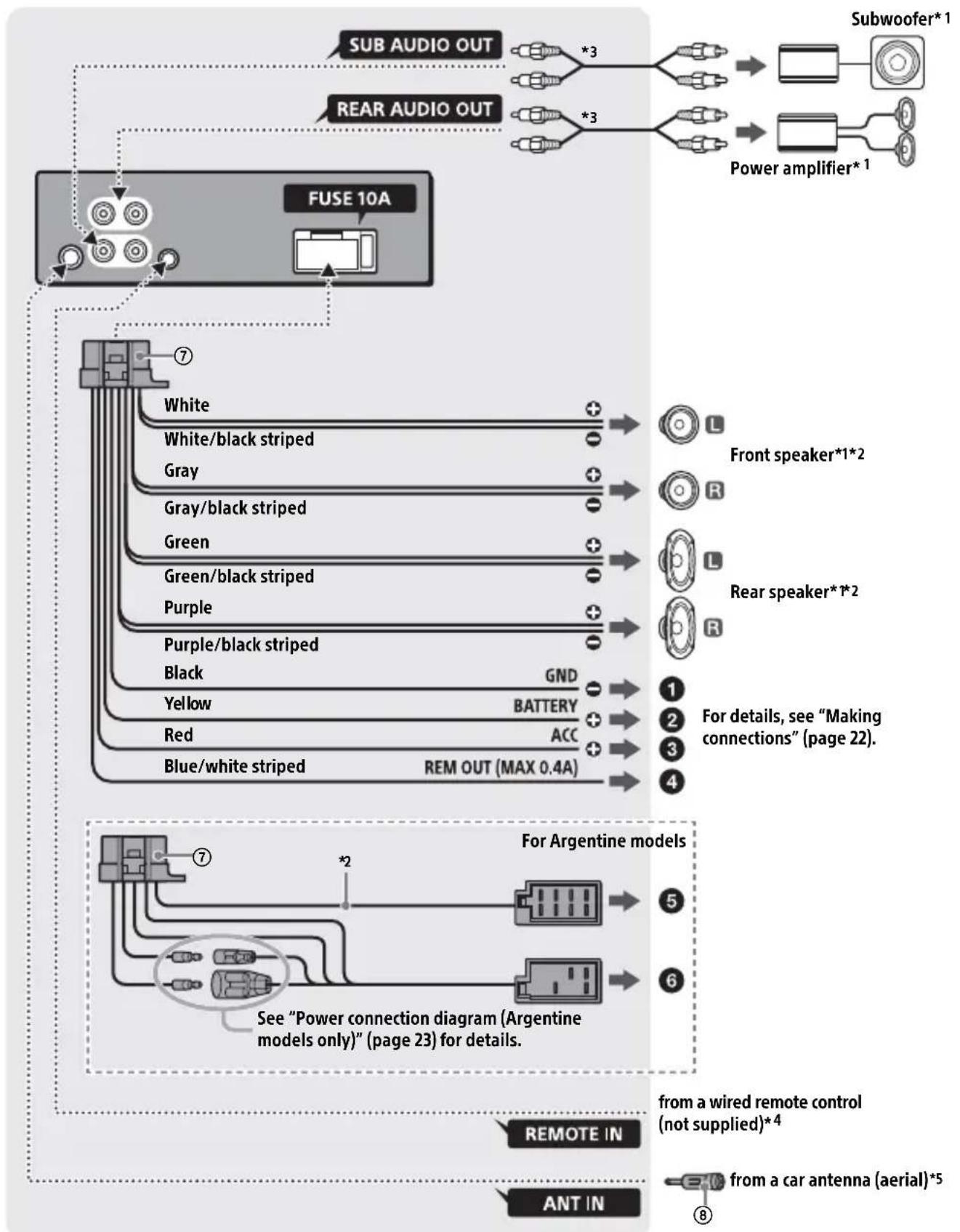

Connection

*1 Not supplied

*2 Speaker impedance: 4 Ω - 8 Ω × 4

*3 RCA pin cord (not supplied)

*4 Depending on the type of car, use an adaptor for a wired remote control (not supplied). For details on using the wired remote control, see "Using the wired remote control" (page 23).

*5 Note for the antenna (aerial) connecting (Argentine models only):

If your car antenna (aerial) is an ISO

(International Organization for Standardization)

type, use the supplied adaptor ⑧ to connect it.

Making connections

① To a common ground (earth) point

First connect the black ground (earth) lead, then connect the yellow and red power supply leads.

② To the +12 V power terminal which is energized at all times

Be sure to first connect the black ground (earth) lead to a common ground (earth) point.

③ To the +12 V power terminal which is energized when the ignition switch is set to the accessory position

If there is no accessory position, connect to the +12 V power (battery) terminal which is energized at all times.

Be sure to first connect the black ground (earth) lead to a common ground (earth) point.

4 To the power antenna (aerial) control lead or the power supply lead of the antenna (aerial) booster

It is not necessary to connect this lead if there is no power antenna (aerial) or antenna (aerial) booster, or with a manually-operated telescopic antenna (aerial).

To AMP REMOTE IN of an optional power amplifier

This connection is only for amplifiers and a power antenna (aerial). Connecting any other system may damage the unit.

For Argentine models:

If you have a power antenna (aerial) without a relay box, connecting this unit with the supplied power supply lead ⑦ may damage the antenna (aerial).

5 To the car's speaker connector

1 3 5 7 2 4 6 8

1	Rear speaker(right)	⊕	Purple
2			Purple/blackstriped
3	Front speaker(right)	⊕	Gray
4			Gray/blackstriped
5	Front speaker(left)	⊕	White
6			White/blackstriped
7	Rear speaker(left)	⊕	Green
8			Green/blackstriped

⑥ To the car's power connector

13 15 12 16

12	continuous power supply	Yellow
13	power antenna (aerial) /power amplifier control (REM OUT)	Blue/white striped
15	switched power supply	Red
16	ground (earth) Black

Subwoofer Easy Connection

You can use a subwoofer without a power amplifier when it is connected to a rear speaker cord.

Front speaker Subwoofer

Notes

• Preparation of the rear speaker cords is required (Argentine models only).
• Use a subwoofer with an impedance of 4 to 8 , and with adequate power handling capacities to avoid damage.

Memory hold connection

When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.

Speaker connection

• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 , and with adequate power handling capacities to avoid damage.

Power connection diagram (Argentine models only)

Make sure your car's auxiliary power connector, and match the connections of cords correctly depending on the car.

Auxiliary power connector

15 13 11 9 16 14 12 10

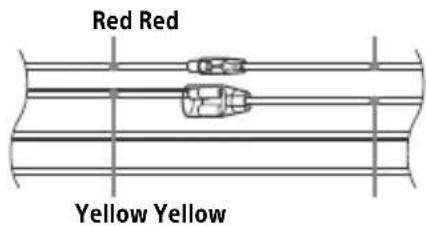

Common connection

Red Red Yellow Yellow

12	continuous power supply	Yellow
15	switched power supply Red

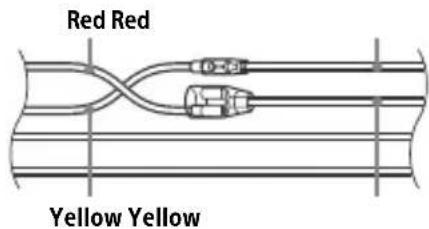

When the positions of the red and yellow leads are inverted

Red Red Yellow Yellow

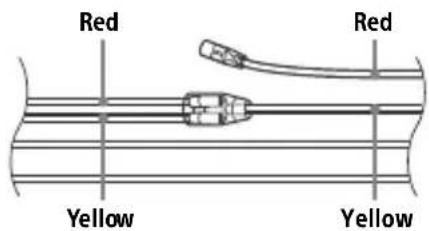

12	switched power supply Yellow
15	continuous power supply	Red

When the car without ACC position

Red Red Yellow Yellow

After matching the connections and switching power supply leads correctly, connect the unit to the car's power supply. If you have any questions and problems connecting your unit that are not covered in this manual, consult the car dealer.

Using the wired remote control

1 To enable the wired remote control, set [STR CONTROL] in [SET STEERING] to [PRESET] (page 10).

Installation

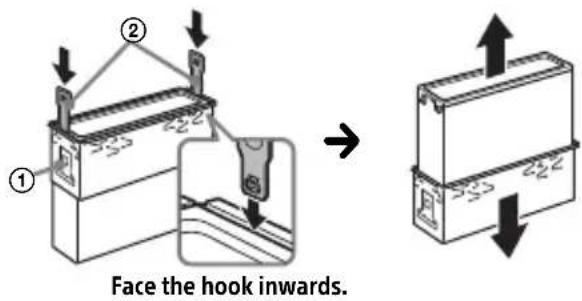

Removing the protection collar and the bracket

Before installing the unit, remove the protection collar ③ and the bracket ① from the unit.

1 Pinch both edges of the protection collar ③, then pull it out.

Diagram showing hands installing or adjusting a component with numbered callouts and arrows indicating assembly steps

2 Insert both release keys ② until they click, and pull down the bracket ①, then pull up the unit to separate.

Face the hook inwards.

Mounting the unit in the dashboard

• Before installing, make sure the catches on both sides of the bracket ① are bent inwards 2 mm (3/32 in).
• For Japanese cars, see "Mounting the unit in a Japanese car" (page 25).

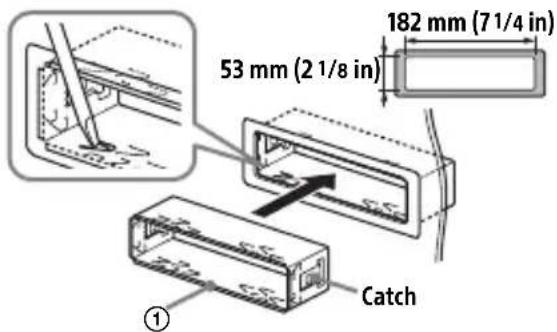

1 Position the bracket ① inside the dashboard, then bend the claws outward for a tight fit.

182 mm (7 1/4 in) 53 mm (2 1/8 in) Catch ①

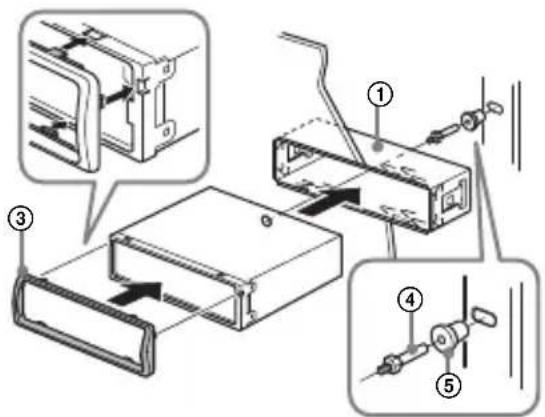

2 Mount the unit onto the bracket ①, then attach the protection collar ③.

Technical diagram showing exploded view of a device assembly with numbered components and directional arrows indicating motion or assembly.

Notes

• If the catches are straight or bent outwards, the unit will not be installed securely and may spring out.
• Make sure the 4 catches on the protection collar ③ are properly engaged in the slots of the unit.

Mounting the unit in a Japanese car

You may not be able to install this unit in some makes of Japanese cars. In such a case, consult your Sony dealer.

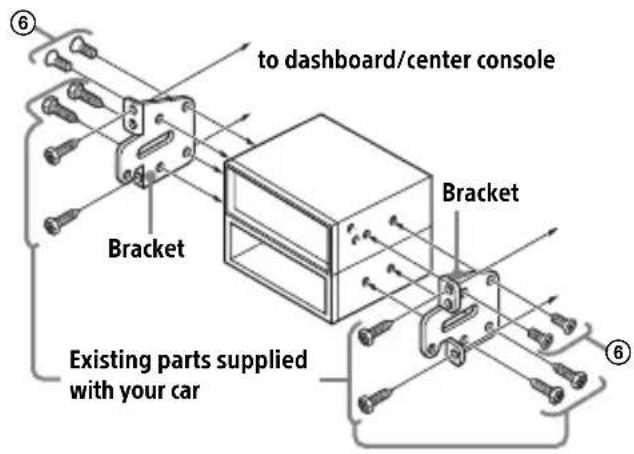

TOYOTA

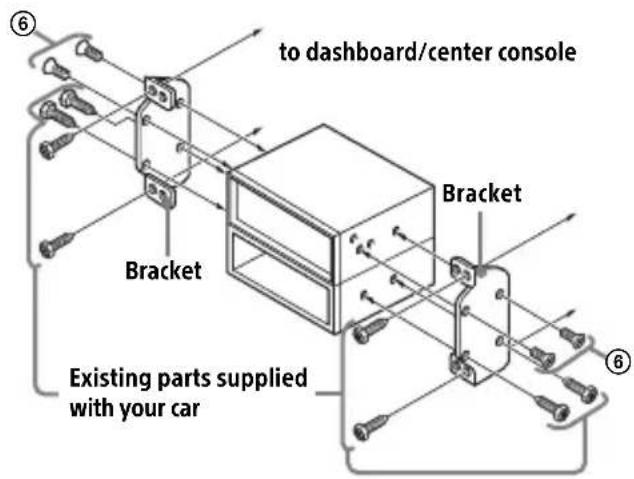

to dashboard/center console Bracket Bracket Existing parts supplied with your car

NISSAN

to dashboard/center console Bracket Bracket Existing parts supplied with your car

Note

To prevent malfunction, install only with the supplied screws ⑥.

Detaching and attaching the front panel

For details, see "Detaching the Front Panel" (page 6).

Resetting the unit

For details, see "Resetting the Unit" (page 6).

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Fuse (10 A)

AUTOESTEREO DIGITAL AM/FM CON REPRODUCTOR DE DISCO COMPACTO

POR FAVOR LEA DETALLADAMENTE ESTE MANUAL DE INSTRUCCIONES ANTES DE CONECTAR Y OPERAR ESTE EQUIPO. RECUERDE QUE UN MAL USO DE SU APARATO PODRÍA ANULAR LA GARANTÍA.

Line drawing of a device with a paper clip and three circular components (no text or symbols)

Diagram showing a hand holding a device with labeled parts ① and ②, likely illustrating a mechanical or electrical component.

Alarma de precaución

Diagram showing two rectangular compartments evolving from a single to a closed container, with an arrow indicating transformation (no text or symbols present)

Diagram showing a mechanical component with numbered parts and a cable inserted, likely illustrating a step or assembly process.

Line drawing of a mechanical component with a tool inserted, no visible text or symbols

4 Presione SRC para seleccionar [AUX].

Line drawing of a hand holding a CD inside a device casing (no text or symbols)

Hand holding a CD with a pen, showing disc and arrow graphics (no text or symbols)

Line drawings of two hand-drawn electrical circuit breakers (no text or symbols)

Notas

Diagram showing hands installing a component labeled with number ③, indicating assembly or repair step.

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or assembly.

Technical diagram showing exploded view of a device with labeled components and directional arrows indicating assembly or connection.

Notas

If you have any questions or for the latest support information on this product, please visit the web site below:

http://www.sony-asia.com/section/support

http://www.sony-asia.com/caraudio/
