USER MANUAL CXS-G11769U SONY

FM/AM Compact Disc Player

Operating Instructions

GB

To cancel the demonstration (DEMO) display, see page 9.

To switch the FM/AM tuning step, see page 5.

For the connection/installation, see page 15.

For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use.

For details, see "Connection/Installation" (page 15).

Laser Diode Properties

• Emission Duration: Continuous
• Laser Output: Less than 53.3 μW

(This output is the value measurement at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture.)

The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.

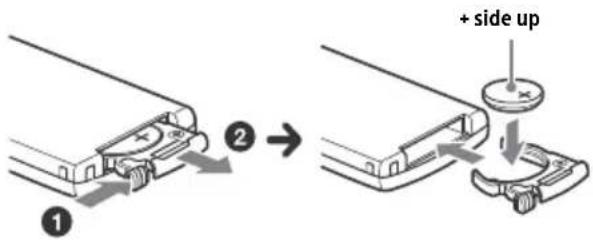

Note on the lithium battery

Do not expose the battery to excessive heat such as direct sunlight, fire or the like.

Warning if your car's ignition has no ACC position

Be sure to set the AUTO OFF function (page 9). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.

Table of Contents

Guide to Parts and Controls 4

Getting Started

Detaching the Front Panel.... 5
Switching the FM/AM Tuning Step 5
Setting the Clock 6
Connecting a USB Device 6
Connecting Other Portable Audio Device ..... 6

Listening to the Radio

Listening to the Radio 7
Using Radio Data System (RDS) 7

Playback

Playing a Disc 8
Playing a USB Device 8
Searching and Playing Tracks 8

Settings

Canceling the DEMO Mode 9
Basic Setting Operation.... 9
General Setup (GENERAL) 9
Sound Setup (SOUND) 9
Display Setup (DISPLAY) 10

Additional Information

Precautions.... 10
Maintenance.... 11
Specifications 11
Troubleshooting....12

Connection/Installation

Cautions 15
Parts List for Installation 15
Connection 16
Installation 17

Guide to Parts and Controls

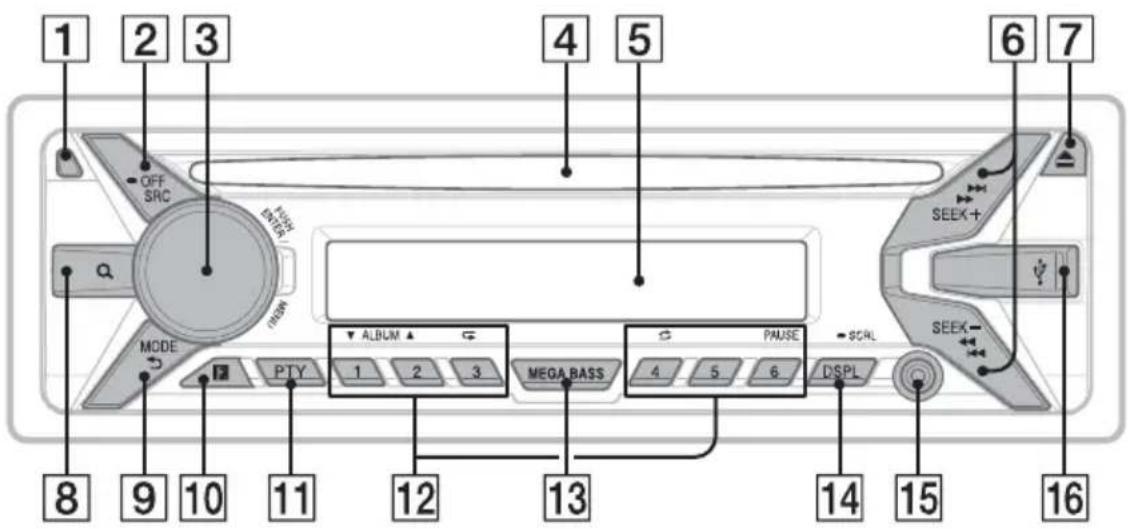

Main unit

1 2 3 OFF SRC MODE PTY 4 5 6 7 SEEK+ SEEK- ALBUM 1 2 3 MEGA BASS PAUSE 4 5 6 DSPL 12 13 14 15 16

1 Front panel release button
2 SRC (source)

Turn on the power.

Change the source.

OFF

Press and hold for 1 second to turn the source off and display the clock.

Press and hold for more than 2 seconds to turn off the power and the display.

If the unit is turned off and the display disappears, operation by the remote commander is not available.

3 Control dial

Rotate to adjust the volume.

PUSH ENTER

Enter the selected item.

MENU

Open the setup menu.

4 Disc slot
5 Display window
6 SEEK +/-

Tune in radio stations automatically. Press and hold to tune manually.

◀◀/▶▶I (prev/next)
◀◀/▶▶ (fast-reverse/fast-forward)

7 ▲ (disc eject)
8 Q(browse) (page 8)

Enter the browse mode during playback.

9 (back)

Return to the previous display.

MODE (page 7)

10 Receptor for the remote commander
11 PTY (program type)

Select PTY in RDS.

12 Number buttons (1 to 6)

Receive stored radio stations. Press and hold to store stations.

ALBUM ▼/▲

Skip an album for audio device. Press and hold to skip albums continuously.

(repeat)
(shuffle)

PAUSE

13 MEGA BASS

Press to change the MEGA BASS setting.

14 DSPL (display)

Press to change display items.

- SCRL

Press and hold to scroll a display item.

15 AUX input jack
16 USB port

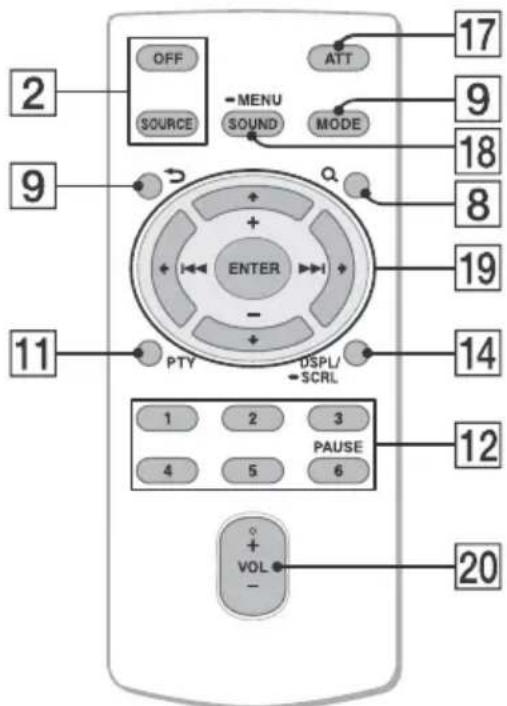

RM-X211 Remote commander

2 OFF SOURCE MENU SOUND ATT 17 9 18 8 19 14 11 ENTER PTY DSPL/ -SCRL 1 2 3 4 5 6 PAUSE + + VOL - 20

The VOL (volume) + button has a tactile dot.

17 ATT (attenuate)

Attenuate the sound. Press again to cancel the attenuation.

18 SOUND

Open the SOUND menu directly.

MENU

Press and hold to open the setup menu.

19 ← /↑/↓/→

Select a setup item, etc.

ENTER

Enter the selected item.

◀◀/▶▶I (prev/next)

+/- (album +/-)

20 VOL (Volume) +/-

Remove the insulation film before use.

Line drawing of a device with a paper clip and three buttons, no text or symbols present

Getting Started

Detaching the Front Panel

You can detach the front panel of this unit to prevent theft.

1 Press and hold OFF ① until the unit turns off, press the front panel release button ②, then pull the panel towards you to remove.

Diagram showing a hand holding a tool with labeled parts 1 and 2, likely illustrating a mechanical or electrical component.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

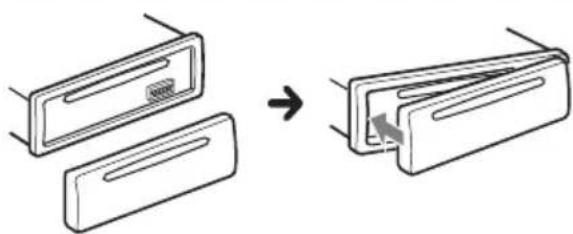

Attaching the front panel

Diagram showing two views of a door handle being inserted into a slot (no text or symbols present)

Switching the FM/AM Tuning Step

Set the FM/AM tuning step of your country. This setting appears only while the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [SET GENERAL], then press it.
2 Rotate the control dial to select [SET TUNER-STP], then press it.
3 Rotate the control dial to select from [SET 50K/9K], [SET 100K/10K] or [SET 200K/10K], then press it.

Setting the Clock

1 Press MENU, rotate the control dial to select [SET GENERAL], then press it.

2 Rotate the control dial to select [SET CLOCK-ADJ], then press it.

The hour indication flashes.

3 Rotate the control dial to set the hour and minute.

To move the digital indication, press SEEK +/-

4 After setting the minute, press MENU.

The setup is complete and the clock starts.

To display the clock

Press DSPL.

Connecting a USB Device

1 Turn down the volume on the unit.

2 Connect the USB device to the unit.

Diagram showing a car door panel with labeled parts 1 and 2, likely illustrating a switch or connector assembly.

Connecting Other Portable Audio Device

1 Turn off the portable audio device.

2 Turn down the volume on the unit.

3 Connect the portable audio device to the AUX input jack (stereo mini jack) on the unit with a connecting cord (not supplied)*.

* Be sure to use a straight type plug.

Line drawing of a mechanical clamp or bracket with a screwdriver inserted (no text or symbols)

4 Press SRC to select [AUX].

To match the volume level of the connected device to other sources

Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit.

Press MENU, then select [SET SOUND] → [SET AUX VOL] (page 10).

Listening to the Radio

Listening to the Radio

Tuning step setting is required (page 5).

To listen to the radio, press SRC to select [TUNER].

Storing automatically (BTM)

1 Press MODE to change the band (FM1, FM2, FM3, AM1 or AM2).
2 Press MENU, rotate the control dial to select [SET GENERAL], then press it.
3 Rotate the control dial to select [SET BTM], then press it.
The unit stores stations in order of frequency on the number buttons.

Tuning

1 Press MODE to change the band (FM1, FM2, FM3, AM1 or AM2).
2 Perform tuning.
To tune manually
Press and hold SEEK +/- to locate the approximate frequency, then press SEEK +/- repeatedly to fine adjust to the desired frequency.
To tune automatically
Press SEEK +/-
Scanning stops when the unit receives a station.

Storing manually

1 While receiving the station that you want to store, press and hold a number button (1 to 6) until [MEM] appears.

Receiving the stored stations

1 Select the band, then press a number button (1 to 6).

Using Radio Data System (RDS)

Selecting program types (PTY)

1 Press PTY during FM reception.
2 Rotate the control dial until the desired program type appears, then press it.
The unit starts to search for a station broadcasting the selected program type.

Type of programs

NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)

Setting clock time (CT)

The CT data from the RDS transmission sets the clock.

1 Set [SET CT-ON] in [SET GENERAL] (page 9).

Playback

Playing a Disc

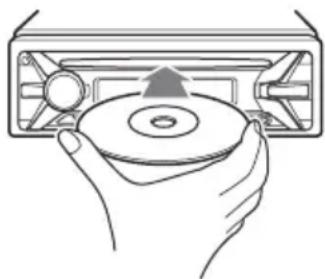

1 Insert the disc (label side up).

Hand holding a CD inside a device casing, showing internal components and an upward arrow (no text or symbols)

Playback starts automatically.

Playing a USB Device

MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices (such as a USB flash drive, digital media player, Android™ phone) compliant with the USB standard can be used. Depending on the digital media player or Android phone, setting the USB connection mode to MTP is required.

Notes

• For details on the compatibility of your USB device, visit the support site on the back cover.
• Playback of the following MP3/WMA files is not supported.
  — lossless compression files
  – copyright-protected files
  — DRM (Digital Rights Management) files
• Multi-channel audio files

1 Connect a USB device to the USB port (page 6).

Playback starts. If a device is already connected, to start playback, press SRC to select [USB].

2 Adjust the volume on this unit.

To stop playback

Press and hold OFF for 1 second.

To remove the device

Stop playback, then remove the device.

Searching and Playing Tracks

Repeat play and shuffle play

1 During playback, press (repeat) or (shuffle) repeatedly to select the desired play mode.

Playback in the selected play mode may take time to start.

Available play modes differ depending on the selected sound source.

Searching a track by name (Quick-BrowZer™)

1 During CD or USB playback, press Q (browse)* to display the list of search categories.

When the track list appears, press (back) repeatedly to display the desired search category.

* During USB playback, press (browse) for more than 2 seconds to directly return to the beginning of the category list.

2 Rotate the control dial to select the desired search category, then press it to confirm.

3 Repeat step 2 to search the desired track. Playback starts.

To exit the Quick-BrowZer mode Press Q (browse).

Searching by skipping items (Jump mode)

1 Press Q (browse).

2 Press SEEK +.

3 Rotate the control dial to select the item. The list is jumped in steps of 10% of the total number of items.

4 Press ENTER to return to the Quick-BrowZer mode. The selected item appears.

5 Rotate the control dial to select the desired item, then press it. Playback starts.

Settings

Canceling the DEMO Mode

You can cancel the demonstration display which appears when the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [SET DISPLAY], then press it.

2 Rotate the control dial to select [SET DEMO], then press it.

3 Rotate the control dial to select [SET DEMO-OFF], then press it.

The setting is complete.

4 Press (back) twice.

The display returns to normal reception/play mode.

Basic Setting Operation

You can set items in the following setup categories: General setup (GENERAL), Sound setup (SOUND), Display setup (DISPLAY)

1 Press MENU.

2 Rotate the control dial to select the setup category, then press it.

The items that can be set differ depending on the source and settings.

3 Rotate the control dial to select the options, then press it.

To return to the previous display Press ↩ (back).

General Setup (GENERAL)

CLOCK-ADJ (clock adjust) (page 6)

TUNER-STP (tuner step) (page 5) (Available only while the source is off and the clock is displayed.)

CAUT ALM (caution alarm) Activates the caution alarm: [ON], [OFF] (page 5). (Available only while the source is off and the clock is displayed.)

BEEP

Activates the beep sound: [ON], [OFF].

AUTO OFF

Shuts off automatically after a desired time when the unit is turned off: [NO], [30S] (30 seconds), [30M] (30 minutes), [60M] (60 minutes).

AUX-A (AUX audio)

Activates the AUX source display: [ON], [OFF]. (Available only while the source is off and the clock is displayed.)

CT (clock time)

Activates the CT function: [ON], [OFF].

BTM (best tuning memory) (page 7)

(Available only when the tuner is selected.)

Sound Setup (SOUND)

This setup menu is available when any source is selected.

MEGABASS (mega bass)

Reinforces bass sound in synchronization with the volume level: [1], [2], [OFF].

EQ5 PRESET

Selects an equalizer curve from 10 equalizer curves or off: [OFF], [RAND B], [ROCK], [POP], [DANCE], [HIP-HOP], [ELECTRONICA], [JAZZ], [REGUETON], [SALSA], [CUSTOM]. The equalizer curve setting can be memorized for each source.

EQ5 SETTING

Sets [CUSTOM] of EQ5.

BASE

Selects a preset equalizer curve as a basis for further customizing: [BAND1] (low frequency), [BAND2] (mid-low frequency), [BAND3] (mid frequency), [BAND4] (mid-high frequency), [BAND5] (high frequency).

The volume level is adjustable in 1 dB steps, from -10 dB to +10 dB.

BALANCE

Adjusts the sound balance: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER

Adjusts the relative level: [FRONT-15] - [CENTER] - [REAR-15].

AUX VOL (AUX volume level)

Adjusts the volume level for each connected auxiliary device: [+18 dB] - [0 dB] - [-8 dB] .

This setting negates the need to adjust the volume level between sources.

Display Setup (DISPLAY)

DEMO (demonstration)

Activates the demonstration: [ON], [OFF].

BLK OUT (black out)

Turns off the illumination automatically for any source (e.g., during radio reception/CD playback, etc.) if no operation is performed for 5 seconds: [ON], [OFF].

To turn the light back on, press any button on the unit or the remote commander.

DIMMER

Changes the display brightness: [ON], [OFF].

SND SYNC (sound synchronization)

Activates the synchronization of the illumination with the sound: [ON], [OFF].

AUTO SCR (auto scroll)

Scrolls long items automatically: [ON], [OFF]. (Not available when the AUX or tuner is selected.)

Additional Information

Precautions

• Cool off the unit beforehand if your car has been parked in direct sunlight.
• Do not leave the front panel or audio devices brought in inside the car, or it may cause malfunction due to high temperature in direct sunlight.
  • Power antenna (aerial) extends automatically.

Moisture condensation

Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.

To maintain high sound quality

Do not splash liquid onto the unit or discs.

Notes on discs

• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.
• Before playing, wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.
• This unit is designed to play discs that conform to the Compact Disc (CD) standard.

DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.

• Discs that this unit CANNOT play

— Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc.
— Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit.
- 8 cm (B/4 in) discs.

Notes on CD-R/CD-RW discs

• If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played.
  • Discs that this unit CANNOT play

— CD-R/CD-RW of poor recording quality.
— CD-R/CD-RW recorded with an incompatible recording device.
— CD-R/CD-RW which is finalized incorrectly.

Hand holding a CD or DVD disc with arrows indicating rotation (no text or symbols)

- CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi-session.

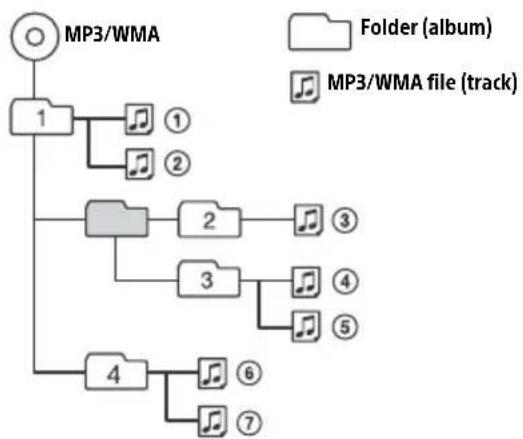

Playback order of MP3/WMA files

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery of the remote commander

Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the remote commander becomes shorter.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type.

① ② + side up

Notes on the lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to ensure a good contact.
• Be sure to observe the correct polarity when installing the battery.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 5) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Line drawing of a hand inserting a card into a folder (no text or symbols)

Line drawing of a hand holding a pen or stylus, no text or symbols present

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Specifications

Tuner section

FM

Tuning range: 87.5 – 108.0 MHz (at 50 kHz step) 87.5 – 108.0 MHz (at 100 kHz step) 87.5 – 107.9 MHz (at 200 kHz step)

FM tuning step: 50 kHz/100 kHz/200 kHz switchable

Antenna (aerial) terminal: External antenna (aerial) connector

Intermediate frequency: FM CCIR: -1,956.5 to -487.3 kHz and +500.0 to +2,095.4 kHz

Usable sensitivity: 7 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 73 dB

Separation: 50 dB at 1 kHz

Frequency response: 20 – 15,000 Hz

AM

Tuning range: 531 – 1,602 kHz (at 9 kHz step) 530 – 1,710 kHz (at 10 kHz step)

AM tuning step: 9 kHz/10 kHz switchable Antenna (aerial) terminal: External antenna (aerial) connector

Sensitivity: 26 μV

CD Player section

Signal-to-noise ratio: 95 dB

Frequency response: 10 - 20,000 Hz

Wow and flutter: Below measurable limit

The maximum number of: (CD-R/CD-RW only)

— folders (albums): 150 (including root folder)

— files (tracks) and folders: 300 (may less than 300 if folder/file names contain many characters)

— displayable characters for a folder/file name: 32 (Joliet)/64 (Romeo)

Corresponding codec: MP3 (.mp3) and WMA (.wma)

USB Player section

Interface: USB (Full-speed)

Maximum current: 500 mA

The maximum number of recognizable tracks:

— folders (albums): 256

— files (tracks) per folder: 256

Corresponding codec:

MP3 (.mp3) and WMA (.wma)

Power amplifier section

Output: Speaker outputs

Speaker impedance: 4 - 8 ohms

Maximum power output: 55 W × 4 (at 4 ohms)

General

Outputs:

Audio outputs terminal (rear, sub)

Power antenna (aerial)/Power amplifier control terminal (REM OUT)

Inputs:

Remote controller input terminal

Antenna (aerial) input terminal

Power requirements: 12 V DC car battery (negative ground (earth))

Dimensions:

Approx. 178 mm × 50 mm × 177 mm

(7 1/8 in × 2 in × 7 in) (w/h/d)

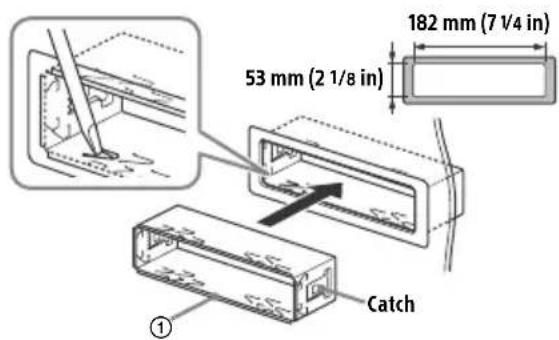

Mounting dimensions:

Approx. 182 mm × 53 mm × 160 mm

(7 1/4 in × 2 1/8 in × 6 5/16 in) (w/h/d)

Mass: Approx. 1.2 kg (2 lb 11 oz)

Package contents:

Main unit (1)

Remote commander (1): RM-X211

Parts for installation and connections (1 set)

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Copyrights

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Android is a trademark of Google Inc.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit.

Before going through the checklist below, check the connection and operating procedures.

For details on using the fuse and removing the unit from the dashboard, see "Connection/Installation" (page 15).

If the problem is not solved, visit the support site on the back cover.

General

No power is being supplied to the unit.

→ If the unit is turned off and the display disappears, the unit cannot be operated with the remote commander.

— Turn on the unit.

No sound or the sound is very low.

→ The position of the fader control [FADER] is not set for a 2-speaker system.

→ The volume of the unit and/or connected device is very low.

— Increase the volume of the unit and connected device.

No beep sound.

→ An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

→ The power supply lead or battery has been disconnected or not connected properly.

Stored stations and correct time are erased. The fuse has blown.

Makes a noise when the position of the ignition is switched.

→ The leads are not matched correctly with the car's accessory power connector.

During playback or reception, the demonstration mode starts.

→ If no operation is performed for 5 minutes with [DEMO-ON] set, the demonstration mode starts. — Set [DEMO-OFF] (page 10).

The display disappears from/does not appear in the display window.

→ The dimmer is set to [DIM-ON] (page 10).
→ The display disappears if you press and hold OFF. — Press OFF on the unit until the display appears.
→ The connectors are dirty (page 11).

The display disappears while the unit is operating.

→ [BLK OUT] (black out) is set to [B.OUT-ON] (page 10).

The display/illumination flashes.

→ The power supply is not sufficient.
→ Check that the car battery supplies enough power to the unit. (The power requirement is 12 V DC.)

The operation buttons do not function. The disc will not eject.

→ Press DSPL and (back)/MODE for more than 2 seconds to reset the unit. The contents stored in memory are erased. For your safety, do not reset the unit while you are driving.

Radio reception

Stations cannot be received.

The sound is hampered by noises.

→ The connection is not correct.
- If your car has built-in radio antenna (aerial) in the rear/side glass, connect an REM OUT lead (blue/white striped) or accessory power supply lead (red) to the power supply lead of a car's antenna (aerial) booster.
— Check the connection of the car antenna (aerial).
- If the auto antenna (aerial) will not extend, check the connection of the power antenna (aerial) control lead.
→ The tuning step setting has been erased.
— Set the tuning step again (page 5).

Preset tuning is not possible.

→ The broadcast signal is too weak.

RDS

PTY displays [----].

→ The current station is not an RDS station.
→ RDS data has not been received.
→ The station does not specify the program type.

CD playback

The disc does not play.

→ Defective or dirty disc.
→ The CD-R/CD-RW is not for audio use (page 10).

MP3/WMA files cannot be played.

→ The disc is incompatible with the MP3/WMA format and version. For details on playable discs and formats, visit the support site on the back cover.

MP3/WMA files take longer to play than others.

→ The following discs take a longer time to start playback.
— A disc recorded with a complicated tree structure.
— A disc recorded in Multi Session.
— A disc to which data can be added.

The sound skips.

→ Defective or dirty disc.

USB device playback

You cannot play items via a USB hub.

→ This unit cannot recognize USB devices via a USB hub.

A USB device takes longer to play.

→ The USB device contains files with a complicated tree structure.

The sound is intermittent.

→ The sound may be intermittent at a high-bit-rate.
→ DRM (Digital Rights Management) files may not be playable in some cases.

Audio file cannot be played.

→ USB device formatted with file systems other than FAT16 or FAT32 are unsupported.*

* This unit supports FAT16 and FAT32, but some USB device may not support all of these FAT. For details, refer to the operating instruction of each USB device or contact the manufacturer.

Error displays/Messages

ERROR: The disc or USB device cannot be played.

→ Clean or insert the disc correctly, or make sure the disc is not blank or defective.
→ Connect the USB device again.

HUB NO SUPRT: USB hubs are not supported.

NO DEV: A USB device is not connected or recognized.

→ Make sure the USB device or USB cable is securely connected.

NO MUSIC: There is no playable file.

→ Insert a disc or connect a USB device containing playable files (page 12).

OVERLOAD: The USB device is overloaded.

→ Disconnect the USB device, then press SRC to select another source.

→ The USB device has a fault, or an unsupported device is connected.

PUSH EJT: The disc could not be ejected properly.

→ Press ▲ (eject).

READ: Now reading information.

→ Wait until reading is complete and playback starts automatically. This may take some time depending on the disc structure.

USB NO SUPRT: The USB device is not supported.

→ For details on the compatibility of your USB device, visit the support site on the back cover.

LLLL or : The beginning or the end of the disc has been reached.

_: The character cannot be displayed.

If these solutions do not help improve the situation, consult your nearest Sony dealer.

If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

Connection/Installation

Cautions

• Run all ground (earth) leads to a common ground (earth) point.
• Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing).
• Before making connections, turn the car ignition off to avoid short circuits.
• Connect the yellow and red power supply leads only after all other leads have been connected.
• Be sure to insulate any loose unconnected leads with electrical tape for safety.

Precautions

• Choose the installation location carefully so that the unit will not interfere with normal driving operations.
• Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
• Use only the supplied mounting hardware for a safe and secure installation.

Note on the power supply lead (yellow)

When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.

Mounting angle adjustment

Adjust the mounting angle to less than 45^ .

Parts List for Installation

①

②

③

④

⑤

⑥

5 × max. 8 mm (7/32 × max. 5/16 in)

⑦

• This parts list does not include all the package contents.
• The bracket ① and the protection collar ③ are attached to the unit before shipping. Before mounting the unit, use the release keys ② to remove the bracket ① from the unit. For details, see “Removing the protection collar and the bracket” (page 17).
• Keep the release keys ② for future use as they are also necessary if you remove the unit from your car.

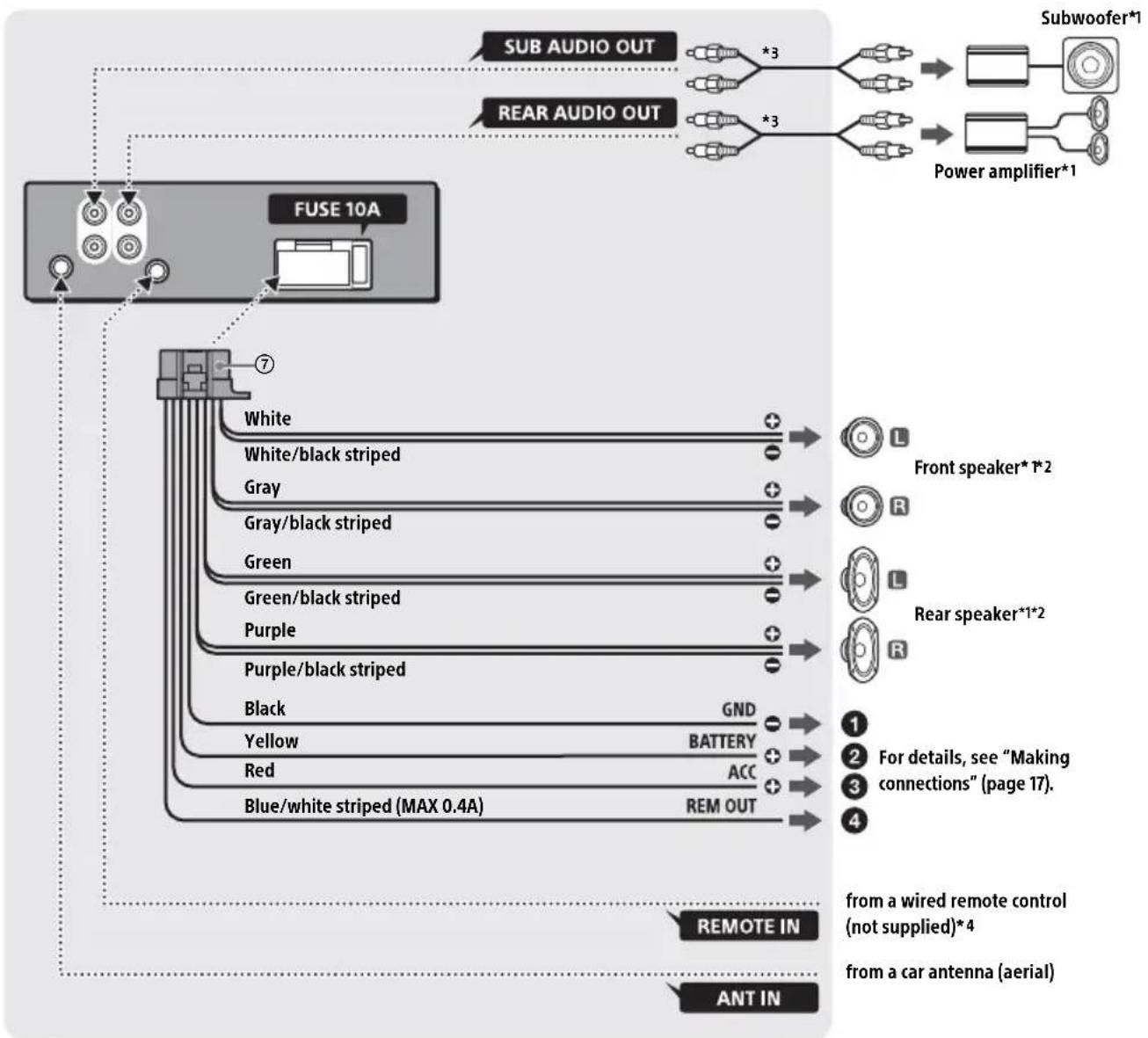

Connection

*1 Not supplied
*2 Speaker impedance: 4 - 8 Ω × 4
*3 RCA pin cord (not supplied)

*4 Depending on the type of car, use an adaptor for a wired remote control (not supplied).

Making connections

① To a common ground (earth) point

First connect the black ground (earth) lead, then connect the yellow and red power supply leads.

② To the +12 V power terminal which is energized at all times

Be sure to first connect the black ground (earth) lead to a common ground (earth) point.

③ To the +12 V power terminal which is energized when the ignition switch is set to the accessory position

If there is no accessory position, connect to the +12 V power (battery) terminal which is energized at all times.

Be sure to first connect the black ground (earth) lead to a common ground (earth) point.

4 To the power antenna (aerial) control lead or the power supply lead of the antenna (aerial) booster

It is not necessary to connect this lead if there is no power antenna (aerial) or antenna (aerial) booster, or with a manually-operated telescopic antenna (aerial).

To AMP REMOTE IN of an optional power amplifier

This connection is only for amplifiers and a power antenna (aerial). Connecting any other system may damage the unit.

Subwoofer Easy Connection

You can use a subwoofer without a power amplifier when it is connected to a rear speaker cord.

Front speaker Subwoofer

Note

Use a subwoofer with an impedance of 4 to 8 ohms, and with adequate power handling capacities to avoid damage.

Memory hold connection

When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.

Speaker connection

• Before connecting the speakers, turn the unit off.

- Use speakers with an impedance of 4 to 8 ohms, and with adequate power handling capacities to avoid damage.

Installation

Removing the protection collar and the bracket

Before installing the unit, remove the protection collar ③ and the bracket ① from the unit.

1 Pinch both edges of the protection collar ③, then pull it out.

Diagram showing hands operating a battery with labeled components and directional arrows indicating movement

2 Insert both release keys ② until they click, and pull down the bracket ①, then pull up the unit to separate.

Face the hook inwards.

Mounting the unit in the dashboard

Before installing, make sure the catches on both sides of the bracket ① are bent inwards 2 mm (β/32 in). When mounting in a Japanese car, see "Mounting the unit in a Japanese car" (page 18).

1 Position the bracket ① inside the dashboard, then bend the claws outward for a tight fit.

182 mm (7 1/4 in) 53 mm (2 1/8 in) Catch ①

2 Mount the unit onto the bracket ①, then attach the protection collar ③.

Technical diagram showing exploded view of a device with labeled components and directional arrows indicating assembly or installation steps.

Notes

• If the catches are straight or bent outwards, the unit will not be installed securely and may spring out.
• Make sure the 4 catches on the protection collar ③ are properly engaged in the slots of the unit.

Mounting the unit in a Japanese car

You may not be able to install this unit in some makes of Japanese cars. In such a case, consult your Sony dealer.

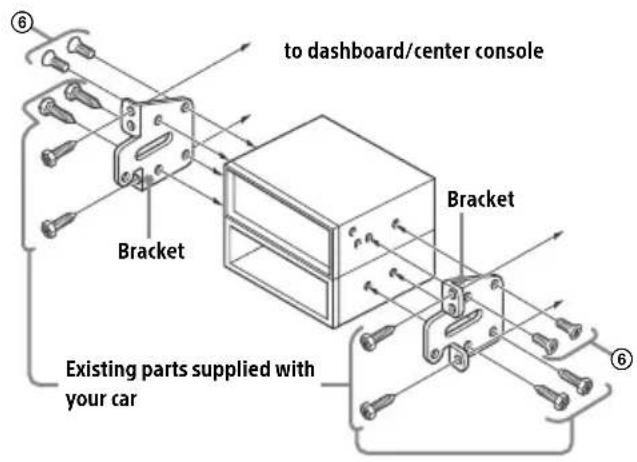

TOYOTA

to dashboard/center console Bracket Bracket Existing parts supplied with your car

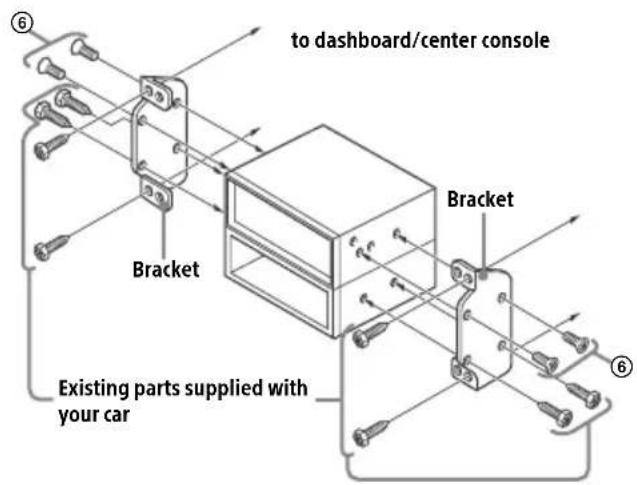

NISSAN

to dashboard/center console Bracket Bracket Existing parts supplied with your car

Note

To prevent malfunction, install only with the supplied screws ⑥.

Detaching and attaching the front panel

For details, see "Detaching the Front Panel" (page 5).

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In consult your nearest Sony dealer.

Line drawing of a device with a paper clip and a small arrow, no text or symbols present

Diagram showing a hand holding a device with labeled parts 1 and 2, likely illustrating a mechanical or electrical component.

Alarma de precaución

Diagram showing two views of a device with an arrow indicating transformation (no text or symbols present)

Diagram showing a device with labeled parts, including numbered annotations ① and ② pointing to specific components.

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

4 Presione SRC para seleccionar [AUX].

Line drawing of a hand holding a CD inside a device casing (no text or symbols)

Hand holding a circular disc with arrows indicating direction (no text or symbols)

Line drawings showing two hands inserting a card into a device (no text or symbols present)

Notas

Diagram showing hands installing a component labeled '③' into a box, with arrows indicating movement.

Technical diagram showing exploded view of a device with labeled components and assembly steps

Notas

If you have any questions or for the latest support information on this product, please visit the web site below:

http://www.sony-asia.com/section/support

http://www.sony-asia.com/caraudio/
