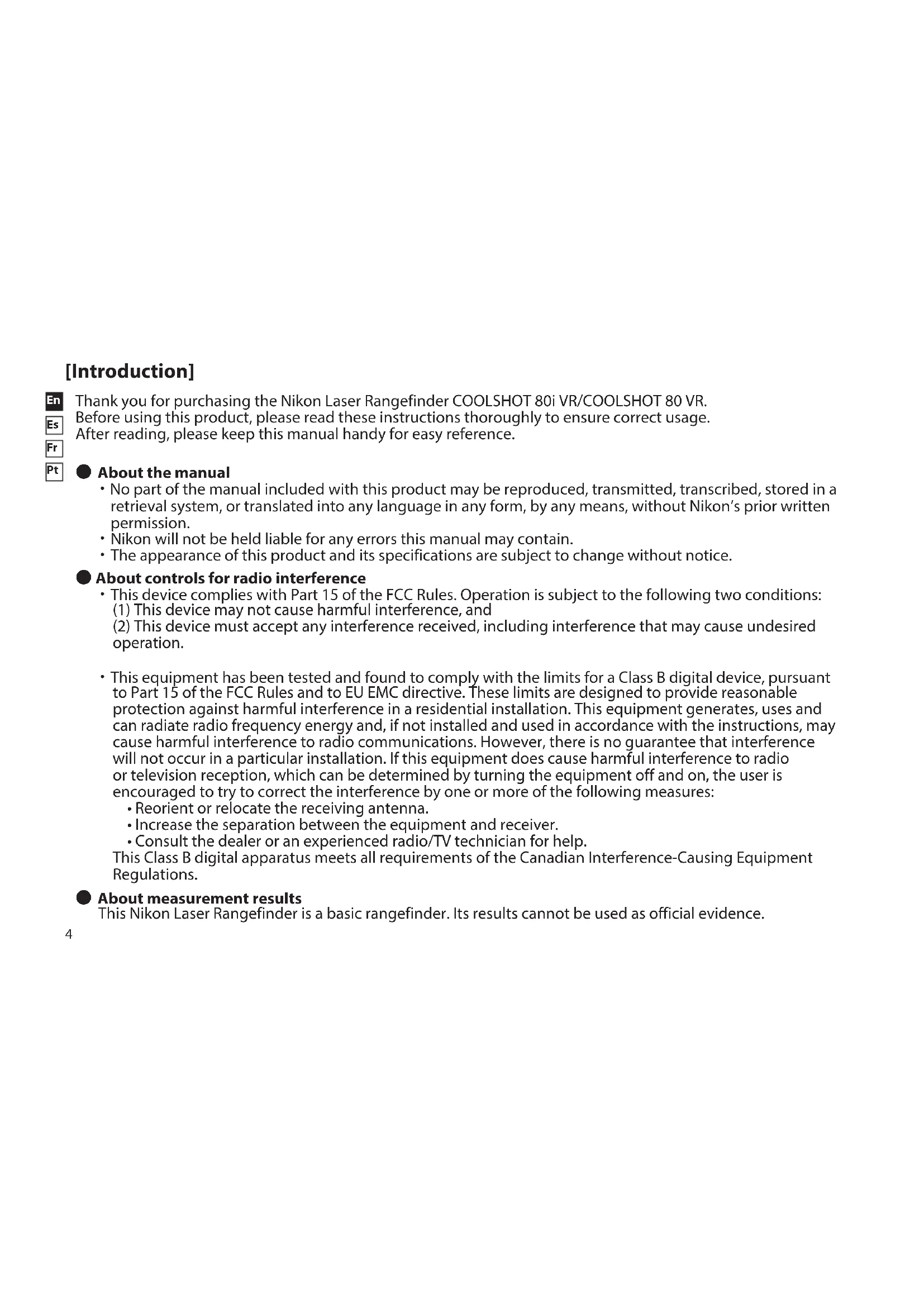

[Introduction]

Thank you for purchasing the Nikon Laser Rangefinder COOLSHOT 80i VR/COOLSHOT 80 VR.

Before using this product, please read these instructions thoroughly to ensure correct usage.

After reading, please keep this manual handy for easy reference.

● About the manual

• No part of the manual included with this product may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without Nikon's prior written permission.
• Nikon will not be held liable for any errors this manual may contain.
• The appearance of this product and its specifications are subject to change without notice.

● About controls for radio interference

• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and to EU EMC directive. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

● About measurement results

This Nikon Laser Rangefinder is a basic rangefinder. Its results cannot be used as official evidence.

■ Cautions before use

Please observe the following guidelines strictly so you can use the equipment properly and avoid potentially hazardous problems. Before using this product, read thoroughly the "Cautions before use" and instructions on correct usage accompanying the product. Keep this manual within reach for easy reference.

WARNING

This indication alerts you to the fact that any improper use ignoring the contents described herein can result in potential death or serious injury.

CAUTION

This indication alerts you to the fact that any improper use ignoring the contents described herein can result in potential injury or material loss.

SAFETY PRECAUTIONS (Laser)

The Nikon Laser Rangefinder uses an invisible laser beam. Be sure to observe the following:

Warning

• Do not press the PWR button while looking towards the optics from the objective side. Failure to do this may negatively affect or damage your eyes.
• Do not aim at the eye.
• Do not point the laser at people.
• Do not look at the laser with another optical instrument such as through lenses or binoculars, nor with the naked eye. This may result in damage to the eyes.
• When not measuring, please keep your fingers away from the PWR button to avoid accidentally emitting the laser beam.
• When not in use for an extended period, please remove the battery from the body.

• Do not disassemble/remodel/repair the Nikon Laser Rangefinder. The emitting laser may be harmful to your health. A product that has been disassembled/remodeled/repaired is not guaranteed by the manufacturer.

• Keep the Nikon Laser Rangefinder out of reach of children when stored.

• If the Nikon Laser Rangefinder's body cover is damaged, or if it emits a strange sound due to dropping or some other cause, remove the battery immediately and stop using.

SAFETY PRECAUTIONS (Monocular)

The Nikon Laser Rangefinder employs a monocular in its optical system in order to aim at the target. Be sure to observe the following:

Warning

- Never look directly at the sun, an intense light or the laser beam when using the Nikon Laser Rangefinder.

Cautions

• When not using the Nikon Laser Rangefinder, do not push the PWR button.
• Do not use this product while walking. Failure to observe this may cause injury or malfunction as a result of walking into something, hitting others, falling or other accidents.
• Do not swing around by the strap. This may result in hitting others and cause injury.
• Do not place this product in an unstable place. Failure to observe this may result in falling or dropping and cause injury or malfunction.
• Keep the plastic bag used to wrap

this product or other small parts out of reach of children.

• Prevent children from putting the rubber eyecup or small parts, etc. into their mouths. If children swallow such parts, consult a doctor immediately.
• If using the rubber eyecup for a long period of time, some people may suffer skin inflammation. If any symptoms occur, stop using it and consult a doctor immediately.
• When carrying the Nikon Laser Rangefinder, store it in the case.
• If your Nikon Laser Rangefinder should fail to operate correctly, discontinue use immediately and consult with your local dealer for instructions on where to send it for repair.

SAFETY PRECAUTIONS (Lithium battery)

If handled incorrectly, the battery may rupture and leak, corroding equipment and staining clothing. Be sure to observe the following:

• Install the battery with the + and - poles positioned correctly.
• The battery should be removed when exhausted or during extended periods of non-use.
• Do not short the end terminal of the battery chamber.
• Do not carry together with keys or coins in a pocket or bag, it may short and cause overheating.
• Do not expose the battery to water, or a flame. Never disassemble the battery.
• Do not charge the lithium battery.
• If liquid from a damaged battery comes into contact with clothing or skin, rinse immediately with plenty of water. If liquid from a damaged battery enters the eyes, rinse immediately with clean water, then consult a doctor.
• When disposing of the battery, follow your local area regulations.

SAFETY PRECAUTIONS

Cautions

• This product is not designed for use underwater.
• Rain, water, sand and mud should be removed from the rangefinder body surface as soon as possible, using a soft, clean cloth.
• If the Nikon Laser Rangefinder is exposed to sudden changes in temperature, water condensation may occur on lens surfaces. Do not use the product until the condensation has evaporated.
• Do not leave the Nikon Laser Rangefinder in a car on a hot or sunny day, or near heat-generating equipment. This may damage or negatively affect it.
• Do not leave the eyepiece in direct sunlight.

The condenser effect of the lens may damage the internal display surface.

CARE AND MAINTENANCE

Lenses

• When removing dust on the lens surface, use a soft oil-free brush.
• When removing stains or smudges like fingerprints from the lens surface, wipe the lenses very gently with a soft clean cotton cloth or quality oil-free lens tissue. Use a small quantity of pure alcohol (not denatured) to wipe stubborn smudges. Do not use velvet cloth or ordinary tissue, as it may scratch the lens surface. Once the cloth has been used for cleaning the body, it should not be used again for the lens surface.

Main body

• Clean the body surface with a soft, clean cloth after blowing away dust with a blower* lightly. Do not use benzene, thinner, or other cleaners containing organic solvents.
  *A blower is rubber cleaning equipment that blows air from a nozzle.

Storage

• Water condensation or mold may occur on the lens surface because of high humidity. Therefore, store the Nikon Laser Rangefinder in a cool, dry place.

After use on a rainy day or at night, thoroughly dry it at room temperature, then store in a cool, dry place.

Symbol for separate collection applicable in European countries

This symbol indicates that this battery is to be collected separately.
The following apply only to users in European countries
- This battery is designated for separate collection at an appropriate collection point. Do not dispose of as household waste.
- For more information, contact the retailer or the local authorities in charge of waste management.

Symbol for separate collection applicable in European countries

This symbol indicates that this product is to be collected separately.
The following apply only to users in European countries.
- This product is designated for separate collection at an appropriate collection point. Do not dispose of as household waste.
- For more information, contact the retailer or the local authorities in charge of waste management.

[Getting to know the Laser Rangefinder]

Key features

• Measurement range of actual distance: 7.5-915 meters/8-1,000 yards
- VR (Vibration Reduction) function is employed for reducing the vibrations caused by hand movement
- First Target Priority algorithm is employed
- First Target Priority detection sign is lit when measuring overlapping subjects and the distance to the closest subject is displayed
• High-quality 6x finder with multilayer coating
- Larger ocular for easy viewing
- Select from four measurement display modes (COOLSHOT 80i VR only)
- Golf mode (default setting) displays the slope adjusted distance (horizontal distance ± height) which is useful for golf (COOLSHOT 80i VR only)

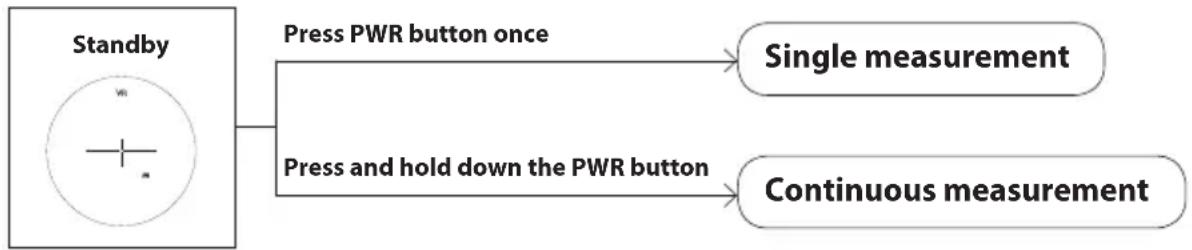

- Press and hold down the PWR button to activate the continuous measurement function
• Automatic power shut-off (approx. 8 sec. unoperated from standby screen)
- Waterproof and fogproof, but not designed for underwater usage (the battery chamber is rainproof)
- Invisible/Eyesafe EN/IEC Class 1M Laser

The Nikon Laser Rangefinder uses an invisible laser beam for measuring. It measures the time the laser beam takes to travel from the rangefinder to the target and back. Laser reflectivity and measurement results may vary according to climatic and environmental conditions, as well as the color, surface finish, size, shape and other characteristics of the target.

The following conditions facilitate measuring:

• Cloudy weather
• Bright-colored target
• Large-size target
• When laser incidence to the target's reflective surface is straight

Measurement may be inaccurate or fail in the following cases:

• In snow, rain or fog
- Small or slender target
- Black or dark target
• Target has stepped surface
- Moving or vibrating target
- When measuring the surface of water
• Target measured through glass
- When the target is glass or a mirror
- When laser incidence to the target's reflective surface is oblique

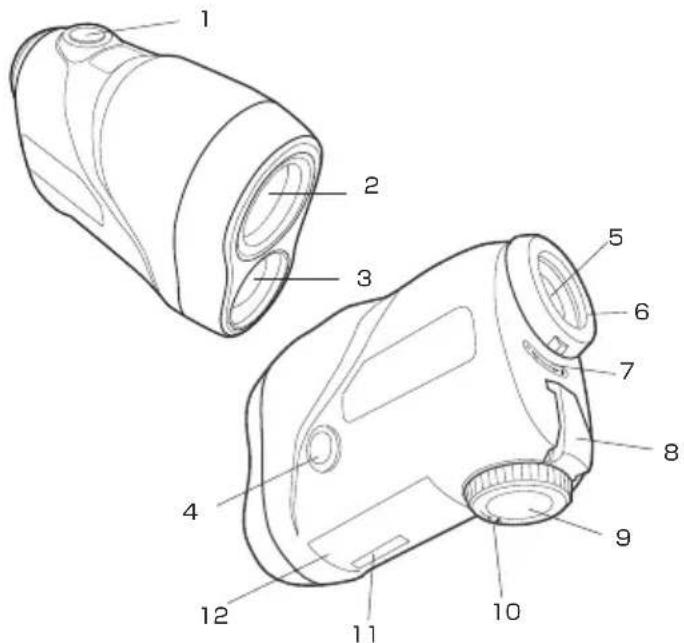

Nomenclature/Composition

Technical diagram of a device with numbered parts for identification

Composition

• Body ....x1
• Strap ....x1
• Case ....x1

• Lithium battery (CR2) ....x1

• PWR button (POWER ON/Measurement button)

• Monocular objective lens/Laser emission aperture
• Laser detector aperture
• MODE button
• 6x monocular eyepiece
• Eyecup/Diopter adjustment ring
• Diopter index
• Strap eyelet
• Battery chamber cover
• Battery chamber cover "Open" indication
• Product number label
  12.Indication

IEC60825-1 CLASS 1M LASER PRODUCT DO NOT EXPOSE USERS OF TELESCOPIC OPTICS. FDA CLASS I LASER PRODUCT THIS PRODUCT COMPLIES WITH

21CFR1040.10 (c)(d)AND (e) MADE IN CHINA NIKON VISION CO.,LTD.

*The carabiner-like ring that comes with the case is for the purpose of carrying the Laser Rangefinder only. Do not hang anything heavy on it, nor tug on it strongly. It cannot be used for climbing.

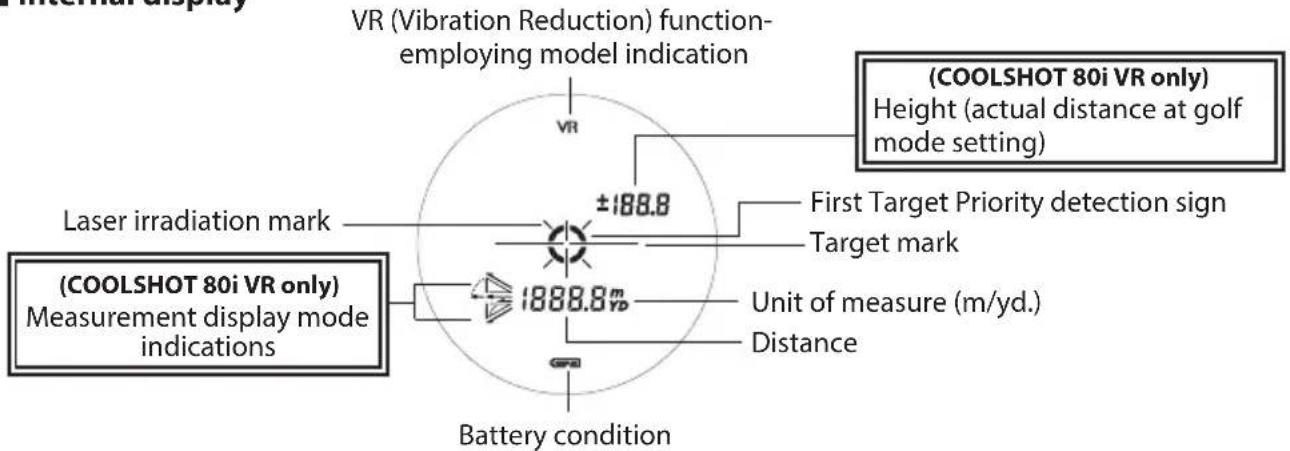

Internal display

Internal display VR (Vibration Reduction) function- employing model indication ±188.8 VR Laser irradiation mark (COOLSHOT 80i VR only) Measurement display mode indications First Target Priority detection sign Target mark Unit of measure (m/yd.) Distance Battery condition (COOLSHOT 80i VR only) Height (actual distance at golf mode setting)

——: Aim at the target you want to measure. Position the target at the centre of the reticle.

X : Appears while the laser is being irradiated for a measurement. Do not look towards the objective lens side while this mark is shown.

: When measuring overlapping subjects, and the distance to the closest subject is displayed, this sign is lit.

---- : "Failure to measure" or "Unable to measure"

*Because the internal display of this product is enlarged by the eyepiece, dust may sometimes be seen. This will not, however, affect the measurement accuracy.

[Functions]

■ VR (Vibration Reduction) function

● ON and OFF

The VR (Vibration Reduction) function is activated concurrently when the Laser Rangefinder is ON.

When the Laser Rangefinder is OFF, the VR (Vibration Reduction) function automatically turns off.

■ First Target Priority algorithm

When measuring overlapping subjects, First Target Priority algorithm displays the distance to the closest subject.

■ First Target Priority detection sign

When measuring overlapping subjects, such as a flagstick with trees in the background, and the distance to a closest subject is displayed, First Target Priority detection sign* is lit in the viewfinder.

*Single measurement: When measuring overlapping subjects and the distance to a closest subject is displayed, the sign appears.

Continuous measurement: When displayed figures shift to a closer subject, the sign appears.

Pure geometric symbol with intersecting lines and a central circle (no text or labels)

- First Target Priority detection sign is lit.

[First step]

■ Inserting/Replacing battery

1. Type of battery

3V CR2 lithium battery x1

2. Inserting/Replacing battery

2-1. Open the battery chamber cover

Rotate the battery chamber cover counterclockwise and remove it. It may not open easily due to its rubber packing for water resistance.

2-2. Insert the battery/Replace the old battery with a new one

Insert a new battery correctly positioned following the indication seal inside the chamber.

The [+] pole should be positioned toward the inside of the chamber. If the battery is not inserted correctly, the Nikon Laser Rangefinder will not operate. When replacing the battery, remove the old battery then insert a new one.

2-3. Close the battery chamber cover

Rotate the battery chamber cover clockwise to screw it into the body. It may not close easily due to the rubber packing for water resistance, but continue to turn it all the way until it stops. Confirm that the cover is securely closed.

3. Battery level indicator

*The battery condition mark in the internal display warns when the battery needs to be replaced.

Display Description
	After power on, displays for 2 seconds only.	Sufficient power available.
	After power on, displays for 2 seconds only.	Power getting low.Prepare to replace the battery.
	Displayed continuously.	Low. Battery should be replaced with a new one.
	Blinks. After blinking 3 times, automatically powers off.	Power exhausted.Replace the battery.

[Mode settings]

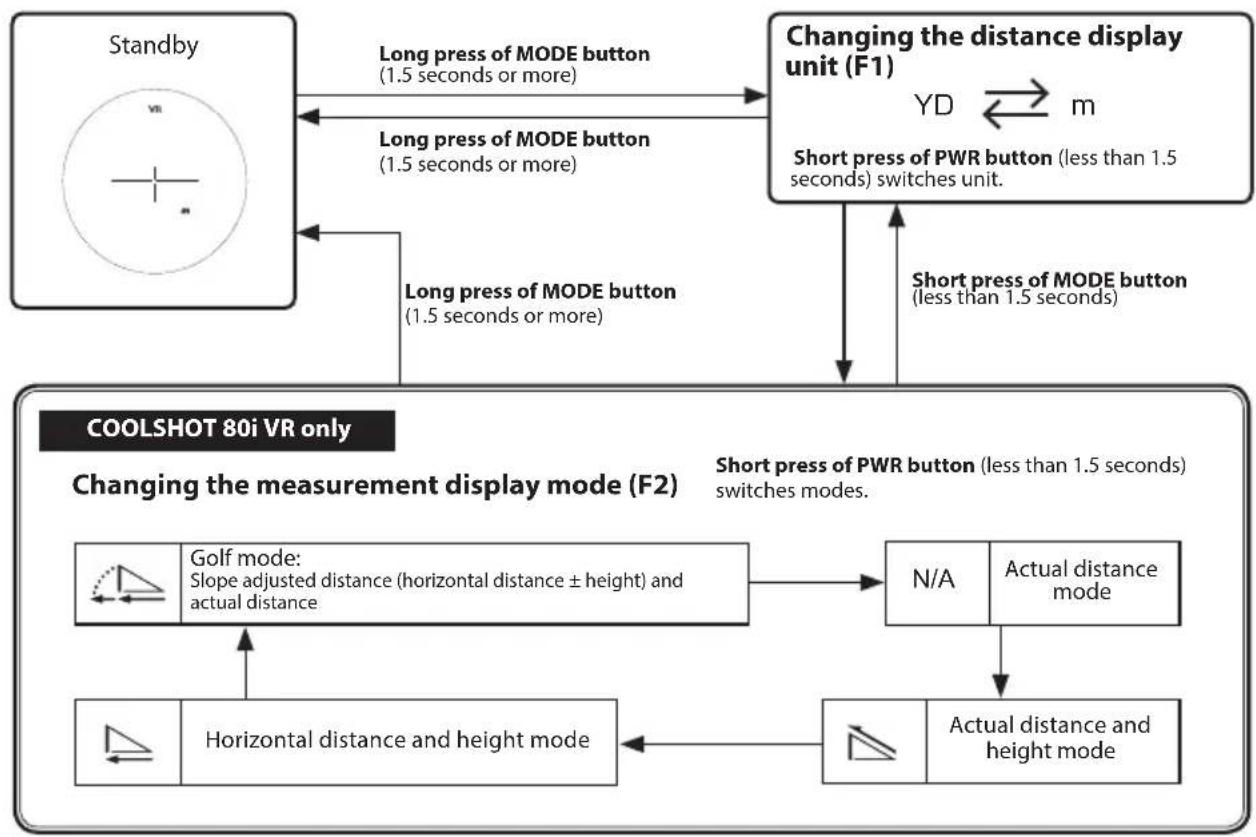

Operation overview

*Unoperated for 8 seconds or longer returns you to the standby screen whichever setting mode is displayed.

■ Changing the distance display unit (m/YD) (F1)

Factory default setting is yard (YD).

1. From standby, a long press (1.5 seconds or more) of the MODE button displays the setting menu of the distance display unit (F1).
2. Short press (less than 1.5 seconds) of the PWR button switches units of meter and yard.

*For COOLSHOT 80 i VR, a short press (less than 1.5 seconds) of the MODE button displays the setting menu of the measurement display mode (F2).

1. After setting, a long press (1.5 seconds or more) of the MODE button or unoperated more than 8 seconds returns you to standby.

VR F i yD

COOLSHOT 80i VR only

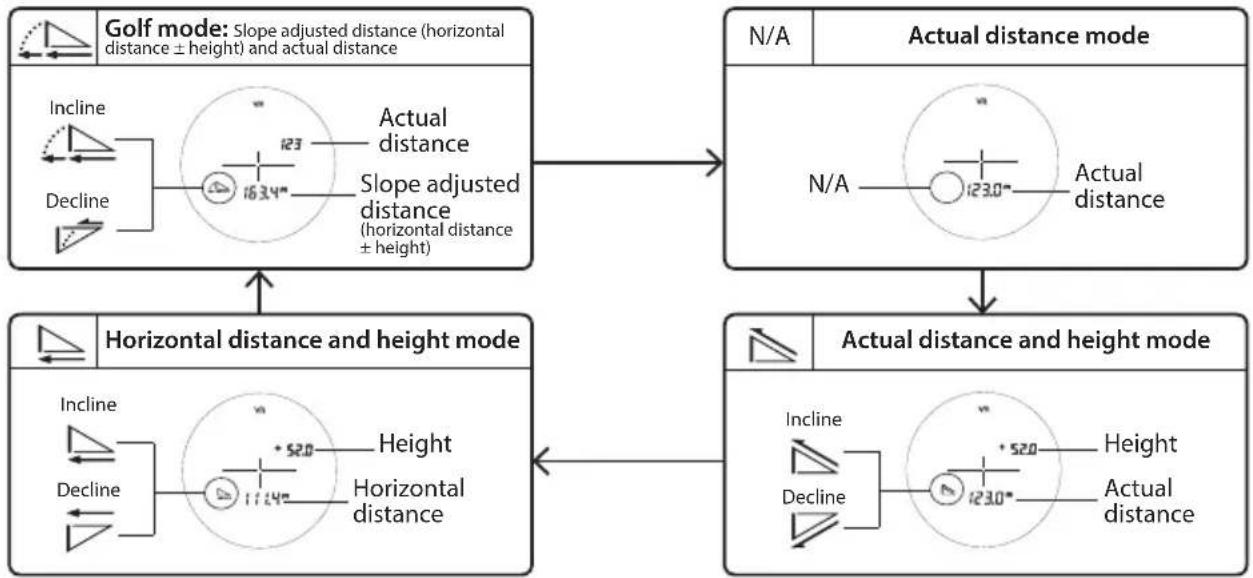

■ Changing the measurement display mode (F2)

Factory default setting is golf mode. Golf mode displays actual distance in upper digits, and slope adjusted distance (horizontal distance ± height) in lower digits.

1. From standby, a long press (1.5 seconds or more) of the MODE button, then a short press (less than 1.5 seconds) of the MODE button displays the setting menu of the measurement display mode (F2).
2. Short press (less than 1.5 seconds) of the PWR button switches the measurement display mode.
3. After setting, a long press (1.5 seconds or more) of the MODE button or unoperated more than 8 seconds returns you to standby.

Modes are switched in the following order. Displayed items differ according to each setting mode.

VR F2

[Measurement]

Caution — Controls, adjustments or usage of procedures other than those specified herein may produce negative effects or damage to your health due to laser radiation.

*Before measuring, be sure to confirm each mode setting.
*Please refer to each section on how to set each mode.

■ Adjusting diopter

Adjust the diopter to obtain a clear internal display in the viewfinder.

First, rotate the diopter adjustment ring counterclockwise until it comes to a complete stop.

Next, turn on the power and rotate the diopter adjustment ring back and forth until the internal display comes into focus.

Measuring

1. Turn on the power.

(Automatic power shut-off after approx. 8 seconds unoperated.)

Immediately after power-on

Standby

1. Aim at the target.

Position the target at the center of the target mark.

1. Pressing the PWR button starts measurement.

After measurement, the result is displayed for approx. 8 seconds, then power automatically turns off. If you press the PWR button during power-on, another measurement starts.

■ Single measurement

Pressing the PWR button once starts single measurement, then displays the results.

Example of measured distance display

Example of measurement failure

■ Continuous measurement

Press and hold down the PWR button to start continuous measurement up to approx. 8 seconds. During measurement, the measured result is displayed consecutively while the laser irradiation mark is blinking. If you release your finger from the button, continuous measurement stops.

When measuring a flagstick at a golf course, for example, keep targeting the flagstick at the center of the target mark with the continuous measurement function to minimize handshake.

[Technical notes]

* Waterproof models
Specifications
This Nikon Laser Rangefinder is waterproof, and will suffer no damage to the optical system nor observation if submerged or dropped in water to a maximum depth of 1 meter/3.3 feet for up to 10 minutes.

Model COOLSHOT 80i VR COOLSHOT 80 VR
Measurement system
Measurement range (actual distance)	7.5-915 meters/8-1,000 yards
Distance display (increment)	Actual distance (upper): Every 1m/yd. Actual distance (lower): Every 0.5m/yd. Horizontal distance/Slope adjusted distance (lower): Every 0.2m/yd. Height (upper): Every 0.2m/yd. (shorter than 100m/yd.) Every 1m/yd. (100m/yd. and over)	Actual distance: Every 0.5m/yd.
Optical system
Magnification (x) 6
Effective diameter of objective lens (mm)	21
Angular field of view (real) (°) 7.5
Eye relief (mm) 18.0
Exit pupil (mm) 3.5
Diopter adjustment ±4m	-1
Others
Operating temperature (°C/°F)	-10 — +50/14 — 122
Operating humidity (%RH) 80 or less (without dew condensation)
Power source	CR2 lithium battery x 1 (DC 3V) Automatic power shut-off (after approx. 8 sec. unoperated)
Dimensions (L x H x W) (mm/in.) 99 x 75 x 48/3.9 x 3.0 x 1.9
Weight (g/oz.)	Approx. 200/7.1 (without battery)
Structure	Waterproof (up to 1m/3.3 ft. for 10 minutes)*, fogproofBattery chamber is rainproof — JIS/IEC protection class 4 (IPX4) equivalent (under Nikon's testing conditions)**
Electromagnetic compatibility	FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020
Environment RoHS, WEEE
Laser
Laser classification	IEC60825-1: Class 1M/Laser ProductFDA/21 CFR Part 1040.10:Class I Laser Product
Wavelength (nm) 905
Pulse duration (ns) 9
Output (W) 20
Beam divergence (mrad)	Vertical: 1.8, Horizontal: 0.25

The Nikon Laser Rangefinder offers the following advantages:
- Can be used in conditions of high humidity, dust and rain without risk of damage to internal functions.
- Nitrogen-filled design makes it resistant to condensation and mold.
Observe the following when using the Nikon Laser Rangefinder:
- The unit is not a sealed structure, so it should not be operated nor held in running water.
- If any moisture is found on movable parts of this equipment, stop using it and wipe it off.
** The battery chamber is rainproof, not waterproof. Water may enter the device if the Rangefinder is submerged in water. If water enters the battery chamber, wipe out any moisture and allow time for the chamber to dry.

Battery life

Continuous operation: Approx. 3,300 times (at approx. 20°C)

This figure may differ according to conditions such as temperature and other factors. Use only as a guide.

• The battery supplied with this Nikon Laser Rangefinder is for operation checking. Due to natural electrical discharge, the life of this battery will likely be shorter than that noted above.

- If water enters the battery chamber due to submersion, dry the battery chamber well, then replace the battery.

Troubleshooting/Repair

If the Nikon Laser Rangefinder fails to function as expected, check the list below before consulting your local dealer or the store where you purchased it.

- If there is a problem with the product.

Problem Cause/Solution
• Does not turn on	• Press the PWR button (top of the body).• Check battery is inserted correctly.• Replace the battery with a new one.
• Unable to measure• Anomalous result	• Confirm each mode setting.• Confirm if it can measure a large target close to you (example: a building approx. 15m/yd. ahead of you).• Clean the lens surface if necessary.
• Do not know if VR (Vibration Reduction) function is working	• Compare the vibration of the target in the viewfinder when the Laser Rangefinder is ON and OFF.• While the Laser Rangefinder is ON, the VR (Vibration Reduction) function is always activated.
• Cannot turn off the VR (Vibration Reduction) function	• The VR (Vibration Reduction) function is activated concurrently when the Laser Rangefinder is ON. When the Laser Rangefinder is OFF, the VR (Vibration Reduction) function automatically turns off.• The VR (Vibration Reduction) function cannot be switched on and off.
• There are minute motion sounds when the power turns on and off	• Due to the VR (Vibration Reduction) system motor, minute motion sounds occur. These sounds are normal, please continue to use the Laser Rangefinder.
• [E] is displayed in the internal display	• Failure indication. Please contact your local dealer or the store where you purchased the product.

- If you require a repair, please contact your local dealer or the store where you purchased the product. Do not repair or disassemble. It may result in a serious incident.

Please note that Nikon is not responsible for any direct or indirect damage if the user attempts repair or disassembly.

Español

CONTENIDO

[Introducción]

Introducción 23

Technical diagram of a device with numbered parts for identification

Componentes

IEC60825-1 CLASS 1M LASER PRODUCT DO NOT EXPOSE USERS OF TELESCOPIC OPTICS. FDA CLASS I LASER PRODUCT THIS PRODUCT COMPLIES WITH 21CFR1040.10 (c)(d)AND (e)

Simple geometric symbol with a crosshair and concentric circles, no text or labels present

Solo COOLSHOT 80i VR

Technical diagram of a device with numbered parts for identification

Composition

• Boîtier .....x1

• Lanière ..... x1

• Housse ...... x1

• Pile au lithium (CR2) ...x1

IEC60825-1 CLASS 1M LASER PRODUCT DO NOT EXPOSE USERS OF TELESCOPIC OPTICS. FDA CLASS I LASER PRODUCT THIS PRODUCT COMPLIES WITH 21CFR1040.10 (c)(d)AND (e)

Pure geometric symbol with concentric circles and intersecting lines (no text or labels)

Technical diagram of a device with numbered parts for identification

Composição

• Corpo .....x1

• Alça ....x1

- Estojo ....x1

IEC60825-1 CLASS 1M LASER PRODUCT DO NOT EXPOSE USERS OF TELESCOPIC OPTICS. FDA CLASS I LASER PRODUCT THIS PRODUCT COMPLIES WITH 21CFR1040.10 (c)(d)AND (e)

MADE IN CHINA

Pure geometric symbol with intersecting lines and a central circle (no text or labels)

Somente COOLSHOT 80i VR

Printed in China (291K)1E/1605
