USER MANUAL Z407 LOGITECH

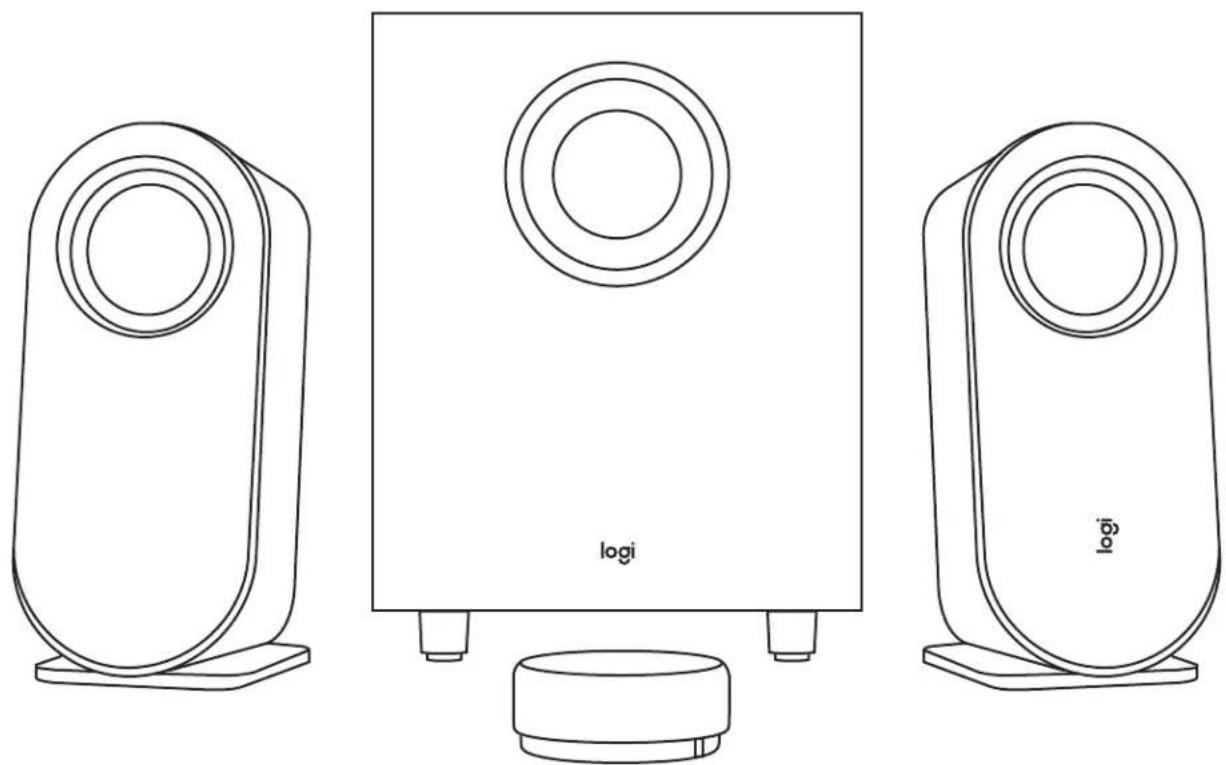

Z407 BLUETOOTH® COMPUTER SPEAKERS WITH SUBWOOFER

HAUT-PARLEURS POUR ORDINATEUR Z407 BLUETOOTH® AVEC CAISSON DE BASSES

Setup Guide Guide d'installation

Line drawings of three different audio devices with no text or symbols on the devices themselves

CONTENTS

English 3

Español....19

Français 11

Português ..... 27

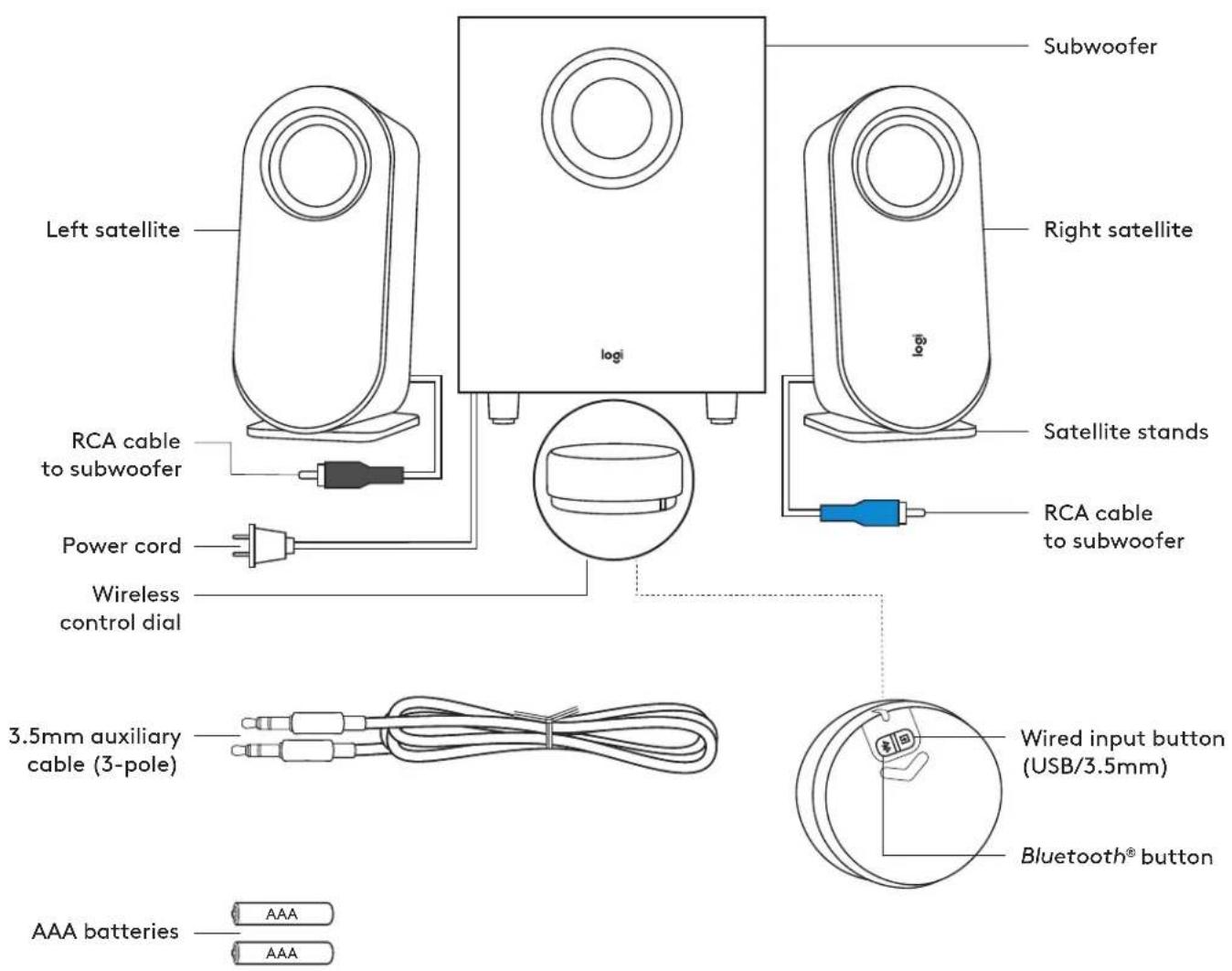

KNOW YOUR PRODUCT

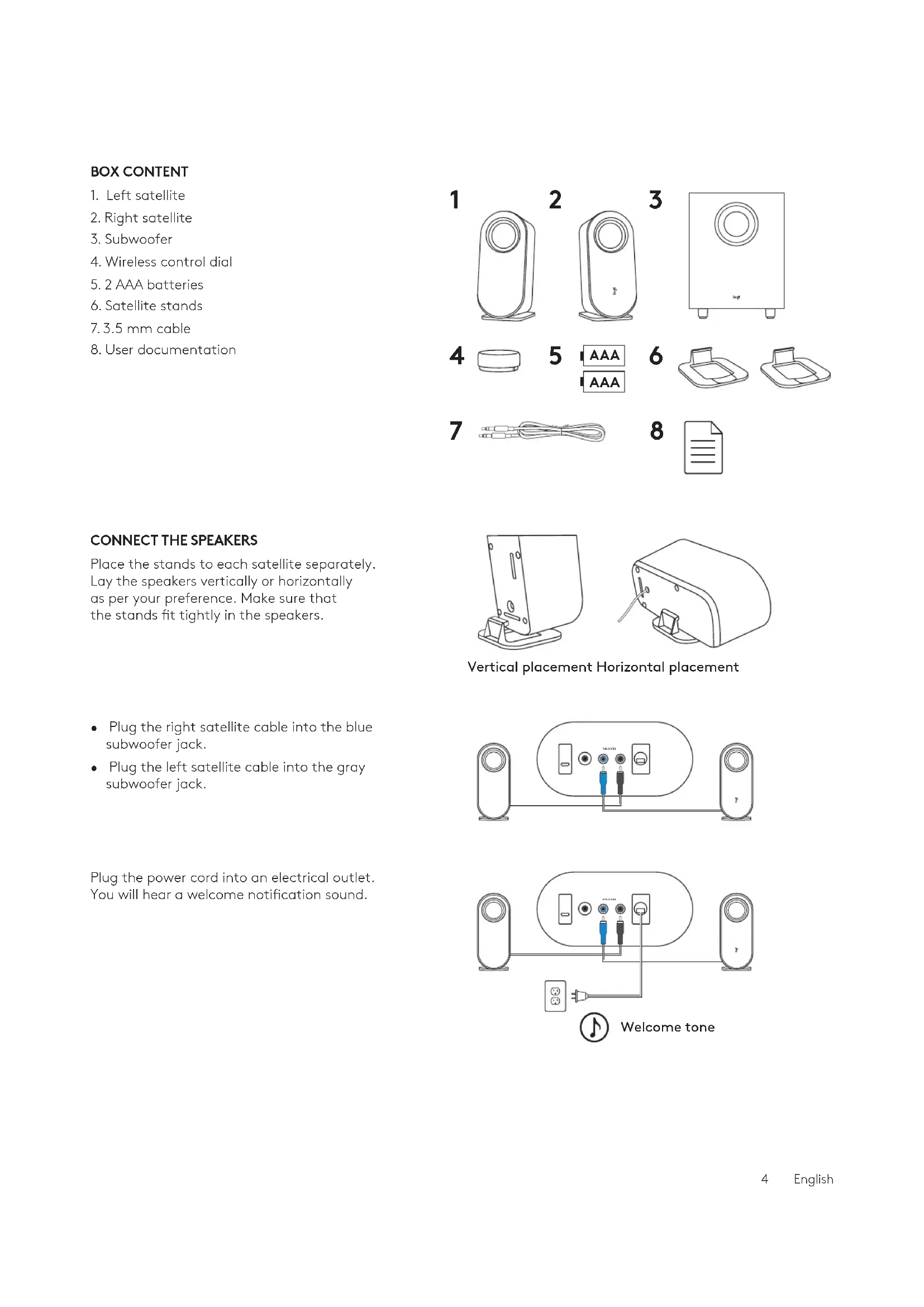

BOX CONTENT

1. Left satellite
2. Right satellite
3. Subwoofer
4. Wireless control dial
   5.2 AAA batteries
5. Satellite stands
   7.3.5 mm cable
6. User documentation

1

2

3

Simple line drawing of a speaker or audio device with a circular vent and two base legs (no text or symbols)

4

5

6

7

8

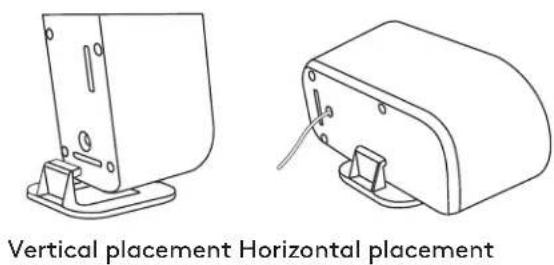

Place the stands to each satellite separately. Lay the speakers vertically or horizontally as per your preference. Make sure that the stands fit tightly in the speakers.

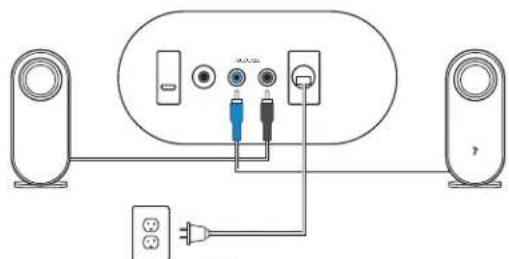

• Plug the right satellite cable into the blue subwoofer jack.
• Plug the left satellite cable into the gray subwoofer jack.

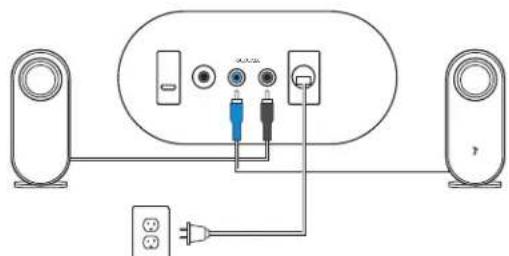

Plug the power cord into an electrical outlet. You will hear a welcome notification sound.

Diagram of a sound streaming setup with two speakers and audio equipment (no text or labels)

Pure electrical circuit lines without any symbols

Welcome tone

CONNECT THE SPEAKERS (CONT'D)

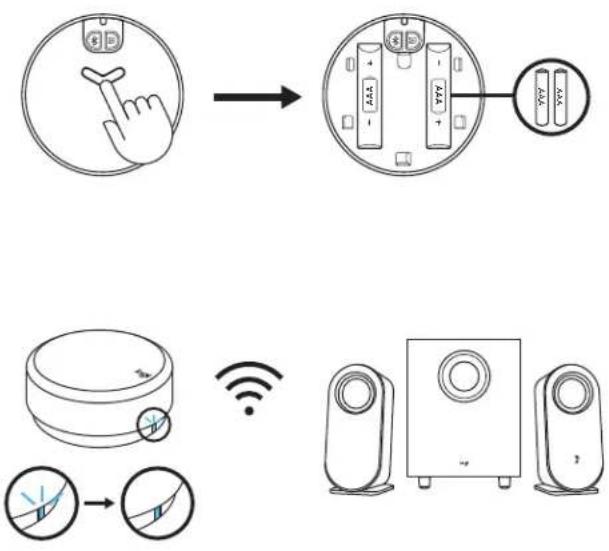

Long press and push downwards to open the back lid, place two AAA batteries to the corresponding space.

Do not mix using alkaline battery with rechargeable battery.

Do not mix using new and old batteries.

Do not leave the batteries unused in the product for extended periods.

The LED indicator will then start blinking in blue. Once the wireless control dial is successfully connected to the speaker, the LED will turn into a steady blue light.

CONNECT TO AUDIO SOURCE

The LED on the control dial will change correspondingly when connected to different connectivity.

• The LED will turn blue when connected via Bluetooth.
• The LED will turn purple when connected via 3.5 mm.
• The LED will turn white when connected via USB.

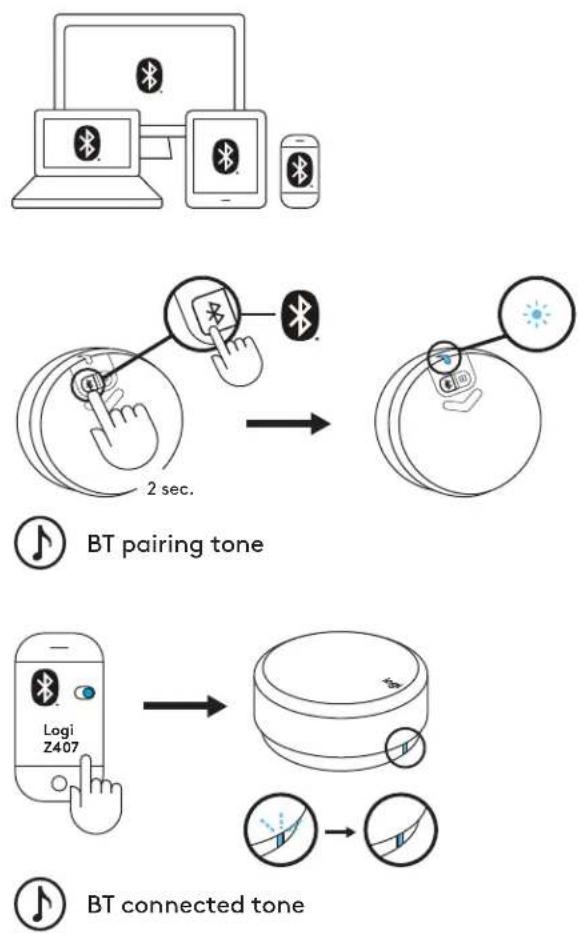

CONNECT VIA BLUETOOTH®

Make sure Bluetooth ^® is activated on the source device.

• Press and hold (2sec.) the Bluetooth ^® button on the bottom of the dial to activate pairing mode.
• The LED indicator will blink quickly. You will start to hear a pairing sound notification.

Select and connect to "Logi Z407" on your Bluetooth® device list. You will hear a connected tone.

The LED will turn into a steady blue light.

CONNECT VIA 3.5MM CABLE

Connect one end of the provided 3.5 mm cable to the auxiliary input on the back of the subwoofer. Then connect the other end of the cable to the 3.5 mm audio jack on your device.

The default connectivity is Bluetooth ^® . To play through 3.5 mm connectivity, press the wired input button on the back of the dial. The LED light will turn purple.

Diagram showing a laptop connected to an external network device with ports and cables (no text or symbols)

CONNECT VIA USB CABLE

Connect one end of the USB cable to the micro USB input on the back of the subwoofer. Then connect the other end of the cable to USB-A input on your device.

Simple line drawing of a laptop connected to an external network device (no text or symbols)

NOTE: USB cable is not included in the box and must be purchased separately.

The default connectivity is Bluetooth ^® . To play through USB connectivity, press the wired input button on the back of the dial. The LED light will turn white.

CONNECT TO THREE DEVICES SIMULTANEOUSLY

Connect up to three devices at the same time through the micro USB input, 3.5 mm input on the back of the subwoofer, and Bluetooth ^® .

You can pair up to eight Bluetooth ^® source devices with your speakers.

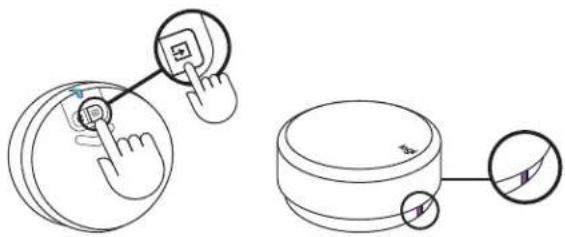

To switch between wired and wireless audio sources, press the Bluetooth® button and the wired input button on the back of the wireless control dial.

Simple line drawing of a circular object with a small card labeled '老回' (old back) on top, no text or symbols present.

SWITCH BETWEEN DIFFERENT AUDIO SOURCES

SWITCH BETWEEN TWO WIRED CONNECTIVITY

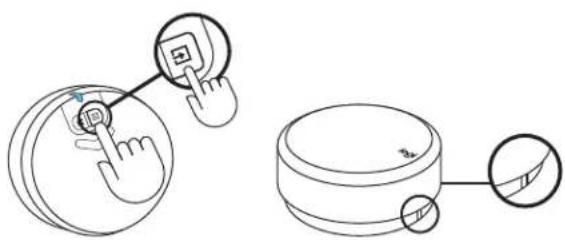

To switch between wired connection (3.5 mm and USB), press wired input button on the bottom of the dial. The LED color will change correspondingly.

SWITCH BETWEEN WIRED AND WIRELESS CONNECTIVITY

To switch from wired connection to wireless connection (Bluetooth ^® ), press Bluetooth ^® button on the bottom of the dial.

To switch from wireless connection to wired connection, press wired input button on the bottom of the dial.

CONTROL YOUR AUDIO CONTENT

ADJUST THE VOLUME

• To adjust the volume of the speaker, rotate the wireless dial control clockwise (counterclockwise) to increase (decrease) the volume.
• When reaching to MAX volume, you will hear a notification tone.

ADJUST THE BASS

• To adjust the bass level, long press the dial for 2 sec. and enter bass mode, you will hear a notification sound. Rotate clockwise (counterclockwise) to increase (decrease) the bass volume.
• Long press 2 sec. to exit bass mode, you will hear an exit notification sound.
• If you did not exit bass mode after adjusting the bass, the system will automatically change back to volume mode after 15 seconds without using.
• You will hear a notification sound when you reach Max and Min bass level.

PLAY / PAUSE (MUTE/ UNMUTE)

• Press once on the dial to play / pause (mute/ unmute) your audio content.
• Play / pause (Mute/ unmute) will only be activated when the speaker is connected via Bluetooth® or USB input (3.5 mm).

SKIP

• Press twice on the dial to skip your current track.
• Skip will only be activated when the speaker is connected via Bluetooth® or USB input.

REWIND

• Triple press on the dial to replay the soundtrack.
• Rewind will only be activated when the speaker is connected via Bluetooth® or USB input.

Max volume

Enter bass

Exit bass

Max bass volume Min bass volume

RESET ALL SETTINGS

Long press the Bluetooth® button and the wired input button at the same time for 8 sec. to reset the system.

The LED will start to fast blink twice and then you will hear a reset tone. The LED will turn to solid blue after you successfully reset the speaker system.

Reset tone

	Usage	Description	LED Status	LED Color	Sonification	Actions
1	Connection (Dial - Speaker) link lost Slow blink	Default connected to the speaker Solid Blue
2		Waiting for connection to the speaker	Slow blink Blue
3 Dial				White (USB) / Blue (BT) / Purple (AUX)
4		New dial connects to the speaker	Solid	Blue	V
5	Bluetooth matching to device (Speaker - Device)	Connected / Normal Operation Solid		White (USB) / Blue (BT) / Purple (AUX)
6			Fast blinking	Blue V		Long press Bluetooth button for 2 sec.
7		Bluetooth connected	Solid	Blue	V
8		Bluetooth disconnected	Solid	Blue	V
9	Media controls	Play / Pause	Solid	White (USB) / Blue (BT)		One press
10		Mute / Unmute		Purple (AUX)		One press
11		Track forward		White (USB) / Blue (BT)		Double press
12		Rewind (Track backward)		White (USB) / Blue (BT)		Triple press
13	Volume controls	Adjust the system volume	Solid	White (USB) / Blue (BT) / Purple (AUX)		Rotate the dial
14		Adjust the bass volume				Long press 2 sec. to enter and exit bass mode
15		Max volume			V
16		Max bass			V
17	System	Low Battery	Solid Red
18		Extreme low battery	Fast blink	Red
19		Reset all settings	Fast blink → Solid	Status color → Blue	V	Press & hold BT and wired input button for 8 sec.

www.logitech.com/support/Z407

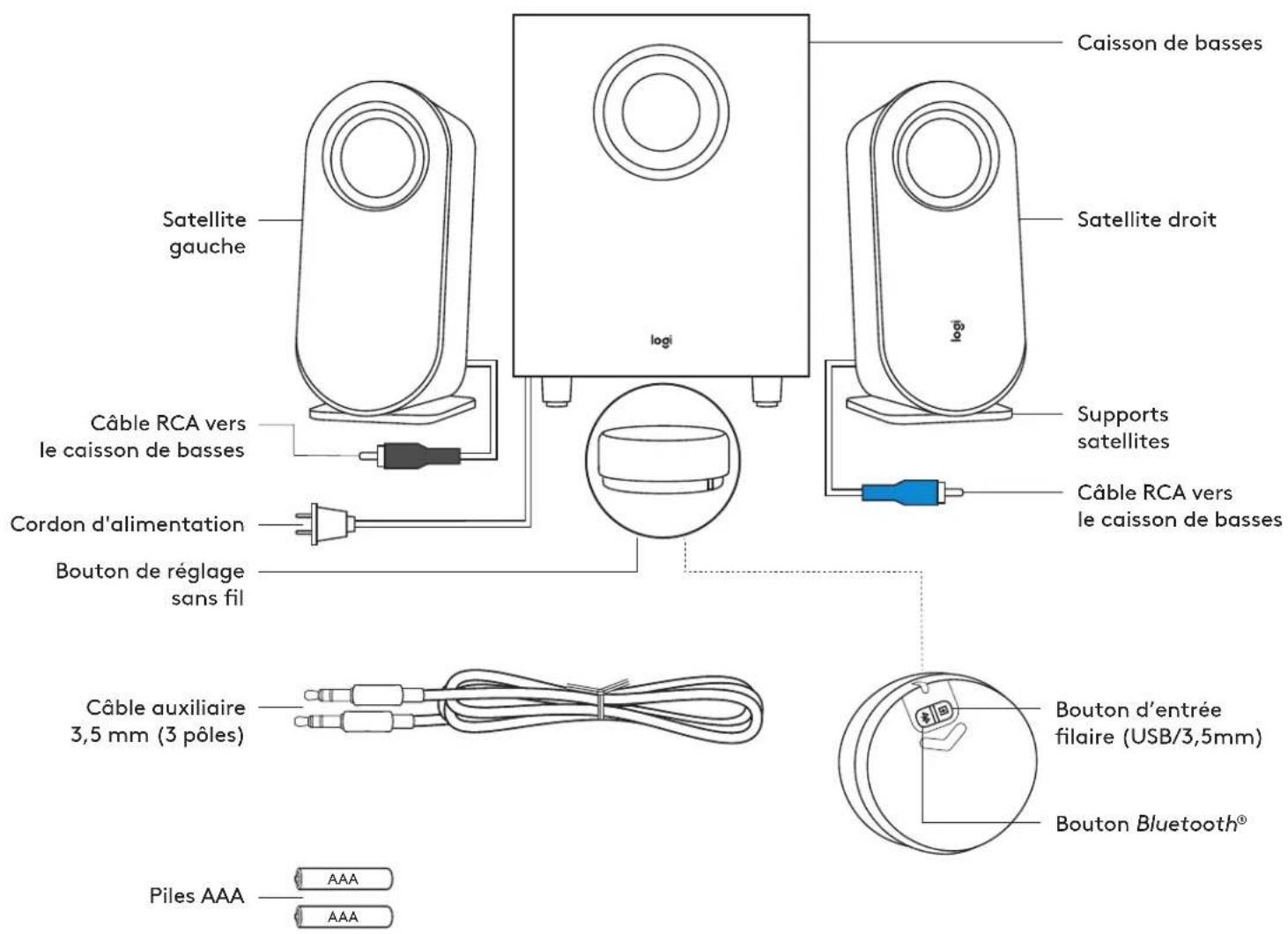

PRÉSENTATION DU PRODUIT

Simple line drawing of a speaker or audio device with a circular button and two base legs (no text or symbols)

4

5

6

7

8

CONNEXION DES HAUT-PARLEURS

Line drawing of a mechanical device with mounting base (no text or symbols)

Line drawing of a rectangular electronic device with a handle and mounting bracket (no text or symbols)

Diagram of a sound streaming setup with two speakers and connected audio equipment (no text or labels)

Son de bienvenue

CONNEXION DES HAUT-PARLEURS (SUITE)

Diagram showing a laptop connected to an output port with four ports (no text or symbols)

CONNEXION PAR CÂBLE USB

Line drawing of a laptop connected to an external network device (no text or symbols)

CONNECTER TROIS DISPOSITIFS SIMULTANÉMENT

PASSER D'UNE SOURCE AUDIO À L'AUTRE

PASSER D'UNE CONNEXION FILAIRE À L'AUTRE

PASSER D'UNE CONNEXION FILAIRE À UNE CONNEXION SANS FIL

RÉGLAGE DE VOTRE CONTENU AUDIO

RÉGLER LE VOLUME

Simple line drawing of a speaker or audio device with a circular button and two base legs (no text or symbols)

4

5

6

7

8

CONECTA LAS BOCINAS

CONECTA LA FUENTE DE AUDIO

Diagram showing a laptop connected to an output port with four ports (no text or symbols)

CONECTA A TRAVÉS DE CABLE USB

Simple line drawing of a laptop connected to an external network device (no text or symbols)

Illustration showing two hand positions interacting with a device, one pointing at a button and the other holding a device (no text or symbols present)

CONECTA TRES DISPOSITIVOS A LA VEZ

Simple line drawing of a circular object with a small label on top (no text or symbols)

ALTERNA ENTRE DIFERENTES FUENTES DE AUDIO

ALTERNA ENTRES DOS CONEXIONES CON CABLE

CONTROLA TU CONTENIDO DE AUDIO

AJUSTA EL VOLUMEN

Simple line drawing of a speaker or audio device with a circular button and two base legs (no text or symbols)

4

5

6

7

8

CONEXÃO DAS CAIXAS DE SOM

Line drawing of a mechanical bracket with mounting base (no text or symbols)

Posicionamento vertical

Line drawing of a rectangular electronic device with a handle and mounting bracket (no text or symbols)

Posicionamento horizontal

Diagram of a sound streaming setup with two speakers and connected audio equipment (no text or labels)

Som de boas-vindas

CONEXÃO DAS CAIXAS DE SOM (CONT)

CONEXÃO À FONTE DE ÁUDIO

Diagram showing a laptop connected to an external network device with ports and cables (no text or symbols)

CONEXÃO VIA CABO USB

Simple line drawing of a laptop connected to an external network device (no text or symbols)

CONEXÃO DE TRÊS DISPOSITIVOS SIMULTANEAMENTE

ALTERNE ENTRE DIFERENTES FONTES DE ÁUDIO

ALTERNE ENTRE DUAS CONECTIVIDADES COM FIO

ALTERNE ENTRE CONECTIVIDADE COM E SEM FIO

CONTROLE DO SEU CONTEÚDO DE ÁUDIO

AJUSTE DE VOLUME

Som de redefinição
