USER MANUAL CM 38933 SS KALORIK

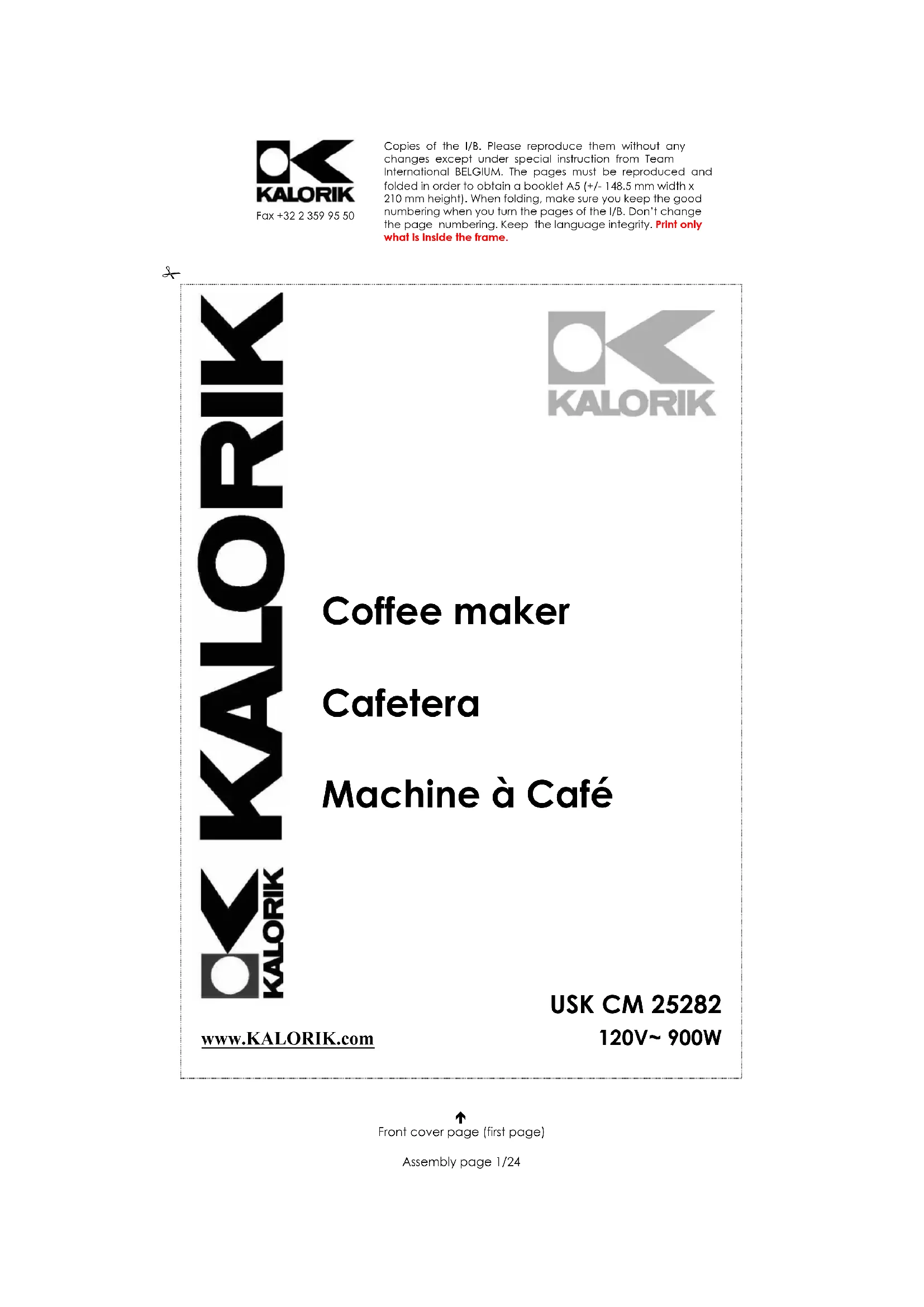

Front cover page (first page)

Assembly page 1/24

EN OPERATING INSTRUCTIONS IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS

1. Check that your mains voltage corresponds to that stated on the appliance.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock do not immerse cord, plugs, or the coffee maker in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries, fire or electric shock.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, put the switch in off position, then remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. Scalding may occur if the lid of the coffee maker is removed during the brewing cycles.
15. Make sure the appliance never comes into contact with inflammable materials such as curtains, textiles ... when it is in use as they might catch fire.
16. When removing lime scale, only use special products for the removal of lime scale. Never use ammonia or any other substance that might damage your health.

1. Only put ground coffee in the filter. Always use a filter (paper or permanent) in the filter holder.
2. Never use your coffee maker without water in it. If you have a programmable coffee maker, make sure to fill it with water before programming it.

Important: never put the jug in a microwave oven to warm up the coffee. We will not take any responsibility if you do so.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

POLARIZED PLUG INSTRUCTIONS

This appliance is equipped with a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit into the polarized outlet only one way. If the plug does not properly fit into the outlet at first, reverse it. If it still does not fit, contact a competent qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the hazards resulting from becoming entangled in, or tripping over a longer cord. Extension cords may be used if care is exercised in their use.

• The electrical rating of the extension cord should be at least that of the appliance. If the electrical rating of the extension cord is too low, it could overheat and burn.
• The resulting extended cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

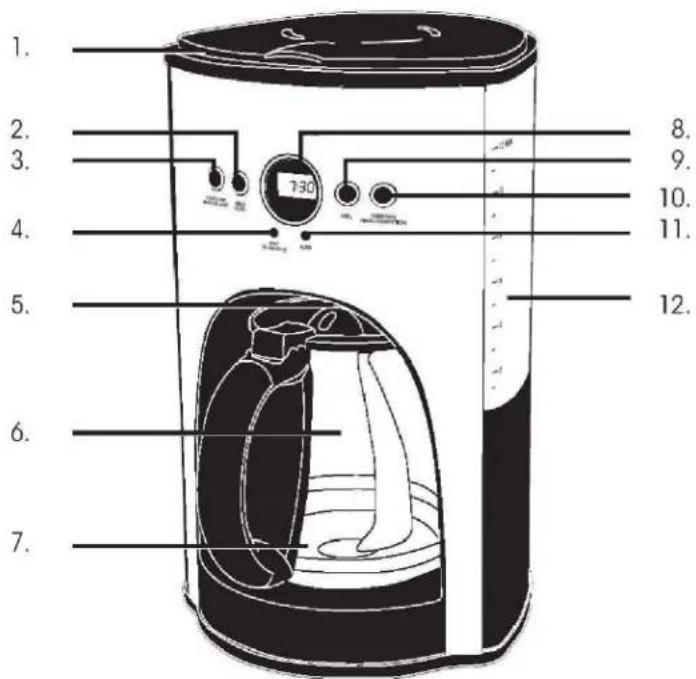

PART DESCRIPTION

1. Hinged water reservoir lid
2. HOUR button
3. START/STOP button
4. RUN light
5. Pause-and-Serve drip system

6. Glass carafe

7. Non-stick warming plate

8. Digital programmable clock
9. MIN button
   10.PROG button
10. AUTO light
11. Water reservoir

TYPE OF FILTER: Cone paper filter type 4

BEFORE FIRST USE

• When you use your appliance for the first time, pour fresh water into the water tank (without coffee) and switch on the appliance.
• Once all the water has passed through, switch off the appliance and let it cool down. When it is cold enough repeat the process 3 times with fresh water.

SETTING THE CLOCK

To set the digital clock, press the PROGRAM button and then press the HOUR button until the clock displays the desired hour. Press the MIN button until the clock displays the desired number of minutes.

PREPARATION OF COFFEE

• Open the lid of the water tank and pour the desired volume of water into it. The water level can be read off the water level indicator. Never exceed the maximum level indicated.
• Insert filter paper in the filter holder and add the desired quantity of ground coffee using the provided scoop.
• Never forget to close the water tank lid before switching on the coffee maker.
• Put the jug with closed lid on the hotplate.
  Plug in the coffee maker. Press the ON/OFF button once. The red RUN light, will be illuminated, indicating that your appliance is in use. Thanks to the keep warm function, your coffee stays warm as long as the appliance is switched on (for 2 hours, unless coffee maker gets switched off by user)
• Your coffee maker is equipped with a "Pause-and-Serve" function, which means that when you remove the jug from the appliance, a nondrip valve will automatically operate to stop any drops of coffee falling onto the hotplate. When you put the jug back into place, the non-drip valve opens automatically and allows remaining coffee to filter through into the jug.
• Wait until the brewing process is finished and the filter is empty before removing the jug.
• Practical hints: When the water tank is empty, wait a few more minutes, as some water might still drip out of the filter before removing the jug.
  Note: a 2-hour auto-shut off feature is activated when operating the coffee maker manually

PROGRAMMING THE COFFEE MAKER

• To program your coffee maker to brew fresh coffee at a preset time, first follow steps 1 to 4 in the "PREPARATION OF COFFEE" section.
• Make sure the coffee maker's clock is set to the right time.
• Press the PROG button twice. The clock will now display 12:00 with the word "TIMER" in the upper left corner. Use the HOUR and MINUTE buttons to set the desired brew time. Press PROG to validate the timer setting.
• Press the START/STOP button twice to activate the preset brew cycle. The green AUTO light will illuminate when the brew time is properly set.
• When your preset brew time is reached and the coffee maker starts its brew cycle, the green AUTO light will go out and the red ON light will illuminate.
• As with the regular brew cycle, an automatic two hour keep warm cycle will commence after your coffee maker has finished brewing. At the end of the two hours, the coffee maker will automatically shut itself off.

NOTE: the 2-hour auto-shut off feature will also be activated when operating the coffee maker manually

DESCALING AND CLEANING

• Before any cleaning, switch the appliance off and unplug it. Let it cool down before cleaning or storage.
• The filter holder, the carafe and the lid of the carafe can be cleaned in warm soapy water.
• The coffee maker can be cleaned with a damp non-abrasive cloth or sponge. Do NOT immerse the coffee maker in water or any other liquid. Do NOT use harsh or abrasive cleaners or solvents.
• Removing lime scale / mineral deposits from your coffee maker prolongs its life span. For decalcification only use products especially made for descaling of coffee makers and follow their instruction manual carefully.
• Never put any part of the appliance in the dishwasher. Clean the jug with soapy water and rinse it with clear water.

PRACTICAL HINTS

Problem:

You notice that the coffee making process is longer than it should be

Solution:

It is probably time to decalcify the appliance. Do not wait for the situation to get worse. The decalcifying frequency depends on the amount of lime in water and therefore can be different from a household to another.

Therefore it is important to pay attention to this. A good maintenance of your appliance will prolong its lifespan. Guarantee claims will not be accepted for the replacement of a heating element full of scale.

Problem:

The carafe is hard to remove when in place.

Solution:

The heating plate is designed deep in order to optimize the keep warm function. Please lift the carafe before removing it, or angle it slightly towards the back before removal. To replace the carafe, also angle it slightly towards the coffee maker.

WARRANTY

We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill this warranty card online, at the following address: www.KALORIK.com

This KALORIK product is warranted in the U.S.A. for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.

During this period, the KALORIK product that, upon inspection by KALORIK, is proved defective, will be repaired or replaced, at Kalorik's option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product.

This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user's manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators, and accessories in general. There is also no warranty for parts lost by the user.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return

the appliance to the store: often, our Consumer Service Representatives can help solve the problem without having the product serviced. If servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

If this is the case, bring the product, or send it, postage prepaid by the user (all Kalorik customers are responsible for the initial shipment back to the warranty center), along with proof of purchase and indicating a return authorization number given by our Consumer Service Representatives, to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center).

If you send the product, please include a letter explaining the nature of the claimed defect.

If you have additional questions, please call our Consumer Service Department (please see below for complete contact information), Monday through Friday from 9:00am - 6:00pm (EST). Please note hours are subject to change.

If you would like to write, please send your letter to:

KALORIK Consumer Service Department

Team International Group of America Inc.

1400 N.W 159th Street, Suite 102

Miami Gardens, FL 33169 USA

Or call:

Toll Free: +1 888-521-TEAM / +1 888-KALORIK

Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.
