USER MANUAL TKG KA 520.1 KALORIK

4. Lid of filter holder and water tank

6. Illuminated ON/OFF switch

7. Water tank with level indicator

5. Plaque de support

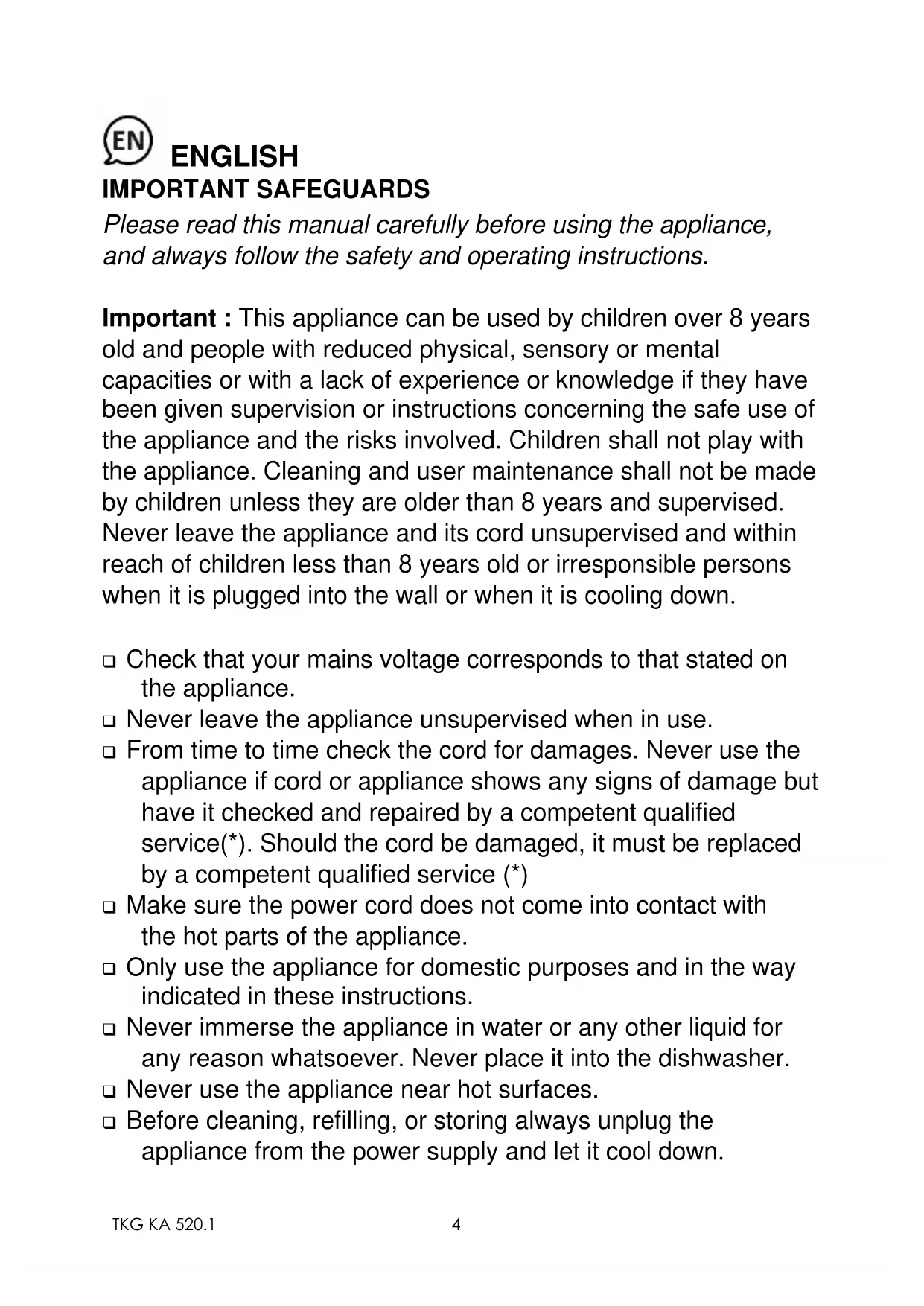

ENGLISH IMPORTANT SAFEGUARDS Please read this manual carefully before using the appliance, and always follow the safety and operating instructions. Important : This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons when it is plugged into the wall or when it is cooling down. ❑ Check that your mains voltage corresponds to that stated on the appliance. ❑ Never leave the appliance unsupervised when in use. ❑ From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service(*). Should the cord be damaged, it must be replaced by a competent qualified service (*) ❑ Make sure the power cord does not come into contact with the hot parts of the appliance. ❑ Only use the appliance for domestic purposes and in the way indicated in these instructions. ❑ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. ❑ Never use the appliance near hot surfaces. ❑ Before cleaning, refilling, or storing always unplug the appliance from the power supply and let it cool down.5 TKG KA 520.1

❑ Never use the appliance outside and always place it in a dry environment. ❑ Never use accessories that are not recommended by the producer. ❑ Never move the appliance by pulling the cord. Stand the appliance on a stable surface so that it cannot fall. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. ❑ Never touch the hot parts of the appliance, only touch the plastic parts and take the thermos flask by the handle. ❑ Only use fresh cold or lukewarm drinkable water. ❑ When removing lime scale, only use a special product for the removal of lime scale. Never use ammonia or any other substance that might damage your health. ❑ Never operate the appliance without water. ❑ Be careful not to get burned by the steam evaporating from the coffee filter or when opening the thermos flask. ❑ Do not use the appliance if the thermos flask is damaged. ❑ Use the thermos flask only for this appliance. ❑ Important: your thermos flask cannot be put in the microwave oven to warm up the coffee or in the dishwasher to clean it. ❑ Only put ground coffee in the filter. ❑ Always unplug the appliance after use ! (*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. The manufacturer will not assume any responsibility in case of non-respect of these instructions. Keep this user manual carefully.TKG KA 520.1

• For a perfect taste, carry out 2 or 3 boil-processes with fresh water (without coffee). These boil-processes are absolutely necessary.

• Once all the water has passed through, switch the appliance off and let it cool down during 5 minutes. Then repeat the process with fresh water.

• Open the lid of the water tank and pour the desired volume of water in it. Make sure not to overfill by filling maximum 8 cups of water. The number of cups can be read from the water level indicator (7).

• Insert a paper filter (size 4) in the filter holder and add the desired quantity of ground coffee (1 teaspoon per cup, approximately 6g).

• Do never forget to close the lid of the water tank (4) before switching on the device. Attention : close the lid properly (you should hear a click sound).

• Put the thermos flask (1) with closed lid on the supporting plate.

• To switch on the machine, put the switch in position "I" and its pilot light will come on, indicating that the appliance is working.

• When the brewing process is over, remove the thermos flask from the supporting plate and pour the desired amount of coffee, keeping the lever of the trickle- through lid pressed down.

• When you remove the thermos flask from the appliance, a non-drip valve will automatically operate to stop any drops of coffee dripping onto the hotplate. Replacement of the thermos flask automatically opens the non-drip valve and allows remaining coffee to filter through into the thermos flask.

• Wait until the brewing process is finished and the filter has run empty. Switch off the appliance by putting the ON/OFF switch in position “0” and unplug it.

• The thermos flask allows you to keep the coffee warm for quite some time. Practical hints:

• When the water tank is empty, wait a few additional minutes, as some water might still drip out of the filter.

• To keep the coffee warm, remove the flask from the appliance, as then the cap will close itself hermetically.

DECALCIFICATION AND CLEANING

• When you notice that the coffee making process is longer than it should be, it is probably time to decalcify the appliance. Do not wait until the situation gets worse. The decalcifying frequency depends on the amount of lime in water and therefore can be different from family to family. Therefore it is important to pay attention to this.

• We advise you to descale the coffee maker to prolong its life span. For descaling only use products especially made for descaling of coffee makers and follow their instruction manual. Then rinse the appliance twice with fresh water, without coffee powder. Guarantee claims will not be accepted for appliances that have not been descaled.

• Never use a dishwasher to clean the appliance or its accessories. Just clean the thermos flask in soapsuds.

• To clean the plastic parts of the appliance, use a damp, non abrasive cloth.7 TKG KA 520.1

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
