USER MANUAL L26C1120 HAIER

Please READ this manual carefully before operating your TV, and retain it for future reference.

Haier reference. Haier MODELS:

MODELS:

L19C1120

L22C1120

L24C1180

L26C1120

DIGITAL TELEVISION TRANSITION NOTICE

This device contains a digital television tuner, so it should receive digital over the air TV programming, with a suitable antenna, after the end of full-power analog TV broadcasting in the United States on June 12 2009. Some older television receivers, if they rely on a TV antenna, will need a TV Converter to receive over the air digital programming, but should continue to work as before for other purposes (e.g., for watching low-power TV stations still broadcasting in analog, watching pre-recorded movies, or playing video games).

For more information,

call the FCC at 1-888-CALL-FCC (1-888-225-5322)

or see www.DTV.gov.

For information on the TV Converter program, and on government coupons that may be used toward the purchase of one, see www.dtv2009.gov,

or call the NTIA at 1-888-DTV-2009.

SYMBOL SYMBOL DEFINITION
	DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.
	INSTRUCTIONS: The exclamation point within on equilateral triangle to alert the user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Caution - Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Batteries installed warning

Caution - Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

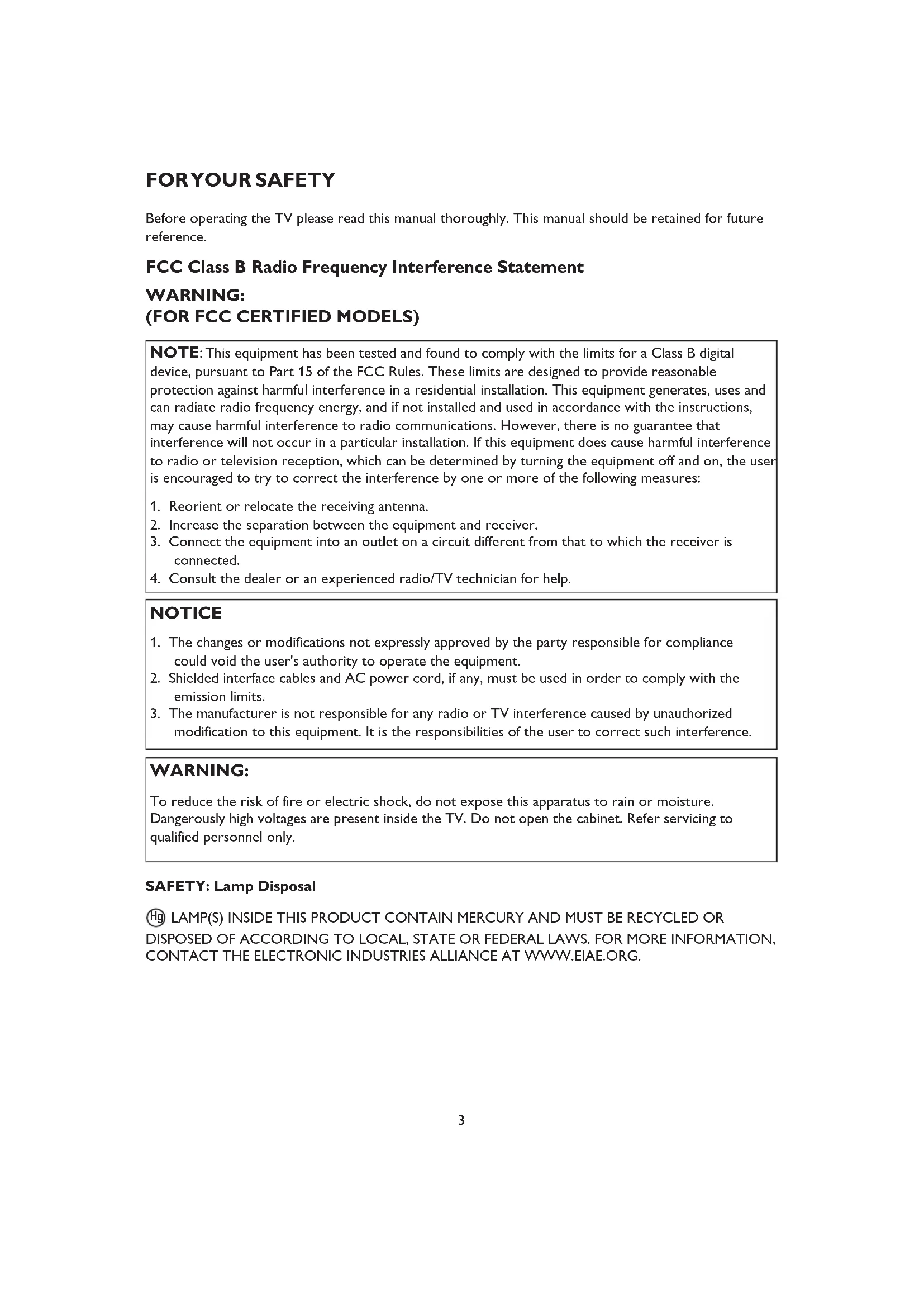

FOR YOUR SAFETY

Before operating the TV please read this manual thoroughly. This manual should be retained for future reference.

FCC Class B Radio Frequency Interference Statement

WARNING:

(FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

NOTICE

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Dangerously high voltages are present inside the TV. Do not open the cabinet. Refer servicing to qualified personnel only.

SAFETY: Lamp Disposal

Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG.

PRECAUTIONS AND REMINDERS

Place the TV on even surfaces.

Unplug immediately if there is smoke and a bad odor from the TV.

Don't throw any object inside the TV cabinet like metals or flammable materials.

Don't place the TV in confined spaces or in a box when using it.

Unplug immediately if foreign materials are put inside the TV cabinet or if the TV fell down.

Prohibit/Avoid opening TV cabinet.

Remember to unplug the AC cord from the AC outlet before cleaning. Do not use liquid cleaners or aerosol cleaners to clean the display.

Make sure to unplug the unit when not in use for a long period of time (days).

Do not cover or block any vents and openings. Inadequate ventilation may shorten the life of the display unit and cause overheating.

Avoid direct sunlight, dusty, high humidity and smoky areas.

Call service personnel to clean the internal part of the TV once a year.

Do not place the display near water, such as bathtub, washbasin, kitchen sink laundry tub, swimming pool or in a damp basement.

Notice for Remote Controller

Avoid Dropping	Avoid Liquids	Avoid Aerosol Cleaners

Read before operating equipment

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3. The TV should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
4. The Class I apparatus shall be connected to a mains socket outlet with a protective earthing connection.
5. The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
6. CAUTION – These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
7. For use only with UL Listed Wall Mount Bracket with minimum weight/load: Please see page 22.
8. CONSUMER ALERT – This television receiver has only an analog broadcast tuner and will require a converter box after June 12 2009, to receive over-the-air broadcasts with an antenna because of the Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products, For more

information, call the Federal Communications Commission at 1-888-225-5322 (TTY: 1-888-835-5322) or visit the Commission's digital television website at: www.DTV.gov.

Information about the DTV transition –after June 12 2009, a television receiver with only an analog broadcast tuner will require a converter box to receive full power over the-air broadcasts with an antenna because of the Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before to receiver low power, Class A or translator television stations an with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products. For more information about the DTV transition is available from http://www.DTV.gov or 1-888-CALL-FCC, and from http://www.dtv2009.gov or 1-888-DTV-2009 for information about subsidized coupons for digital-to-analog converter boxed.

1. Tilt/Stability – All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design.

2. Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet, which could ultimately overturn the product.

3. Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

4. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

5. Power Lines – An outdoor antenna should be located away from power lines.

6. Outdoor Antenna Grounding – If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure below.

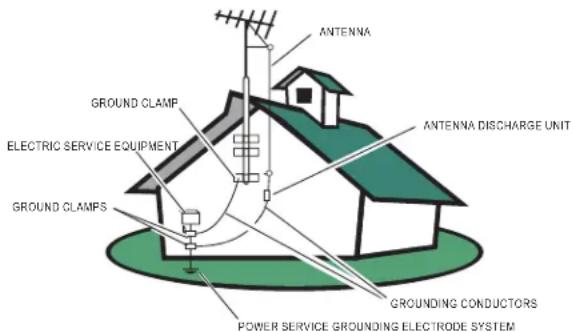

ANTENNA GROUND CLAMP ELECTRIC SERVICE EQUIPMENT GROUNDS CLAMPS ANTENNA DISCHARGE UNIT GROUNDS CONDUCTORS POWER SERVICE GROUNDING ELECTRODE SYSTEM

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the 6 English grounding system of the building, as close to the point of cable entry as practical. Please, make sure to connect the power plug to the wall outlet socket after connecting the TV to the adapter!

SAVE THESE INSTRUCTIONS

Thank you for purchasing this Haier product. This easy-to-use manual will guide you in getting the best use of your product. Remember to record the model and serial number. They are on the label on the back of the unit.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

TABLE OF CONTENT

DIGITAL TELEVISION TRANSITION NOTICE 2

FOR YOUR SAFETY....3

PRECAUTIONS AND REMINDERS ....4

IMPORTANT SAFETY INSTRUCTIONS ....5

PREPARATION 9

ATTACHING THE BASE....9

PREPARING YOUR LCD HDTV FOR WALL MOUNTING 9

PERIPHERAL CONNECTION GUIDE ......11

OPERATING INSTRUCTIONS ....13

USING THE SIDE PANEL CONTROL 13

USING THE MENUS....15

CHANNEL MENU 15

VIDEO MENU 15

AUDIO MENU....16

FEATURE MENU....16

VGA MENU....19

TIPS 19

PRODUCT SPECIFICATION 21

TROUBLESHOOTING....23

GLOSSARY....24

WARRANTY 25

IMPORTANT: Do not apply pressure to the screen display area which may compromise the integrity of the display. The manufacturer's warranty does not cover user abuse or improper installations.

ATTACHING THE BASE

IMPORTANT: The base of the HDTV must be assembled prior to usage.

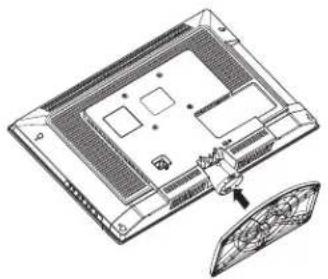

For L19C1120 / L22C1120 / L24C1180

1. Place the TV face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the HDTV.
2. Carefully align and insert the base to the stand.
3. Gently push the base towards the HDTV until the locking mechanism locks into place.

Technical line drawing of a laptop chassis showing front panel and rear panel (no text or symbols)

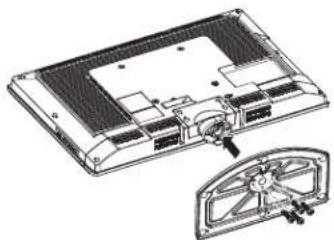

For L26C1120

1. Place the TV face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the HDTV.
2. Carefully align and insert the base to the stand.
3. Insert the screws to the bottom of the base and tighten the base to the stand.

Technical line drawing of a device showing internal components and a fan assembly (no text or symbols)

PREPARING YOUR LCD HDTV FOR WALL MOUNTING

We suggest that you keep your TV at least 2.36 inches (60 mm) from the wall to prevent cable interference.

Before mounting your TV on the wall, you need to remove the base.

For your safety, please use only with UL listed wall mount bracket with minimum weight of the TV without stand. (Please see page 22.)

To attach a wall mount bracket to your TV:

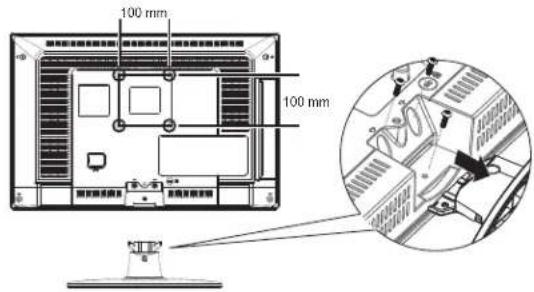

For L19C1120 / L22C1120 / L24C1180

1. Remove the screws holding your TV to the stand.
2. Remove the base stand from your TV.
3. Secure the wall mount bracket to the back of your TV using four M4 screws, as indicated in the illustration.

100 mm 100 mm

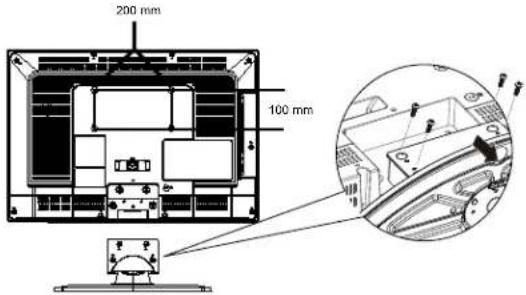

For L26C1120

1. Remove the screws holding your TV to the stand.
2. Remove the base stand from your TV.
3. Secure the wall mount bracket to the back of your TV using four M6 screws, as indicated in the illustration.

200 mm 100 mm

NOTE

▶ The wall mount bracket and the screws are not included.

Please make sure to connect the power plug to the wall outlet socket after connecting the TV to the power cord!

1. Install the base stand; place the TV on a solid surface.

Diagram illustrating a lighting experiment setup with a speaker, TV, and light source, showing exposure to a lamp and light emission.

Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover.

To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity.

Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing.

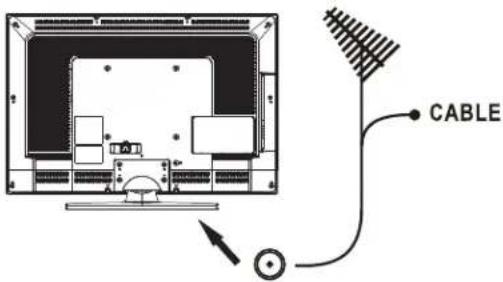

1. Connect the antenna cable or CATV cable to the aerial socket ANT IN 75Ω at the back of the TV set.

CABLE

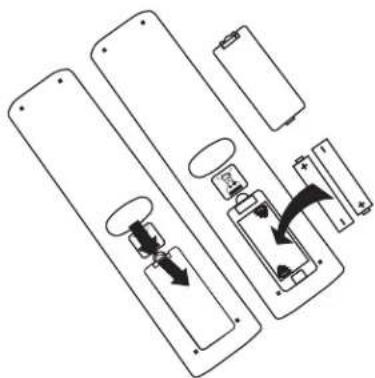

1. Remote control:

Remove the cover of the battery compartment. Insert the included 2 batteries (Type AAA 1.5V).

Diagram of a device's internal components and directional arrows, showing battery, switch, and motor assembly (no text or labels)

1. Power:

Insert the power cord in the wall socket with AC power supply. There is an LED indicator on the front panel. If the LED color is Blue, it means the TV set is on. If the LED color is Red, it means the TV set is in standby mode.

1. Turn the TV on:

Press the Power key on the remote control or the side panel control buttons. The TV will turn on within a few seconds.

Power Key Power Video Comp PC/HDMI TV

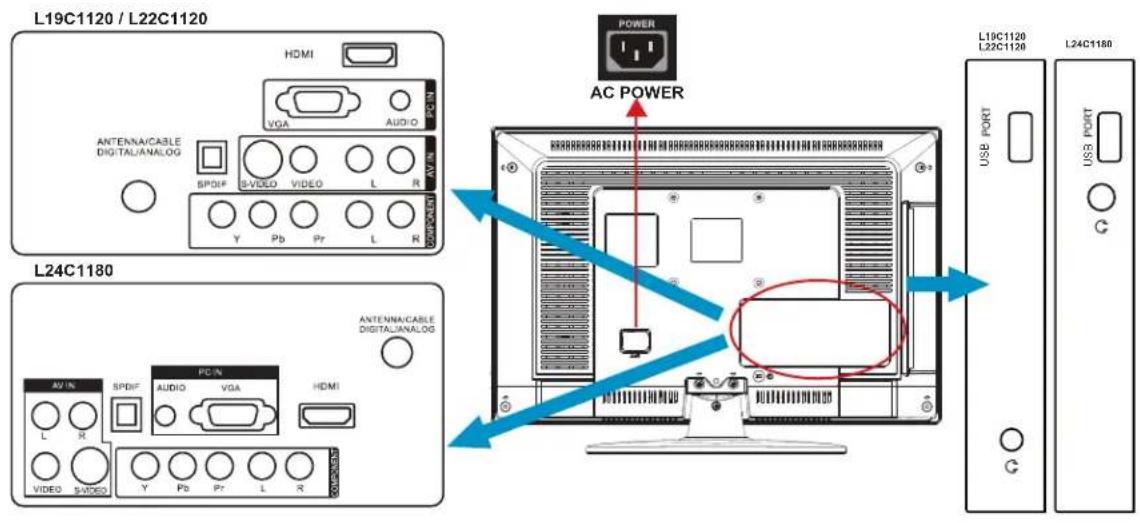

For L19C1120 / L22C1120 / L24C1180

L19C1120 / L22C1120 HDMI VGA AUDIO ANTENNA/CABLE DIGITAL/ANALOG SPDIF S-VIDEO VIDEO L R Y Pb Pr L R POWER AC POWER L24C1180 L19C1120 L22C1120 USB PORT L24C1180 AV IN SPDIF AUDIO VGA HDMI L R VIDEO S-VIDEO Y Pb Pr L R

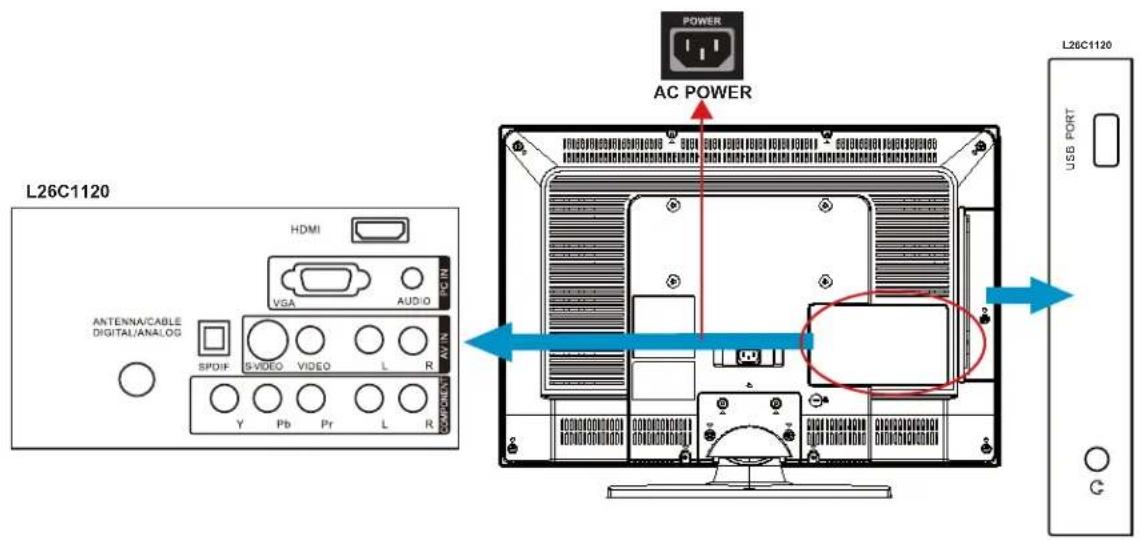

For L26C1120

L26C1120 HDMI VGA AUDIO ANTENNA/CABLE DIGITAL/ANALOG SPDIF SVIDEO VIDEO L R Y Pb Pr L R AC POWER POWER L26C1120 USB PORT G

1. HDMI – Connect the primary source for digital video such as a DVD player, bluray player or set top box through this digital connector.
2. PC IN – Connect the video and audio cables from a computer here.

3. AV IN (AV/S-VIDEO) – Connect the input source for composite video devices, such as a VCR or video game. Use the white and red connectors to connect the external audio from the same source. The signal being carried by the S-Video cable and connector, if connected, will take priority over the Video RCA connector (yellow connector).

4. COMPONENT (Y/Pb/Pr with Audio L/R) – Connect the primary source for component video devices such as a DVD Player or set top box here. Use red for Pr, blue for Pb, green for Y, red for right audio (R) and white for left audio (L) inputs.

5. ANTENNA/CABLE DIGITAL/ANALOG – Connect to an antenna or digital cable (out-of-the-wall, not from Cable Box) for Digital TV.
6. SPDIF (Optical Digital Audio Out) – When a digital audio signal is associated with the input selected for viewing, the digital audio will be available on this SPDIF connection to your home theater system.
7. USB PORT – Insert a USB storage device to the USB port to view photos or listen to music.
8. Earphone Output – Connect to headphones. When the headphone is inserted to the plug, the speakers will be muted.

Once your equipment is connected, use the following procedure to view the input signal:

Press the Source button on the remote control to select the relevant source to view. (ex: Press Comp button to select "Component" if you have connected a device to the Component socket.)

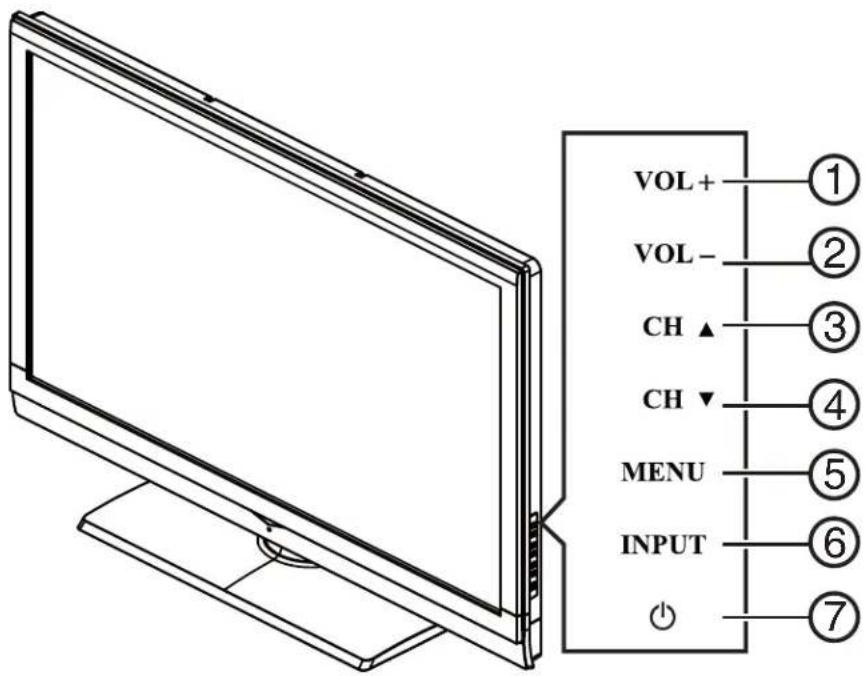

USING THE SIDE PANEL CONTROL

VOL+ ① VOL- ② CH ▲ ③ CH ▼ ④ MENU ⑤ INPUT ⑥ ⑦

1 VOL + Press to increase the sound volume level.
2. VOL - Press to decrease the sound volume level.
3. CH ▲	Press to select the next higher program number.
4. CH ▼	Press to select the next lower program number.
5. MENU Press to open or exit the OSD (on-screen display) menu.
6. INPUT Press to select the input source.
7. ⏻ POWER	Press to turn on / off (standby) the TV set.

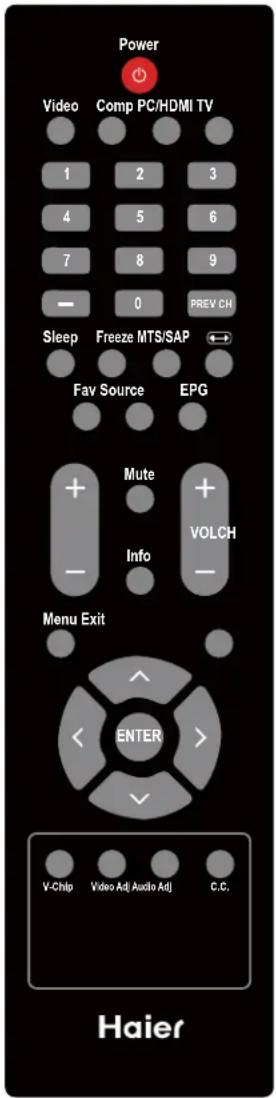

USING THE REMOTE CONTROL

Power

Press to power ON/OFF (standby) TV.

Note: TV is never completely powered off unless physically unplugged.

Video

Press repeatedly to choose S-Video/Composite source mode.

Comp

Press to choose Component source mode.

PC/HDMI

Press repeatedly to choose VGA or HDMI source mode.

TV

Press to choose ATSC/NTSC TV source mode.

0 \~ 9 / - number

Press to enter TV channel number to select channel (Press '-' to choose the sub-channel).

PREV CH

Press to display the previous channel.

Sleep

Press to set the preset time to switch the TV to standby mode automatically (off / 5 / 10 / 15 / 30 / 60 / 90 / 120 / 180 / 240 mins).

Freeze

Press to freeze the displayed picture.

MTS/SAP

Press to activate the NTSC TV sounds, such as: Stereo, SAP or Mono tone, and languages of DTV.

Wide

Press to choose the display aspect ratio: Normal, Zoom1, Wide, Zoom2, or HDMI PC mode (Only for HDMI Video Source).

Fav Press "Fav" to open the Favorite Channel List.

Power Video Comp PC/HDMI TV 1 2 3 4 5 6 7 8 9 - 0 PREV CH Sleep Freeze MTS/SAP Fav Source EPG + Mute + Info VOLCH - Menu Exit ENTER V-Chip Video Adj Audio Adj C.C. Haier

Source

Press "Source" to open the Source List.

EPG

Press to display the Electronic Program Guide.

CH+/CH-

Press + or - to browse through the TV channels.

Mute

Switch the sound ON/OFF.

Info

Press to show the information about the input source, TV channel, display resolution and current time.

VOL+ / VOL-

Press + or - to adjust the volume.

Menu

Press to open or exit menu.

, v, <, >, ENTER

Press to adjust the various function items on the menu.

Exit

Press to exit menu or OSD.

V-Chip

Press to lock Parental Control temporarily. (After setting the restricted table of MPAA or TV Rating.)

Video Adj

Press repeatedly to switch the video mode: Standard, Eco, Movie, Personal, Vivid.

Audio Adj

Press repeatedly to switch the audio mode: Personal, Music, Speech.

C. C.

Press repeatedly to change the closed caption type : CC On, CC Off, CC On With Mute.

USING THE MENUS

1. Press the Menu button to display or close the main menu.
2. Use the Navigation Ring to move around, select, adjust or confirm an item in the OSD (On Screen Display) menu.

Press the Menu button to enter the main OSD. Adjust the items including Video menu, Audio menu, Feature menu, Channel menu, and VGA menu. However, some options in the menus may only be enabled in a particular source mode.

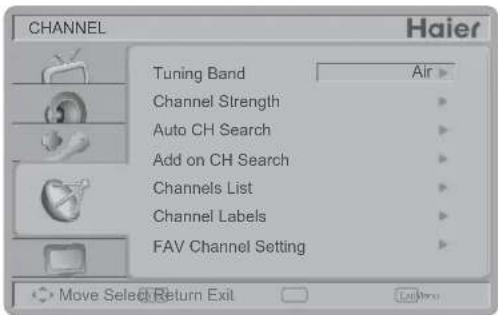

CHANNEL MENU

The Channel menu in TV mode is shown below.

CHANNEL Haier Tuning Band Air Channel Strength Auto CH Search Add on CH Search Channels List Channel Labels FAV Channel Setting Move Select Return Exit

1. Tuning Band: Select TV source signal from the Air (antenna) or Cable (CATV).
2. Channel Strength: Show the intensity of the received DTV signal.
3. Auto CH Search: Automatically scan all NTSC / ATSC TV channels and then store them in the channel table. During the channel scan process, the OSD will display the number of channels which have been found.
4. Add on CH Search: Rescan and add channels which are newly found.
5. Channels List: Show the Channels List. You can select which channels are viewable.
6. Channel Labels: Shows the NTSC / ATSC TV Channel Labels. You can edit the labels.
7. FAV Channel Setting: Show the Favorite Channel List. You can add/remove channels from the favorites list.

VIDEO MENU

The Video menu in most source modes is shown below. It provides several video adjustment items for fine tuning the video display. Only in VGA source mode, the Video menu provides: Picture mode, Brightness, Contrast, Color Temp, Noise Reduction, Backlight, Aspect Ratio and Preset.

VIDEO Picture Mode Vivid Brightness 40 Contrast 30 Sharpness 50 Color 62 Tint 0 Color Temp Cool Move Select Return Exit

1. Picture Mode: Adjust the best picture appearance from selecting the preset value of Vivid, Standard, Eco, Movie, or Personal.
2. Brightness: Video brightness adjustment, the tuning range is 0 \~ 100.
3. Contrast: Video contrast adjustment, the tuning range is 0 \~ 100.
4. Sharpness: Video sharpness adjustment, the tuning range is 0 \~ 100.
5. Color: Video color chroma adjustment, the tuning range is 0 \~ 100.
6. Tint: Video tint adjustment, the tuning range is R50 \~ G50.
7. Color Temp: Three color temperature modes. (Normal / Warm / Cool)
8. Noise Reduction: Gives four NR effect degrees, such as: Low, Mid, High and Off.
9. Adaptive Contrast: Choose On or Off to adjust the gamma after analyzing the input signal automatically.
10. Backlight: Backlight strength adjustment, the tuning range is 0 \~ 30.
11. Aspect Ratio: Choose the display aspect: Normal, Zoom1, Wide, Zoom2, or HDMI PC mode (Only for HDMI Video Source).
12. Preset: Restore the default video settings.

AUDIO MENU

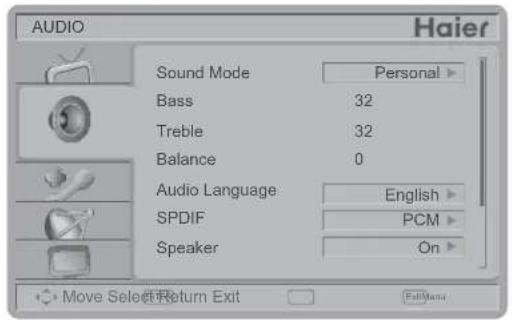

The Audio menu in TV mode is shown below. The audio language setting is only available with the NTSC (analog) TV source. The option is disabled in other source modes.

AUDIO Sound Mode Personal Bass 32 Treble 32 Balance 0 Audio Language English SPDIF PCM Speaker On Move Select Return Exit

1. Sound Mode: Choose the audio mode: Personal, Music, or Speech.

2. Bass: Bass tone adjustment, the tuning range is 0 \~ 63.

3. Treble: Treble tone adjustment, the tuning range is 0 \~ 63.

4. Balance: Audio balance adjustment, the tuning range is L50 \~ R50.

5. Audio Source: Select the audio source from Mono, Stereo, or SAP. (This function works in ATV only.)

6. Audio Language: Change the audio language setting on ATSC TV programs. The number of the supported audio languages depends on the ATSC TV programs. (English / Français / Español)

7. SPDIF: Digital audio output format. Select from RAW and PCM. (This function works in DTV only.)

8. Speaker: Choose to turn on / off the TV's intergrated speakers. The digital audio output signals and earphone output signals will not be turned off even though the TV speaker is off. The default setting is On.

9. AVL: Choose On or Off to adjust volume to be consistent across programs and channels automatically.

10. Preset: Restore the default audio settings.

FEATURE MENU

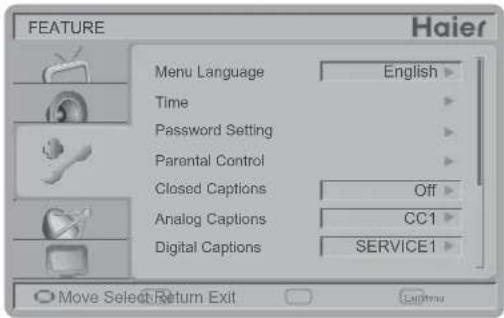

The Feature menu in TV mode is shown below. Certain features will be hidden (disabled) in the menu depending on the mode.

FEATURE Haier Menu Language English Time Password Setting Parental Control Closed Captions Off Analog Captions CC1 Digital Captions SERVICE1 Move Select Return Exit CasMenu

1. Menu Language: Select the menu display language. (English / Français / Español)

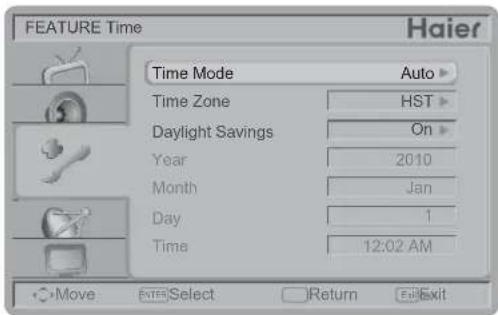

2. Time: Set current time. The sub-menu includes Time Mode, Time Zone, and Daylight Savings.

[Time Mode] – Choose from Auto or Manual.

[Time Zone] – Set current time zone. [Daylight Savings] – Set to On or Off.

FEATURE Time Haier Time Mode Auto Time Zone HST Daylight Savings On Year 2010 Month Jan Day 1 Time 12:02 AM Move Select Return Exit

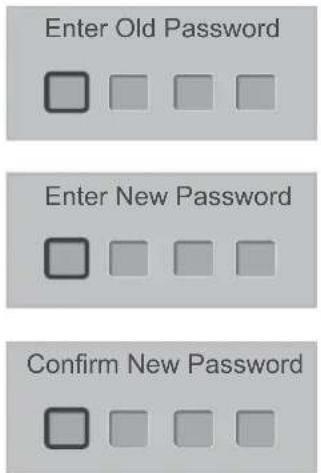

1. Password Setting: Change the 4-digit parental control password. Three steps are required for changing the password: Enter Old Password -> Enter New Password -> Confirm New Password. Note: This item is only available in TV, Composite and S-Video source modes. The default password is『0000』.

Enter Old Password Enter New Password Confirm New Password

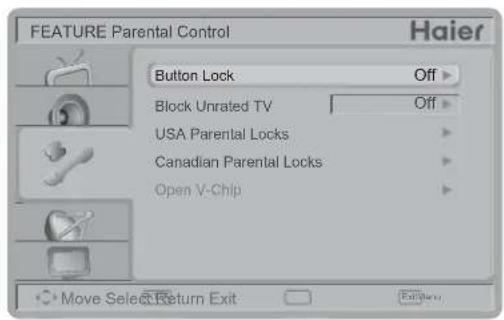

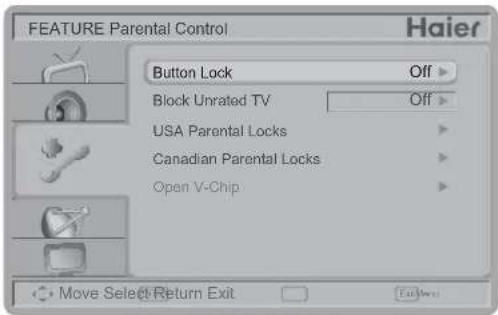

1. Parental Control: Provide the parental Control (V-chip) function setting. Before entering the Parental Control sub-menu, enter the password first. Then the user can modify the MPAA or TV Rating table to restrict viewing of certain programs. Note: This feature is only available in TV, Composite and S-Video source modes. (The default password is: 0 0 0 0.)

Enter Password

FEATURE Parental Control Button Lock Off Block Unrated TV Off USA Parental Locks Canadian Parental Locks Open V-Chip Move Select Return Exit

[Button Lock] – Select On or Off to lock or unlock the control buttons on the side panel of the TV. When this function is enabled, the control buttons on your TV will be locked and the TV can only be controlled by the remote control.

[Block Unrated TV] – When Block Unrated TV is set to on, your TV will block unrated programs.

[USA Parental Locks] – Set the parental control level by the MPAA or TV Rating.

[Canadian Parental Locks] – Set the parental control level by English Rating or French Rating.

[Open V-Chip] – Open V-Chip is an advanced V-Chip rating system for digital channels that are received.

The rating table will rate programs using RRT5 rating information.

1. Closed Captions: Select a closed caption option. (Off / On / With Mute)

2. Analog Captions: Select an analog caption option. (CC 1-4 / TEXT 1-4)

3. Digital Captions: Select a digital caption option. (SERVICE 1-6)

4. Digital Captions Setup: Provides numerous options for setting the digital closed caption style in the sub-menu. Note: This feature is only available in Digital TV (ATSC) mode.

[Style] – Set to Automatic or Customer mode. If Customer mode is selected, you can modify the detail styles as described below. The setting result will be shown immediately on the bottom of the submenu OSD.

[Size] – Digital closed caption font size, which can be set to Automatic, Small, Normal, or Large.

[Font] – Digital closed caption font style, which can be set to Automatic, Default, or Font 1 \~ 7.

[Text Color] – Automatic / White / Red / Green / Blue / Yellow / Magenta / Cyan / Black.

[Text Opacity] – Automatic / Solid / Flashing / Transparent / Translucent.

[Background Color] – Automatic / Black / White/ Red / Green / Blue / Yellow / Magenta / Cyan.

[Background Opacity] – Automatic / Solid / Flashing / Transparent / Translucent.

[Edge Effect] – Automatic / None / Raised / Depressed / Uniform / Left

Shadow / Right Shadow.

[Edge Color] – Automatic / Red / Green / Blue / Yellow / Magenta / Cyan / Black / White.

1. Input Labels: This option is available only for non-TV sources. You can edit the input labels.

2. Component Setting: This option only shows and is available in component mode, which provides fine tuning the component display.

[Phase] – Adjust Picture Phase to reduce Horizontal-Line noise. The tuning range is from 0 to 31.

[Preset] – Restore the default component setting values.

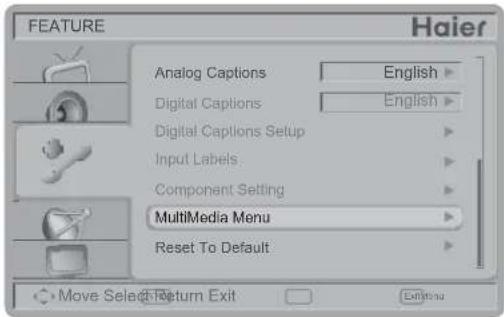

1. MultiMedia Menu: This option shows the photos in JPEG formats and plays the music in MP3 formats that are stored on a USB storage device.

Note: File number is limited to 1000 files.

JPEG sizes are limited as followed:

For 19"/22"/26": 10928x6114

For 24": 15360x8640

There are two ways to enter JPEG Viewer and MP3 MusicBox interface:

• After a plugging USB storage device into the USB port, the Multimedia List menu will be displayed.

- Select MultiMedia Menu in the Feature Menu to choose JPEG Viewer or MP3 MusicBox. These two items are activated only if the USB storage device is plugged into the USB port.

FEATURE Analog Captions English Digital Captions English Digital Captions Setup Input Labels Component Setting MultiMedia Menu Reset To Default Move Select Return Exit EditMenu

[JPEG Viewer] – Press Menu to display the control menu. Press Enter to enlarge the selected photo (orange frame) in browser.

• Image Delay: Set the display time for each picture in the slide show mode. There are three options: Fast, Slow, and Normal.
- Music On Slide Show: Enable background Music during the slide show. It will play the MP3 files in sequence in the current folder repeatedly. The Music On Slide Show item will be grayed out if there are no MP3 files in the current folder.
- Start Slide Show: Enter Slide Show mode.
- Rotate Photo: Rotate selected picture. (0/90/180/270)
- Back to Upper Folder: Return to the upper folder.
- Back to Root Folder: Return to the root folder.
- BackTo Browser: Return to Browser mode. (Photo page with control menu.)
- Exit: Exit JPEG Viewer and return to original source. (Browser with Control menu.)

[MP3 MusicBox]

• ListInfoBar (at the bottom): This part contains play list information: "Current Directory", "Total File(s)", "Total Folder(s)", "Current Item" in current directory and Key Help Bar.
• PlayList (on the right side): This part contains MP3 music files.

• Control Panel (on the left side): Bass, Treble, Balance, Volume: Adjust the audio tone.

Mute Screen: This provides an option for enabling (On) or disabling (Off) the auto turn-off of the backlight while playing MP3 media. This setting is valid in MP3 media player interface only. After setting to On, the backlight will be turned-off automatically after 10 seconds if no key is pressed. Press any key to turn the screen back on. If no key is pressed after 10 seconds, the screen will be turned off again.

Preset: Resets all MP3 settings to the default values.

Exit MP3MusicBox: Exit the MP3MusicBox interface.

1. Reset to Default: Restore all the default settings.

VGA MENU

This option is only shown and available in VGA mode, which provides several items for fine tuning the VGA display.

1. H-Position: Adjust the horizontal position of the picture. (0-40)
2. V-Position: Adjust the vertical position of the picture. (0-16)
3. Clock: Adjust picture clock to reduce Vertical-Line noise. (0-16)
4. Phase: Adjust picture phase to reduce Horizontal-Line noise. (0-31)
5. Auto Adjust: Adjust the settings automatically.
6. Preset: Restore the default VGA setting values.

TIPS

Care of the screen

Do not rub or strike the screen with anything hard as this may scratch, mar, or damage the screen permanently. Unplug the power cord before cleaning the screen. Dust the TV by wiping the screen and the cabinet with a soft, clean cloth. If the screen requires additional cleaning, use a clean, damp cloth. Do not use liquid cleaners or aerosol cleaners.

Mobile telephone warning

To avoid disturbances in picture and sound, malfunctioning of your TV or even damage to the TV, keep away your mobile telephone from the TV.

End of life directives

We are paying a lot of attention to produce environmental friendly products. Your new television contains materials, which can be recycled and reused.

At the end of its life, specialized companies can dismantle the discarded receiver to concentrate the reusable materials and to minimize the amount of materials to be disposed of.

Please ensure you dispose of your old receiver according to local regulations. Haier is committed to safely recycling electronic products and product materials. Please check for a local recycling location in the United States at : 1800 RECYCLING.COM or call 1.800 RECYCLING.

Dolby License Notice and Trademark Acknowledgement

DOLBY DIGITAL

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Regulatory Notices – Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the TV.
• Connect the equipment into wall power outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by our company may void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RF/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Avis Canadian

• This model complies with the specifications listed below.
• Designs and specifications are subject to change without notice.
• This model may not be compatible with features and/or specifications that may be added in the future.

Model No. L19C1120 L22C1120 L24C1180 L26C1120
DISPLAY
Viewable 18.5" 21.6"	'23.6" 26"
Television System N	TSC standard, ATSC standard (8-VSB, Clear-QAM)
Channel Coverage	VHF: 2 through 13UHF: 14 through 69Cable TV: Mid band (A - 8 through A - 1, A through I),Super band (J through W),Hyper band (AA through ZZ, AAA, BBB),Ultra band (65 through 94, 100 through 125)
CONNECTIONS
Rear Connectors	Tuner input (75Ω)AV IN: AV/S-Video and L/R audio inputPC IN: D-SUB and PC Audio (Headphone mini-jack)Supported scan rate: 640x480@60/72/75Hz, 720x400@70Hz,800x600@56/60/72/75Hz, 1024x768@60/70/75Hz,1280x720@60Hz, [e-mail]:1360x768@60Hz :For L19C1120 / L22C1120 / L26C1120 only.1280x1024@60Hz, 1440x900@60Hz,1680x1050@60Hz,1920x1080@60Hz :For L24C1180 only.For L19C1120 / L22C1120 / L26C1120 : [e-mail] L24C1180 : [e-mail] Video and L/R Audio inputSupported resolution: 480i@59.94/60Hz,480p@59.94/60Hz,720p@59.94/60Hz,1080i@59.94/60Hz,1080p@59.94/60Hz.HDMI inputSupported scan rates: 480i@59.94/60Hz,480p@59.94/60Hz,720p@59.94/60Hz,1080i@59.94/60Hz,1080p@59.94/60/24/30Hz.
	AV/S-Video inputSPDIFHDMI	AV/S-Video inputSPDIFHDMI	AV/S-Video inputSPDIFHDMI	AV/S-Video inputSPDIFHDMI
Side Connectors	Earphone OutputUSB PORT	Earphone OutputUSB PORT	Earphone OutputUSB PORT	Earphone OutputUSB PORT
WEIGHT & DIMENSIOIN
Dimensions with Stand (W x H x D)	18.00x12.79x6.74 (inch)	20.78x15.03x6.96 (inch)	22.53x16.05x6.96 (inch)	25.90x19.26x8.63 (inch)
Dimensions without Stand (W x H x D)	18.00x12.13x2.64 (inch)	20.78x13.67x2.57 (inch)	22.53x14.68x2.57 (inch)	25.90x17.66x3.58 (inch)
Weight with Stand	9.31 lbs 10.71 lbs 12.65 lbs 17.49 lbs
Weight without Stand and Base	8.6 lbs 9.99 lbs 11.88 lbs 14.93 lbs
WALL MOUNTING
VESA-compatible wall bracket (W x H)	100x100 mm 100x100 mm 100x100 mm		200x100 mm
Screw type Metric	4x10 mm Metric 4x10 mm Metric 4x10 mm		Metric 4x10 mm
POWER
Power Consumption	45W 60W 70W 100W
Standby <1W
Mains Power 120V	~60Hz
Audio Power 3W+3W 3W+3W 3W+3W		W 3W+3W
Ambient Temperature	5°C - 35°C
PACKAGE CONTENTS
Supplied Accessories	TV unit x1Base x1Screws x 4 (for 26" only)Power cord x 1Remote control x1 (with two size AAA alkaline batteries)User manual x1Registration Card x1

Please make these simple checks before calling service. These tips may save you time and money since charges for receiver installation and adjustments of customer controls are not covered under your warranty.

Symptoms Items to Check and Actions to follow
“Ghost” or double image • This may be caused by obstructions to the antenna due to high rise buildings or hills. Using a highly directional antenna may improve the picture.
No power • Check if the TV's AC power cord is plugged into the mains socket.• Unplug the TV, wait for 60 seconds. Then reinsert plug into the mains socket and turn on the TV again.
No picture • Check antenna connections at the rear of the TV to see if it is properly connected to the TV.• Possible broadcast station trouble.Try another channel.• Adjust the contrast and brightness settings.• Check the Closed Captions control. Some TEXT modes could block the screen.
Good picture but no sound • Increase the VOLUME.• Check if the TV is muted; press the MUTE button on the remote control.
Good sound but poor color • Adjust the contrast, color and brightness settings.
Poor picture • Poor picture quality may occur when an activated S-VHS camera or camcorder is connected to your TV and the other peripheral at the same time. Switch off one of the peripherals.
Snowy picture and noise • Check the antenna connection.
Horizontal dotted line	• This may be caused by electrical interference (e.g. hair dryer, nearby neon lights, etc.)• Turn off the equipment.
Television not responding to remote control	• Check whether the batteries are working. Replace if necessary.• Clean the remote control sensor lens on the TV.• You can still use the buttons at the front of your TV.• Select the TV mode to ensure your remote control is set in the TV mode.

HDTV

HDTV displays are technically defined as being capable of displaying a minimum of 720p or 1080i active scan lines.

HDMI Inputs

High-Definition Multimedia Interface.

Audio / Video Inputs

Located on the rear of the receiver, these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options.

Menu

An on-screen listing of features shown on the TV screen is made available for user adjustments.

MPAA

Motion Picture Association of America.

Multichannel Television Sound (MTS)

The broadcasting standard, which allows stereo sounds to be transmitted with the TV picture.

RF

Radio Frequency or modulated signal design used as the carrier for television broadcasts.

Second Audio Program (SAP)

Another or additional audio channel provided for in the Multichannel Television Sound (MTS) broadcast standard. A monaural sound track included within the recorded or video signal (usually containing a second language translation for the displayed program).

Sleep Timer

You can set a time period for which the TV will be turn off automatically.

S-Video Input

You can connect your TV set to a high-resolution video source (such as Super VHS video-cassette recorder, Laser Disc player, and DVD Home Theater Set) in order to provide maximum consumer viewing satisfaction.

This Haier brand product, when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective product with a new or re-manufactured equivalent, for parts or labor for the periods set forth below:

This warranty does not apply to the appearance of the product or the exterior of the product, which has been damaged or defaced, altered or modified in design or construction. It does not apply to the additional excluded items set forth below:

The warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service center before warranty repairs are rendered.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(s) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Haier.

The warranties described herein shall be the sole and exclusive warranties granted by Haier and shall be the sole and exclusive remedy available to the purchaser. Correction of defects in the manner and for the period of time described herein, shall constitute complete fulfillment of all abilities and Responsibility of Haier to the purchaser with respect to the product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict duality or otherwise. In no event shall Haier be liable, or in any way responsible for any damages or defects in the product which were caused by repairs or attempted repairs performed by anyone other than an authorized service center or dealer; nor shall Haier be liable, or in any way responsible for incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so that above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Warranty period for L19C1120 / L22C1120 and L24C1180 1 year parts, 90 days labor; for L26C1120 1 year parts and labor

Additional items excluded from warranty coverage: non-rechargeable batteries. What to do to obtain service or to obtain product literature, accessories, supplies or customer assistance: Simply call 1-877-337-3639. Be sure to have proof of purchase.

Téléviseur TFT-ACL

MANUEL DE L'UTILISATEUR

CARACTERISTIQUES DU PRODUIT ......22

DÉPANNAGE....23

GLOSSAIRE....25

GARANTIE 26

PREPARATION

Diagram of a laptop with internal components and a separate screen showing the front panel (no text or symbols present)

Technical line drawing of a computer chassis with an open fan and internal components (no text or symbols)

PRÉPARATION DE VOTRE LCD HDTV POUR LE MONTAGE MURAL

Diagram illustrating a lighting experiment setup with a speaker, lamp, and light source, showing signal detection and time limit.

Diagram of a battery pack assembly showing internal components and directional arrows (no text or labels)

1. Alimentation:

Bouton Power (alimentation)

Power Video Comp PC/HDMI TV

Power (Alimentation)

V-Chip (Puce antiviolence)

CHANNEL Haier Tuning Band Air Channel Strength Auto CH Search Add on CH Search Channels List Channel Labels FAV Channel Setting Move Select Return Exit

AUDIO Sound Mode Personal Bass 32 Treble 32 Balance 0 Audio Language English SPDIF PCM Speaker On Move Select Return Exit

1. Sound Mode (Mode audio):

5. Audio Source (Source audio):

Enter Old Password Enter New Password Confirm New Password

Enter Password

FEATURE Parental Control Haier Button Lock Off Block Unrated TV Off USA Parental Locks Canadian Parental Locks Open V-Chip Move Select Return Exit

[Button Lock] (Verrouillage boutons)

Motion Picture Association of America.

Diagram of a laptop with a cable inserted into the front panel, showing internal components and a separate screen (no text or symbols present)

Para L26C1120

Technical line drawing of a computer expansion panel with a fan assembly (no text or symbols)

Diagram illustrating a surveillance or lighting setup with a monitor, lamp, and light source, showing signal detection and distance measurement.

Diagram of battery pack assembly showing internal components and rotation arrows (no text or labels)

1. Alimentación:

CHANNEL Haier Tuning Band Air Channel Strength Auto CH Search Add on CH Search Channels List Channel Labels FAV Channel Setting Move Select Return Exit

AUDIO Sound Mode Personal Bass 32 Treble 32 Balance 0 Audio Language English SPDIF PCM Speaker On Move Select Return Exit.

FEATURE Haier Menu Language: English Time: Password Setting: Parental Control: Closed Captions: Off Analog Captions: CC1 Digital Captions: SERVICE1 Move Select Return Exit

Enter Old Password Enter New Password Confirm New Password

Enter Password

FEATURE Parental Control Haier Button Lock Off Block Unrated TV Off USA Parental Locks Canadian Parental Locks Open V-Chip Move Select Return Exit

Bass (Graves), Treble (Agudos), Balance (Balance), Volume
