USER MANUAL XR-5880R SONY

FM/MW/LW Cassette Car Stereo

Operating Instructions GB

For installation and connections, see the supplied installation/connections manual.

Thank you for purchasing this Sony Cassette Player. This unit lets you enjoy a variety of features as well as an optional rotary commander.

Table of Contents

Location of controls 3

Getting Started

Resetting the unit 4

Detaching the front panel 4

Setting the clock 5

Cassette Player

Listening to a tape 6

Playing a tape in various modes 7

Radio

Memorizing stations automatically — Best Tuning Memory (BTM) 7

Memorizing only the desired stations 8

Receiving the memorized stations 8

RDS (XR-5890R/5880R only)

Overview of the RDS function 9

Displaying the station name 9

Retuning the same programme automatically -Alternative Frequencies (AF) 10

Listening to traffic announcements 12

Preseting the RDS stations with the AF and TA data. 12

Locating a station by programme type 13

Setting the clock automatically 14

Other Functions

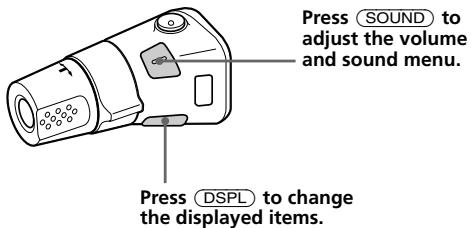

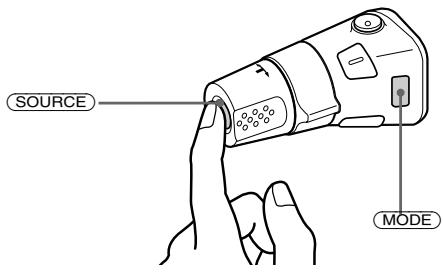

Labelling the rotary commander 15

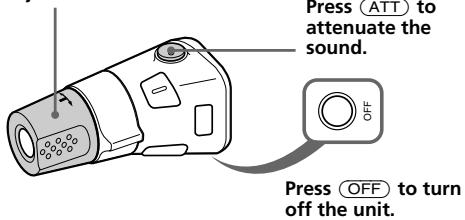

Using the rotary commander 15

Adjusting the sound characteristics 17

Attenuating the sound 17

Changing the sound and display settings..... 17

Boosting the bass sound D-bass 18

Additional Information

Precautions 18

Maintenance 19

Dismounting the unit 20

Specifications 21

Troubleshooting guide 22

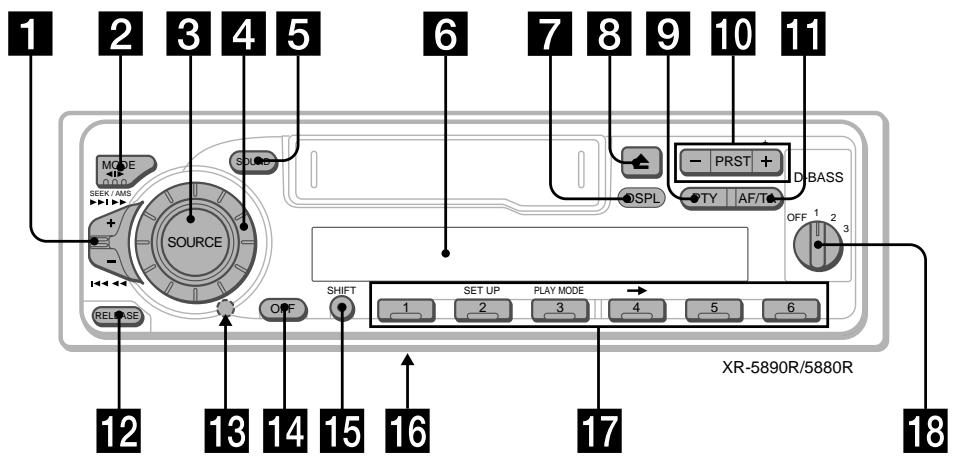

Location of controls

Refer to the pages listed for details.

SEEK/AMS (seek/Automatic Music Sensor/manual search) control 6,8,11,14
2 MODE () button During tape playback: Playback direction change 6 During radio reception: BAND select 7,8
3 SOURCE (TAPE/TUNER) button 6, 7, 8, 12
4 Dial (volume/bass/treble/left-right/rearfront control) 5, 17
5 SOUND button 17
6 Display window
7 DSPL (display mode change) button 6,9,10
8 (eject) button 6
9 PTY button*
RDS Programme 14

10 PRST button During radio reception: Preset stations select 8
11 AF/TA button* 10, 11, 12, 13
12 RELEASE(front panel release) button 4,20
Reset button (located on the front side of the unit behind the front panel) 4
14 OFF button 4,6
15 SHIFT button
PLAY MODE 7, 8, 11, 13
SET UP 5, 14, 17
16 POWER SELECT switch (located on the bottom of the unit) See "POWER SELECT switch" in the Installation/Connections manual.
17 Number buttons 8, 11, 13
18 D-BASS control 18

• XR-5890R/5880R only

Resetting the unit

Before operating the unit for the first time or after replacing the car battery, you must reset the unit.

Remove the front panel and press the reset button with a pointed object, such as a ballpoint pen.

Reset button

Note

Pressing the reset button will erase the clock setting and some memorized functions.

Detaching the front panel

You can detach the front panel of this unit to protect the unit from being stolen.

1 Press OFF.

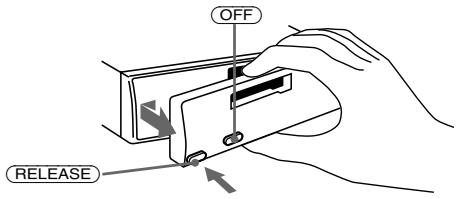

2 Press (RELEASE), then slide the front panel a little to the left, and pull it off towards you.

Notes

• Be sure not to drop the panel when detaching it from the unit.
• If you detach the panel while the unit is still turned on, the power will turn off automatically to prevent the speakers from being damaged.
• When carrying the front panel with you, use the supplied front panel case.

Attaching the front panel

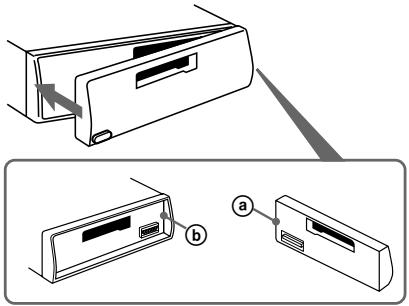

Attach part ⑧ of the front panel to part ⑥ of the unit as illustrated and push the left side into position until it clicks.

Notes

• Be sure not to attach the front panel upside down.
• Do not press the front panel too hard against the unit when attaching it.
• Do not press too hard or put excessive pressure on the display window of the front panel.
• Do not expose the front panel to direct sunlight or heat sources such as hot air ducts, and do not leave it in a humid place. Never leave it on the dashboard of a car parked in direct sunlight or where there may be a considerable rise in temperature.

Caution alarm

If you turn the ignition key switch to the OFF position without removing the front panel, the caution alarm will beep for a few seconds (only when the POWER SELECT switch on the bottom of the unit is set to the A position).

Setting the clock

The clock uses a 24-hour digital indication.

Example: To set the clock to 10:08

1 Press SHIFT, then press 2 (SET UP) repeatedly until "CLOCK" appears.

SE T L E L E K

Press (4)()

SET

The hour indication flashes.

Set the hour.

to go backward

to go forward

SET

Press (4)()

SET

The minute indication flashes.

4 Set the minute.

to go backward

to go forward

SET

2 Press SHIFT.

111

The clock starts.

3 Press SHIFT.

After the clock setting is complete, the display returns to normal playback mode.

Note

If the POWER SELECT switch on the bottom of the unit is set to the 0 position, turn the power on first, then set the clock.

Cassette Player

Listening to a tape

Insert a cassette.

Playback starts automatically.

If a cassette is already inserted, press (SOURCE) repeatedly until "FWD" or "REV" appears to start playback.

The side facing up is played.

The side facing down is played.

Tip To change the tape's playback direction, press MODE)

To	Press
Stop playback	OFF
Eject the cassette	▲

Fast-winding the tape

During playback, push the SEEK/AMS control up or down and hold.

Fast-forward

Rewind

To start playback during fast-forwarding or rewinding, press MODE (▶).

Locating a specific track

Automatic Music Sensor (AMS)

During playback, push the SEEK/AMS control up or down and release for each track you want to skip.

You can skip up to nine tracks at one time.

To locate succeeding tracks

To locate preceding tracks

Note

The AMS function may not work when:

the blanks between tracks are shorter than four seconds
there is noise between tracks
- there are long sections of low volume or quiet sections.

Changing the display item

Each time you press DSPL, the item changes as follows:

• While either of the following functions are activated.

• ATA function
  — AF/TA function (XR-5890R/5880R)

After you select the desired item, the display will automatically change to the Motion Display mode after a few seconds.

In the Motion Display mode, all the above items are scrolled in the display one by one in order.

Tip

The Motion Display mode can be turned off. (See "Changing the sound and display settings" on page 17).

Playing a tape in various modes

You can play the tape in various modes:

• REP (Repeat Play) repeats the current track.
• METAL (Metal)* lets you play a metal or CrO_2 tape.
• BL SKP (Blank Skip) skips blanks longer than eight seconds.
• ATA (Automatic Tuner Activation) turns on the tuner automatically when fast-winding the tape.

1 During playback, press SHIFT. "SHIFT-ON" appears in the display.

FWI

SHIFT EN

2 Press (3) (PLAY MODE) repeatedly until the desired play mode appears.

Each time you press (3) (PLAY MODE), the item changes as follows:

REP METAL* BL SKP ATA

• XR-5890R/4890 only

H

REPOFF

3 Press (4) () to select "ON."

F

REPON

Play mode starts.

4 Press SHIFT.

To return to normal playback mode, select "OFF" in step 3 above.

Note

If the "SFT" indication appears, press SHIFT to complete the mode setting.

Radio

Memorizing stations automatically

Best Tuning Memory (BTM)

The unit selects the stations with the strongest signals and memorizes them in the order of their frequencies. You can store up to 6 stations on each band (FM1, FM2, FM3, MW, and LW).

Caution

When tuning in stations while driving, use Best Tuning Memory to prevent accidents.

1 Press SOURCE repeatedly to select the tuner.

Each time you press (SOURCE), the source changes as follows:

TUNER TAPE

2 Press MODE repeatedly to select the band.

Each time you press MODE, the band changes as follows:

3 Press SHIFT, then press 3 (PLAY MODE) repeatedly until "B.T.M" appears.

4 Press (四) () .

The unit stores stations in the order of their frequencies on the number buttons.

A beep sounds when the setting is stored.

5 Press SHIFT.

Notes

• The unit does not store stations with weak signals. If only a few stations can be received, some number buttons will retain their former setting.
• When a number is indicated in the display, the unit starts storing stations from the one currently displayed.

Memorizing only the desired stations

You can preset up to 18 FM stations (6 each for FM1, 2, and 3), up to 6 MW stations, and up to 6 LW stations in the order of your choice.

1 Press (SOURCE) repeatedly to select the tuner.
2 Press MODE repeatedly to select the band.
3 Push the SEEK/AMS control up or down to tune in the station that you want to store on the number button.
4 Press and hold the desired number button (① to ⑥) until "MEM" appears. The number button indication appears in the display.

Note

If you try to store another station on the same number button, the previously stored station will be erased.

Receiving the memorized stations

1 Press (SOURCE) repeatedly to select the tuner.
2 Press MODE repeatedly to select the band.
3 Press the number button (① to ⑥) on which the desired station is stored.

Tip

Press either side of PRST to receive the stations in the order they are stored in the memory (Preset Search Function).

If you cannot tune in a preset station

Push and release the SEEK/AMS control up or down to search for the station (automatic tuning).

Scanning stops when the unit receives a station. Push the SEEK/AMS control up or down repeatedly until the desired station is received.

Note

If the automatic tuning stops too frequently, press (SHIFT), then press 3 (PLAY MODE) repeatedly until "LOCAL" (local seek mode) is displayed. Then press 4 () to select "LOCAL-ON." Press (SHIFT). Only the stations with relatively strong signals will be tuned in.

Tip

If you know the frequency of the station you want to listen to, push the SEEK/AMS control up or down and hold until the desired frequency appears (manual tuning).

If FM stereo reception is poor

— Monaural Mode

1 During radio reception, press SHIFT, then press ③ (PLAY MODE) repeatedly until "MONO" appears.
2 Press (4) () repeatedly until "MONON" appears.

The sound improves, but becomes monaural ("ST" disappears).

3 Press SHIFT.

To return to normal mode, select "MONO-OFF" in step 2 above.

Changing the display item

Each time you press DSPL, the item changes as follows:

Frequency (Station Name)* Clock

• When you tune in an FM station that transmits RDS data, the station name appears (XR-5890R/ 5880R only).

After you select the desired item, the display will automatically change to the Motion Display mode after a few seconds.

In the Motion Display mode, all the above items are scrolled in the display one by one in order.

Tip

The Motion Display mode can be turned off. (See "Changing the sound and display settings" on page 17).

RDS (XR-5890R/5880R only)

Overview of the RDS function

Radio Data System (RDS) is a broadcasting service that allows FM stations to send additional digital information along with the regular radio programme signal. Your car stereo offers you a variety of services. Here are just a few: retuning the same programme automatically, listening to traffic announcements, and locating a station by programme type.

Notes

• Depending on the country or region, not all of the RDS functions are available.
• RDS may not work properly if the signal strength is weak or if the station you are tuned to is not transmitting RDS data.

Displaying the station name

The name of the current station lights up in the display.

Select an FM station (page 7).

When you tune in an FM station that transmits RDS data, the station name appears in the display.

F1

Note

The **indication means that an RDS station is being received.

Changing the display item

Each time you press DSPL, the item changes as follows:

Station Name (Frequency) Clock

After you select the desired item, the display will automatically change to the Motion Display mode after a few seconds. In the Motion Display mode, all the above items are scrolled in the display one by one in order.

Tip

The Motion Display mode can be turned off. (See "Changing the sound and display settings" on page 17).

Note

"NO NAME" appears if the received station does not transmit RDS data (XR-5890R/5880R only).

Retuning the same programme automatically

— Alternative Frequencies (AF)

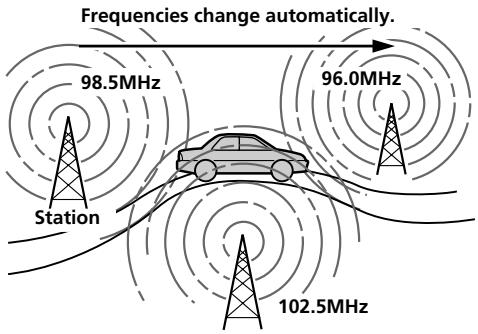

The Alternative Frequencies (AF) function automatically selects and retunes the station with the strongest signal in a network. By using this function, you can continuously listen to the same programme during a long-distance drive without having to retune the station manually.

1 Select an FM station (page 7).
2 Press / TA repeatedly until "AF-ON" appears.

The unit starts searching for an alternative station with a stronger signal in the same network.

Note

When there is no alternative station in the area and you do not need to search for an alternative station, turn the AF function off by pressing (AF/TA) repeatedly until "AF TA-OFF" appears.

Changing the display item

Each time you press AF/TA, the item changes as follows:

• Select this to turn on both the AF and TA functions.

Notes

• When "NO AF" and the station name flash alternately, it means that the unit cannot find an alternative station in the network.
• If the station name starts flashing after selecting a station with the AF function on, this indicates that no alternative frequency is available. Push the SEEK/AMS control up or down while the station name is flashing (within eight seconds). The unit starts searching for another frequency with the same PI (Programme Identification) data ("PI SEEK" appears and no sound is heard). If the unit cannot find another frequency, "NO PI" appears, and the unit returns to the previously selected frequency.

Listening to a regional programme

The "REG-ON" (regional on) function lets you stay tuned to a regional programme without being switched to another regional station. (Note that you must turn the AF function on.) The unit is factory preset to "REG-ON," but if you want to turn off the function, do the following.

1 During radio reception, press SHIFT, then press ③ (PLAY MODE) repeatedly until "REG" appears.
2 Press (4)() repeatedly until "REG-OFF" appears.
3 Press (SHIFT).

Note that selecting "REG-OFF" might cause the unit to switch to another regional station within the same network.

To return to regional on, select "REG-ON" in step 2 above.

Note

This function does not work in the United Kingdom and in some other areas.

Local link function (United Kingdom only)

The Local Link function lets you select other local stations in the area, even if they are not stored on your number buttons.

1 Press a number button that has a local station stored on it.
2 Within five seconds, press the number button of the local station again.
3 Repeat this procedure until the desired local station is received.

Listening to traffic announcements

The Traffic Announcement (TA) and Traffic Programme (TP) data let you automatically tune in an FM station that is broadcasting traffic announcements even if you are listening to other programme sources.

Press / TA repeatedly until "TA-ON" or "AF TA-ON" appears.

The unit starts searching for traffic information stations. "TP" appears in the display when the unit finds a station broadcasting traffic announcements. When the traffic announcement starts, "TA" flashes. The flashing stops when the traffic announcement is over.

Tip

If the traffic announcement starts while you are listening to another programme source, the unit automatically switches to the announcement and goes back to the original source when the announcement is over.

Notes

• "NO TP" flashes for five seconds if the received station does not broadcast traffic announcements. Then, the unit starts searching for a station that broadcasts it.
• When "EON" appears with "TP" in the display, the current station makes use of broadcast traffic announcements by other stations in the same network.

To cancel the current traffic announcement

Press AF/TA or SOURCE.

To cancel all traffic announcements, turn off the function by pressing AF/TA until "AF TA-OFF" appears.

Preseting the volume of traffic announcements

You can preset the volume level of the traffic announcements beforehand so you won't miss the announcement. When a traffic announcement starts, the volume will be automatically adjusted to the preset level.

1 Select the desired volume level.

2 Press AF/TA for two seconds.

"TA" appears and the setting is stored.

Receiving emergency announcements

If an emergency announcement comes in while you are listening to the radio, the programme will automatically switch to it. If you are listening to a source other than the radio, the emergency announcements will be heard if you set AF or TA to on. The unit will then automatically switch to these announcements no matter which source you are listening to at the time.

Presetting the RDS stations with the AF and TA data

When you preset RDS stations, the unit stores each station's data as well as its frequency, so you don't have to turn on the AF or TA function every time you tune in the preset station. You can select a different setting (AF, TA, or both) for individual preset stations, or the same setting for all preset stations.

Presetting the same setting for all preset stations

1 Select an FM band (page 7).
2 Press / TA repeatedly to select either "AF-ON," "TA-ON" or "AF TA-ON" (for both AF and TA functions). Note that selecting "AF TA-OFF" stores not only RDS stations, but also non-RDS stations.
3 Press SHIFT, then press 3 (PLAY MODE) repeatedly until "B.T.M" appears.
4 Press ④ () until "B.T.M" flashes.
5 Press SHIFT.

Preseting different settings for each preset station

1 Select an FM band, and tune in the desired station.
2 Press ( / TA) repeatedly to select either "AF-ON," "TA-ON" or "AF TA-ON" (for both AF and TA functions).
3 Press the desired number button and hold until "MEM" appears. Repeat from step 1 to preset other stations.

Tip If you want to change the preset AF and/or TA setting after you tune in the preset station, you can do so by turning the AF or TA function on or off.

Locating a station by programme type

You can locate the station you want by selecting one of the programme types shown below.

Programme types	Display
News	NEWS
Current Affairs	AFFAIRS
Information	INFO
Sports	SPORT
Education	EDUCATE
Drama	DRAMA
Culture	CULTURE
Science	SCIENCE
Varied	VARIED
Popular Music	POP M
Rock Music	ROCK M
Easy Listening	EASY M
Light Classical	LIGHT M
Classical	CLASSICS
Other Music Type	OTHER M
Weather	WEATHER
Finance	FINANCE
Children's Programmes	CHILDREN
Social Affairs	SOCIAL A
Religion	RELIGION
Phone In	PHONE IN
Travel	TRAVEL
Leisure	LEISURE
Jazz Music	JAZZ
Country Music	COUNTRY
National Music	NATION M
Oldies Music	OLDIES
Folk Music	FOLK M
Documentary	DOCUMENT
Not specified	NONE

Note

You cannot use this function in some countries where no PTY (Programme Type selection) data is available.

continue to next page

1 Press (PTY) during FM reception until "PTY" appears.

PTY INF

The current programme type name appears if the station is transmitting the PTY data. "----" appears if the received station is not an RDS station, or if the RDS data has not been received.

2 Press (PTY) repeatedly until the desired programme type appears.

The programme types appear in the order shown in the above table. Note that you cannot select "NONE" (Not specified) for searching.

PTY

3 Push the SEEK/AMS control up or down.

The unit starts searching for a station broadcasting the selected programme type. When the unit finds the programme, the programme type appears again for five seconds.

"NO" and the programme type appear alternately for five seconds if the unit cannot find the programme type. It then returns to the previously selected station.

Setting the clock automatically

The CT (Clock Time) data from the RDS transmission sets the clock automatically.

1 During radio reception, press SHIFT, then press 2 (SET UP) repeatedly until "CT" appears.

5E7

2 Press (4) () repeatedly until "CT-ON" appears.

The clock is set.

SET T

3 Press SHIFT to return to the normal display.

To cancel the CT function

Select "CT-OFF" in step 2 above.

Notes

• The CT function may not work even though an RDS station is being received.
• There might be a difference between the time set by the CT function and the actual time.

Other Functions

You can also control this unit with an optional rotary commander.

Labelling the rotary commander

Depending on how you mount the rotary commander, attach the appropriate label as shown in the illustration below.

Using the rotary commander

The rotary commander works by pressing buttons and/or rotating controls.

By pressing buttons (the SOURCE and MODE buttons)

Each time you press SOURCE, the source changes as follows:

TUNER TAPE

Pressing MODE changes the operation in the following ways;

• Tape: playback direction
• Tuner: FM1 FM2 FM3 MW LW

Tip

When the POWER SELECT switch is set to position ⑥, you can turn on this unit by pressing (SOURCE) on the rotary commander.

By rotating the control (the SEEK/AMS control)

Rotate the control and release it to:

• Locate the beginnings of tracks on the tape. Rotate and hold the control, and release it to fast-wind the tape. To start playback while fast-winding the tape, press MODE.
• Tune in stations automatically. Rotate and hold the control to find a specific station.

By pushing in and rotating the control (the PRESET/DISC control)

Push in and rotate the control to:

Receive the stations memorized on the number buttons.

Other operations

Rotate the VOL control to adjust the volume.

Changing the operative direction

The operative direction of controls is factory-set as shown below.

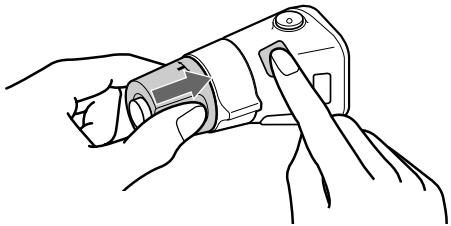

If you need to mount the rotary commander on the right hand side of the steering column, you can reverse the operative direction.

Press (SOUND) for two seconds while pushing the VOL control.

Tip You can also change the operative direction of these controls with the unit (see "Changing the sound and display settings" on page 17).

Adjusting the sound characteristics

You can adjust the bass, treble, balance, and fader.

You can store the bass and treble levels independently for each source.

1 Select the item you want to adjust by pressing SOUND repeatedly.

VOL (volume) BAS (bass) TRE (treble) BAL (left-right) FAD (front-rear)

2 Adjust the selected item by rotating the dial.

Adjust within three seconds after selecting the item. (After three seconds, the dial function reverts to volume control.)

Attenuating the sound

Press ATT on the optional rotary commander.

"ATT-ON" flashes momentarily.

To restore the previous volume level, press ATT again.

Tip

The unit decreases the volume automatically when a telephone call comes in (Telephone ATT function) (XR-5890R/4890 only).

Changing the sound and display settings

The following items can be set:

CLOCK (page 5).
- CT (Clock Time)* (page 14).
AMBER/GREEN - to change the illumination colour to amber or green.
- BEEP - to turn the beep sound on or off.
- RM (Rotary Commander) – to change the operative direction of the rotary commander.

• Select "NORM" to use the rotary commander as the factory-set position.
• Select "REV" when you mount the rotary commander on the right side of the steering column.
• M.DSPL - to turn the motion display on or off.

1 Press SHIFT.
2 Press (SET UP) repeatedly until the desired item appears.

Each time you press (2) (SET UP), the item changes as follows:

CLOCK CT* AMBER/GREEN BEEP RM M.DSPL

• XR-5890R/5880R only.

Note

The displayed item will differ depending on the source.

3 Press (4) () to select the desired setting (Example: ON or OFF).
4 Press SHIFT.

After the mode setting is complete, the display returns to normal playback mode.

Note

If the "SFT" indication appears, press SHIFT to complete the mode setting.

Boosting the bass sound

D-bass

You can enjoy a clear and powerful bass sound. The D-bass function boosts the low frequency signal with a sharper curve than conventional bass boost.

You can hear the bass line more clearly even while the vocal volume remains the same. You can emphasize and adjust the bass sound easily with the D-BASS control.

Adjusting the bass curve

Turn the D-BASS control to adjust the bass level (1, 2, or 3).

"D-BASS" appears in the display.

To cancel, turn the control to OFF.

Note

If the bass sound becomes distorted, adjust the D-BASS control or volume.

Additional Information

Precautions

• If your car was parked in direct sunlight resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it.
• If no power is being supplied to the unit, check the connections first. If everything is in order, check the fuse.
• If no sound comes from the speakers of a two-speaker system, set the fader control to the centre position.
• When the tape is played back for a long period, the cassette may become warm because of the built-in power amplifier. However, this is not a sign of malfunction.

If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.

To maintain high quality sound

If you have drink holders near your audio equipment, be careful not to splash juice or other soft drinks onto the car audio. Sugary residues on this unit or cassette tapes may contaminate the playback heads, reduce the sound quality, or prevent sound reproduction altogether.

Cassette cleaning kits cannot remove sugar from the tape heads.

Notes on Cassettes

Cassette care

• Do not touch the tape surface of a cassette, as any dirt or dust will contaminate the heads.
• Keep cassettes away from equipment with built-in magnets such as speakers and amplifiers, as erasure or distortion on the recorded tape could occur.
• Do not expose cassettes to direct sunlight, extremely cold temperatures, or moisture.
• Slack in the tape may cause the tape to be caught in the machine. Before you insert the tape, use a pencil or similar object to turn the reel and take up any slack.

Distorted cassettes and loose labels can cause problems when inserting or ejecting tapes. Remove or replace loose labels.

• The sound may become distorted while playing the cassette. The cassette player head should be cleaned after each 50 hours of use.

Cassettes longer than 90 minutes

The use of cassettes longer than 90 minutes is not recommended except for long continuous play. The tape used for these cassettes is very thin and tends to stretch easily. Frequent playing and stopping of these tapes may cause them to become entangled in the cassette deck mechanism.

Maintenance

Fuse replacement

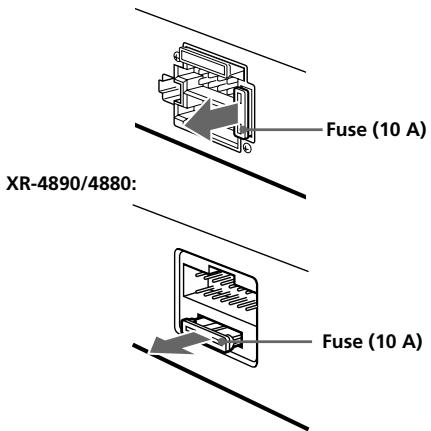

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

XR-5890R/5880R:

Warning

Never use a fuse with an amperage rating exceeding the one supplied with the unit as this could damage the unit.

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, open the front panel by pressing (RELEASE), then detach it and clean the connectors with a cotton swab dipped in alcohol. Do not apply too much force. Otherwise, the connectors may be damaged.

Main unit

Back of the front panel

Notes

• For safety, turn off the engine before cleaning the connectors and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or any metal device.

Dismounting the unit

1

2

3

4

Specifications

Cassette player section

Tape track

4-track 2-channel stereo

Wow and flutter

0.08% (WRMS)

Frequency response

30 - 18,000Hz

Signal-to-noise ratio

Cassette type

TYPE II, IV*	61 dB
TYPE I	58 dB

• XR-5890R/4890 only

Tuner section

FM

Tuning range

87.5-108.0MHz

Aerial terminal

External aerial connector

Intermediate frequency

10.7 MHz

Usable sensitivity

9 dBf

Selectivity

75 dB at 400 kHz

Signal-to-noise ratio

65 dB (stereo),

68 dB (mono)

Harmonic distortion at 1kHz

0.7% (stereo),

0.4% (mono)

Separation

35 dB at 1 kHz

Frequency response

30 - 15,000Hz

MW/LW

Tuning range

MW: 531 - 1,602 kHz

LW: 153 - 281 kHz

Aerial terminal

External aerial connector

Intermediate frequency

10.7 MHz/450 kHz

Sensitivity

MW: 30~ V

LW: 50~ V

Power amplifier section

Outputs

Speaker outputs

(sure seal connectors)

Speaker impedance

4-8ohms

Maximum power output

35W× 4 (at 4 ohms)

General

Outputs

Power aerial relay control lead

Telephone ATT control lead (XR-5890R/4890 only)

Tone controls

Bass ± 8 dB at 100Hz

Power requirements

Treble ± 8 dB at 10kHz

12 V DC car battery (negative earth)

Dimensions

Approx. 188× 58× 181mm (w / h / d)

Mounting dimensions

Approx. 182× 53× 164mm (w / h / d)

Mass

Approx. 1.2kg

Supplied accessories

Parts for installation and connections (1 set)

Front panel case (1)

Optional accessories

Rotary commander RM-X4S

Design and specifications are subject to change without notice.

Troubleshooting guide

The following checklist will help you remedy the problems you may encounter with your unit. Before going through the checklist below, check the connections and operating procedures.

General

Problem	Cause/Solution
No sound.	·Cancel the ATT function. ·Set the fader control to the centre position for two-speaker systems. ·Rotate the dial clockwise to adjust the volume.
The contents of the memory have been erased.	·The power cord or battery has been disconnected. ·The reset button was pressed. →Store again into the memory.
Indications do not appear in the display.	Remove the front panel and clean the connectors. See “Cleaning the connectors” (page 20) for details.

Tape playback

Problem	Cause/Solution
The sound is distorted.	The tape head is contaminated. →Clean the head with a commercially available dry-type cleaning cassette.
The AMS does not operate correctly.	·There is noise in the space between tracks. ·A blank space is too short (less than four seconds). ·The SEEK/AMS control was pushed up immediately before the following track. ·The SEEK/AMS control was pushed down immediately after the track starts. ·A long pause, or a passage of low frequencies or very low sound level is treated as a blank space.

Radio reception

Problem	Cause/Solution
Preset tuning is not possible.	Memorize the correct frequency. The broadcast signal is too weak.
Automatic tuning is not possible.	The broadcast signal is too weak. → Use manual tuning.
The "ST" indication flashes.	Tune in the frequency accurately. The broadcast signal is too weak. → Set to MONO mode (page 8).

RDS (XR-5890R/5880R only)

Problem	Cause/Solution
The SEEK starts after a few seconds of listening.	The station is non-TP or has a weak signal. →Press AF/TA repeatedly until “AF TA-OFF” appears.
No traffic announcements.	• Activate “TA.” • The station does not broadcast any traffic announcements despite being TP. →Tune to another station.
PTY displays “NONE.”	The station does not specify the programme type.

If the above-mentioned solutions do not help improve the situation, consult your nearest Sony dealer.

Bienvenido!

Agudos ±8 dB a 10 kHz

12 V CC (toma a tierra

negative)

Dimensiones

Aprox. 188× 58× 181mm

(an/al/prf)

RDS (galler XR-5890R/5880R)

2 Tryck paa (SHIFT).

1111

Klockan aktiveras.

3 Tryck pa _SHIFT

4 Tryck paa (SHIFT).

3 Tryck paa (SHIFT).

• endast XR-5890R/5880R

Fodral for lostagbar

frontpanel (1)

Valfria tillbehör

Vridkontroll RM-X4S

Ratt till andringar forbehalles.

Felsökning

RDS (somente XR-5890R/5880R)

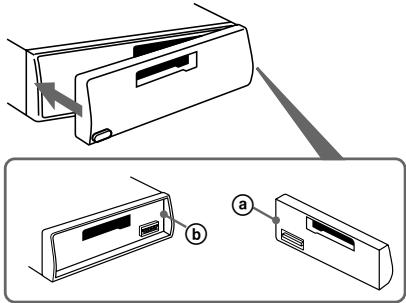

Colocar o paine frontal

Encaixe a parte 已 do painei frontal na parte 已 do aparelho como seigoa na figura e empurre o lado esquido ate ouvir um estalido que indica que está correctamente colocado.

Notas

RDS (somente XR-5890R/5880R)

$$ P T Y \quad S P Q R T $$

Distortion harmonica a 1 kHz

0,7% (estereo),

0,4% (mono)

35 dB a 1 kHz
