Product type	Multimedia car radio with touch screen
Brand and model	Sony XAVAX5550D
Dimensions (W × H × D)	Approx. 178 × 100 × 139 mm
Mounting dimensions (W × H × D)	Approx. 182 × 111 × 120 mm
Weight	Approx. 1.0 kg
Power supply	12 V DC (negative ground), consumption 10 A
Display	6.95 inches (176 mm) TFT color LCD, 800 × 480 pixels
Radio	FM (87.5-108 MHz), AM (531-1602 kHz), DAB/DAB+
Output power	55 W × 4 (max.) at 4 Ω
Audio inputs	Front, rear, subwoofer (RCA jacks)
USB ports	2 ports: USB 1 High Speed (1.5 A), USB 2 Full Speed (500 mA)
Bluetooth	Version not specified, Class 2, range ~10 m, profiles A2DP, AVRCP, HFP, PBAP
Main functions	Apple CarPlay, Android Auto, WebLink, Bluetooth music, hands-free calls, rear camera input
Manual languages	FR, DE, EN, ES, NL, SV, and others available
Maintenance and cleaning	Soft dry cloth; do not use solvents
Safety	Do not use while driving; video blocked if parking brake is released
Spare parts and repairability	10 A fuse; mounting screws provided; support via Sony dealer
General information	Made in Thailand; EU compliant; firmware update via USB key

Frequently Asked Questions - XAVAX5550D SONY

How do I pair my phone with the Sony XAVAX5550D car radio?

Press HOME, then touch Settings > Bluetooth > Bluetooth Connection > ON > Pairing. On your phone, search for Bluetooth devices and select 'XAVAX5550D'. If a code is requested, enter 0000.

How do I disable the demo mode?

Go to Settings > General > Demo and set to OFF. Press the back button twice to exit.

Can I connect a rear view camera to this car radio?

Yes, connect the camera (not supplied) to the CAMERA IN terminal. To display the image, press HOME then touch Rear cam. The image also appears automatically in reverse if the reverse wire is connected.

How to update the firmware?

Download the update from the Sony support site to a USB key. Plug the key into USB port 1, then follow the on-screen instructions. Do not remove the key during the update.

Why doesn't video display when driving?

For safety, video playback is blocked when the parking brake is not engaged. The message 'Video blocked for your safety.' appears. Park and set the parking brake to watch a video.

What audio formats are supported via USB?

The car radio reads audio files MP3, WMA, AAC, etc. (see manual for full list). The USB device must be formatted in FAT16/32. For details, refer to the specifications in the manual.

How to set the clock?

Press HOME, go to Settings > Date/Time and set the time manually or enable automatic synchronization via Bluetooth or radio.

The touch screen is not responding correctly, what to do?

Make sure to touch the screen with your fingertip, without gloves. Clean the screen with a soft dry cloth. Avoid moisture and sharp objects. If the problem persists, consult your Sony dealer.

Can I use a wired remote control with this device?

Yes, you can connect a wired remote control (not supplied) to the REMOTE IN terminal. Activate it by setting Direction control in General to Preset.

What to do if the device does not turn on?

Check that the 10 A fuse is not blown. Ensure the power cables (yellow constant, red switched, black ground) are properly connected. If the problem persists, contact your Sony dealer.

USER MANUAL XAVAX5550D SONY

To cancel the demonstration (Demo) display, see page 6.

For the connection/installation, see page 10.

For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use.

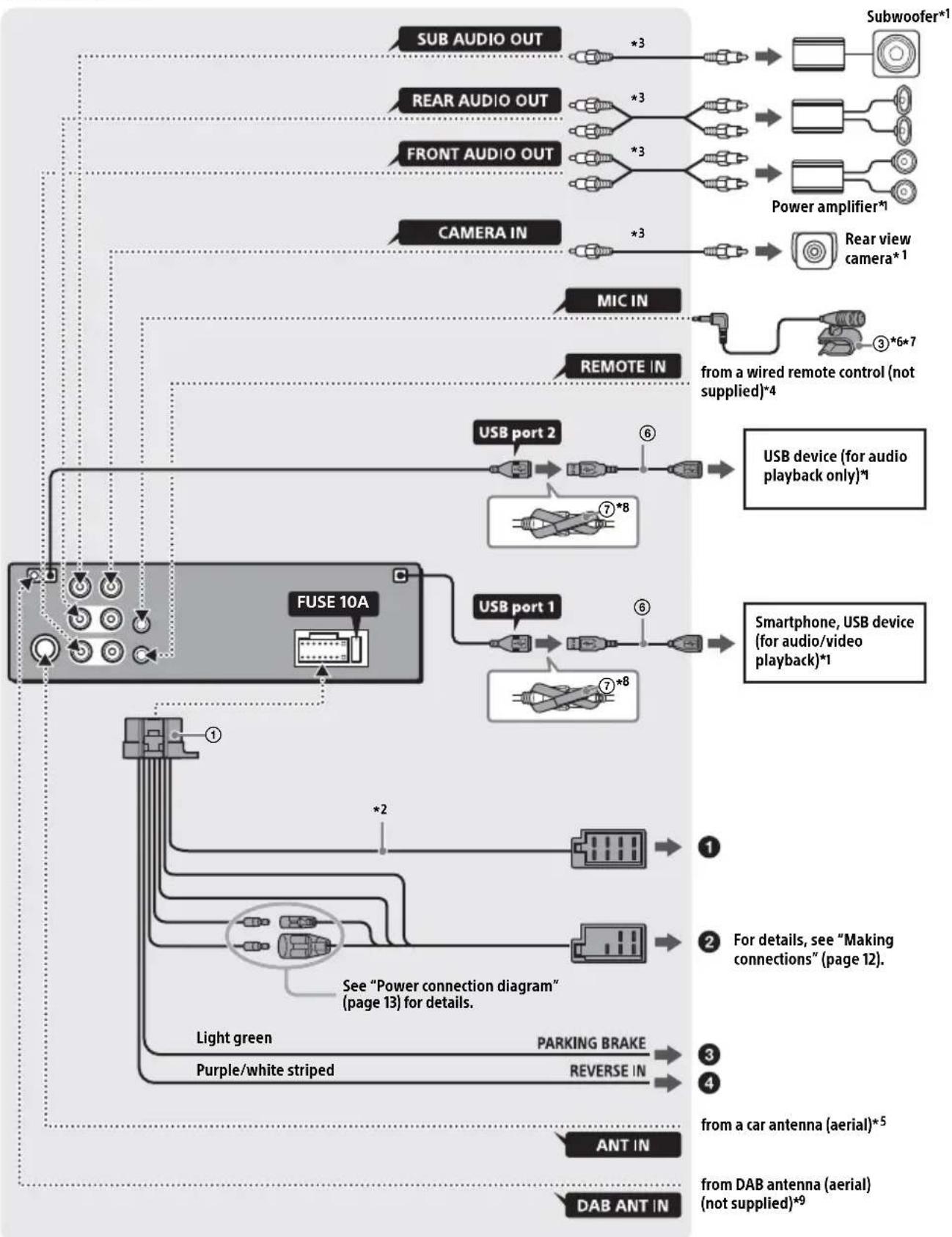

For details, see "Connection/Installation" (page 10).

Made in Thailand

The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.

The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area) and Switzerland.

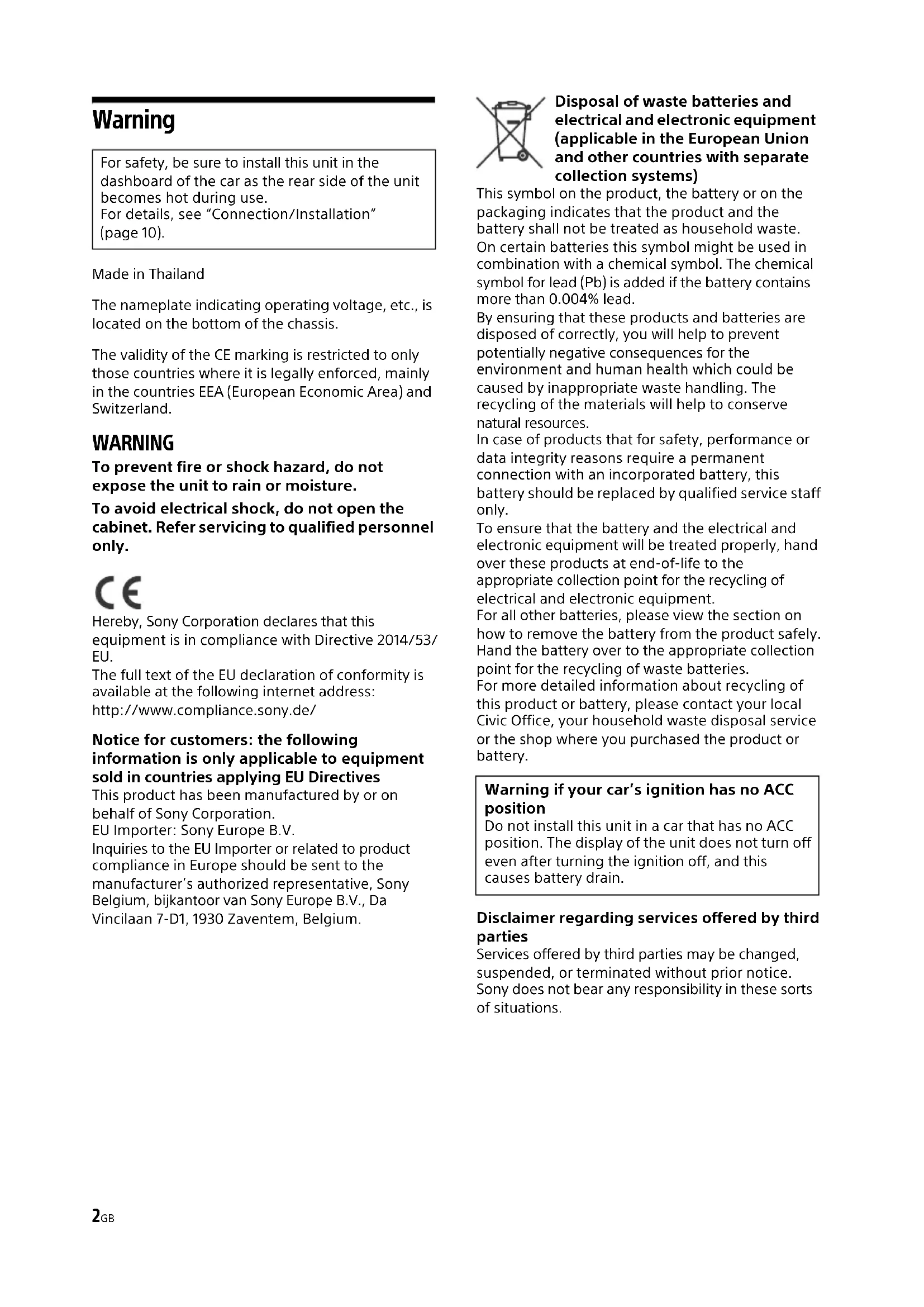

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

CE

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.compliance.sony.de/

Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives

This product has been manufactured by or on behalf of Sony Corporation.

EU Importer: Sony Europe B.V.

Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer's authorized representative, Sony

Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other countries with separate collection systems)

This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbol for lead (Pb) is added if the battery contains more than 0.004% lead.

By ensuring that these products and batteries are disposed of correctly, you will help to prevent potentially negative consequences for the environment and human health which could be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.

To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the appropriate collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the appropriate collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.

Warning if your car's ignition has no ACC position

Do not install this unit in a car that has no ACC position. The display of the unit does not turn off even after turning the ignition off, and this causes battery drain.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.

Important notice

Caution

IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER'S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.

Dear customer, this product includes a radio transmitter.

According to UNECE Regulation no. 10, a vehicle manufacturers may impose specific conditions for installation of radio transmitters into vehicles.

Please check your vehicle operation manual or contact the manufacturer of your vehicle or your vehicle dealer, before you install this product into your vehicle.

Emergency calls

This BLUETOOTH car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies).

On BLUETOOTH communication

- Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off this unit and other BLUETOOTH devices in the following locations, as it may cause an accident.

- where inflammable gas is present, in a hospital, train, airplane, or petrol station

- near automatic doors or a fire alarm

- This unit supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using BLUETOOTH wireless technology.

- We do not take any responsibility for the leakage of information during BLUETOOTH communication.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Guide to Parts and Controls

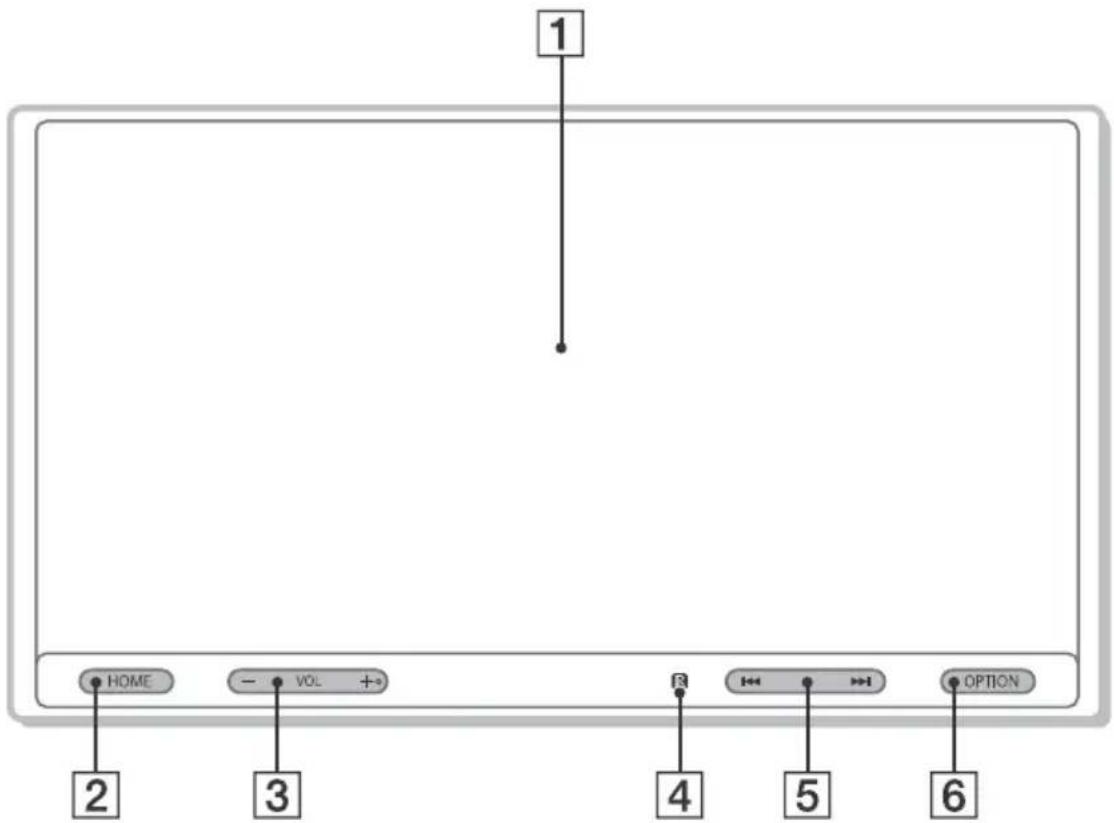

Main Unit

The VOL (volume) + button has a tactile dot.

1 Display/touch screen
2 HOME

Displays the HOME screen (page 5).

- ATT (attenuate)

Press and hold for 1 second to attenuate the sound.

To cancel, press and hold again, or press VOL +.

3 VOL (volume) +/-
4 Receptor for the remote commander

5 ◀◀◀ /▶▶◀ (previous/next)

Functions differently depending on the selected source:

• Radio/DAB+: select a preset station.
• USB/BT Audio: move to the previous/next file. Press and hold to:
• Radio: tune into a station automatically (SEEK+/SEEK-).
• DAB+: select a station (when [Seek By] is set to [A-Z])/search for a station (when [Seek By] is set to [Station Gp]).
• USB/BT Audio: fast-reverse/fast-forward.

6 OPTION

Displays the OPTION screen (page 5).

VOICE

Press and hold to activate the voice command function for Apple CarPlay and Android Auto™.

Screen displays

Playback screen:

HOME screen:

OPTION screen:

1 Status indication

ATT	Lights up when the sound is attenuated.
AF	Lights up when AF (Alternative Frequencies) is available.
TA	Lights up when the current traffic information (TA: Traffic Announcement) is available.
ANNC	Lights up when a DAB announcement is available.
DAB .I	Indicates the signal strength status of the DAB radio.
	Lights up when the Bluetooth® signal is on. Flashes when the connection is in progress.
	Lights up when the audio device is playable by enabling the A2DP (Advanced Audio Distribution Profile).
	Lights up when handsfree calling is available by enabling the HFP (Handsfree Profile).
	Indicates the signal strength status of the connected mobile phone.
	Indicates the remaining battery status of the connected mobile phone.

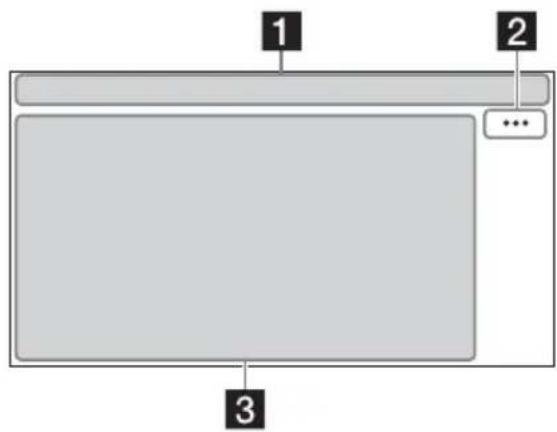

2 ..(source option)

Opens the source option menu. The available items differ depending on the source.

3 Application specific area

Displays playback controls/indications or show the unit's status. Displayed items differ depending on the source.

4 Clock

Displays the time which are set on the date/time setting.

5 (return to the playback screen)

Switches from the HOME screen to the playback screen.

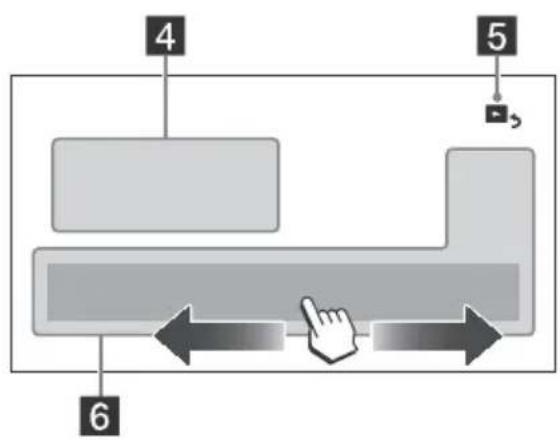

6 Sources and Settings select keys

Changes the source or make various settings. Flick to select the setting icon and other icons. Touch the source icon you want to select.

	Android Auto		Apple CarPlay		Radio
	DAB+ BT Audio iPhone
	USB port 1 Weblink USB port 2
	Rear Camera		Settings

7 Sound select keys

Changes the sound.

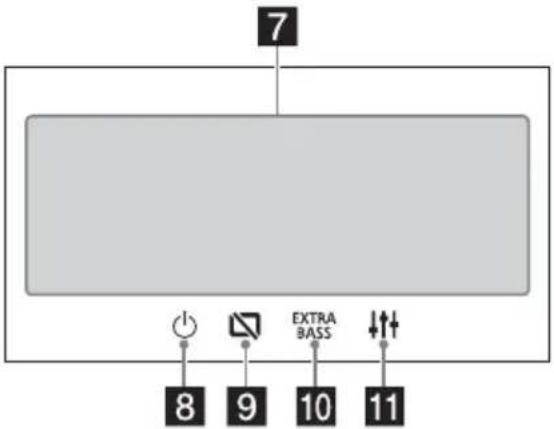

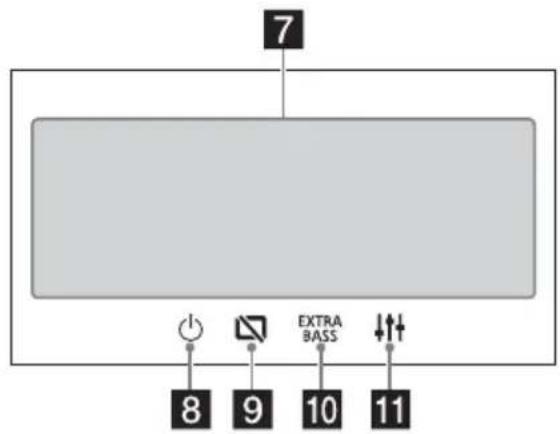

8 ⏻ (standby)

Turns the unit in standby mode (USB charging is still available). To resume, press any buttons.

9 (monitor off)

Turns off the monitor. When the monitor is turned off, touch any part of the display to turn it back on.

10 EXTRA BASS(EXTRA BASS)

Changes the EXTRA BASS setting.

11 ↓↑(EQ10/subwoofer)

Changes the EQ10/subwoofer setting.

Basic Operations

Pairing with a BLUETOOTH Device

When connecting a BLUETOOTH device for the first time, mutual registration (called "pairing") is required. Pairing enables this unit and other devices to recognize each other.

1 Press HOME, then touch [Settings] → [Bluetooth] → [Bluetooth Connection] → [ON] → [Pairing].
flashes while the unit is in pairing standby mode.

2 Perform pairing on the BLUETOOTH device so it detects this unit.

3 Select your model name shown on the display of the BLUETOOTH device*.

When pairing is made, stays lit.

* If passkey input is required on the BLUETOOTH device, input [0000].

Connecting Rear View Camera

By connecting the optional rear view camera to the CAMERA IN terminal, you can display the picture from the rear view camera. For details, see "Connection/Installation" (page 10).

To display the picture from the rear view camera

Press HOME, then touch [Rear Camera].

Canceling the Demonstration Mode

1 Press HOME, then touch [Settings].
2 Touch [General], then touch [Demo] to set to [OFF].
3 To exit the setup menu, touch (back) twice.

Updating the Firmware

To update the firmware, visit the support site on the back cover, then follow the online instructions.

Note

During the update, do not remove the USB device.

Additional Information

Precautions

•Power antenna (aerial) extends automatically.
- When you transfer ownership or dispose of your car with the unit installed, initialize all the settings to the factory settings by performing the factory reset.
- Do not splash liquid onto the unit.

Notes on safety

• Comply with your local traffic rules, laws, and regulations.
• While driving

- Do not watch or operate the unit, as it may lead to distraction and cause an accident. Park your car in a safe place to watch or operate the unit.

• Do not use the setup feature or any other function which could divert your attention from the road.
• When backing up your car, be sure to look back and watch the surroundings carefully for your safety even if the rear view camera is connected. Do not depend on the rear view camera exclusively.

- While operating

• Do not insert your hands, fingers, or foreign objects into the unit as it may cause injury or damage to the unit.
• Keep small articles out of the reach of children.
• Be sure to fasten seatbelts to avoid injury in the event of sudden movement of the car.

Preventing an accident

Pictures appear only after you park the car and set the parking brake.

If the car starts moving during video playback, the following caution is displayed and you cannot watch the video.

[Video blocked for your safety.]

Do not operate the unit or watch the monitor while driving.

Notes on LCD panel

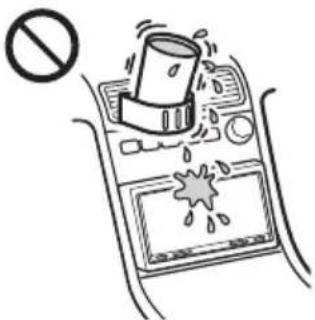

• Do not get the LCD panel wet or expose it to liquids. This may cause a malfunction.

• Do not press down hard on the LCD panel as doing so can distort the picture or cause a malfunction (i.e., the picture may become unclear or the LCD panel may be damaged

• Do not touch the panel with objects other than with your finger as it may damage or break the LCD panel.

• Clean the LCD panel with a dry soft cloth. Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray.
• Do not use the unit outside the temperature range 0^ to 40^ (32°F to 104°F).
• If your car was parked in a cold or hot place, the picture may not be clear. However, the monitor is not damaged and the picture will become clear after the temperature in your car becomes normal.
• Some stationary blue, red, or green dots may appear on the monitor. These are called "bright spots" and can happen with any LCD. The LCD panel is precision-manufactured with more than 99.99% of its segments functional. However, it is possible that a small percentage (typically 0.01% ) of the segments may not light up properly. This will not, however, interfere with your viewing.

Notes on the touch screen

• This unit uses a capacitive touch screen. Touch the screen directly with your fingertip.
• Multi-touch operation is not supported on this unit.
• Do not touch the screen with sharp objects such as a needle, pen, or fingernail. Operation with a stylus is not supported on this unit.
• Touching the screen with a gloved finger may cause the unit to operate incorrectly or not respond.
• Do not let any objects contact the touch screen. If the screen is touched by an object other than your fingertip, the unit may not respond correctly.
• Since glass material is used for the screen, do not subject the unit to strong shock. If cracking or chipping occurs on the screen, do not touch the damaged part as it may cause injury.
• Keep other electrical devices away from the touch screen. They may cause the touch screen to malfunction.
• If there are water droplets on the touch screen, or if you touch the screen with wet fingertips, the touch screen may not react correctly.

About iPhone

•Compatible iPhone models:

iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s

- Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with an Apple product may affect wireless performance.

Notice on license

This product contains software that Sony uses under a licensing agreement with the owner of its copyright. We are obligated to announce the contents of the agreement to customers under requirement by the owner of copyright for the software.

For details on software licenses, select [Settings] → [General] → [Open Source Licenses].

Notice on GNU GPL/LGPL applied software

This product contains software that is subject to the following GNU General Public License (hereinafter referred to as "GPL") or GNU Lesser General Public License (hereinafter referred to as "LGPL"). These establish that customers have the right to acquire, modify, and redistribute the source code of said software in accordance with the terms of the GPL or LGPL displayed on this unit.

The source code for the above-listed software is available on the Web.

To download, please access the following URL then select the model name "XAV-AX5550D."

URL: http://www.sony.net/Products/Linux/ Please note that Sony cannot answer or respond to any inquiries regarding the content of the source code.

If you have any questions or problems concerning your unit that are not covered in this Operating Instructions, consult your nearest Sony dealer.

Specifications

Monitor section

Display type: Wide LCD color monitor

Dimensions: 6.95 in/176 mm

System: TFT active matrix

Number of pixels:

1,152,000 pixels (800 × 3 (RGB) × 480)

Color system:

PAL/NTSC automatic select for CAMERA IN terminal

Radio section

DAB/DAB+

Tuning range: 174.928 MHz - 239.200 MHz

Antenna (aerial) terminal:

External antenna (aerial) connector

FM

Tuning range: 87.5 MHz - 108.0 MHz

Usable sensitivity: 7 dBf

Signal-to-noise ratio: 70 dB (mono)

Separation at 1 kHz: 45 dB

AM

Tuning range: 531 kHz - 1,602 kHz

Sensitivity: 32 μV

USB player section

Interface:

USB port 1 (Hi-speed)

USB port 2 (Full-speed)

Maximum current:

USB port 1: 1.5 A

USB port 2: 500 mA

Wireless communication

Communication System:

BLUETOOTH Standard version 3.0

Output:

BLUETOOTH Standard Power Class 2

(Max. Conducted +1 dBm)

Maximum communication range*1:

Line of sight approx. 10 m (33 ft)

Frequency band:

2.4 GHz band (2.4000 GHz - 2.4835 GHz)

Modulation method: FHSS

Compatible BLUETOOTH Profiles ^2 :

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.3

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile) 1.1

Corresponding codec: SBC, AAC

*1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna (aerial)'s performance, operating system, software application, etc.
*2 BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.

Power amplifier section

Outputs: Speaker outputs

Speaker impedance: 4 Ω – 8 Ω

Maximum power output: 55 W × 4 (at 4 Ω)

General

Power requirements: 12 V DC car battery (negative ground (earth))

Rated current consumption: 10 A

Dimensions:

Approx. 178 mm × 100 mm × 139 mm

(71/8 in × 4 in × 5 1/2 in) (w/h/d)

Mounting dimensions:

Approx. 182 mm × 111 mm × 120 mm

(71/4 in × 4 3/8 in × 4 3/4 in) (w/h/d)

Mass: Approx. 1.0 kg (2 lb 4 oz)

Package contents:

Main unit (1)

Parts for installation and connections (1 set)

Ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Copyrights

The Bluetooth ^® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Apple and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. Apple CarPlay is a trademark of Apple Inc.

Android Auto is a trademark of Google LLC.

WebLink is a registered trademark of Abalta Technologies, Inc. in the U.S. and a trademark in the other countries.

All other trademarks are trademarks of their respective owners.

Connection/Installation

Cautions

• Do not install this unit in a car that has no ACC position. The display of the unit does not turn off even after turning the ignition off, and this causes battery drain.
• Run all ground (earth) leads to a common ground (earth) point.
• Do not get the leads trapped under a screw or caught in moving parts (e.g., seat railing).
• Before making connections, turn the car ignition off to avoid short circuits.
• Connect the power supply leads ① to the unit and speakers before connecting it to the auxiliary power connector.
• Be sure to insulate any loose unconnected leads with electrical tape for safety.
• Choose the installation location carefully so that the unit will not interfere with normal driving operations.
• Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
• Use only the supplied mounting hardware for a safe and secure installation.

Note on the power supply lead (yellow)

When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.

Note on installing in cars with a start-stop system

The unit may restart when starting the engine from start-stop. In this case, turn off the start-stop system of your car.

Note on installing in cars with electric parking brake system

For cars with electric parking brakes, some related functions (such as video blocking function) may not work properly.

Mounting angle adjustment

Adjust the mounting angle to less than 30^ .

Parts List for Installation

① Power supply leads (1)

② Mounting screws (5 × max. 9 mm (7/32 × max. 3/8 in)) (4)

③ Microphone (1)

④ Flat-mount base (1)

⑤ Double-sided tape (1)

⑥ USB extension cables (2)

⑦ Cable ties (2) ⑧ Mounting sleeve (1)

⑨ Trim ring (1)

⑩ Release keys (2)

• This parts list does not include all the package contents.
• The mounting sleeve ⑧ is attached to the unit before shipping. Before mounting the unit, use the release keys ⑩ to remove the mounting sleeve ⑧ from the unit. For details, see "Removing the mounting sleeve" (page 14).
• Keep the release keys ⑩ for future use as they are also necessary if you remove the unit from your car.

Connection

*1 Not supplied
*2 Speaker impedance: 4 Ω to 8 Ω × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a wired remote control (not supplied). For details on using the wired remote control, see "Using the wired remote control" (page 13).
*5 Depending on the type of car, use an adaptor (not supplied) if the antenna (aerial) connector does not fit.
*6 Whether in use or not, route the microphone input cord so it does not interfere with driving operations. Secure the cord with a clamp, etc., if it is installed around your feet.
*7 For details on installing the microphone, see "Installing the microphone" (page 13).

*9 Set [Antenna Power] to [ON] (default) or [OFF] depending on the type of DAB antenna (aerial) (not supplied). Max. supply current 0.1 A

Making connections

If you have a power antenna (aerial) without a relay box, connecting this unit with the power supply leads ① may damage the antenna (aerial).

① To the car's speaker connector

1	Rear speaker(right)	⊕	Purple
2		⊖	Purple/blackstriped
3	Front speaker(right)	⊕	Gray
4		⊖	Gray/black striped
5	Front speaker(left)	⊕	White
6 ⊕			White/blackstriped
7	Rear speaker(left)	⊕	Green
8 ⊕			Green/blackstriped

② To the car's power connector

12	continuous power supply	Yellow
13	power antenna (aerial) / power amplifier control (REM OUT)	Blue/white striped
14	switched illumination power supply	Orange/white striped
15	switched power supply Red
16	ground (earth) Black

③ To the parking brake switch lead

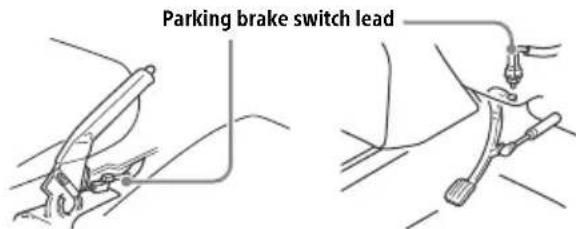

The mounting position of the parking brake switch lead depends on your car. Be sure to connect the parking brake lead (light green) of the power supply leads ① to the parking brake switch lead.

Hand brake type Foot brake type

4 To the +12 V power terminal of the car's rear lamp lead (only when connecting the rear view camera)

Memory hold connection

When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.

Speaker connection

• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 and with adequate power handling capacities to avoid damage.

Power connection diagram

Check your car's auxiliary power connector and match the connections of leads correctly depending on the car.

Auxiliary power connector

Common connection

12	continuous power supply	Yellow
15 s	switched power supply Red

When the positions of the red and yellow leads are inverted

12 s	switched power supply Yellow
15	continuous power supply	Red

For cars without ACC position

After matching the connections and switching power supply leads correctly, connect the unit to the car's power supply. If you have any questions and problems connecting your unit that are not covered in this manual, consult the car dealer.

Installing the microphone

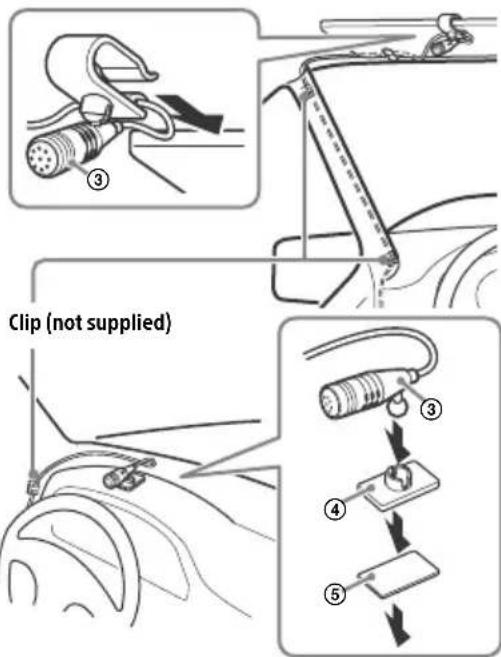

To capture your voice during handsfree calling, you need to install the microphone ③.

Cautions

• It is extremely dangerous if the cord becomes wound around the steering column or gearstick. Be sure to keep it and other parts from interfering with your driving operations.
• If airbags or any other shock-absorbing equipment are in your car, contact the store where you purchased this unit or the car dealer before installation.

Notes

• When mounting on the dashboard, remove the visor clip carefully from the microphone ③, then attach the flat-mount base ④ to the microphone ③.
• Before attaching the double-sided tape ⑤, clean the surface of the dashboard with a dry cloth.

Using the wired remote control

1 To enable the wired remote control, set [Steering Control] in [General] to [Preset].

Using the rear view camera

Installation of the rear view camera (not supplied) is required before use.

The picture from a rear view camera connected to the CAMERA IN terminal is displayed when:

• the back lamp of your car lights up (or the shift lever is set to the R (reverse) position).
• you press HOME, then touch [Rear Camera].

Installation

Removing the mounting sleeve

Before installing the unit, remove the mounting sleeve ⑧ from the unit.

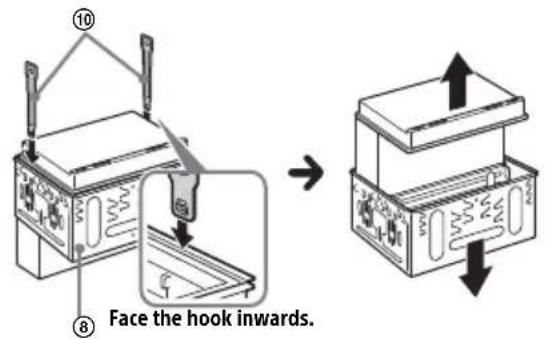

1 Insert both release keys ⑩ until they click, and pull down the mounting sleeve ⑧, then pull up the unit to separate.

Mounting the unit in the dashboard

• Before installing, make sure the catches on both sides of the mounting sleeve ⑧ are bent inwards 3.5 mm (5/32 in).
• For Japanese cars, see "Mounting the unit in a Japanese car" (page 14).

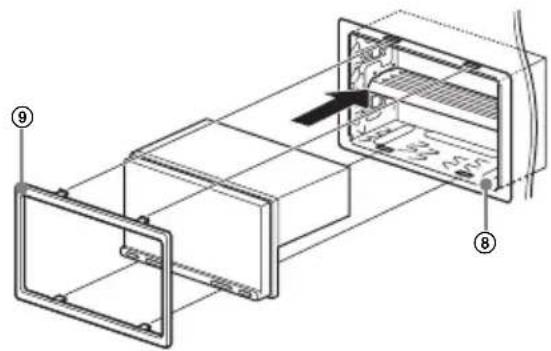

1 Position the mounting sleeve ⑧ inside the dashboard, then bend the claws outward for a tight fit.

2 Mount the unit onto the mounting sleeve ⑧.

Notes

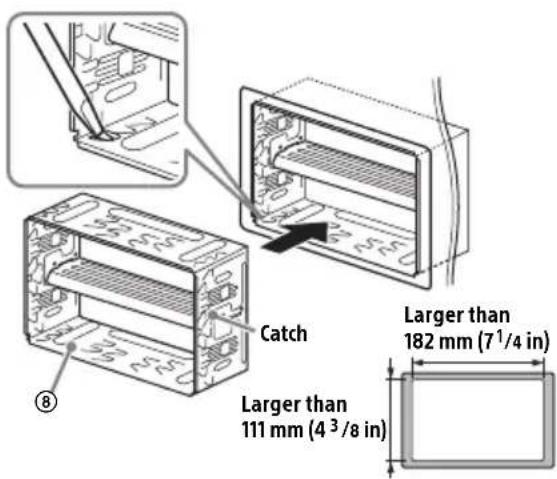

• If the catches are straight or bent outwards, the unit will not be installed securely and may spring out.
• Make sure the 4 catches on the trim ring ⑨ are properly engaged in the slots of the mounting sleeve ⑧.

Mounting the unit in a Japanese car

You may not be able to install this unit in some Japanese cars. In such a case, consult your Sony dealer.

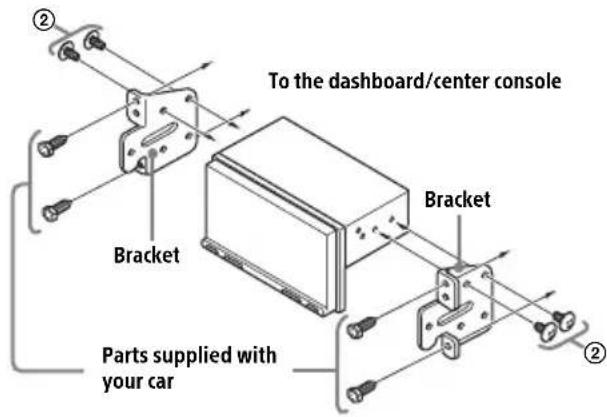

When mounting this unit to the preinstalled brackets of your car, use the mounting screws ② in the appropriate screw holes based on your car: T for TOYOTA and N for NISSAN.

Simple line drawing of a rectangular object with circular holes and a side panel (no text or symbols)

Note

To prevent a malfunction, install only with the mounting screws ②.

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case nearest Sony dealer.

Fuse (10 A)

Avertissement

Écran HOME :

Écran OPTION :

174,928 MHz - 239,200 MHz

Borne d'antenne :

Norme BLUETOOTH version 3.0

Puissance :

Appareil principal (1)

Raccordement/Installation

Attention

Attention

Technical line drawing of a device housing assembly with internal components (no text or symbols)

Remarques

Simple line drawing of a rectangular object with circular holes and a small protrusion, no text or symbols present.

Remarque

HOME-Bildschirm:

OPTION-Bildschirm:

1 Statusanzeige

USB port 1 (Hi-Speed)

USB port 2 (Full-Speed)

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.3

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile) 1.1

Hinweise

Pure electrical circuit lines without any symbols

Hinweis

Pantalla HOME:

Pantalla OPTION:

174,928 MHz - 239,200 MHz

Notas

Simple line drawing of a vertical panel with circular holes and a handle (no text or symbols)

Nota

HOME-scherm:

OPTION-scherm:

1 Statusaanduiding

[Video blocked for your safety.]

Opmerking over licenties

USB port 1 (Hi-speed)

USB port 2 (Full-speed)

Maximale stroom:

USB port 1: 1,5 A

USB port 2: 500 mA

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.3

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile) 1.1

Overeenkomstige codec: SBC, AAC

Opmerkingen

Simple line drawing of a vertical panel with circular holes and a handle (no text or symbols)

Opmerking

HOME-skärm:

OPTION-skärm:

1 Statusindikator

[Video blocked for your safety.]

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.3

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile) 1.1

Motsvarande kodec: SBC, AAC

Obs!

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Obs!

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.compliance.sony.de/

Eesti keel

If you have any questions or for the latest support information on this product, please visit the web site below:

Support-Website

https://www.sony.eu/support

For more details, please visit the following web site and refer to your unit name as shown below.

https://rd1.sony.net/help/ev/xav-ax55/h_zz

Made for

iPhone

Bluetooth®
