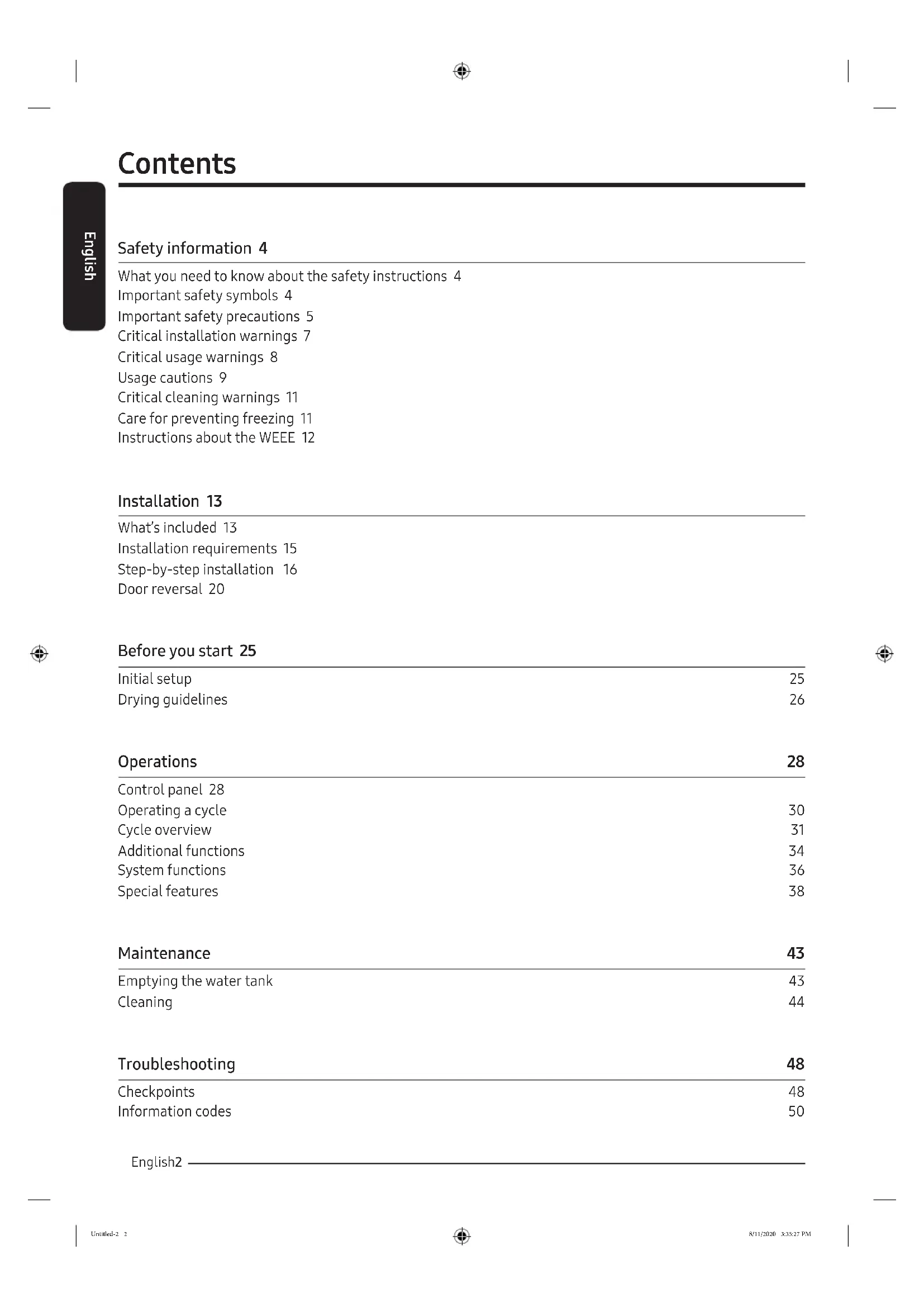

Fabric care chart 51 Protecting the environment 52 Specification 53 Contact information 54

QUESTIONS OR COMMENTS? 54

Untitled-2 3 8/11/2020 3:35:27 PMEnglish English4 Safety information Congratulations on your new Samsung dryer. This manual contains important information on the installation, use, and care of your appliance. Please take the time to read this manual to take full advantage of your dryer’s many benefits and features. What you need to know about the safety instructions Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to caution and care when installing, maintaining, or operating your dryer. Always contact your manufacturer about problems or conditions you do not understand. Important safety symbols What the icons and signs in this user manual mean: WARNING Hazards or unsafe practices that may result in severe personal injury, death and/or property damage. CAUTION Hazards or unsafe practices that may result in personal injury and/or property damage. NOTE Indicates that a risk of personal injury or material damage exists. Read the instructions These warning signs are here to prevent injury to yourself and others. Please follow them explicitly. After reading this manual, store it in a safe place for future reference. Read all instructions before using the appliance. As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate this appliance, familiarize yourself with its operation and exercise care when using it. WARNING Risk of Fire

• Clothes dryer installation must be performed by a qualified technician.

• Install the clothes dryer according to the manufacturer’s instructions and local codes.

• To reduce the risk of severe injury or death, follow all installation instructions. Untitled-2 4 8/11/2020 3:35:29 PMEnglish English 5 Important safety precautions WARNING To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. This appliance is not to be used by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. For use in Europe: This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

3. Children should be supervised to ensure that they do not play with the

4. If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

5. The new hose-sets supplied with the appliance are to be used and that old hose-

sets should not be reused.

6. For appliances with ventilation openings in the base, that a carpet must not

obstruct the openings.

7. For use in Europe: Children of less than 3 years should be kept away unless

continuously supervised.

8. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal

cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

9. The tumble dryer is not to be used if industrial chemicals have been used for

cleaning. Untitled-2 5 8/11/2020 3:35:29 PMEnglish Safety information English6

10. The lint trap has to be cleaned frequently, if applicable.

11. Lint must not to be allowed to accumulate around the tumble dryer. (not

applicable for appliances intended to be vented to the exterior of the building)

12. Adequate ventilation has to be provided to avoid the back flow of gases into the

room from appliances burning other fuels, including open fires.

13. Do not dry unwashed items in the tumble dryer.

14. Items that have been soiled with substances such as cooking oil, acetone,

alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

15. Items such as foam rubber (latex foam), shower caps, waterproof textiles,

rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

16. Fabric softeners, or similar products, should be used as specified by the fabric

softener instructions.

17. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to

ensure that the items are left at a temperature that ensures that the items will not be damaged.

18. Remove all objects from pockets such as lighters and matches.

19. WARNING: Never stop a tumble dryer before the end of the drying cycle unless

all items are quickly removed and spread out so that the heat is dissipated.

20. Exhaust air must not be discharged into a flue which is used for exhausting

fumes from appliances burning gas or other fuels.

21. The appliance must not be installed behind a lockable door, a sliding door or a

door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

22. WARNING: The appliance must not be supplied through an external switching

device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility. Untitled-2 6 8/11/2020 3:35:29 PMEnglish English 7 Heat pump model only: The instructions shall also include the substance of the following:

WARNING: In the appliance enclosure or in the built-in structure, keep

ventilation openings clear of obstruction.

WARNING: Do not damage the refrigerant circuit.

Critical installation warnings WARNING The installation of this appliance must be performed by a qualified technician or service company.

• Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury. Plug the power cord into a wall socket and use the socket for this appliance only. In addition, do not use an extension cord.

• Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or fire.

• Ensure that the power voltage, frequency and current are the same as those of the product specifications. Failure to do so may result in electric shock or fire. Failure Plug the power plug into the wall socket firmly. Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

• Unplug the power plug and clean it with a dry cloth.

• Failure to do so may result in electric shock or fire. Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

• If a child places a bag over its head, it may result in suffocation. This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

• This may result in electric shock, fire, an explosion, or problems with the product

• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes. Do not install or keep the product exposed to the outdoor elements. Do not use a damaged power plug, damaged power cord or loose wall socket.

• This may result in electric shock or fire. If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified technician in order to avoid a hazard. This appliance should be positioned to be accessible to the power plug after installation. Do not pull or excessively bend the power cord. Do not twist or tie the power cord. Untitled-2 7 8/11/2020 3:35:30 PMEnglish Safety information English8 Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• This may result in electric shock or fire. Do not pull the power cord, when unplugging the power plug.

• Unplug the power plug by holding the plug.

• Failure to do so may result in electric shock or fire. This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded adequately and in accordance with local and national codes. See installation instructions for grounding this appliance. Install this appliance in a location with solid, level floor.

• Failing to do so may result in abnormal vibrations, noise or problems with the product. Since an ingredient in hair spray may degrade the hydrophile property of the heat exchanger so that dew may appear on the outer surface of the appliance when the cooling operation is running, do not install the appliance in a beauty salon. This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are accessible. Critical usage warnings WARNING Do not let children or pets on or into the product. In addition, when disposing of this product, disassemble the door lock (lever).

• This may result in children falling and injuring themselves.

• If children become locked in the product, there is a danger of suffocation. Do not try to access the inside of the product when the drum is rotating. Do not sit on the product or lean against the door.

• This may result in the product turning over and resulting in injury. Dry the laundry only after it was spun by an appropriate washing machine. Do not dry unwashed items in the tumble dryer. Do not drink the condensed water. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. Do not dry laundry contaminated by inflammable materials such as gasoline, kerosene, benzene, thinner, alcohol, etc.

• This may result in electric shock, fire or explosion. Do not let pets chew or play with the dryer.

• This may result in electric shock or injury. When disposing of the product, separate the door and the power cord before disposing of the product.

• Failing to do so may result in damage to the power code or an injury. Untitled-2 8 8/11/2020 3:35:30 PMEnglish English 9 Do not touch the power plug with wet hands.

• This may result in electric shock. When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the power cord, ventilate immediately.

• At this time, do not use the ventilating fan.

• A spark may cause an explosion or fire. Do not repair, replace, or attempt to service any part of the appliance unless specifically recommended in the user-repair instructions. You must also have the skills necessary to service this appliance. Do not attempt to repair, disassemble, or modify the appliance yourself.

• Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.

• When repairing or reinstalling the appliance is required, contact your nearest service center.

• Failure to do so may result in electric shock, fire, problems with the product, or injury. The product you have purchased is designed for domestic use only. The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse. If the product generates strange noise, smells of something burning, or generates smoke, immediately cut- off the power and contact the service center.

• Otherwise, it may cause an electric shock or fire as a result. Do not let children (or pets) play in or on your product. The product door does not open easily from the inside and children may be seriously injured if trapped inside. Usage cautions CAUTION Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

• This may result in electric shock, fire, problems with the product, or injury. Do not touch the glass door and inside of the drum during or just after drying as it is hot.

• This may result in burns. The door glass becomes hot during drying. Therefore, do not touch the door glass. Also, do not allow children to play around the dryer or touch the door glass.

• This may result in burns. Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.

• This may result in electric shock or injury. Do not dry laundry containing forming rubber (latex) or similar rubber textures.

• If forming rubber is heated, it may start a fire. Untitled-2 9 8/11/2020 3:35:30 PMEnglish Safety information English10 Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the oil will not be removed when washing the laundry. In addition, use the unheated dry cycle so that the laundry is not heated.

• The oxidization heat of the oil may start a fire. Do not dry laundry contaminated by foreign substances such as oil, cream, lotion, or other chemicals that are used in places such as skincare room, massage parlor, beauty salon, or hospital.

• This may result in electric shock, fire, malfunction, and injury. Make sure that the pockets of all clothing to be dried are empty.

• Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance. Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks and eyelets, button-up covers). If necessary, use the laundry net for small and lightweight laundry such as fabric tie belt, apron strings, and underwire bras which can dissolve or break during a cycle. Dryer sheets are compatible with this model, and are recommended for better drying performance. Dryer sheets are also beneficial in reducing the static electricity generated during a drying cycle. Static electricity could lead to damage of laundry items and potentially the appliance. Do not use the dryer near dangerous powders such as coal dust, wheat flour, etc.

• This may result in electric shock, fire or an explosion. Do not place inflammable materials near the product.

• This may result in toxic gases from the product, damage to parts, electric shock, fire or an explosion.

• The appliance should not be placed behind lockable doors etc. Do not touch the rear side of the appliance during or immediately after drying is complete.

• The appliance remains hot and may cause burns. Untitled-2 10 8/11/2020 3:35:30 PMEnglish English 11 Critical cleaning warnings WARNING Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner or alcohol to clean the appliance.

• This may result in discoloration, deformation, damage, electric shock or fire. Before cleaning or performing maintenance, unplug the appliance from the wall socket.

• Failure to do so may result in electric shock or fire. Clean the filter case before and after using the dryer. Clean the inside of the product on a regular basis by asking an authorized service engineer. Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month, Do not touch the heat exchanger with your hand. Otherwise, it may cause an injury. The interior of the dryer should be cleaned periodically by qualified service personnel. Care for preventing freezing

• Install the dryer in an area where the temperature does not drop below zero degree Celsius.

• If draining directly using a long drain hose, water remaining inside the hose can freeze in winter. Make sure there is no water left inside the hose after use.

• If the drain hose has frozen, wrap the hose with a towel soaked in warm water for approximately ten minutes to thaw it. Untitled-2 11 8/11/2020 3:35:30 PMEnglish Safety information English12 Instructions about the WEEE Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product regulatory obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via www.samsung.com Untitled-2 12 8/11/2020 3:35:31 PMEnglish English 13 Installation What’s included Carefully unpack the dryer. Keep all packaging materials away from children. The parts and location of parts shown below may differ from your dryer. Before installation, make sure the dryer has all the parts listed here. If the dryer and/or parts are damaged or missing, contact the nearest Samsung customer service center. Dryer at a glance

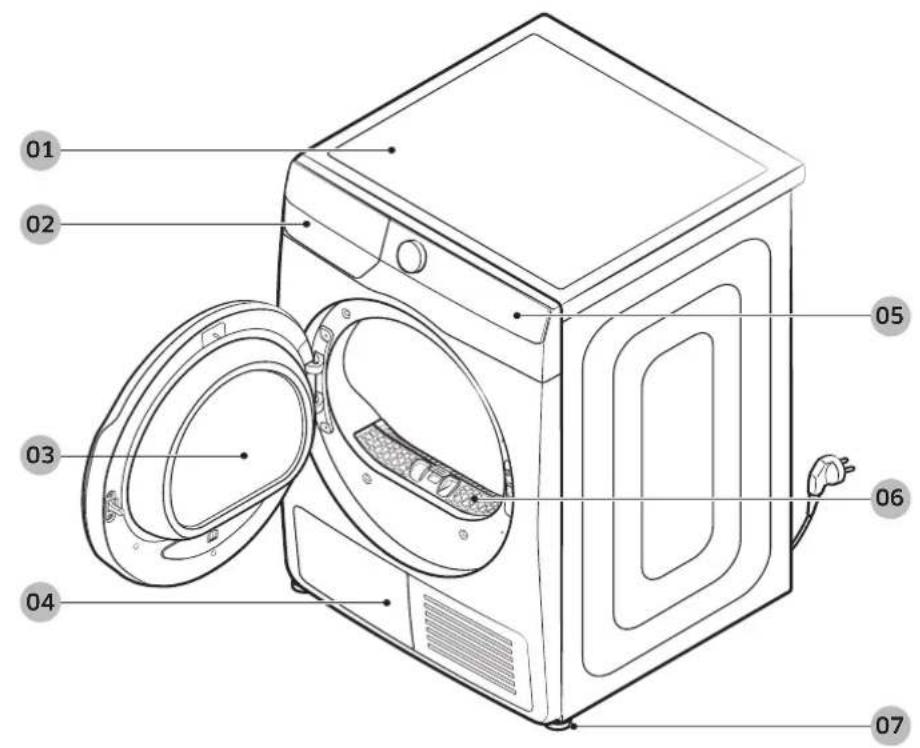

01 Top cover 02 Water tank 03 Door 04 Heat exchanger 05 Control panel 06 Lint filter 07 Levelling leg Untitled-2 13 8/11/2020 3:35:32 PMEnglish Installation English14 Accessories (supplied) Hose guide Cable tie Hose connector Long drain hose (2 m) User manual Drying rack (applicable models only) Cleaning brush Accessories (not supplied) Stacking kit bracket (Part # SK-DH; SK-DA; SKK-DF) NOTE

• For stacking instructions with the dryer, see the installation manual included in the stacking kit.

• For information on which stacking kit model you can use to stack your dryer on the washing machine, see the user manual included in your Samsung washing machine. Untitled-2 14 8/11/2020 3:35:37 PMEnglish English 15 Installation requirements NOTE This dryer must be installed by a qualified installer. If service is required due to poor or faulty installation, it is considered the owner’s responsibility and may void the warranty. Keep these instructions for future reference. WARNING

• Do not plug the power cord into a wall outlet before the dryer is completely installed.

• Have two or more persons help move the dryer.

• Do not let children or pets play in, on, or around the dryer. Proper supervision is necessary at all times.

• Keep all packaging materials away from children.

• Do not replace a damaged power cord or power plug yourself. Have Samsung or a qualified service technician replace a damaged power cord or power plug.

• Do not attempt to repair, disassemble, or modify the dryer. For any repairs, contact the nearest Samsung service center.

• Remove the door/lids from all discarded appliances to avoid children from suffocating.

• If the dryer generates a strange noise, burning smells, or smoke, unplug the power plug immediately and contact the nearest Samsung service center.

• Do not unplug the dryer while it is operating.

• Do not place flammable objects near the dryer. Electrical and grounding requirements

• The dryer requires an AC 220-240 V / 50 Hz electrical supply.

• The dryer must be properly grounded. If the dryer malfunctions or breaks down, grounding reduces the risk of electric shock by providing a path of least resistance for the electric current. The dryer comes with a power cord that has a 3-prong grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

• If you have any questions regarding the electrical or grounding requirements, please contact Samsung or a qualified electrician. WARNING

• Plug the power cord into a grounded, 3-prong outlet.

• Do not use a damaged power plug, cord, or loose or damaged wall outlet.

• Do not use an adapter or an extension cord.

• Improper connection of the equipment-grounding conductor may result in electric shock. If you are unsure if the dryer is properly grounded, check with a qualified electrician.

• Do not modify the power plug, power cord, or power outlet in any way.

• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes. Untitled-2 15 8/11/2020 3:35:37 PMEnglish Installation English16 Alcove or closet installation For alcove or closet installation, the dryer requires the following minimum clearances: Sides Top Front Rear 25 mm 25 mm 490 mm 50 mm If installing the dryer with a washing machine, the front of the alcove or closet must have an unobstructed air opening of at least 550 mm. Step-by-step installation Before you install your dryer, make sure you have read Installation requirements on page 15. STEP 1 Select a location Location requirements Select a level, well-constructed surface that will withstand vibrations. Select a location where a grounded, 3-prong outlet is easily accessible. For convenience, consider installing the dryer next to your washing machine. WARNING

• Install the dryer indoors only.

• Do not install the dryer in areas exposed to the weather.

1. Gently slide the dryer into the desired location.

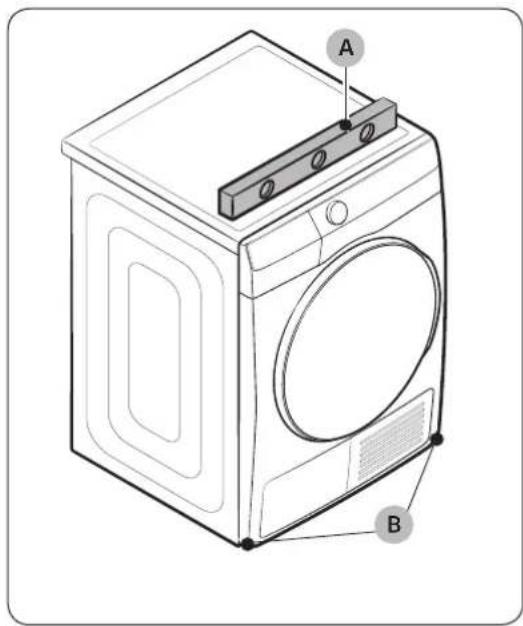

2. Use a level (A) and check the levelness of the dryer

from side to side and front to back.

3. If the dryer is not level, turn the levelling feet (B)

left or right to adjust the height.

4. Once the dryer is level, make sure the dryer stands

firmly on the floor.

5. Plug in the dryer.

• To set the dryer to the same height as the washing machine, turn the levelling feet to the right until it fully retracts (C). Then, turn the levelling feet to the left to extend (D) it until the dryer and the washing machine are the same height.

• Extend the levelling leg only as much as necessary. Extending the levelling leg more than necessary can cause the dryer to vibrate. Untitled-2 17 8/11/2020 3:35:39 PMEnglish Installation English18 STEP 3 Connect the drain hose

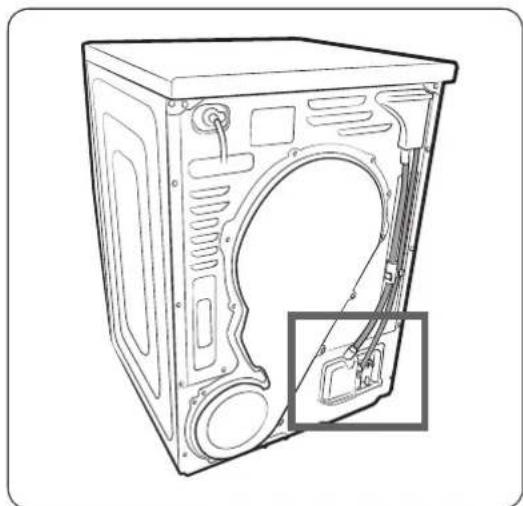

• We strongly recommend connecting the drain hose to your drainage system.

• If the drain hose connected on the dryer is too short to reach the drainage system, use the provided accessory hose (long drain hose).

• Use the built-in water tank only if you cannot connect the drain hose to a drainage system. NOTE As a factory default, this dryer is set to use the built-in water tank to drain condensed water.

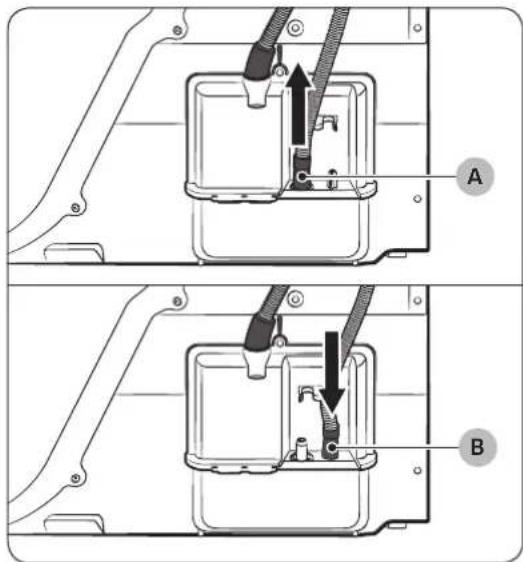

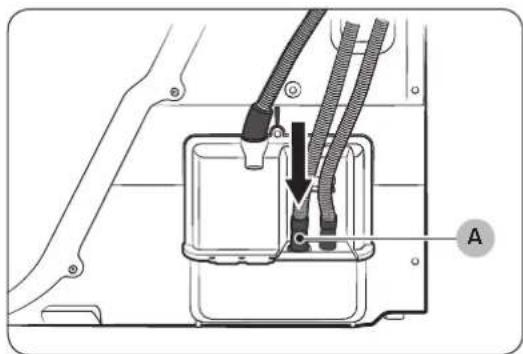

1. Remove the drain hose from hole (A), and insert it

2. Insert one end of the accessory hose (long drain

hose) into hole (A).

3. Insert the other end (outlet) of the accessory hose

to the drainage system in one of the following ways: Untitled-2 18 8/11/2020 3:35:41 PMEnglish English 19 Over a wash basin:

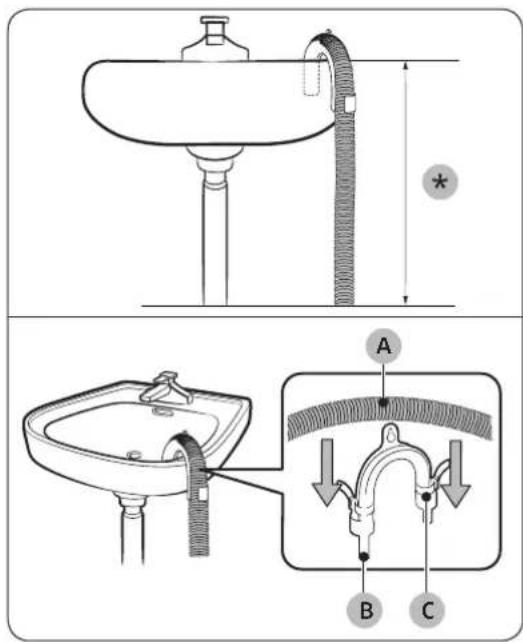

1. Make sure to place the end of the accessory hose

lower than 90 cm (*) from the bottom of dryer.

2. To bend some point of the accessory hose, use

the supplied plastic hose guide (B) and secure the guide to the wall with a hook or to the tap with a piece of string. Assemble the drain hose (A) and the hose guide (B) and fix them with the cable-tie (C).

3. You can drain the condensed water by connecting

the accessory hose (long drain hose) to the drain- outlet directly. CAUTION Do not extend the drain hose. Water may leak from the connected area. Use a long drain hose. By using the drain pipe of the wash basin:

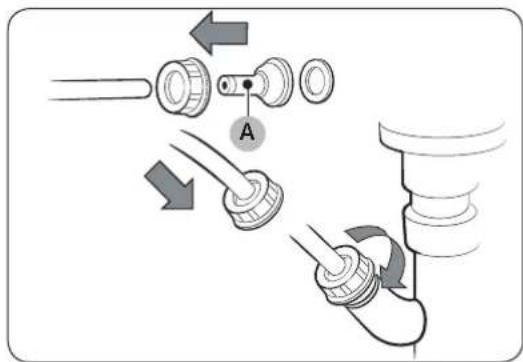

1. Assemble the hose connector (A), and attach it to

the end of the accessory hose as shown. CAUTION To prevent water leak, make sure to connect the hose and the connector firmly.

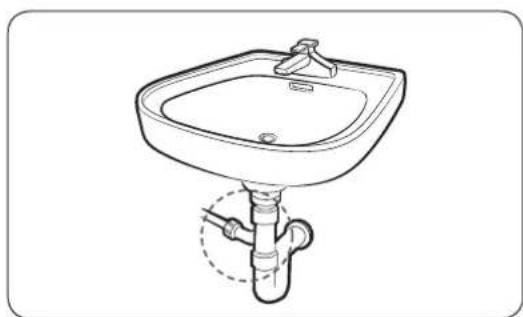

2. Connect the hose adapter directly to the drain pipe

of the wash basin. Untitled-2 19 8/11/2020 3:35:43 PMEnglish Installation English20 STEP 4 Check the installation

• All packaging material is completely removed and properly disposed.

• The dryer is level and standing firmly on the floor.

• Make sure no accessory remains inside the drum.

• Do not block the air inlet hole of the cooling grill at the front of the dryer.

• Do not place inflammable objects near the dryer and keep the surroundings clean.

• Do not remove the adjustable levelling legs of the dryer. They are necessary to keep the dryer level with the ground.

• After installation, we recommend that you wait at least 1 hour before using the dryer. STEP 5 Power on Plug the power cord into a wall socket protected by a fuse or circuit breaker. Then, tap to turn on the dryer. NOTE Run the Time Dry cycle for 20 minutes to make sure that it runs, heats, and shuts off. If the HC information code is displayed, contact a local service center. Door reversal You might want to reverse the direction of the door, depending on your site conditions or to your needs. WARNING Make sure door reversal is performed by a qualified technician.

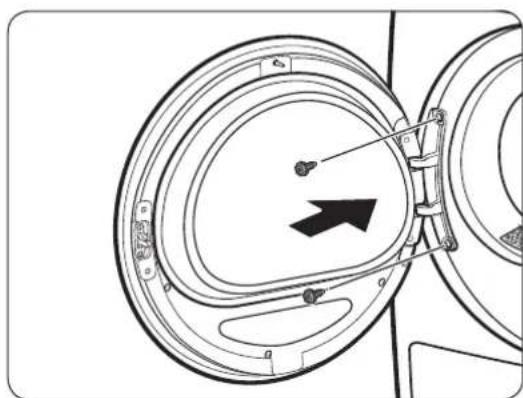

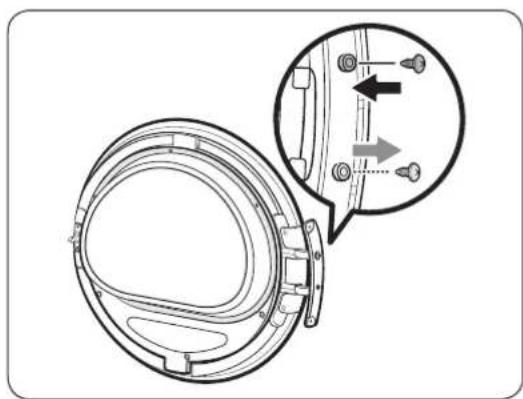

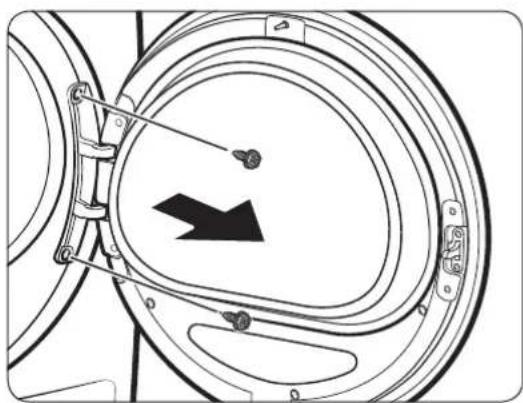

1. Open the door, and then remove the two screws on

the door hinge. While holding the door with both hands, slightly lift to remove it. Untitled-2 20 8/11/2020 3:35:45 PMEnglish English 21

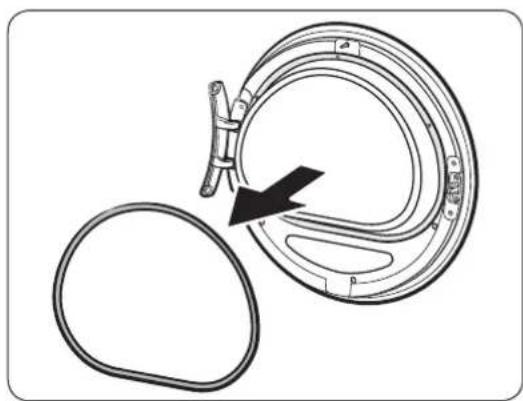

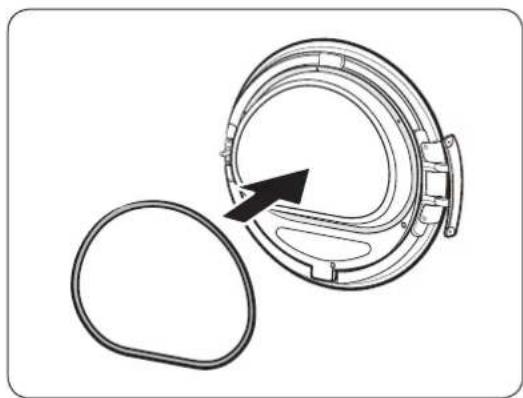

2. Use a thin object to remove the door sealing.

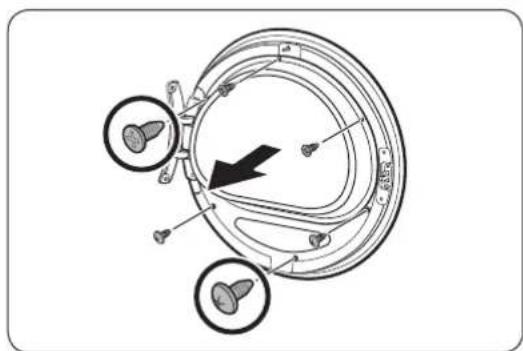

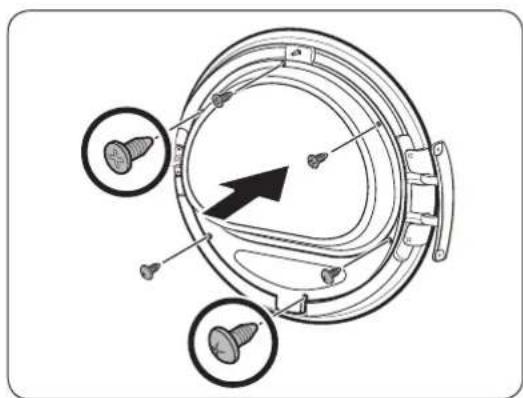

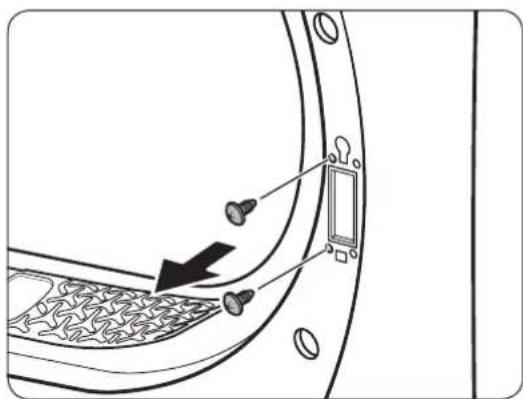

3. Remove the upper 3 screws and the lower 3 screws

on the glass holder.

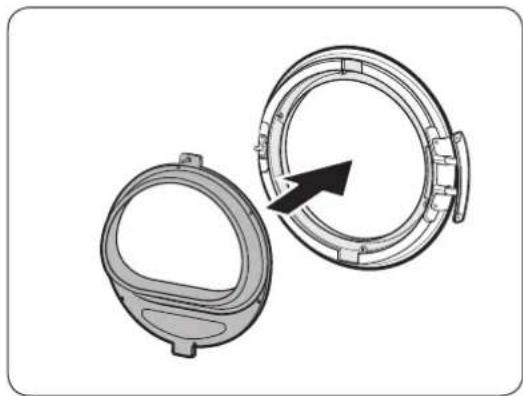

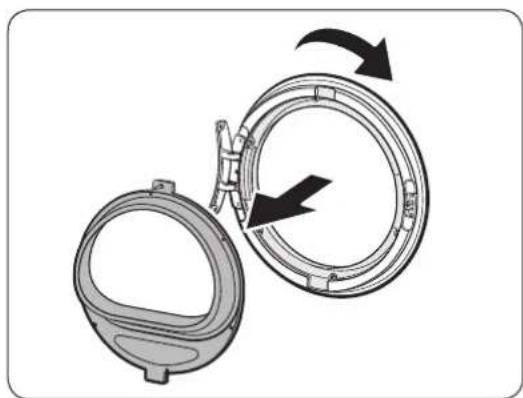

4. Remove the glass holder, and then rotate the door

cover by 180 degrees. Untitled-2 21 8/11/2020 3:35:47 PMEnglish Installation English22

5. Insert the glass holder into the new position of

the door cover. Make sure the door hinge is in the same position as in the figure.

6. Tighten the upper 3 screws and the lower 3 screws

on the glass holder. NOTE The screw shapes differ by dimension. Make sure you tighten the correct screw.

7. Insert the door sealing in the correct position.

Untitled-2 22 8/11/2020 3:35:49 PMEnglish English 23

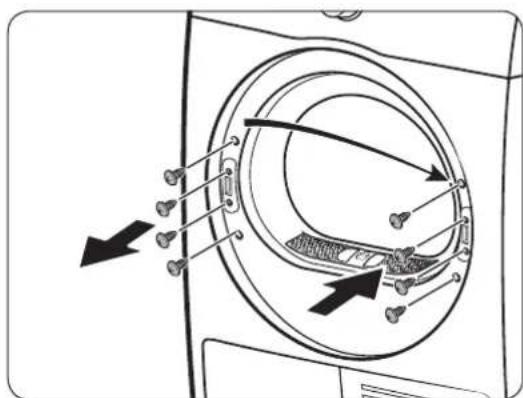

8. Remove the 2 screws that remain after removing

9. Remove the 4 screws on the door lock. Remove the

door lock, and then reinsert it to the opposite side.

10. Tighten the 2 screws that were removed from step

8 on the hinge frame at the opposite side. Note that you must tighten them on the right (top-right and bottom-right) of the frame. Untitled-2 23 8/11/2020 3:35:50 PMEnglish Installation English24

11. Remove the screw on the bottom of the door

hinge, and the fasten it on the top of the door hinge.

12. Put the door hinge on the opposite side, and then

tighten the 2 screws to fix the door to the dryer. NOTE To return the door to the initial position, follow the steps again. Please note that the door, hinges, and other parts would be in the opposite orientation as listed in these steps. Untitled-2 24 8/11/2020 3:35:52 PMEnglishEnglish 25 Before you start Initial setup

• When you turn on your dryer for the first time, the screen shows the initial setup process. Follow the on- screen instructions to complete it.
• If you complete the initial setup and operate a cycle for more than a minute, the initial setup will not appear again.• The initial setup includes language selection and a brief tutorial.• When tapping a button, tap exactly over the icon.
• Operating the washing machine and dryer at the same time may result in a loss of power depending on where they are installed and your electrical power status. 01 Language selection 02 Welcome screen Turn dial & Tap O Suomi English Welcome! 03 TutorialLet’s explore your new dryer![Tap O to skip] [Tap O to skip]Turn the dial to explore cycles[Tap O to skip] Now hold to start a cycle [Tap O to skip] Tap to see additional functions Try saving favourites in My Cycles A dryer that knows you! All Done! Untitled-2 25 8/11/2020 3:35:57 PMEnglish Before you start English26 Drying guidelines STEP 1 Sort

• Do not mix heavy and lightweight items together.

• Wash and dry dark-colored items separately from light-colored items.

• Unless recommended on the care label, do not dry woolens or fiberglass items.

• Do not dry items soiled with oil, alcohol, gasoline, etc.

• Avoid drying unwashed items

• Do not dry wet items that have not been fully spin-dried after washing. This could cause an odor inside the dryer or cause the dryer to malfunction.

• Using a laundry net is recommended for baby socks and other small, light items. STEP 2 Empty pockets and turn them inside out

• Turn dark-colored clothes inside out before drying them. This will prevent fabric damage due to friction during the drying process and protect internal parts of the dryer from discoloration and damage.

• Turn the items with buttons or embroideries inside out before drying them. CAUTION

• Empty the pockets. Metallic objects such as coins, pins, and buckles on clothing may damage other laundry items as well as the drum.

• Remove any metallic objects attached to items, pull up zippers, and latch hooks before drying. Metallic objects attached to items may damage other items as well as the drum. STEP 3 Check the lint filter Ensure that the lint filter is installed correctly before putting items in the dryer. The dryer does not work without the lint filter.

• Always clean the lint filter before drying. For more information on filter cleaning, see the “Lint filter” section on page 44 Untitled-2 26 8/11/2020 3:35:57 PMEnglish English 27 STEP 4 Determine the load capacity Do not overload the dryer. Overloading reduces the tumbling action, resulting in uneven drying and wrinkling.

• Put one wash load in the dryer at a time.

• To improve drying efficiency for one or two items, add a dry towel to the load.

• For best results, untangle items before inserting them into the dryer. Tangled items may degrade the drying efficiency or cause the door to open. CAUTION Add or remove items into or from the dryer with the lint filter installed. If the filter is not in place, small items can fall into the filter slot and cause the dryer to malfunction. STEP 5 After finishing the drying

• Empty the water tank to prevent leaks. For more information on emptying the water tank, see the “Emptying the water tank” section on page 43

• If the “Clean heat exchanger” message appears on the display, refer to the “Heat exchanger” section on page 46 and clean the heat exchanger.

• Keep the dryer door and the heat exchanger cover open after finishing the drying to keep the inside of the dryer more hygienic. Untitled-2 27 8/11/2020 3:35:58 PMEnglish English28 Operations Control panel

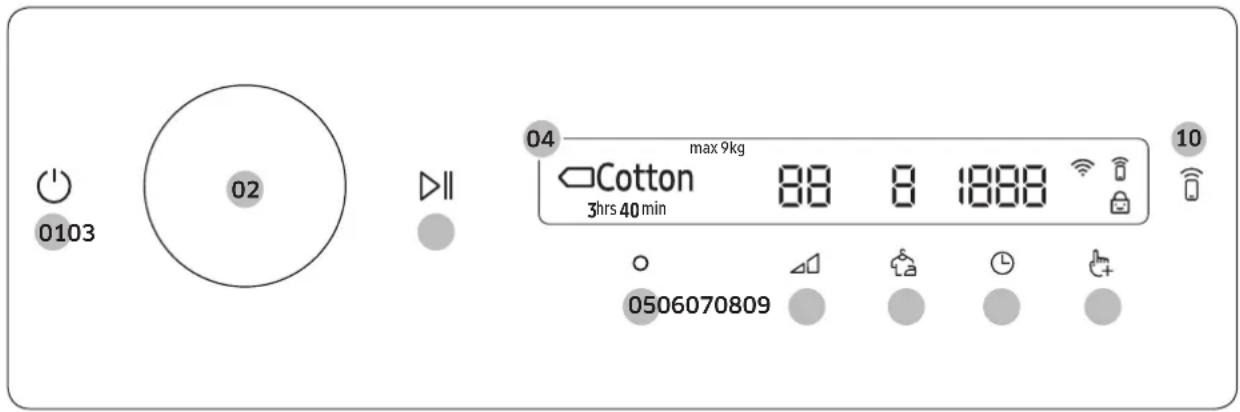

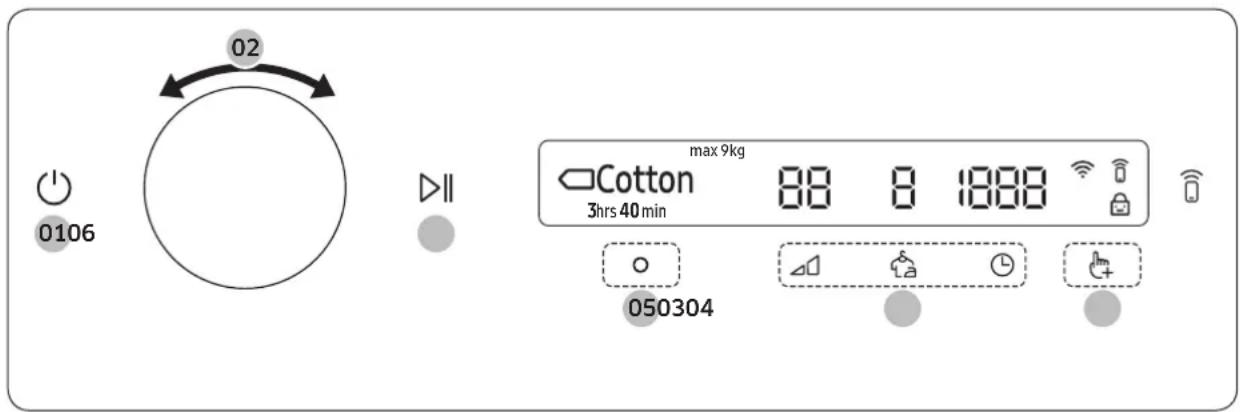

01 Power  Tap to turn the dryer on or off.

• If you do not manipulate the control panel for 10 minutes after the dryer is turned on, the dryer automatically turns off.

• The dryer automatically turns off when the drying completes. CAUTION Do not tap to turn the dryer off while the drying is in progress. Tap and hold to pause the cycle first, and then tap to turn the dryer off. 02 Navigation dial Turn the Navigation dial left or right to navigate through cycles and functions. When you turn the Navigation dial, the display shows your selection (such as cycle, additional functions, and system functions). 03 Start/Pause  Tap and hold to start or pause an operation. 04 Display The display shows the current cycle, estimated time remaining, cycle options, and other useful or alert messages. 05 OK  Tap to confirm your selection of function or setting. 06 Dry Level  Tap to change the dry level for the selected cycle. You can select from level 1 to 3, but available level depends on the selected cycle.

• 3: Suitable for large and thick items.

• 2: Standard drying level.

• 1: Gently dries items to protect fabric. Suitable for delicate items or items you want to naturally dry (by hanging or laying flat on drying rack) while they are damp. 07 Wrinkle Prevent  Tap to turn the Wrinkle Prevent function on or off. When the function is on, the dryer rotates the drum intermittently after completing the dry cycle to prevent wrinkles. 08 Time  Tap to select the cycle time for Time Dry, Warm Air, or Cool Air. You can set the drying time between 20 minutes and 240 minutes. Available drying time depend on the selected cycle. Untitled-2 28 8/11/2020 3:35:59 PMEnglish English 29 09 Additional Functions 

• Tap to enter the additional functions menu.

• Tap and hold for 3 seconds to enter the system functions menu. 10 Smart Control  Tap to activate or deactivate the Smart Control function.

• When the Smart Control function is activated, you can control your dryer remotely using the SmartThings app in your smartphone. Icon description Wi-Fi This icon indicates that the dryer is connected to Wi-Fi. Smart Control This icon indicates that Smart Control is on. For more information on “Smart Control”, see page 38. Child Lock This icon indicates that Child Lock is on. For more information on “Child Lock”, see page 35. Untitled-2 29 8/11/2020 3:36:00 PMEnglish Operations English30 Operating a cycle

1. Tap to turn on the dryer.

2. Turn the Navigation dial to select the cycle you want. For more information on “Cycle overview”, see

3. Tap , , or to change the default cycle settings.

4. Tap , and then turn the Navigation dial to select additional function. For more information on

“Additional functions”, see page 34.

5. Tap to change the settings for selected additional function. Not all cycles have additional functions

6. Tap and hold to start operation. Once you set the cycle you want, the screen displays a brief cycle

description, maximum laundry load, and cycle time. You can also check the cycle progress, remaining cycle time, and information codes. Untitled-2 30 8/11/2020 3:36:01 PMEnglish English 31 Cycle overview NOTE Other cycles can be used after adding them to your cycle list using the My Cycles function. For more information, see the “My Cycles” section on page 35. Sensor dry cycles Cycle Description Max load (kg) DV9*** DV8*** Cotton For cottons, bed linen, table linen, underwear, towels, and shirts.

Quick Dry 35’ For drying light cotton synthetics or items that needs quick drying. The default dry time is 35 minutes.

Super Speed For mixed loads consisting of cotton and synthetic fabrics.

Mixed Load For mixed loads consisting of cotton and synthetic fabrics.

Synthetics For blouses, and shirts that are made of polyester (Diolen, Trevira), polyamide (Perlon, nylon), or other similar blends.

Delicates For the delicate items to be handled with care such as lingerie.

Towels Use to dry loads such as bath towels. 4.0 Bedding For bulky items such as blankets, sheets, comforters, and light duvets.

Shirts Use to quickly dry one item such as a shirt. 2.0 Hygiene Care For sanitizing wet and dry clothes, linen, and toys to eliminate bacteria.

Wool For machine washable and tumble dryable wool only. For best results, turn laundry inside out before drying.

Outdoor For outdoor wear such as skiwear and mountain clothing, and also for fabrics such as spandex, stretch, and microfiber. It is recommended to use this cycle after you have washed your laundry using the Outdoor with your washing machine.

Untitled-2 31 8/11/2020 3:36:01 PMEnglish Operations English32 Cycle Description Max load (kg) DV9*** DV8*** Silent Dry For mixed loads of cotton and synthetic fabrics that you want to dry silently. This can be used with the Wrinkle Prevent option, so you can start a cycle before going to bed and have it completed in the morning.

• DV9*T82**** models only.

Iron Dry This cycle finishes the drying process in a moist state, which facilitates ironing.

Manual dry cycles Cycle Description Max load (kg) Time Dry Use to set a desired dry time. Turn the Navigation dial to select Time Dry and tap to set the drying time between 20 minutes and 240 minutes. Tap repeatedly to select the available time options in this order: 20 / 30 / 40 / 50 / 60 / 90 / 120 / 150 / 180 / 240. NOTE

• The actual cycle time may differ depending on the dryness of items.

• If you use this cycle for additional drying after finishing one of the Sensor Dry cycles (listed on page 31), set the minimum drying time (20 minutes). Excessive drying may cause damage or deform to an item.

Warm Air For small, pre-dried items. Timed cycle for all types of fabric except for wool and silk. Dry laundry that is still slightly damp or has already been pre-dried. Also suitable for the subsequent drying of multi-layered, thick laundry that does not dry readily. Turn Navigation dial to select Warm Air and tap to set the drying time between 20 minutes and 240 minutes. Tap repeatedly to select the available time options in this order: 20 / 30 / 40 / 50 / 60 / 90 / 120 / 150 / 180 / 240.

Cool Air All types of fabric. For freshening up or airing items of laundry that have not been worn for long. Turn Navigation dial to select Cool Air and tap to set the drying time between 20 minutes and 240 minutes. Tap repeatedly to select the available time options in this order: 20 / 30 / 40 / 50 / 60 / 90 / 120 / 150 / 180 / 240.

Untitled-2 32 8/11/2020 3:36:01 PMEnglish English 33 Other cycles Cycle Description Max load (kg) Air Wash Use this cycle to disinfect clothes and make them feel fresher and cleaner.

Untitled-2 33 8/11/2020 3:36:01 PMEnglish Operations English34 Additional functions Using Additional Functions Damp Alert Tap O to set alert Off

2. Turn the Navigation dial to select the desired additional function.

3. Tap to change the selected function’s settings or start the function.

• To return to the main screen, tap again or turn the Navigation dial to select Back and tap .

• If the selected function is not supported, the "Currently not supported" message is displayed, and the button is not activated.

• When you select an additional function, a brief help message appears for the first ten times of use.

• If you do not manipulate the control panel for 7 seconds after entering the Additional Functions menu, the display returns to the main screen. Damp Alert This function alerts you when shirts and other items that require ironing are dry enough to be suitable for ironing.

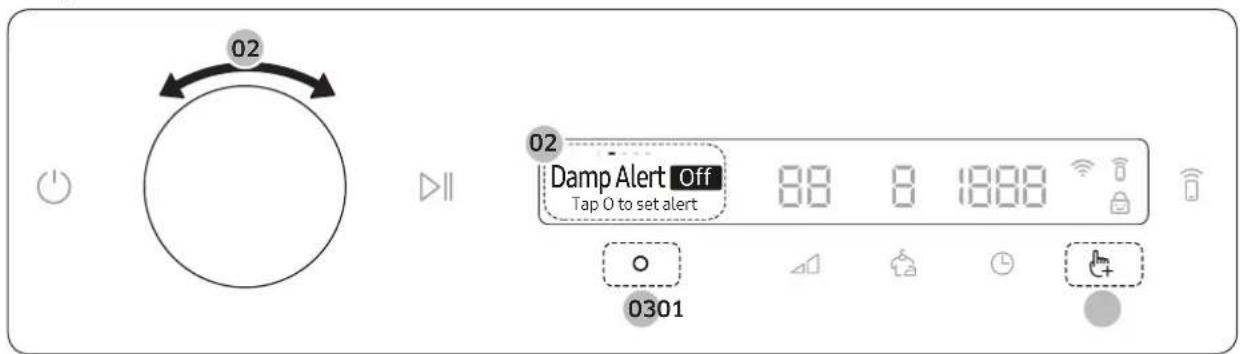

1. Select a cycle and change the cycle settings as necessary.

- This function is available for Cotton, Synthetics, Mixed Load, and Silent Dry with the Dry Level set to 2 or 3.

3. Turn the Navigation dial to select Damp Alert, and then tap .

Alarm during drying:

1. Tap and hold to pause the cycle.

2. Open the door and take out the items you want to iron.

3. Close the door, and then tap and hold to dry the remaining items.

2. Turn the Navigation dial to select My Cycles, and then tap .

- You can only edit a cycle to create a personal cycle when the dryer is not operating.

3. Turn the Navigation dial to select a desired cycle.

4. Tap to add or remove the selected cycle.

- Addition and removal of a cycle is saved automatically.

5. Once you finish creating My Cycles, tap to return to the cycles screen.

NOTE The Cotton, Synthetics, and Iron Dry cycles cannot be removed from the cycles list. Delay End You can set the dryer to finish your drying automatically at a later time by choosing a delay of between 1 to 24 hours (in 1 hour increments). The hour displayed indicates the time the dry will finish.

1. Select a cycle and change the cycle settings as necessary.

3. Turn the Navigation dial to select Delay End, and then tap .

4. Turn the Navigation dial to select the desired time, and then tap .

- To cancel Delay End, tap restart the dryer. Child Lock To prevent children or infants from accidentally starting or setting the dryer, Child Lock locks all buttons except for and .

3. Turn the Navigation dial to select Child Lock, and then tap .

4. Tap to select On or Off.

- The Child Lock icon turns on when the function is on. - You cannot turn on Child Lock with the door open. If you get the "Door is open" message on the display while you try to turn on Child Lock, close the door and try again. NOTE

• When Child Lock is on, all buttons are disabled except for and .

• It you tap a button with Child Lock on, an alarm triggers with the “Child Lock on” message.

• If you open and close the door with Child Lock on, an alarm triggers with the “Open door & check inside” and “Child Lock on” message.

• To dismiss a notification message, turn off Child Lock or the power. Untitled-2 35 8/11/2020 3:36:02 PMEnglish Operations English36 System functions Using System Functions AI Patten Tap O to set alert Off

• Tap and hold 3 seconds.

1. Tap and hold for 3 seconds.

2. Turn the Navigation dial and select the desired system function, and then tap .

3. Tap to change the selected function’s settings or start the function.

• To return to the main screen, tap again or turn the Navigation dial to select Back and tap .

• If you do not manipulate the control panel for 7 seconds after entering the System Functions menu, the display returns to the main screen. AI Pattern This function saves your frequently used cycles and settings.

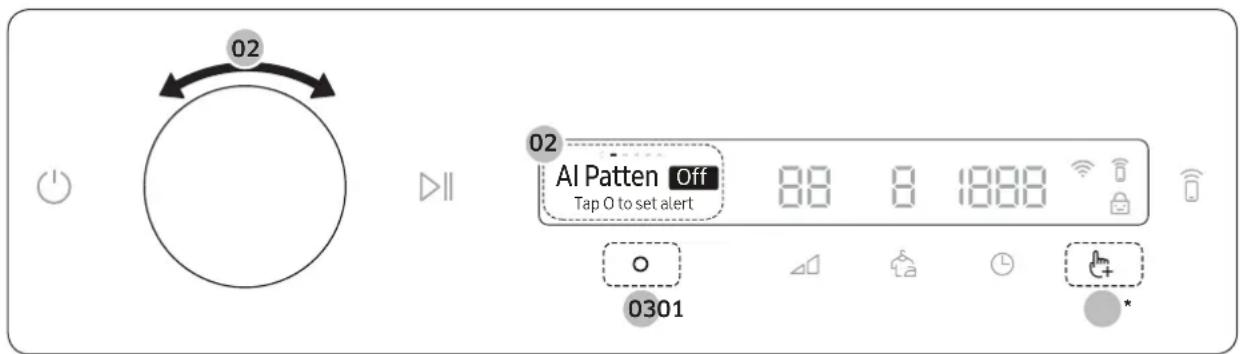

1. Tap and hold for 3 seconds.

2. Turn the Navigation dial to select AI Pattern, and then tap .

3. Tap to select On or Off.

- The default setting is On. Set it to Off if you do not want to use this function. - When you turn the function on, the dryer remembers frequently used cycles and their settings (Dry Level , Time ) and save them in frequently used order. - When you turn off the function, all the saved data resets. Alarm You can enable/disable alarm sounds.

1. Tap and hold for 3 seconds.

2. Turn the Navigation dial to select Alarm, and then tap .

3. Tap to select On or Off.

- The default setting is On. NOTE The setting remains unchanged even if you restart the dryer. Untitled-2 36 8/11/2020 3:36:03 PMEnglish English 37 Wi-Fi You can turn the dryer's Wi-Fi on or off.

1. Tap and hold for 3 seconds.

2. Turn the Navigation dial to select Wi-Fi, and then tap .

3. Tap to select On or Off.

- The dryer's Wi-Fi is off as a factory default setting. However, the dryer's Wi-Fi turns on automatically when you turn on the dryer for the first time. Then, the final Wi-Fi setting maintains regardless of the dryer power status. - Once you turn on the dryer's Wi-Fi and connect to a network, the dryer remains connected to the network even when you turn off the power. - The Wi-Fi indicates that the dryer is connected to the router through the Wi-Fi connection. Language You can change the system language.

1. Tap and hold for 3 seconds.

2. Turn the Navigation dial to select Language, and then tap .

3. Turn the Navigation dial to select the desired language, and then tap .

Factory Reset You can reset your dryer.

1. Tap and hold for 3 seconds.

2. Turn the Navigation dial to select Factory Reset, and then tap .

- Your dryer resets to the factory setting. Untitled-2 37 8/11/2020 3:36:03 PMEnglish Operations English38 Special features Smart Control You can connect to the SmartThings app and control your dryer remotely. Connecting your dryer

• Download and open the SmartThings app on your mobile device

• Tap and hold to turn on the dryer.

• Tap and hold on the dryer. a. The dryer enters AP mode and connects to your mobile device. b. Tap to authenticate your dryer on your mobile device. c. Once the authentication process is complete, your dryer is successfully connected to the app. Use various features available in the SmartThings app. NOTE

• If your dryer fails to connect with the SmartThings app, try again.

• Check your router if you experience any Internet connection problem after connecting your dryer with the SmartThings app.

• If the Wi-Fi is off, tap and hold for 3 seconds to navigate to System Functions, select Wi-Fi and tap to turn it on.

• Turning the dryer's Wi-Fi on allows you connect to the dryer via SmartThings app on your smartphone regardless of the power status of the dryer. However, the dryer appears offline on the SmartThings app if the dryer's Wi-Fi is off.

• Close the door before starting the Smart Control function.

• If you use the dryer 20 times without being connected to SmartThings, the next time you turn the dryer on, a pop-up about Smart Control connection will appear for 3 seconds.

• If the dryer's Wi-Fi is not connected to an AP (access point), the Wi-Fi will turn off when you turn of the power. Stay Connect Set up the Stay Connect function in your SmartThings app. Your dryer stays connected to the app so you can use the dryer when you are away from home.

1. If you turn on the Stay Connect function on the SmartThings app, the dryer will stay in standby power

saving mode after completing a cycle. - The Stay Connect function will remain active for up to 24 hour if the door remains closed.

2. When the Stay Connect function is active, the Smart Control and Wi-Fi turn on your dryer display.

3. Conveniently control your dryer using the SmartThings app

NOTE The dryer switches to standby power saving mode when operation is paused even if the machine is not connected to the SmartThings app. Untitled-2 38 8/11/2020 3:36:03 PMEnglish English 39 SmartThings Wi-Fi connection On your smartphone, go to Settings and turn on the wireless connection and select an AP (Access Point).

• This appliance supports the Wi-Fi 2.4 GHz protocols. Download On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), find the SmartThings app with a search term of “SmartThings”. Download and install the app on your device. NOTE The app is subject to change without notice for improved performance. In addition, the further updates on app or the function in the app may stop due to usability and security reasons, even if updates are currently supported on your OS. Log in You must first log into SmartThings with your Samsung account. To create a new Samsung account, follow the instructions on the app. You don’t need a separate app to create your account. NOTE If you have a Samsung account, use the account to log in. A registered Samsung smartphone user automatically logs in. To register your appliance to SmartThings

1. Make sure your smartphone is connected to a wireless network. If not, go to Settings and turn on the

wireless connection and select an AP (Access Point).

2. Open SmartThings on your smartphone.

3. If a message of “A new device is found.”, select Add.

4. If no message appears, select + and select your appliance in a list of devices available. If your appliance

is not listed, select Device Type > Specific Device Model, and then add your appliance manually.

5. Register your appliance to the SmartThings app as follows.

a. Add your appliance to SmartThings. Make sure your appliance is connected to SmartThings. b. When registration is complete, your appliance appears on your smartphone. Untitled-2 39 8/11/2020 3:36:03 PMEnglish Operations English40 Open Source Announcement The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by contacting our support team via http://opensource.samsung.com (Please use the “Inquiry” menu.) It is also possible to obtain the complete corresponding source code in a physical medium such as a CD- ROM; a minimal charge will be required. The following URL http://opensource.samsung.com/opensource/SMART_AT_051/seq/0 leads to the open source license information as related to this product. This offer is valid to anyone in receipt of this information. NOTE Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements in the UK. The full text of the EU declaration of conformity and the UK declaration of conformity is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com, go to Support > Support home and enter the model name. Wi-Fi max transmitter power : 20 dBm at 2.412 GHz – 2.472 GHz Untitled-2 40 8/11/2020 3:36:03 PMEnglish English 41 Using the drying rack (applicable models only) Set the drying time up to 150 minutes according to the moisture and weight of the items to dry. When drying laundry using the drying rack, the Time Dry cycle is recommended.

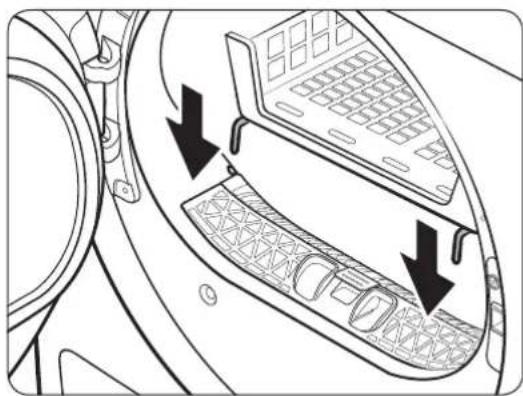

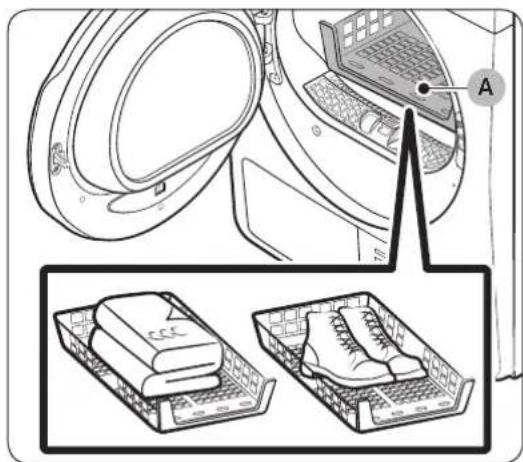

1. Position the drying rack in the drum, inserting the

front lips of the rack into the holes of the door diaphram.

2. Place items on the rack, leaving enough space

where air can circulate. For clothing items, fold and place flat on the rack. For shoes, place shoes with their soles facing down.

3. Close the door and tap . Turn the Navigation dial

to select Time Dry, and then tap to select the drying time.

Untitled-2 41 8/11/2020 3:36:04 PMEnglish Operations English42 Drying suggestions Items (max 1.5 kg) Description Washable sweaters (block to shape and lay flat on rack) When drying the laundry using the rack, fold and place the clothes on the rack to prevent the clothing from becoming wrinkled. Stuffed toys (cotton or polyester fiber filled) Stuffed toys (foam or rubber-filled) Foam rubber pillows Sneakers To dry sports shoes, place the shoes on the rack so that the soles of the shoes are facing downwards. CAUTION

• Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the items and lead to a fire hazard.

• To prevent damage to shoes, use the drying rack. Untitled-2 42 8/11/2020 3:36:04 PMEnglish English 43 Maintenance Emptying the water tank Empty the water tank after each use to prevent leaks.

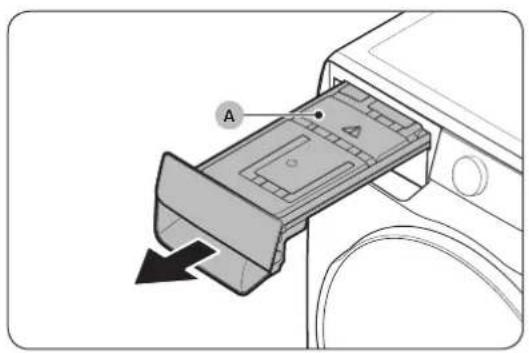

1. Remove the water tank (A) from the dryer.

- Pull the water tank handle with one hand until the tank is halfway out. - Once the water tank is halfway out, support the bottom of the tank with the other hand and pull it slowly with both hands. CAUTION

• The water tank is heavy. Slowly remove the water tank using both hands while keeping the tank at a level.

• Be careful when removing the full water tank. It is very heavy and can cause injury if you drop it.

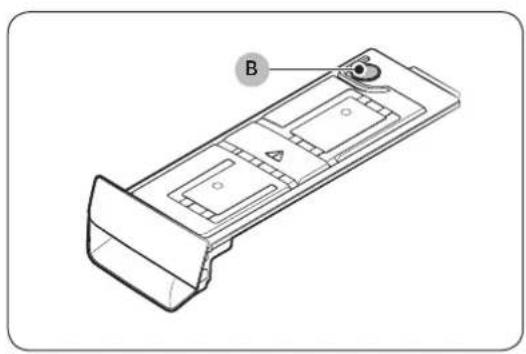

2. Empty the water through the drain hole (B), and

then clean inside the water tank. - Mix some neutral detergent in lukewarm water. Fill the water tank with the mixture through the drain hole (B) and leave it for 30 minutes. Then, rinse the tank with clean water and completely dry it.

3. Place the water tank back into place.

NOTE If the dryer displays the “Empty the tank” message and stops while drying is in progress, empty the water tank and tap and hold . The “Empty the tank” message will disappear, and the dryer will resume drying. Untitled-2 43 8/11/2020 3:36:05 PMEnglish Maintenance English44 Cleaning WARNING

• Do not clean the dryer by directly spraying water onto the dryer.

• Do not clean the dryer with benzene, thinner, alcohol, or acetone. This may cause discoloration, deformation, damage, electric shock, or fire.

• Before cleaning the dryer, be sure to unplug the power cord. Exterior Clean with a soft, damp cloth. Do not use abrasive cleaners. Avoid using or placing sharp or heavy objects near/on the dryer. Keep detergent and laundry supplies on the pedestal (sold separately) or in a separate storage container. Control panel Clean with a soft, damp cloth. Do not use abrasive cleaners. Do not spray cleaners directly on the panel. Immediately wipe up any spills or liquids from the control panel. Drum Clean with a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel. Wipe remaining residue with a clean, dry cloth. Door Foreign substances can contaminate or build up on the inside of the door. Clean the inside of the door using a soft piece of cloth or brush. CAUTION Do not detach the door’s rubber sealing. Lint filter Clean the lint filter after each use.

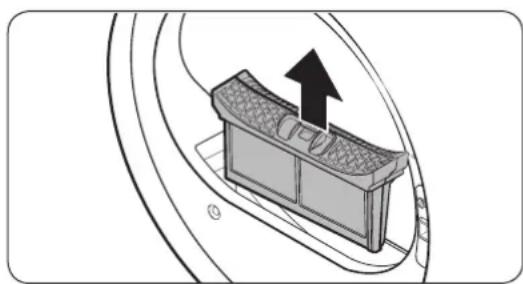

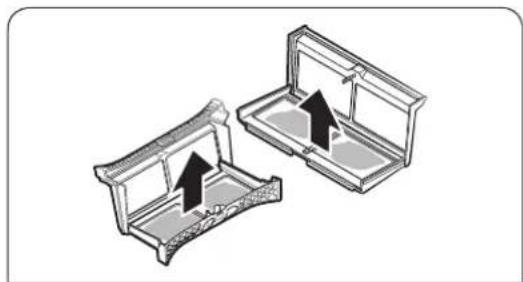

1. Open the dryer door, grab the top of the lint filter,

and pull to remove the filter. - Do not detach the rubber sealing after removing the filter. Untitled-2 44 8/11/2020 3:36:05 PMEnglish English 45

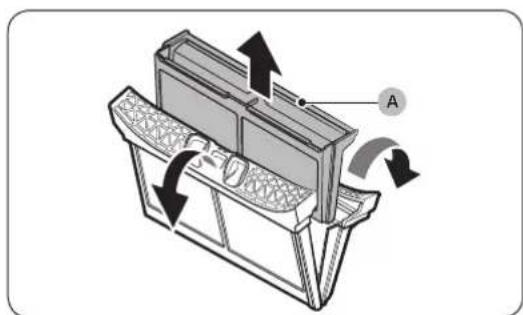

2. Open the outer filter and remove the inner filter

3. Spread open the outer filter and the inner filter.

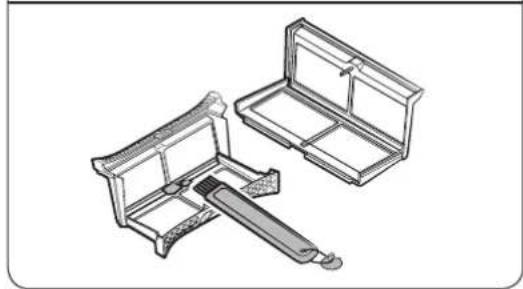

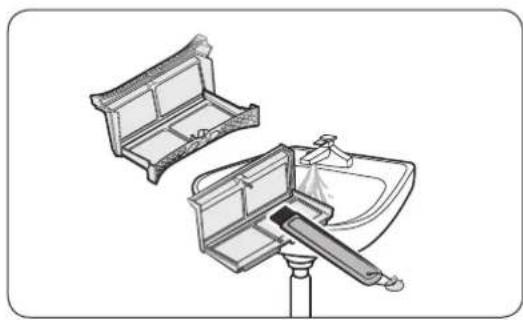

4. Remove the lint from both filters, and then clean

the filters with the cleaning brush. NOTE To clean the filters thoroughly, clean the filters in running water, and then dry them completely.

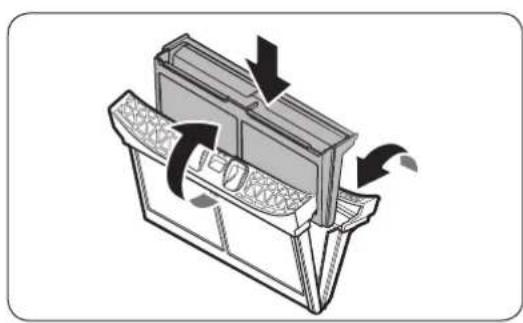

5. Put the inner filter into the outer filter, and then

reinsert the lint filter into the original position. Untitled-2 45 8/11/2020 3:36:05 PMEnglish Maintenance English46 CAUTION

• Clean the lint filter after each load. Otherwise, the drying performance may decrease.

• If the filter surface is wet, allow it to completely dry before use. - Inserting the filter while it is wet can cause mold and/or odor to form and/or result in less drying.

• When cleaning or removing the lint filter, do not shake or tap on the filter. Doing so can damage the filter.

• Opening the outer and inner filters carelessly and with excessive force can damage the filters. Heat exchanger When it is time to clean the heat exchanger, the dryer will alert you by displaying the “Clean heat exchanger” message. A dirty heat exchanger will hinder the product’s performance and should be cleaned regularly. NOTE

• Water droplets can form around the heat exchanger due to condensation caused by a temperature difference. This is normal and is not a sign of a leak.

• If you are not planning on using the dryer for a long period of time, open the heat exchanger cover and ventilate.

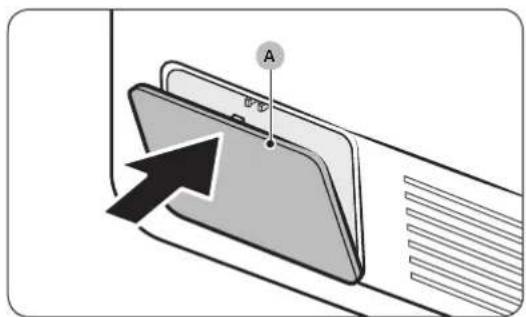

1. Gently press the top part of the outer cover (A) to

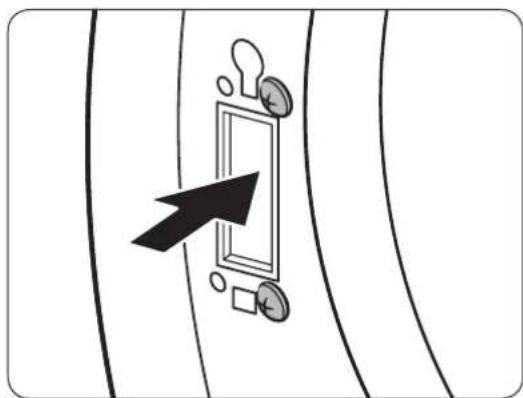

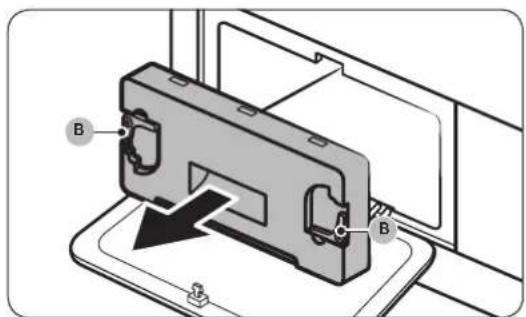

2. Unlock the inner cover fixers (B), and then pull the

inner cover to remove. Untitled-2 46 8/11/2020 3:36:06 PMEnglish English 47

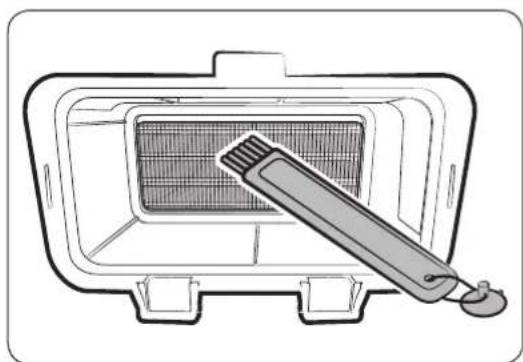

3. Clean the dust on the heat exchanger using the

provided brush. - After cleaning with the brush, wipe off the remaining dust using a smooth, damp cloth. CAUTION

• To avoid physical injury and burns, do not touch or clean the heat exchanger with bare hands.

• When cleaning the heat exchanger, be careful not to damage the fins. NOTE If the heat exchanger is completely dry and therefore hard to clean, spray some water on the heat exchanger and clean using a brush.

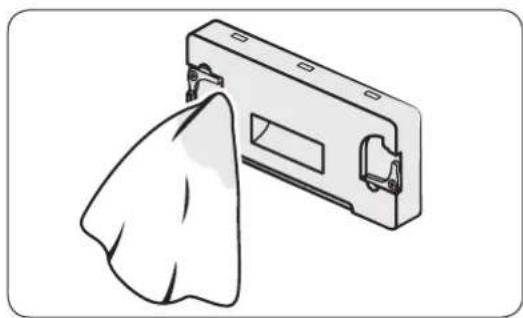

4. Clean the inner cover with a smooth, damp cloth.

- There may be moisture and/or foreign substances around the inner cover.

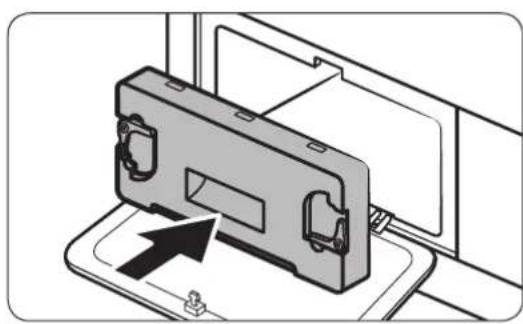

5. Reinsert the inner cover to its original position, and

then lock the fixers.

6. Close the heat exchanger’s outer cover.

• After cleaning the heat exchanger, tap to dismiss the notification message. The message remains on until you dismiss it.

• If the alarm continues after you have dismissed it, unplug and then plug in the power cord or remove and reinsert the heat exchanger's inner cover. Untitled-2 47 8/11/2020 3:36:07 PMEnglish English48 Troubleshooting Checkpoints If you encounter a problem with the dryer, first check the table below and try the suggestions. Problem Action Dryer does not start.

• Make sure the dryer is plugged in.

• Make sure the door is properly closed.

• Check the fuse or reset the circuit breaker.

• If you opened the door during a cycle, tap and hold again.

• Make sure Child Lock is not activated. The dryer does not warm up.

• Check the fuse or reset the circuit breaker.

• Check the lint filter and the heat exchanger. Clean them if necessary.

• The dryer may be in the cooling down process of the cycle. Items are not dried. Check all of the above. Additionally:

• Do not overload the dryer. If the dryer is overloaded, it could take longer for items to dry.

• Dry heavy fabrics separately from light fabrics.

• The item(s) are too small and may not getting enough spinning inside the drum.

• Clean the heat exchanger.

• If a drain hose is connected, make sure water is draining properly. The dryer is too loud.

• Look for coins, loose buttons, nails, and other objects and remove them immediately.

• Check the lint filter. Remove any items stuck inside the lint filter.

• Make sure the dryer is level and standing firmly on the floor.

• The dryer may hum due to air moving through the drum and fan. This is normal. Items are not dried evenly.

• Seams, pockets, and other parts of clothing are harder to dry than others. This is normal.

• Sort heavy and light items separately. There is a smell coming from the dryer.

• The smell of paint, varnish, cleaning agents, and other household items could have circulated in the air and entered the dryer. If you notice such a smell, ventilate completely before using the dryer.

• If drying in an enclosed area, the dryer could cause the ambient temperature to rise. Accordingly, make sure to open a window and ventilate the area.

• Do not attempt to dry wet items after leaving them in the washing machine or dryer for a long time. The dryer turns off before the items are dry.

• The load is too small. Throw in few additional items like towels and try drying again. Untitled-2 48 8/11/2020 3:36:07 PMEnglish English 49 Problem Action The clothes have lint on them.

• Always make sure the lint filter is clean before putting items into the dryer. When drying items that generate a large amount of lint, you may need to clean the lint filter in the middle of a cycle.

• Some fabrics (such as white towels) causes more lint and should be dried separately from fabrics that lint attaches easily (such as black linen pants).

• Check the inside of the pockets to make sure they are empty before drying. The ambient temperature around the dryer rises or there is a damp, soggy smell.

• Heat pump dryers circulate ambient air inside and outside the dryer during the drying process to cool the system. Using the dryer in a poorly ventilated area may, depending on the operating environment, raise the ambient humidity level and/or cause a damp, soggy smell to develop. Ensure proper ventilation when using the dryer. Water is not draining.

• Check the draining hose for twists and kinks. Straighten out the hose if it is twisted or kinked and securely connect it to the drain on the floor.

• Check to see if the draining hose is frozen. If the hose is frozen, submerge it in warm water to allow the water inside the hose to melt and drain out. Reconnect the hose and check for proper draining. If a problem persists, contact a local Samsung service center. Untitled-2 49 8/11/2020 3:36:07 PMEnglish Troubleshooting English50 Information codes If the dryer fails to operate, you may see an information code on the screen. Check the table below and try the suggestions. Information code Meaning Action Door is open Dryer operation with the door open

• Close the door and start again.

• If this continues, call for service.

• Check if Child Lock is on. If Child Lock is on, you may get this message when you open the door even though the dryer is not operating. Open door & check inside (Child Lock on) Child Lock is on. Open the door and check inside the drum.

• If Child Lock is on, turn off Child Lock or the power. Check filter Lint filter problem

• Check the lint filter assembly.

• If this continues, call for service. Check inner cover of heat exchanger Internal heat exchanger cover problem

• Check the internal heat exchanger cover assembly.

• If this continues, call for service. Check drainage / Empty the tank Draining malfunction Draining pump malfunction Frozen draining hose Water tank full

• Make sure the draining hose is not bent or damaged.

• If the hose is frozen, wrap the hose with a towel soaked in warm water for approximately ten minutes to thaw the hose.

• Empty the water tank, turn on the dryer, and start again.

• If this continues, call for service. tC Air temperature sensor problem

• Clean the lint filter or the heat exchanger.

• If this continues, call for service. tC5 Compressor temperature sensor problem

• Wait two to three minutes.

• Turn the power back on and start again. 3C Check the motor for operation.

• Try restarting the cycle.

• If this continues, call for service. AC6 Check communications between the main and the inverter PBAs.

• Try restarting the cycle.

• If this continues, call for service. HC Compressor overheating • Call for service. If any information code keeps appearing on the screen, contact a local Samsung service center. Untitled-2 50 8/11/2020 3:36:07 PMEnglish English 51 Appendix Fabric care chart The following symbols provide garment care direction. The Clothing care labels include symbols for drying, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems. Wash cycle Normal Permanent Press / Wrinkle Resistant / Wrinkle Control Gentle / Delicates Hand Wash Water Temperature** Hot Warm Cold NOTE ** The dot symbols represent appropriate wash water temperatures for various items. The temperature range for Hot is 41-52 °C, for Warm 29-41 °C and for Cold 16-29 °C. (Wash water temperature must be a minimum of 16 °C for detergent activation and effective cleaning.) Bleach Any Bleach (when needed) Only Non-Chlorine (color-safe) Bleach (when needed) Tumble Dry Cycle Normal Permanent Press / Wrinkle Resistant / Wrinkle Control Gentle / Delicates Special instructions Line Dry / Hang to Dry Drip Dry Dry Flat Heat setting High Medium Low Any Heat No Heat / Air Untitled-2 51 8/11/2020 3:36:10 PMEnglish Appendix English52 Iron dry or steam temperatures High Medium Low Warning symbols for laundering Do Not Wash Do Not Wring Do Not Bleach Do Not Tumble Dry No Steam (added to iron) Do Not Iron Dry-clean Dry-clean Do Not dry-clean Line Dry / Hang to Dry Drip Dry Dry Flat Protecting the environment

• This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.

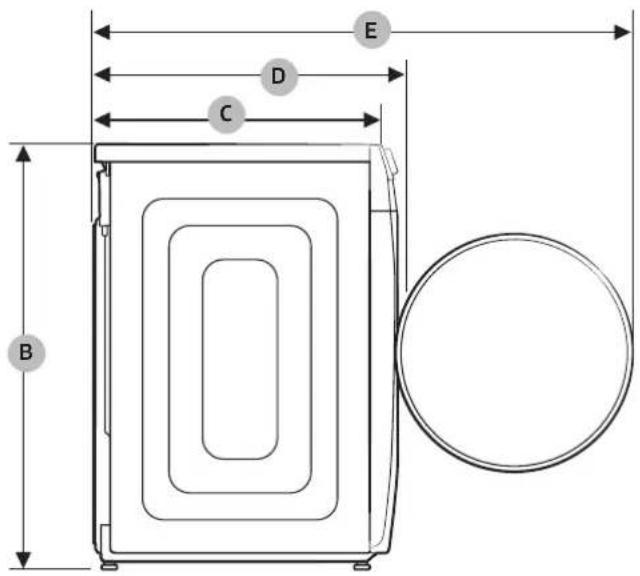

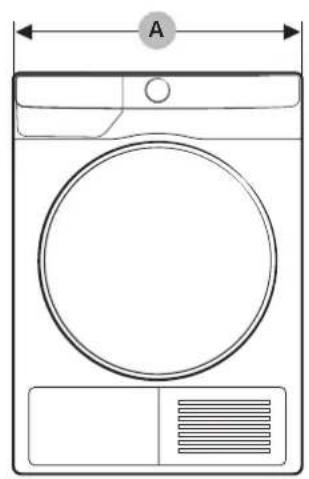

• Contains fluorinated greenhouse gases. Hermetically sealed equipment. Do not vent gases into the atmosphere. Refrigerant (Type): R-134a (GWP = 1430) Refrigerant (Charging) : 0.43 kg, 0.615 tCO2e Untitled-2 52 8/11/2020 3:36:13 PMEnglish English 53 Specification

KYSYMYKSET JA KOMMENTIT
