USER MANUAL Bravia KDL42R500A SONY

Operating Instructions GB

使用说明书 CS

Mode d'emploi FR

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

The illustrations used in this manual are of the KDL-42R500A unless otherwise stated.

Trademark information

• Is a registered trademark of the DVB Project.
- HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
- Manufactured under license from Dolby Laboratories.
- "BRAVIA" and are trademarks of Sony Corporation.
- MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.
- Manufactured under license from DTS Licensing Limited. For U.S. and worldwide patent and trademark information, see www.dts.com/patents/legacy.aspx. (c) DTS Licensing Limited and DTS, Inc. 2012.

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

dts®

2.0+Digital Out

MHL™

Mobile High-Definition Link

Location of the identification label

Labels for Model No. and Power Supply rating (in accordance with applicable safety regulation) are located on the rear of the TV.

Table of Contents

Start-up Guide

Checking the accessories ....4

1: Attaching the Table-Top Stand.....4
2: Connecting an antenna/cable/VCR .....5
3: Preventing the TV from toppling over......6
4: Performing the initial set-up....6
Watching TV....7
Safety information 8
Precautions ......10

Operating the TV

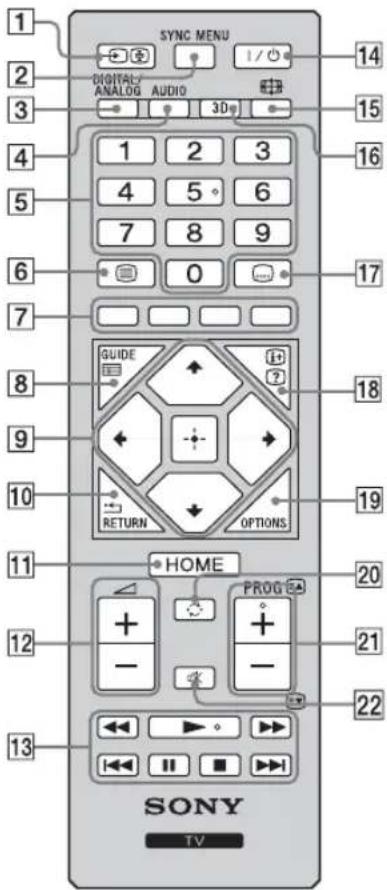

Overview of the remote 11

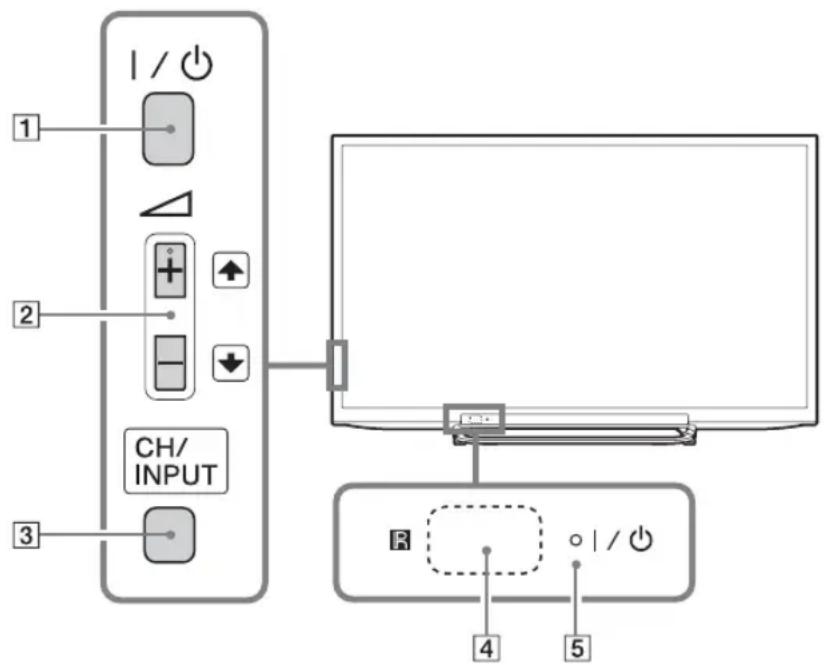

Overview of the TV buttons and indicators.....13

Using Optional Equipment

Connecting optional equipment....14

Viewing pictures from the connected equipment....15

Connecting MHL device 16

Viewing PIP (Picture in Picture)....16

Viewing 3D Video ....17

Using Menu Functions

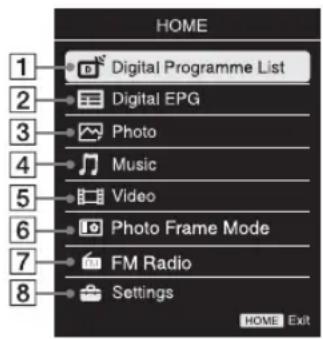

Navigating through menus 20

Using the Digital Programme List DVB..... 21

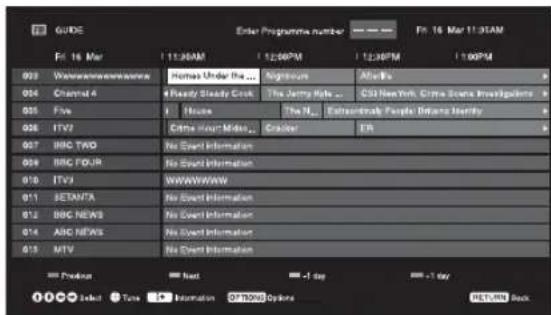

Using the Digital Electronic Programme Guide

(EPG) 22

Playing back photo/music/video via USB...... 23

Basic operation of Photo/Music/Video....23

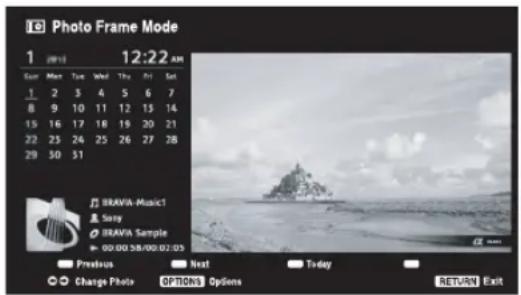

Photo Frame 26

Listening to the FM Radio 28

Using BRAVIA Sync with BRAVIA Sync

Control....29

BRAVIA Sync Control....29

Settings adjustment.... 30

Picture....30

Sound....31

Screen....32

Channel Set-up 34

Parental Lock 36

Set-up....37

Eco....39

Additional Information

Installing the accessories

(Wall-Mount Bracket) 40

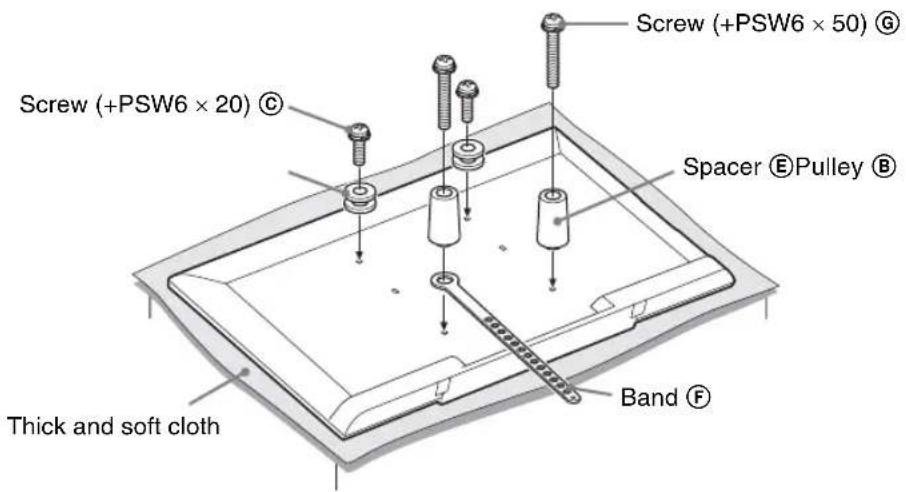

SU-WL400....41

TV installation dimensions table....41

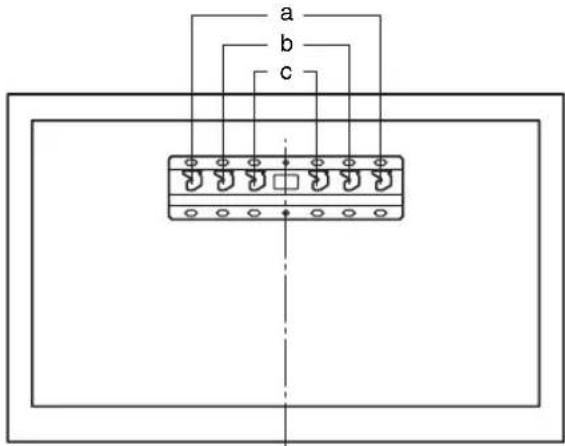

Hook locations diagram/table....42

Troubleshooting 43

Specifications.... 45

DV3 : for digital channels only

Before operating the TV, please read "Safety information" (page 8). Retain this manual for future reference.

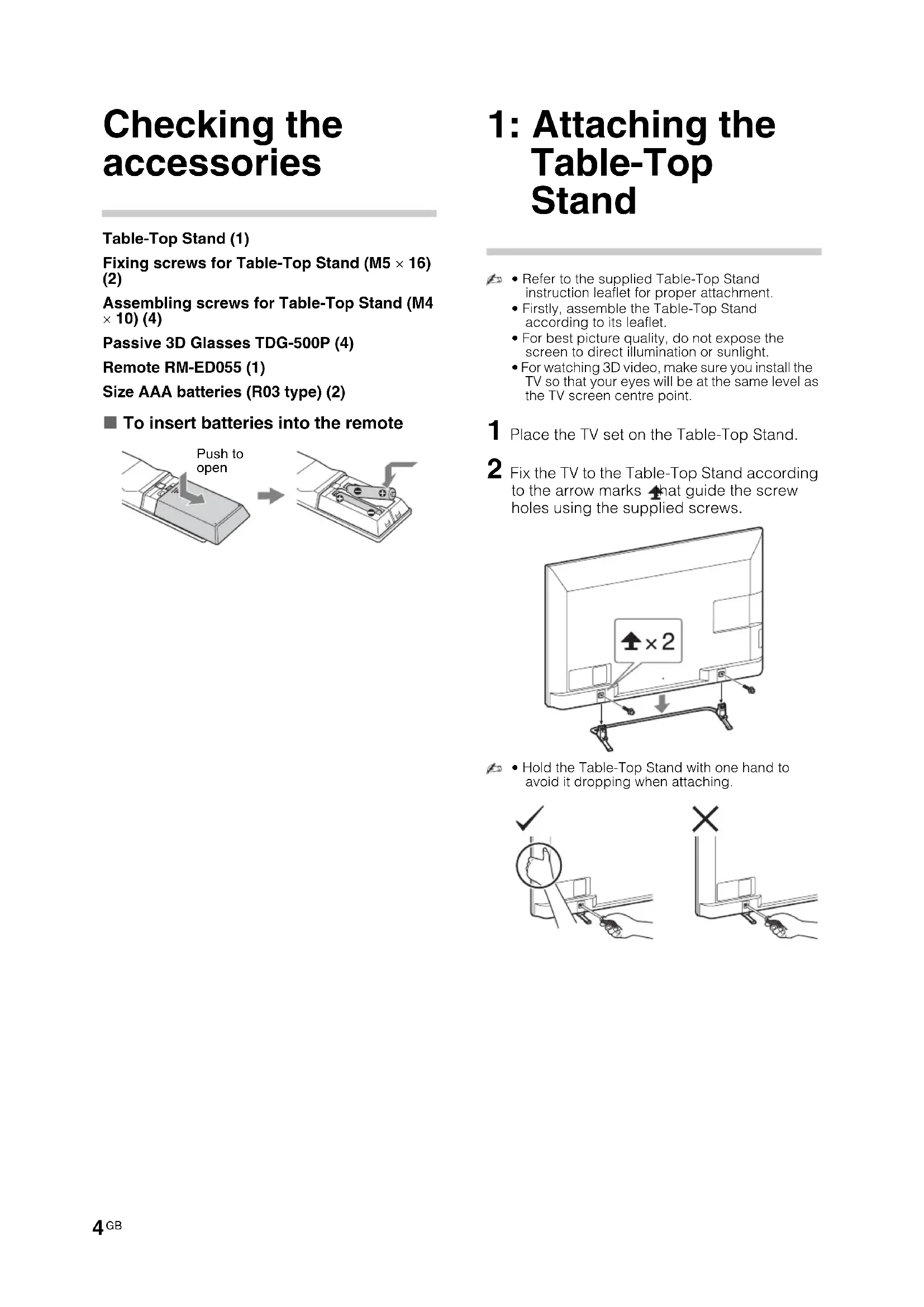

Checking the accessories

Table-Top Stand (1)

Fixing screws for Table-Top Stand (M5 × 16) (2)

Assembling screws for Table-Top Stand (M4 × 10) (4)

Passive 3D Glasses TDG-500P (4)

Remote RM-ED055 (1)

Size AAA batteries (R03 type) (2)

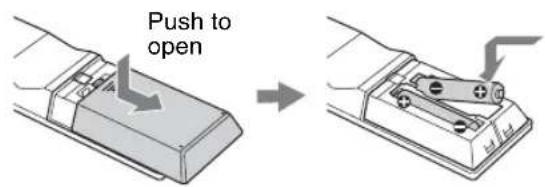

■ To insert batteries into the remote

Push to open

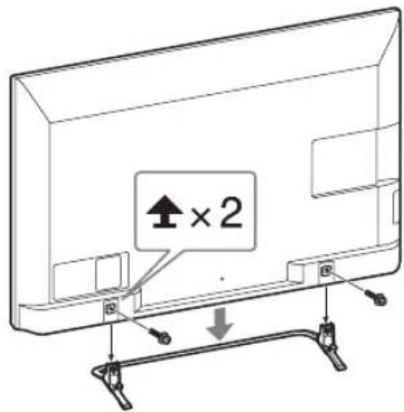

1: Attaching the Table-Top Stand

- Refer to the supplied Table-Top Stand instruction leaflet for proper attachment.

- Firstly, assemble the Table-Top Stand according to its leaflet.

- For best picture quality, do not expose the screen to direct illumination or sunlight.

- For watching 3D video, make sure you install the TV so that your eyes will be at the same level as the TV screen centre point.

1 Place the TV set on the Table-Top Stand.
2 Fix the TV to the Table-Top Stand according to the arrow marks that guide the screw holes using the supplied screws.

↑×2

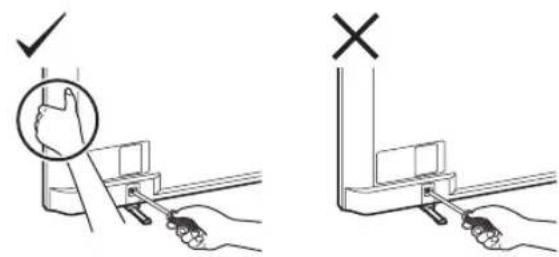

- Hold the Table-Top Stand with one hand to avoid it dropping when attaching.

Diagram showing two methods of using a tool, with one indicating hand gesture and the other to switch.

• Be careful to not pinch your hands or the AC power cord when you install the TV set to the Table-Top Stand.
• Fix the TV to the Table-Top Stand according to the arrow marks that guide the screw holes using the supplied screws.
• This TV is very heavy, so two or more people should place the TV onto the Table-Top Stand.
• If using an electric screwdriver, set the tightening torque at approximately 1.5 N·m (15 kgf·cm).
• Keep the TV in a vertical position while tightening the screws. Be sure to securely tighten the supplied screws, otherwise the TV may fall down.
• Use an appropriate screwdriver to attach the screws tightly without damaging the screw head.
• Please ensure the AC power cord is away from the Table-Top Stand installation location when you attach the Table-Top Stand.
• When detaching the Table-Top Stand, reverse the attaching procedure. Do not remove any screws other than those used when attaching the Table-Top Stand.

2: Connecting an antenna/cable/VCR

- Connecting cables are not supplied.

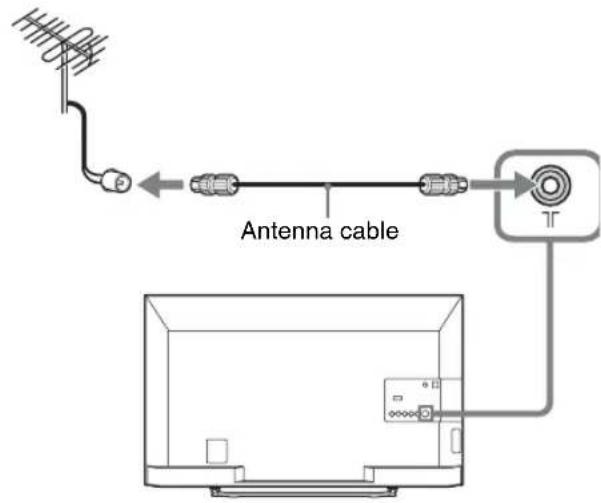

Connecting an antenna/cable

Antenna cable

Connecting an antenna/cable and VCR


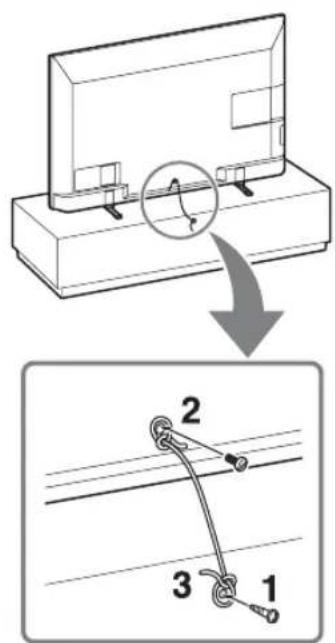

3: Preventing the TV from toppling over

Diagram illustrating cable installation steps with labeled components 1, 2, and 3

1 Install a wood screw (4 mm in diameter, not supplied) in the TV stand.

2 Install a machine screw (M4, not supplied) into the screw hole of the TV.

The length of the M4 machine screw differs depending on the cord diameter. Please refer to below illustration.

6-8 mm Screw M4 TV Cord

3 Tie the wood screw and the machine screw with a strong cord (not supplied).

- Please place the TV set on a stable, level surface, if place on an unstable place, it may caused TV set to topple over, fall down, and caused injuries to people. - An optional Sony support belt kit is used to secure the TV. Contact your nearest Sony service centre to purchase a kit. Have your TV model name ready for reference.

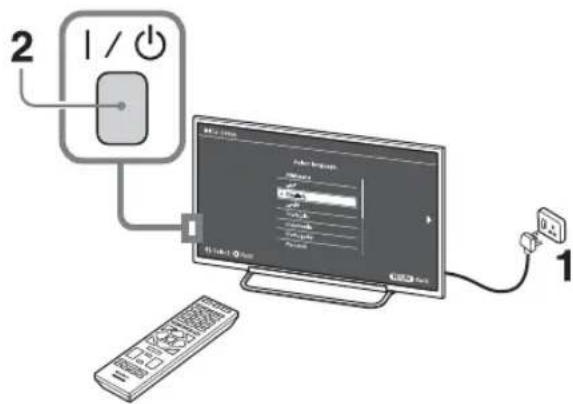

4: Performing the initial set-up

2 1 / Power Switch Control Panel Display Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power

1 The shapes of AC power plug and mains socket differ depending on the region.

2 When the TV is in standby mode (the I/↓ indicator on the TV front panel is red), press I/↓ on the remote to turn on the TV.

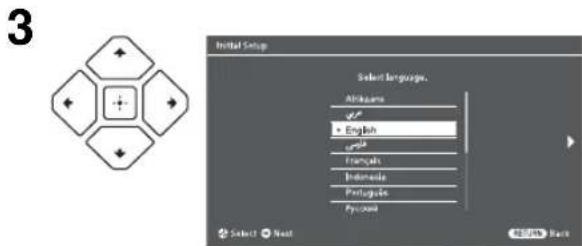

3 Initial Setup Select Language. Afrakans + English English French Indonesian Portuguese Pycocan Select Next Back

Follow the instructions on the screen:

• Set the language for the On Screen Display (OSD) text
• Select Region and Area
• Select the type of use
• Select "Home" for the best TV settings to use the TV in the home.

- Select broadcast.

- Scan for channels

- Change the order of channels If you want to change the order of channels, follow the steps in "Programme Sorting" (page 35).

Press HOME or RETURN to exit. You can also tune channels manually (page 34, 35).

- Set the current date and time (page 37).

Watching TV

1 Press I/⏻ on the TV to turn on the TV.
2 Press DIGITAL/ANALOG to switch between digital and analogue modes.
3 Press the number buttons or PROG +/- to select a TV channel.
4 Press VOLUME +/- to adjust the volume.

Safety information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to avoid it from falling down and cause personal injury or damage to the TV.
• Only qualified service personnel should carry out wall installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:
• Wall-mount bracket SU-WL400

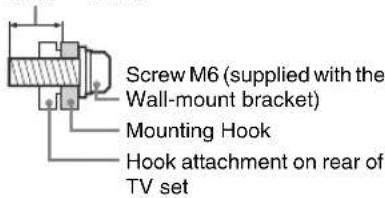

• Be sure to use the screws supplied with the Wall-mount bracket when attaching the mounting hooks to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the mounting hook. The diameter and length of the screws differ depending on the Wall-mount bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8mm \~ 12mm

Screw M6 (supplied with the Wall-mount bracket) Mounting Hook Hook attachment on rear of TV set

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

Two human figures holding a rectangular TV frame, viewed from behind (no text or symbols visible)

- When lifting or moving the TV set, hold it firmly from the bottom.

Diagram illustrating a folding or retraction process with labeled steps and hand positions

Be sure to hold the bottom of the panel, not the front part.

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Ventilation

• Never cover the ventilation holes or insert anything in the cabinet.
• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony wall-mount bracket in order to provide adequate air-circulation.

Installed on the wall

10 cm 10 cm 30 cm 10 cm

Leave at least this space around the set.

Installed with stand

10 cm 30 cm 10 cm 6 cm

Leave at least this space around the set.

• To ensure proper ventilation and prevent the collection of dirt or dust:
• Do not lay the TV set flat, install upside down, backwards, or sideways.
• Do not place the TV set on a shelf, rug, bed or in a closet.
• Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.

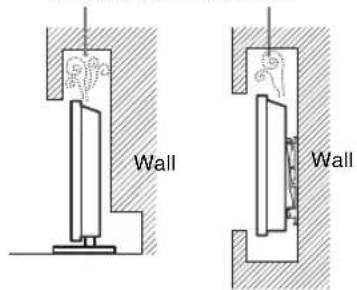

• Do not install the TV set as shown below.

Air circulation is blocked.

Wall Wall

AC power cord

Handle the AC power cord and outlet as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:

• The shape of AC power plug, which is supplied with the TV set, varies depending on the regions. Be sure to connect the appropriate supplied AC power cord with the plug that fits into the mains socket.
• Insert the plug fully into the mains socket.
• Operate the TV set on a 110-240 V AC supply only.
• When wiring cables, be sure to unplug the AC power cord for your safety and take care not to catch your feet on the cables.
• Disconnect the AC power cord from the mains socket before working on or moving the TV set.
• Keep the AC power cord away from heat sources.
• Unplug the AC power plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Notes

• Do not pinch, bend, or twist the AC power cord excessively. The core conductors may be exposed or broken.
• Do not modify the AC power cord.
• Do not put anything heavy on the AC power cord.
• Do not pull on the AC power cord itself when disconnecting the AC power cord.
• Do not connect too many appliances to the same mains socket.
• Do not use a poor fitting mains socket.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location:

• Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.
• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

Cleaning:

Do not spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and get inside, resulting in a malfunction.

Diagram illustrating a disinfection procedure with a monitor emitting particles and a spray bottle, accompanied by a no-smoking symbol.

Environment:

• Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.
• Do not place the TV in a humid or dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.

Situation:

• Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from mains socket and antenna during lightning storms.
• Do not install the TV so that it sticks out into an open space. Injury or damage from a person or object bumping into the TV may result.

Broken pieces:

• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.
• If the surface of the TV set cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result.
• Do not subject the LCD screen to any strong impact or shock. The screen glass may crack or shatter and cause injury.

When not in use

• If you will not be using the TV set for several days, the TV set should be disconnected from the AC power for environmental and safety reasons.
• As the TV set is not disconnected from the mains when the TV set is just turned off, pull the plug from the mains to disconnect the TV set completely.
• However, some TV sets may have features that require the TV set to be left in standby to work correctly.

For children

• Do not allow children to climb on the TV set.
• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off the TV set and unplug the AC power cord immediately if any of the following problems occur.

Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

• AC power cord is damaged.
  – Poor fitting of mains socket.
  – TV set is damaged by being dropped, hit or having something thrown at it.
  – Any liquid or solid object falls through openings in the cabinet.

About LCD Monitor Temperature

When the LCD Monitor is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand.

Precautions

Viewing the TV

- Some people may experience discomfort (such as eye strain, fatigue, or nausea) when using this product. Sony recommends that all viewers take regular breaks while watching 3D video images or playing stereoscopic 3D games. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop using this product and watching the 3D video images until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual of your television, as well as any other device or media used with your television and (ii) Sony website for the latest information. The vision of young children (especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recommendations listed above.

• You should only use this product for watching 3D video images on a compatible Sony television.
• Watch the TV from a distance of more than three times the TV's screen height.
• Avoid eye injury with the tip of the temple arms.
• Be careful not to pinch your fingers in the hinges when bending the temple arms.
  • View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.
• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.

• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.

• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD screen contains a small amount of liquid crystal. Some fluorescent tubes used in this TV set also contain mercury (except for LED backlight LCD TV). Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the AC power cord connected to the TV set from mains socket before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.
• Do not spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts, and may cause a malfunction.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.
• When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set.

Otherwise picture distortion and/or noisy sound may occur.

Caution about handling the remote control and batteries

Notes

• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.
• Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.

- Do not place the remote in a location near a heat source, a place subject to direct sunlight, or a damp room.

WARNING

Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Maintenance of your Glasses

• Wipe the Glasses gently with a soft cloth.
• Never use strong solvents such as a thinner, alcohol or benzine for cleaning.

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other

European countries with separate collection systems)

This symbol is on the remote control.

Overview of the remote

SYNC MENU DIGITAL/ANALOG AUDIO 3D 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 GUIDE ? ? 10 RETURN OPTIONS 11 HOME 20 + - + - PROG 21 22 13 SONY TV

- The number 5, PROG + and AUDIO buttons have tactile dots. Use the tactile dots as references when operating the TV.

1/→Input select / Text hold

• Displays the connected equipment list and selects the input source (page 15).
• In Text mode: Holds the current page.

2 SYNC MENU

Press to display the BRAVIA Sync Menu and then select connected HDMI/MHL equipment from "Device Selection".
The following options can be selected from BRAVIA Sync Menu:
"Device Control": Use the "Device Control" menu to operate equipment that is compatible with BRAVIA Sync Control. Select options from "Home (Menu)", "Options" and "Content List" to operate the equipment.
"Speakers": Selects "TV Speakers" or "Audio System" to output the TV's sound from the TV speakers or connected audio equipment.
"TV Control": Use the "TV Control" menu to operate the TV from the "HOME (Menu)" or "Options" menu.
"Return to TV": Selects this option to return to TV programme.

3 DIGITAL/ANLOG

Press to switch between digital and analogue channels. Exit Text mode, or switches to a TV display when displaying external input.

4 AUDIO - Dual Sound (page 32)

5 Number buttons

• Selects channels. For channel numbers 10 and above, enter the next digit quickly.
• In Text mode: Enters the three digit page number to select the page.

6 - Text

In Text mode: Displays Text broadcast. Each time you press ☐, the display changes cyclically as follows: Text → Text over the TV picture (mix mode) → No Text (exit the Text service)

7 Coloured buttons

When the coloured buttons are available, an operation guide appears on the screen.

8 GUIDE (EPG)

Press to display the Digital Electronic Programme Guide (EPG) (page 22).

9 ↑/↓/↔/→/ + - Item select / Enter

• Selects or adjusts items.
• Confirms selected items.
• When playing a photo file: Press to select the previous file. Press to select the next file.
  When playing a music/video file: Press to pause/start the playback. Press and hold / to fast forward/fast reverse, then release the button at the point where you want to resume playback.
• In digital mode: Press to add channel to the empty Favourite list or display Favourite list.

10 RETURN

• Returns to the previous screen of any displayed menu.
• When playing a photo/music/video file: Press to stop the playback (the display returns to the file or thumbnail view).

11 HOME

Displays or cancels the menu.

12 ∠ +/− - Volume

Adjusts volume.

13

You can operate the BRAVIA Sync-compatible equipment that is connected to the TV. Some other buttons on the remote control may also operate BRAVIA Sync equipment.

14I/⏻ - TV standby

Press to turn the TV on or to switch to standby mode.

15 - Wide Mode

Changes the picture size. Press repeatedly to select the desired wide mode (page 12).

163D

Press to display the 3D menu.

17 Subtitle setting

Press to change the subtitle language (page 35) (in digital mode only).

18/ i+ Info / Text reveal

• Displays information. Press once to display information about the programme/input you are viewing. Press again to remove the display from the screen.
• In Text mode: Reveals hidden information (e.g. answers to a quiz).

19 OPTIONS

Press to display a list that contains shortcuts to some setting menus. The listed options vary depending on the current input and content.

20 - Previous channel

Returns to the previous channel or input watched (for more than 15 seconds).

21 PROG +/- /

• Selects the next (+) or previous (−) channel.
• In Text mode: Selects the next ( ) or previous ( ) page.

22 ^1 - Mute

Press to mute the sound. Press again to restore the sound.

■ To change the Wide Mode

For TV, Video, Component or HDMI/MHL

Wide Zoom* En	larges the centre portion of the picture. The left and right edges of the picture are stretched to fill the 16:9 screen.
Normal Displays	the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen.
Full Stretches the	the 4:3 picture horizontally to fill the 16:9 screen.
Zoom* Displays	cinemascopic (letter box format) broadcasts in the correct proportions.
14:9*	Displays 14:9 broadcasts in the correct proportions. As a result, black border areas are visible on the screen.

* Parts of the top and bottom of the picture may be cut off.
- You cannot select "Normal" or "14:9" for HD signal source pictures.

HDMI PC Input (PC timing)

Normal	Displays the picture in its original pixel size. Bars are shown at the top, bottom, and both sides for small picture.
Full 1	Stretches the original picture to fill the screen vertically, keeping its original horizontal-to-vertical aspect ratio.
Full 2	Stretches the Full 1 picture horizontally to fill the 16:9 screen

Overview of the TV buttons and indicators

1 2 3 I / O CH/ INPUT 4 5 I / O

Item Description
1 I/↓	– PowerPress to turn the TV on or to switch to standby mode.​• To disconnect the TV from the AC power completely, pull the plug from the mains socket.
2 △ + / - / ↑ / ↓	• Increases/decreases the volume, or selects the next (+) or previous (−) channel when the CH Up/Down screen is displayed by pressing the CH/INPUT button.• Moves the selected input source up/down when the input select screen is displayed by pressing the CH/INPUT button.
3 CH/INPUT	Switches between the CH Up/Down screen and input select screen.
4 P Remote sensor	Receives IR signals from the remote.Do not put anything over the sensor, doing so may affect its function.
5 I/↓	– Picture Off / Timer indicator• Lights up in orange when the “On Timer”/“Sleep Timer” is set, or the TV is in photo frame mode. If you set to “On Timer”, lights up in orange while the TV is also in standby mode (page 37).• Lights up in green when the “Power Saving” is set to “Picture Off” (page 39).– Standby indicatorLights up in red when the TV is in standby mode.– Power indicator• Lights up in green when the TV is turned on.• Flashes while the remote is being operated.

- Make sure that the TV is completely turned off before unplugging the AC power cord. Unplugging the AC power cord while the TV is turned on may cause the indicator to remain lit or may cause the TV to malfunction.

- The + button has a tactile dot. Use it as a reference when operating the TV.

Connecting optional equipment

You can connect a wide range of optional equipment to your TV.

Home theatre system*

Audio system

Camcorder

DVD player with HDMI output

PC (HDMI-output)

Blu-ray Disc player

MHL device

Digital still camera

Camcorder

Headphones/Hi-Fi audio equipment

Hi-Fi audio equipment with optical audio input

S VHS/

Hi8/DVC

camcorder

Video

game

equipment

DVD

player VCR

DVD player with component output

* To output the TV's sound from the TV speakers, connect the TV's Audio out with Home theatre system's Line-in using an audio cable.

Viewing pictures from the connected equipment

Turn on the connected equipment, then press ⏻/⌘ to display the connected equipment list. Press ⏻/⌘ to select the desired input source, then press ⏻. (The highlighted item is selected if 2 seconds pass without any operation after pressing ⏻/⌘.)

- You can select A, B, F and G by 📋/💡. If you want select the other input, please press HOME and select correctly.

Jacks/Input symbol on screen	Description
A, BHDMI IN 1 (ARC)HDMI IN 2/MHL→ HDMI 1 or→ HDMI 2	Connect to the HDMI IN 1 or 2 jack if the equipment has an HDMI jack. The digital video and audio signals are input from the equipment.In addition, when you connect the equipment that is compatible with BRAVIA Sync Control, communication with the connected equipment is supported. See page 38 to set up this communication.You can also connect your MHL (Mobile High-Definition Link) device to HDMI IN 2/MHL using an MHL cable. In addition, when you connect BRAVIA Sync-compatible equipment, communication with the connected device is supported.If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 1 (ARC). If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.→ The HDMI jacks only support the following video inputs: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 1080/24p.The HDMI jacks can support PC timing in HDMI PC mode. See page 33 for supported PC input signal.Be sure to use only an authorized HDMI cable bearing the HDMI logo. We recommend that you use a Sony HDMI cable (high speed type).
C You can enjoy photo/music/video files stored in a Sony digital still camera, camcorder or USB storage device (page 23).
D → AUDIO OUT or ↩	Connect with an audio cable or headphones. You can listen to TV sound through your stereo system or headphones. You can select “Variable” or “Fixed” in the “Audio Out” menu (page 32).
E → DIGITAL AUDIO OUT (OPTICAL)	Use an optical audio cable.
F, G→ C O M P or → VIDEO IN→ Component or→ Video	Connect to the component jacks and the audio jacks → For better picture quality component connection is recommended if your DVD player has a component video output. When using the component video jack → the video jack → Select “Video” in the “Video/Component Input” menu (page 38).→ You cannot use the component video jack and the video jack at the same time.→ If you connect mono equipment, connect to the L (MONO) jack →

©

Viewing 3D Video

You can experience powerful 3D (three-dimensional) entertainment, such as stereoscopic 3D video games and 3D Blu-ray discs with this TV and a 3D-enabled device. Use an HDMI/MHL cable or a USB cable to connect your TV to the 3D-enabled device.

• To see 3D contents, watch the TV with your eyes at the same level as the TV screen, and wear the supplied 3D glasses.
• The 3D effect will be compromised and screen colour will shift if you watch the TV lying down, or with your head tilted, or view from a wide angle.
  • Additional viewers with 3D glasses can also enjoy 3D content.
• You can buy commercially available Passive Polarized Glasses for 3D TV as replacement glasses or extra glasses. (You cannot use the Active Shutter 3D Glasses. Some theatrical glasses are not suitable for 3D TV.)
• The 3D function may not work properly, depending on the signal source or format.

Watching 3D content

The 3D display mode is automatically selected when a 3D signal is detected.

Press 3D and select "3D Display", then press 3D to toggles between 3D display mode and 2D display mode.

• The display mode does not change to 3D mode automatically, depending on the signal source or format. In this case, select 3D display mode manually.
• To prevent 3D display mode from being automatically selected when a 3D signal is detected, press HOME, then select "Settings" > "Picture" > "3D Settings" > "Auto 3D" > "Off".

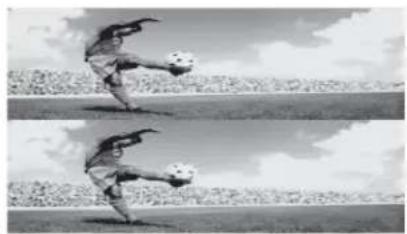

When the following non-3D pictures are displayed

Regular 2D picture Side-by-side picture Over-under picture

Black-and-white photo of a soccer player kicking a ball on a field, with spectators in the background (no text or symbols visible)

Black-and-white photo of a person performing a handstand on grass, with no visible text or symbols

Two black-and-white action shots of a soccer player mid-air, one jumping to hit the ball on the other's back (no text or symbols visible)

1 Press 3D to display the 3D menu.
2 Select "3D Display".
3 Press 3D repeatedly to toggle through "3D Display" modes.

"Simulated 3D":

Displays regular 2D pictures in simulated 3D.

"Side-by-Side":

Displays side-by-side pictures in 3D.

"Over-Under":

Displays over-under pictures in 3D.

"Off":

Displays pictures as they are.

4 Press RETURN to exit the 3D Menu.

- Simulated 3D effect may be less pronounced with some picture sources.

- Perceived simulated 3D effect may vary from person to person.

- Simulated 3D display automatically switch back to 2D display mode an hour after its activation.

- "Side-by-Side"/"Over-Under" may not be selected, depending on the signal source or format.

- Perceived simulated 3D effect may vary from person to person. - Simulated 3D display automatically switch back to 2D display mode an hour after its activation. - "Side-by-Side"/'Over-Under" may not be selected, depending on the signal source or format.

Watching 3D content in 2D

1 Press 3D to display the 3D Menu.
2 Select "3D Display".
3 Press 3D to select "Off".
4 Press RETURN to exit the 3D Menu.

3D Menu

You can adjust the following settings from the 3D Menu.

Press 3D, then select the desired settings > the desired option.

3D Display

When 3D pictures are displayed:

Switches between the 3D and 2D display modes.

When non-3D pictures are displayed:

Simulated 3D

Displays regular 2D pictures in simulated 3D.

- If you are watching 2D content in simulated 3D mode, and then change to other 2D content, 2D display mode will be selected automatically.

Side-by-Side

Displays side-by-side pictures in 3D.

-Two near-identical pictures for 3D viewing are displayed side-by-side.

Wear the 3D Glasses before setting "3D Format" as the instructions will otherwise be unreadable because of doubly-blurred letters on the screen.

Two side-by-side black-and-white photos of a bird performing a handstand on grass, with no visible text or symbols.

Over-Under

Displays over-under pictures in 3D.

-Two near-identical pictures for 3D viewing are displayed one above the other.

Wear the 3D Glasses before setting "3D Format" as the instructions will otherwise be unreadable because of doubly-blurred letters on the screen.

Two black-and-white photos showing a person kicking a soccer ball on grass, with no visible text or symbols.

Off

Displays pictures as they are.

- "Side-by-Side"/"Over-Under" may not be selected, depending on the signal source or format.

■ 3D Depth Adjustment

Adjusts the depth of 3D pictures.

• Selecting [0] is recommended for normal use.
• 3D effect may be less pronounced depending on the settings.

■ Simulated 3D Effect

Heightens/lessens the 3D effect when you display 2D pictures in simulated 3D.

3D Settings

You can make the following settings from the 3D Settings menu.

Press HOME, then select "Settings" > "Picture" > "3D Settings".

Auto 3D:

Select "On" then 3D picture is automatically displayed when a 3D signal is detected.

- The display mode does not change to 3D mode automatically, depending on the signal source or format. In this case, select 3D display mode manually.

3D Signal Notification:

Select "On" then a message is displayed when a 3D signal is detected.

3D Supported Video Format

input 3D Format		Signal
		Resolution Vertical Frequency (Hz)
HDMI	Frame Packing	1920 × 1080p 24, 30
		1920 × 1080i 50, 60
		1280 × 720p 24, 30, 50, 60
	Side by Side	1920 × 1080p 24, 60, 50
		1920 × 1080i 50, 60
		1280 × 720p 50, 60
	Over-Under	1920 × 1080p 24, 30, 50, 60
		1920 × 1080i 50, 60
		1280 × 720p 50, 60
MHL	Side by Side	1920 × 1080p 24
		1920 × 1080i 50, 60
		1280 × 720p 50, 60
	Over-Under	1920 × 1080p 24, 30
		1920 × 1080i 50, 60
		1280 × 720p 50, 60
USB	Side by Side	1920 × 1080p 24, 25, 30
		1920 × 1080i 50, 60
		1280 × 720p 24, 25, 30, 50, 60
	Over-Under	1920 × 1080p 24, 25, 30
		1920 × 1080i 50, 60
		1280 × 720p 24, 25, 30, 50, 60

• Depends on the MHL device, 3D display might be not displayed.
  • See page 25 for the supported USB video format.

Navigating through menus

HOME 1 Digital Programme List 2 Digital EPG 3 Photo 4 Music 5 Video 6 Photo Frame Mode 7 FM Radio Settings HOME Exit

The HOME button allows you to access a variety of TV settings and USB media files.

1 Press HOME on the TV or remote.
2 Press ↩/▽ to select an option, then press ⊕.
3 Follow the instructions on the screen.
4 To exit the menu, press HOME.

Menu Description

1 Digital Programme List	You can select the Digital Programme List (page 21).
2 Digital EPG	You can select the Digital Electronic Programme Guide (EPG) (page 22).
3 Photo	You can enjoy photo files via USB devices (page 23).
4 Music	You can enjoy music files via USB devices (page 23).
5 Video	You can enjoy video files via USB devices (page 23).
6 Photo Frame Mode	You can select the frame image which enables you to enjoy with photo, music and clock (page 26).
7 FM Radio Listens to the FM Radio (page 28).
8 Settings Displays the “Settings” menu where most of the advanced settings and adjustments are performed. For details about settings, see page 30 to 39.

Using the Digital Programme List DVB\*

Favourites 1 001 NET FOG 002 NET FOG 003 004 Special 05 006 NET FOG 007 NET 008 NET 009 NET Previous Next Setup Select Confirm PETRUM Del

Digital Programme List

The Favourite feature allows you to specify up to four lists of your favourite programmes.

1 In digital mode, press HOME and select "Digital Programme List", then press ⇔/⇨ to select the Favourite list.

- If Favourite list is already selected before, just press to access Favourite list.

2 Perform the desired operation as shown in the following table or displayed on the screen.

* This function may not be available in some countries/regions.

To Do this

Create your Favourite list for the first time	1 Press to select “Yes”.2 Press the yellow button to select the Favourite list.3 Press ↗/▽ to select the channel you want to add, then press +.4 Press ↗/▽ to decide the position and press + to store.5 Press RETURN to finish setting up.
Watch a channel	1 Press ⇌/⇨ to select the Favourite list.2 Press ↗/▽ to select the channel, then press +.

Turn off the Favourite list Press RETURN.

Add channels in the currently edited Favourites list	1 Press the blue button to see Favourite Set-up.2 Press the yellow button to select the Favourites list you want to edit.3 Press ⇧/⇨ to select the channel you want to add, the press ➕.4 Press ⇧/⇨ to decide the position and press ➕ to store.
Change the order of channels stored in the Favourites list	1 Press the blue button to see Favourite Set-up.2 Press the yellow button to select the Favourites list you want to edit.3 Press ➕ or ➕ to jump to the Favourite list.4 Press ⇧/⇨ to select the channel you want to change the position, then press ➕5 Press ⇧/⇨ to decide the position and press ➕ to store.
Remove channels in the currently edited Favourite list	1 Press the blue button to see Favourite Set-up.2 Press the yellow button to select the Favourite list you want to edit.3 Press ➕ and ⇧/⇨ to select the channel you want to remove, then press ➕.4 Press the blue button to remove.
Remove all channels from the current Favourite list	1 Press the blue button to see Favourite Set-up.2 Press the yellow button to select the Favourite list you want to edit.3 Press the blue button.4 Press ⇧/⇨ to select “Yes”, then press ➕ to confirm.

Using the Digital Electronic Programme Guide (EPG)

DV3

GUIDE Enter Programme number Ft 16 Mar 11:30AM Ft 16 Mar 11:30AM 12:30PM 12:30PM 1:00PM 003 Wavemawaswana 004 Channel 4 005 Five 006 ITV2 007 BIG TWO 008 BIG FOUR 010 ITV3 011 SETANTA 012 BIG NEWS 013 ABC NEWS 014 MTV ■ Preview ■ Next ▼ -1 day ▼ -1 day ● Select ● True ● Information ○ Ⓤ/☐/☐ Options RETURN Back

Digital Electronic Programme Guide (EPG)

1 In digital mode, press GUIDE.
2 Perform the desired operation as shown in the following table or displayed on the screen.

* This function may not be available in some countries/regions.

A

- The contents of the screen depend on the broadcasting station.

To Do this

Watch a programme

Press ⇧/∅/⇔/⇔ to select the programme or enter the desired programme number by numeric key, then press ⏻

Turn off the EPG Press GUIDE.

[NO TEXT]

- If an age restriction for programmes has been selected, a message asking for a PIN code will appear on the screen. For details, see "Parental Lock" on page 36.

Playing back photo/music/video via USB

You can enjoy photo/music/video files stored in a Sony digital still camera or camcorder through a USB cable or USB storage device on your TV.

1 Connect a supported USB device to the TV.
2 Press HOME.
3 Press ⇧/⇨ to select "Photo", "Music" or "Video".
4 The thumbnail view of file or folder appears. If more than one USB device is detected, press the red button to select "Playback Options" and then "Device Selection" from the list of available options and press ☐, then press ⌘/▽/⇨/⇨ to select a USB device and press ☐.
5 Press ↗/▽/◇/⇒ to select a file or folder, then press +. When you select a folder, select a file, then press +Playback starts.
- If you connect the USB device when "USB Auto Start" is set to "On" (page 37), the thumbnail view of the last played Photo/Music/Video appears automatically.

Basic operation of Photo/Music/Video

You can operate the connected USB device by the TV remote.

Item Description

◀◀ / ▶▶	Fast reverses/fast forwards the file when pressed during playback.
◀◀ / ▶▶▶	Goes to the beginning of the previous or current/next file.
▶ Starts playback.
■ Pauses playback.
■ Stops playback.

■ To use playback options

Press the coloured buttons to display a list that contains shortcuts to some setting menus. The listed options vary depending on the current input and content.


"Slideshow Effect": Selects an effect for a slideshow.

"Slideshow Speed": Selects the slideshow duration.

"Shuffle": Plays files in random order.

"Zoom": Magnifies the picture ("1×", "2×" or "4×")

Music

"Playback Target": Selects to play all files, or one selected file.

"Shuffle": Plays files in random order.

"Speakers": Selects a speaker (page 32).

Video

"Playback Target": Selects to play all files, or one selected file.
"Zoom": Magnifies the picture ("1×", "2×", "4×" or "Full").
"Speakers": Selects a speaker (page 32).

General

"Repeat": Plays a file repeatedly.

"Sort By": Changes file order.

"Device Selection": Selects a USB device.

■ To set the picture (Video)

You can adjust the picture quality of USB Video.

1 Select a video. See "Playing back photo/music/video via USB" (page 23).

2 Press OPTIONS during playback, then press ♠/⇨ to select "Picture" and press □.

3 Press ↩/▽/↔/⇨ to select the item, then press ⊕.

4 Press ↩/▽/↔/⇨ to adjust the setting, then press ⊕.

■ To play a photo as a slideshow (Photo)

You can play a slideshow with photos. "Slideshow Effect" and "Slideshow Speed" can be set.

1 Select a photo. See "Playing back photo/music/video via USB" (page 23).

2 Press the green button in thumbnail view, or press OPTIONS while a photo is displayed, then press ✉/▽ to select "Slideshow" and press ✉

■ To stop a slideshow

Press RETURN or HOME.

- While the TV is accessing the data on the USB device, observe the following:

- Do not turn off the TV.

- Do not disconnect the USB cable.

- Do not remove the USB device.

The data on the USB device may be damaged.

• Sony will not be held liable for any damage to, or loss of, data on the recording media due to a malfunction of any connected devices or the TV.
• The file system on the USB device supports FAT16, FAT32 and NTFS.
• The file name and folder name may not display correctly in some cases.
• When you connect a Sony digital still camera, set the camera's USB connection mode to Auto or Mass Storage. For more information about USB connection mode, refer to the instructions supplied with your digital camera.
• Check the website below for updated information about compatible USB devices.
  http://www.sony-asia.com/bravia/flash.html
• Use a USB storage device that is compliant with USB mass storage device class standards.
• If a selected file has incorrect container information, or is incomplete, it cannot be played back.
• Use a USB storage device that is compliant with USB mass storage device class standards.
• If a selected file has incorrect container information, or is incomplete, it cannot be played back.

■ To watch 3D video in a USB device

You can watch 3D content by connecting the USB device to the TV (page 17). The file format must be supported by this TV. For details about format, see page 25.

USB Video format

Extension Container Video Codec Audio Codec
.avi AVI		Xvid	PCM / MPEG1 Layer1, 2 / MP3 /MPEG2 AAC (2ch) /MPEG4 AAC (2ch) /MPEG4 HE-AAC (2ch) /WMA v8 / Dolby Digital (2ch) /Dolby Digital Plus (2ch)
		MPEG1
		MPEG2 MP
		H.264 BP/MP/HP
		MPEG-4 SP/ASP
.wmv.asf	ASF	WMV v9	MP3 / WMA v8
		Xvid
		MPEG-4 SP/ASP
		VC-1
.mp4.mov.3gp	MP4	H.264 BP/MP/HP	MPEG1 Layer1, 2 / MP3 / MPEG2 AAC /MPEG4 AAC / MPEG4 HE-AAC
		MPEG-4 SP/ASP
		H.263
.mkv MKV		H.264 BP/MP/HP PCM / MPEG1 Layer1, 2 / MP3 /MPEG2 AAC (2ch) /MPEG4 AAC (2ch) /MPEG4 HE-AAC (2ch) /WMA v8 / Dolby Digital (2ch) /Dolby Digital Plus (2ch) / DTS
		MPEG-4 SP/ASP
		WMV v9
		VC-1
.mpg.mpeg.vro.vob	PS	MPEG1	MPEG1 Layer1, 2 / MP3 /Dolby Digital (2ch) /Dolby Digital Plus (2ch) / DTS
		MPEG2 MP
.ts.m2ts	TS	MPEG2 MP	MPEG1 Layer1, 2 / MP3 / MPEG2 AAC /MPEG4 AAC / MPEG4 HE-AAC /Dolby Digital (2ch) /Dolby Digital Plus (2ch) / DTS
		VC-1
		H.264 BP/MP/HP

USB Music format

Extension Audio Codec
.wav LPCM
.mp3 MPEG1
.wma WMA v8

USB Photo format

Extension Image Codec
.jpg, .jpeg JPEG

DCF2.0 or EXIF2.21 supported.

- Playback of the above file formats is not guaranteed.

Photo Frame

You can enjoy looking at a photo, listening to music or FM radio, or the clock and calendar, at the same time.

Photo Frame Mode 1 12:22 AM Eon Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 BRAVIA-Music1 Sorry BRAVIA Sample 00:00:38/00:02:03 Previous Next Today Charge Photo OPTIONS Options RETURN Exit

You can enter photo frame mode using any of the following methods:

① Press HOME, and then select "Photo Frame Mode".
②When you are playing back the photo/music files, press OPTIONS and select "Photo Frame Mode".
③When you are listening to the FM radio, press OPTIONS and select "Photo Frame Mode".
④Select "Image Selection"/"Music Selection" in the "Photo Frame Settings" menu.

You can switch the display mode of the frame from the Options menu, eg. image and clock, full screen image or full screen clock.

■ To select photo

You can select photos from USB memory, using any of the following methods:

① Press HOME and select "Settings", then "Set-up" > "Photo Frame Settings" > "Image Selection". Press to select the file from thumbnail view.
② In photo frame mode, press OPTIONS > "Image Selection". Press to select the file from thumbnail view.
③ Press HOME, and then select "Photo". When playing back a photo, press OPTIONS > "Photo Frame Mode" to launch "Photo Frame" with the selected photo.

■ To select music

You can select music from USB memory, using any of the following methods:

① Press HOME and select "Settings", then "Set-up" > "Photo Frame Settings" > "Music Selection". Press to select the file from thumbnail view.
② In photo frame mode, press OPTIONS > "Music Selection".
Press to select the file from thumbnail view.
③ Press HOME, and then select "Music". When playing back music, press OPTIONS > "Photo Frame Mode" to launch "Photo Frame" with the selected music.

■ To select Display mode

You can change the photo frame display by selecting "Display Mode" (page 37).

- Image and Clock

Black-and-white photo of a coastal scene with a castle on the shore and distant hills (no visible text or symbols)

- Full Screen Image

Close-up black-and-white photo of a sunflower with visible petals and center (no text or symbols)

- Full Screen Clock

Cropped image showing a grid of numerical data with arrows pointing to specific cells, likely from a software interface or document.

■ To select Clock Display mode

There are five calendar display modes. When the "Display Mode" setting is set to "Image and Clock", you can set to "Calendar", "Analogue Clock" or "Digital Clock". When the "Display Mode" setting is set to "Full Screen Clock", you can set to "Calendar", "Calendar and Clock" or "Clock".

For more details, see page 37:

• Calendar
• Analogue Clock
• Digital Clock
• Calendar and Clock
• Clock

- This TV does not have a battery powered backup for the clock. Therefore, if there is a power failure or if you disconnect the power cord, be sure to reset the current date and time.

Duration

To save power, in the Photo Frame Mode, the TV can continually playing back for up to 24 hours, after which it will power off automatically. After running photo frame mode for 24 hours, not use this mode for at least one hour, to avoid panel burn-in.

You can change the setting of the "Duration" in the "Photo Frame Settings". For details, see page 37.

To avoid panel burn-in, the position of the photo, clock and calendar are switched automatically every hour.

Listening to the FM Radio

You are able to listen to the FM radio stations using your TV by connecting an antenna (page 5). FM Radio tuning range is from 87.5-108.0 MHz. When you use the FM Radio function for the first time, press HOME and select "FM Radio", then perform "Auto Tuning" in the "FM Radio Set-up" menu (page 36).

To Do this

Access to FM Radio mode Press HOME and select "FM Radio".
Exit from FM Radio mode	Press RETURN to go back to previous view input.
Listen to preset stations	1 Access to FM Radio mode.2 Press HOME and select "Settings". Preset the desired FM radio stations and its labels in "FM Radio Set-up" from "Channel Set-up" menu (page 36).⇨ You can also access to "FM Radio Presets" by selecting "FM Radio Presets" from the Options menu in FM Radio mode.3 Exit from "Channel Set-up" menu by pressing HOME. The selected preset FM radio station number and label will appear on the screen. To select the desired preset FM radio station, press PROG +/-⇨ You can also use the 0-9 buttons on the remote to directly select the desired preset FM radio station.
Listen to non-preset stations	1 Access to FM Radio mode.2 Press ↗/▽ to manually search for the desired FM radio station. It will search and stop when found the next available station.⇨ You can also tune FM frequency for the desired FM radio station by pressing ◀/▽. The available radio frequency is only for temporary listening pleasure and cannot be stored in the memory.⇨ If the message "Please set-up FM Radio." appears, display the "Channel Set-up" menu and select "FM Radio Set-up" to preset the desired FM radio stations (page 36).
Show photo frame while listening to FM Radio	1 Press OPTIONS to select "Photo Frame Mode", then press □.2 Refer to "Photo Frame" (page 26) to select photo or "Display Mode".⇨ BRAVIA image will be displayed if a USB device is not connected.
Reduce power consumption while in FM Radio mode	1 Press OPTIONS to select "Power Saving". Select the desired options and press □.⇨ You can also access to "Power Saving" by selecting "Eco" from the setting menu (page 39).2 Exit from "Picture Off" by pressing any key on the remote except △+/- or ☑.

• If the station has a noisy sound, you may be able to improve the sound quality by pressing ⇔/→.
• When an FM stereo programme has static noise, press AUDIO until "Mono" appears. There will be no stereo effect, but the noise will be reduced.
• If CATV is connected, FM Radio may not be able to be received.

Using BRAVIA Sync with BRAVIA Sync Control

The BRAVIA Sync Control function enables the TV to communicate with the connected equipment that is compatible with the function, using HDMI CEC (Consumer Electronics Control). For example, by connecting Sony equipment that is compatible with BRAVIA Sync Control (with HDMI/MHL cables), you can control them together.

Be sure to connect the equipment correctly, and make the necessary settings.

BRAVIA Sync Control

• Automatically turns the connected equipment off when you switch the TV to standby mode using the remote.
• Automatically turns the TV on and switches the input to the connected equipment when the equipment starts to play (except in MHL mode).
• If you turn on a connected audio system while the TV is on, the sound output switches from the TV speaker to the audio system.
• Adjusts the volume ( + / - ) or mutes the sound (呎) of a connected audio system.
• You can operate the connected Sony equipment that has the BRAVIA Sync logo by the TV remote. Possible operations with BRAVIA Sync buttons, see page 11.
  -Refer to the instruction manual of the equipment for available control.
• If “BRAVIA Sync Control” of the TV is set to “On”, “BRAVIA Sync Control” of the connected equipment is also automatically switched to “On”.

■ To make the BRAVIA Sync Control settings

The BRAVIA Sync Control settings must be set on both the TV side and connected equipment side. See "BRAVIA Sync Settings" (page 38) for the TV side settings. For settings on the connected equipment, refer to its operating instructions.

Settings adjustment

- The options you can adjust vary depending on the situation. Unavailable options are greyed out or not displayed.


Picture Mode	Sets a picture mode. The options that can be selected differ depending on the “Scene Select” settings.“Vivid”: Enhances picture contrast and sharpness.“Standard”: For standard pictures. Recommended for home entertainment.“Custom”: Allows you to store your preferred settings.“Cinema”: For film-based content. Suitable in a theatre-like environment.“Graphics”: Optimizes picture quality for viewing graphics.Scene Select modePress OPTIONS and select “Scene Select” menu. When you select the desired scene option, the optimum sound and picture quality for selected scene are automatically set. The options you can select may vary. Unavailable options are greyed out.“Auto”: Delivers optimum picture and sound quality which is automatically set according to input source. There may not be any effect depending on the connected equipments.“General”: Current user settings.“Music”: Delivers dynamic and clear sound effects like at a concert.“Cinema”: Delivers theatre-like picture and dynamic sound.“Game”: Delivers the best picture and sound quality for fullest game playing enjoyment.“Graphics”: Delivers clearer detailed pictures to reduce fatigue for prolonged viewing.“Sports”: Delivers realistic picture with surround sound like in a stadium.
Reset	Resets all the “Picture” settings except “Picture Mode”, “Intelligent Picture Plus Set-up” and “3D Settings” to the factory settings.
Backlight Adjusts the brightness of the backlight.
Picture Increases or decreases picture contrast.
Brightness Brightens or darkens the picture.
Colour Increases or decreases colour intensity.
Hue Increases or decreases the green tones and red tones.⚠️ • When viewing TV programme or video input, “Hue” is only available for NTSC colour system.
Sharpness Sharpens or softens the picture.
Colour Temperature Adjusts the whiteness of the picture.“Cool”: Gives the white colours a blue tint.“Neutral”: Gives the white colours a neutral tint.“Warm”: Gives the white colours a red tint.
Noise Reduction Reduces the picture noise (snowy picture) in a weak broadcast signal.
MPEG Noise Reduction	Reduces the picture noise in MPEG-compressed video.
Cinema Drive	Provides improved picture movement when playing BD (Blu-ray Disc), DVD or VCR images taken on film, reducing picture blur and graininess. Select “Auto” to represent original film-based content as is.⚠️ • If the image contains irregular signals or too much noise, “Cinema Drive” is automatically turned off even if “Auto” is selected.
Advanced Settings	Allows you to set “Picture” settings in more detail. These settings are not available when “Picture Mode” is set to “Vivid”.“Reset”: Resets all the advanced settings to the factory settings.“Adv. Contrast Enhancer”: Automatically adjusts “Backlight” and “Picture” to the most suitable settings judging from the brightness of the screen. This setting is especially effective for dark images scenes, and will increase the contrast distinction of the darker picture scenes.“Black Corrector”: Enhances black areas of the picture for stronger contrast.“Gamma”: Adjusts the balance between bright and dark areas of the picture.“Clear White”: Emphasises white colours.“Live Colour”: Makes colours more vivid.“LED Motion Mode”: Reduces blur in movies by controlling the LED backlight source, but the brightness decreases.
Intelligent Picture Plus Set-up	“Intelligent Picture Plus”Allows you to improve the picture when viewing TV programme or video input. The options that can be selected differ depending on the “Scene Select” settings.“Signal Level Indicator”Turns on/off the “Signal Level Indicator” feature. When “On” is selected, the signal level bar will be displayed when you select a channel or video input.“Picture Optimisation”Allows you to enhance the picture to your preferred settings.“Crisp”: For a sharper image with more visible noise.“Smooth”: For a softer image with less visible noise.
3D Settings	“Auto 3D”Select “On” to automatically switch to 3D display mode when a 3D signal is detected.⇨ • The display mode does not change to 3D mode automatically, depending on the signal source or format. In this case, select 3D display mode manually.“3D Signal Notification”Select “On” to notify when a 3D signal is detected.

Sound

Sound Mode Sets a sound mode.

"Standard": For standard sound.

“Music”: Delivers surround effects that make you feel like you are surrounded by sound as in a music hall.

“Cinema”: Delivers surround effects just like the high-grade audio systems found in movie theatres.

"Game": Delivers surround effects that enhance game sound.

“Sports”: Delivers surround effects that make you feel like you are watching a live sports contest.

Reset Resets all the "Sound" settings except "Sound Mode", "Dual Sound",

"Speakers", "Audio Out" and "Advanced Settings" to the factory settings.

Equaliser Adjusts sound frequency settings.

Press ⇔/⇔ to select the desired sound frequency, then press ⇔/⇔ to adjust the setting and press ⚠The adjusted settings will be received when you select "Sound Mode" options.

Selecting "Reset" will set the "Equaliser" to original settings.

- Adjusting higher frequency will affect higher pitched sound and adjusting lower frequency will affect lower pitched sound.

Sound Booster Produces a fuller sound for more impact, by emphasising the bass/treble sounds.

Clear Voice Makes voice sound clearer.

Simulated Stereo Adds a surround-like effect to mono programmes.
Intelligent Volume	Minimizes the difference in volume level between all programmes and adverts (e.g. adverts tend to be louder than programmes).
Balance Emphasises left or right speaker balance.
Volume Offset Adjusts the volume level of the current input relative to other inputs.
Dual Sound Sets the sound from the speaker for a stereo or bilingual broadcast.“Stereo”/“Mono”: For stereo broadcasts.“Main”/“Sub”/“Mono”: For bilingual broadcasts, select “Main” for sound channel 1, “Sub” for sound channel 2, or “Mono” for mono channel, if available.If the signal is very weak, the sound becomes monaural automatically.If the stereo sound is noisy when receiving a NICAM programme, select “Mono”. The sound becomes monaural, but the noise is reduced.The “Dual Sound” setting is memorized for each programme position.You cannot listen to stereo broadcast sound when “Mono” is selected.If you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “Main” or “Sub”. However, when the external equipment connected to the HDMI jack (except HDMI 1) is selected, this is fixed to “Stereo”.
Speakers “TV Speakers”: Turns on and outputs the TV’s sound from the TV speakers.“Audio System”: Turns off the TV speakers and outputs the TV’s sound from external audio equipment connected to the audio output jacks on the TV. You can also turn on the connected equipment that is compatible with BRAVIA Sync Control, after making the appropriate settings of BRAVIA Sync Control.
Audio Out “Variable”: When using an external audio system, volume output from audio out can be controlled using the TV’s remote.”Fixed”: The audio output of the TV is fixed. Use your audio receiver’s volume control to adjust the volume (and other audio settings) through your audio system.
Advanced Settings	“Dynamic Range”: Compensates for differences in the audio level between different channels (only for Dolby Digital audio).The effect may not function or may vary depending on the programme regardless of the “Dynamic Range” setting.“Digital Audio Out”: Sets the audio signal that is output from the DIGITAL AUDIO OUT (OPTICAL) jack of the TV. Set to “Auto”, when connecting equipment compatible with Dolby Digital. Set to “PCM”, when connecting equipment not compatible with Dolby Digital.“Downmix Mode”: Set the downmix method of multi-channel to two-channel sound.“Surround”: Select to get best surround performance.“Stereo”: Select to get a stereo output.

Screen

Wide Mode For details about wide mode, see page 12.
Auto Wide Automatically changes the wide mode according to the input signal from an external equipment. To keep your setting, select “Off”. ♦ “Auto Wide” is only available when watching programmes from video input, HDMI and component input in format 480i or 576i. ⚙ Even if “Auto Wide” is set to “On” or “Off”, you can always modify the format of the screen by pressing repeatedly.
4:3 Default	Selects the default screen mode for use with 4:3 broadcasts.“Wide Zoom”: Enlarges the 4:3 picture to fill the 16:9 screen, keeping the original image as much as possible.“Normal”: Displays conventional 4:3 broadcasts in the correct proportions.“Off”: Keeps the current “Wide Mode” setting when the channel or input is changed.
Auto Display Area	“On”: Automatically adjusts the display area based upon the content.“Off”: Turns off the “Auto Display Area”. Choose one from the “Display Area” options.

Display Area Adjusts the picture display area. “Full Pixel”: Displays the picture for 1080/50i, 1080/60i, 1080/50p and 1080/60p sources (HDMI/MHL or component input only) or 1080/24p sources (HDMI/MHL input only) in the original size. (Available depending on the TV model.) “+1”: Displays pictures in their original size. “Normal”: Displays pictures in their recommended size. “-1”: Enlarges the picture so that the edges are outside the visible display area.
Horizontal Shift	Adjusts the horizontal position of the picture when “Wide Mode” is set to “Wide Zoom” or “Zoom”.
Vertical Shift	Adjusts the vertical position of the picture when “Wide Mode” is set to “Wide Zoom” or “Zoom”.
PC Settings	“Wide Mode” Selects a screen mode for displaying input from your PC, see page 12. “Reset” Resets all the “PC Settings” except “Wide Mode” to the factory settings. “Horizontal Shift” Adjusts the horizontal position of the picture. “Vertical Shift” Adjusts the vertical position of the picture.

PC input signal reference chart for HDMI IN 1 and 2/MHL

Signals	Horizontal (Pixel)	Vertical (Line)	Horizontal frequency (kHz)	Vertical frequency (Hz)	Standard
VGA 640 480	31.5 60 VGA
SVGA 800 600	37.9 60 VESA Guidelines
XGA 1024	768 48.4	60 VESA Guidelines
WXGA	1280	768 47.4 60	VESA
WXGA	1280	768 47.8 60	VESA
WXGA	1360	768 47.7 60	VESA
SXGA	1280	1024	64	60	VESA
HDTV*	1920	1080	67.5 60 EIA

* The 1080p timing when applied to the HDMI/MHL input will be treated as a video timing and not PC timing.

Analogue Set-up "Analogue Auto Tuning"

Tunes in all the available analogue channels. Usually you do not need to do this operation because the channels are already tuned when the TV was first installed. However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).

"Manual Programme Preset"

Before selecting "Label"/"AFT"/"Audio Filter"/"Skip"/"Colour System", press PROG +/- to select the programme number with the channel. You cannot select a programme number that is set to "Skip" (page 34).

"Programme"/"TV System"/"Frequency"

Presets programme channels manually.

1 Select "Programme", then press
2 Press ♠/▽ to select the programme number you want to manually tune (if tuning a VCR, select channel 0), then press RETURN.
3 Press ↩/▽ to select "TV System", then press □.
4 Press ⬇/▽ to go to the frequency range indication ("VHF Low", "VHF High" or "UHF"), then press □
5 Tune the channels as follows: Press ⇔/⇨ to search for the next available channel. When a channel has been found, the search will stop. To continue searching, press ⇔/⇨.
Repeat the procedure above to preset other channels manually.

"Label"

Assigns a name of your choice, up to seven letters or numbers, to the selected channel.

To input characters:

1 Press ↩/▽ to select the desired letter or number (“_” for a blank space), then press ↗.

If you input a wrong character

Press ⇔/⇨ to select the wrong character. Then, press ↗/⇨ to select the correct character.

2 Repeat the procedure in step 1 until the name is completed, then press ☐.

"AFT"

Allows you to fine-tune the selected channel manually. When “On” is selected, the fine tuning is performed automatically.

"Audio Filter"

Improves the sound of individual channels when distortion occurs in mono broadcasts in TV system "B/G", "I" and "D/K".

- You cannot receive stereo or dual sound when "Low"/"High" is selected.

"Skip"

Skips unused channels when you press PROG +/- to select channels. (You can still select a skipped channel using the number buttons.)

"Colour System"

Selects the colour system (“Auto”, “PAL”, “SECAM”, “NTSC3.58”, “NTSC4.43” or “PAL60”) according to the channel.

"Signal Level"

Displays the signal level for programme currently being watched.

red(weak)

amber(average)

green(good)

"Programme Sorting": Changes the order in which the analogue channels are stored on the TV.

1 Press ↗/▽ to select the channel you want to move to a new position, then press ↗.

2 Press ↩/▽ to select the new position for your channel, then press □.

Digital Set-up

"Digital Tuning"

• "Digital Auto Tuning":

Tunes in the available digital channels.

This option allows you to retune the TV after moving house, or to search for new channels that have been launched by broadcasters. Press

- "Auto Tuning Range":

• "Normal": Searches for available channels within your region/country.
• "Full": Searches for available channels regardless of region/country.

- You can run “Digital Auto Tuning” after moving to a new residence, changing service providers, or to search for newly launched channels.

- "Programme List Edit":

Removes any unwanted digital channels stored on the TV, and changes the order of the digital channels stored on the TV.

1 Press ↙/▽ to select the channel you want to remove or move to a new position.

Press the number buttons to enter the known three-digit programme number of the broadcast you want.

2 Remove or change the order of the digital channels as follows:

To remove the digital channel

Press ☐ After a confirmation message appears, press to select "Yes", then press + .

To change the order of the digital channels

Press , then press to select the new position for the channel and press .

3 Press RETURN.

• "Digital Manual Tuning":

Tunes the digital channels manually.

1 Select "Scan Type", then select "Channel" or "Frequency".
2 Set the other items accordingly.
3 Select "Scan Up" or "Scan Down", then start the manual tuning.
4 When available channels are found, select "Yes" or "No".
5 Select "Yes" to store the programme. The message "Would you like to continue scanning?" will appear on the screen. If you select "Yes", the next channel/frequency will be scanned. If you select "No", the previous screen is displayed.

- Digital Manual Tuning for Cable is only possible when there are digital cable services available to user, which were found using DVB-C Full Scan.

"Subtitle Set-up"

• “Subtitle Setting”: When “For Hard Of Hearing” is selected, some visual aids may also be displayed with the subtitles (if TV channels broadcast such information).
• “Primary Preferred Language”: Selects preferred language which subtitles are displayed in.
• “Secondary Preferred Language”: Selects secondary preferred language which subtitles are displayed in.

"Audio Set-up"

• “Audio Type”: Switches to broadcast for the hearing impaired when “For Hard Of Hearing” is selected.
• “Primary Preferred Language”: Selects the preferred language used for a programme. Some digital channels may broadcast several audio languages for a programme.
• “Secondary Preferred Language”: Selects the secondary preferred language used for a programme. Some digital channels may broadcast several audio languages for a programme.
• “Audio Description”: Provides audio description (narration) of visual information if TV channels broadcast such information.
• “Mixing Level”: Adjusts the TV main audio and Audio Description output levels.
  This option is only available when "Audio Description" is set to "On".
• “MPEG Audio Level”: Adjusts the MPEG audio sound level.

"Technical Set-up"

- “Auto Service Update”: Enables the TV to detect and store new digital services as they become available.

- “System Information”: Displays the current software version and the signal level.

- “Service Replacement”: Select “On” to automatically change the channel when broadcaster changes transmission of the viewing programme to a different channel.

FM Radio Set-up Preset up to 30 FM radio stations that can be received in your area.

"Auto Tuning"

Allows you to automatically tune and store all the available channels.

1 Select "Auto Tuning", then press

2 Select "OK" to automatically tune in all the available channels.

"FM Radio Presets"

Manually tune and store each available channel one at a time.

1 Press ↩/▽ to select the desired FM radio station position, then press □.

2 Press ⇧/⇨ to search the FM radio stations. Searching stops automatically when a station is tuned in. If the station has a noisy sound, you may be able to improve the sound quality by pressing ⇧/⇨. Press □ to store the FM radio station.

You may edit the FM radio station label. Press ↗/▽ to select alphanumeric characters for the label, then press +Repeat steps 1 to 2 to preset other FM radio stations.

- To enable this feature, access to FM Radio mode by using HOME (Menu) (page 20), then preset your desired FM radio stations according to the steps mentioned above.

Parental Lock

PIN Code Allows you to set up TV to block channel or external input. Use 0-9 on the remote to enter a four-digit PIN code.

Change PIN Code Selects to change your PIN code.

Parental Rating Sets an age restriction to viewing. To view any programme rated for ages above the age you specify, enter the correct PIN code.

External Input Lock Locks an external input from being watched.

To view a blocked external input, select "Unblocked".

- Entering the correct PIN code for blocked channel or external input will temporarily deactivates the "Parental Lock" feature. To reactivate the "Parental Lock" settings, turn off and on the TV.

If you lost your PIN code, see page 44.

Photo Frame Settings	“Display Mode”Allows you to select the display mode. Select from “Image and Clock”, “Full Screen Image” and “Full Screen Clock”. See page 26.“Clock Display”Allows you to select the clock display. Select from “Calendar”, “Analogue Clock”, “Digital Clock”, “Calendar and Clock” and “Clock”.“Calendar and Clock” and “Clock” can be displayed only when “Display Mode” is “Full Screen Clock”.“Audio Application”FM Radio: You can enjoy the FM radio with this function.Music: You can enjoy music with this function.Off: Turns off the audio.“Image Selection”Select image.“Music Selection”Select music.“Slideshow Setting”Slideshow: You can play a slideshow of photos.Single View: Displays one photo only.“Music Playback Setting”All Tracks: Listen to all music tracks.Single Track: Set to listen to a single music track.“Duration”Selects the time period (“1 h”, “2 h”, “4 h” or “24 h”) after which the TV automatically switches to standby mode.“First day of the week”Set “Sunday” or “Monday” as the first day of the week on the calendar.
USB Auto Start	Automatically enters the thumbnail view of the last played Photo/Music/Video when the TV is turned on and a USB device is connected to the USB port then turned on.
Clock/Timers	“Sleep Timer”Set the time in minutes (“Off”, “15”, “30”, “45”, “60”, “90”, or “120”) that you would like the TV to remain on before shutting off automatically.“On Timer”Turns on the TV from standby mode at a time you set, and tuned to a channel or input of your preference or photo frame mode. Before setting this function, make sure you set the correct current Time.“Clock Set”When this is set to “Auto”, the current time is set automatically if the TV receives the time from a digital broadcast signal. If the current time fails to be received from a digital broadcast signal, select to “Manual”, then select “Date” to set the date, then select “Time” to set the time. You can set to “Time Offset” only when “Clock Set” is set to “Auto”.If the time information can be obtained by broadcast signal, you cannot change the time manually.
Auto Start-up	Starts the initial set-up procedure (page 6). This option allows you to retune the TV after moving house, or to search for new channels that have been launched by broadcasters.
Language Selects the language in which the menus are displayed.
Start-up Logo	Select “On” to display the logo when the TV is turned on. Select “Off” to disable it.
AV Set-up	“Video Labels”Assigns name to external equipment. Select “Auto” to display names only when the equipment is connected, or “Always” to display regardless of connection status.Label Inputs:Uses one of the preset labels to assign a name to connected equipment.“Edit”:Creates your own label.“Video/Component Input”Select “Auto” to have the TV detect and switch between the component video jack -onthe video jack whencomponent video jack or vide-jackis connected.• You cannot use the component video jack and the video jack at thesame time.“Headphone/Audio Out”Sets the sound output to headphones or external audio system connected to the TV. Disconnect headphones from the TV when you select “Audio Out”.
BRAVIA Sync Settings	Allows the TV to communicate with equipment that is compatible with the BRAVIA Sync Control function, and connected to the HDMI/MHL jacks of the TV. Note that communication settings must also be made on the connected equipment.“BRAVIA Sync Control”Sets whether or not to link the operations of the TV and the connected equipment that is compatible with BRAVIA Sync Control. When set to “On”, the following functions are available.If the specific Sony equipment that is compatible with BRAVIA Sync Control is connected, this setting is applied to the connected equipment automatically when the “BRAVIA Sync Control” is set to “On” using the TV.“Auto Devices Off”When this is set to “On”, the connected equipment that is compatible with BRAVIA Sync Control turns off when you turn off the TV by remote.“Auto TV On”When this is set to “On”, the TV turns on when you turn on the connected equipment that is compatible with BRAVIA Sync Control (except in MHL mode).“Auto Input Change (MHL)”When this is set to “On”, an MHL device is switched to MHL input automatically. If the TV is in standby mode, it will not switch automatically. Select “Off” to disable it.“BRAVIA Sync Device List”Displays a list of connected equipment that is compatible with BRAVIA Sync Control.Selects “Enable” to update the “BRAVIA Sync Device List”.

"Device Control Keys"

Select button functions of the TV's remote control to operate the connected equipment.

“None”: Deactivates the control by the TV's remote.

“Normal”: For basic operations, such as navigation buttons (up, down, left or right, etc).

“Tuning Keys”: For basic operations and operation of channel-related buttons, such as PROG +/- or (0-9), etc. Useful when you control a tuner or set-top box, etc; via the remote control.

"Menu Keys": For basic operations and operation of the HOME/OPTIONS buttons. Useful when you select menus of a BD player, etc; via the remote control.

"Tuning and Menu Keys": For basic operations and operation of channel-related buttons and HOME/OPTIONS button.

- You cannot use "BRAVIA Sync Control" if the TV operations are linked to the operations of an audio system that is compatible with BRAVIA Sync Control.

- Some equipment with “BRAVIA Sync Control” does not support the “Device Control” feature.

Automatic Software Download	Select “On” to download the software automatically. Select “Off” to disable it.
Product Information Displays your TV's product information.
Factory Settings	Resets all settings to factory settings. After completing this process, the initial set-up screen is displayed.√ Be sure not to turn the TV off during this period (it takes about 30 seconds) or press any buttons.

Eco

Reset Resets the current Eco settings to the default values.
Power Saving Reduces power consumption of the TV by adjusting the backlight.When you select “Picture Off”, the picture is switched off, and the I/↓ indicator on the TV front panel lights up in green. The sound remains unchanged.
Idle TV Standby	Turns the TV off after it has been kept idle for the preset length of time.

Installing the accessories (Wall-Mount Bracket)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installing of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

■ To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Your TV can be installed using the Wall-Mount Bracket SU-WL400 (sold separately).

- Refer to the Instructions supplied with the Wall-Mount Bracket to properly carry out the installation.

Note when installing

When using the SU-WL400 Wall-Mount Bracket, the space between the wall and the TV will be 6 cm. Use this space to route cables to the TV.

6 cm

Sufficient expertise is required for installing these products, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of these products to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

- Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth, when securing the Mounting Hook.

SU-WL400

Screw (+PSW6 × 50) © Screw (+PSW6 × 20) © Spacer ⒺPulley Ⓔ Band Ⓕ Thick and soft cloth

- With the screen of the TV facing down, attach the SU-WL400 accessories. For more details of Ⓑ, Ⓒ, Ⓔ, Ⓕ and Ⓞ, refer to Instruction Guide provided with Wall-Mount Bracket.

• Attach the Pulleys Ⓑ and Screws Ⓒ to the upper rear of the TV.
• Attach the Band Ⓕ and Spacers Ⓔ with Screws Ⓖ to the rear of the TV.
• If using an electric screw driver, set the torque at approximately 1.5 N·m {15 kgf·cm}.
• Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference.

TV installation dimensions table

SU-WL400

a 80 c d b e

Screen centre point

Unit: mm

Model name	Display dimensions		Screen centre dimension	Length for mounting
	a	b	c	d	e
KDL-47R500A	1,085 648 177	510 114
KDL-42R500A	972 585 188	490 114

Figures in the above table may differ slightly depending on the installation.

WARNING

The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV. Refer to “Specifications” for its weight.

Hook locations diagram/table

Model Name Hook location
KDL-47R500A a
KDL-42R500A a

Hook location

When installing the TV onto the Base.

a b c

Troubleshooting

Check whether the I/○ indicator is flashing in red.

When it is flashing

The self-diagnosis function is activated.

1 Count how many times the I/○ indicator flashes between each three second break. For example, the indicator flashes three times, then there is a three second break, followed by another three flashes, etc.
2 Press I/ ^1 on the TV to turn it off, disconnect the AC power cord, and inform your dealer or Sony service centre of how the indicator flashes (number of flashes).

When it is not flashing

1 Check the items listed below.
2 If the problem still persists, have your TV serviced by qualified service personnel.


No picture (screen is dark) and no sound

• Check the antenna/cable connection.
• Connect the TV to the mains socket, and press I/⏻ on the TV.
• If the I/○ indicator lights up in red, press I/○.

No picture or no menu information from equipment connected to the video input jack appears on the screen

• Press to display the connected equipment list, then select the desired input.
• Check the connection between the optional equipment and the TV.

Double images or ghosting

- Check the antenna/cable connection, location or direction.

Only snow and noise appear on the screen

• Check if the antenna is broken or bent.
• Check if the antenna has reached the end of its serviceable life (three to five years in normal use, one to two years at the seaside).

Distorted picture (dotted lines or stripes)

• Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers or optional equipment.
• When installing optional equipment, leave some space between the optional equipment and the TV.
• Check the antenna/cable connection.
• Keep the antenna cable away from other connecting cables.

Picture or sound noise when viewing a TV channel

- Adjust "AFT" (Automatic Fine Tuning) to obtain better picture reception (page 34).

Some tiny black points and/or bright points appear on the screen

- The picture of a display unit is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.

Picture contours are distorted

- Change the current setting of "Cinema Drive" to other settings (page 30).

No colour on programmes

- Select "Reset" (page 30).

No colour or irregular colour when viewing a signal from the Y, P_B/C_B , P_R/C_R jacks of /

- Check the connection of the Y, P_B/C_B , P_R/C_R jacks of -/- and check if each jacks are firmly seated in their respective jacks.

No picture from the connected equipment appears on the screen

• Turn the connected equipment on.
• Check the cable connection.
• Press to display the connected equipment list, then select the desired input.
• Correctly insert the memory card or other storage device in the digital still camera.
• Use a digital still camera memory card or other storage device that has been formatted according to the instruction manual supplied with the digital still camera.
• Operations are not guaranteed for all USB devices. Also, operations differ depending on the features of the USB device and the video being played.

Cannot select the connected equipment on the menu or cannot switch the input

- Check the cable connection.

Sound

No sound, but good picture

• Press + / - or 叙 (Mute).
• Check if the "Speakers" is set to "TV Speakers" (page 32).
• Check if the headphone plug is connected to the TV.

No sound or noisy sound

- Check if the TV system setting is appropriate (page 34).

Channels

The desired channel cannot be selected

- Switch between digital and analogue mode and select the desired digital/analogue channel.

Some channels are blank

• The channel is for scrambled/subscription service only. Subscribe to a pay TV service.
• Channel is used only for data (no picture or sound).
• Contact the broadcaster for transmission details.

Digital channels are not displayed

• Contact a local installer to find out if digital transmissions are provided in your area.
• Upgrade to a higher gain aerial.

General

The TV turns off automatically (the TV enters standby mode)

• Check if the "Sleep Timer" is activated (page 37).
• Check if the "Duration" is activated by "On Timer" (page 37) or "Photo Frame Settings" (page 37).
• Check if the "Idle TV Standby" is activated (page 39).

Some input sources cannot be selected

- Select "Video Labels" and select "Always" of the input source (page 38).

The remote does not function

- Replace the batteries.

HDMI/MHL equipment does not appear on "BRAVIA Sync Device List"

- Check that your equipment is compatible with BRAVIA Sync Control.

Cannot select "Off" in "BRAVIA Sync Control"

- If you have connected any audio system that is compatible with BRAVIA Sync Control, you cannot select "Off" in this menu. To change the audio output to the TV speaker, select "TV Speakers" in the "Speakers" menu (page 32).

Lost password

- Select the "PIN Code" settings on the "Parental Lock" settings, then enter the following master password: 9999.

TV does not output picture and/or sound from the MHL device

- Disconnect the MHL cable, then reconnect it, or power the MHL device off then on again and release its lock.

Specifications

System
Panel system	LCD (Liquid Crystal Display) Panel (LED backlight)
TV system	Analogue:B/G, I, D/K, MDigital: DVB-T
Colour/video system	Analogue:PAL, PAL60 (only video input), SECAM, NTSC3.58, NTSC4.43 (only video input)Digital: MPEG-2 MP@ML/HL, MPEG-2 MP@ML/HL, H.264/MPEG-4 AVC MP/HP@L4
Channel coverage	Analogue:45.25MHz - 863.25MHz, Depend on country selectionDigital: VHF/UHF, Depend on country selection
Sound output	8 W + 8 W
Input/Output jacks
Antenna	75 ohm external terminal for VHF/UHF
COMPONENT IN/VIDEO IN	COMPONENT INSupported formats: 1080p, 1080i, 720p, 576p, 576i, 480p, 480iY: 1 Vp-p, 75 ohms, 0.3V negative sync/P B/CB: 0.7 Vp-p, 75 ohms/PR/CR: 0.7 Vp-p, 75 ohmsVideo input (phono jack)
COMPONENT IN/AUDIO	Audio input (phono jacks)
HDMI IN 1 (ARC), HDMI IN 2/MHL	HDMI Video: 1080/24p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480iMHL Video: 1080/24p, 1080/30p, 1080i, 720p, 720/30p, 576p, 576i, 480p, 480iAudio: Two channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital ARC (Audio Return Channel) (HDMI IN 1 only)
DIGITAL AUDIO OUT (OPTICAL)	Digital optical jack
AUDIO OUT, Ω	Audio output, Headphones (minijack)
ψ	USB port

Model name KDL-47R500A		KDL-42R500A
Power and others
Power requirements		110-240 V AC, 50/60 Hz
Screen size (measured diagonally)	inches	47 42
	cm (Approx.)	119.3 106.5
Display resolution		1,920 pixels (horizontal) × 1,080 lines (vertical)
Power consumption		Indicated on the rear of the TV.
Dimensions (Approx.) (w × h × d)	with Table-Top Stand (mm)	1,085 × 680 × 231 972 × 617 × 231
	without Table-Top Stand (mm)	1,085 × 648 × 76 972 × 585 × 75
Mass (Approx.)	with Table-Top Stand (kg)	16.4 13.7
	without Table-Top Stand (kg)	15.5 12.8
Optional accessories	Wall-Mount Bracket	SU-WL400
	Passive 3D Glasses	TDG-500P
	SimulViewTM Passive Glasses	TDG-SV5P

Optional accessories availability depends on country/region/TV model/stock.

Design and specifications are subject to change without notice.

导言

感谢您选购Sony产品。

• DVB a registered trademark of the DVB Project.

Mobile High-Definition Link

识别标签的位置

Diagram showing correct and incorrect hand positioning for a device, with checkmark and cross symbols indicating correct and incorrect states.

Diagram illustrating cable installation steps with labeled components 1, 2, and 3

3 Initial Setup Select language. Atriaana + English English Français Indonesia Portuguese Paysian Select Asset Add Back

按照屏幕上的指示操作：

Line drawing of two people holding a large screen (no text or symbols)

Diagram illustrating three-step folding or retraction process with labeled steps and directional arrows

务必抓住面板底部，而非前部。

Diagram showing a computer screen emitting particles with a spray bottle, accompanied by a prohibition symbol.

环境：

Black-and-white photo of a soccer player kicking a ball on a grass field, with blurred crowd in background (no text or symbols)

Black-and-white photo of a person performing a handstand on a field, with no visible text or symbols.

Two black-and-white photos of a person kicking a soccer ball on grass, with sky and clouds in the background (no text or symbols)

Two black-and-white photos of a person performing a handstand on grass, with trees in the background (no text or symbols)

上下

以3D形式显示上下图像。

Two black-and-white photos of a person kicking a soccer ball on a field, with sky and clouds in the background (no text or symbols)

关

以原图像形式显示。

Black-and-white photo of a coastal scene with a large mountain in the sea and numbered markers (no readable text or symbols)

- 全屏图像

Close-up black-and-white photo of a sunflower with visible petals and center (no text or symbols)

- 全屏时钟

Scanned document with a grid layout and directional arrow, likely a form or diagram label

选择时钟显示模式

有五种日历显示模式。

“频道” / “电视系统” / “频率”

手动预设频道。

Mobile High-Definition Link

Diagram showing two methods of hand positioning, marked with check and cross symbols indicating correct and incorrect positions.

Diagram illustrating cable installation steps with labeled components 1, 2, and 3

Initial Setup Select Language. English ✓ ✓ ✓ English ✓ Française Indonesia Portuguese Puccines Select Next

Two human figures holding a large rectangular screen, viewed from behind (no text or symbols visible)

Diagram illustrating a hand holding a device with three sequential steps showing hand positioning and adjustment.

Diagram illustrating a disinfection procedure with a monitor, spray bottle, and prohibition symbol

Environnement :

Illustration of a computer monitor with a potted plant emitting smoke or vapor (no text or symbols)

Au repos

Black-and-white photo of a person kicking a soccer ball on a field, with spectators in the background (no text or symbols visible)

Two black-and-white photos showing a person performing a handstand on grass, with no visible text or symbols.

Two black-and-white photos showing a person kicking a soccer ball on grass, with no visible text or symbols.

Two side-by-side black-and-white photos of a bird performing a handstand on a grassy field, with no visible text or symbols.

Dessus-dessous

Two black-and-white action shots of a person kicking a soccer ball on grass, with no visible text or symbols.

Non

Black-and-white beach scene with a large rock formation and ocean waves, no visible text or symbols

Close-up black-and-white photo of a sunflower with visible petals and center (no text or symbols)

Scanned text of a document with a central logo and partial table of Chinese characters

Mobile High-Definition Link

Diagram showing correct and incorrect hand positioning for a device, with checkmark indicating correct position and X mark indicating incorrect position.

Diagram of a device with a circular arrow indicating rotation or movement, no text or symbols present

2 3 1

3 Initial Setup Select language. A/Abame + English #P# Frenchs Indonesia Portugada Pyramid Select Next 42.0% Back

Two human figures holding a rectangular device, viewed from behind (no text or symbols visible)

Diagram illustrating three-step folding or dissection process with labeled arrows and checkmark indicators

Diagram illustrating a chemical process with a monitor emitting particles and a spray bottle, accompanied by a prohibition symbol.

Помещения:

Illustration of a computer monitor with a potted plant emitting smoke or vapor (no text or symbols)

Black-and-white photo of a soccer player kicking a ball on the field, with spectators in the background (no text or symbols visible)

Black-and-white photo of a bird performing a handstand on grass, with no visible text or symbols

Two black-and-white photos of a soccer player mid-air and back in the ball, captured in different angles (no text or symbols visible)

Black-and-white photo of a person performing a handstand on grass, with no visible text or symbols

Одна над другой

Two black-and-white photos of a person kicking a soccer ball on a field, with no visible text or symbols.

Выкл.

1 2023 12:22 pm 1 2 3 4 5 6 7 8 9 10 11 12 13 14 13 14 15 16 17 18 19 20 21 23 24 25 26 27 28 29:30:37 © KONKA BANANA © KONKA EVALENT © KONKA ZENJALO © KONKA ZENJALO

Close-up black-and-white photo of a sunflower with visible petals and center (no text or symbols)

Scanned text image containing fragmented Chinese characters and symbols, possibly from a document or form.

High-Definition Multimedia Interface

Mobile High-Definition Link

جدول McIntويات

Diagram showing a hand gesture with a checkmark and a magnified circle highlighting the finger pointing to a mechanical component.

Simple line drawing of a tool interacting with a bracket, no text or symbols present

Initial Setup Selected language. Atriaana • English Gujla Frencha Indonesia Portugalis Pyronali Select Next

Diagram of a device with a circular arrow indicating rotation or movement, no text or symbols present

Line drawing of two people holding a rectangular TV (no text or symbols)

Diagram showing a computer screen emitting particles with a spray bottle, accompanied by a prohibition symbol.

البيانة:

Two black-and-white photos of a person kicking a soccer ball, viewed from above and below (no text or symbols visible)

Black-and-white photo of a person performing a handstand on a grassy field, with no visible text or symbols.

Black-and-white photo of a person kicking a soccer ball on a field, with a crowd in the background (no text or symbols visible)

Two black-and-white photos showing a person performing a handstand on a field, with no visible text or symbols.

Black-and-white photo of a person kicking a soccer ball on a field, viewed from above (no text or symbols visible)

لأعلى-لأسفل

Close-up of a sunflower with visible petals and center (no text or symbols)

• ساعة ملء الشاشة

Simple clock face and grid pattern on dark background (no text or symbols)

1 12:22 am Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 6 9 10 11 12 13 14 15 16 17 18 19 20 21 20 23 24 25 26 27 28 29 30 31 BRATA Hotel Sony BRATA Sample -00:00:54/00:07:35 OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK ON: OPTIONS OK OK OK OK OK

“NTSC4.43” “NTSC3.58” “SECAM” “PAL” “تلقائي” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أو” “أо”

ال-ac Championships.

• تهاز الاختياري

وال Profilesن.

• الهوائي/الكبل.

DTS, Inc. 2012 (c) DTS Licensing Limited

مراجعه کنید.

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

dts®

2.0+Digital Out

MHL™

Mobile High-Definition Link

فهرست مندرجات

Diagram showing correct and incorrect hand positioning on a rail, with checkmark and cross symbols indicating correct and incorrect states.

Diagram of a device with a circular arrow indicating rotation or movement, no text or symbols present

Initial Setup Select languages Atriaans • English English French Indonesia Portugalis Japanese

Where is a jujiyan Where is a jujiyar

AC سيم برق

Two silhouettes of people holding a large rectangular device (no text or symbols visible)

Simple line drawing of a computer monitor with a flower and explosion (no text or symbols)

Diagram illustrating a chemical reaction involving a radioactive material and a spray bottle, with a prohibition symbol above.

محيط:

Two black-and-white photos showing a soccer player kicking a ball on the ground, with no visible text or symbols.

Black-and-white photo of a person performing a handstand on a field, with no visible text or symbols

تصوير 2D معمولي

Black-and-white photo of a soccer player kicking a soccer ball on a field (no text or symbols visible)

Two black-and-white photos of a person performing a handstand on a grassy field, with no visible text or symbols.

Two black-and-white photos of a person kicking a soccer ball on a field, no text or symbols visible

زیر و رو

OK1 OK2 OK3 OK4 OK5 OK6 OK7 OK8 OK9 OK10 OK11 OK12 OK13 OK14 OK15 OK16 OK17 OK18 OK19 OK20 OK21 OK22 OK23 OK24 OK25 OK26 OK27 OK28 OK29 OK30 OK31 OK32 OK33 OK34 OK35 OK36 OK37 OK38 OK39 OK40 OK41 OK42 OK43 OK44 OK45 OK46 OK47 OK48 OK49 OK50 OK51 OK52 OK53 OK54 OK55 OK56 OK57 OK58 OK59 OK60 OK61 OK62 OK63 OK64 OK65 OK66 OK67 OK68 OK69 OK70 OK71 OK72 OK73 OK74 OK75 OK76 OK77 OK78 OK79 OK80 OK81 OK82 OK83 OK84 OK85 OK86 OK87 OK88 OK89 OK90 OK91 OK92 OK93 OK94 OK95 OK96 OK97 OK98 OK99 OK100

حالت قاب عكس 1 2019 12:22 AM Date Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 6 9 10 11 12 13 14 15 16 17 18 19 20 21 30 25 24 25 26 27 28 29 30 31

BRATA-Huayt

Sany

BRATA Sample

-00:00:54/00:02:35 OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK ON: OK OK OK OK OK OK OK OK OK OK OK OK OK

حالت نمايش

Close-up of a sunflower with visible petals and center (no text or symbols)

• ساعت تمام صفحه

Simple clock face and grid layout diagram (no text or symbols)

“fbra bwa wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu wu w u

Instructions on "Installing the Wall-Mount Bracket" are not supplied in the form of a separate leaflet with this TV. These installation instructions are included within this TV's instructions manual.
