Product type	Pneumatic impact wrench
Brand	Metabo
Model	SR 1500 Set
Power source	Compressed air (via compressor)
Maximum admissible air pressure	6.3 bar
Air consumption	360 L/min
No-load speed	7500 rpm
Maximum torque	360 Nm
Impact mechanism	Hammer system
Square drive	1/2"
Maximum screw size	M16
Dimensions (L x W x H)	195 x 70 x 195 mm
Weight	2.0 kg
Sound power level (LWA)	107.8 dB(A)
Sound pressure level (LPA)	96.8 dB(A)
Vibration (weighted root mean square value)	< 2.5 m/s²
Vibration uncertainty (K)	1.23 m/s²
Set contents	Plastic case, bits, oil can, air line lubricator
Direction of rotation	Reversible (right/left) via lever
Torque adjustment	Yes, progressive (only in right rotation)
Lubrication	Pneumatic oil, 3 to 5 drops every 15 minutes of continuous use
Maintenance	Check and tighten screws, clean the tool, do not store in damp environment
Safety	Wear safety glasses and hearing protection, read the manual, disconnect air before maintenance
Repairs	Reserved for a professional (specialized electrician)
Warranty	Keep the proof of purchase for the warranty

Frequently Asked Questions - SR 1500 Set METABO

How to reverse the direction of rotation of the impact wrench?

Use the selection lever on the tool. Push it to the left for right rotation (tightening) and completely to the right for left rotation (loosening).

What air pressure to use?

The maximum admissible pressure is 6.3 bar. Never exceed this value. Set the pressure on the compressor according to the desired torque.

How to lubricate the pneumatic tool?

Introduce 3 to 5 drops of pneumatic oil into the compressed air supply every 15 minutes of continuous use. You can also use a lubricator integrated into the air line.

What accessories are supplied with the set?

The SR 1500 set is supplied with a plastic case, bits, an oil can, and an air line lubricator.

How to change the socket?

Before any change, disconnect the tool from the compressed air supply. Insert the appropriate socket onto the 1/2-inch square drive.

Is the torque adjustable?

Yes, only in right rotation. The torque adjustment lever allows you to adjust the torque: fully to the left for maximum torque, one notch to the right for lower torque.

What is the maximum screw size I can use?

The impact wrench can tighten screws up to M16 (hexagon socket screws). For nuts, use appropriate sockets.

How to maintain the tool?

Before any operation, disconnect the compressed air. Regularly check the screws and tighten them if necessary. Clean the tool to prevent dust accumulation. Lubricate as indicated.

Can I repair the tool myself?

No, repairs must be carried out exclusively by a specialized electrician. For any malfunction, contact Metabo customer service.

What protective equipment should I wear?

Always wear hearing protection and safety glasses when using the tool. Read the safety instructions provided carefully.

USER MANUAL SR 1500 Set METABO

Close-up of a metallic and black handheld electric drill putter (no visible text or symbols)

ENG Original operating instructions....6

KONFORMITÄTSERKLÄRUNGVDECLARATION OF CONFORMITY

We herewith declare in our sole responsibility that this product complies with the following standards* in accordance with the regulations of the undermentioned Directives**

SR 1500, SR 2700, SR 2900, SR 3500, SR 4500

*EN ISO 12100-1+A1:2009, EN ISO 12100-2+A1:2009, EN ISO 14121-1:2007, EN 792-6+A1:2008,

EN ISO 15744:2008, EN ISO 8662-7:1997

** 2006/42/EC

Volker Siegle

Director Innovation, Research and Development

Dokumentationsbevollmächtigter/ responsible person for documentation/ Chargé de la documentation

Metabowerke GmbH

Metabo-Allee 1

D - 72622 Nürtingen

Labeled diagram of a handheld electric drill with numbered parts for identification

(10, 11, 13, 14, 17, 19, 21, 22, 24, 27 mm)

Inhaltsverzeichnis

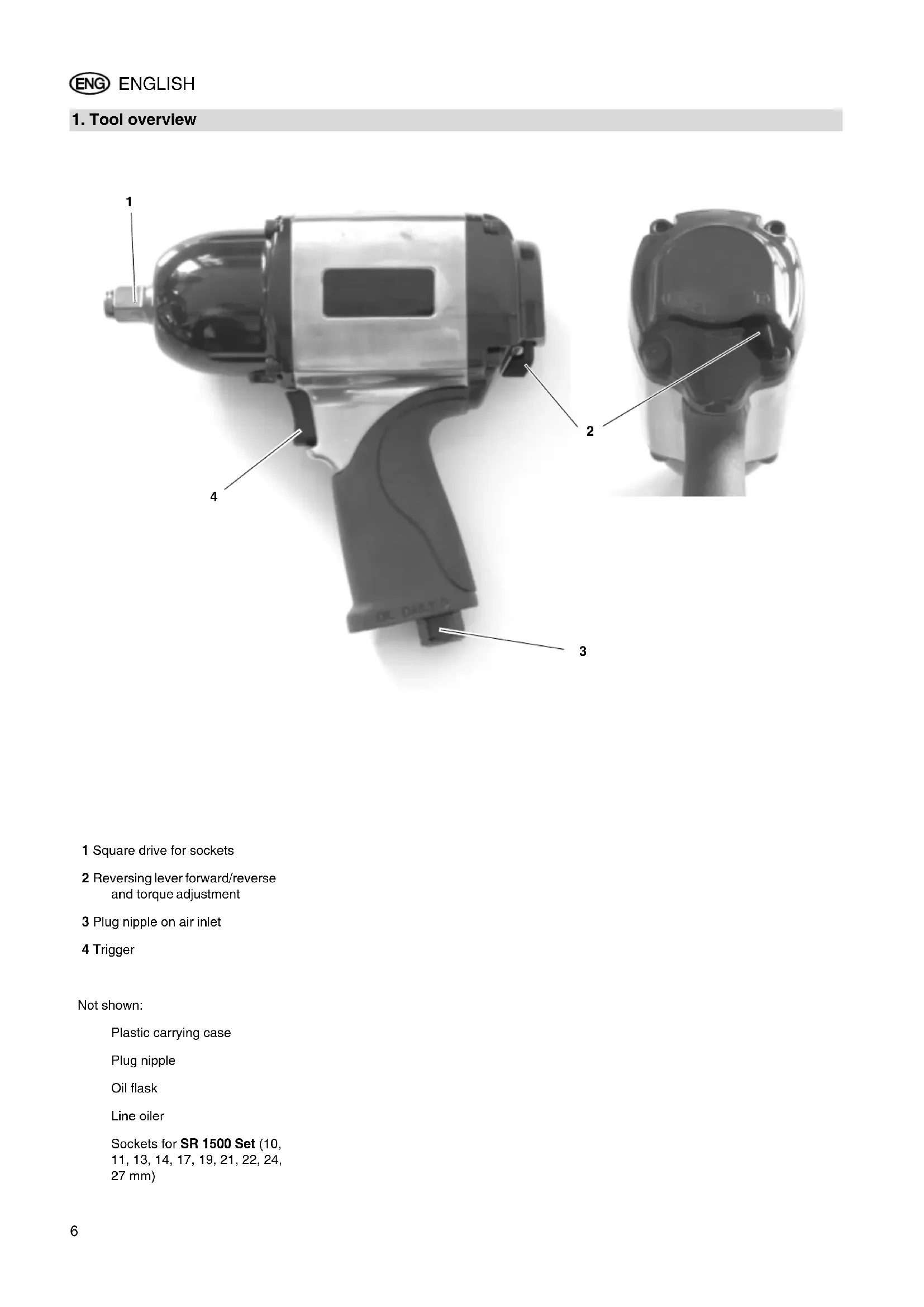

1 Square drive for sockets
2 Reversing lever forward/reverse and torque adjustment
3 Plug nipple on air inlet
4 Trigger

Not shown:

Plastic carrying case

Plug nipple

Oil flask

Line oiler

Sockets for SR 1500 Set (10, 11, 13, 14, 17, 19, 21, 22, 24, 27 mm)

Table of Contents

1. Tool overview......6
2. Please read first!...... 7
3. Safety 7
   3.1 Specified conditions of use .....7
   3.2 General safety instructions .....7
   3.3 Symbols on the tool .....7
4. Operation....7
   4.1 Before initial operation....7
   4.2 Using the tool....7
5. Care and maintenance .....8
6. Available accessories ....8
7. Repairs......8
8. Environmental protection .....8
9. Technical specifications .....8

2. Please read first!

These instructions are written in a way to let you work with the tool quickly and safely. Here is how to use the instructions:

• Read these instructions fully before operating the tool. Pay special attention to the safety information.
• If you notice transport damage while unpacking, notify your supplier immediately. Do not operate the tool!
• These instructions are intended for individuals having a basic technical knowledge in the handling of tools like the one described herein. If you have no experience whatsoever with such tool, we strongly recommend to seek the advice of experienced individuals.
• Keep all documents supplied with this tool for future reference. Also, retain proof of purchase in case of a warranty claim.
• Should you rent or sell the tool, pass on all documents supplied with the tool.

The manufacturer is not liable for any damage arising from neglect of these operating instructions.

Information in these instructions is denoted as under:

Danger!

Risk of personal injury or environmental damage.

Caution!

Risk of material damage.

– Numbers in illustrations (1, 2, 3, ...)

– denote component parts;
– ae consecutively numbered;

– Instructions to be carried out in a certain sequence are numbered.
- Instructions which can be carried out in any sequence are indicated by a bullet (•).
- Listings are indicated by an En Dash (-).

3. Safety

3.1 Specified conditions of use

This tool is used for running, driving and removing nuts and bolts.

This tool shall only be powered by an air compressor. The max. permissible working pressure stated in the Technical specifications must not be exceeded. This tool must not be operated with gases that are explosive, combustible or detrimental to health.

Any other use is not as specified. Use not as specified, modification of the tool or use of parts that are not approved by the equipment manufacturer, can cause unforeseeable damage!

3.2 General safety instructions

• When using this air tool follow the safety instructions given below, to exclude the risk of personal injury or material damage.
• Please also observe the special safety instructions in the respective chapters.
• Observe the statutory accident insurance institution regulations and regulations for the prevention of accidents pertaining to the operation of air compressors and air tools, where applicable.

General hazards!

• Keep your work area tidy – a messy work area invites accidents.
• Be alert. Do not operate this tool while under the influence of drugs, alcohol or medication.
• Keep the tool from jamming – ensure firm footing when using the tool.
• Always use a quick coupler to connect this air tool to a compressor.
• Make sure that the max. permissible working pressure stated in the Technical specifications is not exceeded.
• Do not overload tool – use it only within the performance range it was designed for (see Technical specifications).
• Do not touch any rotating parts.

- Disconnect tool from air supply before changing sockets or if left unattended.

Hazard generated by insufficient personal protection gear!

• Wear hearing protection.
• Wear safety glasses.

Hazard generated by tool defects!

- Do not attempt to repair the tool yourself! Only trained specialists are permitted to service or repair compressors, pressure vessels and air tools.

Caution:

Protect the tool, air inlet, drive square, and operating elements in particular, from dust and dirt.

3.3 Symbols on the tool

Danger!

Neglect of the following warnings may cause severe injury or material damage.

Read instructions.

Wear hearing protection.

Wear safety goggles.

4. Operation

4.1 Before initial operation

- Screw the plug nipple in.

4.2 Using the tool

Caution:

To ensure a long service life of this tool, it needs to be supplied with sufficient quantities of pneumatic oil. This can be achieved by:

• a service unit with oiler at the compressor.
• a lubricator, installed in the air line or directly on the air tool.

• adding approx. 3-5 drops of pneumatic oil by hand every 15 minutes of use (constant operation) to the air inlet.

• Put socket on the drive.

• Set direction of rotation with the reversing lever:

– Reversing lever to the left: forward

– Reversing lever fully to the right: reverse

1. Set torque only with the reversing lever in forward position:

2. Reversing lever fully to the left = maximum torque.

3. Reversing lever one step to the right = torque is reduced.

4. Adjust working pressure at the compressor (see Technical specifications for max. permissible working pressure).

5. Connect quick coupler to the air supply.

6. Pull trigger to start.

5. Care and maintenance

Danger!

ays disconnect from air ly before servicing.

Repair and maintenance work other than described in this section must

only be carried out by qualified specialists.

• Check all screwed connections for tightness, tighten if necessary.
• If the tool is not lubricated by a service unit or line lubricator, add 3-5 drops pneumatic oil to the air inlet every 15 minutes of use (constant operation).
• Do not store tool unprotected outdoors or in damp environment.

6. Available accessories

• Pneumatic oil 0.5 litre Special lubricant for air tools, service units and line oilers. Stock-no. 090 100 8540
• Line oiler R3/8" female For fitting directly to air tools. Oil level can always be checked through sight glass.

Stock-no. 090 105 4592

7. Repairs

Danger!

Repairs to air tools must be d out by qualified specialist

Air tools in need of repair can be send to the service centre in your country. See spare parts list for address.

Please attach a description of the fault to the power tool.

8. Environmental protection

The tool's packaging can be 100 % recycled.

Worn out machines and accessories contain considerable amounts of valuable raw and plastic materials, which can be recycled.

These instructions are printed on chlorine-free bleached paper.

1. Technical specifications

Model		SR 1500 Set	SR 2700	SR 2900	SR 3500	SR 4500
Air consumption	l/min	360	400	400	600	600
Max. permissible working pres- sure	bar 6.3	6.2 6.2 6.3	6.3
Speed	min^-1	7500	7000	7500	5500	5500
Square drive	"	1/2	1/2	1/2	3/4	1
Maximum bolt size		M16	M16	M16	M32	M32
Impact mechanism		rotary hammer	jumbo ham- mer	twin hammer	twin hammer	twin hammer
Maximum torque	Nm	360	610	670	1490	1490
Minimum hose size (inner)	Nm	10	10	10	13	13
Vibration (effective value of weighted acceleration)	m/s^2	<2.5	2.89	4.52	3.24	6.71
Uncertainty K	m/s^2	1.23	1.45	2.26	1.62	2.68
EN ISO 15744
Sound power level L_WA	dB (A)	107.8	108	99	108.9	102
Sound pressure level L_PA	dB (A)	96.8	97	88	97.9	91
Uncertainty K	dB (A)	4	4	4	4	4
Dimensions: length x width x height	mm	195x70x195	195x70x195	195x70x195	230x97x240	230x97x240
Weight	kg	2.0	2.5	2.5	5.7	5.8
