INTRODUCTION

Congratulations

Thank you for purchasing a Husqvarna ride-on mower. This machine is built for superior efficiency to rapidly mow primarily large areas. A control panel that the operator can easily access and a hydrostatic transmission regulated by steering controls each contribute to the machine's performance.

This manual is a valuable document. Read the contents carefully before using or servicing the machine. The following of instructions (use, service, maintenance) by all who operate this machine is important for the safety of the operator and others. It can also largely increase the life span of the machine and increase its resale value.

If you sell your machine, be sure to give the operator manual to the new owner.

The last chapter of this operator manual supplies a Service Journal. Make sure that service and repair work are documented. A correctly kept service journal reduces service costs for the maintenance and affects the machine's resale value. Please contact your dealer for more information. Take the operator manual along when the machine is taken to your dealer for service.

General

In this operator manual, left and right, rearward and forward are used in relation to the machine's usual driving direction.

Continuous dedication to make our products better requires that specifications and design are subject to change without notice.

Driving and Transport on Public Roads

Check applicable road traffic regulations before transporting on public roads. If the machine is transported, you must always use approved fastening equipment and make sure that the machine is correctly attached. DO NOT operate this machine on public roadways.

Towing

If machine is equipped with a tow hitch, use much more care when towing. Do not let children or others in or on the towed equipment. Make wide turns to avoid jack-knifing. Travel slowly and leave more distance to stop.

Do not tow on sloped ground. The weight of the towed equipment can cause loss of traction and loss of control.

Obey the manufacturer's recommendation for weight limits for towed equipment. Do not tow near ditches, canals, and other dangerous areas.

Operating

This machine is constructed only for mowing grass on lawns and even ground without obstacles such as stones, tree stumps, etc. The machine can also be used for other tasks when equipped with special accessories supplied by the manufacturer. Operating instructions for the accessories are supplied with delivery. All other types of uses are incorrect. The manufacturer's directions concerning operation, maintenance, and repairs must be carefully followed.

Lawn mowers and all power equipment, can be potentially dangerous if used incorrectly. Safety requires good judgment, careful use in accordance with these instructions and common sense.

The machine must only be operated, maintained, and repaired by persons who know the machine's special qualities and who are also knowledgeable about the safety instructions. Use only approved repair parts to maintain this machine.

Accident prevention regulations, other general safety regulations, occupational safety rules, and traffic regulations must be followed without fail.

Unauthorized modifications to the design of the machine can absolve the manufacturer from liability for resulting personal injury or damage to property.

INTRODUCTION

Good Service

Husqvarna's products are sold throughout the world and only in specialized retail stores with complete service. This ensures that you as a customer receive only the best support and service. Before the product is delivered, the machine has, for example, been inspected and adjusted by the retailer. See the certificate in the Service Journal in this operator manual.

When you need spare parts or support in service questions, warranty issues, etc., please consult the following professional:

This manual belongs to the machine with the manufacturing number:	Engine Transmission

Manufacturing Number

The machine's manufacturing number can be found on the printed plate affixed to the engine compartment.

Stated on the plate, from the top are:

• The machine's type designation (I.D.).
• The manufacturer's type number (Model).
• The machine's serial number (Serial no.)

Please have the type designation and serial number available when ordering spare parts.

The engine's manufacturing number is stamped on one of the valve covers.

The plate states:

The engine's model.
The engine's type.
Code

Please have these available when ordering spare parts.

The wheel motors and hydrostatic pumps have a barcode decal affixed at the rear.

SYMBOLS AND DECALS

These symbols are found on the machine and in the operator manual. Study them carefully so that you know what they mean.

WARNING! Xxxx xxxx xxxx xxxx xxxx

XXXXXXXXX XXXXXXXXXXXXXXXXXXX.

Used in this publication to tell the reader of a risk of personal injury or death, particularly if the reader neglects to follow the instructions in the manual.

IMPORTANT INFORMATION Xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx.

Used in this publication to tell the reader of a risk of material damage, particularly if the reader neglects to follow the instructions in the manual. Used also when there is a possibility for misuse or misassembly.

Reverse Neutral Fast Slow Choke Fuel Park Brake Danger

Cut Height Low

Cut Height High

Use protective glasses

Use protective gloves

Wear hearing protection

Do not stand here

Noise emissions to the surroundings in accordance with the European Union's directive. The machine's emission is stated in the chapter TECHNICAL DATA and on decals.

Warning! Do not touch parts

Warning! Do not use without deflector or grass catcher

Warning! Use caution when lifting the cover

Keep a safe distance from the machine
Use on slopes no greater than 10^ No passengers

Warning! Battery acid is corrosive, explosive and flammable

Read Operator Manual
Shut off engine before maintenance or repair

Full body exposure to thrown objects
Severing of fingers and toes
Do not open or remove safety shields with engine running
Careful backing up, watch for other persons
Careful going forward, watch for other persons

SAFETY

Safety Instructions

These instructions are for your safety. Read them carefully.

WARNING! THIS CUTTING MACHINE

CAN AMPUTATE HANDS AND FEET AND THROW OBJECTS. FAILURE TO OBEY THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

WARNING! CHILDREN CAN BE

SERIOUSLY INJURED OR KILLED BY THIS EQUIPMENT. Carefully read and obey all the safety instruction that follow.

IMPORTANT INFORMATION The American

Academy of Pediatrics recommends that children be a minimum of 16 years of age before operating a riding lawn mower.

Protecting Children

Tragic accidents can occur if the operator is not alert to the presence of children. Children are frequently attracted to the machine and the mowing activity. Do not think that children will stay where you last saw them.

• Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator.
• Be alert and turn machine off if a child enters the area.
  Before and while backing, look behind and down for small children.
• Do not carry children, even with the blades shut off. They can fall off and be seriously injured or interfere with safe machine operation. Children who have

been given rides in the past can suddenly come into the mowing area to ride again and be run over or backed over by the machine.

• Do not let children to operate the machine.
• Use extreme care when going near blind corners, shrubs, trees, or other objects that can block your view of a child.

General Operation

• Read, understand, and obey all instructions on the machine and in the manual before starting.
  It is recommended that someone knows that you are mowing an injury or accident.
• Those who operate, maintain, and/or service this machine must first read and understand this Operator Manual. Local laws can regulate the age of the user. The owner is responsible for training the users of this equipment.
• The owner and operator of this equipment can prevent accidents and is responsible for accidents or injuries occurring to themselves, other persons and/or property.
• Do not put hands or feet near rotating parts or under the machine. Keep away from the discharge opening at all times.
• Only let responsible adults, who are familiar with the instructions, to operate the machine.
  Clean the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blades.
• Be sure the area is has no bystanders before operating. Stop machine if someone enters the area.
• Do not mow in reverse unless fully necessary. Always look down and behind before and while backing.
• Do not point discharged material toward someone. Avoid discharging material against a wall or obstruction. Material can ricochet back toward the operator. Stop the blades when going across gravel surfaces.
• Do not operate machine without the full grass catcher, discharge guard, or other safety devices in place and working.
• Slow down before turning.
• Always turn off blades, move the steering control lever out to the park brake position, stop engine and remove keys before dismounting.
• Do not carry passengers. The machine is only intended for use by one person.
• Operate the machine only in daylight or good artificial light.

SAFETY

• Disengage blades when not mowing. Shut off engine and wait for all parts to come to a full stop before cleaning the machine, removing the grass catcher or unclogging the discharge guard.
• Do not operate the machine while under the influence of alcohol or drugs.
• Look for traffic when operating near or going across roadways.
• Use more care when loading or removing the machine into a trailer or truck.
  Always wear eye protection when operating machine.

WARNING! When using the machine, approved personal protective equipment must be used. Personal protective equipment cannot remove the risk of injury but it will reduce the degree of injury if an accident does occur. Speak to your retailer for aid in choosing the right equipment.

• Wear correct Personal Protective Equipment (PPE) while operating this machine, including (at a minimum) sturdy footwear, eye protection, and hearing protection. Do not mow in shorts and/or footwear with open toes.
• Data shows that operators age 60 years and above are involved in a large percentage of riding mower-related injuries. These operators must evaluate if they can safely operate the riding mower sufficiently to protect themselves and others from serious injury.
• Obey the manufacturer's recommendation for wheel weights or counterweights.
• Keep machine free of grass, leaves or other debris buildup which can touch hot exhaust or engine parts and burn. Do not let the mower deck plow leaves or other debris that can cause a buildup to occur. Clean oil or fuel spillage before operating or storing the machine.
• Let machine cool before storage.

Personal Safety Equipment

Make sure that first aid equipment is near at hand when using the machine.
- Do not use the machine when barefoot.
Always wear protective shoes or boots. Steel toe caps are recommended.

Always wear approved protective glasses or a full visor when assembling or driving.
Always wear gloves when handling the blades.
- Do not wear loose clothing that can become caught in moving parts.
- Use ear protectors to avoid damage to hearing.

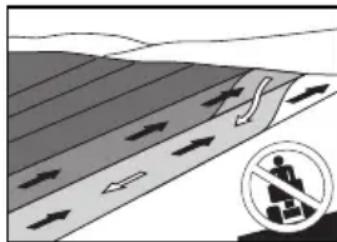

Slope Operation

Slopes are a major cause related to loss of control and tip-over accidents, which can result in severe injury or death. Operation on slopes requires more care. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

• Mow up and down slopes (10 degrees maximum), not across.
• Look for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain

could overturn the machine. Tall grass can hide obstacles.

• Select a low ground speed so it will not be necessary to stop while on the slope.
• Do not mow on wet grass. Tires can lose traction.

• Avoid starting, stopping, or turning on a slope. If the tires lose traction, disengage the blades and continue slowly straight down the slope.

• Move slowly and gradually on slopes. Do not make sudden changes in speed or direction, which could cause machine to roll over.

• Use more care while operating machine with grass catchers or other attachments; the stability of the machine can be effected.
• Do not use on steep slopes.
• Do not try to stabilize the machine by putting a foot on the ground.
• Do not mow near drop-offs, ditches, or embankments. The machine could suddenly roll over if a wheel is over the edge or the edge caves in.

WARNING! Do not drive up or down hills with slopes greater than 10 degrees. Do not drive across slopes.

SAFETY

Safe Handling of Gasoline

To avoid personal injury or damage to property, use care in handling gasoline. Gasoline is very flammable and the vapors are explosive.

WARNING! The engine and the exhaust system become very hot during operation.

There is a risk for burns if touched. Let engine and exhaust system to cool before refueling.

• Do not fuel the machine indoors.
• Extinguish all cigarettes, cigars, pipes, and other sources of ignition.
• Use only approved gasoline containers.
• Do not remove gas cap or add fuel with the engine running. Let engine cool before refueling.
• Do not keep the machine or fuel container where there is an open flame, spark or pilot light such as on a water heater or other appliance.
• Before you start refueling, keep the risk of static electricity to a minimum by touching a metal surface.
• Do not fill containers in a vehicle or on a truck or trailer bed with plastic liner. Always put containers on the ground away from the vehicle when filling.
• Do not put too much fuel in the tank. Replace gas cap and tighten securely.
• Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, refuel such equipment with a portable container, rather than from a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.
• If fuel is spilled on clothing, change clothing immediately.
• Do not start the engine near spilled fuel.
• Do not use gasoline as a cleaning agent.
• If leaks occur in fuel system, the engine must not be started until problem has been resolved.
• Check the fuel level before each use and leave space for the fuel to expand, because the heat from the engine and the sun can otherwise cause the fuel to expand and overflow.

General Maintenance

• Do not use the machine indoors or in spaces lacking correct ventilation. The exhaust fumes contain carbon monoxide, an odorless and poisonous lethal gas

• Make sure that the equipment is in good condition and that all nuts and bolts, especially those fastening the blade attachments, are correctly tightened and torqued.

CAUTION! Use protective glasses for maintenance work.

• Maintain or replace safety and instruction labels as necessary.
• Do not interfere with the intended operation of or reduce the protection given by a safety device. Check their operation regularly. DO NOT operate a machine with a safety device that does not operate correctly.
• Check grass catcher components and the discharge guard frequently and replace with manufacturer's recommended parts when necessary.

WARNING! The engine must not start when the driver's floor plate or active plates for the mower deck's driver is removed.

• Do not change the settings of engine controllers and avoid running the engine at overly high engine speeds. If you run the engine too fast, machine components could be damaged.
• To reduce the risk of fire, keep machine free of grass, leaves or other debris buildup. Clean oil or fuel spills and remove fuel-soaked debris. Let machine cool before storing.
• Stop to do an inspection of the equipment if you run over or into anything. If necessary, make repairs before starting.
• Do not make adjustments or repairs with the engine running.
• The blades are sharp and can cause cuts and gashes. Wrap blades or use protective gloves when handling them.
• Check the park brake's operation regularly. Adjust and service as necessary.
• Do not work with the starter circuit if there is spilled fuel.

SAFETY

• Make sure that the fuel filler cap is mounted tightly and no flammable substances are kept in an open vessel.
• Sparking can occur when working with the battery and the heavy cables of the starter circuit. This can cause battery explosion, fire or eye injury. Sparking will

not occur after the grounding cable (normally negative, black) is removed from the battery.

• Disconnect the grounding cable from the battery first and reconnect it last.
• Do not make a bridge short circuit across the starter relay to run the starter.
• Be very careful when handling battery acid. Acid on skin can cause serious corrosive burns. If you spill battery acid on your skin, rinse immediately with water.
• Acid in the eyes can cause blindness, contact a doctor immediately.
• Be careful when servicing the battery. Explosive gases form in the battery. Do not do maintenance on the battery when smoking or near open flames or

sparks. The battery can explode and cause serious injury or damage.

• The machine is tested and approved only with the equipment originally supplied or recommended by the manufacturer. Only use approved repair parts for the machine.
• The mulch blades must only be used in familiar areas when higher quality mowing is necessary.
• Regularly clean the deck and the underside of the deck. Avoid spraying engine and electrical components with water.

Transport

• The machine is heavy and can cause serious crushing injuries. Be more careful when it is loaded on or removed from a vehicle or trailer.
• Use full width ramps for loading machine into a trailer or truck.

• The two front and rear tie down straps must be used and directed down and out from the machine.

• Check and abide by local traffic regulations before transporting the machine on roads.

• Use an approved trailer to transport the machine. Turn off the fuel supply. Fasten the machine down with approved devices such as bands, chains or straps.
• Do not tow this machine, it can cause damage to the drive system.
• Do not tow trailers, etc. with this mower. They can jackknife or overturn, causing damage to the mower and possible serious injury to the operator.
• Load the unit onto truck or trailer by driving up ramps of sufficient strength using a slow speed. Do not lift! The machine is not intended to be lifted by hand.
• When loading or removing this machine, do not use more than the maximum recommended operation angle of 10 degrees.

WARNING! Use extreme care when loading the machine into a truck or trailer using ramps. There is the possibility of serious injury or death if the machine falls off the ramps.

IMPORTANT INFORMATION The park brake is not sufficient to lock the machine in place during transport. Make sure the machine is correctly fastened to the transport vehicle. Always reverse the machine onto the transport vehicle to avoid tipping it over.

Spark Arrestor

This mower is equipped with an internal combustion engine and must not be used on or near unimproved forested, bush covered or grassy lands unless the engine's system is equipped with a spark arrester meeting applicable local or state laws. Federal laws apply on federal lands. If a spark arrester is used, it must be maintained in good working order by the operator.

A spark arrestor for the muffler is available through your authorized Husqvarna dealer.

CONTROLS

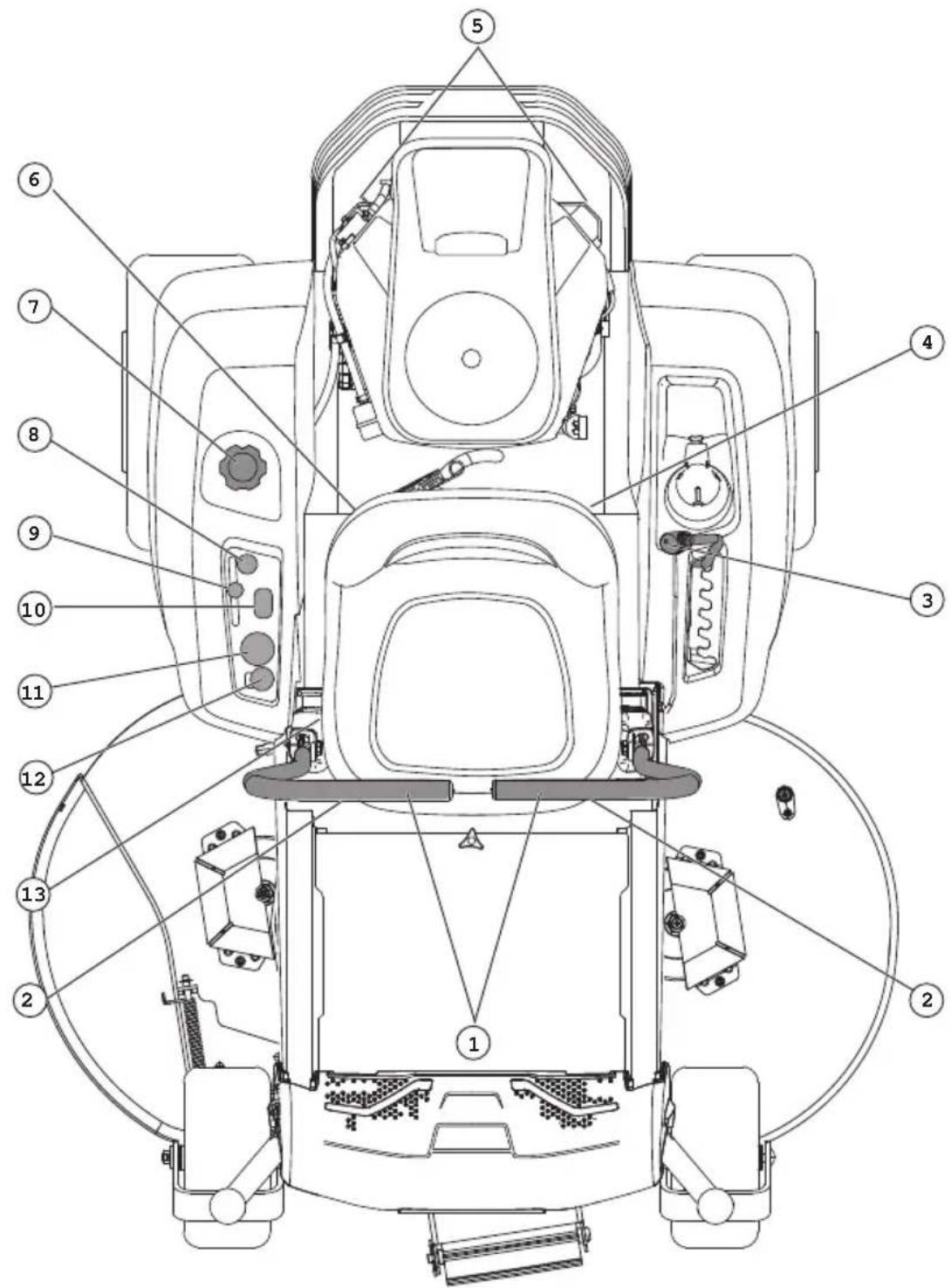

This operator manual describes the Husqvarna Zero Turn Rider. The rider is fitted with a four-stroke overhead valve engine.

Transmission from the engine is made via

belt-driven hydraulic pumps. Using the left and right steering controls, the flow is regulated and thereby the direction and speed.

1. Steering / park brake controls

2. Bypass Linkages

3. Service meter

4. Tracking bolts

5. Fuel shut off valve

6. Ignition switch

7. Deck lift

8. Fuel tank

9. Blade switch

10. Fuses

11. Choke control

12. Seat Adjustment

13. Ignition

CONTROLS

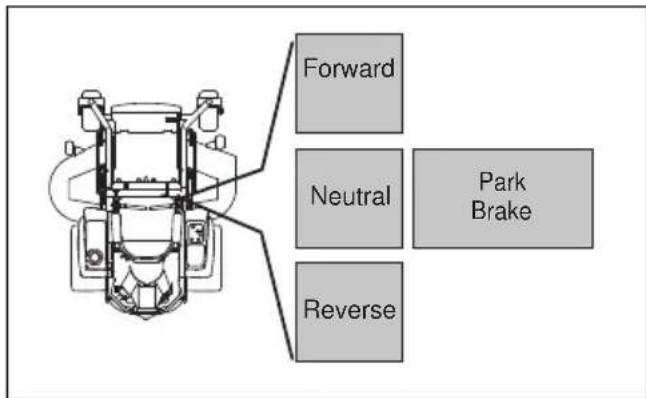

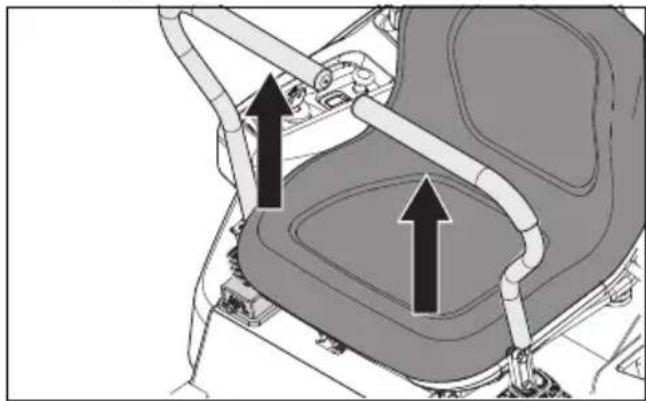

Steering Control Levers

The machine's speed and direction are continuously variable using the two steering controls. The steering controls can be moved forward or backward about a neutral position. There is a neutral position, which is locked if the steering controls are moved out.

When both controls are in the neutral position (N), the machine stands still.

By equally moving both controls forward or backward, the machine moves in a straight line forward or backward. For example, to turn right while moving forward, move the right control towards the neutral position. The rotation of the right wheel is reduced and the machine turns to the right.

Zero turn can be achieved by moving one control backward (behind the neutral position) and carefully moving the other steering control forward from its neutral position. The rotation direction when zero turning is determined by which steering control is moved backward behind the neutral position. If the left steering control is pulled backward, the machine turns to the left. Use more care when using this maneuver.

If the steering controls are in uneven positions when standing still or do not fit in the slots for moving the controls out, they can be adjusted.

WARNING! The machine can turn very rapidly if one steering control is moved much further forward than the other.

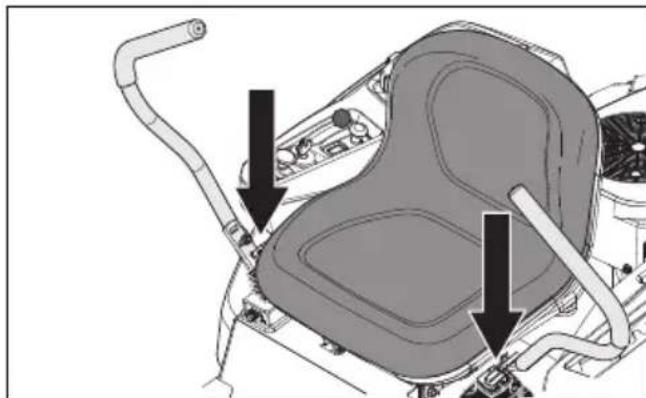

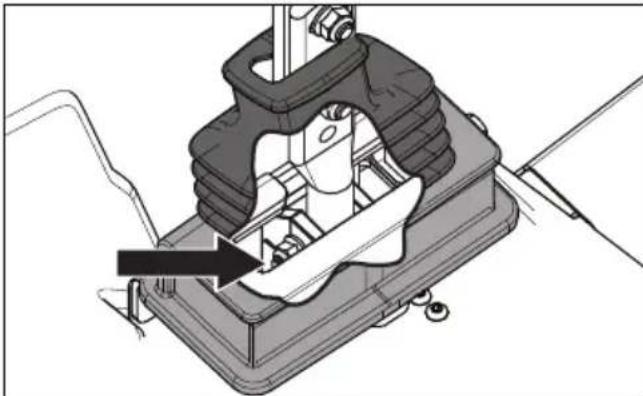

Park Brake

The park brake is integrated with the steering control levers. Move both levers out from the neutral position to engage the park brake.

To release the park brake, pull both steering control levers inwards to the neutral position at the same time. Do not try to operate the unit without both levers being inwards out of the engaged position or machine components could be damaged.

IMPORTANT INFORMATION Failure to bring the steering / park brake controls inward at the same time will cause the unit's safety system to shut the unit down.

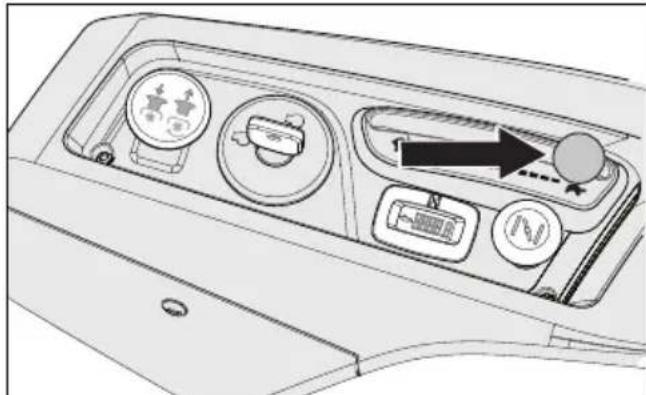

Throttle Control

The throttle control regulates the engine speed and thereby the rate of rotation of the blades, assuming the blade switch is pulled out.

To increase or decrease the engine speed, the control is moved forward or back respectively. Avoid idling the engine for long periods, as there is a risk of fouling the spark plugs. USE FULL THROTTLE WHEN MOWING, for best mower performance and battery charging.

CONTROLS

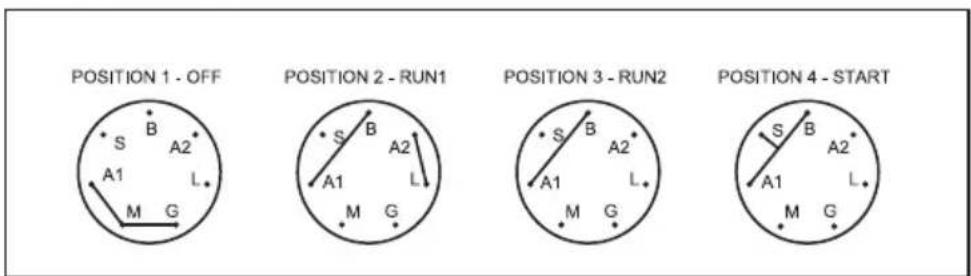

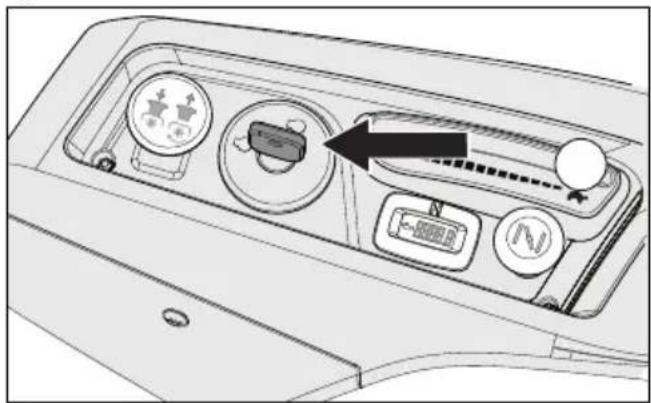

Ignition Switch

The ignition switch is placed on the control panel and is used to start and stop the engine. On models equipped with headlights, turn the key clockwise to ACCESSORY for headlight use.

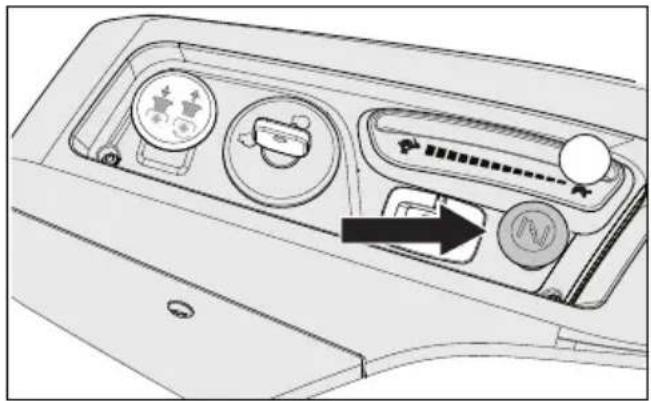

Choke control

The choke control is used for cold starts to provide the engine with a richer fuel mixture. For cold starts the control should be pulled up.

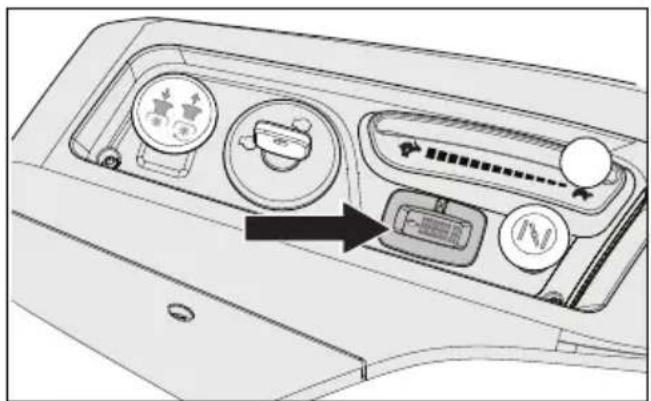

Service Meter

The service meter displays the total operating time with the blade activated.

At 50 hour intervals of operation, an oil can icon shows and stays on for two hours before an automatic reset occurs. To manually reset the meter, turn the key off and on five times at one second intervals. To service the engine and mower, see the Service Journal of this manual.

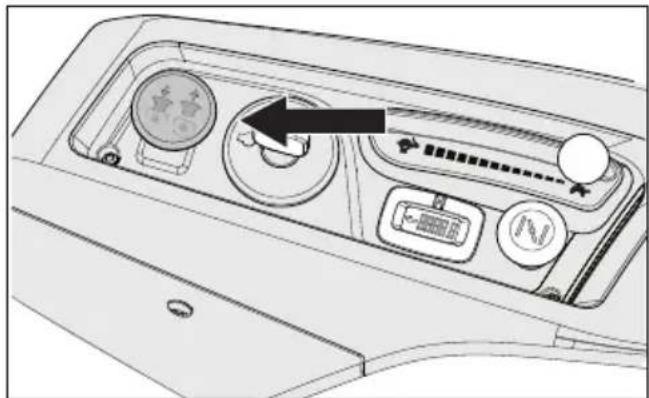

Blade Switch

To engage the mower deck, pull the knob out; mower blades are disengaged when the knob is pressed down.

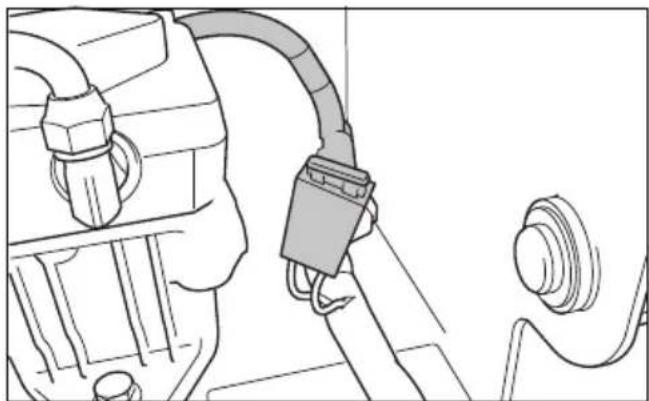

Fuse

The 20 amp primary fuse is located on the left hand side of the machine. It is accessed by tilting the seat forward. The fuse is a flat pin type used in automobiles.

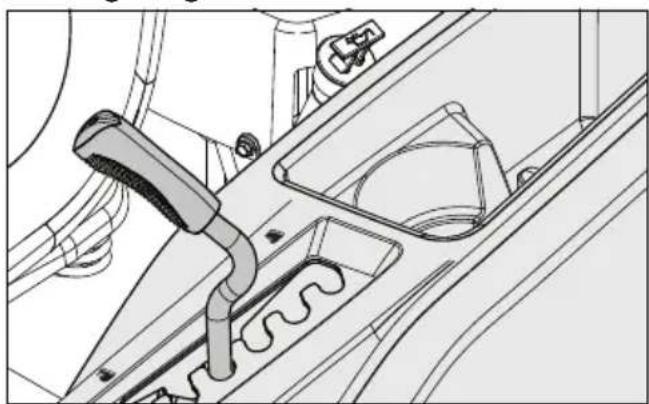

Cutting Height Lever

To set the deck cutting height, pull the cutting height lever inwards and move it to the desired height notch.

IMPORTANT INFORMATION Always raise the deck to the highest position for transport.

IMPORTANT INFORMATION To obtain an even cutting height, it is important that the air pressure in all tires is 15 psi / 103 kPa / 1 bar.

CONTROLS

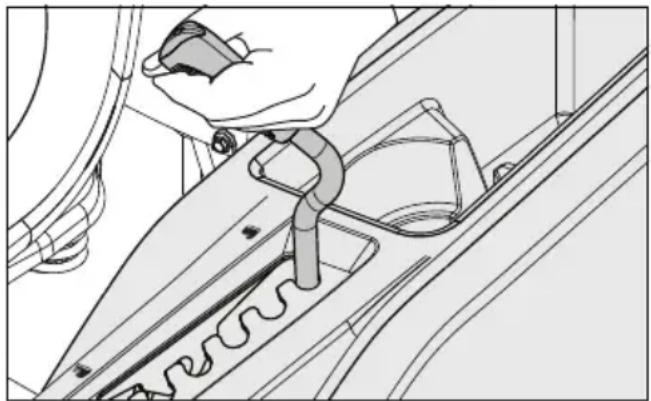

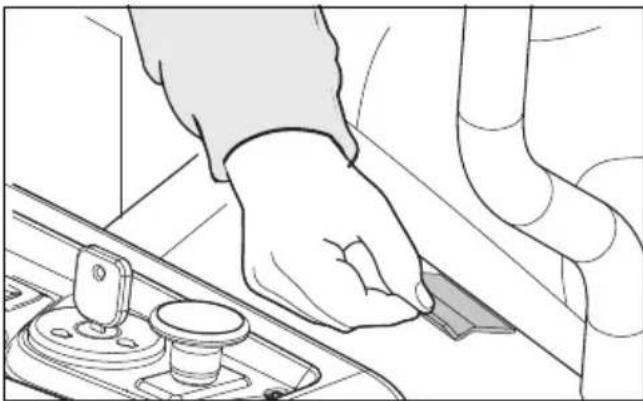

Seat Adjustment Lever

The seat can be adjusted lengthways. When making adjustments, the lever below the right side of the seat is pulled up, after which the seat can be moved backward or forward.

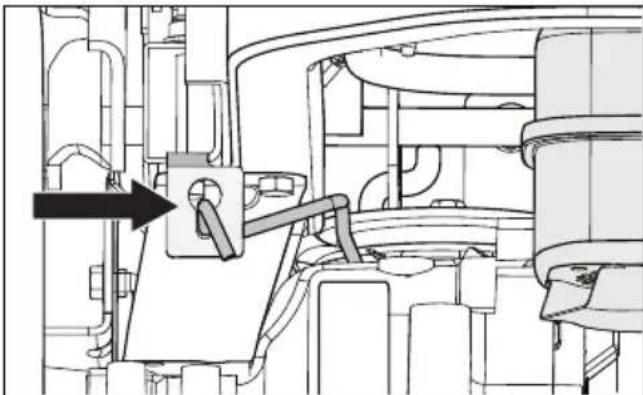

Bypass Linkages

Transaxle bypass linkages must be engaged when pushing or pulling the mower. The release levers are located on each side of the rear of the unit below the rear engine guard. See Moving Machine By Hand in the Operation section.

WARNING! Bypass linkages are

located close to the muffler. To prevent burns, the engine should be shut off and allowed to cool before the bypass linkage levers are handled.

Fuel Shut Off Valve

The fuel shut off valve is located at the right rear of the seat. The valve is off when the handle tab is turned perpendicular to the fuel line.

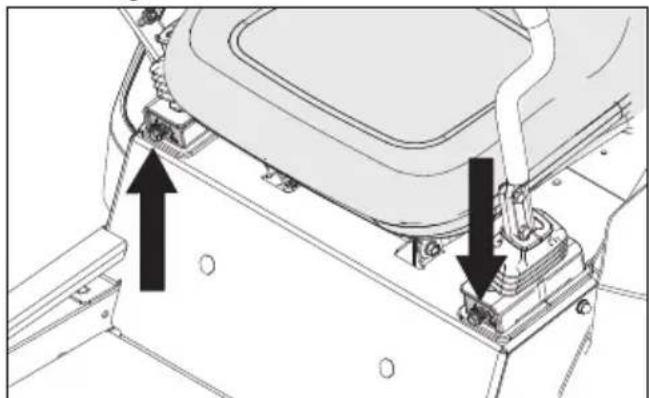

Tracking

If the mower is not tracking straight, check the air pressure in both rear tires. Recommended air pressure for the rear tires is 15 psi (1 bar).

1. Tracking adjustments are made using the tracking bolts. The tracking bolts limit the motion control levers when in the full-forward position.
2. For preliminary tracking adjustment, move unit to an open, unobstructed area such as an empty parking lot or open field.
3. Using a 1/2'' wrench, back the tracking bolts out until flush with nut.
4. Test operate unit by driving it at full throttle and the full forward position on both motion control levers. Gradually turn in the tracking bolt on the right hand side until the unit noticeably starts drifting right.
5. Drive forward at full throttle with both motion control levers in the full forward position. Gradually turn in the left tracking bolt until unit tracks straight.

CONTROLS

WARNING! The engine and the exhaust system, become very hot during operation.

There is a risk for burns if touched. Let engine and exhaust system to cool before refueling.

WARNING! Fill to bottom of filler neck.

Do not overfill. Clean off spilled oil or fuel. Do not store, spill or use gasoline near an open flame.

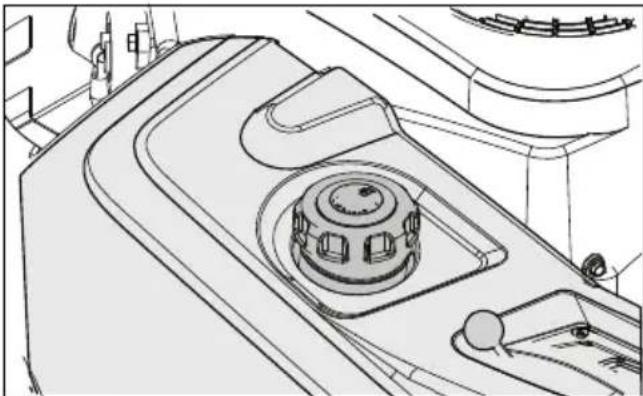

Fuel Tank

Read the safety instructions before refueling. The capacity for the tank is 13,25 litres.

Regularly check the gas cap gasket for damage and keep the cap correctly tightened.

The engine will operate on a minimum of 87-octane unleaded gasoline (no oil mix).

Environmentally adapted alkylate gasoline can be used. See Technical Data concerning ethanol fuel. Methanol fuel is not allowed. Do not use E85 alcohol based fuel. Damage to the engine and components may occur.

When operating in temperatures below 0^ , use fresh, clean winter grade gasoline to help insure good cold weather starting.

IMPORTANT INFORMATION Experience indicates that alcohol blended fuels (called gasohol, ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. Drain the gas tank, start the engine and let it operate until the fuel lines and carburetor are empty. Use fresh fuel the next season. See Storage for additional information. Do not use engine or carburetor cleaners in the fuel tank or permanent damage may occur.

OPERATION

Read the Safety section and following pages if you are unfamiliar with the machine.

Training

Due to unique steering capabilities, zero turn mowers are far more maneuverable than typical riding mowers.

Review this section fully prior to trying to move the mower under its own power. When first operating the mower or until becoming comfortable with controls, use a reduced throttle speed and reduced ground speed. DO NOT move control levers to the furthest forward or reverse positions during initial operation.

First time users must become familiar with the mower's movement on a hard surface, such as concrete or blacktop PRIOR to trying to operate on turf. Until the operator becomes comfortable with the mower controls and zero turning capability, overly aggressive maneuvers may damage turf.

Steering

To move forward and backward

The direction and speed of the mower's movements are effected by the movement of the control lever(s) on each side of mower. The left control lever controls the left wheel. The right control lever controls the right wheel.

First time users must push the mower (see Moving Machine By Hand in the Operation section) to an open, flat area without other persons, vehicles or obstacles nearby. To move the unit under its own power, the operator must sit in the seat and start the engine (see Before Starting in the Operation section). Adjust the engine speed to idle, disengage the park brake but do not engage the blades at this time. Pull control levers inward. As long as the control levers have not been moved forward or backwards, the mower will not move.

Slowly move both control levers forward slightly. This will let the mower start moving forward in a straight line. Pull the control levers back to the neutral position and stop the mower from moving. Pull back slightly on control levers, allowing the mower to move backwards. Push the control levers forward to the neutral position to stop the mower from moving.

To turn to the right

While moving in a forward direction, pull the right lever back towards the neutral position while maintaining the position of the left lever, this will slow the rotation of the right wheel and cause the machine to turn in that direction.

To turn to the left

While moving in a forward direction pull the left lever back towards the neutral position while maintaining the position of the right lever, this will slow the rotation of the left wheel and cause the machine to turn in that direction.

To zero turn

While moving in a forward direction, first pull both control levers back until the mower stops or slows dramatically.

Then by alternating one lever slightly to the forward position and the other in the reverse position, complete the turn.

Before Starting

WARNING! Make sure the work area is free from of stones and other objects that could be thrown by the rotating blades.

1. Read the sections on Safety and Controls before starting the machine.
2. Do the daily maintenance before starting (see Maintenance Schedule in the Maintenance section).
3. Check that there is sufficient fuel in the fuel tank.
4. Adjust the seat to the desired position.

WARNING! The engine exhaust contains carbon monoxide, which is a odorless, colorless, poisonous gas. Do not use the machine in enclosed spaces.

Starting the Engine

1. Sit on the seat.
2. Raise the mower deck to the highest position.

1. Disengage the mower blades by pressing the blade switch downwards.
2. Move the steering / park brake controls firmly out to the locked position.
3. Move the throttle lever to the middle throttle position. If the engine is cold, the choke control should be pulled up.

OPERATION

1. Push in and turn the ignition key to the start position.

IMPORTANT INFORMATION Do not operate the starter for more than five seconds each time. If the engine does not start, wait approximately ten seconds before retying.

1. When the engine starts, immediately release the ignition key back to the run position.
2. Set the engine speed with the throttle. Let the engine to operate at a moderate speed, approximately mid throttle, for a short time before use. USE FULL THROTTLE WHEN MOWING.

Running

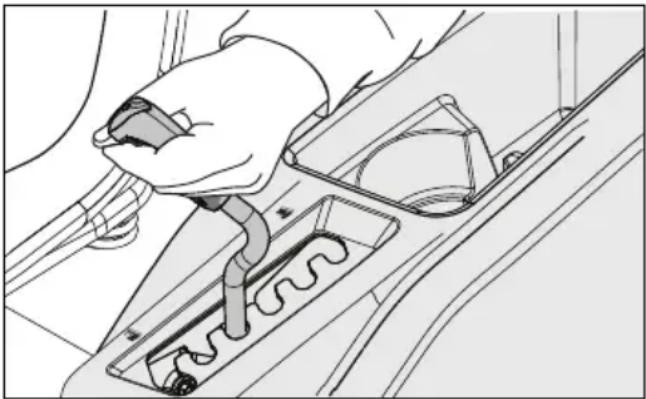

1. Release the park brake by pulling the steering / park brake controls inwards to the neutral position at the same time. NOTE: The mower is equipped with an operator presence system. If the operator tries to leave the seat with the engine running, without first setting the park brake, the engine will shut off.
2. Lower the mower deck to the desired cutting height.

1. Move throttle control to full throttle (rabbit symbol).
2. Engage the mower deck by pulling the blade switch up.

WARNING! Make sure that no one is mower when engaging blade switch.

1. Pull control levers inward and slowly move both control levers slightly forward to move forward in a straight line.

Stopping the Engine

1. Move the throttle to the minimum position (tortoise symbol).

2. Move the steering controls at the same time out to the park brake position.

3. Disengage the mower deck by pressing the blade switch down.

4. Raise the mower deck to the highest position. If the engine has been worked hard, let it idle at least 60 seconds to attain a usual operating temperature before stopping. To prevent fouling the spark plugs, avoid idling the engine for longer periods.
5. Turn the ignition key to the stop position. Remove key. Always remove key when leaving the mower to prevent unauthorized use.

IMPORTANT INFORMATION When stopping and leaving the machine, both steering / park brake controls must be moved out to the locked position at the same time.

IMPORTANT INFORMATION Leaving the ignition switch in a position than OFF will cause the battery to be discharged.

Operating on Hills

Read the Safety Instructions Driving on Slopes in the Safety section.

• Use the slowest speed possible before starting up or down hills.
• Avoid stopping or changing speed on hills.
• If stopping is fully necessary, pull steering / park brake controls into the neutral position and push outward to engage the park brake.
• Pull the steering / park brake controls back to the center of the mower and push forward to regain forward movement.
  Make all turns slowly.

WARNING! Do not drive the rider on

terrain that slopes more than 10 degrees.

Mow slopes up and down, never side to side. Avoid sudden directional changes. Do not drive across slopes.

OPERATION

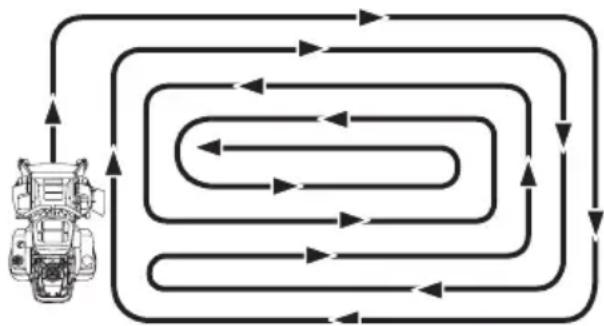

Mowing Tips

• Observe and flag rocks and other fixed objects to avoid collisions.
• Begin with a high cutting height and reduce it until the desired mowing result is attained. The average lawn must be cut to 63.5mm during the cool season and over 76.2mm during the hot months. For healthier and better looking lawns, mow often after moderate growth.
• For best cutting performance, grass over 15.2cm in height must be mowed twice. Make the first cut relatively high; the second to the desired height.
• The mowing result will be best with a high engine speed (the blades rotate rapidly) and low speed (the rider moves slowly). If the grass is not too long and dense, the driving speed can be increased without negatively affecting the mowing result.
• The finest lawns are obtained by mowing often. The lawn becomes more even and the grass clippings more equally distributed over the mown area. The total time taken is not increased as a higher operating speed can be used without poor mowing results.
• When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making left hand turns until finished.

• Avoid mowing wet lawns. The mowing result is poorer because the wheels sink into the soft lawn, clumps build, and grass clippings fasten under the cowling.

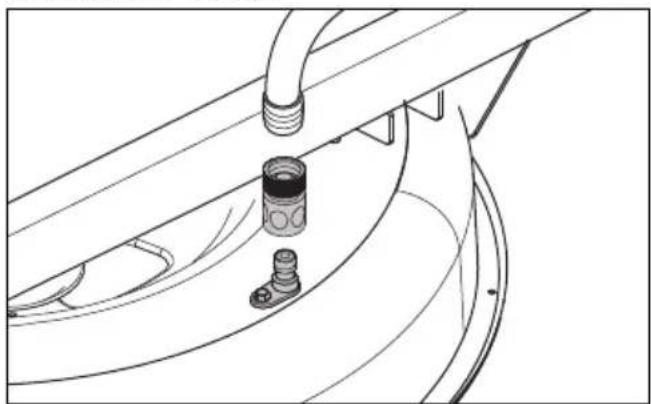

• Hose the mower deck underside with water after each use. When cleaning, the mower deck shall be raised into the transport position. Make sure the mower is cooled and the engine is off.

• Use compressed air to clean top surface of the deck. Avoid flooding water on top surface, engine and electrical components.

• When the mulching kit is used, it is important that the mowing interval is frequent.

WARNING! Make no adjustments without:

the engine stopped,
the ignition key removed,
- the park brake activated

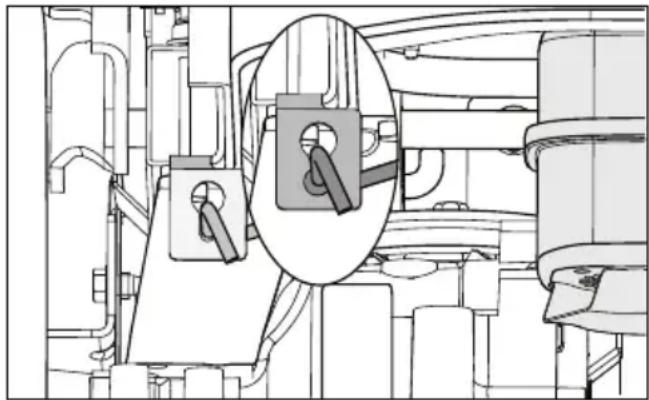

Moving Machine By Hand

When pushing or pulling the mower, engage the EZT bypass linkages. The EZT bypass linkages are located on the rear of the frame, below the rear engine guard.

1. Raise the deck into the highest cutting position.
2. Move the steering / park brake controls inwards to the neutral position.
3. Pull the EZT bypass linkages up and out of the keyhole slots. Release the levers with the head outside the frame and held in the bypass position.

1. To reengage the EZT's to drive, reverse the above procedure.

Load the machine into truck or trailer by driving slowly up the ramps. DO NOT LIFT! The machine is not intended to be lifted by hand.

IMPORTANT INFORMATION To manually push the mower, engage the hydro bypass levers on both sides, pull both steering / park brake controls inwards and push machine.

WARNING! Bypass linkages are located to the muffler. To prevent burns, the one should be shut off and allowed to cool are the bypass linkage levers are handled.

WARNING! Use more caution when using the machine into a truck or trailer using GPS. There is the possibility of dangerous injury or death if the machine falls off the GPS.

MAINTENANCE

Maintenance Schedule

Following is a list of maintenance procedures that must be performed on the machine. For those points not described in this manual, visit an authorized service workshop. An annual service

carried out by an authorized service workshop is recommended to maintain the machine in the best possible condition and to make sure of safe operation.

Read General Maintenance in the Safety section.

MAINTENANCE	DAILY		AT LEAST ONCE EACH 100,000 YEAR	MAINTENANCE INTERVAL IN HOURS
	BEFORE	AFTER 25 50
CHECK
Park brake for adjustment	●
Engine's oil level (each refueling)	■
Safety system	●
For fuel and oil leakages	◆
For damage		◆
For loose hardware (screws, nuts)		◆
For mower deck damage		◆
Tire pressures				● ●	● ●
Battery connections			● ●	● ●
CLEAN
Engine's cooling air intake		■		■
Below the mower deck		●
Around the engine		◆
Around belts, belt pulleys		◆ ◆ ◆ ◆
Engine's cooling air intake 2)			■	■
Air cleaner foam pre-filter 2)			■	■
Air cleaner paper filter cartridge 2)			■	■
ALSO
Inspect muffler/spark arrestor			◆ ◆ ◆	◆
Start the engine & blades, listen for unusual sounds		◆
Sharpen3)/ Replace mower blades			●	●

• Described in this manual
  Not described in this manual

= Refer to the engine manufacturer's manual

1) First change after 8-10 hours. When operating with a heavy load or at high ambient temperatures, replace at 50 hour intervals.
2) In dusty conditions, cleaning and replacement are required more frequently.
3) Performed by authorized service workshop.

WARNING! Before performing service or adjustment:

• Engage the park brake.
• Disengage the blade switch.
• Turn the ignition switch to OFF position and remove the key.
• Make sure the blades and all moving parts have completely stopped.

MAINTENANCE

MAINTENANCE	DAILY		AT LEAST ONCE EACH 10000 YEAR	MAINTENANCE INTERVAL IN HOURS
	BEFORE	AFTER 25 50
CHECK
Throttle cable for adjustment						■
Mower deck for adjustment			●				●
Condition of belts, belt pulleys			●			●
Caster wheels (at 200 hour intervals)			●			●
Engine valve clearance 3)			◆				◆
CHANGE
Spark plugs			■			■
Engine oil 1)			■	■
Engine oil filter			■			■
Fuel filter			■			■
Paper air filter 2)			■			■
Air cleaner foam pre-filter 2) 4)			■
Air cleaner paper filter cartridge 2) 4)			■
ALSO
Do the 300-hour service 3)			◆				◆

• = Described in this manual
  = Not described in this manual
  = Refer to the engine manufacturer's manual

1) First change after 8-10 hours. When operating with a heavy load or at high ambient temperatures, replace at 50 hour intervals.
2) In dusty conditions, cleaning and replacement are required more frequently.
3) Performed by authorized service workshop.
4) If equipped.

IMPORTANT INFORMATION The mower is equipped with a 12-volt negative grounded system. The other vehicle must also be a 12-volt negative grounded system. Do not use the mower to start other vehicles.

CAUTION! Always wear eye protection when around batteries.

WARNING! Do not short battery terminals by allowing a wrench or other objects to contact both terminals at the same time. Before connecting battery, remove metal brackets, wristwatch bands, rings, etc. Positive terminal must be connected first to prevent sparks from accidental grounding.

IMPORTANT INFORMATION Before restarting the unit, be sure to replace guards that have been removed for maintenance.

MAINTENANCE

Battery

If the battery is too weak to start the engine, it must be recharged.

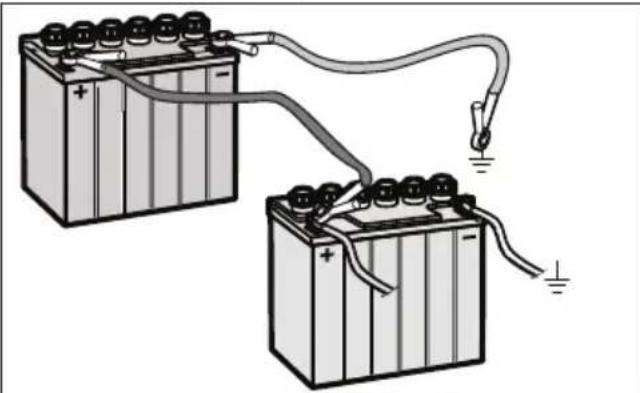

Jumper Cable Use

1. Connect each end of the RED cable to the POSITIVE (+) terminal on each battery, taking care not to short against chassis.
2. Connect one end of the BLACK cable to the NEGATIVE (-) terminal of the fully charged battery.
3. Connect the other end of the BLACK cable to a good CHASSIS GROUND on the mower with the discharged battery, away from the fuel tank and battery.

To remove cables, reverse order

1. Remove BLACK cable first from chassis and then from the fully charged battery.
2. Remove RED cable last from both batteries.

The mower is equipped with a maintenance free battery and does not need servicing. However, periodic charging of the battery with an automotive type battery charger will extend its life.

• Keep battery and terminals clean.
• Keep battery bolts tight.
  See chart for charging times.

STD BATTERY	STATE OF CHARGE	APPROXIMATE CHARGING TIME* TO FULL CHARGE AT 80°F
		Maximum Rate at:
		50 Amps	30 Amps	20 Amps	10 Amps
12.6V 100%		FULL CHARGE -
12.4V 75%	20 min.	min.	48 min.	90 min.
12.2V 50%	45 min.	min.	95 min.	180 min.
12.0V 25%	65 min.	min.	145 min.	280 min.
11.8V 0%	85 min.	min.	195 min.	370 min.

*Charging time depends on battery capacity, condition, age, temperature and efficiency of charger

Cleaning battery and terminals

Corrosion and dirt on the battery and terminals can cause the battery to lose power.

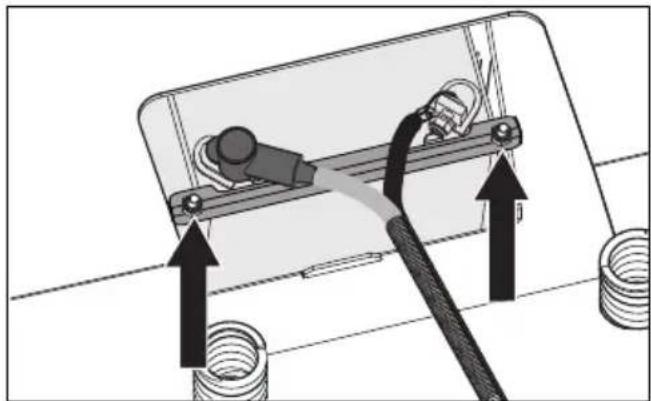

1. Loosen the two nuts attached to the side J bolts just enough that the battery mount bracket slides down off the battery.

1. Using two 1/2" wrenches disconnect BLACK battery cable then RED battery cable.
2. Carefully remove the battery from the mower
3. Rinse the battery with plain water and dry.
4. Clean terminals and battery cable ends with a wire brush until shiny.
5. Coat the terminals with grease or petroleum jelly.

Replacing battery

1. Install the new battery with terminals in the same position as the old battery.
2. Connect RED battery cable first to positive (+) battery terminal.
3. Connect BLACK grounding cable to negative (-) battery terminal.
4. Slide mount bracket back up over battery and tighten nuts.
5. Replace terminal boot cover.

IMPORTANT INFORMATION Do not open or remove battery caps or covers. Adding or checking level of electrolyte is not necessary.

Always use two wrenches for the terminal screws.

CAUTION! Lead-acid batteries generate

explosive gases. Keep sparks, flame and smoking materials away from batteries. Always wear eye protection when around batteries.

MAINTENANCE

Safety System

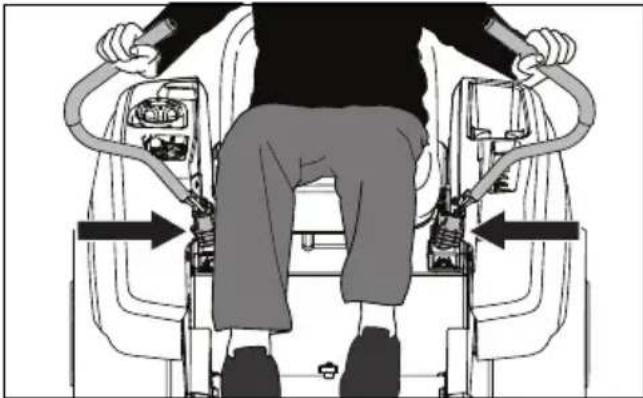

The machine is equipped with a safety system that prevents starting or driving under the following conditions.

The engine can only be started when:

• the mower deck is disengaged.
• the steering / park brake controls are in the outer, locked neutral position, making sure of full parking brake engagement for a safe startup.

NOTE: If the steering / park brake controls are not holding in the full outboard position, the tension can be adjusted by tightening the nut on the backside of the pivot. (See Park Brake in this section).

Make daily inspections to make sure that the safety system works by trying to start the engine when one of the conditions is not met. Change the conditions and try again.

If the machine starts when one of these conditions is not met, turn the machine off and repair the safety system before using the machine again.

Make sure the engine stops when the park brake is not engaged and the operator leaves the seated position.

Check that the engine stops if the mower blades are engaged and the driver temporarily moves off the drivers seat.

IMPORTANT INFORMATION To be able to drive, the driver must sit in the seat and the steering / park brake controls must be moved into the engaged (outer) position. Otherwise the engine will stop.

Park Brake

Visually check that no damage is found on the steering control levers, links or switches belonging to the park brake. Do a standstill test and check that there is sufficient braking action.

To adjust the park brake tension, move the boot covering the steering control base. Tighten the 1/2 pivot nut until the braking action is correct.

Replace the steering boot, making sure the boot top sits between the two adjustment bolts on the steering control.

For any further adjust to the park brake, contact the Husqvarna service workshop.

IMPORTANT INFORMATION The machine must be standing still when applying the park brake.

WARNING! Faulty adjustment will result in reduced braking ability and can cause an accident.

Tire Pressures

All tires must be at 15 psi / 103 kPa / 1 bar.

IMPORTANT INFORMATION DO NOT add a tire liner or foam fill material to the tires. Excessive loads created by foam filled tires will cause premature failures. Only use O.E.M. specified tires.

MAINTENANCE

Caster Wheels

Check at 200 hour intervals. Check that wheels turn freely. If wheels do not turn freely take the unit to a dealer for service.

Foam filled tires or solid tires will void the warranty.

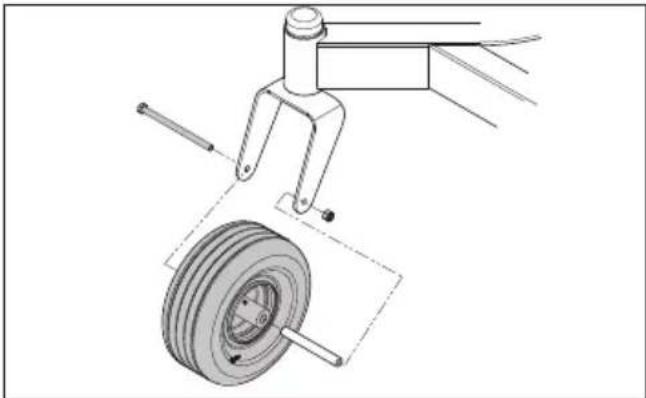

Removal and installation

Remove nut and caster bolt. Pull the wheel out of the yoke and take care of the spacers. Install in reverse order. Tighten caster bolt.

V-belts

Check at 100 hour intervals of operation. Check for severe cracking and large nicks.

NOTE: The belt will show some small cracks in usual operation.

The belts are not adjustable. Replace belts if they begin to slip from wear.

Deck Belt Removal

1. Park on a level surface. Engage park brake.
2. Lower the deck into the lowest cutting position.
3. Remove the bolts from the belt shields and remove the shields.
4. Remove dirt or grass from around the cutter housings and the deck surface.
5. Loosen the nut securing the belt guide. Pull the belt guide up out of the idler arm.

1. Push inward on the idler arm to release the tension on the belt.

2. Carefully lift the belt over the top of the cutter housing pulleys and remove belt from the deck.

Deck Belt Installation

NOTE: For ease in installing the deck belt, refer to the routing decal on the top of the deck.

1. Wind the deck belt around the electric clutch pulley located on the engine shaft.
2. Route the belt forward and up onto the deck.
3. Position the belt around spring loaded idler pulley.
4. Wind the belt around the stationary idler pulley and the mandrel housings.
5. Push inward on the idler arm and carefully put the belt over the stationary idler pulley. When the belt is correctly routed, slowly release the idler arm to tension the belt.
6. Check the belt routing to make sure it matches the routing decal and the belt does not have twists.
7. Tighten the belt guide
8. Replace the belt shields.

Adjusting the Mower Deck

Leveling deck

Adjust the deck while the mower is on a level surface. Make sure the tires are inflated to the correct pressure. See Technical Data /

Transmission. If tires are under or over inflated, the deck cannot be correctly adjusted. Raise the deck to the highest (transport) position.

The deck must be adjusted slightly higher in the rear.

NOTE: To insure the precision of the leveling procedure, the mower deck drive belt must be installed before leveling the deck.

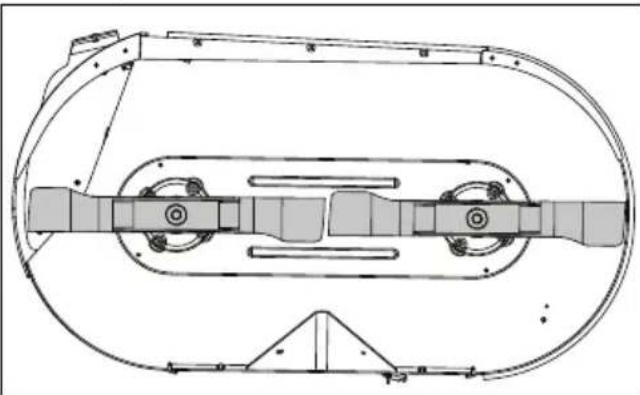

1. Wear heavy gloves. Turn each outer blade tip to align front to rear with the deck side-to-side.

1. Measure from the floor surface up to the bottom of the blade tip on the discharge side of the mower deck. Record the measurement.

MAINTENANCE

1. Move to the opposite side, check that measurement is the same. If adjustment is required—with a 3/4 or adjustable wrench, turn the lift link adjustment nuts on either side counter clockwise to lower or clockwise to raise. Adjust until both measurements are equal.

Turn either blade to align with the deck front-to-rear. If the front blade tip does not measure 6,35mm to 9,52mm lower than the rear, remove the foot plate access the front deck adjustment. With an adjustable wrench, loosen the rear jam nut on the front suspension linkage.

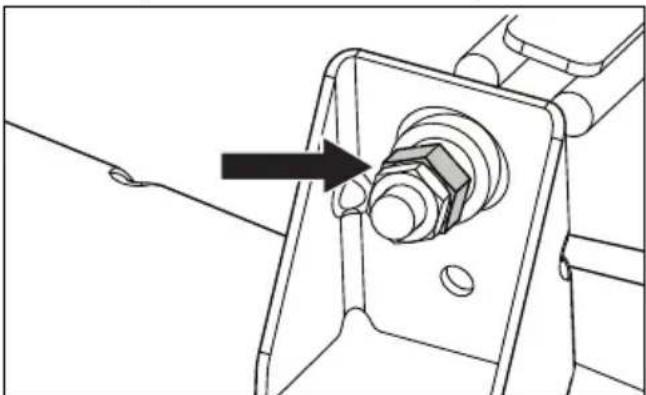

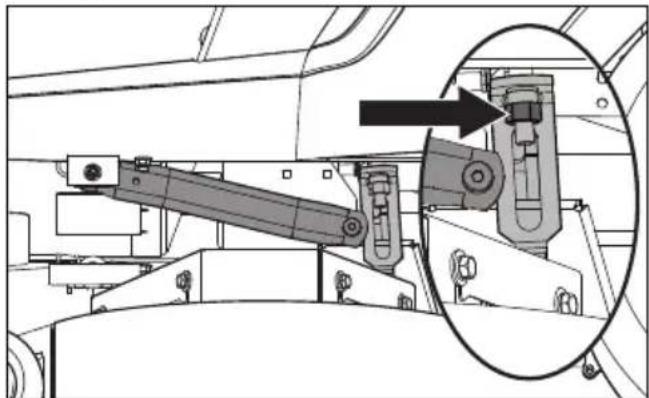

Make adjustment to level with the front lift link nut. Clockwise raises the front of the mower, counter clockwise will lower the front. Adjust the nut until rear blade tip is 6,35mm to 9,52 mm higher than the front blade tip.

NOTE: This will position the mower deck in a standard measurement position. Depending on the type of grass being mowed or environmental conditions, additional adjustments may be required to get the desired cut.

Cutting Blades

CAUTION! Blades are sharp. Protect your hands with gloves and/or wind heavy cloth around the blades before handling.

The sharpening of blades must be carried out by an authorized service workshop.

For the best mowing results, it is important that blades are correctly sharpened and not damaged.

Replace blades that have been bent or cracked when hitting obstacles.

Let the service workshop decide if a blade with large nicks can be repaired/ground or must be replaced. Balance the blades after sharpening.

Check the blade mounts.

Blade replacement

1. Remove blade bolt by turning counter clockwise.
2. Install new or resharpened blade with stamped GRASS SIDE facing towards ground/grass (down) or THIS SIDE UP facing deck and cutter housing.
3. Seat the blade's opening firmly onto the cutter housing.
4. Tighten blade bolt securely.
5. Torque blade bolt to 45-60 ft/lbs (60-81 Nm).

IMPORTANT INFORMATION Special blade bolt is heat treated. Replace with a Husqvarna bolt if required. Do not use lower grade hardware than specified.

MAINTENANCE

Cleaning

Regular cleaning, especially under the mower deck, will increase the machine's life-span. Clean the machine directly after use (after it is cooled), before the debris sticks.

Do not spray water on the top of the mower deck. Use compressed air to clean the top side of the mower deck. Do not use a high pressure washer or steam cleaner. Avoid spraying engine and electrical components with water.

Clean the underside of the deck with normal water pressure. Attach the quick connect (from the accessory packet) to any garden hose. After mowing, snap the hose to the cleanout port and turn on water supply.

Restart the mower and engage the blades to use the spinning action to wash away debris. Make sure the hose is away from the mower blades.

Do not rinse hot surfaces with cold water. Let unit cool before washing.

CAUTION! Use protective glasses

when cleaning and washing.

Hardware

Check daily. Inspect the entire machine for loose or missing hardware.

LUBRICATION

12/12	1/52	1/365					25h	50h	100h	300h
						1	(2x)
						2	(2x)
						3	(2x)	(2x)
						4	Y	Y	Y	Y
						5
12/12 Every year						Lubricate with grease gun
1/52 Every Week					Filter change
1/365 Every day					Oil change
					Level check

General

Remove the ignition key to prevent unintentional movements during lubrication.

When lubricating with an oil can, it must be filled with engine oil.

When lubricating with grease, unless otherwise stated, use a high grade molybdenum disulphide grease.

For daily use, the machine must be lubricated twice weekly.

Clean away unwanted grease after lubrication.

It is important to avoid getting lubricant on the belts or the drive surfaces of the belt pulleys.

If this happens, try to clean them with spirits. If the belt continues to slip after cleaning, the belt must be replaced. Gasoline or other petroleum products must not be used to clean belts.

IMPORTANT INFORMATION Use minimal lubrication and remove excess lubricant so that is does not come into contact with belts or belt pulley drive surfaces.

WARNING! Escaping hydraulic oil under

pressure can have sufficient force to penetrate the skin, causing dangerous injury. If injured by escaping fluid, see a doctor immediately.

Dangerous infection or reaction can develop if proper medical treatment is not administered.

LUBRICATION

Engine Oil

NOTE: Change the engine oil when the engine is warm. Refer to the engine owner's manual for the correct replacement oil and filter change recommendations.

WARNING! The engine drain plug is tied close to the muffler. To prevent burns, engine should be shut off and allowed to slightly so the engine is still warm but the pounding surfaces and oil are not.

1. Park on a level surface. Apply park brake.

2. Clean the dirt and debris from the area around the oil fill cap.

3. Remove the cap/dipstick.

4. Locate the drain hose at the right rear of the engine below the muffler.

1. Place an adequately sized container under the end of the drain hose and remove the oil drain plug.
2. Let the oil to fully drain from the engine.
3. Replace the drain hose plug and tighten securely.
4. Fill the engine with new oil to the bottom of the fill tube threads. Check the level with the dipstick.
5. Replace the oil fill cap securely when the oil level is FULL.
6. Refer to the Service Journal for oil checking and changing intervals.

Wheel and Deck Zerks

Use only good quality bearing grease. Grease from well-known brand names (petrochemical companies, etc.) usually maintains a good quality.

Front Wheel Mount

Lubricate 3-4 strokes with a grease gun on each set of wheel bearings.

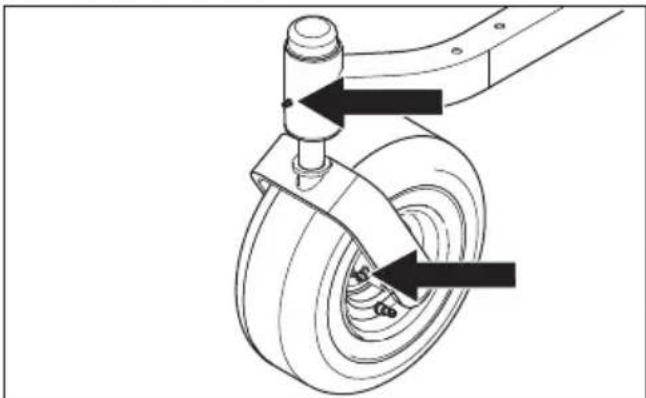

Front Wheel Bearings

Lubricate 3-4 strokes with a grease gun on each set of wheel bearings.

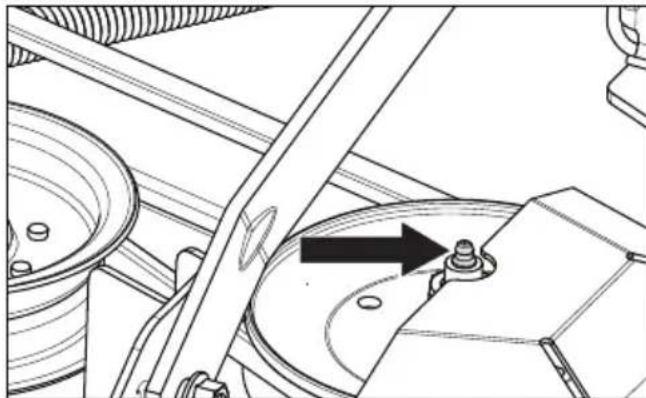

Deck Spindles

Lower the cutting deck completely. Lubricate with a grease gun, 2-3 strokes per spindle through the openings in the belt shields.

Transmission

The transmission is maintenance free with no need for level checks or oil changes. If a leak occurs, replace the unit or contact your Husqvarna dealer.

TROUBLESHOOTING

Problem / Cause

Engine will not start

Blade switch is engaged.

Steering controls are not locked in the neutral position

Park brake is not engaged

Dead battery

Contamination in the carburetor or fuel line

Fuel supply shutoff valve is closed or in the wrong position

Clogged fuel filter or fuel line Ignition system faulty

Starter does not turn the engine over

Dead battery

Battery terminal cable contacts are defective

Blown fuse

Fault in the starter safety circuit. See Safety System in the Maintenance Section

Engine runs rough

Faulty carburetor

Clogged fuel filter or jet

Choke is activated with a warm engine

Clogged ventilation valve on the fuel cap

Fuel tank nearly empty

Fouled spark plugs

Rich fuel mixture or fuel-air mixture.

Wrong fuel type

Water in fuel

Clogged air filter

Engine seems weak

Clogged air filter

Fouled spark plugs

Carburetor incorrectly adjusted

Air trapped in hydraulic system

Machine vibrates

Blades are loose

Blades are incorrectly balanced

Engine is loose

Engine overheats

Clogged air intake or cooling fins

Engine overloaded

Poor ventilation around engine

Defective engine speed regulator

Too little or no oil in the engine

Contamination in the fuel line

Fouled spark plugs

Battery not charging

Battery terminal cable contacts are defective

Charging lead is disconnected

Fault in engine charging system

Mower moves slowly, unevenly, or not at all.

Park brake engaged

Bypass linkage engaged

Transmission drive belt is slack or off

Air trapped in hydraulic system

Mower deck not engaging

Drive belt for the mower deck is loose

Electromagnetic coupling contact is loose

Blade switch is faulty or loose from cable contact

Blown fuse

Transaxle leaks oil

Damaged seals, housing, or gaskets

Air trapped in hydraulic system

Uneven mowing results

Unequal air pressures in tires

Bent blades

Suspension for the mower deck is uneven

Blades are dull

Driving speed too high

Grass is too long

Grass has collected under the mower deck

STORAGE

Winter Storage

The machine should be readied for storage at the end of the mowing season or if it will not be in use for more than thirty days. Fuel allowed to stand for long periods of time (thirty days or more) can leave sticky residues that can clog the carburetor and disrupt engine function.

Fuel stabilizers are an acceptable option to prevent the sticky residues that can occur during storage.

Add stabilizer to the fuel in the tank or in the storage container. Always use the mixing ratios specified by the manufacturer of the stabilizer. Operate the engine for at least ten minutes after adding the stabilizer so that it reaches the carburetor. Do not empty the fuel tank and the carburetor if stabilizer has been added.

WARNING! Do not store an engine with fuel in the tank indoors or in poorly ventilated areas where fuel vapor can come in contact with open flames, sparks, or a pilot light source as in a boiler, hot water tank, clothes dryer, etc. Handle the fuel with care. It is very flammable and can cause dangerous personal injury and property damage. Drain the fuel can approved container outdoors and be far away from open flame or sources of ignition. Do not use gasoline for cleaning. Use a greaser and warm water.

To ready the machine for storage:

1. Thoroughly clean the machine, especially below the mower deck. Touch up damage to the paint and spray a thin layer of oil on the underside of the mower deck to avoid corrosion.
2. Inspect the machine for worn or damaged parts and tighten any nuts or screws that may have become loose.
3. Change the engine oil; dispose correctly.
4. Empty the fuel tanks or add a fuel stabilizer. Start the engine and let it operate until the carburetor is drained of fuel or the stabilizer has reached the carburetor.
5. Remove the spark plug and put about a tablespoon of engine oil into the cylinder. Turn over the engine so that the oil is evenly distributed and then refit the spark plug.
6. Lubricate all grease zerks, joints and axles.
7. Remove the battery. Clean, charge and store the battery in a cool area and protected from direct cold.
8. Store the machine in a clean, dry area and cover it for more protection.

Service

When ordering spare parts, please specify the purchase year, model, type, and serial number.

Always use genuine Husqvarna spare parts.

An annual check-up at an authorized service workshop is a good way to make sure that the machine performs its best the following season.

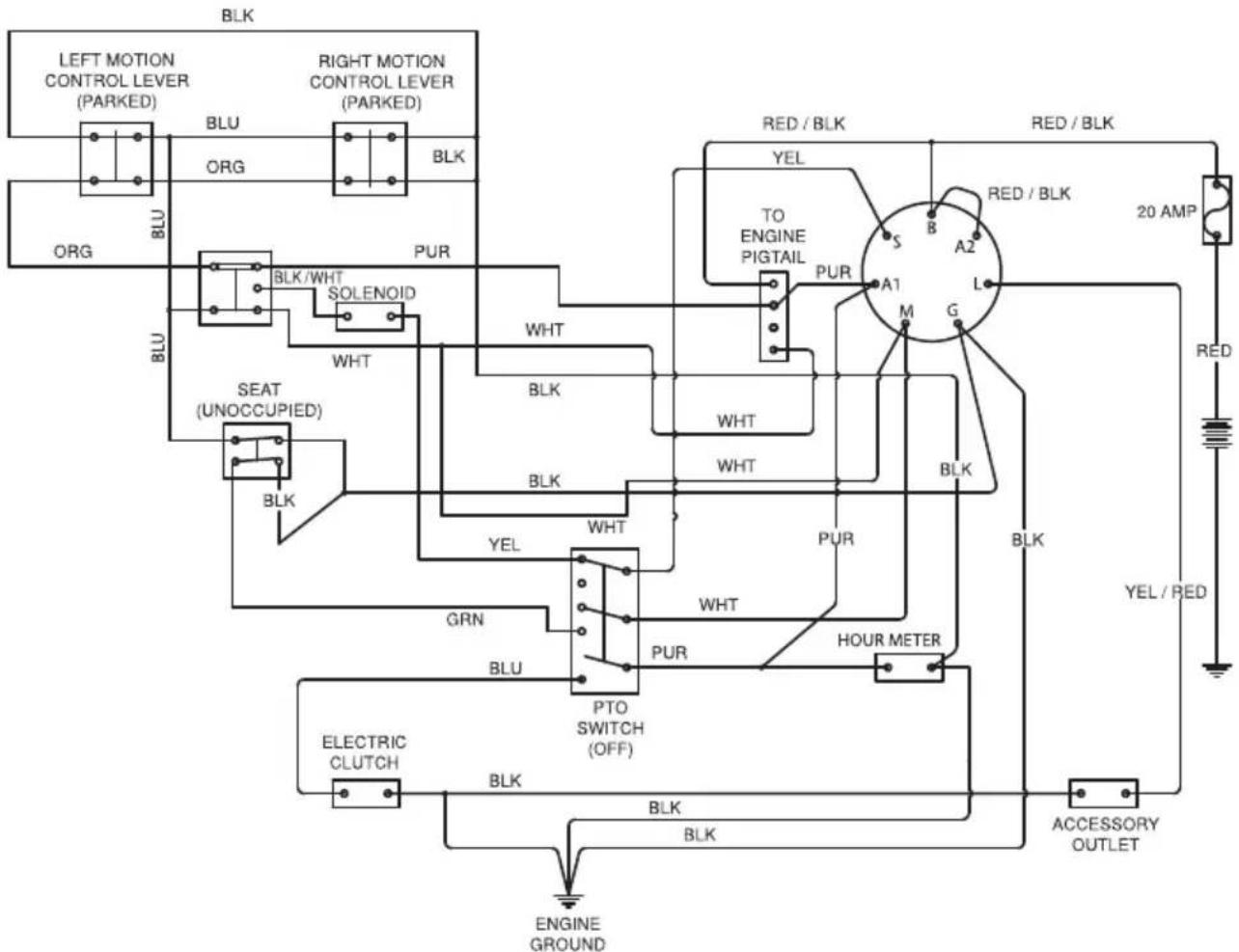

SCHEMATIC

KEY SWITCH POSITIONS

CONFORMITY

EC Declaration Of Conformity

We, Husqvarna AB, SE 561 82 Huskvarna, SWEDEN, declare under our sole responsibility that the represented product:

Description Combustion-engine-powered ride-on	awn mower with seated operator
Brand Husqvarna
Platform / Type / Model Z242F
Batch Serial number dating 2017 and onwards

complies fully with the following EU directives and regulations:

Directive/Regulation Description
2006/42/EC “relating to machinery”
2014/30/EU “relating to electromagnetic compatibility”
2000/14/EC; 2005/88/EC “relating to outdoor noise”

Harmonized standards and/or technical specifications applied are as follows;

EN ISO 12100, ISO 14982, ISO 5395-1 & 3, ISO

3744, ISO 11094, EN 1032, ISO 21299

In accordance with directive 2000/14/EC, Annex V, the declared sound values are stated in the technical data section of this manual and in the signed EC Declaration of Conformity.

The supplied combustion-engine-powered ride-on lawn mower with seated operator conforms to the example that underwent examination.

TECHNICAL DATA

ENGINE
Manufacturer Briggs & Stratton
Type Series 8240
Power 13.95 kW @ 2800
Lubrication Pressure with oil filter
Fuel Min 87 octane unleaded (Max ethanol 10%, Max MTBE 15%)
Fuel tank capacity 13,25 litres
Cooling Air cooled
Air filter Cyclonic
Alternator 12v 15 amp @ 3600 rpm
Starter Electric
TRANSMISSION
Transmission Hydrostatic transaxles Steering control Dual levers, foam gripped Speed forward 0-10,5 km/h Speed reverse 0-5,6 km/h Brakes Integrated Mechanical Park Brake Front caster tires 11 x 6-5 Rear tires, turf pneumatic 18 x 8.5-8 Tire pressure 15 PSI / 103 kPa / 1 bar
FRAME
Cutting Width	107 cm
Cutting Height	3,8 cm - 10,2 cm
Number of Blades	2
Blade Length 53.34 cm
Nose Roller	Yes	1) The power rating as declared by the engine manufacturer is the average gross power output at the specified RPM of a typical production engine for the engine model measured using SAE Standards for engine gross power. Refer to the engine manufacturer engine specifications.
Sprung Seat	Standard
Service Meter	Digital
Blade Engagement	Ogura Clutch
Deck Construction	10 gauge fabricated
Productivity	8,093 m2/h

TECHNICAL DATA

DIMENSIONS
Weight 263 kg
Base Machine Length 191.5 cm
Base Machine Height 101.6 cm
Base Machine Width 105.5 cm
Overall Width, Chute Up 122 cm
Overall Width, Chute Down 152 cm
VIBRATION AND SOUND
Hand/Arm Vibration	1.90 m/s²
Whole Body Hand/Arm	0.29 m/s²
Sound Level, Measured 100 dB
Sound Level, Guaranteed	100 dB

TECHNICAL DATA

Torque Specifications

Engine crankshaft bolt 50 ft/lb Standard 1/4" fasteners 9 ft/lb

Deck pulley bolts 150 ft/lb Standard 5/16" fasteners 18 ft/lb

Lug nuts 75 ft/lb Standard 3 / 8" fasteners 33 ft/lb

Blade bolt 90 ft/lb Standard 7/16" fasteners 52 ft/lb

Standard 1/2" fasteners 80 ft/lb

HEX HEAD CAP SCREWS

The torque values shown should be used as a general guideline when specific torque values are not given.

U.S. Standard Hardware

Grade SAE Grade 5 SAE Grade 8 Flange lock Screw						w/Flange lock Nut
	Size ft./Ibs	Nm ft./Ibs Nm	m ft./Ibs Nm
Shank Size (Diameter in inches, fine or coarse thread)	1/4 9 12	13 18
	5/16 18	24 28 38 24 33
	3/8 31 42	46 62 40 54
	7/16 50	8 75 102
	1/2 75 102	115 156
	9/16	110	149	165	224
	5/8 150	203	225	305
	3/4 250	339	370	502
	7/8 378	512	591	801
	1-1/8 782	1060	1410	1912

** Grade 5 - Minimum commercial quality (lower quality not recommended)

Metric Standard Hardware

Grade		Grade 8.8		Grade 10.9		Grade 12.9
	Size	ft./lbs	Nm	ft./lbs	Nm	ft./lbs	Nm
Shank Size (Diameter in millimeters, fine or coarse thread)	M4	1.5	2	2.2	3	2.7	3.7
	M5	3	4	4.5	6	5.2	7
	M6	5.2	7	7.5	10	8.2	11
	M7	8.2	11	12	16	15	20
	M8	13.5 18	18.8	25 21.8	30
	M10 24	33 35.2 48		43.5 59
	M12	43.5	59	62.2	84	75	102
	M14	70.5	96	100	136	119	161
	M16	108	146	147	199	176	239
	M18	142	193	202	274	242	328
	M20	195	264	275	373	330	447
	M22	276	374	390	529	471	639
	M24	353	478	498	675	596	808
	M27	530	719	735	996	904	1226

SERVICE JOURNAL

DELIVERY SERVICE

Action Date, mtr reading, stamp, sign

Charge and connect the battery

Adjust the tire pressure of all wheels to 15 PSI (1 bar)

Connect the contact box to the cable for the seat's safety switch

Check that the right quantity of oil is in the engine

Adjust the position of the steering controls

Fill with fuel and open the fuel shut off valve

Start the engine

Check:

Drive to both wheels

Mower deck pitch and adjustment

Safety switch for the park brake

Safety switch for the mower deck

Safety switch in the seat

Safety switch in the steering controls

Park brake functionality and adjustment

Driving forward

Driving backward

Engaging the blades

Idle speed

Engine high idle speed

Inform the customer about:

Need and advantages of following the service schedule

Need and advantages of leaving the machine for service

Effects of service and maintaining a service journal on the machine's resale value

Application areas for mulching

Fill in the sales papers, etc.

Delivery service has

been carried out

No remaining notes

Certified:

SERVICE JOURNAL

AFTER 10 HOURS

Action Date, mtr reading, stamp, sign

Change the engine oil

DAILY SERVICE

Action Date, mtr reading, stamp, sign

Clean debris from mower

Check engine oil level

Check the tire pressures

Check underside of deck

Check safety system

Check fuel system for leaks

Inspect safety guards and shields

Check brake adjustment

25-HOUR SERVICE

Action Date, mtr reading, stamp, sign

Check the fuel pump's air filter

Sharpen/Replace mower blades if required

Check the tire pressures

Check battery cables

Lubricate according to lubrication chart

Check/clean the engine's cooling air intake

Clean the air cleaner's foam pre-filter

50-HOUR SERVICE

Action Date, mtr reading, stamp, sign

Do the 25-hour service

Clean / replace the air cleaner's paper filter cartridge

(shorter intervals for dusty operating conditions)

Change engine oil

Lubricate according to lubrication chart

SERVICE JOURNAL

100-HOUR SERVICE

Action Date, mtr reading, stamp, sign

Do the 25-hour service

Do the 50-hour service

Change the engine oil filter

Clean/replace the spark plugs

Replace the fuel filter

Check V-belts

Check / tighten caster wheel axle bolts (at 200 hour intervals)

Change the air filter's paper cartridge

300-HOUR SERVICE

Action Date, mtr reading, stamp, sign

Do the 25-hour service

Do the 50-hour service

Do the 100-hour service

Check / adjust the mower deck

Clean the combustion chamber and grind the valve seats

Check the engine valve clearance

Replace the air cleaner's foam pre-filter

AT LEAST ONCE EACH YEAR

Action Date, mtr reading, stamp, sign

Clean the engine's cooling air intake (at 25 hour intervals)

Replace the air cleaner's foam pre-filter (at 50 hour intervals)

Replace the air filter's paper cartridge

Change the engine oil (50 hours)

Replace the engine oil filter (100 hours)

Check / adjust the cutting height

Check / adjust the park brake (50 hours)

Clean / change the spark plugs (100 hours)

Change the fuel filter (100 hours)

Check the engine valve clearance

□
□
□
□
□
□
□
□

□
□
□
□
□
□
□

□
□
□
□

□
□
□

XXXXXXXXXX XXXXXXX XXXXXXXXXXX.

XXXX XXXXXXXXX XXXXXXXXXXXXXXXXXXX.

XXXX XXXXXXXXX XXXXXXXXXXXXXXXXXXX.

Fixations standard 3/8" 33 ft/lb

Boulon de lame 90 ft/lb

Fixations standard 7/16" 52 ft/lb

Fixations standard 1/2" 80 ft/lb

VISÀ TÉTE HEXAGONALE

RICERCA DEI GUASTI. 184

RIMESSAGGIO 185

SCHEMA 186

CONFORMITA 187

DATI TECNICI. 188

REGISTRO DI ASSISTENZA 191

INTRODUZIONE

Congratulations

XXXXXXXXXX XXXXXXX XXXXXXXXX.

INFORMAZIONE IMPORTANTE Xxxx xxxxxx

XXXXXX XXXXX XXXXXXXXXXX XXXXXXXXXXX XXXXXXXXXXXX.

areaplicative del mulching.

WAARSCHUWING! Accupolen,

WAARSCHUWING! Lees de

WAARSCHUWING! Xxxx xxxxxxxxx xxxxxxxxx

XXXX XXXXXXXXX XXXXXXXXXXXXXXXXXXX.

WAARSCHUWING! DEZE MACHINE

IS IN STAAT HANDEN EN TENEN TE AMPUTEREN EN VOORWERPEN TE LANCEREN. ALS U ZICH NIET AAN DE VEILIGHEIDSINSTRUCTIES HOUDT, KAN DIT LEIDEN TOT ERNSTIG OF DODELIJK LETSEL.

WAARSCHUWING! KINDEREN

WAARSCHUWING! De machine

WAARSCHUWING! Wees extra

Defect in motoroplaidsystem
