USER MANUAL ABCDV660SY CANDY

Cut carefully around the base of the packaging and up one corner.

Remove the polythene sleeve and lift the dryer off the polystyrene base.

WWAARRNNIINNGG Misuse of a tumble dryer may create a fire hazard. ● This machine is solely for domestic use, i.e. to dry household textiles and garments. ● This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance. ● Do not touch the appliance when hands or feet are damp or wet. ● Do not lean on the door when loading the machine or use the door to lift or move the machine. ● Do not allow children to play with the machine or its controls.

WWAARRNNIINNGG Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

WWAARRNNIINNGG Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C. ● Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance. ● Do not continue to use this machine if it appears to be faulty. ● Lint and fluff must not be allowed to collect on the floor around the outside of the machine. ● The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry.

WWAARRNNIINNGG Do not tumble dry fabrics treated with dry cleaning fluids.

WWAARRNNIINNGG Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Foam plastic, foam rubber and rubber-like material are not suitable for tumble drying. Articles made from these materials MMUUSSTT NNOOTT be placed in the dryer. ● Always refer to the laundry care labels for directions on suitability for drying. ● Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should NNOOTT be put into the dryer. ● Lighters and matches must not be left in pockets and NNEEVVEERR use flammable liquids near the machine. ● Glass fibre curtains should NNEEVVEERR be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres. ● Garments treated or contaminated with flammable cleaning sprays or liquids such as petrol, cooking oil or aerosol sprays MMUUSSTT NNOOTT be put in this machine. EEnnvviirroonnmmeennttaall IIssssuueess ● All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal. ● To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock. GGIIAASS SSeerrvviiccee ● To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS Service engineer.

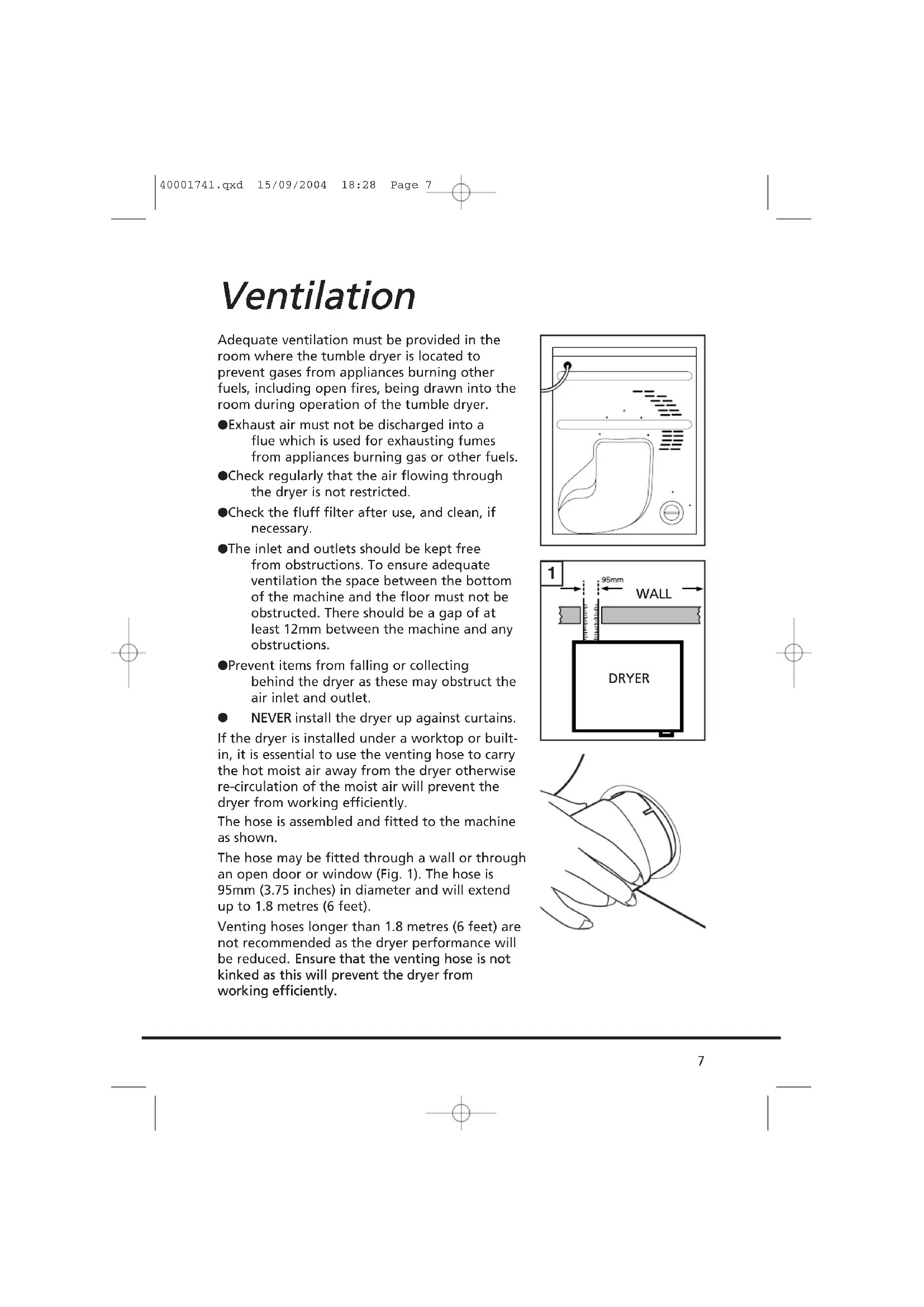

NNEEVVEERR install the dryer up against curtains. If the dryer is installed under a worktop or built- in, it is essential to use the venting hose to carry the hot moist air away from the dryer otherwise re-circulation of the moist air will prevent the dryer from working efficiently. The hose is assembled and fitted to the machine as shown. The hose may be fitted through a wall or through an open door or window (Fig. 1). The hose is 95mm (3.75 inches) in diameter and will extend up to 1.8 metres (6 feet). Venting hoses longer than 1.8 metres (6 feet) are not recommended as the dryer performance will be reduced. EEnnssuurree tthhaatt tthhee vveennttiinngg hhoossee iiss nnoott kkiinnkkeedd aass tthhiiss wwiillll pprreevveenntt tthhee ddrryyeerr ffrroomm wwoorrkkiinngg eeffffiicciieennttllyy..

40001741.qxd 15/09/2004 18:28 Page 7Before using the tumble dryer for the first time: ● Please read this instruction book thoroughly. ● Remove all items packed inside drum. ● Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit. CCllootthheess pprreeppaarraattiioonn Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled. MMaaxxiimmuumm ddrryyiinngg wweeiigghhtt ● Cottons Max. 6 kg ● Synthetics Max. 3 kg

BByy ccaarree ssyymmbboollss These can be found on the collar or inside seam: Suitable for tumble drying. Tumble drying at high temperature. Tumble drying at low temperature only. Do not tumble dry. If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

BByy aammoouunntt aanndd tthhiicckknneessss Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

40001741.qxd 15/09/2004 18:28 Page 9DDoo nnoott ttuummbbllee ddrryy:: Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc. EEnneerrggyy ssaavviinngg Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity. AALLWWAAYYSS ● Try to dry the maximum weight of laundry, this will save time and electricity. ● Check that the filter is clean before every drying cycle. NNEEVVEERR ● Exceed the maximum weight, this will waste time and electricity. ● Put dripping wet items into the tumble dryer, this may damage the appliance. DDrryyiinngg gguuiiddee The table shows approximate drying times, depending on the type of fabric and dampness of the clothes.

Pull the filter upwards.

Open filter as shown.

Gently remove lint using a soft brush or your fingertips.

DDoooorr aanndd FFiilltteerr WWAARRNNIINNGG!! WWhheenn tthhee ttuummbbllee ddrryyeerr iiss iinn uussee tthhee ddrruumm aanndd ddoooorr mmaayy bbee VVEERRYY HHOOTT 40001741.qxd 15/09/2004 18:28 Page 12NNoottee:: The sensor may not detect a small load of small articles. For small loads and separate items or pre-dried fabrics with low moisture content, use the timed programmes. Set the programme between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type. If the sensor does not detect the item the dryer will only operate for 10 minutes before going into cooldown. If the load is too large or too wet to tumble dry the dryer will automatically go into cooldown after 180 minutes.

SSeelleeccttiinngg tthhee PPrrooggrraammmmee PPrrooggrraammmmee Bone Dry Extra Dry Cupboard Dry Iron Dry Medium Dry Damp Dry Fast Iron 75' 60' 45' 30' Refresh DDeessccrriippttiioonn Select the degree of dryness that you require. This ranges from Bone Dry for bath towels and bathrobes, through Cupboard Dry for items that will be put away without ironing, to the programmes that leave the laundry suitable for ironing. The Fast Iron programme provides a conditioning and anticrease function. The dryer will heat the load for 9 minutes followed by a 3 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators. The Fast Iron process relaxes the creases in the fabric making ironing quicker and easier. 75 minutes of drying 60 minutes of drying 45 minutes of drying 30 minutes of drying Tumbling of laundry in cool air This Sensor Dry machine gives many options for drying the laundry to suit all circumstances. The table below lists the programmes and the function of each programme. 40001741.qxd 15/09/2004 18:28 Page 1311.. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.

Gently close the door pushing it slowly until you hear the door 'click' shut.

Press the button to switch on the dryer. The indicator will light up and the START indicator will flash.

Turn the Programme Selector dial to select the required drying program (see Programme Guide).

If drying synthetics, acrylics or delicate items, press the button to reduce the heat level. The light above the push button will light up when the machine is in low heat setting. To deselect this status when the drying cycle has started it is necessary to reset the machine

Press the START button. The dryer will start automatically and the START indicator will be continuously lit.

The COUNTDOWN display will show the drying progress in terms of time remaining.

If the door is opened during the programme to check the laundry, it is necessary to press START to recommence drying after the door has been closed.

When the 15' indicator is lit the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.

When the programme is complete the STOP indicator will light. CCaanncceelllliinngg aanndd rreesseettttiinngg tthhee pprrooggrraammmmee To cancel a programme press the START button for 5 seconds. The machine will indicate that it has been reset by the START indicator flashing. It is possible to change the programme within the first 10 minutes without using the cancel and reset function. SSttaarrtt DDeellaayy The Delay Start Function allows the user to delay the start of the drying cycle by 6 or 9 hours.

OOppeerraattiioonn WWAARRNNIINNGG!! TThhee ddrruumm,, ddoooorr aanndd llooaadd mmaayy bbee vveerryy hhoott.. 40001741.qxd 15/09/2004 18:28 Page 14When the function is first selected the display will show a delay of 6 hours, a subsequent press of the button will increase the delay to 9 hours. To commence the programme press START and the appliance will complete the drying cycle at the end of this time. The 6 or 9 hour indicator light will flash to indicate that the start delay is in progress. CClleeaanniinngg tthhee ddrryyeerr ● Clean the filter after every drying cycle. ● After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it. ● Wipe the outside of the machine and the door with a soft cloth.

IIMMPPOORRTTAANNTT AAllwwaayyss sswwiittcchh ooffff aanndd rreemmoovvee tthhee pplluugg ffrroomm tthhee eelleeccttrriicciittyy ssuuppppllyy bbeeffoorree cclleeaanniinngg tthhiiss aapppplliiaannccee.. FFoorr eelleeccttrriiccaall ddaattaa rreeffeerr ttoo tthhee rraattiinngg llaabbeell oonn tthhee ffrroonntt ooff tthhee ddrryyeerr ccaabbiinneett ((wwiitthh tthhee ddoooorr ooppeenn)).. CClleeaanniinngg aanndd RRoouuttiinnee MMaaiinntteennaannccee 40001741.qxd 15/09/2004 18:28 Page 1516 WWhhaatt mmiigghhtt bbee tthhee ccaauussee ooff...... DDeeffeeccttss yyoouu ccaann rreemmeeddyy yyoouurrsseellff Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone. DDrryyiinngg ttiimmee iiss ttoooo lloonngg//ccllootthheess aarree nnoott ddrryy eennoouugghh…… ● Have you selected the correct drying time/programme? ● Were the clothes too wet? Were the clothes thoroughly wrung or spin- dried? ● Does the filter need cleaning? ● Is the dryer overloaded? ● Is the venting hose kinked or blocked? ● Has the option been selected from a previous cycle? TThhee ddrryyeerr ddooeess nnoott ooppeerraattee…… ● Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp. ● Is the plug properly connected to the mains supply? ● Is there a power failure? ● Has the fuse blown? ● Is the door fully closed? ● Is the dryer switched on, both at the mains supply and at the machine? ● Has the drying time or the programme been selected? ● Has the machine been switched on again after opening the door? TThhee ddrryyeerr iiss nnooiissyy…… ● Switch off the dryer and contact GIAS Service for advice. TThhee FFiilltteerr CCaarree IInnddiiccaattoorr iiss oonn…… ● Does the filter need cleaning? ● Is the venting hose kinked or blocked? TTrroouubblleesshhoooottiinngg 40001741.qxd 15/09/2004 18:28 Page 16Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine: ● Is found to be in working order. ● Has not been installed in accordance with the installation instructions. ● Has been used incorrectly. SSppaarreess AAllwwaayyss uussee ggeennuuiinnee ssppaarreess,, aavvaaiillaabbllee ddiirreecctt ffrroomm GGIIAASS SSeerrvviiccee.. GGIIAASS SSeerrvviiccee FFoorr sseerrvviiccee aanndd rreeppaaiirrss ccaallll yyoouurr llooccaall GGIIAASS SSeerrvviiccee eennggiinneeeerr.. The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
