USER MANUAL RPE H9A2TBCEXS CANDY

METTERE LA MACCHINA IN PAUSA

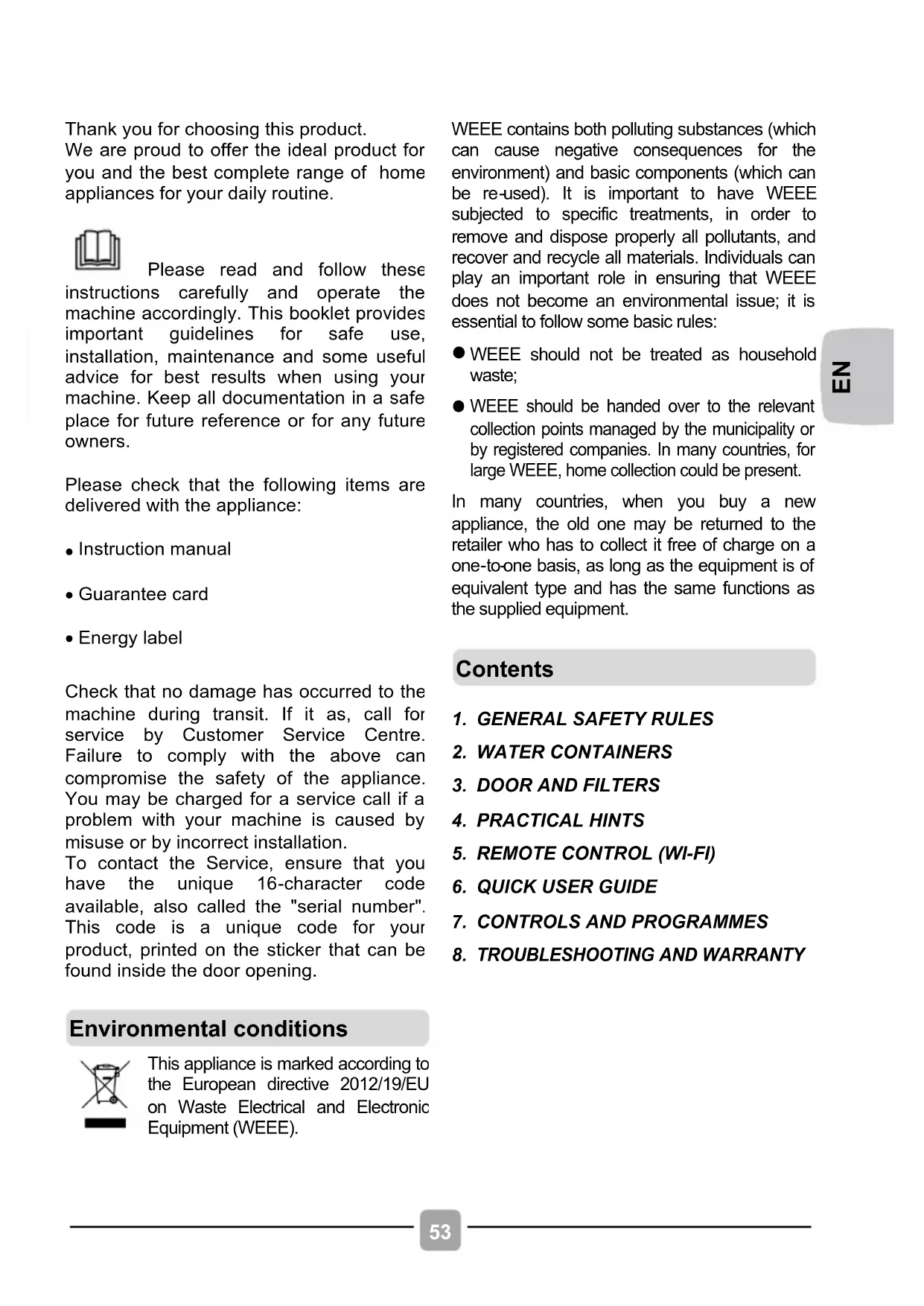

Thank you for choosing this product. We are proud to offer the ideal product for you and the best complete range of home appliances for your daily routine.

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine. Keep all documentation in a safe place for future reference or for any future owners.

Please check that the following items are delivered with the appliance:

Check that no damage has occurred to the machine during transit. If it as, call for service by Customer Service Centre. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse or by incorrect installation.

To contact the Service, ensure that you have the unique 16

character code available, also called the "serial number". This code is a unique code for your product, printed on the sticker that can be found inside the door opening.

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re

used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one -to- one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

TROUBLESHOOTING AND WARRANTY

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

Environmental conditions Contents54

RULES This appliance is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, offices and other working environments; - Farm houses; - By clients in hotels, motels and other residential type environments; - Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer’s warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised to ensure that they do not play with the appliance. Children of less than 3 years should be kept away unless continuously supervised.

This machine is solely for domestic use, i.e. to dry household textiles and garments.

Ensure that the instructions for installation and use are fully understood before operating the appliance. Do not touch the appliance when hands or feet are damp or wet. Do not lean on the door when loading the machine or use the door to lift or move the machine.

Do not continue to use this machine if it appears to be faulty.

The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

Lint and fluff must not be allowed to collect on the floor around the outside of the machine. Always remove the plug before cleaning the appliance. The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged. WARNING During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown. If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor. WARNING

ever stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C. WARNING

o not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.56 Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between 5-35°C. Please note that operating in cold condition (between +2 and +5°C) might simply some water condensation and water drops on floor. In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the configuration of your appliance: - Stacking kit "standard size": for washing machine with minimum depth of 44 cm; - Stacking kit "slim size": for washing machine with minimum depth of 40 cm. - Universal stacking kit with sliding: for washing machine with minimum depth of 47 cm. The stacking kit shall be obtainable from service. The instructions for installation and any fixing attachments, are provided with the stacking kit. NEVER install the dryer up near curtains. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such way that a full opening of the tumble dryer door is restricted. For your safety, the appliance must be correctly installed. If there is any doubt about installation, call Service for advice. Once the machine is in place the feet should be adjusted to ensure that the machine is level. The technical details (supply voltage and power input) are indicated on the product rating plate. Electrical connections and safety instructions Installation57

Make sure that the electrical system is earthed, complies with all applicable law and that the (electricity) socket is compatible with the plug of the appliance. Otherwise, seek qualified professional assistance.

Do not use adapters, multiple connectors and/or extensions. The plug should be accessible for disconnection after the appliance has been installed. Do not plug the machine in and switch it on at the mains until the installation is completed. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

Install the rear of the appliance close to a wall or vertical surface.

There should be a gap of at least 12 mm between the machine and any obstrubtions. The inlet and outlet air should be kept clear of obstruction. Make sure carpets or rugs do not obstruct the base or any of the ventilation openings.

Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet. Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. Check regularly that the air flowing around the dryer is not restricted, avoiding accumulation of dust and lint. Ventilation WARNING

he appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit

that is regularly switched on and off by a utility.58 Check frequently the fluff filter after use, and clean, if necessary.

Always refer to the laundry care labels for directions on suitability for drying.

Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. Do not dry unwashed items in the tumble dryer. Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.

Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres. Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Remove all objects from pockets such as lighters and matches. Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine. Maximum load drying weight: see energy label.

To consult the product technical specification please refer to the manufacturer website.

WARNING Do not tumble dry fabrics treated with dry cleaning fluids. WARNING Foam rubber materials can

under certain circumstances,

when heated become ignited

by spontaneous combustion.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer. The Laundry59

WARNING Fire hazard / Flammable materials. The appliance contains R290, an eco-sustainable refrigerating gas that is flammable. Keep open flames and sources of ignition away from the appliance. Check there is no visible damage on the appliance. Do not use the appliance if it is damaged. Should there be any kind of problem, please contact your specialised retailer or one of our customer support centres. WARNING Ensure that the openings on the appliance and the openings of the compartment the appliance is fitted in (for built-in models) are clear of obstructions. WARNING Do not damage the refrigerating circuit.

Any repairs or interventions on the appliance must be carried out only by an authorised assistance service.

Disposing of the device incorrectly could cause fires or poisoning.

Dispose of the device correctly and do not damage the pipes used for the circulation of the refrigerating fluid.60

The water removed from the laundry during the drying cycle is collected in a container. When the container is full, an indicator light, or on some models a message on the display, will advise you that it MUST be emptied (however, we recommend to empty it after each drying cycle).

1. Gently pull out the water container

holding the handle (A). When it is full the water container will weigh about 6 kg.

2. Tilt the water container to empty the

water out through the spout (B). When empty, replace the water container back as shown; (C) first insert the base of the container into position as shown (1) then gentle push the top into position (2).

3. Press the programme start button to

1. Gently pull the top of the kickplate so

that it unclips from the dryer. The bottom section can then be unhinged allowing the kickplate to be completely removed (A)

2. Pull firmly on the handgrip and slide the

water container out of the dryer (B). Support the container with both hands (C). When full, the water container will weigh about 4 kg.

3. Open the lid located on the top of the

container and empty the water at the end of each drying cycle and before starting the next one (D).

4. Refit the lid and slide the water container

back into position (D). PUSH FIRMLY INTO PLACE.

5. Refit the kickplate by engaging the

hinges at the top and 'snapping' the lower clips into place.

HOSE KIT If you have the option of drainage near to the dryer yo u can use the discharge kit to provide a permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container. To remove the container tank in door drawer * Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.61

Pull on handle to open the door. To restart the appliance, close the door and press the programme start button.Lint filters and sponge filter cleaning indicator light The indicator light illuminates in fixed mode to signal the need of cleaning the lint filters and in blinking mode to signal the need of cleaning the sponge filter If the laundry is not drying check that the filters are not clogged. If you clean filters under water, remember to dry them. WARNING Do not use the tumble dryer without the filters. In order to have the maximum effectiveness of the machine, checking the cleanliness of all filters before each drying cycle is essential. Clogged filters could increase the drying time and cause damages and expensive cleaning operation. Filters WARNING (For models with water collection tray) you open the door mid cycle, before the cool- down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water r eservoir during the cycle. WARNING When the tumble dryer is in use the drum and door may be VERY HOT. Door62

1. Extract the two filters A and B in

sequence pulling them upwards, as shown in the figure.

2. Open the filters.

3. Gently remove lints from both filters using your fingertips or a soft brush, a cloth or under water running.

4. Close both filters by repositioning them inside the door, making sure they are positioned correctly in place.

WARNING Clean the lint filters before every cycle.

WARNING Before reinserting the filters, make sure there is no lint residue inside the compartment; if not, remove it wit h a vacuum cleaner. To clean the lint filters63

1. Remove the kickplate.

2. Turn the handle anti-clockwise and pull

out the front cover.

3. Gently remove the sponge filter frame.

4. Gently remove the sponge from the

5. Wash the sponge by holding it under a

running tap turning it so to remove any dust or fluff. Wring out the sponge and refit it carefully on the frame.

6. Refit the sponge filter frame ensuring that

it is in the correct position.

7. Refit the front cover ensuring it is in the

right position. Turn the handle clockwise to lock the front cover.

8. Refit the kickplate.

WARNING Clean the sponge filter every six months or when the filters cleaning indicator light blinks.

WARNING Do not touch the fins behind the sponge filter frame with hands in order to avoid injury.

Before using the tumble dryer for the first time: Please read this instruction book thoroughly. Remove all items packed inside drum. Wipe the inside of the drum and door with a damp cloth to remove any dust whichmay have settled in transit.Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled. Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings. Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity. ALWAYS Check that the filters are clean before every drying cycle.NEVER Put dripping wet items into the tumble dryer, this may damage the appliance. By care symbols These can be found on the collar or inside seam: Suitable for tumble drying. Tumble drying at high temperature. Tumble drying at low temperature only. Do not tumble dry. If the item does not have a care label it must be assumed that it is not suitable for tumble drying. By amount and thicknessWhenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear). By type of fabricCottons/linen: Towels, cotton jersey, bed and table linen.Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes. WARNING Do not overload the drum, large items when wet exceed the maximum admissible clothes load (for example: sleeping bags, duvets). Sort the load as follows Energy saving During the last 15 minutes the load is always tumbled in cool air. WARNING Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion). Do not tumble dry Clothes preparation65

Clean the lint filters after every drying cycle. In models equipped with a water collection tray, the tray should be emptied after every drying cycle. After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it. Wipe the outside of the machine and the door with a soft cloth. DO NOT use abrasive pads or cleaning agents. To prevent the door sticking or the buildup of fluff clean the inner door and gasket with a damp cloth after every drying cycle. WARNING For electrical data refer to the rating label on the front of the dryer cabinet (with the door open). WARNING Always switch off and remove the plug from the electricity supply before cleaning this appliance.

WARNING The drum, door and load may be very hot. Cleaning the dryer66

5. REMOTE CONTROL (WI-FI)

This appliance is equipped with Wi-Fi technology that allows you to control it remotely via App.

APPLIANCE PAIRING (ON APP)

Download the hOn App on your device by framing the following QR code: or by the link: go.haier-europe.com/download-app

Open the App, create the user profile (or log- in if it is already created previously) and pairing the appliance following the instructions on the device display.

Check that the router is switched on and connected to the Internet.

Load the laundry and close the door.

Turn the programme selector to the REMOTE CONTROL (Wi-Fi) position

the controls on the control panel will be disabled.

Start the cycle using the app. When the cycle has been completed, turn off the machine by turning the programme selector to the OFF position.

To exit REMOTE CONTROL mode while a cycle is underway, turn the programme selector to any position other than REMOTE CONTROL (Wi- Fi), without going through the OFF . The control panel on the appliance will be operative once again.

With the door closed, turn the pr ogramme selector to the REMOTE CONTROL (Wi

Fi) position to control the appliance using the app once again. If there is a cycle underway, it will continue. With the door opened, the REMOTE CONTROL will be disabled. To enable it again, close the door, tu rn the programme selector to any position other than REMOTE CONTROL and then select it again. The frequency of the home Wi-Fi network has to be set on the 2.4 GHz band. You can not configure the machine if your home network is set to the 5 GHz band. Get all the details of the Wi-Fi functions by browsing the App in DEMO mode. The App is available for devices running b oth Android and iOS, both for tablets and for smartphones.67

1. Open the door and load the drum withlaundry. Ensure that garments do nothinder closure of the door.

2. Gently close the door pushing it slowly

until you hear the door 'click' shut.3. Select the desired drying programme byturning the programme knob or, in somemodels, by pressing the specific button(check the programme table for specificdetails).4. Press the programme start button. Thedryer will start automatically.5. If the door is opened during theprogramme to check the laundry, it isnecessary to press programme startto recommence drying after the doorhas been closed.6. When the cycle is nearing completionthe machine will enter the cool downphase, the clothes will be tumbled incool air allowing the load to cool down.

7. Following the completion of the cycle

the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened. Power input / Power current fuse amp/ Supply voltage: see rating plate. Maximum load: see energy label. Energy class: see energy label.

PROGRAMME SELECTOR with OFF position

DISPLAY D+F CHILD LOCK Technical data Do not open the door during the automatic programmes in order to obtain a proper drying.

H68 Rotating the programme selector in both directions it's possible to select the desired drying programme. To cancel the selections or switch off the appliance rotate the programme selector on OFF (remember to unplug the appliance). - Language setting After connecting the machine to the network and turning it on, press the button "C" or "D" to see on the display the available languages. ENGLISH is always the first language shown. Select the desired language pressing the START/PAUSE button. - Change the language If you want to change the setting language you will have to press simultaneously "C" and "D" buttons for about 5 seconds. ENGLISH will appear on the display, and you will be able to choose a new language. To start the selected cycle with the preset parameters, press START/PAUSE. When the programme is running, the display will show the time to elapse. Moreover, if you want to modify the chosen programme, press the desired options buttons, modify the default parameters and then press START/ PAUSE button to start the cycle. After switching on the appliance, wait a few seconds for the programme to start running. PROGRAMME DURATION When a programme is selected the display automatically shows the cycle duration, which can vary, depending on the options selected. Once the programme has started you will be kept informed constantly of the time remaining to the end of the drying cycle. The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to the humidity level of the load. PROGRAMME END "END" ("End" on some models) will appear in the display at the end of the programme, it is now possible to open the door. At the end of the cycle, turn off the appliance by turning the programme selector to the OFF position. The programme selector must ALWAYS be put in the OFF position at the end of the drying cycle before a new one can be selected. Only the options compatible with the set programme can be selected. Close the porthole BEFORE pressing the START/PAUSE button. START/PAUSE button First starting PROGRAMME SELECTOR with OFF position WARNING Don’t touch the buttons while inserting

the plug because the machines calibrates the systems during the first seconds: touching the buttons , the machine couldn’t work property. In this case, remove the plug and repeat the operation.69

Keep the START/PAUSE button pressed for about 2 seconds (the name of the programme and the residual time display will flash, showing that the machine is paused). Press the START/PAUSE button again to re-start the programme from the point it had been paused at.

CANCELLING THE SET PROGRAMME

To cancel the programme, turn the programme selector to the OFF position. If there is a break in the power supply whilst the machine is operating, when the power is restored, by pressing the START/PAUSE button, the machine will restart from the beginning of the phase it was in when the power was lost. This button allows to delay the start of the programme from 30 minutes (1 hour on some models) to 24 hours in 30 minutes intervals (1 hour on some models).The delay selected is shown on the display. After pressing the START/PAUSE button the time showed decrease minute after minute. It's possible transform a cycle from automatic to programmed, up to 3 minutes after the start of the cycle. The progressive pressure increases the time in 10 minute intervals. After this selection to reset the automatic drying functioning is necessary to switch off the dryer. In case of incompatibility, all indicator lights flash quickly for 3 times. This button allows you to store the options set on a cycle. MEMORY: select the programme and the desired options, then press the button MEMO for 3 seconds (before starting the cycle). The writing MEMO (all the digit on some models) will blink for 2 seconds and the options connected to the cycle selected will be set. RECALL: after the selection of the cycle press the button MEMO for recall the stored options (not the cycle). This button allows to set the desired dryness level editable option up to 3 minutes after the starting of the cycle: Ready to Iron: it leaves the garments slightly wet to facilitate ironing.

Dry Hanger: to get garment ready to be hang.

Dry wardrobe: for laundry that can be directly stored.

Extra-dry: to get completely dry garments, ideal for full load. This appliances is equipped with Drying Manager function. On automatic cycles, each level of intermediate drying, prior to the reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of drying reached. DRYING SELECTION button The delay start function can't be memorized.

MEMO button TIME CYCLE SELECTION button Opening of the porthole with delayed start set, after re- closing the porthole, press start again to resume the counting.

DELAY START button70 In case of incompatibility, all indicator lights flash quickly for 3 times. During the cycle the option sets alternate movements of the drum to reduce the folds and automatically sets the drying level to "Ready to Iron". Moreover this option activate an anti-creases movement of the drum pre cycle in case of activation of the delay and at the end of drying cycle. It is activated every 10 minutes, up to 6 hours after the end of the drying cycle.

To stop the movements set the programme selector to OFF. Useful when it's not possible to remove immediately the laundry. Pressing simultaneously the buttons "D" and "F" for about 2 seconds, the machine allows you to lock the keys. In this way, you can avoid making accidental

unwanted changes if a button on the display is pressed accidently during a cycle. The key lock can be simply cancelled by pressing the two buttons simultaneously again. In case of opening of porthole with activated CHILD LOCK, the cycle stops but the lock is kept: to restart the cycle, you must remove the lock and press START/PAUSE again. CHILD LOCK can be modified at any time of the cycle. The display shows the remaining time for drying, the postponed time in case of delayed start selection and other notifications setting.

1) DRYING SELECTION INDICATOR

LIGHTS The indicator lights display the degrees of dryness that can be selected by the relevant button.

The indicator light illuminates in fixed mode to signal the need of cleaning the lint filters and in blinking mode to signal the need of cleaning the sponge filter.

4) Wi-Fi INDICATOR LIGHT

On models equipped with Wi-Fi, it indicates the status of the connection. It could be: - FIXED ON: remote control enabled. - SLOW FLASHING: remote control disabled. - QUICK FLASHING FOR 3 SECONDS, THEN OFF: the machine cannot connect to the home Wi-Fi network or has not yet been associated with the App. Display CHILD LOCK EASY IRON button

OFF FOR 2 SECONDS: reset of the Wi-Fi network (during the association with the App). - ON FOR 1 SECOND, THEN OFF FOR 3 SECONDS: the door is open. Remote control cannot be activated. For all the information about the functionality and the instructions for an easy configuration of the Wi-Fi, please refer to: go.he.services/candy-um

The standard cycle COTTON DRY ( ) is the most energy efficient and best suited for drying normal wet cotton laundry. Maximum Drying Weight Cottons Max. capacity declared Synthetics or Delicates Max. 4 kg

WARNING The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature. WARNING Clean the sponge filter every six months or when the filters cleaning indicator light blinks. WARNING Clean the lint filters before every cycle. Information for Test Laboratory Drying Guide72

Full * REMOTE CONTROL (Wi-Fi) Position that you have to select when you want to enable remote control through the App (via Wi-Fi).

• The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

naturally. It is recommended to unload clothes at the very end of the cycle. Attention: felting process of wool is irreversible; please dry exclusively with symbol "ok tumble" on the garment label. This programme is not indicated for acrylic clothes.

This specifics cycle has been conceived to dry shirts minimizing tangles and folds thanks specific movements of the drum. It’s recommended to take out the linens immediately after drying cycle.

To dry synthetic fabrics that need an accurate and specific treatment. DARKS & COLOURED

A delicate and specific cycle to dry dark and coloured cotton or synthetics garments.

Dedicated to dry uniformly fabrics like jeans or denim. It’s recommended flip over the garments before drying.

The right cycle to dry cottons, sponges and towels.

ECO COTTON The cotton program (hang dry) is the most efficient program in energy consumption. Suitable for cottons and linens.

The wool drying cycle of this machine has been approved by the Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issues by the manufacturer of this machine M1530. In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

Description of programmes To dry different types of fabrics and colors, the tumble dryer has specific programs to meet every need of drying (see table of programmes). GENIUS This rapid programme for medium loads ensures the best drying performance. It is a programme that can detect humidity inside the drum and automatically adjust the time required. The maximum duration is 59 minutes. DAILY 45' Timed rapid program for daily clothes. It's recommended to spin at high speed before drying. SAVING 30' Timed rapid program for small load that assure maximum saving in time and energy. It's recommended to spin at high speed before drying. REFRESH The perfect cycle to remove the smells from the linens smoothing creases. SPORT PLUS Dedicated to technical garments for sport and fitness, drying gently with special care to avoid shrinking and deterioration of elastic fibers. RELAX This is a warm cycle that in only 12 minutes helps to relax folds and creases. SMALL Dedicated to get an even drying for extremely small loads. WOOLMARK Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are heavier, edges can be a bit wet: it is suggested to dry them74 REMOTE CONTROL (WI-FI) Position that you have to select when you want to enable/disable remote control through the App, via Wi

start of cycle will take place through the App commands.

AND WA RRANTY Defects you can remedy yourself Before calling Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Service, they may be able to assist you over the telephone. Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal. Drying time is too long/clothes are not dry enough… Have you selected the correct drying time/programme? Were the clothes too wet? Were the clothes thoroughly wrung or spindried? Do the lint filters need cleaning? Does the sponge filter need cleaning? Is the dryer overloaded? The dryer does not operate… Is there a working electricity supply to the dryer? Check using another appliancesuch as a table lamp. Is the plug properly connected to the mains supply? Is there a power failure? Has the fuse blown? Is the door fully closed? Is the dryer switched on, both at the mains supply and at the machine? Has the drying time or the programme been selected?

Has the machine been switched on againafter opening the door?

Has the machine stopped workingbecause the water container is full andmust be emptied?The dryer is noisy… Switch off the dryer and contact Service for advice.The filters cleaning indicator light is on… Do the lint filters or the sponge filter need cleaning?The water container indicator light is on

Does the water container need emptying?

• In some models, this will be indicated with a message appearing on thedisplay.Should there still be a problem with your dryer after completing all the recommended checks, please call Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine: Is found to be in working order. Has not been installed in accordance with the installation instructions. Has been used incorrectly. Customer Service What might be the cause of...76

Always use genuine spares, available direct from Service.

To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an Authorised Service engineer.

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

The manufacturer declines all responsibility for any printing errors in the booklet included with this product. Moreover, it also reserves the right to make any changes deemed useful to its products without changing their essential characteristics.

Warranty The product is guaranteed under the terms and conditions stated on the certificate included with the product. The certificate has to be stored so as to be sho wn to the Authorized Customer Service Centre in case of need. You can also check the warranty conditions on our web site. To obtain assistance, please fill in the form on- line or contact us at the number indicated on the support page of our web site. Service Spares77 ES78 Gracias por haber elegido este producto. Estamos orgullosos de ofrecer el producto ideal para ti y la mejor gama completa de electrodomésticos para tu rutina diaria.
