Product type	Wireless router
Brand	ASUS
Model	Lyra Voice
Power supply	DC 19V, 2.37A power adapter
Connectivity	Wi-Fi IEEE 802.11 a/b/g/n/ac, dual band 2.4 GHz and 5 GHz
Network ports	1 WAN RJ-45 port, 1 LAN RJ-45 port
Built-in voice assistant	Amazon Alexa with built-in microphones
Main functions	Router, repeater, access point, AiMesh system, parental control
Integrated services	Amazon Alexa, Spotify Connect
Network security	WPA/WPA2-PSK, WPS, firewall
Indicator lights	Power, 2.4 GHz, 5 GHz
Buttons	Power, mute, reset
Operating temperature	0°C to 40°C
Storage temperature	0°C to 70°C
Operating humidity	50% to 90%
Storage humidity	20% to 90%
Maintenance and cleaning	Clean with a soft dry cloth. Do not use abrasive products or solvents.
Safety instructions	Keep a minimum distance of 20 cm from the body. Do not expose to water or humidity.
Included accessories	Power adapter, RJ-45 cable, quick start guide
Repairability	Do not open the housing. Contact ASUS after-sales service for any repair.
Firmware update	Via the ASUS Router app or the ASUS website
General information	Compliant with CE and ISED directives. Technical support available in many countries (see manual).

Frequently Asked Questions - Lyra Voice ASUS

How to configure Lyra Voice as the main router?

Download the ASUS Router app, connect the modem to the WAN port of Lyra Voice using the Ethernet cable, turn on the device, then follow the instructions in the app.

How to add a Lyra Voice node to an existing AiMesh network?

In the ASUS Router app, click on the '+' icon at the top right, choose 'Add an AiMesh node' and follow the instructions. The new node should be close to the main node.

How to use Amazon Alexa with Lyra Voice?

Make sure you are logged into your Amazon account via the ASUS Router app. Say 'Alexa' to launch commands, for example 'Alexa, play music' or 'Alexa, turn on the light'.

What to do if the indicator light turns solid orange?

A solid orange light means the internet connection is interrupted. Check that the Ethernet cable is properly connected between the modem and the WAN port.

How to reset Lyra Voice to factory settings?

Simultaneously press the reset buttons (usually a hole) for about 20 seconds until the lights flash. Release, the device will restart.

How to connect Spotify to Lyra Voice?

Lyra Voice supports Spotify Connect. Open Spotify on your device, play a song, select the speaker icon, then choose Lyra Voice from the list.

Where to place Lyra Voice for optimal coverage?

Place the router in a central location, away from metal obstacles, microwaves, and other wireless devices. Keep it horizontal for better signal propagation.

How to switch between router, repeater, or AiMesh mode?

You need to reset the device to factory settings, then restart the installation via the ASUS Router app by selecting the desired mode during setup.

What does the flashing of the indicator lights mean?

Flashing white light indicates the device is ready for configuration via the app. Flashing blue indicates startup. Solid cyan means the Amazon account is pending.

How to get technical support for Lyra Voice?

Refer to the user manual for hotline numbers according to your country. You can also visit the ASUS website (www.asus.com) or send an email via the support page.

USER MANUAL Lyra Voice ASUS

Q16202/Revised Edition V4/December 2019

Table of contents

English 3
Francais 9
Deutsch. 15
Italiano 21
日本語 27
Espanol. 33

Package contents

Lyra Voice Wireless Router Network cable (RJ-45)

AC adapter Quick Start Guide

NOTE: If any of the items is damaged or missing, contact your retailer.

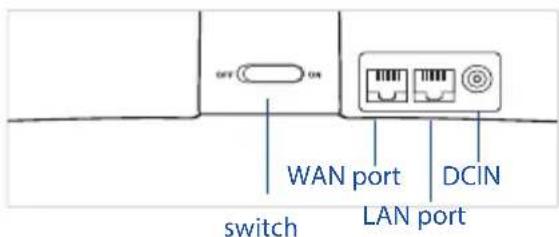

Hardware explanations

Plug the adapter into the DCIN port, and press the power button.

The Power, 2.4GHz/5GHz LEDs will light up when your hardware is ready.

WANPORT

Connect your modem to this port with a network cable.

LANPORT

Connect your PC to this LAN port with a network cable.

NOTES:

• Use only the adapter that came with your package. Using other adapters may damage the device.

• Specifications:

DC Power adapter DC Output: +19V with 2.37A current
Operating Temperature 0	~40 °C	Storage 0~70	°C
Operating Humidity 50~90% Storage	20~90%

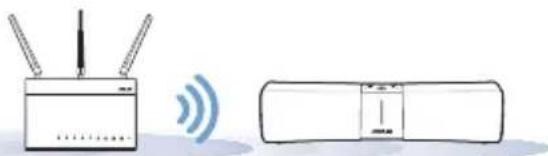

Position your wireless router

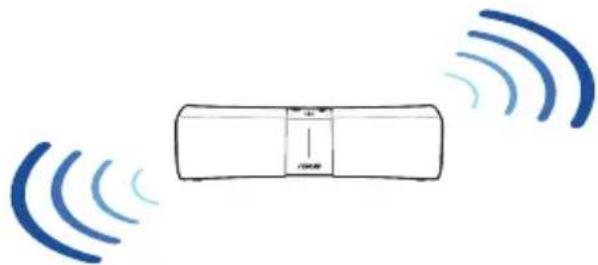

For optimal wireless transmission between the wireless router and connected wireless devices, ensure that you:

• Place the wireless router in a centralized area for a maximum wireless coverage for the network devices.
• Keep the wireless router away from metal obstructions and away from direct sunlight.
• Keep the wireless router away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss.

4s!6u3

• Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates.
• Place the wireless router horizontally.

BEFORE SETTING

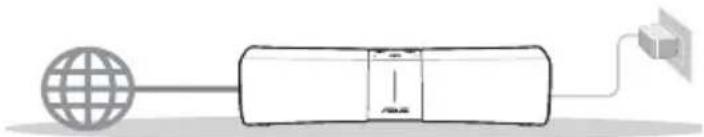

01 If you are preparing to setup a stand alone router

Go to SETUP LYRA VOICE AS ROUTER.

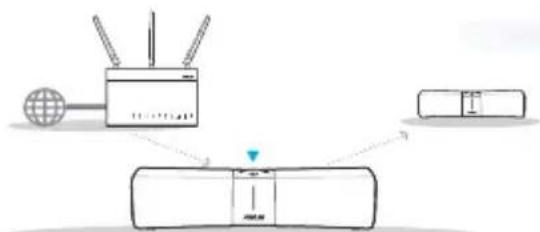

02 If you are preparing to setup an AiMesh WiFi system

To be the 1st router of AiMesh system

To be the 2nd or 3rd node of AiMesh system.

03 If you are preparing to setup Lyra Voice as a repeater

Go to SETUP LYRA VOICE AS REPEATER.

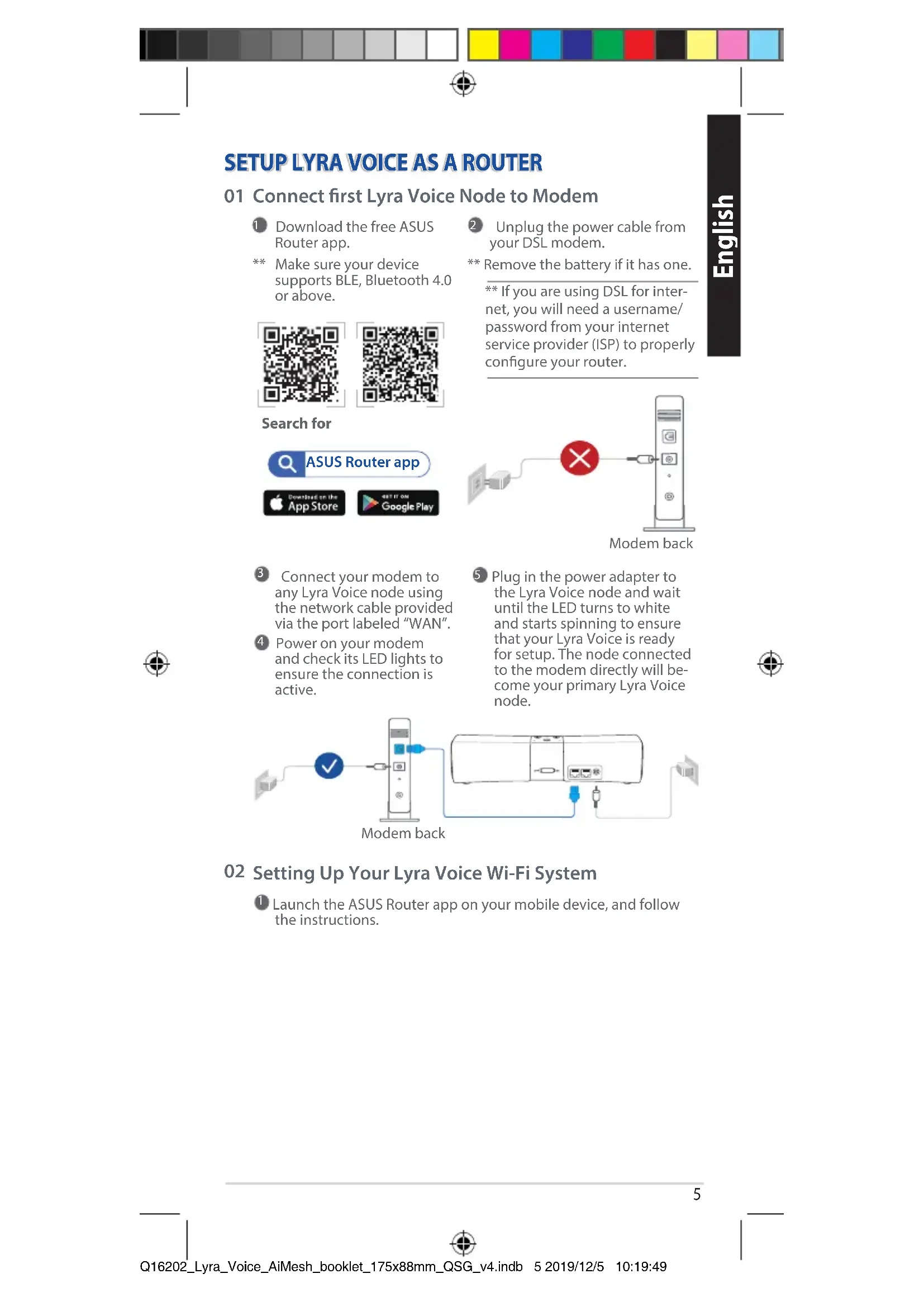

SETUP LYRA VOICE AS A ROUTER

01 Connect first Lyra Voice Node to Modem

1 Download the free ASUS Router app.
** Make sure your device supports BLE, Bluetooth 4.0 or above.

Search for

ASUS Routerapp

Download at the App Store

Google Play

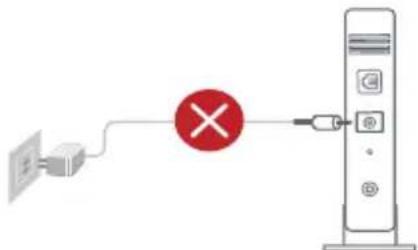

Unplug the power cable from your DSL modem.
** Remove the battery if it has one.

** If you are using DSL for internet, you will need a username/ password from your internet service provider (ISP) to properly configure your router.

Modem back

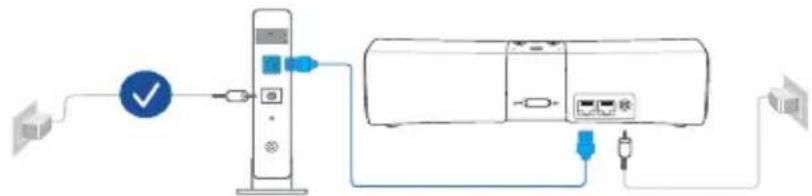

3 Connect your modem to any Lyra Voice node using the network cable provided via the port labeled "WAN".
4 Power on your modem and check its LED lights to ensure the connection is active.

Plug in the power adapter to the Lyra Voice node and wait until the LED turns to white and starts spinning to ensure that your Lyra Voice is ready for setup. The node connected to the modem directly will become your primary Lyra Voice node.

Modem back

02 Setting Up Your Lyra Voice Wi-Fi System

Launch the ASUS Router app on your mobile device, and follow the instructions.

4s!6u3

SETUP AS AN AiMesh SYSTEM

Set up your router01

Refer to Setup Lyra Voice as Router.

Adding Lyra Voice Nodes02

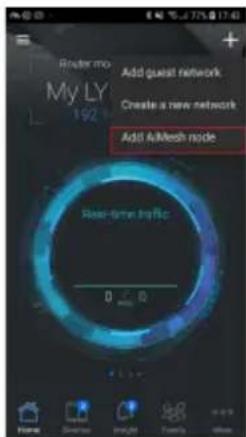

Launch the ASUS Router app and click the ^ 十 + ^ 一 icon on the upper right corner. Choose Add AiMesh node to current network and follow the instructions to complete.

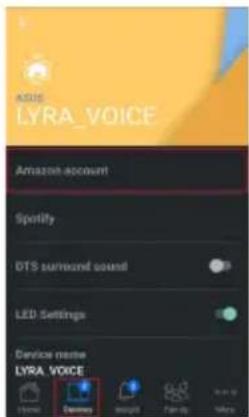

03 Amazon Account Linking

1 Your Amazon account can be changed or set after completing the QIS (Quick Internet Setup), remember to enable your Amazon account on each node to enjoy using Amazon Alexa.

Note: You will need to sign-in to your Amazon account to use Amazon Alexa with your Lyra Voice device. Please refer to the section "Just Ask Alexa" for more details on using Alexa.

SETUP LYRA VOICE AS A REPEATER

01 Placing your Lyra Voice

Download the free ASUS Lyra app.

** Make sure your device supports BLE, Bluetooth 4.0 or above.

Search for

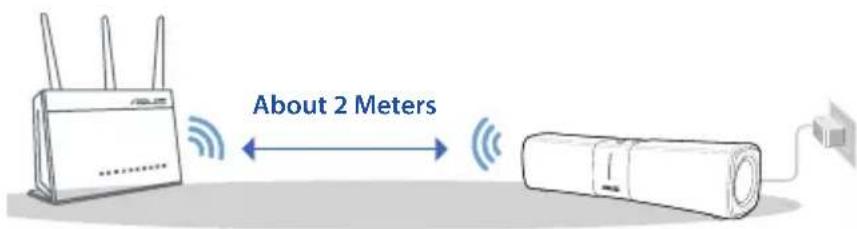

2 Place your Lyra Voice near your router/AP.

Plug in the power adapter to the Lyra Voice node and wait until the LEDs turn to white and start spinning to ensure that your Lyra Voice is ready for setup.

English

02 Setting Up Your Lyra Voice Wi-Fi System

Connect your mobile device to Lyra Voice SSID, then launch the ASUS Router app on your mobile device and follow the instructions to set up your Lyra Voice as the repeater.

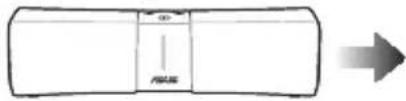

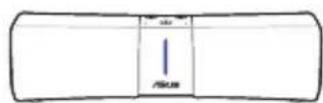

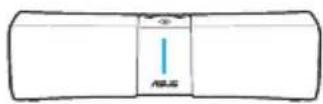

Indications

1 Booting up

Blue LED spinning around 1 to 2 minutes

Ready for setup by ASUS Router App

White LED spinning

3 Waiting for Amazon account linking

Solid Cyan LED

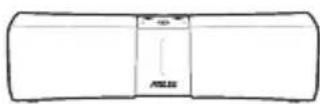

4 Setup complete

All LED turns off

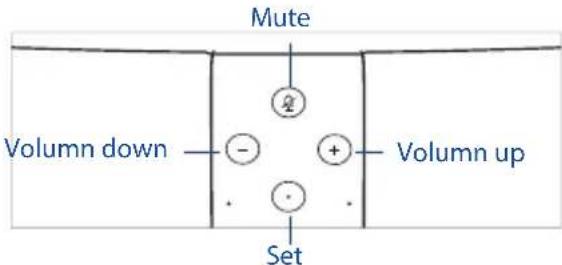

Reset to factory defaults:

Press and simultaneously for around 6 seconds.

Mute:

Press Mute button to turn off the microphones. The Mute button will turn red. Press it again to turn the microphones back on.

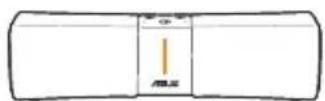

Bluetooth pairing:

Press and simultaneously for around 5 seconds to enter Bluetooth pairing mode or say "Alexa, pair my phone".

Internet disconnected

Solid orange LED, check if the ethernet canle is well connected

If you want to switch to a different mode (such as Router mode, Repeater mode, AiMesh mode) or if you encounter any setup issues, reset your system and redo the setup process.

Just Ask Alexa

01 Download the Amazon Alexa App

Download the free Amazon Alexa app from Amazon Appstore, Google Play, or Apple App Store to begin using Alexa on your device, you can use the Amazon Alexa app to set up your Alexa-enabled devices, listen to music, create shopping lists, get news updates, and much more.

Amazon Alexa

6u3

Basic commands

"Alexa, let's chat."
"Alexa, mute."
"Alexa, stop."
"Alexa, repeat."
"Alexa, set the volume to 5."
"Alexa, turn up the volume."

Time and date

"Alexa, set an alarm for 7 a.m."
"Alexa, wake me up at 7 in the morning."
"Alexa, set a repeating alarm for weekdays at 7 a.m."
"Alexa, set a timer for 15 minutes."
"Alexa, what time is it?"

Sports

"Alexa, when does [your favorite team] play?"
"Alexa, did [your favourite team] win?"
"Alexa, give me my Sports Update."

Skills

"Alexa, what kid's skills do you have?"
"Alexa, enable [skill name]!"
"Alexa, disable [skill name]."

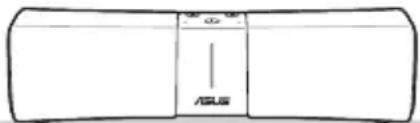

Smart home

"Alexa, turn on the lights."
"Alexa, dim the lights to 50 percent."
"Alexa, raise the temperature 1 degree."

"Alexa, play some music." "Alexa, what's in the news?"

Spotify Connect

Listen out loud with Spotify Connect

1. Connect your Lyra Voice to your wifi network.
2. Open up the Spotify app on your phone, tablet or laptop using the same wifi network.
3. Play a song and select Devices Available.
4. Select your Lyra Voice and start listening.

Spotify

The Spotify Software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses.

Contenu de la boîte

Download on the App Store

Google Play

Download on the App Store

SETON Google Play

Downtown on theApp Store

Google Play

Download the App Store

Google Play

无么背面

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Prohibition of Co-location

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

IMPORTANT NOTE:

Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC exposure compliance requirement, please follow operation instruction as documented in this manual.

WARNING! This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

CANICES-3(B)/NMB-3(B)

Radio Frequency (RF) Exposure Information

The radiated output power of the ASUS Wireless Device is below the Innovation, Science and Economic Development Canada radio frequency exposure limits. The ASUS Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized.

This equipment should be installed and operated with a minimum distance of 20cm between the radiator any part of your body.

This device has been certified for use in Canada. Status of the listing in the Innovation, Science and Economic Development Canada's REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/eic/site/ceb-bhst.nsf/eng/h_tt00020.html

Additional Canadian information on RF exposure also can be found at the following web: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

Precautions for the use of the device

a. Pay particular attention to the personal safety when use this device in airports, hospitals, gas stations and professional garages.
b. Medical device interference: Maintain a minimum distance of at least 15cm (6 inches) between implanted medical devices and ASUS products in order to reduce the risk of interference.
c. Kindly use ASUS products in good reception conditions in order to minimize the radiation's level.
d. Keep the device away from pregnant women and the lower abdomen of the teenager.

UK support e-mail: [e-mail]
- For more information, visit the ASUS support site at: https://www.asus.com/support/

English

CE statement

Simplified EU Declaration of Conformity

ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.com/Networking/LyraVoice/HelpDesk Declaration/.

Declaration of Conformity for Ecodesign directive 2009/125/EC

Testing for eco-design requirements according to (EC) No 1275/2008 and (EU) No 801/2013 has been conducted. When the device is in Networked Standby Mode, its I/O and network interface are in sleep mode and may not work properly. To wake up the device, press the Wi-Fi on/off, LED on/off, reset, or WPS button.

This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

All operational modes:

2.4GHz: 802.11b, 802.11g, 802.11n(HT20), 802.11n(HT40),

The frequency, mode and the maximum transmitted power in EU are listed below:

2412-2472MHz (802.11ac VHT40 MCS0): 19.96dBm

5180-5240MHz (802.11ac VHT80 MCS0): 22.92dBm

5260-5320MHz (802.11ac VHT80 MCS0): 22.91dBm

5500-5700MHz (802.11ac VHT80 MCS0): 29.76dBm

The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range.

The adapter shall be installed near the equipment and shall be easily accessible.

AT BE	BG CZ	DK EE FR
DE IS	IE IT EL	ES CY
LV	LI	LT	LU	HU	MT	NL
NO PL	PT RO	SI SK TR
FI SE	CH UK	HR

French

CE statement

• Use this product in environments with ambient temperatures between 0^(32^) and 40^(104^) .
  Refer to the rating label on the bottom of your product and ensure your power adapter complies with this rating.
• DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.
• DO NOT place or drop objects on top and do not shove any foreign objects into the product.
  DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
  DO NOT cover the vents on the product to prevent the system from getting overheated.
• DO NOT use damaged power cords, accessories, or other peripherals.
• If the Adapter is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.

German

Safety Notices
