USER MANUAL 1993185 MAKITA

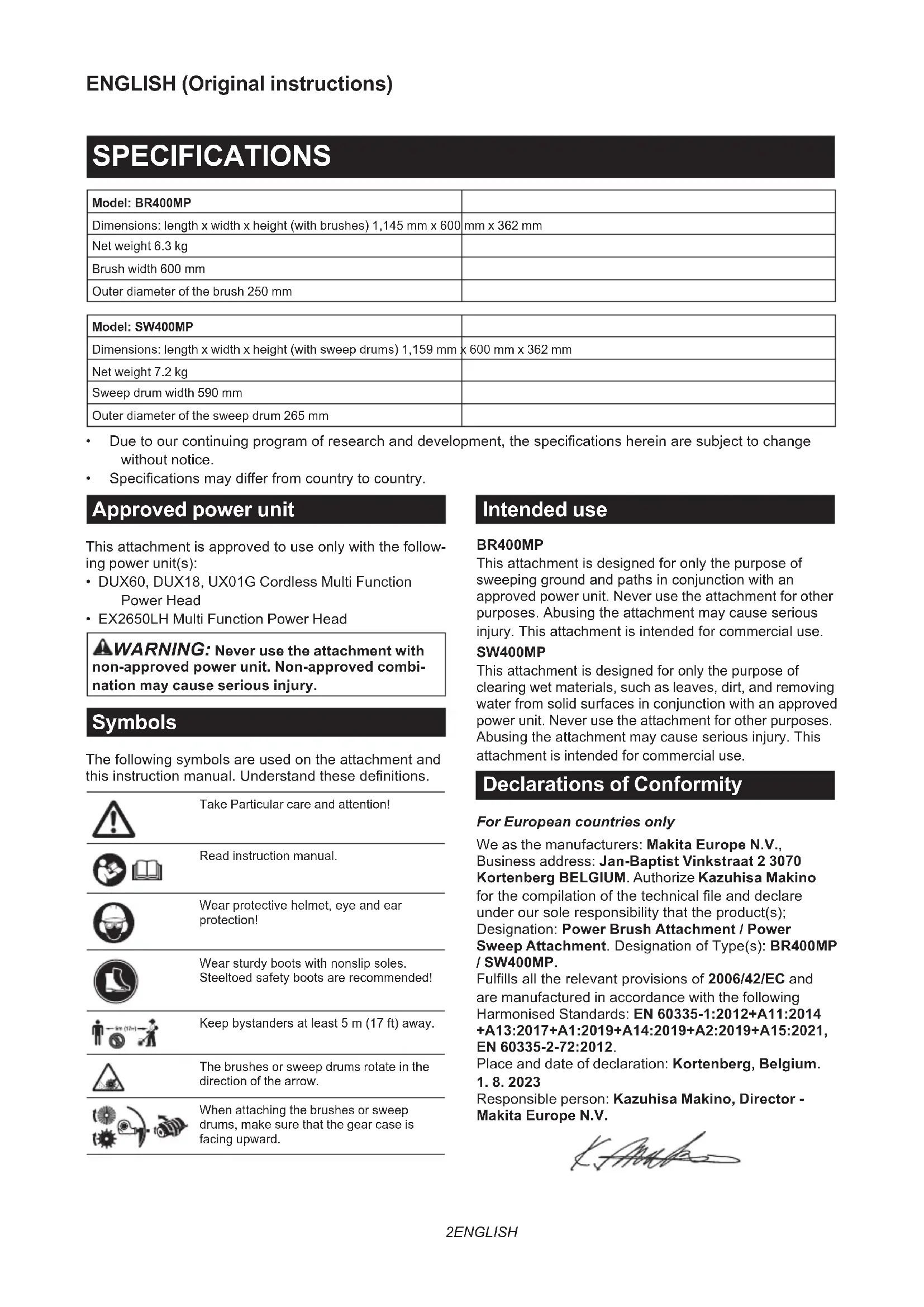

• Specicationsmaydi󰀨erfromcountrytocountry. Approved power unit Thisattachmentisapprovedtouseonlywiththefollow- ing power unit(s):

• DUX60, DUX18, UX01G Cordless Multi Function Power Head

• EX2650LH Multi Function Power Head

WARNING: Never use the attachment with

non-approved power unit. Non-approved combi- nation may cause serious injury. Symbols Thefollowingsymbolsareusedontheattachmentand thisinstructionmanual.Understandthesedenitions. Take Particular care and attention! Read instruction manual. Wearprotectivehelmet,eyeandear protection! Wearsturdybootswithnonslipsoles. Steeltoedsafetybootsarerecommended! Keepbystandersatleast5m(17ft)away. The brushes or sweep drums rotate in the direction of the arrow. When attaching the brushes or sweep drums, make sure that the gear case is facing upward. Intended use BR400MP Thisattachmentisdesignedforonlythepurposeof sweepinggroundandpathsinconjunctionwithan approved power unit. Never use the attachment for other purposes.Abusingtheattachmentmaycauseserious injury.Thisattachmentisintendedforcommercialuse. SW400MP Thisattachmentisdesignedforonlythepurposeof clearing wet materials, such as leaves, dirt, and removing waterfromsolidsurfacesinconjunctionwithanapproved power unit. Never use the attachment for other purposes. Abusingtheattachmentmaycauseseriousinjury.This attachment is intended for commercial use. Declarations of Conformity For European countries only We as the manufacturers: Makita Europe N.V., Business address: Jan-Baptist Vinkstraat 2 3070 Kortenberg BELGIUM. Authorize Kazuhisa Makino forthecompilationofthetechnicalleanddeclare underoursoleresponsibilitythattheproduct(s); Designation: Power Brush Attachment / Power Sweep Attachment.DesignationofType(s):BR400MP / SW400MP. Fulllsalltherelevantprovisionsof2006/42/EC and are manufactured in accordance with the following Harmonised Standards: EN 60335-1:2012+A11:2014 +A13:2017+A1:2019+A14:2019+A2:2019+A15:2021, EN 60335-2-72:2012. Place and date of declaration: Kortenberg, Belgium.

Responsible person: Kazuhisa Makino, Director - Makita Europe N.V.3 ENGLISH Declaration of Conformity (For UK) For UK only We as the manufacturers: Makita Europe N.V., Business address: Jan-Baptist Vinkstraat 2 3070 Kortenberg BELGIUM. Authorize Kazuhisa Makino forthecompilationofthetechnicalleanddeclare underoursoleresponsibilitythattheproduct(s); Designation: Power Brush Attachment / Power Sweep Attachment.DesignationofType(s):BR400MP / SW400MP. FulllsalltherelevantprovisionsofS.I. 2008/1597 (as amended) and are manufactured in accor- dance with the following Designated Standards: EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:20 19+A2:2019+A15:2021, EN 60335-2-72:2012. Place and date of declaration: Kortenberg, Belgium.

WARNING: Read all safety warnings,

instructions, illustrations and specications pro- vided with this machine as well as the instruction manual of the power unit before using. Failure tofollowallinstructionslistedbelowmayresult inreand/orseriousinjurytotheoperatorand/or bystanders. Save all warnings and instruc- tions for future reference. Theterm“powerbrush/powersweep”and“machine” in the warnings and precautions refer to the combina- tion of the attachment and the power unit. Theterm“motor”inthewarningsandprecautionsrefers to the engine or electric motor of the power unit. General safety

First-time or inexperienced operator should ask the dealer for training in all operation of the machine. Never allow children, persons with reduced physical, sensory or mental capabil- ities or lack of experience and knowledge or people unfamiliar with the instructions to use the machine. Children should be supervised to ensure that they do not play with the machine.

2. It is recommended only to lend the machine

to people who have proven to be experienced. Always hand over the instruction manual.

3. Stay alert, watch what you are doing and use

common sense when operating the machine. Do not use the machine while you are tired, ill, or under the inuence of drugs, alcohol or medication. A moment of inattention while oper- atingthemachinemayresultinseriouspersonal injury.

4. Avoid using the machine in bad weather

conditions especially when there is a risk of lightning.

5. Follow your national and local regulation for

use of outdoor power machines.

6. Never attempt to modify the machine.

7. Keep in mind that the operator or user is

responsible for accidents or hazards occurring to other people or their property. Work area safety

WARNING: Keep the power brush / power

sweep away from electric lines and communica- tion cables. Touching or approaching high-voltage lineswithpowerbrush/powersweepcanresultin deathorseriousinjury.Watchpowerlinesandelec- trical fences around the work area before starting operation.

1. Operate the machine under good visibility and

daylight conditions only. Do not operate the machine in darkness or fog.

2. Start and operate the engine only outdoors in

a well ventilated area.Operationinaconnedor poorlyventilatedareacanresultindeathdueto su󰀨ocationorcarbonmonoxidepoisoning.

3. Before operation, examine the work area for

wire fences, stones, or other solid objects. Theycandamagethebrushesorsweepdrums.

4. During operation, never stand on an unstable

or slippery surface or a steep slope. During the cold season, beware of ice and snow and always ensure secure footing.

5. Avoid working close to fences, stumps or root

of trees.Theycandamagethebrushesorsweep drums.

6. Avoid working close to buildings, cars and

static electricity, and there is a risk of electric shock or accidents. Personal protective equipment

1. Always wear heavy, long pants, sturdy boots,

gloves, and a long-sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals, or go barefoot. Secure hair so it is above shoulder level.

2. Always wear protective goggles to protect

your eyes from injury when using the machine. The goggles must comply with ANSI Z87.1 in the USA, EN 166 in Europe, or AS/NZS 1336 in Australia/New Zealand. In Australia/New Zealand, it is legally required to wear a face shield to protect your face, too.4 ENGLISH It is an employer's responsibility to enforce the use of appropriate safety protective equip- ments by the tool operators and by other per- sons in the immediate working area.

3. Wear ear protection, such as ear mu󰀨s.

Exposure to noise can cause hearing loss.

4. Always wear sturdy shoes with a non-slip

sole.Thisprotectsyourfeetagainstinjuriesand ensures a good footing.

5. Wear a dust mask as necessary.

1. Stop the engine before refueling. Keep away

from open ames and sparks. Never smoke during refueling.Otherwisereand/orexplosion mayresult.

2. Refuel outdoors. Refueling in a closed room can

cause explosion of fuel vapor.

3. Avoid contact with fuel or engine oil. Do not

inhale fuel vapor. If fuel or oil spills, wipe it o󰀨 of the machine and/or ground immediately. If fuel spills on your clothes, change it immedi- ately to prevent it from catching re.

4. After refueling, carefully tighten the fuel tank

cap and check for fuel leak. Move at least 3 m (10 feet) away from the fueling source and site before starting engine.

5. Only transport and store fuel in approved con-

tainers. Keep children away from the stored fuel. Starting up the power brush / power sweep

1. Before assembling or adjusting the machine,

switch o󰀨 the motor and remove the spark plug cap or the battery cartridge.

2. Before handling the brushes or sweep drums,

wear protective gloves.

3. Wear the personal protective equipments

before starting the motor.

4. Before starting the motor, inspect the machine

for damages, loose screws/nuts or improper assembly. Check all control levers and switches for easy action. Clean and dry the handles.

5. Never attempt to start the motor if the machine

is damaged or not fully assembled with proper guards, plates, or other safety protective devices.Otherwiseseriousinjurymayresult.

6. Before starting the motor, carefully check that

the brushes or sweep drums are not touching your body and other objects. Starting the motor with the brushes or sweep drums contacting with foreignobjectcancauseseriousaccident.

7. Before starting the motor, make sure that there

is no person or animal in the work area.

8. Adjust the shoulder harness and hand grip to

suit the operator's body size.

9. Replace the brushes or sweep drums if they

are cracked, bent, or damaged. Damaged brushesorsweepdrumsmayshatterduringoper- ationandcauseseriousinjury.

10. Start and operate the machine only outdoors

in a well ventilated area.Operationinaconned orpoorlyventilatedareacanresultindeathdueto su󰀨ocationorcarbonmonoxidepoisoning.

11. When starting the engine, place the machine

on rm ground and then maintain good bal- ance and secure footing.

12. When pulling the starter knob of the engine,

hold the power unit rmly against the ground by your left hand. Never step on the drive shaft of the power unit.

13. If the brushes or sweep drums rotate at idle,

stop the engine and adjust the idle speed down. Otherwise unintentional contact with mov- ingbrushesorsweepdrumsmayresultinserious injury.

14. Stop the motor immediately if you notice any

15. Follow the instruction manual of the power

unit for starting the motor. Transportation

1. Stop the motor during transportation.

Otherwiseunintentionalstart-upmaycauseinjury.

2. Ensure safe position of the machine during car

transportation to avoid fuel leakage.

3. Lift the entire machine from the ground when

carrying the machine. Dragging the machine causes fuel tank damage and fuel leakage, result- inginre.

4. When transporting the equipment, carry it in a

horizontal position by holding the shaft. Keep the hot mu󰀪er away from your body. Operation

1. During operation, keep bystanders or animals

at least 5 m (17 ft) away from the power brush / power sweep. Stop the motor as soon as someone approaches.

2. In the event of an emergency, switch o󰀨 the

3. If you feel any unusual condition (e.g. noise,

vibration) during operation, switch o󰀨 the motor. Do not use the machine until the cause is recognized and solved.

4. With the engine running only at idle, attach the

5. During operation, use the shoulder harness.

Keep the machine on your right side rmly.5 ENGLISH

6. Hold the front handle with the left hand and the

rear grip with the right hand, no matter you are right-hander or left-hander. Wrap your ngers and thumbs around the handles.

Never attempt to operate the machine with one hand. Loss of control may result in serious or fatal injury. To reduce the risk of injuries, keep your hands and feet away from the brushes or sweep drums.

8. When operating, do not raise the brushes or

sweep drums above waist height.

9. The brushes or sweep drums continue to move

for a short period after releasing the throttle trigger or switching o󰀨 the motor. Don’t rush to contact the brushes or sweep drums.

Do not overreach. Keep proper footing and balance at all times. Watch for hidden obstacles such as tree stumps, roots and ditches to avoid stumbling.

11. Use extreme caution when reversing the brush

or sweep drum rotation or pulling the machine toward you. If the power unit has reverse rotation function, do not use it more than necessary. When operated in reverse rotation, thepowerbrush/powersweepwillpullyouifthe brushes or sweep drums are on the ground.

Do not overload the machine capacity by attempting to push too hard at too fast a rate. The machine will do better work when used with proper loadandthereislesslikelihoodofariskofinjury.

13. Do not accelerate the motor with the brushes

or sweep drums blocked. It increases the load and will damage the machine.

If the machine gets heavy impact or fall, check the condition before continuing work. Check the fuel system for fuel leakage and the con- trols and safety devices for malfunction. If there is any damage or doubt, ask our authorized service center for the inspection and repair.

15. Do not touch the gear case. The gear case

becomes hot during operation.

Take a rest to prevent loss of control caused by fatigue. Werecommendtotakea10to20-minuteresteveryhour.

17. When you leave the machine, even if it is a

short time, always switch o󰀨 the engine or remove the battery cartridge. The machine unat- tendedwiththeenginerunningmaybeusedby unauthorized person and cause serious accident.

Follow the instruction manual of the power unit for proper use of the control lever and switch.

19. During or after operation, do not put the

hot machine onto dry grass or combustible materials.

20. If the brushes or sweep drums catch foreign

objects, switch o󰀨 the motor and remove the spark plug cap or battery cartridge, and then remove the obstructions.

21. Keep your hands and feet clear of the brushes

or sweep drums. Contacting the brushes or sweep drums can result in serious injury. When handling the brushes or sweep drums, stop the motor and remove the spark plug cap or battery cartridge.

22. Check the brushes or sweep drums frequently

during operation for cracks or damages.

Always switch o󰀨 the engine or remove the bat- tery cartridge when removing debris or foreign objects from the brushes or sweep drums.

24. Refer to the instruction manual of the power

unit for how to start and control the machine. Vibration Exposing to excessive vibration injures blood vessels or nervous system of the operator and causes the following symptoms in the ngers, hands or wrists: “Falling asleep” (numbness), tingling, pain, stabbing sensation, alteration of skin color or of the skin. If any of these symptoms occur, see a physician. To reduce the risk of “white nger disease”, keep your hands warm during operation and well main- tain the machine and accessories. Maintenance

Before doing any maintenance or repair work or cleaning the machine, always switch o󰀨 the motor and remove the spark plug cap or the battery car- tridge. Wait until the motor gets cold.

2. To reduce the risk of re, never service the

equipment in the vicinity of re.

3. Always wear protective gloves when handling

the brushes or sweep drums.

Always clean dust and dirt o󰀨 the equipment. Never use gasoline, benzine, thinner, alcohol or the like for the purpose. Discoloration, deformation or cracks of theplasticcomponentsmayresult.

5. After each use, tighten all screws and nuts,

except for the carburetor adjustment screws.

6. Replace the brushes or sweep drums if they

7. Do not attempt any maintenance or repair not

described in this booklet or the instruction manual of the power unit. Ask our authorized service center for such work.

8. Follow instructions for lubricating and chang-

9. Always use the genuine spare parts and acces-

sories only. Using parts or accessories supplied byathirdpartymayresultintheequipmentbreak- down,propertydamageand/orseriousinjury.

Request our authorized service center to inspect and maintain the machine at regular interval.6 ENGLISH Storage 1. Before storing the machine, perform full clean-ing and maintenance. Remove the spark plug cap or the battery cartridge. Drain the fuel after the engine gets cold.2. Store the equipment in a dry and high or locked location out of reach of children.3. Do not prop the equipment against something, such as a wall.Otherwiseitmayfallsuddenlyandcauseaninjury. First Aid 1. In case of accident make sure that a rst-aid box is available in the vicinity of the opera-tions. Immediately replace any item taken from the rst aid box.2. When asking for help, give the following information:— Place of accident— What happened— Number of injured persons— Kind of injuries— Your name SAVE THESE INSTRUCTIONS.

WARNING: Use of this product can create

dust containing chemicals which may cause respiratory or other illnesses. Some examples of these chemicals are compounds found in pes-ticides, insecticides, fertilizers and herbicides. Your risk from these exposures varies, depend-ing on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles. PARTS DESCRIPTION Power brush attachment

Before assembling or adjusting the equipment, switch o󰀨 the motor or engine and remove the spark plug cap or battery cartridge. Otherwise the brushes, drums,orotherpartsmaymoveandresultinseriousinjury.

When assembling or adjusting the equipment, always put it down. Assemblingoradjustingthe equipmentinanuprightpositionmayresultinseriousinjury.

WARNING: Follow the warnings and precau-

tions in the chapter “SAFETY WARNINGS” and the instruction manual of the power unit. Assembling the attachment

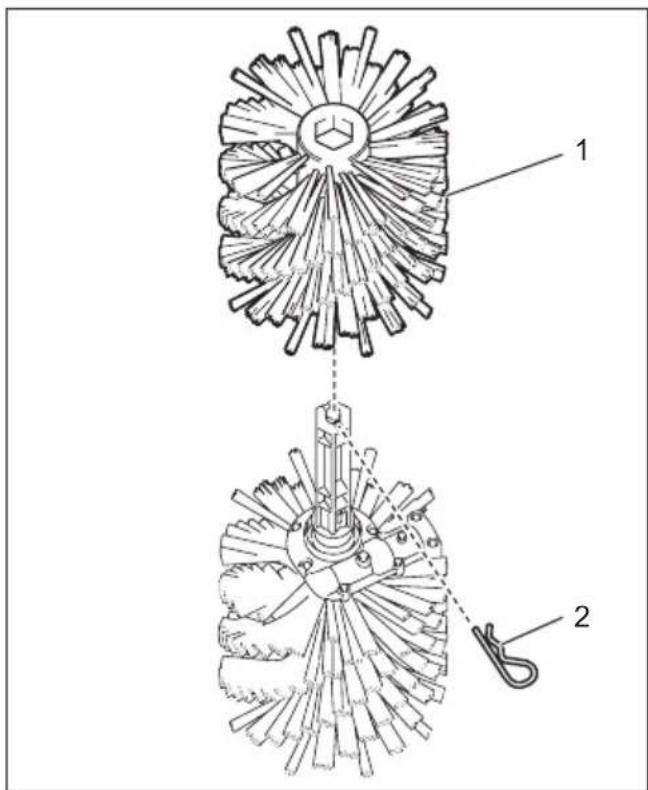

1. Remove the clip from the brush or sweep drum on

the left side of the brush unit or sweep drum unit, and then remove the brush or sweep drum.

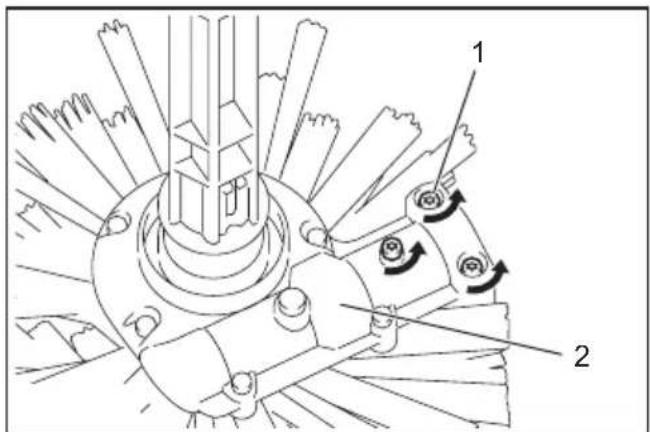

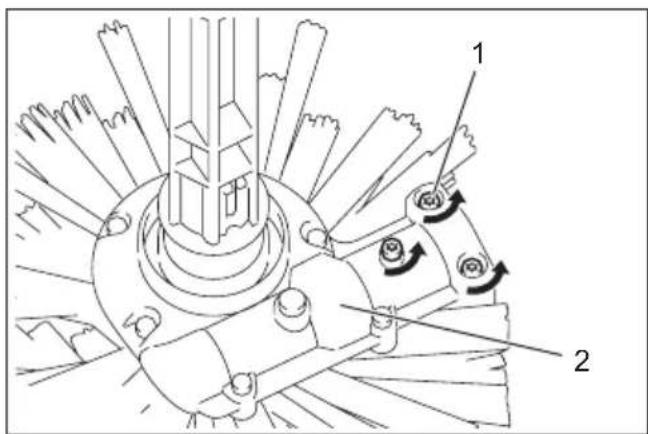

2. Loosen 3 screws on the gear case.

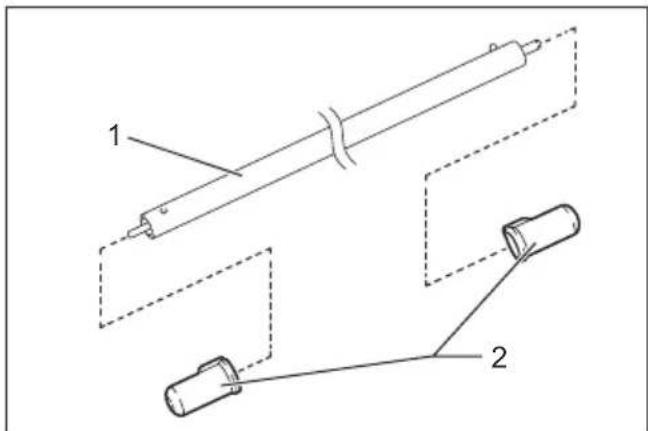

3. Remove 2 caps from both ends of the pipe.

►1. Pipe 2. Cap NOTICE: Do not dispose of the caps since the cap is necessary for storing the attachment.

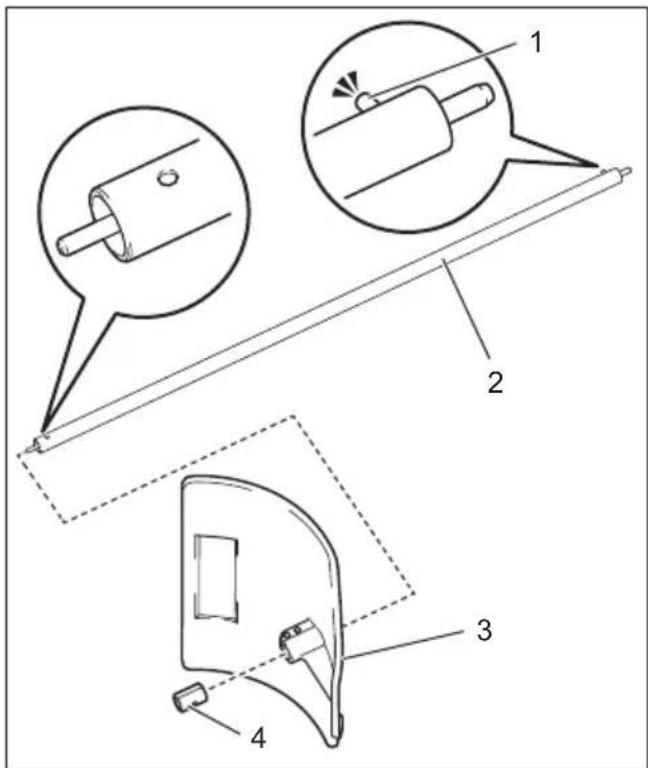

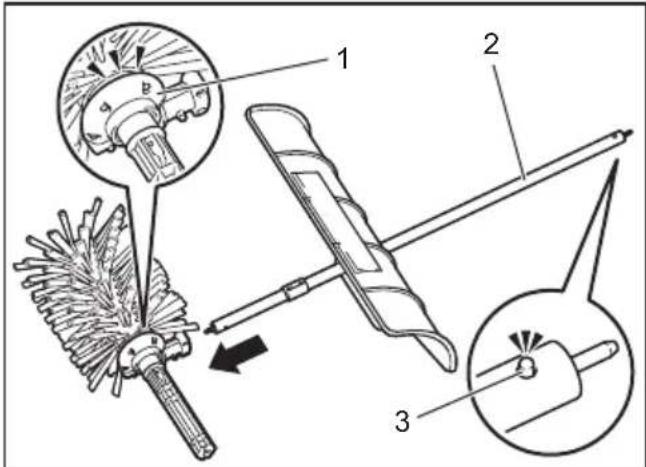

4. Attach the protector and the sleeve to the pipe.

►1. Pin 2. Pipe 3. Protector 4. Sleeve NOTICE: Be sure to insert the end of the pipe without the pin into the protector and the sleeve.8 ENGLISH

5. Make sure that the gear case and the pin on the

pipe are facing up, and then insert the pipe into the gear case.

►1. Gear case 2. Pipe 3. Pin NOTICE: Make sure that the gear case and the pin on the pipe are facing up, and the protector is attached in the direction shown in the gure.

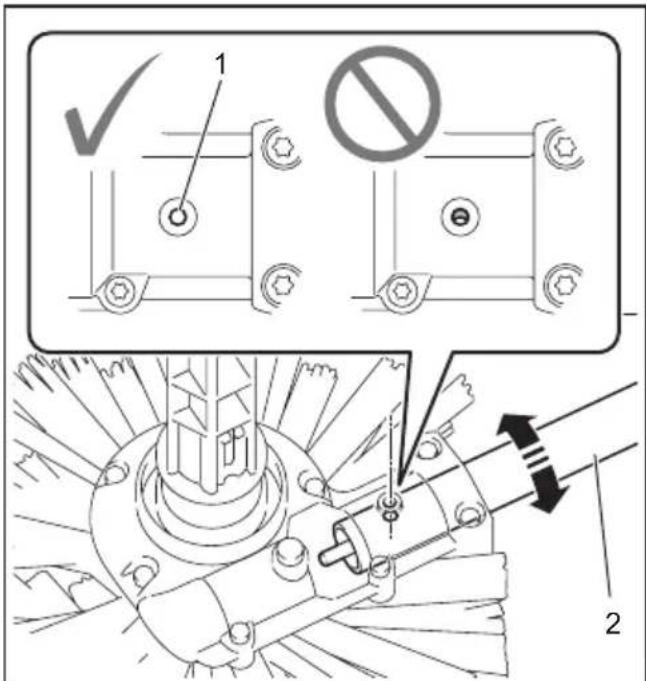

6. Align the screw hole on the pipe with the hole on

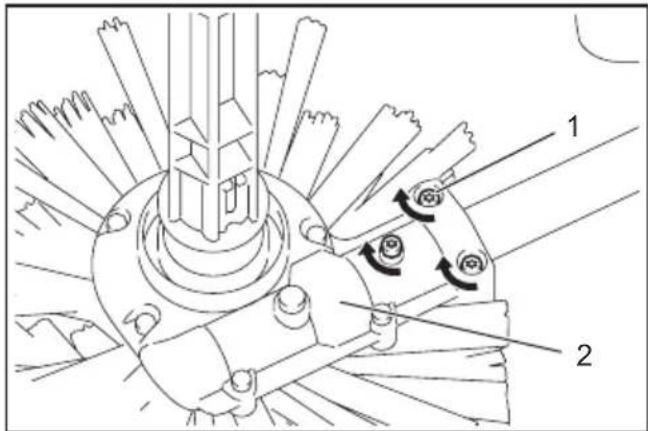

7. Tighten 3 screws on the gear case.

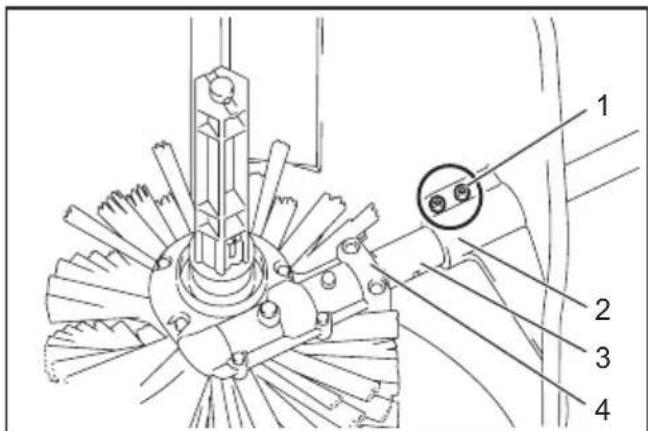

8. Tighten 2 screws on the protector.

►1. Screw 2. Protector 3. Sleeve 4. Gear case NOTICE: Make sure that there is no gap between the gear case and the sleeve, and the sleeve and the protector.9 ENGLISH

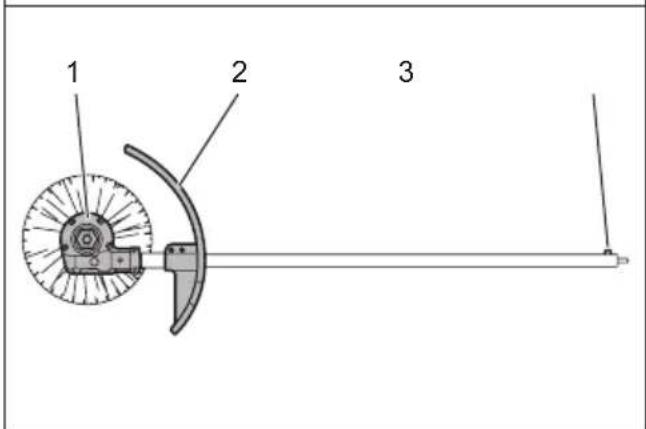

9. Attach the brush or sweep drum to the brush unit

or sweep drum unit, and then attach the clip to the brush or sweep drum. NOTICE: When attaching the brushes, be sure to attach them with the Makita logo facing outside. NOTICE: When attaching the sweep drums, be sure to attach them in the direction shown in the gure, so that the sweep drums and the gear case mesh with each other.

►1. Sweep drum 2. Gear case Mounting the attachment pipe CAUTION: Always check that the attach- ment pipe is secured after installation. Improper installationmaycausetheattachmentfallingo󰀨from thepowerunitandcausepersonalinjury. Mount the attachment pipe to the power unit.

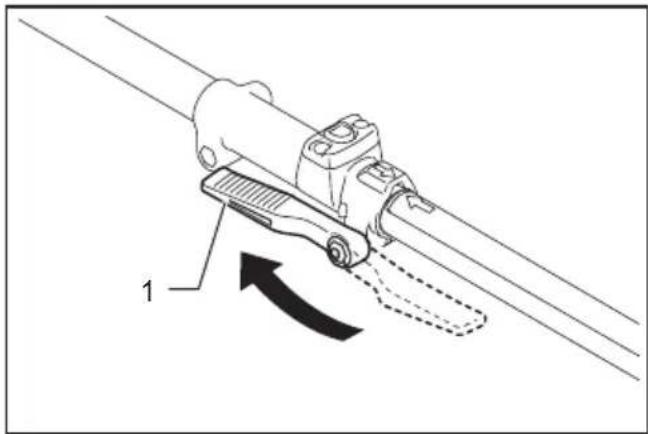

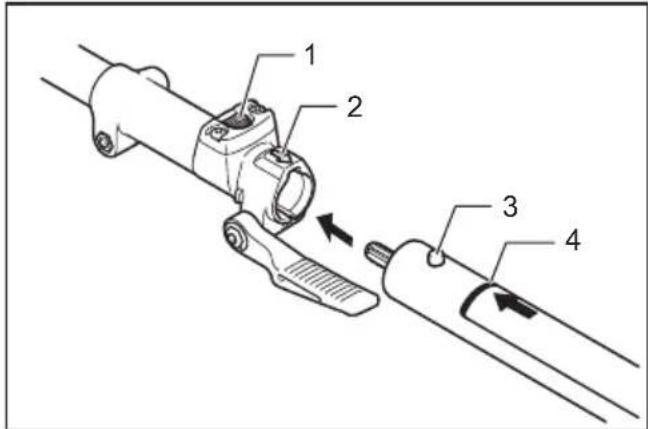

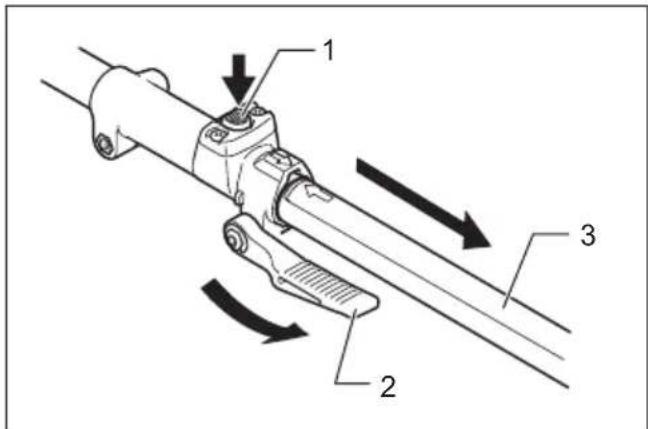

1. Turn the lever toward the attachment.

2. Align the pin with the arrow mark. Insert the

attachment pipe until the release button pops up. Make sure that the position line is on the tip of the arrow mark.

3. Turn the lever toward the power unit.

►1. Lever Make sure that the surface of the lever is parallel to the pipe. NOTICE: Do not tighten the lever without the attachment pipe inserted.Otherwisethelevermay tighten the entrance of the drive shaft too much and damage it. To remove the pipe, turn the lever toward the attach- ment and pull the pipe out while pressing down the release button. Fig.12

WARNING: Follow the warnings and precau-

tions in the chapter “SAFETY WARNINGS” and the instruction manual of the power unit.

WARNING: Adjust the hanger position and

shoulder harness to your comfortable position before operating.

WARNING: Wear dust mask and well venti-

late the work area. Some material contains chem- icals which may be toxic. Take caution to prevent dust inhalation and skin contact. CAUTION: Before operation, remove hard and/or long objects such as stones, cans, and ropes from the working area.Theymaydamage the brushes or sweep drums or hinder the rotation of the brushes or sweep drums. Ifthesurfacetobecleanedisdry,sprayitwithwaterto reducethedust.Holdthepowerbrush/powersweep atashallowangle,andpushthepowerbrush/power sweep at walking speed. CAUTION: The steeper the angle becomes, the more di󰀩cult it is to control the power brush / power sweep, and the more likely you are pushed back by the power brush / power sweep. MAINTENANCE

WARNING: Before inspecting or maintaining

the equipment, switch o󰀨 the motor and remove the spark plug cap or battery cartridge. Otherwise thebrush,sweepdrum,orotherpartsmaymoveand resultinseriousinjury.

WARNING: When inspecting or maintaining

the equipment, always put it down. Assembling or adjustingtheequipmentinanuprightpositionmay resultinseriousinjury.

WARNING: Follow the warnings and precau-

tions in the chapter “SAFETY WARNINGS” and the instruction manual of the power unit. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs,anyothermaintenanceoradjustmentshould beperformedbyMakitaAuthorizedorFactoryService Centers,alwaysusingMakitareplacementparts. Cleaning the attachment Theattachmentcanbewashedwithwater.Useanylon brushorthesimilartowasho󰀨dirt.

►1. Power unit 2. Pipe end 3. Gear case NOTICE: Do not pour water over the power unit and pipe end.Itmaycauseamalfunctionofthe attachment. Foreaseofcleaning,youcanremovethebrushor sweep drum from the brush unit or sweep drum unit. Refer to the instructions for replacing the brushes or sweep drums in this manual.11 ENGLISH Overall inspection

• Tighten loose bolts, nuts and screws.

• Check for damaged parts, brushes, or sweep drums. Ask our authorized service center to replacethemifnecessary. Inspecting the brushes, sweep drums, and protector Check and clean the brushes, sweep drums, and pro- tectordaily.Iftheyareworn,bentandcracked,replace them. Replacing the brushes or sweep drums

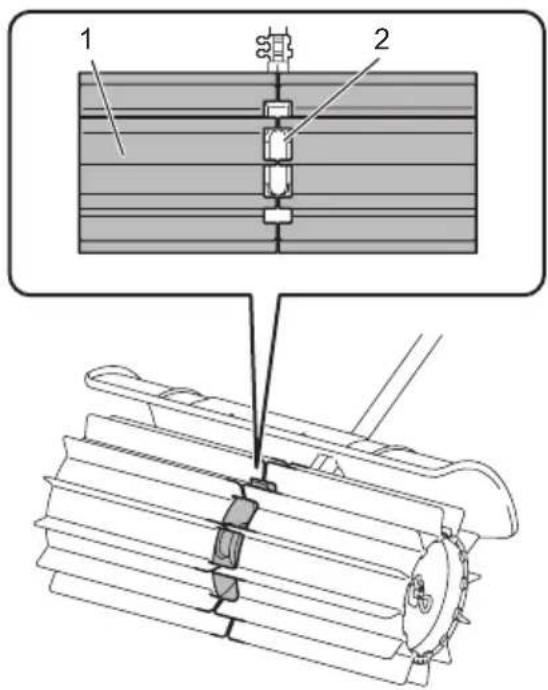

1. Remove the clips from the brushes or sweep

drums, and then remove the brushes or sweep drums.

2. Attach the brushes or sweep drums to the brush

unit or sweep drum unit, and then attach the clips. NOTICE: When attaching the brushes, be sure to attach them with the Makita logo facing outside. NOTICE: When attaching the sweep drums, be sure to attach them in the direction shown in the gure, so that the sweep drums and the gear case mesh with each other.

►1. Sweep drum 2. Gear case Lubricating moving parts NOTICE: Follow the instruction of the fre- quency and amount of grease supplied. Otherwise insu󰀩cientlubricationmaydamagemovingparts. Gear case: CAUTION: Do not apply grease when the gear case is hot. Hot gear case can cause burn injury. Fill approx. 30 ml of grease (Makita grease SG No.0) throughthegreaseportevenlyevery25hoursof operation. With the supplied hexalobular wrench, remove the bolt near the lubrication marking on the gear case. Loosen the bolt on the other side so that the air in the gear case canbereleasedwhenapplyingthegrease. Afterapplyingthegrease,besuretotightenthebolts.12 ENGLISH

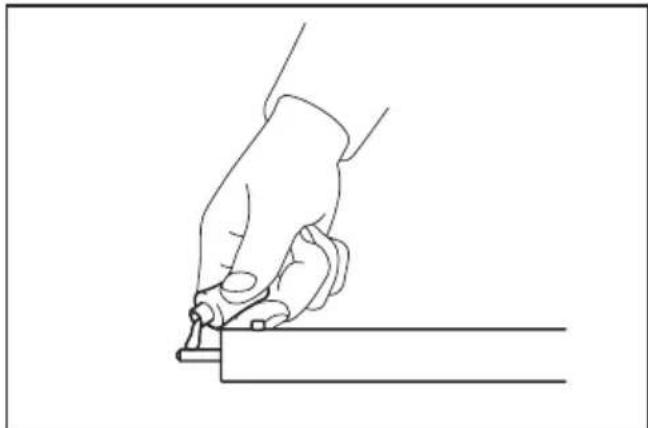

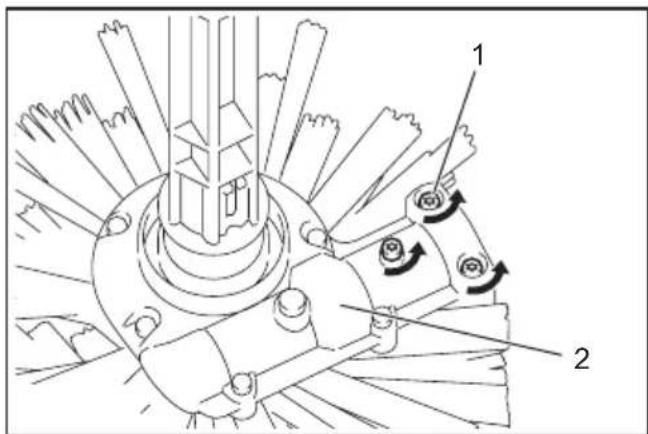

►1. Bolt 2. Gear case Drive axle: Applygrease(MakitagreaseSGNo.0)every25hours of operation. NOTE:GenuineMakitagreasemaybepurchased fromyourlocalMakitadealer. Storage

WARNING: Follow the warnings and precau-

tions in the chapter “SAFETY WARNINGS” and the instruction manual of the power unit. When storing the attachment separated from the power unit, put the cap onto the end of the shaft. Interval of inspection and maintenance Operating hour Before Operation Daily (10h) 25h Whole unit Visuallyinspectfordamagedparts

Brushes, sweep drums, and protector Cleanandvisuallyinspectfordam- aged parts

Gear case Supplygrease - - Drive axle Supplygrease - - Power unit Refer to the instruction manual of the power unit13 TROUBLESHOOTING Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedintheman- ual,donotattempttodismantlethemachine.Instead,askMakitaAuthorizedServiceCenters,alwaysusingMakita replacement parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor or engine does not start. - Refer to the instruction manual of the power unit. Motor or engine stops soon. - Refer to the instruction manual of the power unit. Motor or engine speed does not increase. - Refer to the instruction manual of the power unit. Brushes or sweep drums do not rotate. Stop the motor or engine immediately. The pipes of the power unit and the attachmentarenotconnectedproperly. Connectthepipesinthecorrectway. Brushes or sweep drums caught a foreign matter. Remove the foreign matter. Abnormaldrivesystem Contact an authorized service center for repairs. Powerunitvibratesabnormally. Stop the motor or engine immediately. Brushes or sweep drums are bent or broken. Replace the brushes or sweep drums. Loose attachment of the brushes or sweep drums Attach the clips for the brushes or sweep drums securely. Irregular attachment of the brushes or sweep drums Install the brushes or sweep drums in the correct way. Abnormaldrivesystem Contact an authorized service center for repairs. Brushes or sweep drums continue to rotateeveniftheswitchtrigger/lever is released. Stop the motor or engine immediately. Thepowerunitdoesnotworkproperly. Adjusttheidlespeedifthepowerunitisengine-op- erated. Contact an authorized service center for repairs.
