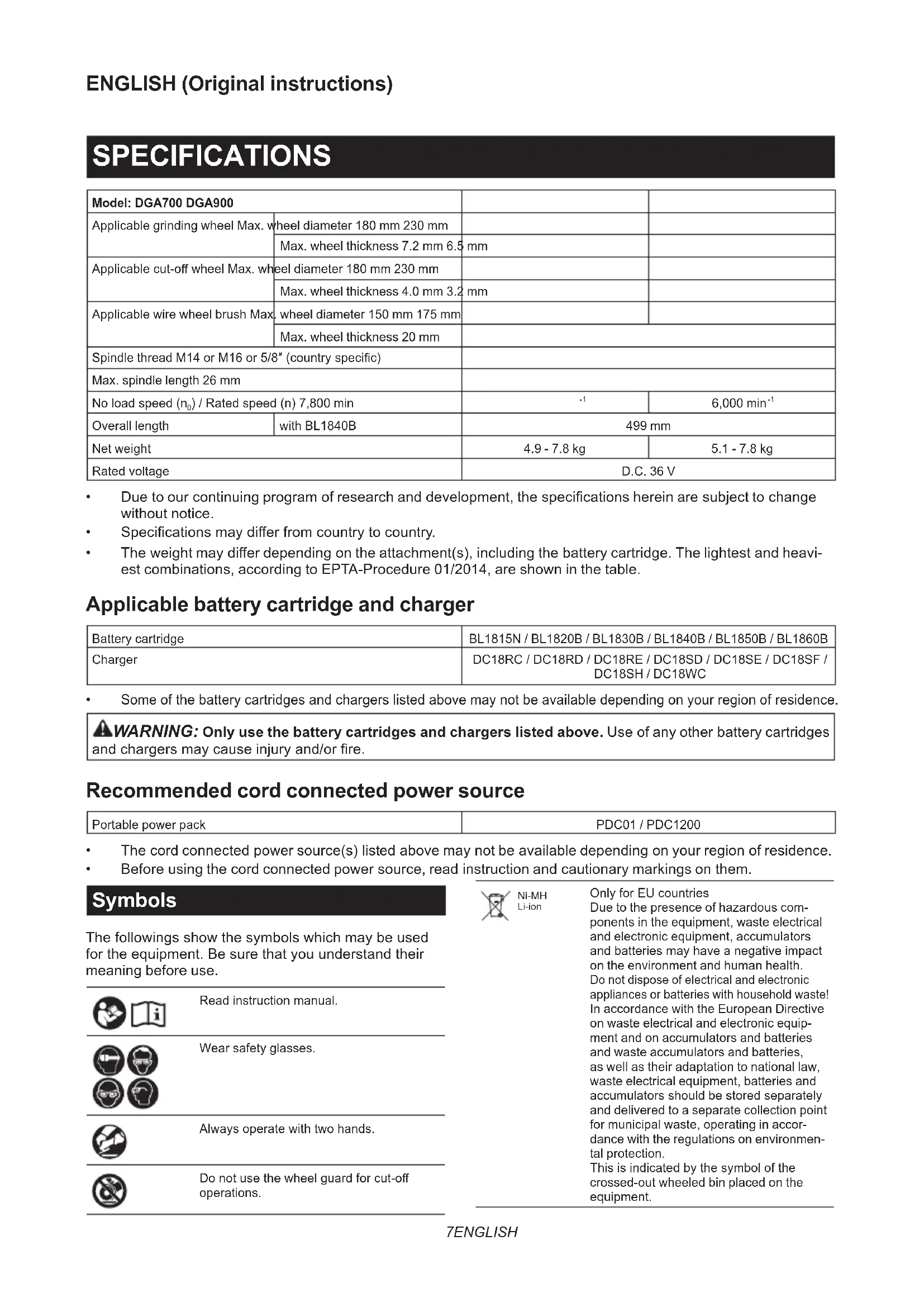

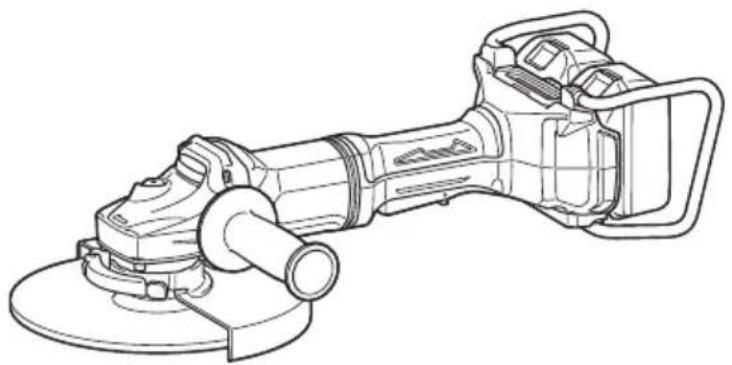

Overall length with BL1840B 499 mm Net weight 4.9 - 7.8 kg 5.1 - 7.8 kg Rated voltage D.C. 36 V

• Due to our continuing program of research and development, the specications herein are subject to change without notice.

• Specications may di󰀨er from country to country.

• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heavi- est combinations, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH / DC18WC

Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

and chargers may cause injury and/or re. Recommended cord connected power source Portable power pack PDC01 / PDC1200

• The cord connected power source(s) listed above may not be available depending on your region of residence.

• Before using the cord connected power source, read instruction and cautionary markings on them. Symbols The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use. Read instruction manual. Wear safety glasses. Always operate with two hands. Do not use the wheel guard for cut-o󰀨 operations. Ni-MH Li-ion Only for EU countries Due to the presence of hazardous com- ponents in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health. Do not dispose of electrical and electronic appliances or batteries with household waste! In accordance with the European Directive on waste electrical and electronic equip- ment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste electrical equipment, batteries and accumulators should be stored separately and delivered to a separate collection point for municipal waste, operating in accor- dance with the regulations on environmen- tal protection. This is indicated by the symbol of the crossed-out wheeled bin placed on the equipment.8 ENGLISH Intended use The tool is intended for grinding, sanding, wire brush- ing, hole cutting and cutting of metal and stone materi- als without the use of water. Noise The typical A-weighted noise level determined according to EN62841-2-3: Model Sound pressure level (L

) : (dB(A)) Uncertainty (K) : (dB(A)) DGA700 91 99 3 DGA900 91 99 3 NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING: Wear ear protection.

WARNING: The noise emission during actual use of the power tool can di󰀨er from the declared val-

ue(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation

of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time).

WARNING: Grinding thin sheets of metal or other easily vibrating structures with a large surface can

result in a total noise emission much higher (up to 15 dB) than the declared noise emission values. Set heavy exible damping mats or such to those workpieces to prevent them from emitting sound. Take the increased noise emission into consideration for both the risk assessment of noise exposure and selecting adequate hearing protection. Vibration The vibration total value (tri-axial vector sum) determined according to EN62841-2-3: Work mode: surface grinding with normal side grip Model Vibration emission (a

DGA700 7.5 1.5 DGA900 7.0 1.5 Work mode: surface grinding with anti vibration side grip Model Vibration emission (a

DGA700 7.5 1.5 DGA900 7.5 1.5 Work mode: disc sanding with normal side grip Model Vibration emission (a

or less 1.5 Work mode: disc sanding with anti vibration side grip Model Vibration emission (a

or less 1.5 NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.9 ENGLISH

WARNING: The vibration emission during actual use of the power tool can di󰀨er from the declared

value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation

of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time).

WARNING: The declared vibration emission value is used for main applications of the power tool. However if

the power tool is used for other applications, the vibration emission value may be di󰀨erent. EC Declaration of Conformity For European countries only The EC declaration of conformity is included as Annex A to this instruction manual. SAFETY WARNINGS General power tool safety warnings WARNING Read all safety warnings, instructions, illustrations and specications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instruc- tions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Cordless grinder safety warnings Safety warnings common for grinding, sanding, wire brushing, or cutting-o󰀨 operations:

This power tool is intended to function as a grinder, sander, wire brush, hole cutter or cut-o󰀨 tool. Read all safety warnings, instructions, illustrations and specications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury.

2. Operations such as polishing are not to be

performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

3. Do not convert this power tool to operate in

a way which is not specically designed and specied by the tool manufacturer. Such a con- version may result in a loss of control and cause serious personal injury.

Do not use accessories which are not specically designed and specied by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

5. The rated speed of the accessory must be at

least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and y apart.

6. The outside diameter and the thickness of your

accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

7. The dimensions of the accessory mounting

must t the dimensions of the mounting hard- ware of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged acces

sories will normally break apart during this test time.

9. Wear personal protective equipment.

Depending on application, use face shield, safety goggles or safety glasses. As appro- priate, wear dust mask, hearing protectors, gloves and workshop apron capable of stop- ping small abrasive or workpiece fragments. The eye protection must be capable of stopping ying debris generated by various applications. The dust mask or respirator must be capable of ltrating particles generated by the particular application. Prolonged exposure to high intensity noise may cause hearing loss.

10. Keep bystanders a safe distance away from

work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may y away and cause injury beyond immediate area of operation.

11. Hold the power tool by insulated gripping

surfaces only, when performing an operation where the cutting tool may contact hidden wiring. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and could give the operator an electric shock.

12. Never lay the power tool down until the acces-

sory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.

13. Do not run the power tool while carrying it at

your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

14. Regularly clean the power tool’s air vents. The

motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

15. Do not operate the power tool near ammable

materials. Sparks could ignite these materials.10 ENGLISH

16. Do not use accessories that require liquid

coolants. Using water or other liquid coolants may result in electrocution or shock. Kickback and related warnings: Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other acces- sory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncon- trolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s move- ment at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

1. Maintain a rm grip with both hands on the

power tool and position your body and arms to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maxi- mum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.

2. Never place your hand near the rotating acces-

sory. Accessory may kickback over your hand.

3. Do not position your body in the area where

power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging.

4. Use special care when working corners, sharp

edges, etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

5. Do not attach a saw chain woodcarving blade,

segmented diamond wheel with a peripheral gap greater than 10 mm or toothed saw blade. Such blades create frequent kickback and loss of control. Safety warnings specic for grinding and cutting-o󰀨 operations:

1. Use only wheel types that are specied

for your power tool and the specic guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.

2. The grinding surface of centre depressed

wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.

3. The guard must be securely attached to the

power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, acci- dental contact with wheel and sparks that could ignite clothing.

Wheels must be used only for specied applica- tions. For example: do not grind with the side of cut-o󰀨 wheel. Abrasive cut-o󰀨 wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.

5. Always use undamaged wheel anges that are

of correct size and shape for your selected wheel. Proper wheel anges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-o󰀨 wheels may be di󰀨erent from grinding wheel anges.

6. Do not use worn down wheels from larger

power tools. A wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

7. When using dual purpose wheels always use

the correct guard for the application being performed. Failure to use the correct guard may not provide the desired level of guarding, which could lead to serious injury. Additional safety warnings specic for cutting-o󰀨 operations:

1. Do not “jam” the cut-o󰀨 wheel or apply exces-

sive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibil- ity of kickback or wheel breakage.

2. Do not position your body in line with and

behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spin- ning wheel and the power tool directly at you.

3. When the wheel is binding or when interrupt-

ing a cut for any reason, switch o󰀨 the power tool and hold it motionless until the wheel comes to a complete stop. Never attempt to remove the cut-o󰀨 wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.

4. Do not restart the cutting operation in the

workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.

5. Support panels or any oversized workpiece to

minimize the risk of wheel pinching and kick- back. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.

6. Use extra caution when making a “pocket cut”

into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, elec- trical wiring or objects that can cause kickback.

7. Do not attempt to do curved cutting.

Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage, which can lead to serious injury.

8. Before using a segmented diamond wheel,

make sure that the diamond wheel has the peripheral gap between segments of 10 mm or less, only with a negative rake angle.11 ENGLISH Safety warnings specic for sanding operations:

1. Use proper sized sanding disc paper. Follow

manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending too far beyond the sanding pad pres- ents a laceration hazard and may cause snagging, tearing of the disc or kickback. Safety warnings specic for wire brushing operations:

1. Be aware that wire bristles are thrown by the

brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.

2. If the use of a guard is specied for wire

brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces. Additional Safety Warnings:

1. When using depressed centre grinding wheels,

be sure to use only berglass-reinforced wheels.

2. NEVER USE Stone Cup type wheels with this

grinder. This grinder is not designed for these types of wheels and the use of such a product may result in serious personal injury.

3. Be careful not to damage the spindle, the

ange (especially the installing surface) or the lock nut. Damage to these parts could result in wheel breakage.

4. Make sure the wheel is not contacting the

workpiece before the switch is turned on.

5. Before using the tool on an actual workpiece,

let it run for a while. Watch for vibration or wobbling that could indicate poor installation or a poorly balanced wheel.

6. Use the specied surface of the wheel to per-

7. Do not leave the tool running. Operate the tool

only when hand-held.

8. Do not touch the workpiece immediately after

operation; it may be extremely hot and could burn your skin.

9. Do not touch accessories immediately after

operation; it may be extremely hot and could burn your skin.

10. Observe the instructions of the manufacturer

for correct mounting and use of wheels. Handle and store wheels with care.

11. Do not use separate reducing bushings or

adaptors to adapt large hole abrasive wheels.

12. Use only anges specied for this tool.

13. For tools intended to be tted with threaded

hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length.

14. Check that the workpiece is properly

15. Pay attention that the wheel continues to

rotate after the tool is switched o󰀨.

16. If working place is extremely hot and humid,

or badly polluted by conductive dust, use a short-circuit breaker (30 mA) to assure opera- tor safety.

18. When use cut-o󰀨 wheel, always work with

the dust collecting wheel guard if required by domestic regulation.

19. Cutting discs must not be subjected to any

20. Do not use cloth work gloves during operation.

Fibers from cloth gloves may enter the tool, which causes tool breakage.

21. Before operation, make sure that there is no

buried object such as electric pipe, water pipe or gas pipe in the workpiece. Otherwise, it may cause an electric shock, electrical leakage or gas leak.

22. If a blotter is attached to the wheel, do not

remove it. The diameter of the blotter must be larger than the lock nut, outer ange, and inner ange.

23. Before installing a grinding wheel, always

check that the blotter part does not have any abnormalities such as chips or cracks.

24. Tighten the lock nut properly. Overtightening

the wheel can cause breakage and insu󰀩cient tightening can cause uttering. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge. It may result in a re, excessive heat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.12 ENGLISH

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a re, excessive heat, or explosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. For commercial transports e.g. by third parties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask o󰀨 open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliant products may result in a re, exces- sive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge. It may cause heating, catching re, burst and malfunction of the tool or battery car- tridge, resulting in burns or personal injury.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near high-voltage electri- cal power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing res, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

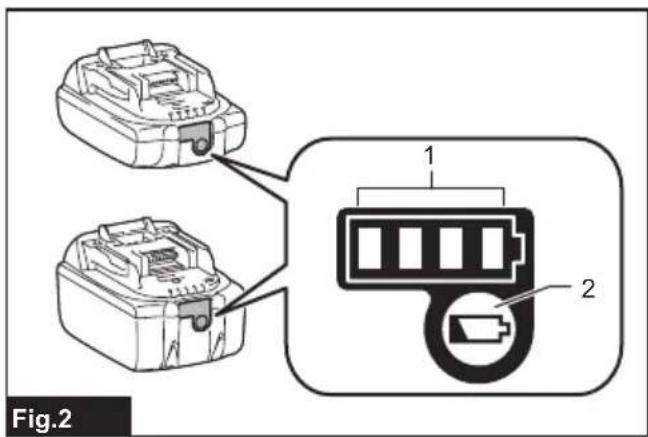

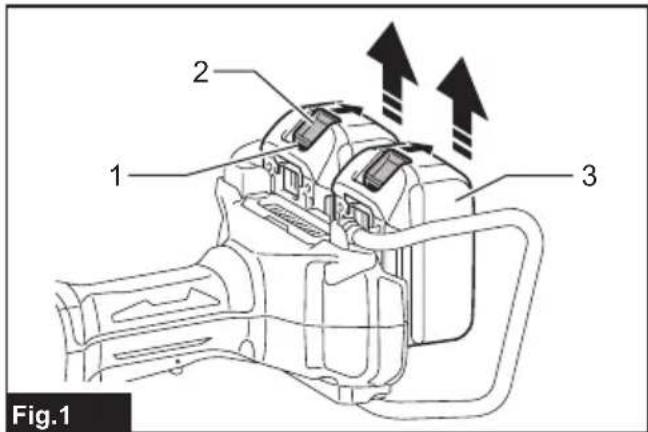

it for a long period (more than six months). FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge rmly may cause them to slip o󰀨 your hands and result in damage to the tool and battery cartridge and a personal injury. ► Fig.1: 1. Red indicator 2. Button 3. Battery cartridge To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator as shown in the gure, it is not locked completely. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.13 ENGLISH Indicating the remaining battery capacity Only for battery cartridges with the indicator ► Fig.2: 1. Indicator lamps 2. Check button Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds. Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned. NOTE: Depending on the conditions of use and the ambient temperature, the indication may di󰀨er slightly from the actual capacity. NOTE: The rst (far left) indicator lamp will blink when the battery protection system works. Tool / battery protection system The tool is equipped with a tool/battery protection sys- tem. This system automatically cuts o󰀨 power to the motor to extend tool and battery life. The tool will auto- matically stop during operation if the tool or battery is placed under one of the following conditions: ► Fig.3: 1. Battery indicator Overload protection When the tool is operated in a manner that causes it to draw an abnormally high current, the tool automatically stops without any indication. In this situation, turn the tool o󰀨 and stop the application that caused the tool to become overloaded. Then turn the tool on to restart. Overheat protection When the tool or batteries is overheated, the tool stops automatically and the battery indicators blink about 60 seconds. In this situation, let the tool and batteries cool before turning the tool on again. On O󰀨 Blinking Overdischarge protection When either battery's capacity becomes too low, the tool stops automatically and the battery indicator on its side lights up. In this case, remove the battery from the tool and charge the battery. On O󰀨 Blinking Protections against other causes Protection system is also designed for other causes that could damage the tool and allows the tool to stop automatically. Take all the following steps to clear the causes, when the tool has been brought to a temporary halt or stop in operation.

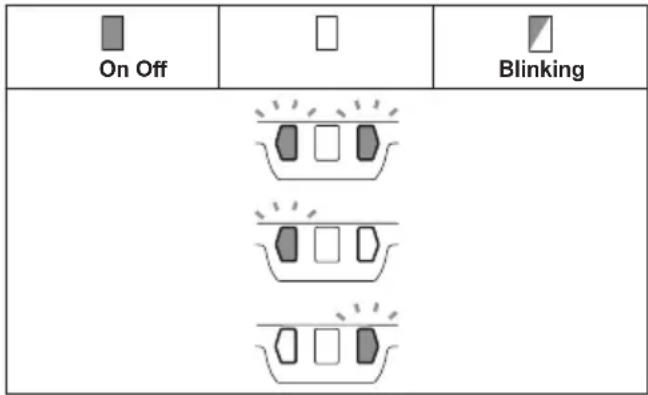

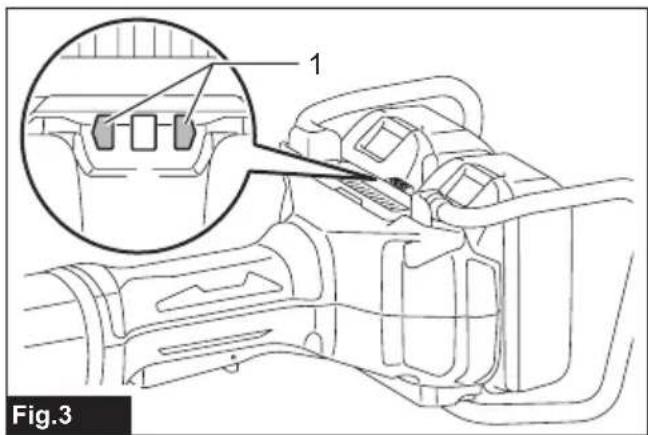

Turn the tool o󰀨, and then turn it on again to restart.

2. Charge the battery(ies) or replace it/them with

recharged battery(ies).

3. Let the tool and battery(ies) cool down.

If no improvement can be found by restoring protection system, then contact your local Makita Service Center. Shaft lock

WARNING: Never actuate the shaft lock when

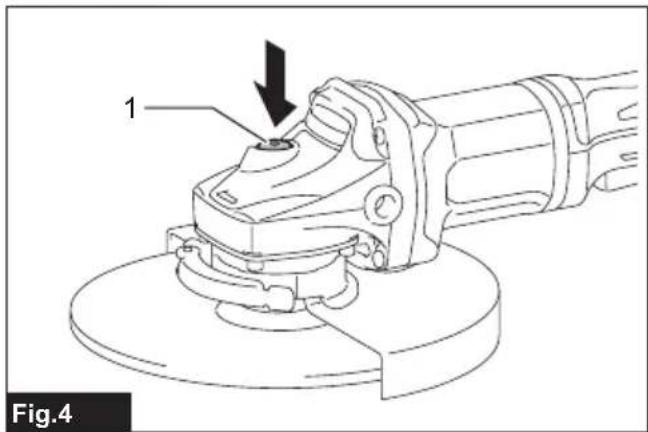

the spindle is moving. It may cause serious injury or the tool damage. Press the shaft lock to prevent spindle rotation when installing or removing accessories. ► Fig.4: 1. Shaft lock Switch action CAUTION: Before installing the battery car- tridge into the tool, always check to see that the switch lever actuates properly and returns to the "OFF" position when released. CAUTION: For your safety, this tool is equipped with lock-o󰀨 lever which prevents the tool from unin- tended starting. NEVER use the tool if it runs when you simply pull the switch lever without folding the lock-o󰀨 lever. Return the tool to our authorized ser

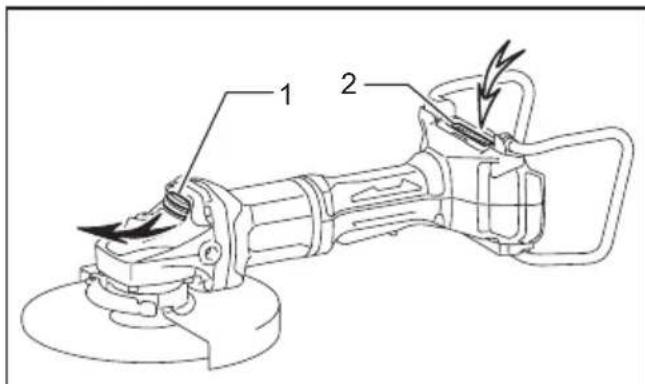

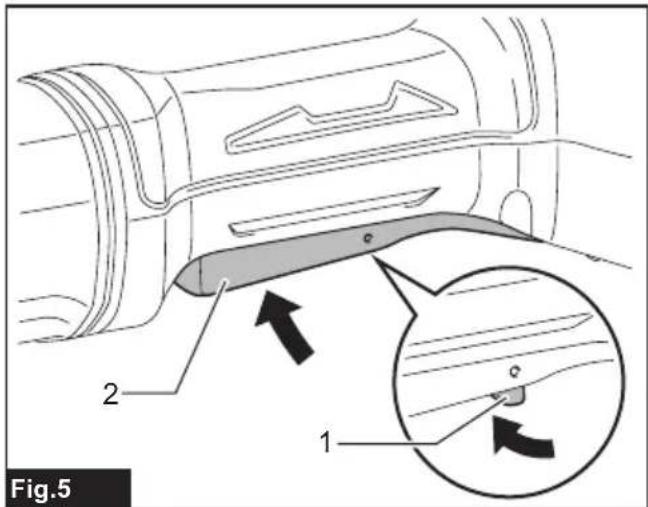

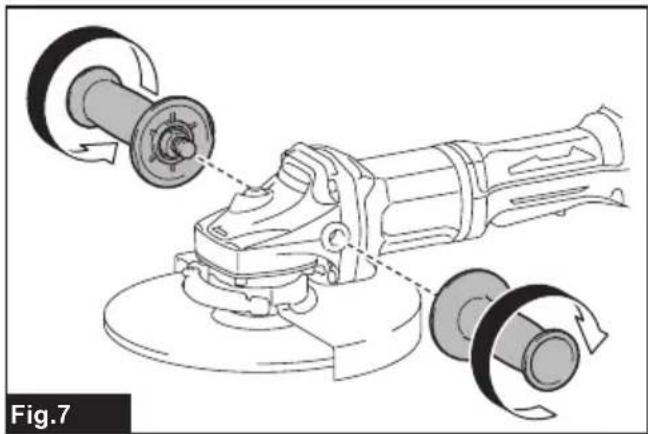

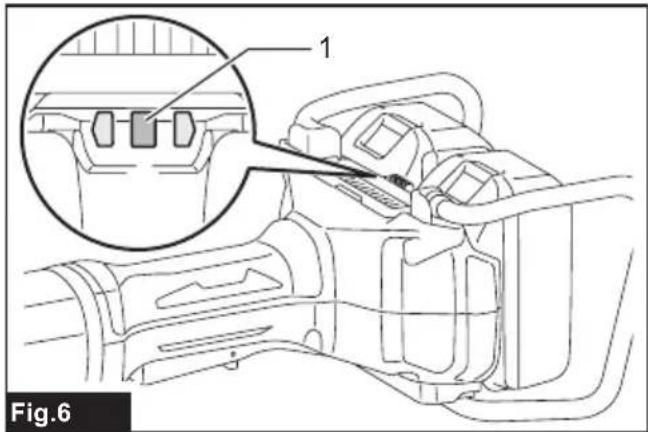

vice center for proper repairs BEFORE further usage. CAUTION: Do not pull the switch lever hard without folding the lock-o󰀨 lever. This can cause switch breakage. CAUTION: NEVER tape down or defeat pur- pose and function of lock-o󰀨 lever. To prevent the switch lever from being accidentally pulled, a lock-o󰀨 lever is provided. To start the tool, fold the lock-o󰀨 lever and then pull the switch lever. To stop the tool, release the switch lever. ► Fig.5: 1. Lock-o󰀨 lever 2. Switch lever14 ENGLISH Automatic speed change function ► Fig.6: 1. Mode indicator Mode indicator status Operation mode On O󰀨 High speed mode High torque mode This tool has "high speed mode" and "high torque mode". It automatically changes operation mode depending on the work load. When mode indicator lights up during operation, the tool is in high torque mode. Accidental re-start preventive function When installing the battery cartridge while the switch is ON, the tool does not start. To start the tool, turn o󰀨 the switch, and turn it on again. Active Feedback sensing Technology The tool electronically detects situations where the wheel or accessory may be at risk to be bound. In the situation, the tool is automatically shut o󰀨 to prevent further rotation of the spindle (it does not prevent kickback). To restart the tool, switch o󰀨 the tool rst, remove the cause of sudden drop in the rotation speed, and then turn the tool on. Soft start feature Soft start feature reduces starting reaction. Electric brake Electric brake is activated after the tool is switched o󰀨. The brake does not work when the power supply is shut down, such as the battery is removed accidentally, with the switch still on. ASSEMBLY CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Installing side grip (handle) CAUTION: Always be sure that the side grip is installed securely before operation. Screw the side grip securely on the position of the tool as shown in the gure. ► Fig.7 Installing or removing wheel guard (For depressed center wheel, ap disc, ex wheel, wire wheel brush / abrasive cut-o󰀨 wheel, diamond wheel)

WARNING: When using a depressed center

wheel, ap disc, ex wheel or wire wheel brush, the wheel guard must be tted on the tool so that the closed side of the guard always points toward the operator.

WARNING: When using an abrasive cut-o󰀨

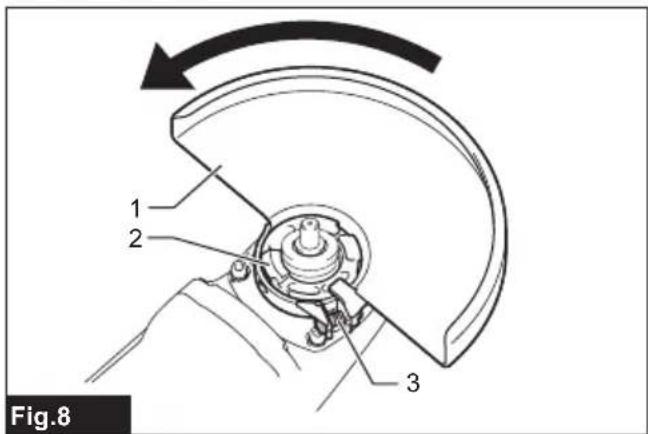

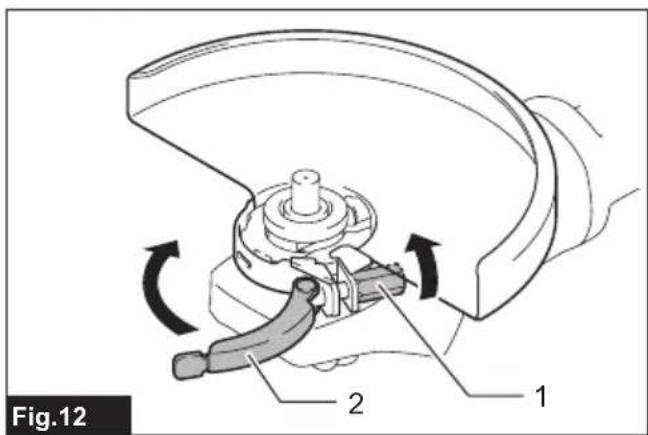

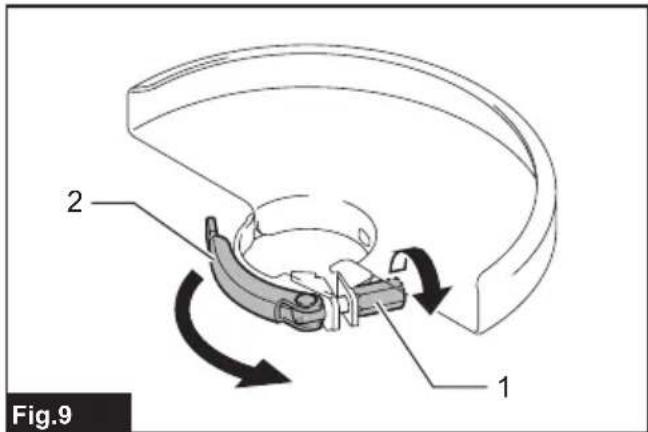

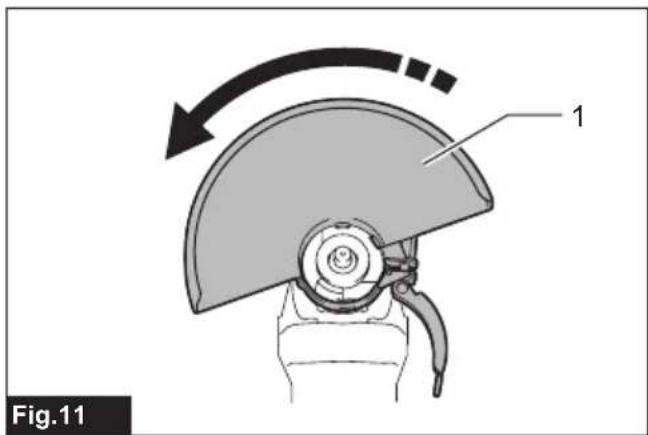

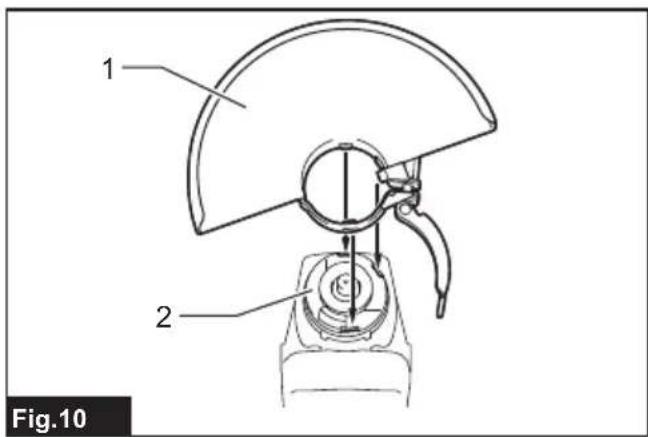

/ diamond wheel, be sure to use only the special wheel guard designed for use with cut-o󰀨 wheels. For tool with locking screw type wheel guard Mount the wheel guard with the protrusions on the wheel guard band aligned with the notches on the bear- ing box. Then rotate the wheel guard to such an angle that it can protect the operator according to work. Be sure to tighten the screw securely. To remove wheel guard, follow the installation proce- dure in reverse. ► Fig.8: 1. Wheel guard 2. Bearing box 3. Screw For tool with clamp lever type wheel guard Loosen the nut, and then pull the lever in the direction of the arrow. ► Fig.9: 1. Nut 2. Lever Mount the wheel guard with the protrusions on the wheel guard band aligned with the notches on the bear- ing box. Then rotate the wheel guard to such an angle that it can protect the operator according to work. ► Fig.10: 1. Wheel guard 2. Bearing box ► Fig.11: 1. Wheel guard Securely tighten the nut using a spanner, and then close the lever in direction of the arrow to fasten the wheel guard. If the lever is too tight or too loose to fasten the wheel guard, open the lever and then loosen or tighten the nut using the spanner to adjust the tight- ening of the wheel guard band. ► Fig.12: 1. Nut 2. Lever To remove wheel guard, follow the installation proce- dure in reverse.15 ENGLISH Installing or removing depressed center wheel or ap disc Optional accessory

WARNING: When using a depressed center

wheel or ap disc, the wheel guard must be tted on the tool so that the closed side of the guard always points toward the operator.

WARNING: Make sure that the mounting part

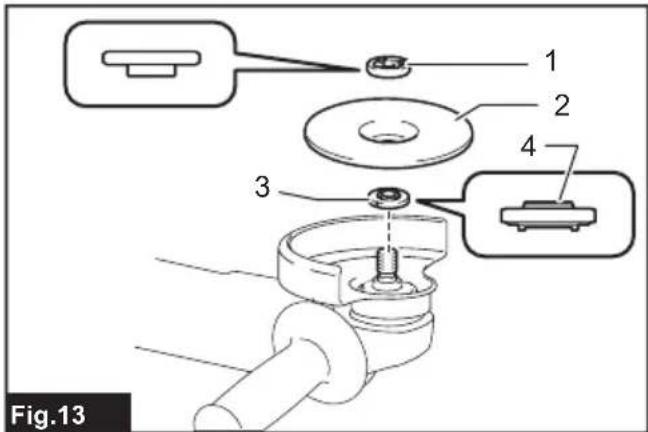

of the inner ange ts into the inner diameter of the depressed center wheel / ap disc perfectly. Mounting the inner ange on the wrong side may result in the dangerous vibration. Mount the inner ange onto the spindle. Make sure to t the dented part of the inner ange onto the straight part at the bottom of the spindle. Fit the wheel/disc on the inner ange and screw the lock nut with its protrusion facing downward (facing towards the wheel). ► Fig.13: 1. Lock nut 2. Depressed center wheel

3. Inner ange 4. Mounting part

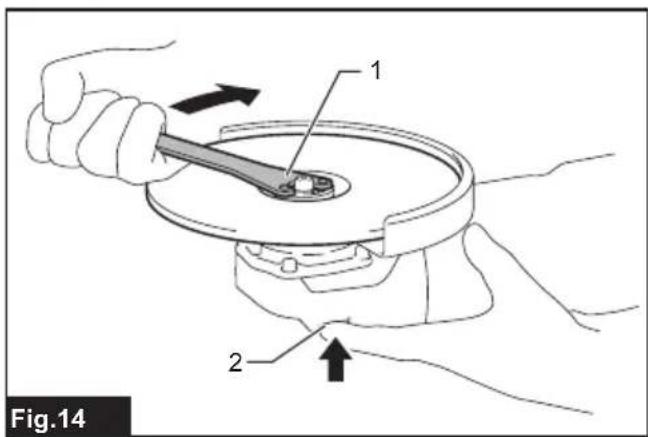

To tighten the lock nut, press the shaft lock rmly so that the spindle cannot revolve, then use the lock nut wrench and securely tighten clockwise. ► Fig.14: 1. Lock nut wrench 2. Shaft lock To remove the wheel, follow the installation procedure in reverse. Installing or removing ex wheel Optional accessory

WARNING: Always use supplied guard when

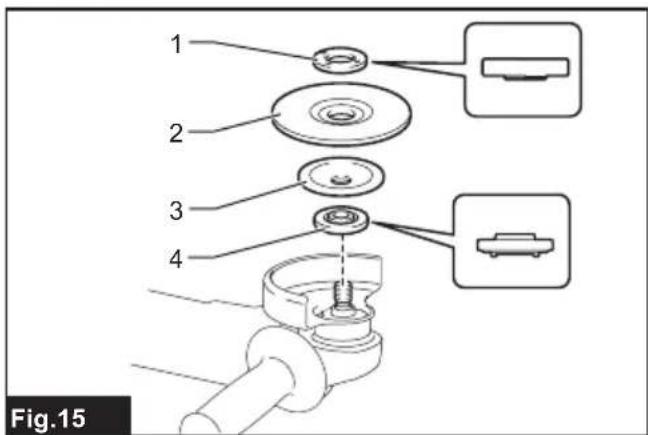

ex wheel is on the tool. Wheel can shatter during use and guard helps to reduce chances of personal injury. ► Fig.15: 1. Lock nut 2. Flex wheel 3. Back up pad

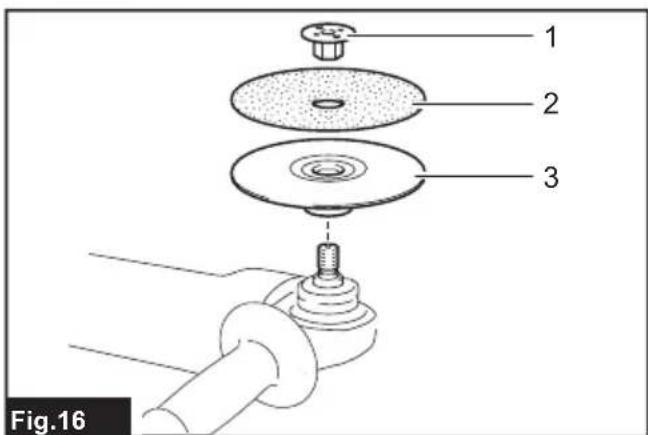

Follow instructions for depressed center wheel but also use back up pad over wheel. Installing or removing abrasive disc Optional accessory ► Fig.16: 1. Sanding lock nut 2. Abrasive disc

1. Mount the rubber pad onto the spindle.

2. Fit the disc on the rubber pad and screw the sand-

ing lock nut onto the spindle.

3. Hold the spindle with the shaft lock, and securely

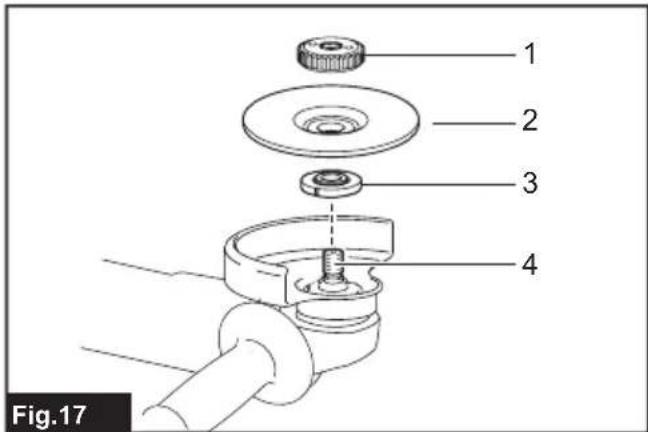

tighten the sanding lock nut clockwise with the lock nut wrench. To remove the disc, follow the installation procedure in reverse. NOTE: Use sander accessories specied in this man- ual. These must be purchased separately. Installing or removing Ezynut Optional accessory Only for tools with M14 spindle thread. Mount inner ange, abrasive wheel and Ezynut onto the spindle so that Makita Logo on Ezynut faces outside. ► Fig.17: 1. Ezynut 2. Abrasive wheel 3. Inner ange

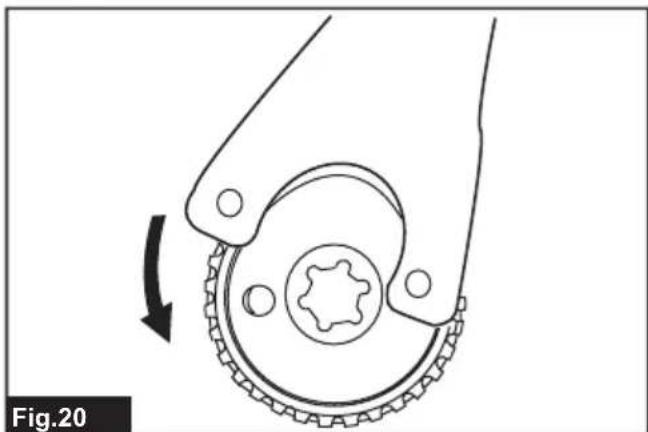

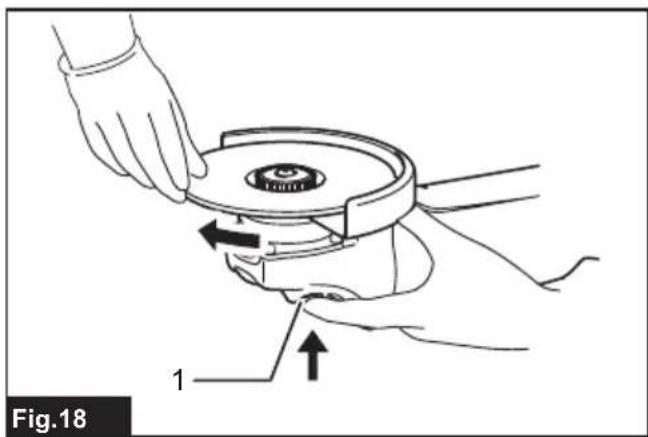

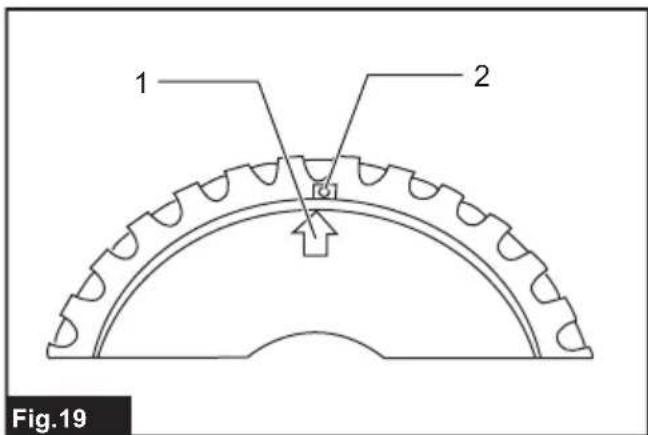

Press shaft lock rmly and tighten Ezynut by turning the abrasive wheel clockwise as far as it turns. ► Fig.18: 1. Shaft lock To loosen the Ezynut, turn the outside ring of Ezynut counterclockwise. NOTE: Ezynut can be loosened by hand as long as the arrow points the notch. Otherwise a lock nut wrench is required to loosen it. Insert one pin of the wrench into a hole and turn Ezynut counterclockwise. ► Fig.19: 1. Arrow 2. Notch ► Fig.20 Installing abrasive cut-o󰀨 / diamond wheel Optional accessory

WARNING: When using an abrasive cut-o󰀨

/ diamond wheel, be sure to use only the special wheel guard designed for use with cut-o󰀨 wheels.

WARNING: NEVER use cut-o󰀨 wheel for side

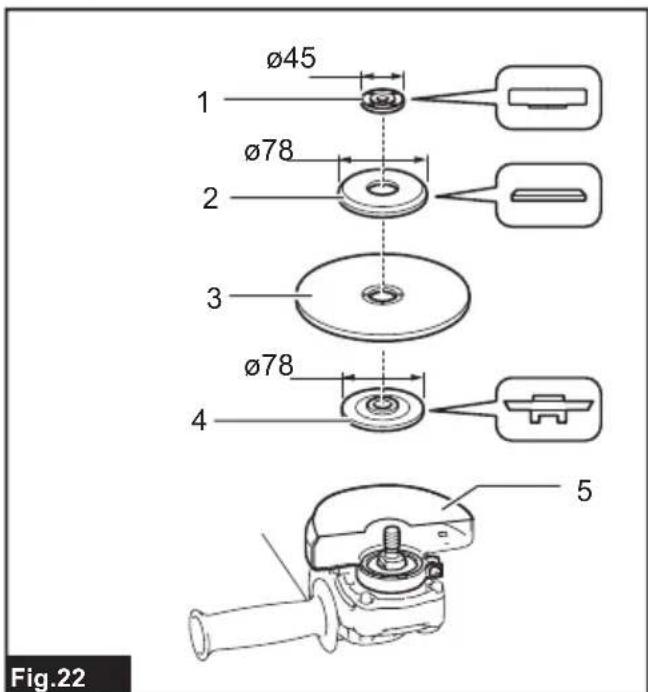

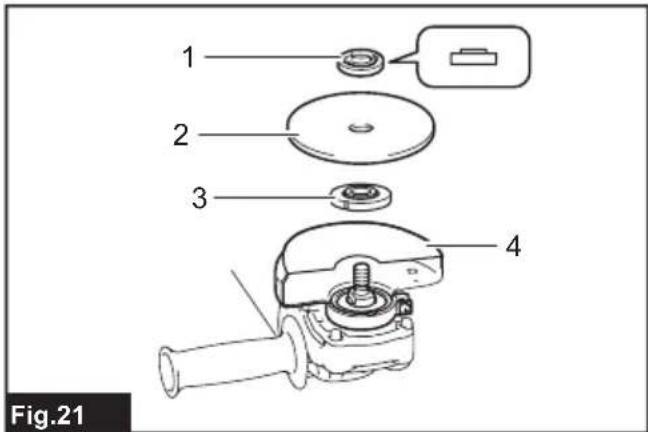

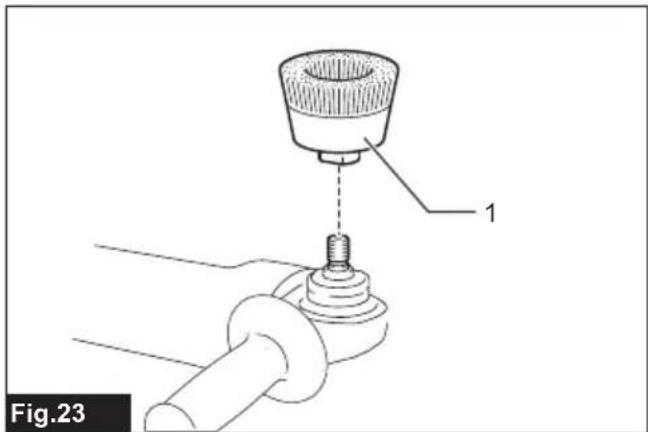

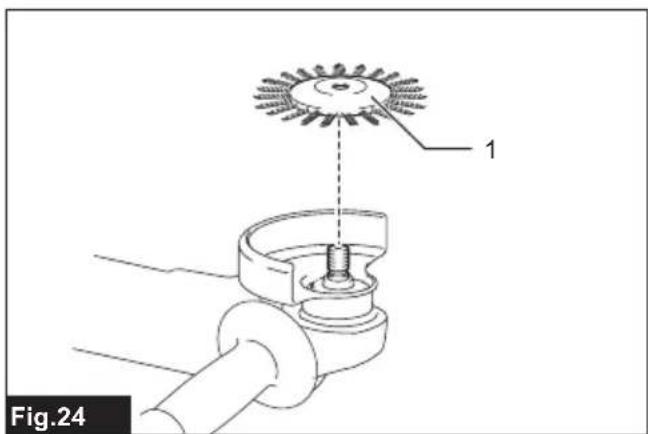

grinding. Mount the inner ange onto the spindle. Fit the wheel / disc on the inner ange and screw the lock nut onto the spindle. ► Fig.21: 1. Lock nut 2. Abrasive cut-o󰀨 wheel / dia- mond wheel 3. Inner ange 4. Wheel guard for abrasive cut-o󰀨 wheel / diamond wheel For Australia and New Zealand ► Fig.22: 1. Lock nut 2. Outer ange 78 3. Abrasive cut-o󰀨 wheel / diamond wheel 4. Inner ange 78 5. Wheel guard for abrasive cut- o󰀨 wheel / diamond wheel Installing wire cup brush Optional accessory CAUTION: Do not use brush that is damaged, or which is out of balance. Use of damaged brush could increase potential for injury from contact with broken brush wires. Place the tool upside down to allow easy access to the spindle. Remove any accessories on spindle. Thread wire cup brush onto spindle and tighten with supplied wrench. ► Fig.23: 1. Wire cup brush16 ENGLISH Installing wire wheel brush Optional accessory CAUTION: Do not use wire wheel brush that is damaged, or which is out of balance. Use of damaged wire wheel brush could increase potential for injury from contact with broken wires. CAUTION: ALWAYS use guard with wire wheel brushes, assuring diameter of wheel ts inside guard. Wheel can shatter during use and guard helps to reduce chances of personal injury. Place the tool upside down to allow easy access to the spindle. Remove any accessories on spindle. Thread wire wheel brush onto spindle and tighten with the wrenches. ► Fig.24: 1. Wire wheel brush Installing hole cutter Optional accessory Place the tool upside down to allow easy access to the spindle. Remove any accessories on the spindle. Thread the hole cut- ter onto the spindle, and tighten it with the supplied wrench. ► Fig.25: 1. Hole cutter Installing dust collecting wheel guard for grinding Optional accessory With optional accessories, you can use this tool for planing concrete surface. CAUTION: Dust collecting wheel guard for grind- ing is only for use in planing concrete surface with a cup-type diamond wheel. Do not use this guard with any other cutting accessory or for any other purpose. CAUTION: Before operation, make sure that a vacuum cleaner is connected to the tool and turned on. Place the tool upside down and install the dust collecting wheel guard. Mount the inner ange onto the spindle. Fit the cup-type diamond wheel on the inner ange and tighten the lock nut onto the spindle. ► Fig.26: 1. Lock nut 2. Cup-type diamond wheel

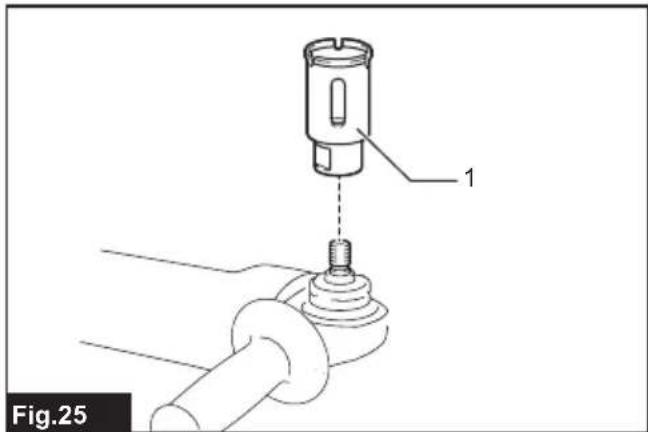

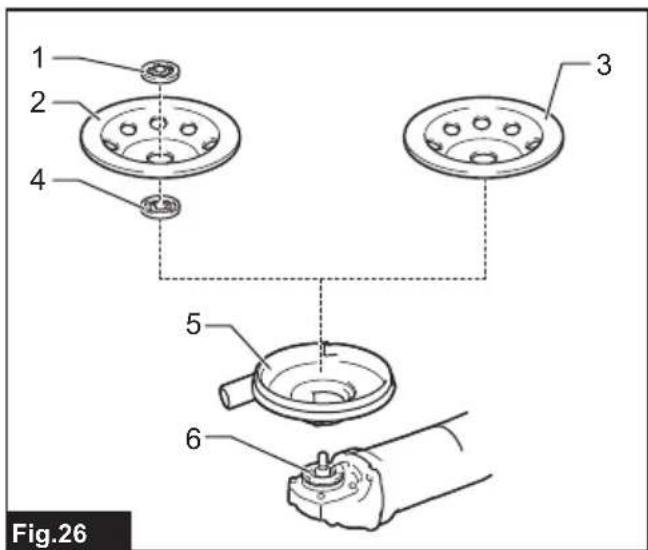

3. Hubbed cup-type diamond wheel 4. Inner

ange 5. Dust collecting wheel guard

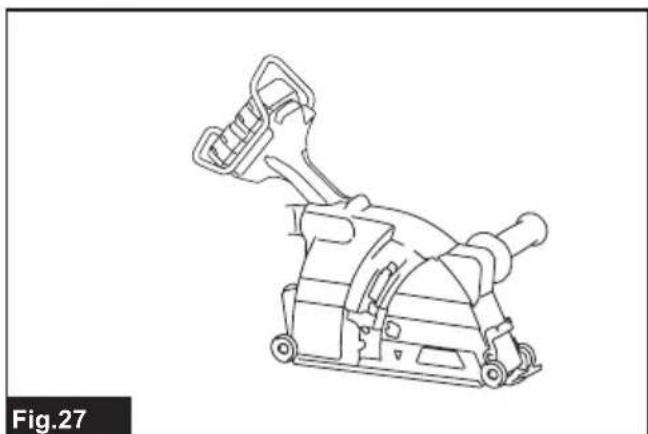

NOTE: For information how to install the dust col- lecting wheel guard, refer to the manual of the dust collecting wheel guard. Installing dust collecting wheel guard for cutting-o󰀨 Optional accessory With optional accessories, you can use this tool for cutting stone materials. ► Fig.27 NOTE: For information how to install the dust col- lecting wheel guard, refer to the manual of the dust collecting wheel guard. OPERATION

WARNING: It should never be necessary to

force the tool. The weight of the tool applies ade- quate pressure. Forcing and excessive pressure could cause dangerous wheel breakage.

WARNING: ALWAYS replace wheel if tool is

dropped while grinding.

WARNING: NEVER hit the workpiece with the

WARNING: Avoid bouncing and snagging

the wheel, especially when working corners, sharp edges etc. This can cause loss of control and kickback.

WARNING: NEVER use tool with wood cutting

blades and other saw blades. Such blades when used on a grinder frequently kick and cause loss of control leading to personal injury. CAUTION: Never switch on the tool when it is in contact with the workpiece, it may cause an injury to operator. CAUTION: Always wear safety goggles or a face shield during operation. CAUTION: After operation, always switch o󰀨 the tool and wait until the wheel has come to a complete stop before putting the tool down. CAUTION: ALWAYS hold the tool rmly with one hand on housing and the other on the side grip (handle). NOTE: A dual purpose wheel can be used for both grinding and cutting-o󰀨 operations. Refer to the "Grinding and sanding operation" for grinding operation, and refer to the "Operation with abrasive cut-o󰀨 / diamond wheel" for cutting-o󰀨 operation. Grinding and sanding operation ► Fig.28 Turn the tool on and then apply the wheel or disc to the workpiece. In general, keep the edge of the wheel or disc at an angle of about 15° to the workpiece surface. During the break-in period with a new wheel, do not work the grinder in forward direction or it may cut into the workpiece. Once the edge of the wheel has been rounded o󰀨 by use, the wheel may be worked in both forward and backward direction. Usage example: operation with cup-type diamond wheel ► Fig.29 Keep the tool horizontally and apply the entire cup-type diamond wheel to the workpiece surface.17 ENGLISH Operation with abrasive cut-o󰀨 / diamond wheel Optional accessory

WARNING: Do not "jam" the wheel or apply

excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback, wheel breakage and overheating of the motor may occur.

WARNING: Do not start the cutting operation

in the workpiece. Let the wheel reach full speed and carefully enter into the cut moving the tool forward over the workpiece surface. The wheel may bind, walk up or kickback if the power tool is started in the workpiece.

WARNING: During cutting operations, never

change the angle of the wheel. Placing side pres- sure on the cut-o󰀨 wheel (as in grinding) will cause the wheel to crack and break, causing serious per- sonal injury.

WARNING: A diamond wheel shall be oper-

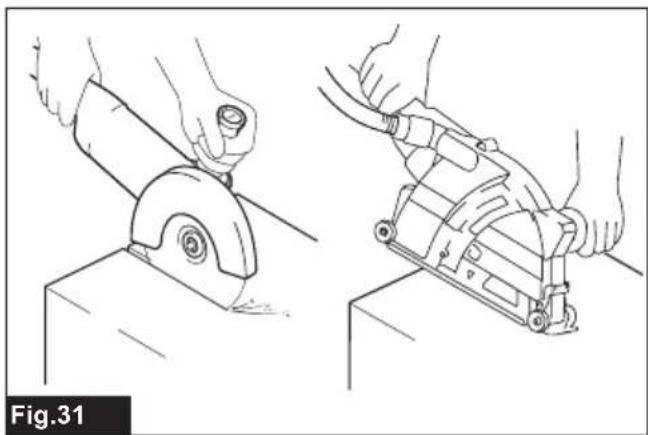

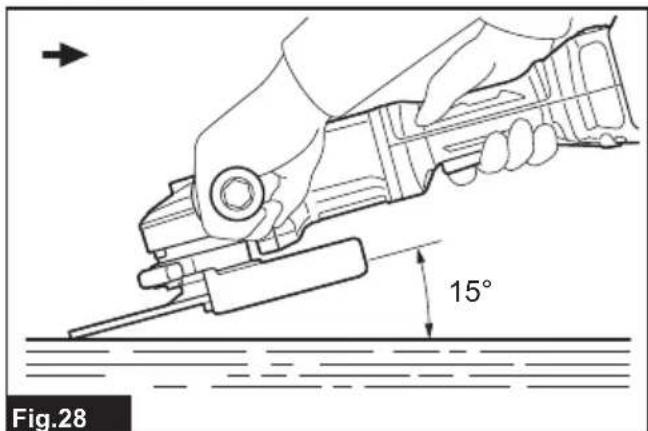

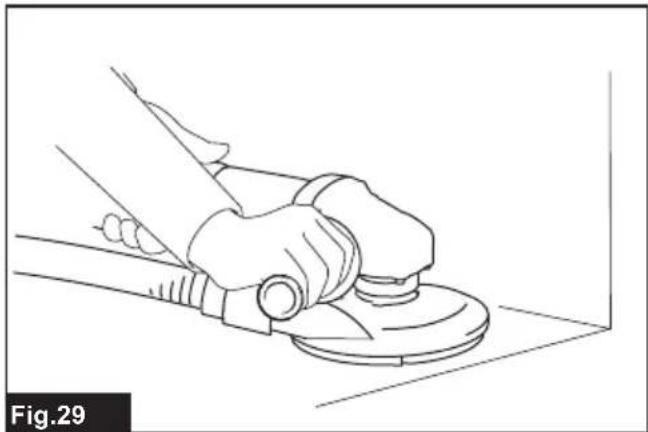

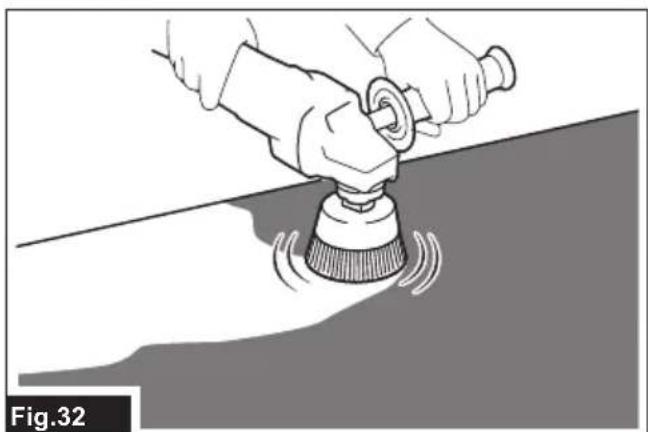

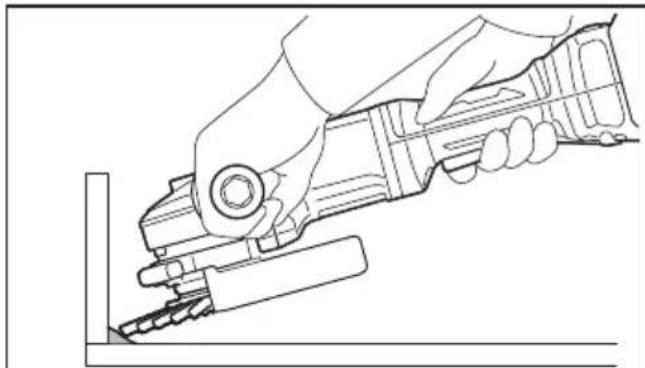

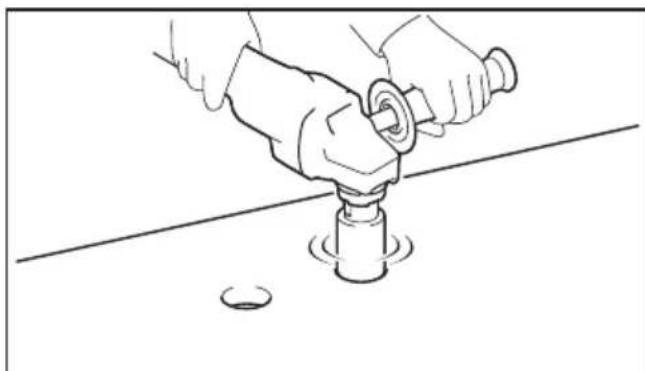

ated perpendicular to the material being cut. Usage example: operation with abrasive cut-o󰀨 wheel ► Fig.30 Usage example: operation with diamond wheel ► Fig.31 Operation with wire cup brush Optional accessory CAUTION: Check operation of brush by run- ning tool with no load, insuring that no one is in front of or in line with brush. NOTICE: Avoid applying too much pressure which causes over bending of wires when using the wire cup brush. It may lead to premature breakage. Usage example: operation with wire cup brush ► Fig.32 Operation with wire wheel brush Optional accessory CAUTION: Check operation of wire wheel brush by running tool with no load, insuring that no one is in front of or in line with the wire wheel brush. NOTICE: Avoid applying too much pressure which causes over bending of wires when using wire wheel brush. It may lead to premature breakage. Usage example: operation with wire wheel brush ► Fig.33 Operation with hole cutter Optional accessory CAUTION: Check operation of the hole cutter by running the tool with no load, insuring that no one is in front of the hole cutter. NOTICE: Do not tilt the tool during operation. It may lead to premature breakage. Usage example: operation with hole cutter ► Fig.34 MAINTENANCE CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before attempting to perform inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Air vent cleaning The tool and its air vents have to be kept clean. Regularly clean the tool's air vents or whenever the vents start to become obstructed. ► Fig.35: 1. Exhaust vent 2. Inhalation vent Remove the dust cover from inhalation vent and clean it for smooth air circulation. ► Fig.36: 1. Dust cover NOTICE: Clean out the dust cover when it is clogged with dust or foreign matters. Continuing operation with a clogged dust cover may damage the tool. Battery guard

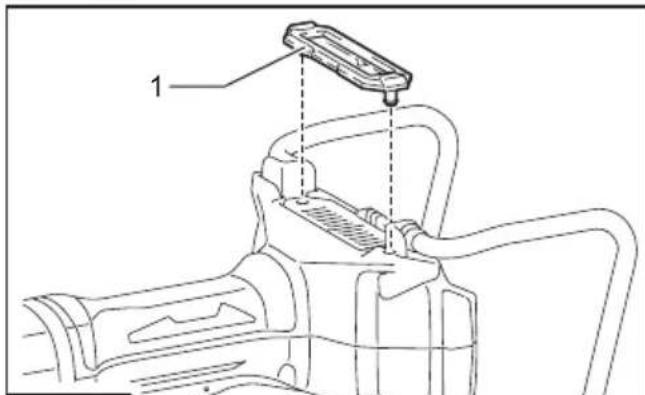

WARNING: Do not remove the battery

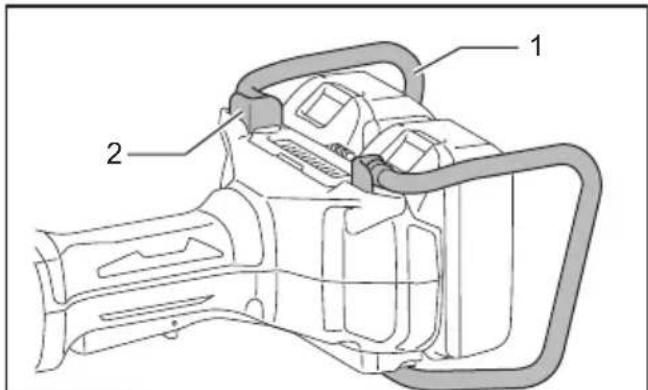

guard. Do not use the tool with the battery guard removed or damaged. Direct impact to the battery cartridge may cause battery malfunction and result in injury and/or re. If the battery guard is deformed or damaged, contact your authorized service center for repairs. ► Fig.37: 1. Battery guard 2. Battery guard holder18 ENGLISH

COMBINATION OF APPLICATIONS AND

ACCESSORIES Optional accessory CAUTION: Using the tool with incorrect guards can cause risks as follows.

• When using a cut-o󰀨 wheel guard for facial grinding, the wheel guard may interfere with the work- piece causing poor control.

• When using a grinding wheel guard for cutting-o󰀨 operations with bonded abrasive wheels and dia- mond wheels, there is an increased risk of exposure to rotating wheels, emitted sparks and particles, as well as exposure to wheel fragments in the event of wheel burst.

• When using a cut-o󰀨 wheel guard or grinding wheel guard for facial operations with cup-type dia- mond wheels, the wheel guard may interfere with the workpiece causing poor control.

• When using a cut-o󰀨 wheel guard or grinding wheel guard with a wheel-type wire brush with a thick- ness greater than the maximum thickness as specied in "SPECIFICATIONS", the wires may catch on the guard leading to breaking of wires.

• Use of dust collecting wheel guards for cutting-o󰀨 and facial operations in concrete or masonry reduces a risk of exposure to dust.

• When using dual purpose (combined grinding and cutting-o󰀨 abrasive) ange mounted wheels, only use a cut-o󰀨 wheel guard.

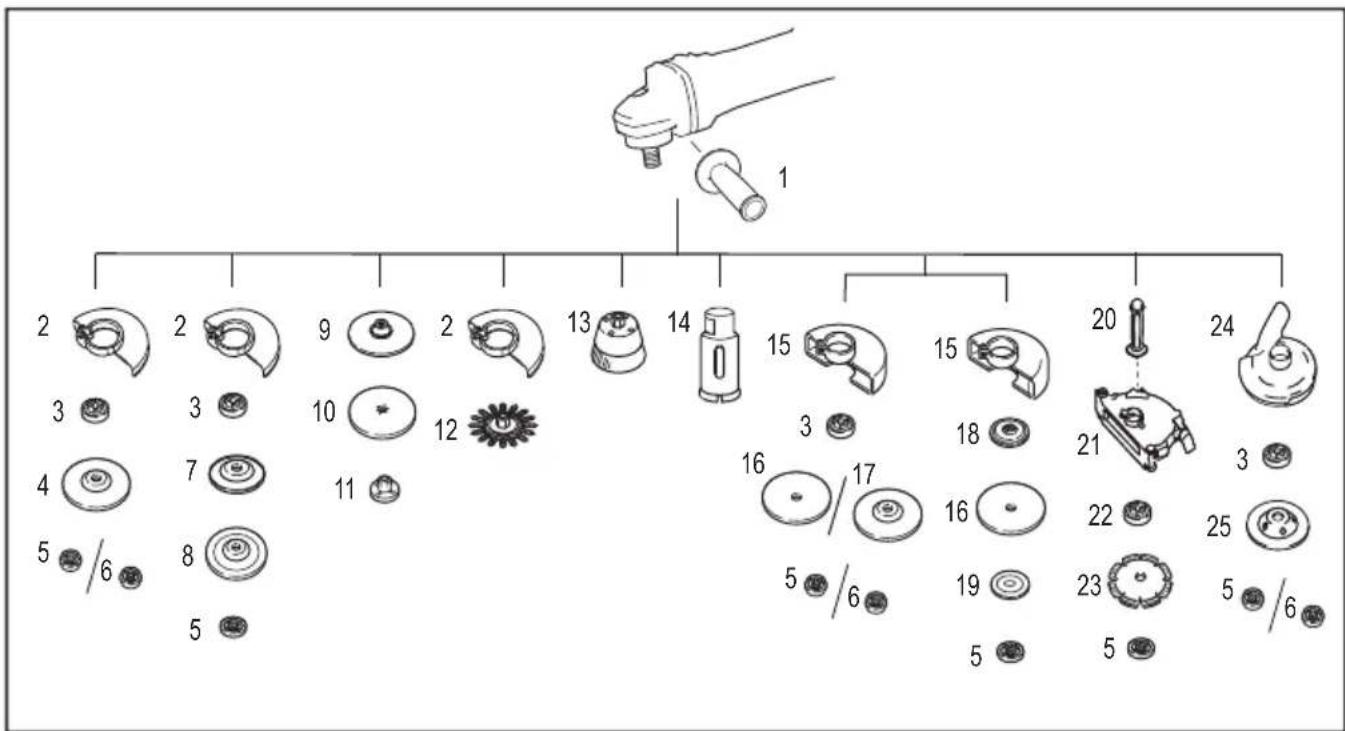

2 - Wheel guard (for grinding wheel)

4 Grinding / Sanding Depressed center wheel / Flap disc

8 Grinding Flex wheel

10 Sanding Abrasive disc

11 - Sanding lock nut

12 Wire brushing Wire wheel brush 13 Wire brushing Wire cup brush19 ENGLISH - Application 180 mm model 230 mm model 14 Hole cutting Hole cutter

15 - Wheel guard (for cut-o󰀨 wheel)

16 Cutting-o󰀨 Abrasive cut-o󰀨 wheel / Diamond wheel 17 Grinding / Cutting-o󰀨 Dual purpose wheel -

18 - Inner ange 78 (Australia and New Zealand only) *2

19 - Outer ange 78 (Australia and New Zealand only) *2

20 - Side grip for dust collecting wheel guard *3

21 - Dust collecting wheel guard for cutting-o󰀨 *3*4

24 - Dust collecting wheel guard for grinding *6

25 Grinding Cup-type diamond wheel *6 - - Lock nut wrench NOTE: *1 Only for tools with M14 spindle thread. NOTE: *2 Use Inner ange 78 and Outer ange 78 together. (Australia and New Zealand only) NOTE: *3 Use the Side grip for dust collecting wheel guard and the Dust collecting wheel guard for cutting-o󰀨 together. NOTE: *4 For more details, refer to each instruction manual of the guard. NOTE: *5 The Inner ange for the grinder equipped with the brake function when using together with the dust collect- ing wheel guard. NOTE: *6 For more details, refer to each instruction manual of the guard. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.

• Makita genuine battery and charger

• Accessories listed in "COMBINATION OF

APPLICATIONS AND ACCESSORIES"

8 Meulage Meule exible
