USER MANUAL GourmetVAC 380 CASO

Vacuum Sealer System

GourmetVAC 380

Item No. 1386

12 Instruction Manual

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your vacuum sealer system will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

12.1 Information on this manual

These Operating Instructions are a component of the vacuum sealer system (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or

• Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

12.2 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

12.3 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

Non-observance of the manual
- Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

12.4 Copyright protection

This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

13 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

13.1 Intended use

This device is only intended for use in households in enclosed spaces for vacuuming bags and canister, as well as sealing vacuum foils. In addition, this device can be used in the semi-professional sector (hunters, anglers, hobby cooks, etc.).

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING

Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

13.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

• Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
  If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
  This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
• Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device.
  The device and its connecting cable must be kept away from children who are less than 8 years old.
  The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
• Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
  Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
  Do not leave the device unsupervised when it is in operation.

HINWEIS Please note

• When disconnect, please unplug by grasp the plug and not the cord, to avoid any injury.
• Never immerse the device in water or other liquids and do not place in the dishwasher.
  For correct storage turn the lever to position STORE, do not lock the cover, it will deform the gaskets and affect the machine function.

13.3 Sources of danger

13.3.1 Danger of burns

WARNING Warning

The sealing bar gets very hot. Please observe the following safety notice in order not to burn yourself or others.

• To avoid getting burned, never touch the sealing bar directly after sealing process.

13.3.2 Danger of fire

WARNING Warning

There is a danger of fire due to the event the device is not used properly.

Observe the following safety notices to avoid dangers of fire:

Do not set up the device near flammable material.
- Keep this appliance away from sources of heat (gas, electric, burner, heated oven).

13.3.3 Dangers due to electrical power

▲GEFAHR Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

• Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
• Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
  Before plugging the appliance in or when you operate it, make sure your hands are dry.
• Do not insert objects into the openings of the device.

13.4 Food storage safety information

This vacuum preservation system will change the way you purchase and store foods. Once you are accustomed to vacuum packing, it will become an indispensable part of your food preparation. Please follow certain procedures when using this appliance to ensure food quality and safety.

HINWEIS Please note

If perishable foods have been heated, defrosted or un-refrigerated, consume them immediately.
Before vacuum sealing, it's necessary to clean your hands, and all utensils and surfaces to be used for cutting and vacuum sealing foods.
- Refrigerate or freeze the perishable foods immediately, if you have vacuum-sealed them, and do not leave them sitting at room temperature.

HINWEIS Please note

The shelf life of dry foods such as nuts, coconut or cereals will be extended in vacuum-sealed package, while storing them in dark place. Oxygen and warm temperature will cause high-fat content foods fat to rancidity.
Before vacuum sealing some fruit and vegetables, such as apples, bananas, potatoes and root vegetables, peel them, this will extend their shelf lives.
- When vacuum seal some vegetables such as broccoli, cauliflower and cabbage fresh for refrigeration, they will emit gases, so it's need to blanch and freeze these foods before vacuum sealing.

14 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

14.1 Safety information

AWARNING

Warning

Packaging materials may not be used for playing. There is a danger of suffocation.

14.2 What's included

The vacuum sealer system GourmetVAC 380 includes the following components:

Vacuum sealer system GourmetVAC 380

• 10 top-quality bags (20 × 30 ~cm)

1 vacuum hose

1 profi bag roll (30 cm x 3 m)

• Instruction manual

HINWEIS PLEASE NOTE

Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage.
- Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

14.3 Uses and advantages of vacuum sealing

Vacuum sealing foods prolongs shelf life while preserving food's freshness, flavor and nutrients. Vacuum sealing can maintain a food's freshness for up to eight times as long as standard storage methods. Below are just a few of the ways you can use your vacuum sealer:

Cook in advance then vacuum seal and store individual portions or entire meals.
- Prepare foods in advance for picnics, camping trips and barbecues.
- Keep frozen food safe from freezer burn.

• Package foods, such as meat, fish, poultry, seafood and vegetables for refrigerated storage.
• Maintain the freshness of dry foods, such as beans, nuts, and cereals.
• Besides storing food, there are many other uses for vacuum sealing: Protect moisture-sensitive items such as camping supplies, matches, first aid kits, roadside flares and clothing. Protect prized collectibles from dust and moisture.

14.4 Unpacking

Carefully remove the packaging material and unit from the carton.

14.5 Disposal of the packaging

Caso believes in the importance of recycling and has selected packaging

materials that not only protect your unit from damage during transit, but can be recycled to minimize any ecological impact. Recycling the packaging materials

preserves raw materials and reduces waste. Take any packaging materials that are no

longer required to a recycling collection point for proper disposal.

HINWEIS PLEASE NOTE

If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary.

14.6 Setup

14.6.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfill the following prerequisites:

• The device must be set up on a solid, even, horizontal surface capable of supporting the vacuum sealer and any items to be vacuum-sealed.
• Select a setup location where children cannot reach the hot sealing strip of the device.
• Do not set up the unit in a hot or damp environment or near flammable material.
• To operate correctly, the unit requires sufficient air flow. Leave at least 10 centimeters (4 inches) of space on all sides when setting up the unit.
• Do not move the vacuum sealer when it is in operation.
• The electrical outlet must be easily accessible so that the plug can be quickly disconnected in the case of an emergency.
• The setup of this unit in non-stationary locations (e.g., boats, airplanes, motor homes) must be carried out by a qualified electrician, provided they guarantee the prerequisites for the safe use of the unit.

14.7 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14.7.1 Extension cords

If an extension cord is used:

The electrical rating of the extension cord should be at least as great as the electrical rating of the unit.
The cord should be arranged so that it does not drape over a countertop or tabletop where it can be pulled on by children or tripped over.

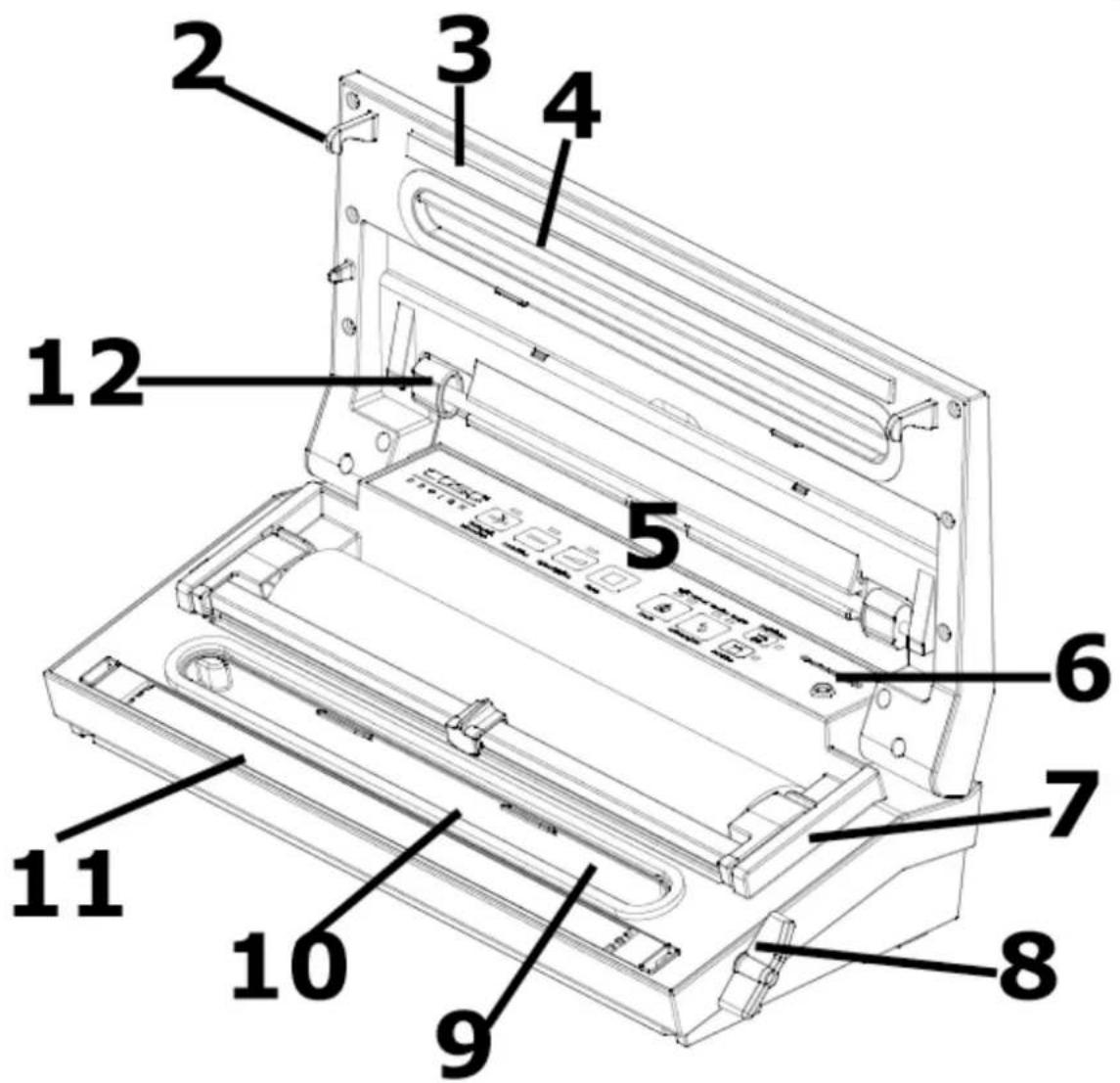

15 Complete Overview

This chapter provides you with an overview of your vacuum sealer and explains some of its key features.

1 Progress LED indicators: Indicators progress of all working process.

HINWEIS

Please note

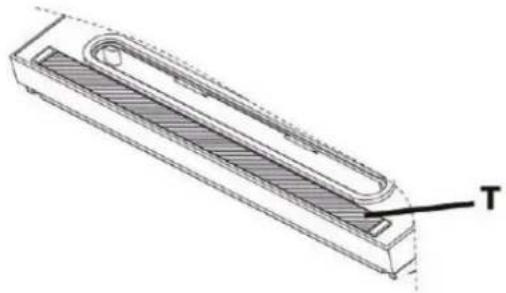

Do not remove the Teflon tape (T).

2 hooks for latching of cover 3 sealing profile

4 upper gasket + 10 lower gasket 5 control panel

6 connector for vacuum hose 7 cutter

8 lever for latching and unlocking of cover

9 removable vacuum chamber. The open end of the bag must be placed inside the chamber. This feature makes sure that air cannot escape from the bag and that excess liquid is removed. Easy to remove and clean.

11 sealing bar: contains a teflon-coated heating strip; which makes it possible to seal the bag without it sticking.

WARNING Warning
The sealing bar gets very hot.
Please observe the following safety notice in order not to burn yourself or others.
To avoid getting burned, never touch the sealing bar directly after sealing process.

12 vacuum hose

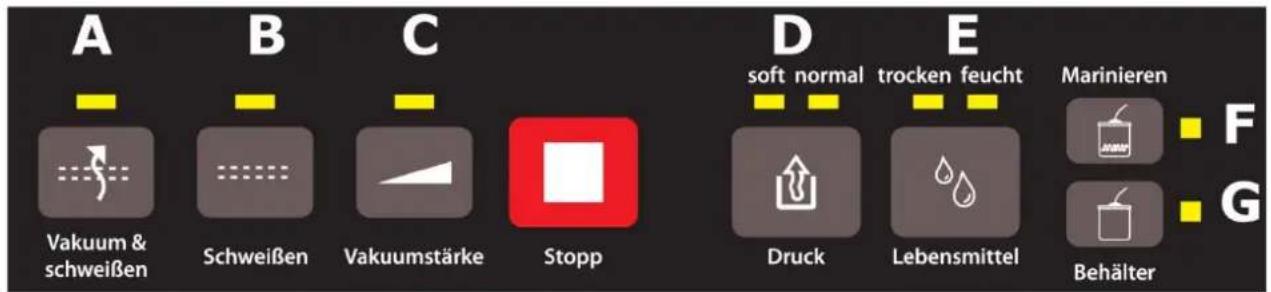

15.1 Control Panel

Indicator lamps

A Indicator lamp Vacuum & Seal (Vakuum & Schweifen)

Indicates the Vacuum/sealing process

Indicates the sealing process of the bag without vacuum

C Indicator lamp Adjustable Vacuum (Vakuumstärke)

Indicates the vacuum process

D Indicator lamp Vacuumstrength (Druck soft & normal)

Indicates the chosen pressure for soft (gentle) and normal vacuum food.

E Indicator lamps Selectable welding time (trocken & feucht)

Indicates the welding time chosen either for dry (trocken) or moist (feucht) vacuum food.

F Indicator lamp Marinate

Indicates the marinate process for the canister

G Indicator lamp Vacuum Canister (Behalter)

Indicates the vacuum process for the canister

Buttons

Air is drawn off from inside the bag (vacuuming), immediately after this process the bag is sealed

Button Sealing function (Schweiben)

Seals a bag without first vacuuming

As long as you press the button, air is drawn off from inside the bag. When you release the button, this process will stop. Afterwards you must seal the bag via the seal function.

Stop button

You can stop the vacuum and sealing process at any time

Button Vacuumstrength (Druck): Two buttons for choice of different vacuum pressure:

"normal" (normal) button: for regular items storage in normal vacuum pressure ;

"gentle" (soft) button: for some soft & crushable items storage where less vacuum pressure is desired.

Default setting is "normal" and high vacuum pressure.

Button Marinate (Marinieren): Press to marinate food with the canister.

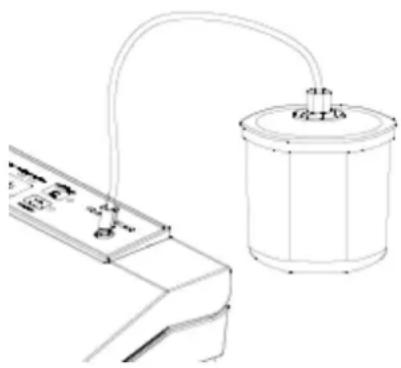

Via the vacuum hose, air is drawn off from inside the vacuum canister

Button selectable welding time (Lebensmittel trocken & feucht)

With this function you could adjust the welding time to the consistency of your vacuum food. Choose "trocken" for dry vacuum food and "feucht" for moist vacuum food where liquid is produced. Please choose the corresponding sealing time before the vacuum process.

15.2 Rating plate

The rating plate with the connection and performance data can be founded on the bottom of the unit.

16 Operation

This chapter provides instructions on the proper operation of your vacuum sealer:

16.1 Basics of sealing

After each sealing session and before starting up, check to make sure the unit and all accessories are clean and free of leftover food. Follow the cleaning instructions on in Chapter Cleaning and Maintenance.

Step 1: Open the cover and insert the open side of a compatible bag into the clear plastic vacuum chamber.

Step 2: Close the cover. Turn the lever clockwise until the cover is latched.

Step 3: After this operation turn the lever anti-clockwise until the cover is unlocked. (after sealing process)

16.2 Bags and rolls

Please only use specified bags and rolls designed for vacuum sealing. Do not use other materials such as plastic wrap. All vacuum rolls and bags delivered by CASO are appropriate for cooking under vacuum (sous vide). Furthermore the vacuum rolls and bags can be used for defrosting and heating in the microwave at up to 70^ C.

Please make sure when vacuum rolls and bags of other producers are used, whether they are also microwaveable and suitable for cooking under vacuum. Please note that a bar vacuumsealer as this device can only be used with structured bags. You can buy a wide range of different bags and rolls from CASO.

16.3 Preserve food with vacuum with a bag

Place the unit on a dry place. Make sure the working area in front of the unit is free of obstacles and wide enough to accommodate the food bags.

1. Put the food that you want to preserve inside the bag.

2. Clean and straighten the open end of the bag, make sure that there are no wrinkles or ripples on the panels of the open ends.

3. Make sure that open end of the bag are located within the vacuum chamber. (see Step1)

4. Close the cover. Turn the lever clockwise until the cover is latched. (see Step 2).

5. Press the "Vakuum & schweißen"-Button and the corresponding LED control light starts flashing, then the bag will be automatically vacuumed and sealed.

6. Afterthis operation turn the lever anti-clockwise until the cover is unlocked. (see Step3).

7. Check the appearance of the sealed bag; it should have a stripe across the seal and no wrinkles otherwise the seal may not be complete.

8. If you need to interrupt the vacuum operation (e.g. the bag is incorrectly positioned) first presses the "Stop" button then turn the lever anti-clockwise until the cover is unlocked.

HINWEIS

Please note

Do not put too much food inside the bag; leave enough empty length in the open end of the bag so that the bag can be placed in the vacuuming plate more positively.
Do not wet the open end of the bag. Wet bags may be difficult to seal tightly.

HINWEIS

Please note

Clean and straighten the open end of the bag before sealing the bag. Make sure nothing is leaving on the open area of the bag. Foreign objects or creased bags may cause difficulty to seal tightly.
Do not leave too much air inside the bag. Press the bag to allow extra air to escape from the bag before vacuuming it. Too much air inside the bag increases the vacuum pump loading and may cause that the motor works insufficient to draw away all the air out of the bag.
If the foods you're sealing have sharp edges, such as bones, spaghetti or shellfish, pack the edges with kitchen paper to avoid tearing the bag.
Suggest to vacuum seal one bag within 1 minute to let the appliance cool down enough.
In order to vacuum seal liquid-based foods, such as soups, casseroles or stew, freeze them first in a baking pan or tempered dish, vacuum seal them, label and stack them in your freezer as soon as they are in frozen solid.
- Blanch the vegetables by cooking briefly in boiling water or microwave oven, cool them down, then vacuum seal them in convenient portions.
To vacuum seal the foods not frozen, two extra inches are required for bag length to allow for expansion while freezing. Place the meat or fish on a paper towel and vacuum seal with the paper towel in the bag, this way will help to absorb moisture from the foods.
Before storing the foods such as tortillas, crepes or hamburger, use wax or parchment paper between them to stack the pieces, this will be easier to remove some of the food, reseal the rest and immediately replace in the freezer.
The vacuum sealer can't be used directly for vacuum sealing canisters or canning jars

16.4 Making a bag using the bag roll

1. Unroll the foil to the desired length and cut the bag to the appropriate length with precise and clear cut.
2. Open the cover and put one end of the bag on top into the vacuum chamber, then close the cover (see Step 1).
3. Close the cover. Turn the lever clockwise until the cover is latched (see Step 2).
4. Press the "Schweiben"-Button and the corresponding LED control light starts flashing.
5. When the LED light turns off, the bag is sealed.
6. Now you have a custom-sized bag.

HINWEIS

Please note

Make sure that the bag you want to use is at least 8cm/3.1in. longer than the food. Add another 2 cm/0.8in. each time the bag is re-used.

16.5 Use of the function "Adjustable vacuum strength"

Since the pressure of the vacuuming becomes too strong for specific foods and these could be crushed in the bag, you can adjust the length and strength of the vacuuming process via the function "Adjustable Vacuum strength". So you can adjust the vacuum strength to the consistency of your vacuum food and also seal soft foods (for example berry fruit) without crushing them.

Due to the time and pressure control, the crushing of delicate foods is prevented. You can also use this function for the packaging of juicy foods to prevent that fluids are aspirated and drawn out.

Adjustable Vacuum strength

1. Put the foods you want to store into the bag.
2. Clean and smooth the open end of the bag and be sure that there are no folds or waves on the surfaces of the open ends.
3. Be sure that the open end of the bag is within the vacuum chamber seal. This guarantees that there is no escape of the vacuum.
4. Close the cover. Turn the lever clockwise until the cover is latched. Press the button "Vakuumstärke". As long as you press the button, air is withdrawn. Only when you release the button, the process stops. Thus you can exactly control the vacuum and prevent the liquid from being sucked. Please hold the button pressed until the required vacuum has been reached.
5. Then press the button "Schweiben" and seal the bag.

** Press the button "Stop" to interrupt the process.

16.6 Use oft he function „Druck“

You can adjust ther vacuumstrength also via button "Druck"

Choose "normal" (normal) button for regular items storage in normal vacuum pressure; and "gentle" (soft) button: for some soft & crushable items storage where less vacuum pressure is desired. Default setting is "normal" and high vacuum pressure.

16.7 Use of the function "selectable welding time"

When there are fluids in the bag and hence in the section where you want to seal it, the welding procedure should be adjusted to "feucht". This would increase the welding time and the bag is safely sealed. Press the button "Lebensmittel trocken & feucht". If the lamp will illuminate above "feucht", the welding time for moist vacuum food is adjusted.

16.8 Vacuum package in a Canister

Wipe canister cover, canister base and ensure they are clean and dry.

Put the items into the canister and do not fill up too full so that the cover can be in good contact with the canister bowl rim. Close the cover.

Insert one end of the hose into the air intake and another end of the hose into the center hole of the canister cover.

Check the LED status of "vacuumstrength" and make sure if it is in "normal" setting.

Close the cover. Turn the lever clockwise until the cover is latched.

Press the "Behalter" (Canister) button to start vacuuming. To ensure there is no air leaking between the cover and the canister, use your hand to push down the cover at the beginning of the vacuuming work. The machine will stop automatically when enough vacuum pressure is achieved.

Take out the hose tube from the canister or bowl immediately first after the job is completed.

16.9 Marinate with a Canister

Wipe canister cover, canister base and ensure they are clean and dry.

Put the items into the canister and do not fill up too full so that the cover can be in good contact with the canister bowl rim. Close the cover.

Insert one end of the hose into the air intake and another end of the hose into the center hole of the canister cover.

Check the LED status of "vacuumstrength" to confirm the desired vacuum pressure "normal" (normal) or "soft" (gentle) according to the type of food.

Close the lid. Turn the lever clockwise until the cover is latched.

Press "Marinieren" (marinate) button to start working.

The indicator light has been on during the course. It will release air automatically after finished vacuum, the device will work for 5 cycles.

When the indicator light crush out, the marinate process is completed. Pull off the hose accessory from canister port and canister cover.

16.10 Use of the cutter

To cut the foil at desired length, press und cutter unlock buttons on both sides. Press down the cutter so that the foil is held firmly. Slide the cutter over the foil.

Push it back into place until it latches.

16.11 Opening a sealed bag

Cut the bag straight across with scissors or the cutter, just inside the seal.

16.12 Storage

Store the unit in its upright position, out of the reach of children.

HINWEIS PLEASE NOTE

To disconnect remove the plug from the outlet.
Always unplug the appliance from its outlet immediately after using and before cleaning.
For correct storage turn the lever to position STORE, do not lock the cover, it will deform the gaskets and affect the machine function.

17 Cleaning and Maintenance

This chapter provides important information on properly cleaning and maintaining your vacuum sealer.

17.1 Safety information

AVORSICHT Attention

Please observe the following safety notices, before cleaning the unit to avoid damage to the unit or personal injury:

To ensure optimum performance, the unit must be cleaned regularly. Failure to clean the unit regularly can lead to potential malfunctions, as well as safety and health risks.
Unplug the device before cleaning.
The sealing strip remains hot after use. Wait a few minutes until the strip has cooled before cleaning.
Clean the unit after every use as soon as it has cooled. Leaving the unit uncleaned for long periods can make it very difficult to remove leftover food and grime and may even damage the unit.
If moisture penetrates the unit's housing, it can damage the electronic components. Please ensure that no moisture enters the device.
Do not use any harsh or abrasive cleaning agents.
Do not attempt to scrape off stubborn grime with hard or abrasive tools.
Dry all parts thoroughly before using after cleaning.
Never immerse the device in water or other liquids and do not place in the dishwasher.

17.2 Cleaning

Outside of the unit

Wipe with a damp cloth or sponge and mild dish soap.

Inside of the unit

Wipe away any food or liquids with a paper towel.

Inside of the device

The device has removable vacuum chamber. Clean the chamber with warm soapy water and dry it thoroughly after before you install it again. Check that vacuum chamber is place correctly.

Cleaning bags for reuse

Wash the bags in warm water with a mild dishwashing soap, then rinse them well and allow them to dry completely before reusing.

AVORSICHT Attention

Bags used to store raw meats, fish or greasy foods should never be reused due to risk of contamination.

Sealing profile (which presses the bag against the sealing bar)

Remove the sealing profile and clean it in warm soapy water.

HINWEIS Please note

The sealing profile should be cleaned thoroughly before installing it again.
- Be careful during re-installation, so that nothing will be damaged and sealing profile is placed well so that the device can work properly.
- Carefully return all removable parts to their original positions to avoid air leakage or faulty operation.

18 Troubleshooting

The following table may help you narrow down and address minor malfunctions:

18.1 Safety notices

A VORSICHT Attention

• Only qualified electricians, who have been trained by the manufacturer may carry out any repairs on electrical equipment.
  Improperly performed repairs may result in personal injury or damage to the device.

18.2 Troubleshooting table

Fault	Possible Cause	To Rectify
Device does not turn on	Defective power cord Send device to Customer Service
A complete vacuum is not being created in the bag.	The open end of the bag is not completely inside the vacuum chamber	Position the bag correctly
	The bag is defective Select another bag
	There is residue on the welding and the seal	Clean the welding / seals and retry once they are dry
The bag is not being sealed correctly	The sealing bar is overheating so that the bag melts	Open the cover on the unit and let it cool down for a few minutes. Please use only specified bags and rolls
	Roll / bag is not positioned correctly.	Carefully follow all the steps in Chapter Vacuuming and sealing.
The bag does not hold the vacuum after it has been sealed	The bag is defective	Select another bag; wrap paper around any sharp edges within the bag.
	There are leaks along the welding seam as a result of creases, crumbs, grease or liquids.	Open the bag again and clean the upper internal part of the bag. Remove any foreign matter that might be on the welding bar before sealing.

HINWEIS PLEASE NOTE

In the event of technical troubles, faulty devices or missing parts, please contact Customer Service.

19 Disposal of the Old Device

To protect the environment, it's important to dispose of old electronic devices properly. Do not place your old unit in the non-recyclable waste under any circumstances.

HINWEIS PLEASE NOTE

Please take your old unit to the nearest recycling center for safe disposal.
Until it can be disposed of properly, store your old unit away from children.

20 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us.

Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or

defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.

This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.

In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

21 Technical Data

Device Vacuum sealer system

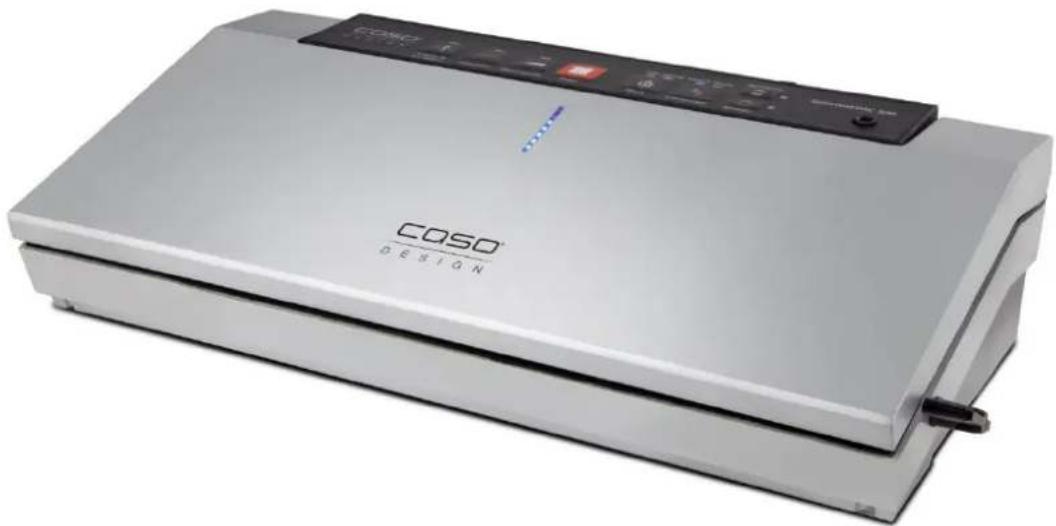

Name GourmetVAC 380
Item No.: 1386
Mains data 220 V - 240 V; 50 Hz
Power consumption	160 W
External measurements (W x H x D): 43 cm x 11 cm x 21 cm
Net weight 2,556 kg

6 Branchement - for vacuum hose 7 Cutter

Con这对于 the product to be used in the market, it is important that the product is not intended for sale. In addition, the product should be used only for personal use.

▲WARNING WAARSCHUWING

▲WARNING WAARSCHUWING
