WS 6815 - Weather Station TECHNOLINE - Free user manual and instructions

Product type	Weather station with radio-controlled clock and alarm
Brand	TECHNOLINE
Model	WS 6815
Main power supply	AC/DC 230 V power adapter (included)
Backup power supply	1 lithium battery CR2032 (not included)
Outdoor sensor power supply	2 AAA batteries (not included)
Indoor temperature range	0°C to +50°C
Outdoor temperature range	-50°C to +70°C
Temperature resolution	1°C
Display	LED, adjustable brightness
Radio-controlled reception	Yes (DCF-77), automatic synchronization
Alarm function	Yes, with snooze alarm
Alarm duration	2 minutes
Snooze delay	5 to 60 minutes (adjustable)
Outdoor sensor channels	3 (selector 1, 2, 3)
Sensor transmission range	30 meters in open field
Station dimensions	Approximately 150 x 80 x 30 mm (estimated)
Station weight	Approximately 200 g (estimated)
Operating temperature	0°C to +45°C
Maintenance and cleaning	Wipe with a dry, soft cloth. Do not use abrasive products.
Safety	Do not open the housing, avoid shocks and humidity. Observe battery polarity.
Spare parts and repairability	Standard power adapter and batteries available commercially. No specific spare parts.
General information	Manual available in multiple languages on notice-facile.com. Comply with WEEE and battery recycling regulations.

Frequently Asked Questions - WS 6815 TECHNOLINE

How to synchronize the radio-controlled clock?

The station synchronizes automatically at 1:00, 2:00, and 3:00. You can manually start reception by pressing and holding the DOWN / WAVE button until you hear a beep. The radio icon flashes during the search.

What to do if the outdoor temperature is no longer displayed?

Check the range (max 30 m in open field) and the battery status of the outdoor sensor. Press and hold the UP button on the station, then remove and reinsert the sensor's batteries. If the problem persists, bring the sensor closer to the station.

How to set the time manually?

Press and hold SET (2 seconds) until the digits flash. Use the UP and DOWN buttons to adjust the hours, then press SET to go to minutes. Repeat to set the snooze delay and time zone.

How to enable or disable the alarm function?

In normal mode, press ALM once. The AL icon lights up when the alarm is active, and turns off when it is deactivated.

How to stop the alarm sound?

For snooze, press SNOOZE. To stop completely for the day, press any other key.

What do the radio signal bars mean?

During reception, the radio icon flashes. Up to 3 bars indicate the signal strength. The icon stays lit if the signal is received, and turns off if reception fails.

How to replace the backup battery?

Place the station face down. Use a screwdriver to unscrew the battery compartment cover on the back. Insert a CR2032 battery observing polarity (+ facing up). Close and screw back.

What to do if the screen displays incorrect values?

Press the RESET button on the back of the station. This resets the settings and restarts radio synchronization.

Can I use rechargeable batteries?

No, the manual recommends using only alkaline batteries, not rechargeable batteries, for the outdoor sensor and backup battery.

How to adjust the screen brightness?

Press the SNOOZE / DIMMER button to adjust the brightness of the LED display.

USER MANUAL WS 6815 TECHNOLINE

D- Outdoor temperature sensor

WS6815 - INSTRUCTION MANUAL

LED TEMPERATURE STATION WITH RADIO CONTROLLED CLOCK AND ALARM

OVERVIEW

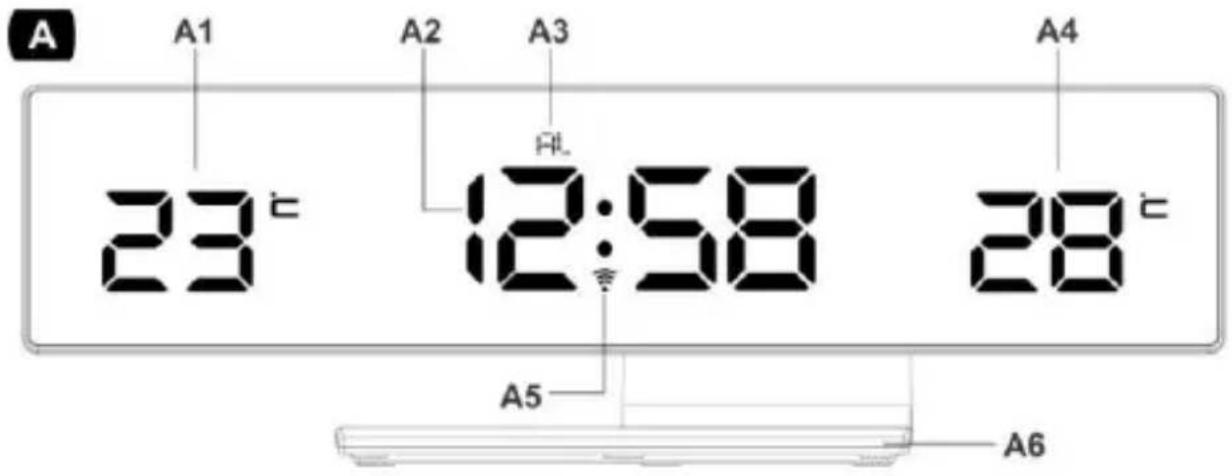

A - Front view

A1: Indoor temperature

A2: Time

A3: Alarm ON

A4: Outdoor temperature

A5: RCC indicator A6: Stand

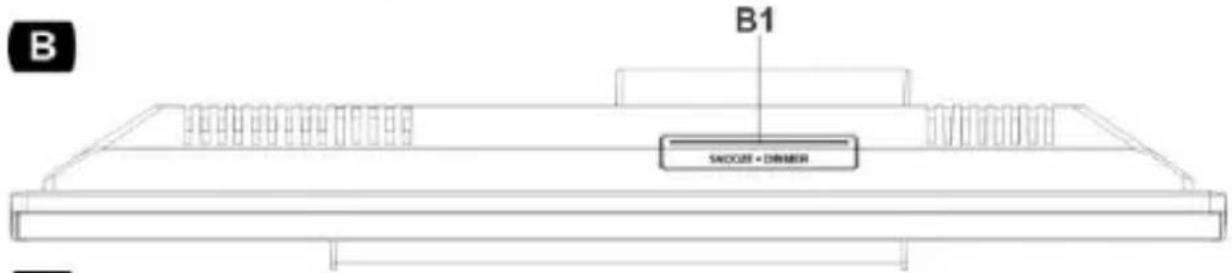

B-Top view

B1: SNOOZE / DIMMER button

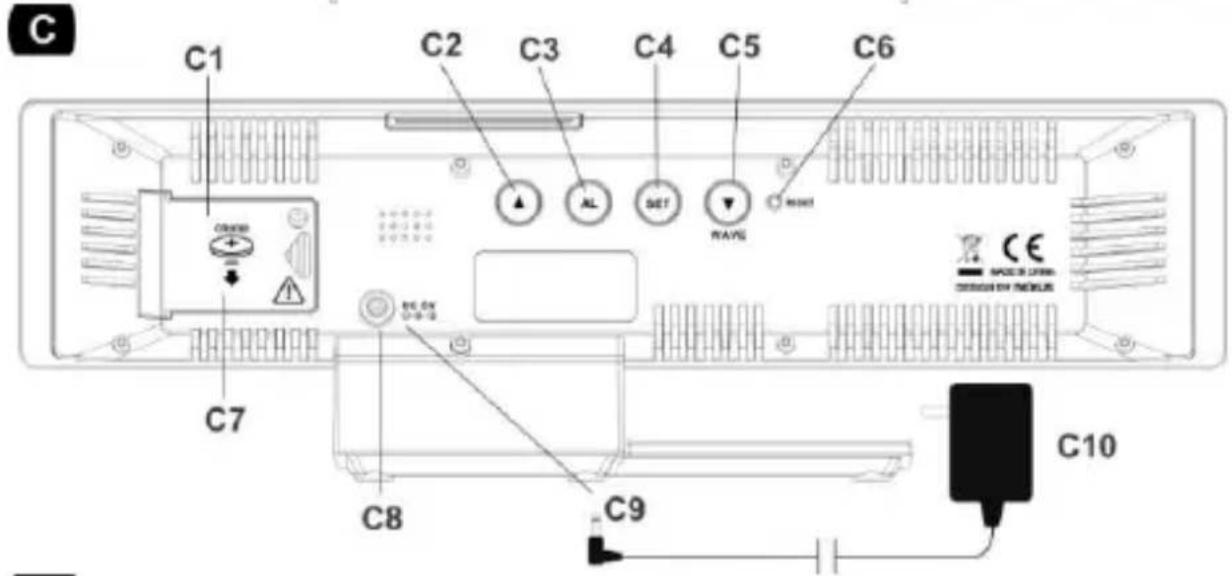

C-Back view

C1: Battery door

C2: UP button

C3: ALARM button

C4: SET button

C5:DOWN/WAVE button

C6: RESET button

C7: Insert 1 x CR2032 battery inside the battery compartment

C8: DC socket C9: Insert AC/DC adapter jack

C10: AC/DC adapter

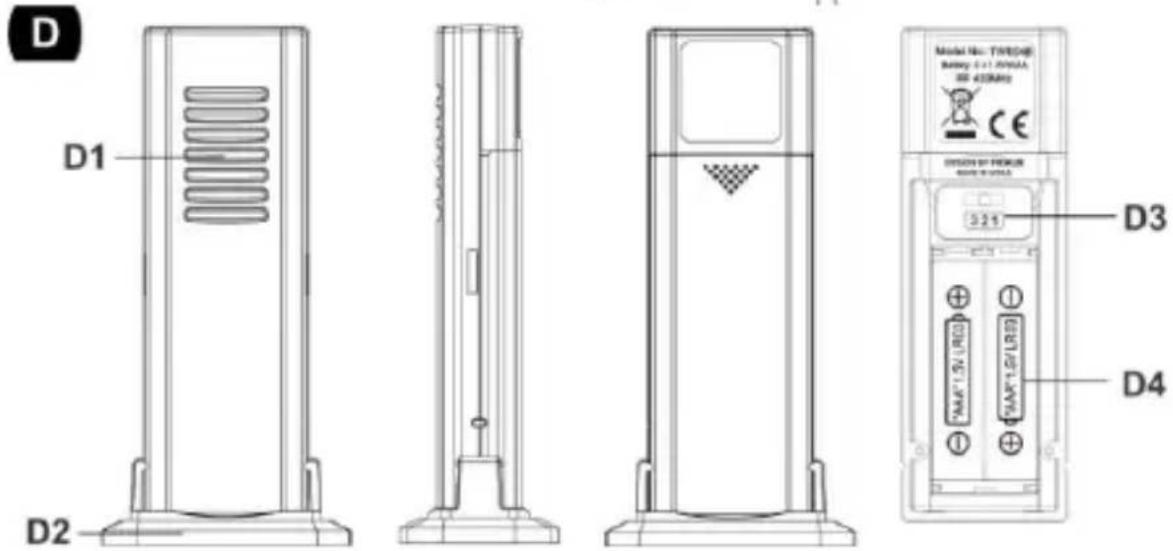

D- Outdoor temperature sensor

D1:LEDindicator D2:Holder

D3: Channel 1,2,3 selector switch D4: Insert 2× AAA batteries

ENVIRONMENTAL RECEPTION EFFECTS

The temperature station obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• Long transmitting distance
• Nearby mountains and valleys
• Among tall buildings
• Near freeway, railway, airports, high voltage cable etc.
  Near construction site
• Inside concrete buildings
  Near electrical appliances (computers, TV's, etc)
• Inside moving vehicles
  Near metallic structures

Place the station at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

QUICK SETUP

Step 1 Keep the station and outdoor sensor next to each other. Slide open the battery cover at the back of the outdoor sensor. Make sure the channel selector is set at position 1 (top position), then insert 2 × AAA batteries (not included) into the outdoor sensor by observing the correct +/- polarity signs inside the battery compartment. Replace the battery door.
Step 2 Insert the AC/DC adaptor to any 230V AC household outlet. Then insert the DC jack to the back case of the station. Insert the stand to the bottom of the temperature station.
Step 3 Peel off the protective label on the front. The temperature station is ready to work for you.

The station will receive data signal from the outdoor sensor in few seconds. Then place the outdoor

sensor in a dry and shaded area outdoor.

BACK-UP BATTERIES

When the power supply is not in use, the station will be powered by the back-up batteries. The LED display is turned off, but time and alarm time remain stored (also in the event of a power failure).

To change batteries:

1. Place your unit face down on a flat and soft surface.
2. Use screw driver to open the backup battery compartment door located on the back of the unit.
3. Slide and remove the battery cover at the bottom of your unit.
4. Insert one new CR2032 lithium battery into the battery compartment with the "+" side facing up as indicated.
5. Close the battery compartment door and tighten the battery door screw.

DCF SIGNAL RECEPTION AND SIGNAL INDICATOR

After the station is powered up, it starts to receive DCF signal. The icon flashes.

Receiving DCF signal (icon flashing)

Successful reception (icon becomes static)

Failed reception (icon disappear)

During reception, press the WAVE button will display reception mode and signal strength indication:

When strong DCF signal is detected, display shows with 3 bars

When weak or no DCF signal is detected, display shows

During reception, the signal strength may move from 1 bar to 2 bars to 3 bars. This is normal since the clock is detecting DCF signal and other signals in the air at the same time. Press the SET button to return to the time display with icon flashing.

Successful reception or failed reception

Icon becomes static on (stop blinking) when reception is successful.

Icon disappears when reception is failed.

Automatic reception and manual reception

The station starts automatic reception everyday at 1:00, 2:00, and 3:00. If it fails to receive the DCF signal at 3:00, it will start reception at 4:00. If it fails again, it will start reception at 5:00. If it fails again, it will start automatic reception at 1:00 again in the next day.

For manual reception simply press and hold the / W A V E button, the station will gives a short beep and starts manual reception. Press and hold the / W A V E button to stop DCF reception.

When the temperature station is receiving the radio controlled time signal, the display will turn dimmer. It will resume to the brightness level which you originally selected after the radio controlled time reception is completed.

During DCF reception all buttons do not function and it does not take temperature measurement. The temperature readings will get stable and become more accurate after the station clock is powered up for around 30 minutes.

To cancel DCF reception permanently

Press and hold the / W A V E and the button at the same time for 2 seconds, the station will give 2 short beeps and the radio controlled function is permanently disabled.

To resume the radio controlled function, press and hold the / W A V E and the button at the same time for 2 seconds, the station will give 2 short beeps and will start DCF reception immediately.

TIME SETTING

1. Press and hold the SET button for 2 seconds, hour digits flash. Press the or the button to set the hours.
2. Then press the SET button again, the minute digits flash. Press the or the button to set the minutes.
3. Then press the SET button again, display shows 05 and flash. Press the or the button to set snooze duration from 5 minutes to 60 minutes.
4. Then press the SET button again, display shows 00 and flash. Press the or the button to set the time zone:

"-01" GMT +0 (United Kingdom)

"00" GMT +1 (Central European time)

"01" GMT +2 (Eastern European time)

Note: Time zone can only set when the clock successfully receives a radio signal.

1. Press the SET button again to store the settings and return to normal time display. The clock will return to normal mode in around 10 seconds if no further press of any other buttons.

Note: The time is displayed in 24-hour display format.

ALARM SETTING

(default alarm setting is 6:00 AM)

1. Press and hold the ALM button until the AL icon appears on the display, the hour digits flash. Press the or the button to set the desired alarm hours.
2. Press the ALM button again, the minute digits flash. Press the or the button to set the desired alarm minutes.
3. Press the ALM button again to store the alarm settings and return to normal time display. The clock will return to normal mode in around 10 seconds if no further press of any other buttons.

To turn on or off the alarm

Single press the ALM button during normal time display to turn on or off the alarm. When the alarm function is turned on the AL icon appears on top of the time digits.

Note: Alarm duration is 2 minutes.

To use the snooze function

When time reaches the set alarm time, the station will give a beep sound to wake you up. The AL icon will flash.

1. Press SNOOZE once to stop the alarm temporarily, AL icon keeps flashing. The alarm will beep again after the set snooze duration.
2. To stop the alarm, press any button except the SNOOZE button when alarm is beeping. The alarm will stop and ALicon becomes static. The Alarm will beep again same time next day.

DIMMER FUNCTION

Press the SNOOZE / DIMMER button to adjust high or low brightness of the LED display.

TROUBLE SHOOTING

In case the station shows false digits, it may be affected by electrostatic discharge or interferences from other devices. Press the RESET button on the back of the station. The station will be reset to default setting of time and calendar and it will start to receive radio controlled time signal again.

If you lose the outdoor temperature

When the outdoor temperature digits show "---", the wireless transmission is either interrupted or lost. Press and hold the button of the station, then bring in the outdoor sensor and take out the batteries and reinstall to your outdoor transmitter. If you continue to lose the outdoor temperature display, try placing the transmitter in a different location until you have smooth transmission of temperature data.

Note: Keep in mind that the outdoor transmitter only has a 30 meter transmission range in open area with no obstructions. Each obstruction between the transmitter and the station (roof, walls, floors, ceilings, thick trees, etc.) will effectively cut the transmission range in half.

Precautions

• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  Install batteries correctly by matching the polarities (+ / - )
  Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

SPECIFICATIONS

Operation temperature: 0^ to +45^

Temperature measuring range:

Indoor: 0^ C to +50^ C

Outdoor: -50°C to +70°C

(display shows HH.H / LL.L if out of this range)

(display shows HH.H / LL.L if out of this range)

Temperature resolution: 1^

Alarm duration: 2 minutes

Snoopze duration: 5 to 60 minutes

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

WS6815 - GUIDE D'INSTRUCTIONS

STATION DE TEMPERATURE À DEL AVEC HORLOGE RADIOCOMMANDÉE ET FONCTION RÉVEIL

VUE D'ENSEMBLE

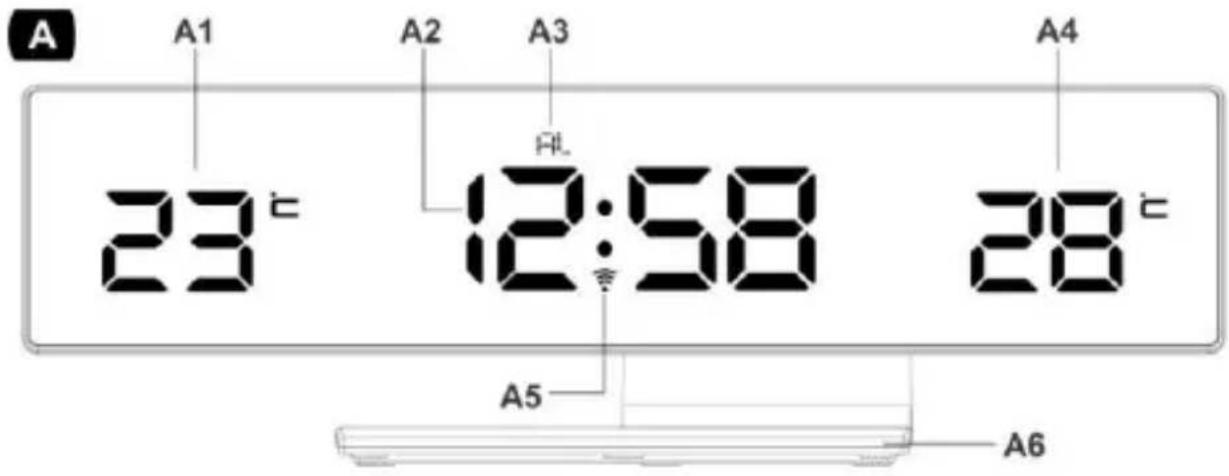

A - Vue de face

A5:indicator RCC A6:sapore

B-Vista superior

B1: botón SNOOZE / DIMMER

C - Vista posterior
