USER MANUAL Track Plus MKII M-AUDIO

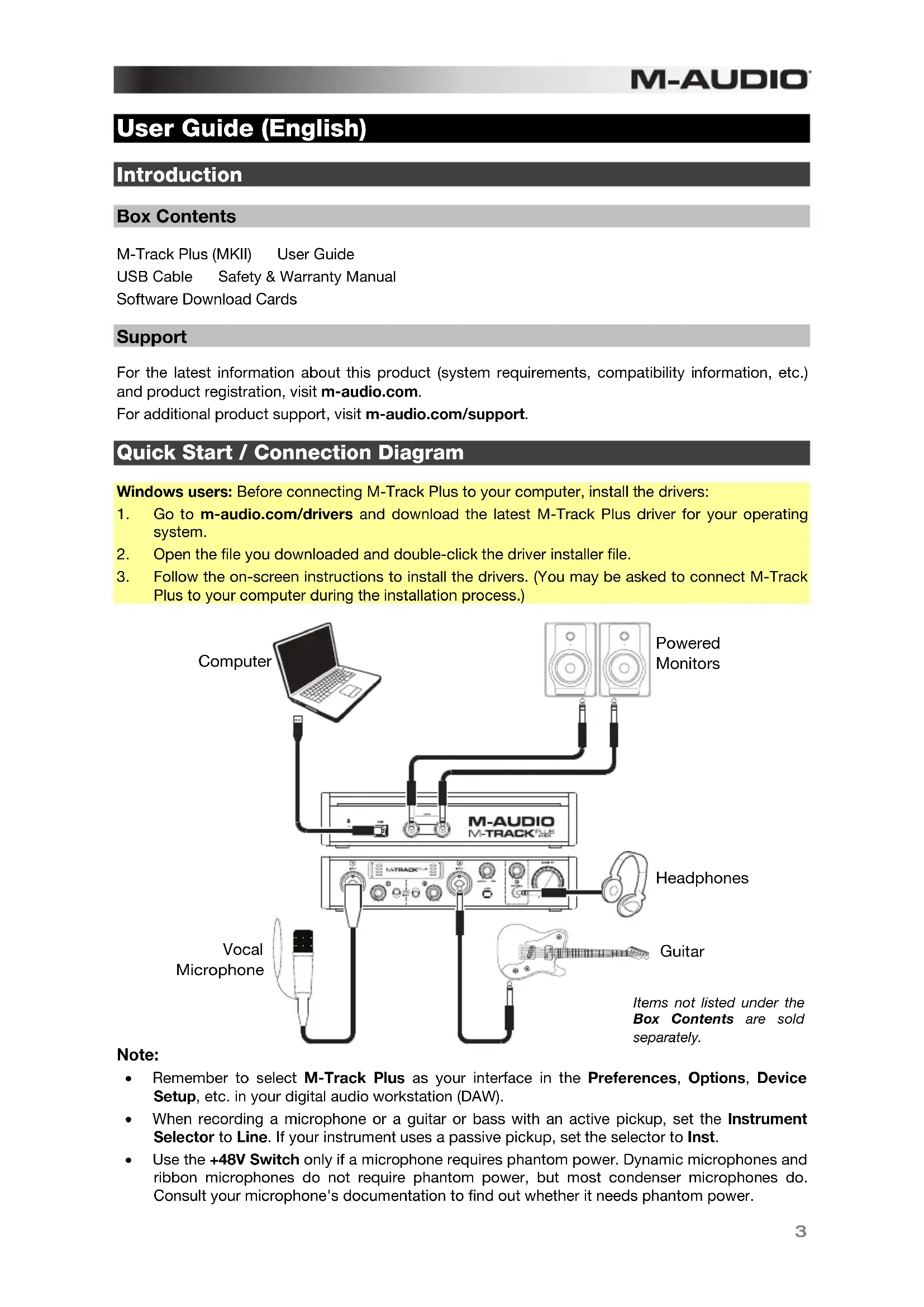

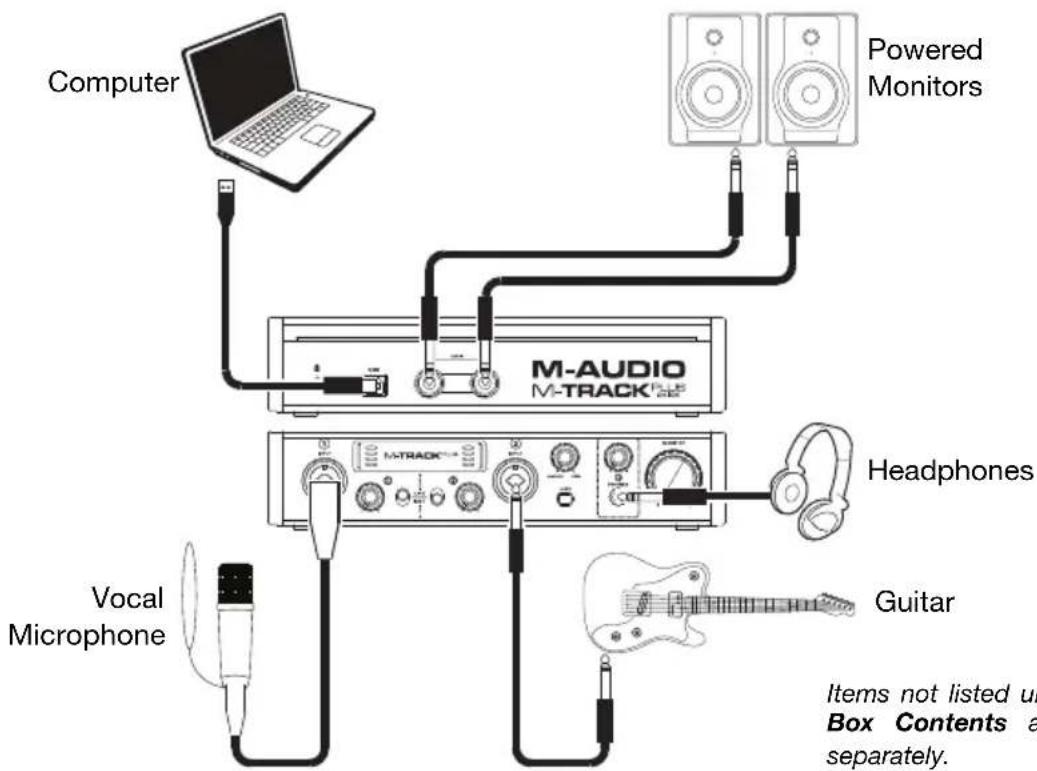

User Guide (English) Introduction Box Contents M-Track Plus (MKII) User Guide USB Cable Safety & Warranty Manual Software Download Cards Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit m-audio.com. For additional product support, visit m-audio.com/support. Quick Start / Connection Diagram Windows users: Before connecting M-Track Plus to your computer, install the drivers:

1. Go to m-audio.com/drivers and download the latest M-Track Plus driver for your operating

2. Open the file you downloaded and double-click the driver installer file.

3. Follow the on-screen instructions to install the drivers. (You may be asked to connect M-Track

Plus to your computer during the installation process.)

• Remember to select M-Track Plus as your interface in the Preferences, Options, Device Setup, etc. in your digital audio workstation (DAW).

• When recording a microphone or a guitar or bass with an active pickup, set the Instrument Selector to Line. If your instrument uses a passive pickup, set the selector to Inst.

• Use the +48V Switch only if a microphone requires phantom power. Dynamic microphones and ribbon microphones do not require phantom power, but most condenser microphones do. Consult your microphone's documentation to find out whether it needs phantom power. Computer Powered Monitors Vocal Microphone Guitar Headphones Items not listed under the Box Contents are sold separately.4

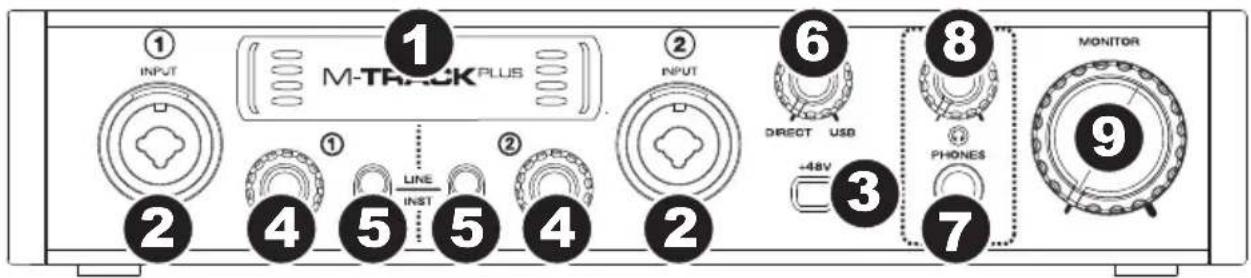

Features Front Panel

1. Display: This display shows the signal level of the inputs. The edges of the display will

light up when M-Track Plus is powered on.

2. Inputs 1 and 2: Connect microphones, line-level devices, or guitars to these inputs with

When activated (lit), phantom power supplies +48V to the XLR mic inputs. Please note that dynamic microphones and ribbon microphones do not require phantom power, while most condenser microphones do. Consult your microphone's documentation to find out whether it needs phantom power.

4. Input Gain: Adjusts the input's gain level. Set this knob so the corresponding level meter

in your DAW displays a "healthy" level during performance—but not so high that the meter "clips" or peaks, causing distortion in the audio.

5. Instrument Selector: When the switch is in the Line position, the input will accept

microphone- or line-level signals. When this switch is in the Inst position, the input will serve as a high-impedance input for connecting guitar or bass instruments.

6. Monitor Mix: Blends any amount of zero-latency signal from all your inputs (Direct) with

the output of your computer (USB). This knob is useful during recording when dealing with the "buffer size" and "latency." The computer takes a short amount of time to process the incoming audio before sending it back out; this time is determined by the buffer size setting. Latency is the resulting delay between the incoming sound (playing your instrument, singing, etc.) and outgoing sound (when you hear it in the DAW). Higher buffer sizes result in higher latency. If your computer is powerful enough, you may be able to set your buffer size low enough such that you may never need direct monitoring. In this case, set the knob all the way to the USB position to monitor only the audio output of your DAW. In other cases, though, low buffer sizes can consume a lot of your computer's CPU and cause audio glitches, so you may need to use a higher buffer setting, resulting in latency. In this case, use a higher buffer size and turn the knob more towards the Direct position to monitor your incoming signal without latency. When listening to the playback, turn it all the way to the USB position.

7. Headphone Output: Connect 1/4" (6.35 mm) TRS headphones to this output. The mix

you hear from this output will be determined by the Monitor Mix knob.

8. Headphone Volume: Adjusts the output volume of the Headphone Output.

9. Monitor Level: Adjusts the output volume of Main Outputs L and R, which should be

connected to your powered monitors or amplifier system.5

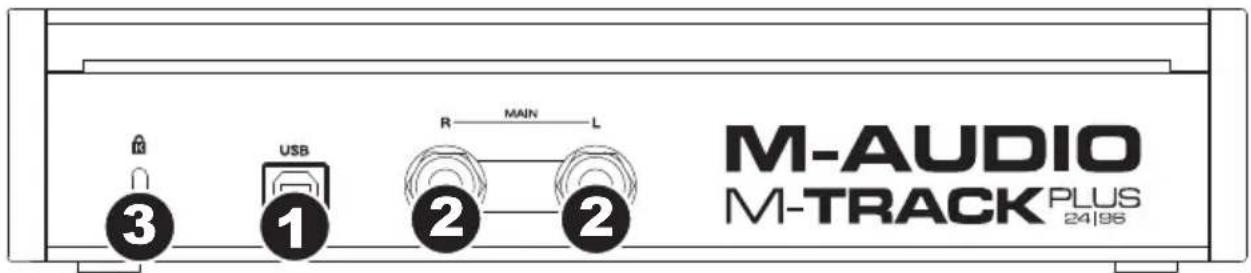

1. USB Port: This connection will allow you to send audio to/from a computer. Use a USB

cable to connect the M-Track Plus to a computer. The M-Track Plus requires a USB 2.0 connection.

2. Main Outputs L and R: Use standard 1/4" (6.35 mm) TRS cables to connect these

outputs to your powered monitors, an amplifier system, etc. Their levels are controlled by the Monitor Level knob.

3. Kensington Lock Slot: You can use this Kensington lock slot to secure M-Track Plus to

Appendix (English) Technical Specifications All specifications are measured at 20 kHz bandwidth. Specifications are subject to change without notice. Mic Inputs 1–2 (balanced XLR) Frequency Response 20 Hz – 20 kHz (+0.1 dB) Dynamic Range 104 dB (A-weighted) Signal-to-Noise Ratio 104 dB (1 kHz, +1.4 dBu, A-weighted) THD+N 0.003% (1 kHz, +2 dBu input, -0.8 dBFS) Preamp EIN -133 dBu (max gain, 40 Ω source, A-weighted) -126 dBu (max gain, 150 Ω source, unweighted) Sensitivit

Inst Inputs 1–2 (unbalanced 1/4" [6.35 mm] TS) Frequency Response 20 Hz – 20 kHz (+0.1 dB) THD+N 0.022% (1 kHz, -1 dBFS) Sensitivit

Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS) Frequency Response 20 Hz – 20 kHz (+0.3 dB) Dynamic Range / Signal-to-Noise Ratio 102 dB (A-weighted) THD+N 0.008% (1 kHz, -1 dBFS) Max Output Level +2.86 dBu

General Power USB-bus-powered Dimensions (width x depth x height) 9.4" x 4.8" x 2.1" / 23.9 cm x 12.2 cm x 5.3 cm Weight 2.4 lbs. / 1.1 kg

Trademarks and Licenses M-Audio is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries. Kensington and the K & Lock logo are registered trademarks of ACCO Brands. All other product or company names are trademarks or registered trademarks of their respective owners.m-audio.com
