Brand	Ninja
Model	QB3001EUS
Product Type	Smoothie maker (food processor)
Power Supply Voltage	220-240 V, 50-60 Hz
Power	700 W
Cup Capacity	470 ml
Number of Cups Included	2
Material of Containers	BPA-free Plastic
Blade Type	Pro Extractor Blades (sharp blades)
Main Functions	Blending, smoothies
Safety System	Motor thermostat with reset
Motor Base Maintenance	Wipe with a damp cloth, do not immerse
Accessory Cleaning	Dishwasher safe (top rack)
Warranty	2 years
Included Accessories	2 x 470 ml cups, 2 sip lids, 1 set of Pro Extractor Blades
Usage	Household use only
Recycling	Do not dispose with household waste, recycle via collection systems

Frequently Asked Questions - QB3001EUS NINJA

How to use the appliance to make a smoothie?

Add ingredients to the individual cup without exceeding the MAX LIQUID line. Place the blade assembly on the cup and turn clockwise to lock. Turn the cup onto the motor base and press to blend. Once done, lift the cup, remove the blade assembly by turning counterclockwise, then attach the sip lid to take away.

How to clean the blades?

The blades are very sharp. Wash them with warm soapy water using a handled brush to avoid direct contact. You can also place them in the top rack of the dishwasher. Make sure to remove them from the cup before washing.

What to do if the motor does not start?

Check that the cup is properly screwed onto the motor base, that the cord is plugged in, and that the house fuse/circuit breaker is working. Make sure the inside of the motor base is clean. If the appliance has overheated, unplug it and wait 15 minutes before reusing.

Can I put the cups in the dishwasher?

Yes, the cups, lids, and blade assemblies are dishwasher safe. Place them only in the top rack. Always remove the blade assembly and lid before placing the cup in the dishwasher.

How to reset the motor thermostat?

Unplug the appliance and let it cool for about 30 minutes. Remove the lid and blade assembly, empty the container, and make sure no ingredients are blocking the blades. Check that maximum capacities are not exceeded.

What accessories are included?

The appliance comes with 2 individual 470 ml cups, 2 sip lids, and 1 set of Pro Extractor Blades.

What is the warranty on this appliance?

The manufacturer's warranty is 2 years from the date of purchase. It covers defects in design, materials, and workmanship. To register, go to www.ninjakitchen.eu within 28 days of purchase.

Can I blend hot liquids?

No, do not blend hot liquids. This could cause a buildup of pressure and steam, posing a burn hazard. Only use room temperature or cold ingredients.

How to lock the blade assembly onto the cup?

Place the blade assembly on top of the cup and turn it clockwise until it is securely fastened. To remove, turn counterclockwise.

Are the containers BPA-free?

Yes, the cups and other accessories are made from BPA-free plastic, compliant with food safety standards.

USER MANUAL QB3001EUS NINJA

SMOOTHIE MAKER -SEKOITIN

SMOOTHIE MAKER

GEM DEN TIL FREMTIDGE OPSLAG.

5 After blending in gaftes baegeret op for at fjere dot.

Scan QR code using mobile device

RECORD THIS INFORMATION

Model Number:
Serial Number:
Date of Purchase:
(Keep receipt)
Store of Purchase:

TECHNICAL SPECIFICATIONS

Voltage: 220-240V, 50-60Hz

Power: 700 Watts

CUP CAPACITY:

470ml

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

CONTENTS

Important Safeguards. 24
Getting to Know Your Ninja Smoothie Maker 27
Before First Use 28
Blending Instructions 29
Care & Maintenance. 30
Cleaning 30
Storing. 30
Resetting the Motor Thermostat 30
Troubleshooting Guide. 31

This marking indicates this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the

return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.

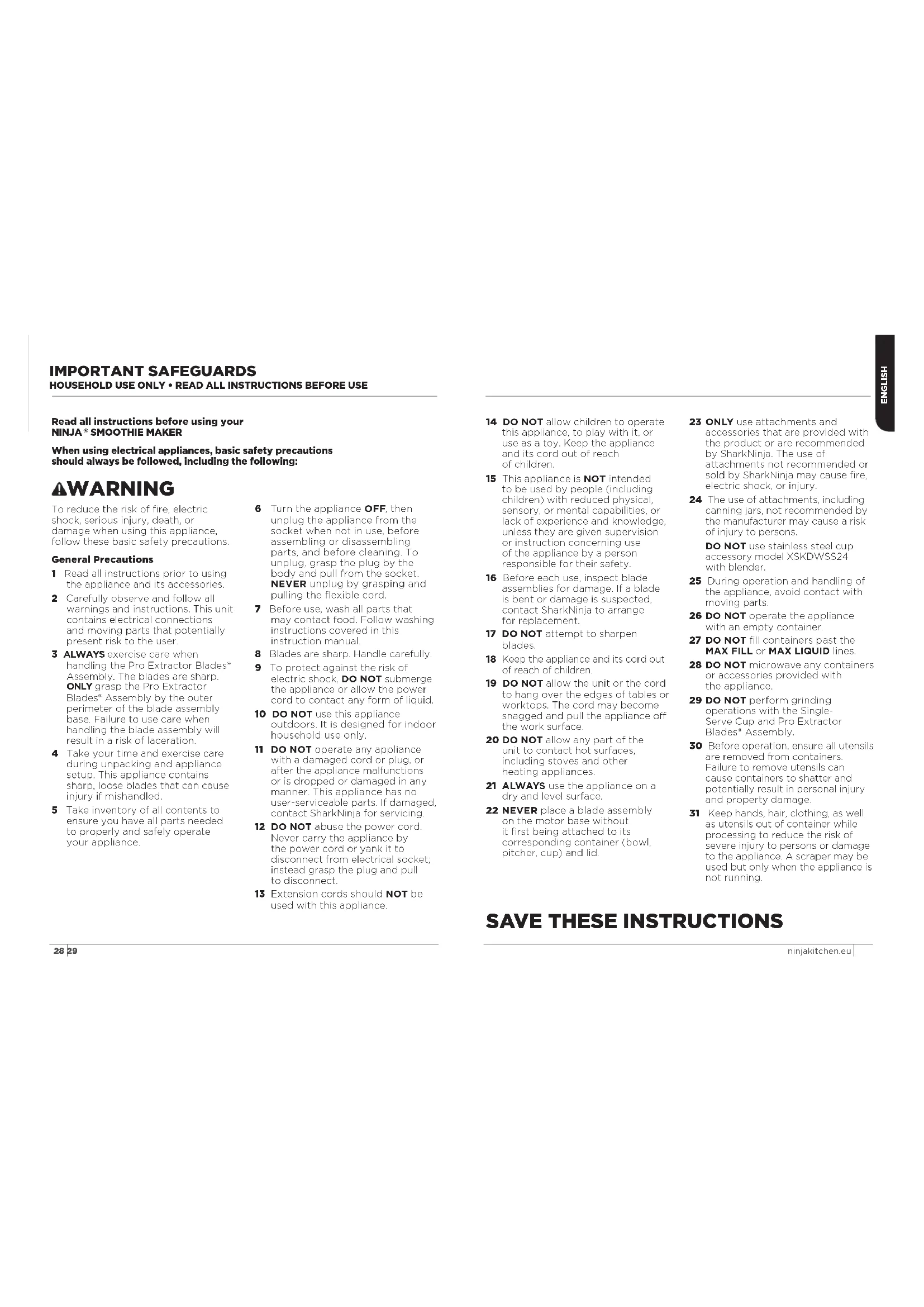

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY·READ ALL INSTRUCTIONS BEFORE USE

Read all instructions before using your NINJA® SMOOTHIE MAKER

When using electrical appliances, basic safety precautions should always be followed, including the following:

AWARNING

To reduce the risk of fire, electric shock, serious injury, death, or damage when using this appliance, follow these basic safety precautions.

General Precautions

1 Read all instructions prior to using the apolpliance and its accessories.
2 Carefully observe and follow all warnings and instructions. This unit contains electrical connections and moving parts that potentially present risk to the user.
3 ALWAYS exercise care when handling the Pro Extractor Blades Assembly. The blades are sharp. ONLY grasp the Pro Extractor Blades Assembly by the outer perimeter of the blade assembly base. Failure to use care when handling the blade assembly will result in a risk of laceration.
4 Take your time and exercise care during unpacking and appliance setup. This appliance contains sharp, loose blades that can cause injury if mishandled.
Take inventory of all contents to ensure you have all parts needed to properly and safely operate your appliance.

6 Turn the appliance OFF, then unplug the appliance from the socket when not in use, before assembling or disassembling parts, and before cleaning. To unplug, grasp the plug by the body and pull from the socket. NEVER unplug by grasping and pulling the flexible cord.
7 Before use, wash all parts that may contact food. Follow washing instructions covered in this instruction manual.
8 Blades are sharp. Handle carefully.
9 To protect against the risk of electric shock, DO NOT submerge the appliance or allow the power cord to contact any form of liquid.
10 DO NOT use this appliance outdoors. It is designed for indoor household use only.
11 DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. This appliance has no user-serviceable parts. If damaged, contact SharkNinja for servicing.
12 DO NOT abuse the power cord. Never carry the appliance by the power cord or yank it to disconnect from electrical socket; instead grasp the plug and pull to disconnect.
13 Extension cords should NOT be used with this appliance.

14 DO NOT allow children to operate this appliance, to play with it, or use as a toy. Keep the appliance and its cord out of reach of children.
15 This appliance is NOT intended to be used by people (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Before each use, inspect blade assemblies for damage. If a blade is bent or damage is suspected, contact SharkNinja to arrange for replacement.
17 DO NOT attempt to sharpen blades.
18 Keep the appliance and its cord out of reach of children.
19 DO NOT allow the unit or the cord to hang over the edges of tables or worktops. The cord may become snagged and pull the appliance off the work surface.
20 DO NOT allow any part of the unit to contact hot surfaces, including stoves and other heating appliances.
21 ALWAYS use the appliance on a dry and level surface.
22 NEVER place a blade assembly on the motor base without it first being attached to its corresponding container (bowl, pitcher, cup) and lid.

23 ONLY use attachments and accessories that are provided with the product or are recommended by SharkNinja. The use of attachments not recommended or sold by SharkNinja may cause fire, electric shock, or injury.
24 The use of attachments, including canning jars, not recommended by the manufacturer may cause a risk of injury to persons. DO NOT use stainless steel cup accessory model XSKDWSS24 with blender.
25 During operation and handling of the appliance, avoid contact with moving parts.
26 DO NOT operate the appliance with an empty container.
27 DO NOT fill containers past the MAX FILL or MAX LIQUID lines.
28 DO NOT microwave any containers or accessories provided with the appliance.
29 DO NOT perform grinding operations with the Single-Serve Cup and Pro Extractor Blades* Assembly.
30 Before operation, ensure all utensils are removed from containers. Failure to remove utensils can cause containers to shatter and potentially result in personal injury and property damage.
31 Keep hands, hair, clothing, as well as utensils out of container while processing to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but only when the appliance is not running.

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY · READ ALL INSTRUCTIONS BEFORE USE

Read all instructions before using your NINJA SMOOTHIE MAKER

When using electrical appliances, basic safety precautions should always be followed, including the following:

AWARNING

To reduce the risk of fire, electric shock, serious injury, death, or damage when using this appliance, follow these basic safety precautions.

GENERAL PRECAUTIONS

32 NEVER operate the appliance without lids and caps in place. DO NOT attempt to defeat the interlock mechanism. Ensure the container and lid are properly installed before operation.
33 DO NOT expose the containers and accessories to extreme temperature changes. They may experience damage.
34 NEVER leave the appliance unattended while in use.
35 DO NOT blend hot liquids. Doing so may result in pressure buildup and steam exposure that can pose a risk of the user being burned.
36 DO NOT remove the cup from the motor base while the appliance is running.
37 Remove the Pro Extractor Blades Assembly from the Single-Serve Cup upon completion of blending. DO NOT store ingredients before or after blending them in the cup with the blade assembly attached. Some foods may contain active ingredients or release gases that will expand if left in a sealed container, resulting in excessive pressure buildup that can pose a risk of injury. For ingredient storage in the cup, use only Spout Lid to cover.

38 The maximum wattage rating for this appliance is based on the configuration of the Pro Extractor Blades Assembly and Single- Serve Cup. Other configurations may draw less power or current.
39 Max ON time is 1 minute under 900W load. If the appliance overheats, a thermal switch will become activated and shut off the motor. To reset, unplug the appliance and let it cool down for approximately 30 minutes before using again.
40 DO NOT process dry ingredients without adding liquid to the Single-Serve Cup. The Single-Serve Cup is not intended for dry blending.
41 To protect against risk of electrical shock, DO NOT immerse the motor base in water or other liquid.
42 DO NOT spray the motor base with any liquids. Turn off and unplug the motor base before cleaning.

Indicates to read and review instructions to understand operation end use of product.

Indicates the presence of a hazard that can cause personal injury, death or substantial property damage if the warning included with this symbol is ignored.

For indoor and household use only.

SAVE THESE INSTRUCTIONS

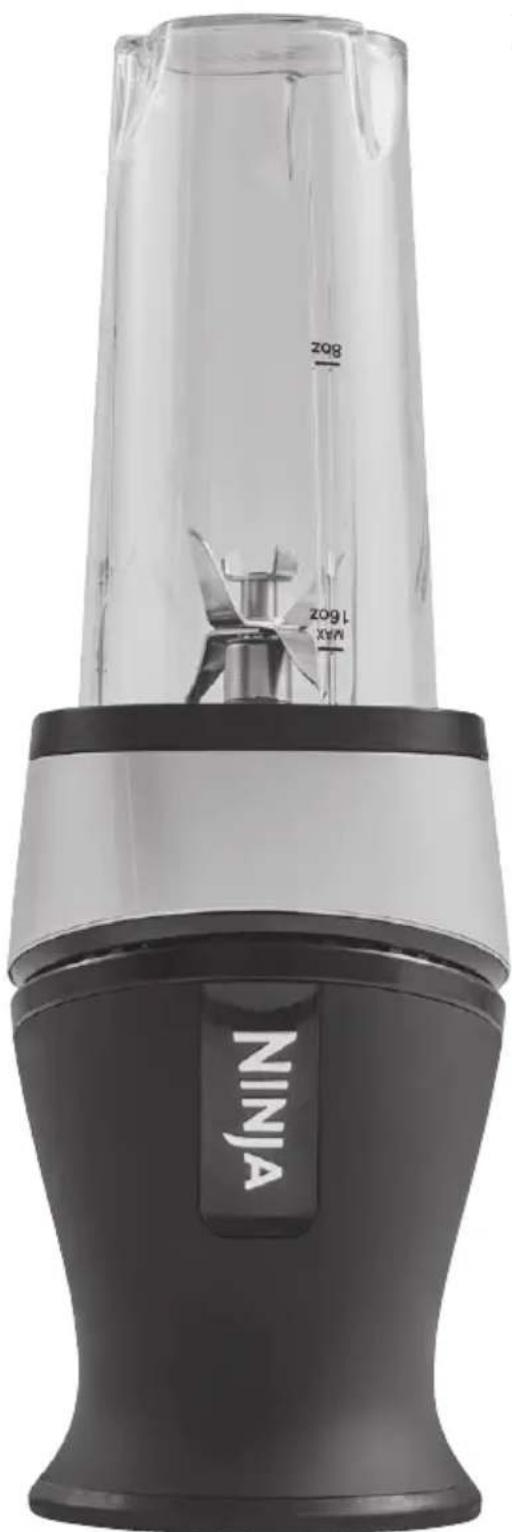

GETTING TO KNOW YOUR NINJA® SMOOTHIE MAKER

MAIN UNIT

A 470ml Single Serve Cups (x 2)
B Ninja Blade Assembly
C Motor Base with Power Cord
D Spout Lid (x2)

To order additional parts and accessories, visit ninjakitchen.eu

BEFORE FIRST USE

DID YOU KNOW?

• You can take your drinks on the go using the Spout Lids.
• The containers, blade assemblies, and lids are BPA free and dishwasher safe.

NOTE: Handle the Pro Extractor Blades Assembly by grasping around the perimeter of the blade assembly case.

NOTE: All attachments are dishwasher safe. It is recommended that the lids, containers and bade assemblies be placed on the top rack of the dishwasher. Ensure bade assemblies and lids are removed from their containers before pacing in the dishwasher. Exercise care when handling bade assemblies.

1 Remove all packaging materials from the appliance. Exercise care when unpacking blade assemblies. All blade assemblies are sharp.
2 Wash containers, lids, and blade assemblies in warm, soapy, water using a dishwashing utensil with a handle to avoid direct contact with the blades. Exercise care when handling blade assemblies, as the biades are sharp.
3 Thoroughly rinse and air-dry all parts.

BLENDING INSTRUCTIONS

1 Add ingredients to the Single-serve Cup. DO NOT add ingredients past the MAX LIQUID line on the cup.

2 Place the Blade Assembly on the top of the cup and turn clockwise to seal.
3 Turn cup upside down so the bottom of the blade assembly is flat on the worktop.
4 Place the cup upside down on the motor base. Press down on the cup to pulse or blend.

5 When blending is complete, lift up the cup to remove.

Turn cup over so blade assembly is on too. Twist blade assembly anti-clockwise to remove. To take your blended contents on the go, place the spout lid on cup and turn clockwise to seal. Do not store with the blades attached.

TROUBLESHOOTING GUIDECARE & MAINTENANCE

CLEANING

1 Separate all parts.
2 Wash all containers in warm, soapy water with a soft cloth.

3 Hand-Washing

Wash cups, lids and blade assembly in warm, soapy water. Use a dishwashing utensil with a handle to avoid direct contact with the blades. Exercise care when handling the blade assembly as the blades are sharp. Thoroughly rinse and air-dry all parts.

Dishwasher

Cups, lids, and blade assembly are dishwasher safe. Place the cups, lids, and blade assembly on the top rack of the dishwasher ONLY. Ensure the blade assembly and lid are removed from the cup before placing in the dishwasher.

Motor Base

Turn off the unit and unplug the motor base before cleaning Wipe motor base with a clean, damp cloth.

NEVER directly spray the base with water or other liquids.

DO NOT use abrasive cloths/pads/ brushes to clean the base, as this can dull or scratch the surface.

RESETTING THE MOTOR THERMOSTAT

This unit features a unique safety system that prevents damage to the motor and drive system should you inadvertently overload it. If the unit is overloaded, the motor will be temporarily disabled. Should this occur, follow the reset procedure below.

1 Unplug the unit from the socket.
2 Allow the unit to cool for approximately 30 minutes.
3 Remove the container's lid and blade assembly. Emoty the container and ensure no ingredients are jamming the blade assemblies.

IMPORTANT: Ensure that maximum capacities are not exceeded. This is the most typical cause of appliance overload.

WARNING: To reduce the risk of shock and unintended operation, turn power off and unplug unit before troubleshooting.

Motor doesn't start or blade assembly doesn't rotate

Make sure the cup is securely placed onto the motor base.
- Check that the plug is securely inserted into the socket.
Check fuse or breaker in your home. Replace the fuse/reset breaker.
- Check that the inside of the motor base is clean and there is no food blocking the connection between the motor base and the cup.
- There is too much food in the container. Unplug the motor base. Remove some food and try again.
The unit has overheated. Unplug and wait approximately 15 minutes before using again.

Food collects on the slides of the cup

• Too much food is being processed at one time. Turn the motor base off. When the blades stop rotating, remove the cup from the motor base. Remove some of the food being processed.

Snow from ice cannot be achieved

• Do not use ice that has been sitting out or has started to melt.
• Be sure to use short pulses in the beginning to break up large pieces.

PRODUCT REGISTRATION

TWO (2) YEAR LIMITED GUARANTEE

When you buy a product in Germany as a consumer, you get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these statutory rights against your retailer. However, at Ninja we are so confident about the quality of our products (the "Products") that we give you an additional manufacturer's guarantee of up to two years. This guarantee only applies to the Product if it is bought in new and unused condition. These terms and conditions relate to our guarantees only - your statutory rights as a buyer are unaffected. Please note that the 2 year guarantee is available in all EU countries and in the UK if it stops being an EU country during the guarantee term.

The conditions below describe the prerequisites and scope of our guarantees which are issued by SnarkNinja Germany GmbH, Kurt-Blaum-Platz 8, 63450 Hanau (Germany) ("us", "our" or "we"). They do not affect your statutory rights or the obligations of your retailer and your contract with them. The same applies if you have purchased the product directly from Ninja.

Ninja Guarantees

A household kitchen appliance constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Our customer service helpline (0800 000 9063) is open from 9.00am to 6.00pm Monday - Friday, it's free to call and you'll be put straight through to a Ninja representative. You'll also find online support at www.ninja kitchen.eu.

How do I register my guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

Model no.
Serial Number (only if available)
- Date of purchase of the Product (receipt or delivery note)

To register online, please visit www.ninjakitchen.eu

IMPORTANT

The guarantee covers your Product for 2 years starting on the date of purchase.
- Please keep the receipt at all times. Should you need to use your guarantee we will need the receipt to verify the information supplied to us is correct. The inability to produce a valid receipt will invalidate your guarantee.

What are the benefits of registering my guarantee?

When you register your guarantee, you can choose to receive our newsletter containing tips, advice and competitions. Hear the latest news about new Ninja technology and launches. If you register your guarantee online, you'll get instant confirmation that we've received your details.

For details of our privacy policy please visit www.ninjakitchen.eu

How long are our Products guaranteed for?

Our confidence in our design and quality control means that your Product is guaranteed for a total of two years.

What is covered by the guarantee?

Repair or replacement (at Ninja's discretion) of your Product, including all parts and labour in case of any defect in design, materials and workmanship (including transport and shipping costs). Our guarantee is in addition to your legal rights as a consumer.

What is not covered by the guarantee?

Normal wear and tear
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the kitchen appliance which is not in accordance with the Ninja® Instruction Manual supplied with your machine.
- Use of the kitchen appliance for anything other than normal domestic household purposes.
- Use of parts not assembled or installed in accordance with the operating instructions.
- Use of parts and accessories which are not Ninja® Genuine Components.
- Faulty installation (except where installed by Ninja®).
- Repairs or alterations carried out by parties other than Ninja or its agents, Repairs or alterations carried out by parties other than Ninja or its agents, unless you can show that the repairs or alterations carried out by others are not related to the defect for which you exercise the guarantee.

What happens when my guarantee runs out?

Ninja does not design products to last; for a limited time. We do appreciate that there may be a desire for our customers to want to repair their kitchen appliance after the guarantee has elapsed. In this case please contact our free phone customer service line and ask about our guarantee program, on 0800 000 9063.

Where can I buy genuine Ninjago spares and accessories?

Ninja spares and accessories are developed by the same engineers who developed your Ninja kitchen appliance. You'll find a full range of Ninja spares, replacement parts and accessories for all Ninja machines at www.ninjakitchen.eu

Piso remoemoor that using non-Ninja spares may invalidate your manufacturer's guarantee. However, your statutory rights are unaffected.

TACK FÖR DITT KöP AV

en Ninja' Smoothle Maker

REGISTRERA DITT KOP

nikakitchen.eu

Shanna QR-kod med mobilnet

NOTERA DENNA INFORMATION

ModelNumber:

Serienummer:

Inkopsdatum:

(Spara kvittot)

Inkopsbutik:

TEKNISKA SPECIFIKATIONER

Spanning: 220-240 V-, 50-60 Hz

Effekt: 700 Watt

BAGARENS KAPACITET:

∠70m

LAS INSTRUKTIONERNA NOGGRANT OCH BEHÄLL DEM FÜR FRAMTIDA BRUK.

63450 Hanau, Germany.

www.ninjakitchen.eu

Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice.

NINJA is a registered trademark of SharkNinja Operating LLC.

© 2020 SharkNinja Operating LLC.

QB3001EUS_30_IB_MP_200623_Mv1

PRINTED IN CHINA
