USER MANUAL Professional Plus Duo BN750 NINJA

KEEP FOR FUTURE REFERENCE

TECHNICAL SPECIFICATIONS Voltage: 220-240V, 50-60Hz~ Power: 1200 Watts TIP: You can find the model and serial numbers on the QR code label on the back of the unit by the power cord.

ninjakitchen.eu Scan QR code using mobile device This marking indicates this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling. ENGLISH

ninjakitchen.euSAVE THESE INSTRUCTIONS

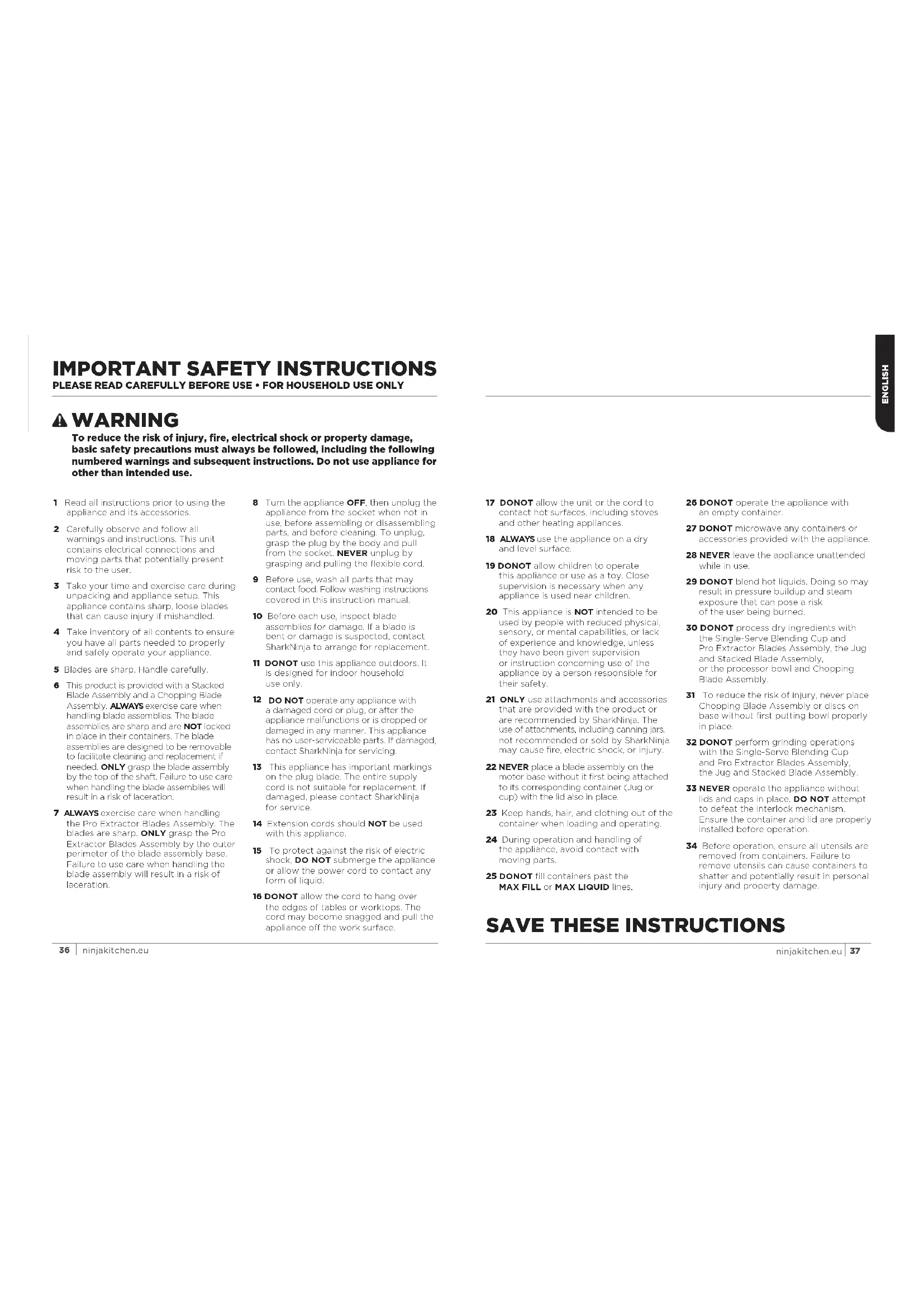

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE • FOR HOUSEHOLD USE ONLY 1 Read all instructions prior to using the appliance and its accessories 2 Carefully observe and follow all warnings and instructions This unit contains electrical connections and moving parts that potentially present risk to the user 3 Take your time and exercise care during unpacking and appliance setup This appliance contains sharp, loose blades that can cause injury if mishandled 4 Take inventory of all contents to ensure you have all parts needed to properly and safely operate your appliance 5 Blades are sharp Handle carefully 6 This product is provided with a Stacked Blade Assembly and a Chopping Blade Assembly ALWAYS exercise care when handling blade assemblies The blade assemblies are sharp and are NOT locked in place in their containers The blade assemblies are designed to be removable to facilitate cleaning and replacement if needed ONLY grasp the blade assembly by the top of the shaft Failure to use care when handling the blade assemblies will result in a risk of laceration 7 ALWAYS exercise care when handling the Pro Extractor Blades Assembly The blades are sharp ONLY grasp the Pro Extractor Blades Assembly by the outer perimeter of the blade assembly base Failure to use care when handling the blade assembly will result in a risk of laceration 8 Turn the appliance OFF, then unplug the appliance from the socket when not in use, before assembling or disassembling parts, and before cleaning To unplug, grasp the plug by the body and pull from the socket NEVER unplug by grasping and pulling the flexible cord 9 Before use, wash all parts that may contact food Follow washing instructions covered in this instruction manual 10 Before each use, inspect blade assemblies for damage If a blade is bent or damage is suspected, contact SharkNinja to arrange for replacement 11 DO NOT use this appliance outdoors It is designed for indoor household use only

DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner This appliance has no user-serviceable parts If damaged, contact SharkNinja for servicing 13 This appliance has important markings on the plug blade The entire supply cord is not suitable for replacement If damaged, please contact SharkNinja for service 14 Extension cords should NOT be used with this appliance 15 To protect against the risk of electric shock, DO NOT submerge the appliance or allow the power cord to contact any form of liquid 16 DO NOT allow the cord to hang over the edges of tables or worktops The cord may become snagged and pull the appliance o the work surface 17 DO NOT allow the unit or the cord to contact hot surfaces, including stoves and other heating appliances 18 ALWAYS use the appliance on a dry and level surface 19 DO NOT allow children to operate this appliance or use as a toy Close supervision is necessary when any appliance is used near children 20 This appliance is NOT intended to be used by people with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety 21 ONLY use attachments and accessories that are provided with the product or are recommended by SharkNinja The use of attachments, including canning jars, not recommended or sold by SharkNinja may cause fire, electric shock, or injury 22 NEVER place a blade assembly on the motor base without it first being attached to its corresponding container (Jug or cup) with the lid also in place 23 Keep hands, hair, and clothing out of the container when loading and operating 24 During operation and handling of the appliance, avoid contact with moving parts 25 DO NOT fill containers past the MAX FILL or MAX LIQUID lines 26 DO NOT operate the appliance with an empty container 27 DO NOT microwave any containers or accessories provided with the appliance 28 NEVER leave the appliance unattended while in use 29 DO NOT blend hot liquids Doing so may result in pressure buildup and steam exposure that can pose a risk of the user being burned 30 DO NOT process dry ingredients with the Single-Serve Blending Cup and Pro Extractor Blades Assembly, the Jug and Stacked Blade Assembly, or the processor bowl and Chopping Blade Assembly 31 To reduce the risk of injury, never place Chopping Blade Assembly or discs on base without first putting bowl properly in place 32 DO NOT perform grinding operations with the Single-Serve Blending Cup and Pro Extractor Blades Assembly, the Jug and Stacked Blade Assembly 33 NEVER operate the appliance without lids and caps in place DO NOT attempt to defeat the interlock mechanism Ensure the container and lid are properly installed before operation 34 Before operation, ensure all utensils are removed from containers Failure to remove utensils can cause containers to shatter and potentially result in personal injury and property damage WARNING To reduce the risk of injury, fire, electrical shock or property damage, basic safety precautions must always be followed, including the following numbered warnings and subsequent instructions Do not use appliance for other than intended use ENGLISH

ninjakitchen.euSAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE • FOR HOUSEHOLD USE ONLY WARNING To reduce the risk of injury, fire, electrical shock or property damage, basic safety precautions must always be followed, including the following numbered warnings and subsequent instructions Do not use appliance for other than intended use 35 Keep hands and utensils out of containers while chopping to reduce the risk of severe personal injury or damage to the blender/food chopper A scraper may be used ONLY when the blender or processor is not running When using the processor, always use food pusher to add food NEVER add food by hand 36 If you find unmixed ingredients sticking to the sides of the cup, stop the appliance, remove the blade assembly, and use a scraper to dislodge ingredients 37 DO NOT open the Jug’s pour spout cap while blender is operating 38 If you find unmixed ingredients sticking to the sides of the Jug, stop the appliance, remove the lid, and use a spatula to dislodge ingredients NEVER insert your hands into the Jug, as you may contact one of the blades and experience a laceration 39 DO NOT attempt to remove the container or lid from the motor base while the blade assembly is still spinning Allow the appliance to come to a complete stop before removing lids and containers 40 If the appliance overheats, a thermal switch will activate and temporarily disable the motor To reset, unplug the appliance and allow it to cool for approximately 15 minutes before using again 41 DO NOT expose the containers and accessories to extreme temperature changes They may experience damage 42 Upon completion of processing, ensure the blade assembly is removed BEFORE emptying container’s contents Remove the blade assembly by carefully grasping the top of the shaft and lifting it from the container Failure to remove the blade assembly before emptying the container results in a risk of laceration 43 If using the Jug’s pour spout, hold the cover in place on the container or ensure lid lock is engaged when pouring to avoid risk of injury 44 Remove the Pro Extractor Blades Assembly from the Single-Serve Cup upon completion of blending DO NOT store ingredients before or after blending them in the cup with the blade assembly attached Some foods may contain active ingredients or release gases that will expand if left in a sealed container, resulting in excessive pressure buildup that can pose a risk of injury For ingredient storage in the cup, use only Spout Lid to cover 45 The maximum wattage rating for this appliance is based on the configuration of the Pro Extractor Blades Assembly and Single-Serve Cup Other configurations may draw less power or current 46 DO NOT submerge the motor base or control panel in water or other liquids DO NOT spray motor base or control panel with any liquid 47 DO NOT attempt to sharpen blades 48 Turn o the appliance and unplug the motor base before cleaning PARTS

PARTS A Jug Lid B 21L* Total Crushing® Jug C Motor Base (attached power cord not shown) D Stacked Blade Assembly E Spout Lid F Pro Extractor Blades Assembly G 700ml Single-Serve Cup *18L max liquid capacity There are a variety of accessories that are compatible with this blenderseries To purchase more accessories and find great recipes, visit ninjakitchen.eu NOTE: The top flap of your box shows the select accessories that are included with your model ENGLISH

ninjakitchen.eu1 Remove all packaging materials from the unit Exercise care when unpacking blade assemblies, as the blades are sharp 2 The Stacked Blade Assembly is NOT locked in place in their containers Handle the Stacked Blade Assembly by grasping the top of the shaft 3 Handle the Pro Extractor Blades Assembly by grasping around the perimeter of the blade assembly base 4 Wash containers, lids, and blade assemblies in warm, soapy, water using a dishwashing utensil with a handle to avoid direct contact with the blades Exercise care when handling blade assemblies, as the blades are sharp 5 Thoroughly rinse and air-dry all parts 6 Wipe control panel with a soft cloth Allow it to dry completely before using

IMPORTANT: Review all warnings on pages 36-38 before proceeding. DID YOU KNOW?

• You can take your drinks on the go using the spout lid NOTE: All attachments are BPA free and dishwasher safe It is recommended that the containers, lids, and blade assemblies be placed on the top rack of the dishwasher Ensure blade assemblies and lids are removed from the containers before placing in the dishwasher Exercise care when handling blade assemblies FEATURES BLEND Make drinks containing fresh or frozen fruit, liquids and ice, or blend together dips, dressings and salsas MAX BLEND Ideal for tougher ingredients including skins, seeds and stems or when you want an even smoother result CRUSH Turn ice and frozen ingredients into blended frozen drinks and desserts AUTO-IQ PROGRAMS   Use the Power button to turn the unit on or o AUTO-IQ® PROGRAMS Intelligent preset programs combine unique blending and pausing patterns that do the work for you Once a preset program is selected, it will start immediately and automatically stop when blending is complete To stop blending before the end of the program, press the currently active button again NOTE: The unit can detect which container is installed on the motor base Only the functions available for a particular container will illuminate on the control panel MANUAL PROGRAMS LOW, MEDIUM, and HIGH When selected, each of these speeds runs continuously until pressed again to turn o They do not work in conjunction with any Auto-iQ programs PULSE O ers greater control of pulsing and blending Operates only when PULSE is pressed Use short presses for short pulses and long presses for long pulses ENGLISH

ninjakitchen.eu1 Plug in motor base and place on a clean, dry, level surface such as a worktop or table 2 Lower the Total Crushing Jug onto the motor base The handle should be aligned slightly to the right and the Jug should be oriented so the LOCK symbols are visible on the motor base Rotate the Jug clockwise until it clicks into place

USING THE TOTAL CRUSHING® JUG

3 Exercising care, grasp the Stacked Blade Assembly by the top of the shaft and place it onto the drive gear inside the Jug Note that the blade assembly will fi t loosely onto the drive gear 4 Add ingredients to the Jug DO NOT add ingredients past the MAX LIQUID line on the Jug 5 Place the lid on the Jug, aligning the triangle symbol on the lid with the triangle symbol on the handle Press down on the handle until it clicks into place The triangle symbols MUST be aligned for the lid to lock and the unit to operate Once the lid is locked in place, press the Power button to turn unit on The available program buttons will illuminate and the unit will be ready for use IMPORTANT: Review all warnings on pages 36-38 before proceeding. NOTE: Auto-iQ® programs have pauses and changes in speed throughout the cycle NOTE: DO NOT add ingredients before installing the Stacked Blade Assembly NOTE: If the Stacked Blade Assembly is not fully seated, you will not be able to install and lock the lid 6a If using an Auto-iQ® program, fi rst select the program that best suits your recipe The preset feature will automatically stop at the end of the program To stop the unit at any time, press the currently active button again 6b If using a manual program, select your desired speed Once the ingredients have reached your desired consistency, press the active button again, and wait for the unit to come to a complete stop 7 To remove the Jug from the motor base, turn the Jug anti-clockwise and then lift up 8a To pour out thinner mixtures, ensure the lid is locked in place, then open the pour spout cap IMPORTANT: As a safety feature, if the Jug and lid are not properly installed, the timer will display

and the motor will be disabled. If this happens, repeat step 5 on the following page. When the Jug and lid are properly installed, the program button LEDs will illuminate, indicating the appliance is ready to use. 8b For thicker mixtures that cannot be emptied through the pour spout, remove the lid and Stacked Blade Assembly before pouring To remove the lid, press the RELEASE button and lift the handle To remove the blade assembly, carefully grasp it by the top of the shaft and pull straight up The Jug can then be emptied 9 Turn the unit o by pressing the Power button Unplug the unit when fi nished Refer to the Care & Maintenance section for cleaning and storage instructions NOTE: The handle on the jug lid will not fold down unless it is attached to the jug ENGLISH

ninjakitchen.eu1 Plug in motor base and place on a clean, dry, level surface such as a worktop or table 2 Add ingredients to the Single-Serve Cup DO NOT add ingredients past the MAX LIQUID line 3 Install the Pro Extractor Blades Assembly onto the top of the cup Twist the lid clockwise until it’s sealed tightly 4 Turn the cup upside down and install on the motor base Align the tabs on the cup with the slots on the base, then rotate cup clockwise until it clicks into place Once the cup is locked in place, press the Power button to turn unit on The available program buttons will illuminate and the unit will be ready for use IMPORTANT: Review all warnings on pages 36-38 before proceeding. NOTE: Auto-iQ® programs have pauses and changes in speed throughout the cycle

USING THE SINGLE-SERVE CUP

5a If using an Auto-iQ® program, fi rst select the program that best suits your recipe The preset feature will automatically stop at the end of the program To stop the unit at any time, press the currently active program again 5b If using a manual program, select your desired speed Once the incredients have reached your desired consistency, press the active button again, and wait for the unit to come to a complete stop 6 To remove the cup from the motor base, turn the cup anti-clockwise and then lift up 7 Remove the Pro Extractor Blades Assembly by twisting the cap anti- clockwise DO NOT store blended contents with Pro Extractor Blades Assembly attached Exercise care when handling the blade assembly, as the blades are sharp 8 Turn the unit o by pressing the Power button Unplug the unit when fi nished Refer to the Care & Maintenance section for cleaning and storage instructions 9 To enjoy your drink on the go, place the Spout Lid onto the Single-Serve Cup and twist lid clockwise until fi rmly sealed For storing ingredients in the cup, use only the Spout Lid to cover ENGLISH

ninjakitchen.euCARE & MAINTENANCE CLEANING Separate all parts Wash all containers in warm, soapy water with a soft cloth

• Hand-Washing Wash blade assemblies in warm, soapy water using a dishwashing utensil with a handle to avoid direct contact with the blades Exercise care when handling blade assemblies as the blades are sharp Thoroughly rinse and air-dry all parts

• Dishwasher All attachments are dishwasher safe It is recommended that the lids, containers, and blade assemblies be placed on the top rack of the dishwasher ONLY Ensure the blade assemblies are removed from their containers before placing in the dishwasher Exercise care when handling blade assemblies

• Motor Base Turn o the unit and unplug the motor base before cleaning Wipe motor base with a clean, damp cloth DO NOT use abrasive cloths, pads, or brushes to clean the base STORING Wrap the power cord around the cord wrap on the back of the motor base Store the unit upright and store all blade assemblies inside or attached to their respective containers with their lids locked in place DO NOT store blended or unblended ingredients in the Single-Serve Cup with the Pro Extractor Blades assembly attached DO NOT stack items on top of the containers Store any remaining attachments alongside the unit or in a cabinet where they will not be damaged or create a hazard

This unit features a unique safety system that prevents damage to the motor and drive system should you inadvertently overload the it If the unit is overloaded, the motor will be temporarily disabled Should this occur, follow the reset procedure below 1 Unplug the unit from the socket 2 Allow the unit to cool for approximately 15 minutes 3 Remove the container’s lid and blade assembly Empty the container and ensure no ingredients are jamming the blade assembly IMPORTANT: Ensure that maximum capacities are not exceeded This is the most typical cause of appliance overload

ORDERING REPLACEMENT PARTS

To order additional parts and attachments, visit ninjakitchen.eu TROUBLESHOOTING GUIDE

WARNING: To reduce the risk of shock and unintended operation,

turn power o and unplug unit before troubleshooting Unit doesn’t turn on

• Make sure unit is plugged in Display will read “--” once connected to power

• Place container on base and rotate it clockwise until container clicks into place Press the Power button to turn unit on, and the available programs will illuminate indicating the unit is ready for use Display reads “Er”

• If the display reads “Er”, unplug the unit from the socket and allow it to cool for 15 minutes Remove the container’s lid and blade assembly and empty the contents to ensure no ingredients are jamming the blade assembly Lid/Pro Extractor Blades Assembly is hard to install on the cup

• Place the cup on a level surface Carefully place the lid or Pro Extractor Blades Assembly on the top of the cup and align the threads so the lid/Pro Extractor Blades Assembly sits flat on the cup Twist clockwise until you have a tight seal Unit doesn’t mix well; ingredients get stuck

• Using the Auto-IQ® programs is the easiest way to achieve great results The pulses and pauses allow the ingredients to settle toward the blade assembly If ingredients are routinely getting stuck, adding some liquid will usually help

• When filling the cup, start with fresh fruit or vegetables, then leafy greens or herbs Next add liquids or yoghurt, then seeds, powders, or nut butters Finally, add ice or frozen ingredients Motor base won’t stick to worktop or tabletop

• Make sure surface and suction feet are wiped clean Suction feet will only stick to smooth surfaces

• Suction feet will not stick on some surfaces such as wood, tile, and non-polished finishes

• DO NOT attempt to use unit when the motor base is stuck to a surface that is not secure (cutting board, platter, plates, etc) Unit is dicult to remove from worktop for storage

• Place your hands underneath both sides of the motor base and gently pull the unit up and toward you Unit displays a blinking “ ” message

• The unit can detect which container is on the motor base You may be trying to use a program that is not designed for the container you have installed The programs will light up, indicating which programs are available for each container The unit doesn’t create snow from solid ice

• DO NOT use ice that has been sitting out or has started to melt Use ice straight from the freezer

• Start with a few pulses and then use a continuous blending cycle The jug lid handle will not fold down

• If not attached to the jug, the handle will not fold down For storage, place the lid on the jug and press down on the handle until it clicks into place

• Start with a few pulses and then use a continuous blending cycle ENGLISH

When you buy a product in Germany as a consumer, you get the benefit of legal rights relating to the quality of the product (your “statutory rights”). You can enforce these statutory rights against your retailer. However, at Ninja we are so confident about the quality of our products (the “Products”) that we give you an additional manufacturer’s guarantee of up to two years. This guarantee only applies to the Product if it is bought in new and unused condition. These terms and conditions relate to our guarantees only – your statutory rights as a buyer are unaected. Please note that the 2 year guarantee is available in all EU countries and in the UK if it stops being an EU country during the guarantee term. The conditions below describe the prerequisites and scope of our guarantees which are issued by SharkNinja Germany GmbH, Kurt–Blaum–Platz 8, 63450 Hanau (Germany) (“us”, “our” or “we”). They do not aect your statutory rights or the obligations of your retailer and your contract with them. The same applies if you have purchased the product directly from Ninja. Ninja® Guarantees A household kitchen appliance constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality. Our customer service helpline (0800 000 9063) is open from 9.00am to 6.00pm Monday - Friday. It’s free to call, and you’ll be put straight through to a Ninja representative. You’ll also find online support at www.ninjakitchen.eu. How do I register my guarantee? You can register your guarantee online within 28 days of purchase. To save time, you’ll need the following information about your machine:

• Date of purchase of the Product (receipt or delivery note) To register online, please visit www.ninjakitchen.eu IMPORTANT

• The guarantee covers your Product for 2 years starting on the date of purchase.

• Please keep the receipt at all times. Should you need to use your guarantee we will need the receipt to verify the information supplied to us is correct. The inability to produce a valid receipt will invalidate your guarantee. What are the benefits of registering my guarantee? When you register your guarantee, you can choose to receive our newsletter containing tips, advice and competitions. Hear the latest news about new Ninja technology and launches. If you register your guarantee online, you’ll get instant confirmation that we’ve received your details. For details of our privacy policy please visit www.ninjakitchen.eu How long are our Products guaranteed for? Our confidence in our design and quality control means that your Product is guaranteed for a total of two years. What is covered by the guarantee? Repair or replacement (at Ninja’s discretion) of your Product, including all parts and labour in case of any defect in design, materials and workmanship (including transport and shipping costs). Our guarantee is in addition to your legal rights as a consumer. What is not covered by the guarantee?

• Normal wear and tear.

• Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the kitchen appliance which is not in accordance with the Ninja® Instruction Manual supplied with your machine.

• Use of the kitchen appliance for anything other than normal domestic household purposes.

• Use of parts not assembled or installed in accordance with the operating instructions.

• Use of parts and accessories which are not Ninja® Genuine Components.

• Faulty installation (except where installed by Ninja®).

• Repairs or alterations carried out by parties other than Ninja or its agents, Repairs or alterations carried out by parties other than Ninja or its agents, unless you can show that the repairs or alterations carried out by others are not related to the defect for which you exercise the guarantee. What happens when my guarantee runs out? Ninja does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their kitchen appliance after the guarantee has elapsed. In this case please contact our free phone customer service help line and ask about our guarantee program, on 0800 000 9063 . Where can I buy genuine Ninja spares and accessories? Ninja spares and accessories are developed by the same engineers who developed your Ninja kitchen appliance. You’ll find a full range of Ninja spares, replacement parts and accessories for all Ninja machines at www.ninjakitchen.eu Please remember that using non-Ninja spares may invalidate your manufacturer's guarantee. However, your statutory rights are unaected. ENGLISH

ninjakitchen.euSUOMI

ninjakitchen.euNOTES NOTES 163ninjakitchen.eu 162 ninjakitchen.euIllustrations may dier from actual product. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice. AUTO-IQ, NINJA and TOTAL CRUSHING are registered trademarks of SharkNinja Operating LLC. © 2020 SharkNinja Operating LLC

BN750EU_Series_IB_MP_Mv1_200624 NOTE: Save these instructions. Keep for future reference.
