USER MANUAL RoboVac 12 eufy

For FAQs and more information, please visit:

www.eufylife.com

Owner's Manual

RoboVac

T2108/T2109/T2110 51005001162 V02

Bedienungsanleitung | Manual del propietario

Manuel d'utilisation | Guida di Utilizzo | Handeiding

English 01

Deutsch 25

Español 49

Français 73

Italiano 97

Nederlands 121

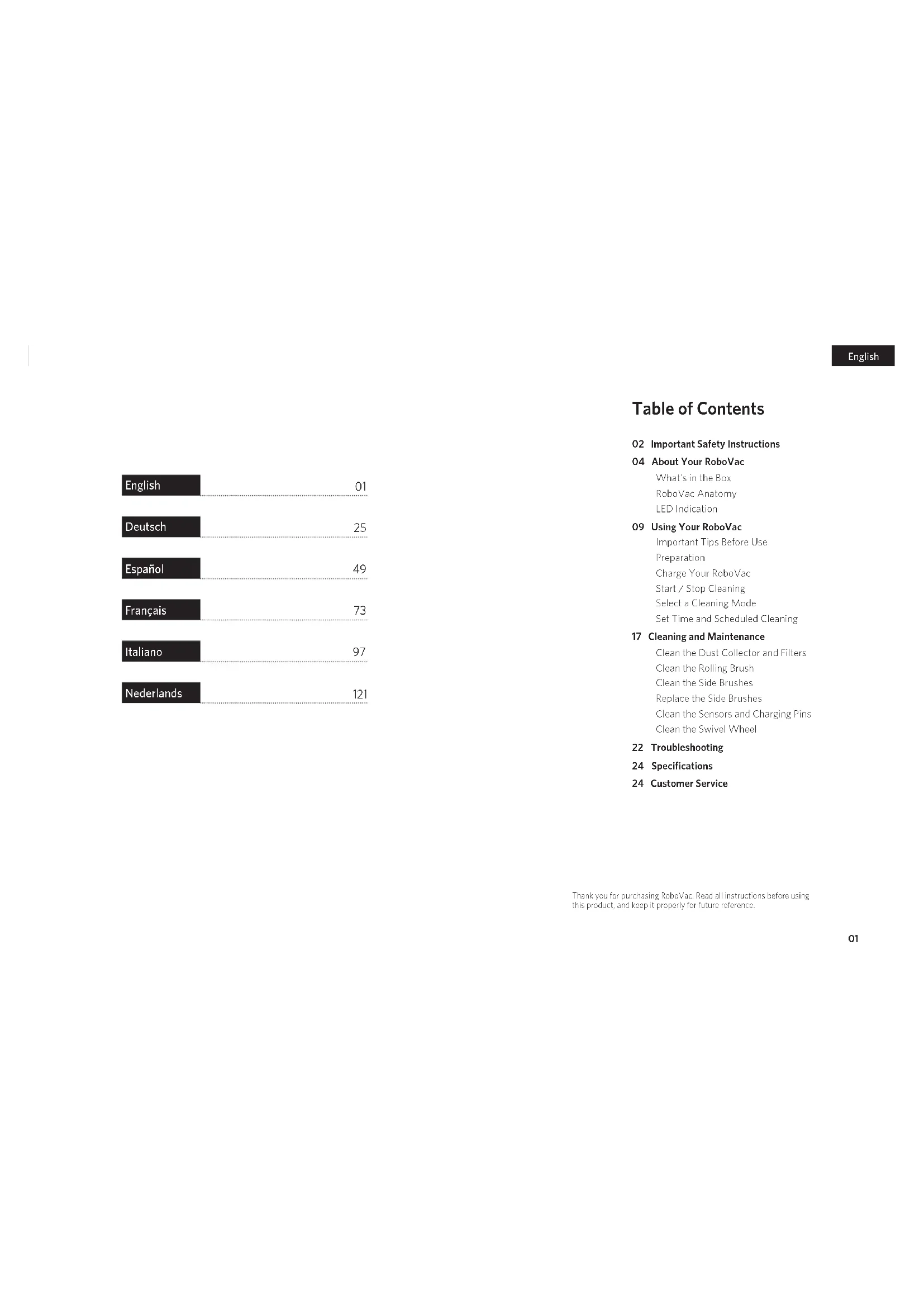

Table of Contents

02 Important Safety Instructions

04 About Your RoboVac

What's in the Box

RoboVac Anatomy

LED Indication

09 Using Your RoboVac

Important Tips Before Use

Preparation

Charge Your RoboVac

Start / Stop Cleaning

Select a Cleaning Mode

Set Time and Scheduled Cleaning

17 Cleaning and Maintenance

Clean the Dust Collector and Filters

Clean the Rolling Brush

Clean the Side Brushes

Replace the Side Brushes

Clean the Sensors and Charging Pins

Clean the Swivel Wheel

22 Troubleshooting

24 Specifications

24 Customer Service

Thank you for purchasing RoboVac. Read all instructions before using this product, and keep it properly for future reference.

English

EnglishEng

Important Safety Instructions

To reduce the risk of injury or damage, read these safety instructions carefully and keep them at hand when setting up, using, and maintaining this device.

WARNING SYMBOLS USED

This is the safety alert symbol. This symbol alerts you to potential hazards that could result in property damage and/or serious bodily harm or death.

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of this device in a safe way and understand the hazards involved.
  • Children should be supervised to ensure they do not play with this device.
• Cleaning and maintenance shall not be performed by children without adult supervision.
• This device is only to be used with the power supply unit provided.
• For the purposes of recharging the battery, only use the detachable power supply unit provided with this device.
• The battery must be removed from this device before this device is disposed of. To remove the battery from this device, first remove the screws on the bottom, then remove the main PCB and unscrew the battery cover using a screwdriver. Remove the battery by disconnecting the quick connector.
• The used battery should be placed in a sealed plastic bag and disposed of safely according to local environmental regulations.
• The external flexible cable or cord of the power supply unit cannot be replaced; if the cord is damaged, the power supply unit shall be disposed of.
  • This device is for indoor use only.
• This device is not a toy. Do not sit or stand on this device. Small children and pets should be supervised when this device is operating.

• Store and operate this device in room temperature environments only.

• Clean with a cloth dampened with water only.

• Do not use this device to pick up anything that is burning or smoking.
• Do not use this device to pick up spills of bleach, paint, chemicals, or anything wet.
• Before using this device, pick up objects like clothing and loose paper. Lift up cords for blinds or curtains, and move power cords and fragile objects out of the way. If this device passes over a power cord and drags it, an object could be pulled off a table or shelf.
• If the room to be cleaned has a balcony, a physical barrier should be used to prevent access to the balcony and to ensure safe operation.
• Do not place anything on top of this device.
• Be aware that this device moves around on its own. Take care when walking in the area where this device is operating to avoid stepping on it.
• Do not operate this device in areas with exposed electrical outlets on the floor.
• Do not expose the electronics of this device, its battery, or the integrated Charging Base. There are no user-serviceable parts inside.
• Do not use this device on an unfinished, unsealed, waxed or rough floor. It may result in damage to the floor and this device. Use only on hard floor surfaces or low-pile carpet.
• This device has been designed to be used on floors without scratching them. We still recommend that you test this device on a small area of the room to be cleaned to ensure no scratches are made before cleaning the whole room.

Notice

This symbol on the device or its packaging indicates: Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities. Contact your local authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obliged to take back your old appliance for disposal at least free of charge.

EnglishEng

About Your RoboVac

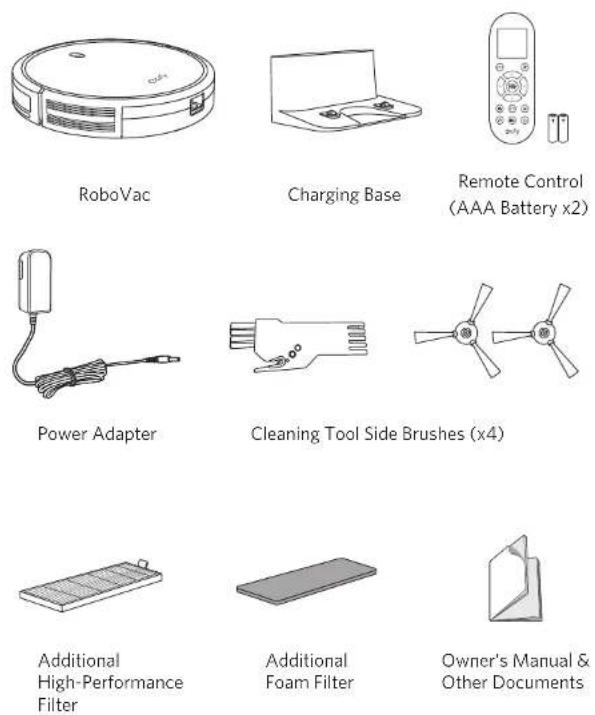

What's in the Box

RoboVac Anatomy

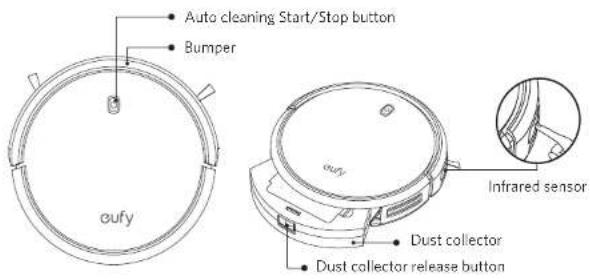

Top & Side

Auto cleaning Start/Stop button Bumper eufy eufy Infrared sensor Dust collector Dust collector release button

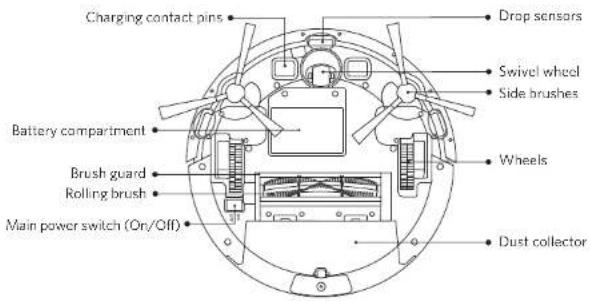

Bottom

Charging contact pins Drop sensors Swivel wheel Side brushes Battery compartment Wheels Brush guard Rolling brush Main power switch (On/Off) Dust collector

EnglishEng

Dust Collector

Pre-filter High-performance filter Foam filter

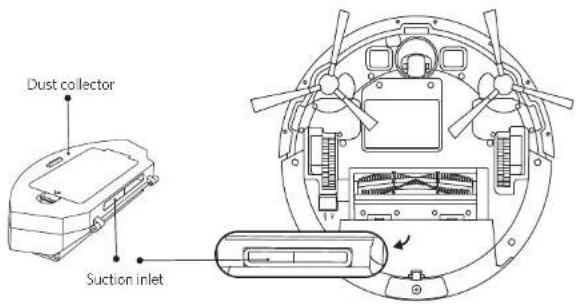

Suction Inlet

Dust collector Suction inlet

Charging Base

Status light Charging contact pins Power cord storage compartment Power socket

Remote Control

1 2 3 4 5 6 7 8 9 10 cufy

1 Start Auto cleaning
2 Start Auto cleaning Stop cleaning
3 Start Spot cleaning
4 Start Edge cleaning
5 Adjust time
6 Adjust suction power level in Auto/Single Room Cleaning mode
7 Control cleaning direction manually Adjust the hour and minute
8 Start Single Room cleaning
9 Return RoboVac to Charging Base
10 Schedule Auto cleaning start time

Remote Control Display

1 2 3 4 5 6 7 8 9 10 AUTO Standard BoostIQ Max 88:88 AM PM 88:88 AM PM

1 Returning to Charging Base
2 Auto cleaning mode selected
3 Spot cleaning mode selected
4 Edge cleaning mode selected
5 Single Room clearing mode selected
6 Clock
7 Standard suction power enabled
8 Boost Q ^™ dynamic suction power enabled
9 Max suction power enabled
10 Scheduled cleaning time

Install 2 AAA batteries before using the remote control for the first time. Make sure the positive and negative ends are facing the correct polarity direction as marked in the battery compartment.

EnglishEng

LED Indication

You can see the status of RoboVac from the LED indicator.

Status
Breaching orange Charging
Solid blue Standay / Cleaning / Fully charged
Solid orange Low power and returning to Charging Base
Off	• RoboVac is off.• To conserve power, the light automatically turns off when RoboVac is not docked to the Charging Base and has been inactive for 1 minute.
Flashing / Solid red + Booping	RoboVac has an error.Refer to the "Troubleshooting>Error Tone" section in this manual for solutions.

Using Your RoboVac

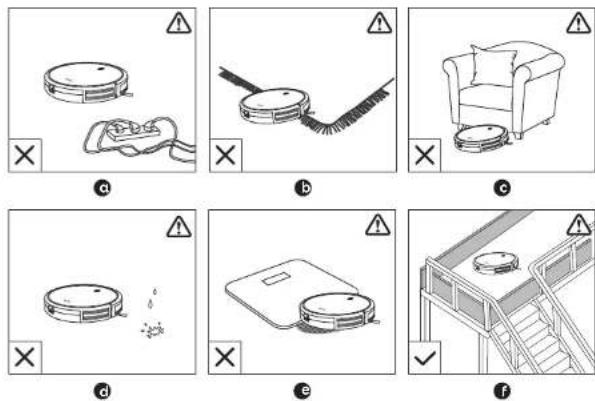

Important Tips Before Use

Remove power cords and small objects from the floor that may entangle RoboVac.
b Fold tasse ed edges of area rugs underneath to prevent tangling RoboVac. Avoid cleaning very dark-colored high-site rugs or rugs thicker than 102 in/26 mm as they may cause RoboVac to malfunction
- Keep RoboVac away from spaces lower than 2.87 in/73 mm to prevent RoboVac from getting stuck. If necessary, place a physical barrier to block off the problem areas.
d Keep RoboVac away from wet areas
e RoboVac may climb on top of objects less than 0.63 in/16 mm in height. Remove these objects if possible
Anti-crop sensors prevent RoboVac from tumbling down stairs and steep drops. They may work less effectively if dirty or used on reflective/very dark-colored floors. It is recommended to place physical barriers to block off areas where RoboVac may fall.

Place physical barriers in front of fireplaces and areas that may cause damage to RoboVac if entered.

EnglishEng

Preparation

1 Install the side brushes before use.

Diagram showing a hand holding a small device next to a circular device with internal components and two arrows indicating motion (no text or symbols present)

2 Turn on the main power switch on the bottom of RoboVac.

OFF ON

Remove the sticker next to the power switch, and the foam blocks beside the bumper before use

3 Place the Charging Base on a hard, level surface and against a wall.

4 Remove objects within 3 ft/1 m of the left and right side and within 6 ft/2 m of the front of the charging base.

3ft/1m 3ft/1m 6ft/2m

5 Connect the round connector of the adapter into the power socket on the Charging Base and the other end into a wall outlet.

- When the Charging Base connects to AC power, the LED indicator on the Charging Base is SOLID WHITE.

- Install the Charging Base in a loronias that RoboVac can easily access. It is recommended to place the Charging Base against a wall, and on a rare-level surface rather than on rags or carpets. - Always keep the Charging Base plugged in, otherwise RoboVac will not automatically return to it.

Charge Your RoboVac

• RoboVac has a pre-installed rechargeable battery that has to be fully charged before use.
• RoboVac returns to the Charging Base at the end of a cleaning cycle or when its battery is running low.

Method 1: Attach RoboVac to the Charging Base by aligning its charging pins with the charging pins on the base.

Line drawing of a vacuum cleaner next to a mounted device (no text or symbols)

EnglishEng

Method 2: Press In the remote control to return RoboVac to the Charging Base.

Turn off the main power switch if RoboVac will not be used for a long period of time. To preserve the battery's lifespan, recharge at least once every 6 months

Start / Stop Cleaning

Make sure the main power switch on the bottom of RoboVac is turned on before use.

1. Press On RoboVac or /AUTO on the remote control to start cleaning in Auto Mode.

Diagram showing three labeled circular components: a top view with a magnified view of the 'AUTO' button, and two cross-sectional views labeled 'TIME' and 'TIME', likely illustrating a mechanical or electrical system.

1. Press On RoboVac or of the remote control to stop cleaning

Technical diagram showing a circular component with a pointer and a circular dial with 'START' labels, alongside a separate cross-section view.

Select a Cleaning Mode

1. Auto cleaning

RoboVac optimizes its cleaning path by selecting different cleaning modes automatically until cleaning is complete. This is the most commonly used cleaning mode.

Press On RoboVac or / on the remote control to start cleaning in Auto Mode.

Diagram showing three labeled circular components: a top view with a hand pointing to a device, a middle circle labeled 'AUTO', and a bottom-right circle with 'AUTO' and 'AUTO' buttons.

- RoboVac will return to the Charging Base automatically when the battery level becomes low or when RoboVac finishes cleaning.

- By default, RoboVac starts in Auto cleaning mode when it is turned on.

BoostIQ™ Feature

When the BoostIQ™ feature is enabled, RoboVac will automatically increase the suction power if it detects stronger power is needed to ensure the best clean. BoostIQ™ is ideal for cleaning thicker carpets and hard-to-sweep messes, which will reduce the total cleaning time, but increase the noise level. If the vacuuming noise caused by BoostIQ™ disturbs you, you can disable this feature. This feature only works in Auto and Single Room cleaning modes.

In Auto or Single Room cleaning mode, press on the remote control repeatedly to adjust the suction power level.

• The corresponding icon is displayed on the remote control.

Icon Suction Power Level
Standard	Standard power
BoostIQ	Automatically switches between Standard and Enhanced power (default)
Max	Maximum power

When RobaVac starts cleaning in Auto or Single Room made the next time, it will clean according to the suction power level you previously selected.

EnglishEng

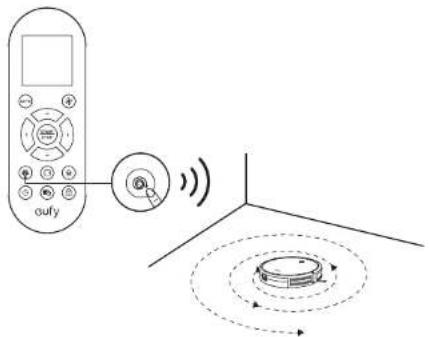

2. Spot cleaning

RoboVac intensively cleans a specific area in a spiral, useful if there is a concentrated area of dust or debris. In Spot mode, RoboVac will stop cleaning after 2 minutes.

Press 📄 on the remote control to start clearing in Spot mode.

Diagram showing a remote control with signal icon and circular device, illustrating wireless signal transmission.

3. Edge cleaning

RoboVac reduces its speed when it detects a wall and then follows the wall to ensure the edge is cleaned thoroughly. In Edge mode, RoboVac will clean for 20 minutes and return to the Charging Base.

Press □ on the remote control to start clearing in Edge mode.

cufy

4. Single Room cleaning

RoboVac intensively cleans one single room and stops after 30 minutes. Select this mode only when one specific room needs to be cleaned. Make sure to confine RoboVac to the room by closing the door.

Press on the remote control to start cleaning in Single Room Mode.

Diagram showing a remote control with signal icon and radio coil, illustrating wireless signal transmission or data flow.

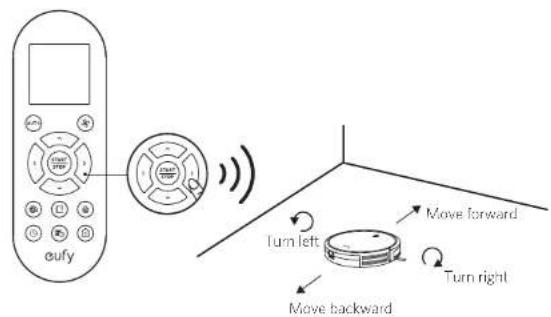

5. Manual cleaning

You can direct RoboVac to clean a particular area by using the directional buttons on the remote control.

oufy Turn left Move forward Turn right Move backward

EnglishEng

Set Time and Scheduled Cleaning

Set Time

Make sure the time is set correctly to your local time before setting a scheduled cleaning.

1 Make sure the main power switch on the bottom of RoboVac is turned on.
2 Press ☐ on the remote control. The time will blink on the display.
3 Press ▲▼□et the "hour" and "minute".

Note: Make sure AM/PM is set correctly.

4 Press 📊 or 🐎 to save the setting. RoboVac will BEEP ONCE to indicate the time has been set.

②

③

4

To ensure the time is set successfully, make sure RoboVac is turned on. You will hear a beep when the time has been set.

Set a Scheduled Cleaning

You can schedule RoboVac to start clearing at a specified time. To cancel a previously scheduled clearing press and hold 3 seconds until RoboVac beeps twice and disappears.

Note: Before setting a scheduled cleaning, make sure the time has been set correctly to your local time; refer to the previous section "Set Time" for how to set the time.

1 Make sure the main power switch on the bottom of RoboVac is turned on
2 Press 📄 on the remote control v-blink on the display.

3 Press ▲ set the "hour" and "minute". Note: Make sure AM/PM is set correctly.
4 Press or START to save the setting. RoboVac will BEEP ONCE to indicate the schedule has been set.

1

②

3

4

To ensure the schedule is set successfully, make sure RoboVac is turned on. You will hear a beep when the schedule has been set.

Cleaning and Maintenance

For optimal performance, follow the instructions below to clean and maintain RoboVac regularly. The cleaning/replacement frequency will depend on your usage habits of RoboVac.

Recommended cleaning/replacement frequency:

RoboVac Part Cleaning Frequency Replacement Frequency
Dust Collector After each use
Filters Once every week Every 2 months
Rolling Brush	Once every weak	Every 6-12 months
Side Brushes	Once every month	Every 3-6 months (or when visibly worn)
Sensors	Once every month	-
Charging Pins	Once every month	-
Swivel Wheel	Once every month	-

EnglishEng

Clean the Dust Collector and Filters

1 Press the dust collector release button to pull the dust collector out.
2 Open and empty the dust collector

Technical line drawing of a mechanical device with exploded and assembled views (no text or symbols)

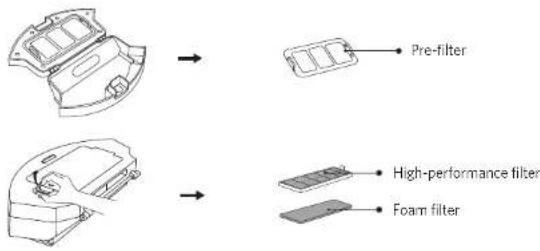

3 Remove the pre-filter by pulling the hooks as shown.

4 Take out the foam filter and high-performance filter.

5 Clean the dust collector and filters with a vacuum cleaner or a clearing brush.

6 Put the filters and pre-filter back together in the dust collector.

Diagram showing a vehicle battery pack assembly process with no text or symbols

7 Push the dust collector back into the main unit.

You can wash the dust collector, pre-filter and foam filter with water. Be sure to air-dry them thoroughly before reossembling. Do not wash the high-performance filter with water, as it may damage the filter and reduce the suction power.

Clean the Rolling Brush

1 Pull on the release tabs to unlock the brush guard as shown.
2 Lift the rolling brush to remove.
3 Clean the rolling brush with the provided cleaning tool or a vacuum cleaner.
4 Reinstall the rolling brush by inserting the fixed protruding end first and then clicking into place.
5 Press down to snap the brush guard into place.

EnglishEng

Clean the Side Brushes

Foreign substances, such as hair, can easily get tangled in the side brushes, and dirt may adhere to them. Be sure to clean them regularly.

1 Remove the side brushes.
2 Carefully unwind and pull off any hair or string that is wrapped between the main unit and the side brushes.
3 Use a cloth campened with warm water to remove dust from the brushes or to gently reshape them.

Line drawing of a hand using a tool to adjust or install electronic components on a circular device (no text or symbols visible)

Only use the side brushes when they are completely dry.

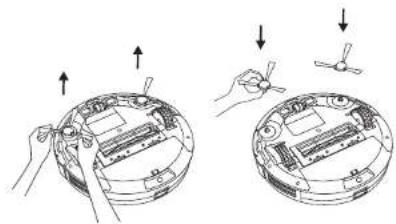

Replace the Side Brushes

The side brushes may become bent or damaged after being used for a period of time. Follow the instructions below to replace them.

Pull off the old side brushes and snap the new ones into place.

Diagram showing two steps of installing or adjusting a device component, with arrows indicating direction of change.

Clean the Sensors and Charging Pins

To maintain the best performance, clean the drop sensors and charging pins regularly.

- Dust off the drop sensors and charging contact pins using a cloth or cleaning brush.

Technical line drawing of a circular mechanical component with internal components and a separate view of a device (no text or symbols)

Clean the Swivel Wheel

Hair or cust particles can easily get entangled in the swivel wheel. Be sure to clean the swivel wheel periodically and as needed.

1 Pull out the swivel wheel.

Technical line drawing of a circular mechanical or electronic component with internal components and an upward arrow indicator (no text or symbols present)

2 Clean any hair or debris wrapped around the wheel or entangled inside the wheel cavity.
3 Reinstall the wheel and push in until it clicks into place.

- You can clean the swivel wheel with water.

Use the swivel wheel only when it is completely dry.

EnglishEng

Troubleshooting

Frequently asked questions

Problems Solutions
RoboVac cannot be activated.	Make sure the main power switch is in the ON position.Make sure the battery is fully charged.Replace the batteries (2 AAA) in the remote control.Make sure the remote control is within range (16 ft/5 m) of RoboVac.If you still have trouble, turn off the main power switch and then turn it back on.
The remote control does not work.	Replace the batteries in the remote control.Make sure RoboVac is turned on and fully charged
RoboVac stops working suddenly.	Check if RoboVac is trapped or stuck on an obstacle.Check if the battery level is too low.If you still have trouble, turn off the main power switch, wait for 2 seconds, and then turn it back on.
You cannot schedule cleanings.	Make sure the main power switch on the bottom of RoboVac is turned on.Make sure the time, time of day (AM/FM), and the scheduled time have been set correctly.Check if RoboVac's power is too low to start cleaning.
Suction power is weak.	Check if any ostructions are blocking the suction inlet.Empty the dust collector.Clean the filters with a vacuum cleaner or a clearing brush.Check if the filters are wet due to water or other liquid on the floor. Air-dry the filters completely before use.
RoboVac cannot be charged.	Check if the indicator on the Charging Base lights up. If not, contact the eufy service center to repair or replace the Charging Base.Dust off the charging contact pins with a dry cloth.Check if you can hear a beep when RoboVac is docked onto the Charging Base. If not, contact the eufy service center to repair or replace the Charging Base.
RoboVac cannot return to the Charging Base.	Remove objects within 3 ft/1 m to the left and right side and within 6 ft/2 m of the front of the Charging Base.When RoboVac is in the vicinity of the Charging Base, it will return more quickly. However, if the Charging Base is located far away, RoboVac will need more time to return. Please be patient as it works its way back.Clean the charging contact pins.

Problems Solutions
The rolling brush does not rotate.	Clean the rolling brush.Check if the rolling brush and brush guard have been installed properly.
RoboVac's movements or travel path are abnormal.	Clean the sensors carefully with a dry cloth.Restart RoboVac by turning the power switch off and on.

Error Tones

When RoboVac is in trouble, it will emit a series of short or long beeps and the red indicator on RoboVac will be solid or flashing.

Flashing red indicator light

Error Tone Cause Solution
Two beeps RoboVac's bumper is stuck.		Iap RoboVac's bumper several times to dislodge any debris that may be trapped underneath.
Three beeps	• RoboVac's drop sensors are dirty.• RoboVac is stuck on the ledge of a staircase and cannot reverse.	• Clean the drop sensors gently with a dry cloth• Place RoboVac in a new location.• Use a physical barrier to block off the problem area.
Four beeps	RoboVac's power level is too low.	Manually charge RoboVac for at least 5 hours.

Solid red indicator light

Error Tone Cause Solution
One beep	RoboVac's left/right wheel is stuck.	Turn off RoboVac and remove any hair or debris from the left/right wheel.
Two beeps	RoboVac's side brush is stuck.	Turn off RoboVac and remove any hair or debris from the side brush.
Three beeps	RoboVac's suction fan is stuck.	Turn off RoboVac, then remove and empty the dust collector.Make sure the suction inlet is not blocked by any hair or debris.
Four beeps	RoboVac's rolling brush is stuck.	Turn off RoboVac and remove any hair or debris from the rolling brush.

English

Deutsch

Specifications

	Product Model T2108/T2109/T2110
	Input	19 V=6 A
	Battery Voltage	DC 14.4 V
	Power Consumption 25 W
	Battery Type	DC 14.4 VLi-ion 2603 mAn
	Dust Collector Capacity	0.6 L
	Cleaning Time Max. 100 mins
	Charging Time 300 - 360 mins
	Input	19 V=6 A
	Output	19 V=6 A

Customer Service

[e-mail]

www.eufylife.com

(US) [phone] Mon-Fri 9:00am - 5:00pm (PT)	(中国) [phone] 周一至周五 9:00 - 17:30
(UK) -44 (0) 1604 936200 Mon-Fri 6:00 - 11:00 (GMT)	(日本) [phone] 月-金 9:00 - 17:00
(DZ) [phone] Mon-Fri 6:00 - 11:00

@EufyOfficial

@EufyOfficial@©vOfficial

@EufyOfficial

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

Inhaltsverzeichnis

Diagram showing a hand holding a small device next to an open circular device with internal components and two directional arrows indicating motion (no text or symbols present)

Diagram showing a vacuum cleaner next to a mounted device with a switch (no text or symbols present)

DeutschDe

Diagram showing three labeled circular icons: a top view with a hand holding a circular object, a middle circle with 'AUTO' label, and a bottom-right circle with 'START POINT' button.

Diagram showing a circular device with a handle and a separate circular component labeled 'START TWP' (no text or symbols on the device itself)

Diagram showing three circular icons with labels: a fan icon, a circular dial labeled 'AUTO', and a cross-shaped dial labeled 'FIM'.

Diagram showing a remote control with signal icon and 3D circular motion path, likely illustrating a digital interface or sensor setup.

3. Eckenreinigung

Diagram showing a remote control with signal icon and 3D coordinate system, including a circular sensor and a circular device.

Diagram showing a remote control with signal icon and a circular device on a plane, illustrating wireless signal interaction.

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Diagram showing a vehicle chassis with internal compartments and battery pack, no text or symbols present

Illustration of a hand inserting a component into a circular device (no text or symbols visible)

Two-step diagram showing hands installing or adjusting a mechanical component in circular housing (no text or symbols)

Technical line drawing of a circular mechanical component with internal components and a separate view of a device (no text or symbols)

Technical line drawing of a circular mechanical or electronic component with internal components and an upward arrow indicator (no text or symbols present)

[e-mail]

www.eufylife.com

(US)·1(800)9887973 Mon-Fri 9:00cm-5:00pm (PT)	(中国)·864000550036 周一至周五9:00-17:30
(UK)·44(0)1604936200 Mon-Fri 6:00-11:00 (OMT)	(日本)·810344557823 月-金9:00-17:00
(D)·49(0)699579760 Mon-Fri 6:00-11:00

@EufyOfficial

@EufyOfficial@EufyOfficial_de

@EufyOfficial

Tabla de contenidos

Diagram showing a hand holding a small device next to a circular device with internal components and two directional arrows indicating motion (no text or symbols present)

Line drawing of a vacuum cleaner next to a mounted device (no text or symbols)

EspañolEsp

Diagram showing three circular components: a top view with a hand holding a circular object, a middle circle labeled 'AUTO', and a bottom circle with cross symbols.

Diagram showing a circular device mounted on top and a circular dial with 'START' label, both without any readable text or symbols.

Diagram showing three circular components: a top view with a hand and a bottom view with an 'AUTO' button, plus a cross-sectional view labeled 'START'.

Diagram showing a remote control with a magnifying glass icon and a 3D coordinate system with directional arrows indicating movement or orientation.

Diagram showing a remote control with signal icon and a circular device on a plane, illustrating wireless signal interaction.

5. Limpieza manual

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Illustration of three-step cleaning process: pressing a device, applying paint to a tray, and adding a tool (no text or symbols)

Diagram showing a vehicle chassis with battery pack, battery pack, and battery casing (no text or symbols)

Line drawing of a hand inserting a component into a circular device (no text or symbols)

Two-step diagram showing hands installing or adjusting a device on a circular base (no text or symbols present)

Technical line drawing of a circular mechanical component with internal components and a separate view of a cylindrical device (no text or symbols)

Technical line drawing of a circular mechanical or electronic component with internal components and an upward arrow indicator (no text or symbols present)

[e-mail]

www.eufylife.com

(US) +1 [phone] Mon-Fri 9:00am - 5:00pm (PT)

(UK) -44 (0) 1604 936200 Mon-Fri 6:00 - 11:00 (GMT)

(DE) [phone] Mon-Fri 6:00 - 11:00

(中国)·864000550036 周一至周五9:00-17:30

(日本)·810344557823 月-金9:00-17:00

@EufyOfficial

@EufyOfficial@CvOfficial

@EufyOfficial

Français

Table des matières

Diagram showing a hand holding a small device next to a circular device with internal components and two propellers (no text or symbols present)

Line drawing of a vacuum cleaner next to a mounted device (no text or symbols)

FrançaisFra

Diagram showing three circular components: a top view with a hand holding a small object, a middle circle labeled 'AUTO', and a bottom circle with cross symbols.

Diagram showing a circular device with a pointer and a circular control dial labeled 'START/OPEN'

Diagram showing three labeled circular components: a top view with a hand holding a circular object, a middle circle labeled 'AUTO', and a bottom circle with 'FIM' and 'MIN' symbols.

Diagram showing a remote control with a magnifying glass icon and a 3D coordinate system with directional arrows indicating movement or orientation.

Diagram showing a remote control with signal icon and a circular device on a plane, illustrating wireless signal propagation.

5. Nettoyage manuel

Technical line drawing of a mechanical device with exploded and assembled views (no text or symbols)

Diagram showing a vehicle chassis with battery pack and battery casing, no text or symbols present

Hand holding a small electronic device with internal components (no visible text or symbols)

Two-step diagram showing hands installing or adjusting a device inside a circular housing (no text or symbols present)

Technical line drawing of a circular mechanical component with internal components and a separate view of a cylindrical housing (no text or symbols)

Technical line drawing of a circular mechanical or electronic component with internal components and an upward arrow indicator (no text or symbols present)

[e-mail]

www.eufylife.com

(US) [phone] Mon-Fri 9:00am - 5:00pm (PT)	(中国) -86 400 0650 036 周一至周五 9:00 - 17:30
(UK) -44 (0) 1604 936200 Mon-Fri 6:00 - 11:00 (GMT)	(日本) -8103 4455 7823 月-金 9:00 - 17:00
(DE) +49 (0) 69 95/9 7960 Mon-Fri 6:00 - 11:00

@EufyOfficial

@EufyOfficial@EufyOfficial

@EufyOfficial

Italiano

Sommario

Diagram showing a hand holding a small device next to a circular device with internal components and two propellers (no text or symbols present)

Line drawing of a vacuum cleaner next to a mounted device (no text or symbols)

Italianoltal

Diagram showing three labeled circular components: a top view with a hand holding a small object, a middle circle labeled 'AUTO', and a bottom circle labeled 'PUNT PWR'.

Technical diagram showing a circular component mounted on a base with a separate circular dial labeled 'START 1:100' and '24'

Diagram showing three circular components with labels: a hand holding a circular object, a circular dial labeled 'AUTO', and a cross-shaped dial labeled 'FIM'.

Diagram showing a remote control with a magnifying glass icon and a circular device positioned at a 3D coordinate axis.

110 111

Diagram showing a remote control with signal icon and a circular device on a plane, illustrating wireless signal interaction.

5. Modalità Manuale

Technical line drawing of a mechanical device with exploded and assembled views (no text or symbols)

Diagram showing a vehicle chassis with battery pack, battery pack, and battery casing (no text or symbols)

Line drawing of a hand inserting a component into a circular device (no text or symbols)

Two-step diagram showing hands installing or adjusting a device inside a circular housing (no text or symbols present)

116 117

Technical line drawing of a circular mechanical device with internal components and a separate view of a rectangular housing (no text or symbols)

Technical line drawing of a circular mechanical or electronic component with internal components and an upward arrow indicator (no text or symbols present)

[e-mail]

www.eufylife.com

(US) +1 [phone] Mon-Fri 9:00cm - 5:00pm (PT) (UK) -44 (0) 1604 936200 Mon-Fri 6:00 - 11:00 (GMT) (DE) [phone] Mon-Fri 6:00 - 11:00

(中国)·864000550036 周一至周五9:00-17:30 (日本)·810344557823 月-金9:00-17:00

@EufyOfficial

@EufyOfficial@CvOfficial

@EufyOfficial

Inhoudsopgave

Diagram of a hand holding a small object with arrows pointing to a device component (no text or symbols present)

Line drawing of a vacuum cleaner next to a mounted device (no text or symbols)

Nederlands

Diagram showing three labeled circular components: a top view with a magnifying glass, a middle circle labeled 'AUTO', and a bottom circle with 'START' and 'POT' labels.

Diagram showing a circular component above a circular device and its cross-sectional view with a labeled knob (no text or symbols present)

Schoonmaakmodus selecteren

Diagram showing three labeled circular components: a top view with a hand icon, a middle circle labeled 'AUTO', and a cross-shaped diagram with 'FMT' and 'VINT'.

Diagram showing a remote control with signal icon and a circular device on a plane, illustrating wireless signal interaction.

5. Handmatig schoonmaken

Opmerking: Controller of AM/PM juist is ingesteld

Technical line drawing of a mechanical device with two views (① and ②), no visible text or symbols

Diagram showing a vehicle chassis with internal compartments and battery pack, no text or symbols present

Line drawing of a hand using a tool to adjust or install electronic components on a circular device (no text or symbols visible)

Two-step diagram showing hands installing or adjusting a device inside a circular housing (no text or symbols present)

Technical line drawing of a circular mechanical component with internal components and a separate view of a cylindrical device (no text or symbols)

Technical line drawing of a circular mechanical or electronic component with internal components and an upward arrow indicator (no text or symbols present)

[e-mail]

www.eufylife.com

(US) -1 [phone] Mon-Fri 9:00am - 5:00pm (PT)	(中国) -86 400 0550 036 周一至周五 9:00 - 17:30
(UK) -44 (0) 1604 936200 Mon-Fri 6:00 - 11:00 (OMT)	(日本) -81 03 4455 7823 月-金 9:00 - 17:00
(DE) -49 (0) 69.9579 7960 Mon-Fri 6:00 - 11:00

@EufyOfficial

@EufyOfficial@EufyOfficial

@EufyOfficial
