USER MANUAL HPBT3050BK NEDIS

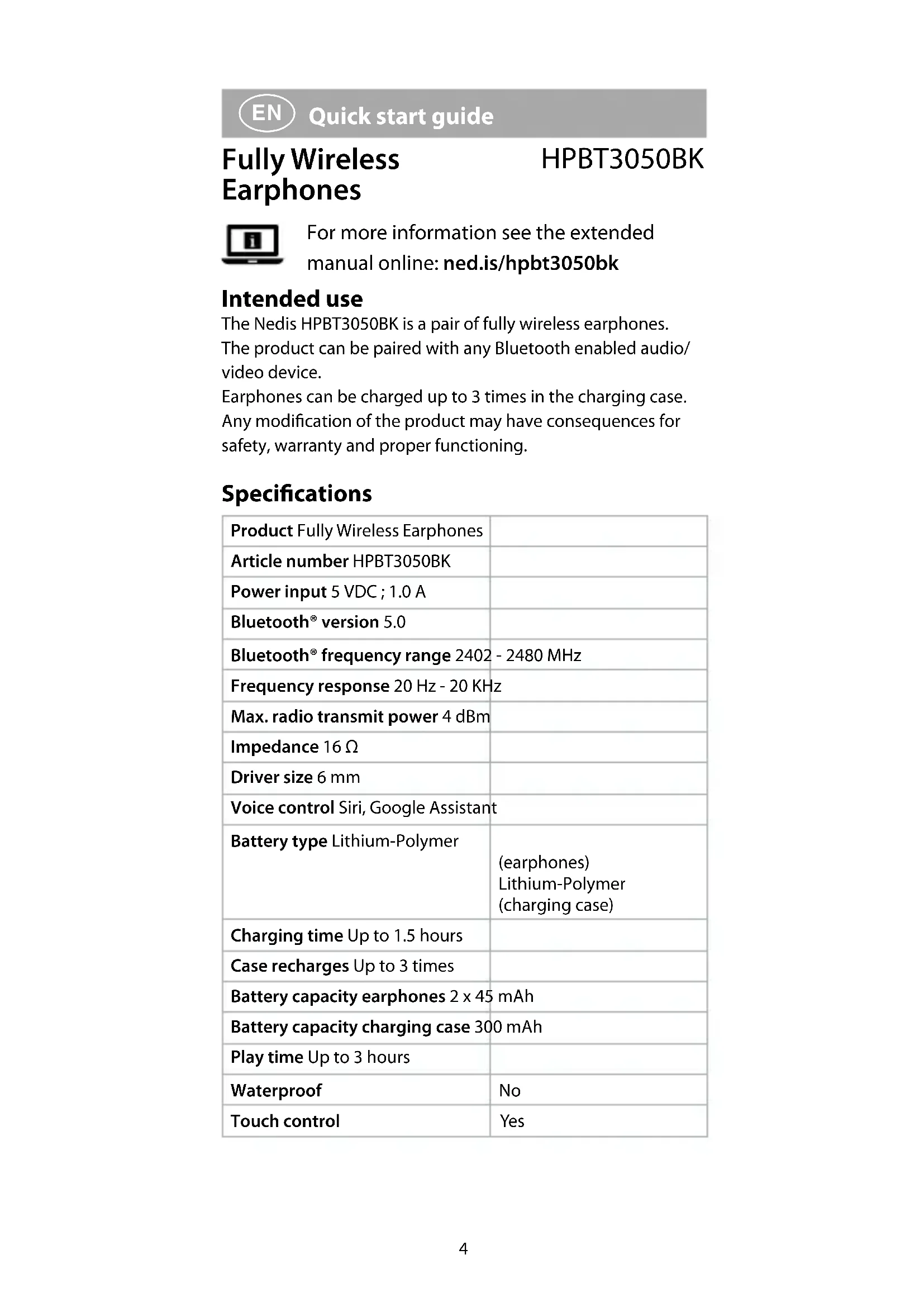

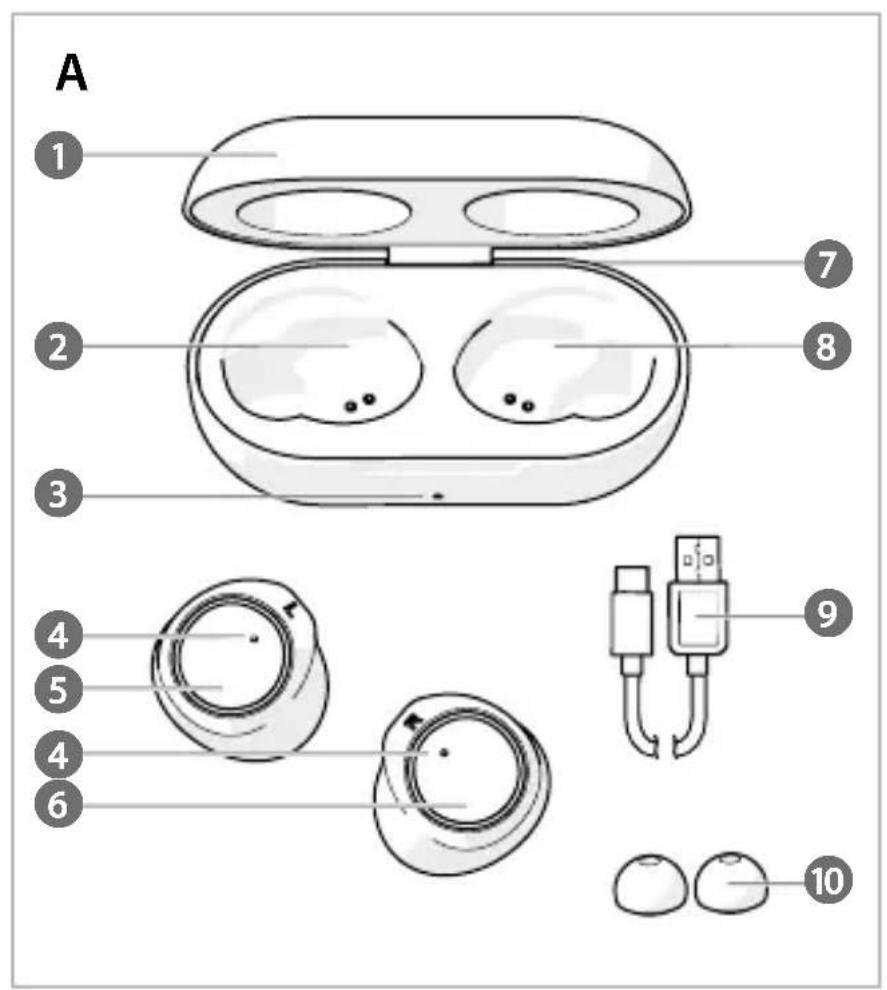

Quick start guide Fully Wireless Earphones HPBT3050BK For more information see the extended manual online: ned.is/hpbt3050bk Intended use The Nedis HPBT3050BK is a pair of fully wireless earphones. The product can be paired with any Bluetooth enabled audio/ video device. Earphones can be charged up to 3 times in the charging case. Any modication of the product may have consequences for safety, warranty and proper functioning. Specications Product Fully Wireless Earphones Article number HPBT3050BK Power input 5 VDC ; 1.0 A Bluetooth® version 5.0 Bluetooth® frequency range 2402 - 2480 MHz Frequency response 20 Hz - 20 KHz Max. radio transmit power 4 dBm Impedance 16 Ω Driver size 6 mm Voice control Siri, Google Assistant Battery type Lithium-Polymer (earphones) Lithium-Polymer (charging case) Charging time Up to 1.5 hours Case recharges Up to 3 times Battery capacity earphones 2 x 45 mAh Battery capacity charging case 300 mAh Play time Up to 3 hours Waterproof No Touch control Yes5 Main parts (image A)

Charging indicator LED

Left earphone touch control

Right earphone touch control

3 Pairs of ear tips (S/M/L) Safety instructions

• Only use the product as described in this manual.

• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

• Do not expose the product to direct sunlight, naked ames or heat.

• Do not expose the product to water or moisture.

• Do not drop the product and avoid bumping.

• Do not open the product.

• Keep the product out of reach from children.

• This product is not a toy. Never allow children or pets to play with this product.

• Using earphones with both ears covered while participating in trac is discouraged and may be illegal in some areas.

• Listening on high volume for a long time will damage your hearing.

• Some wireless devices may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.

• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.

• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.

• Do not short circuit.

• Do not repair the product. If damaged, it must be properly disposed of.

• Only use the product as described in this manual.6 Pairing the earphones to a Bluetooth audio source

1. Take the earphones out of the charging case. The earphones

switch on automatically.

Tap and hold both earphone touch controls A

for 3 seconds to manually switch on the earphones.

starts blinking to indicate pairing mode is active.

3. Enable Bluetooth on the device you want to pair the

4. Select "HPBT3050BK" from the list of available Bluetooth

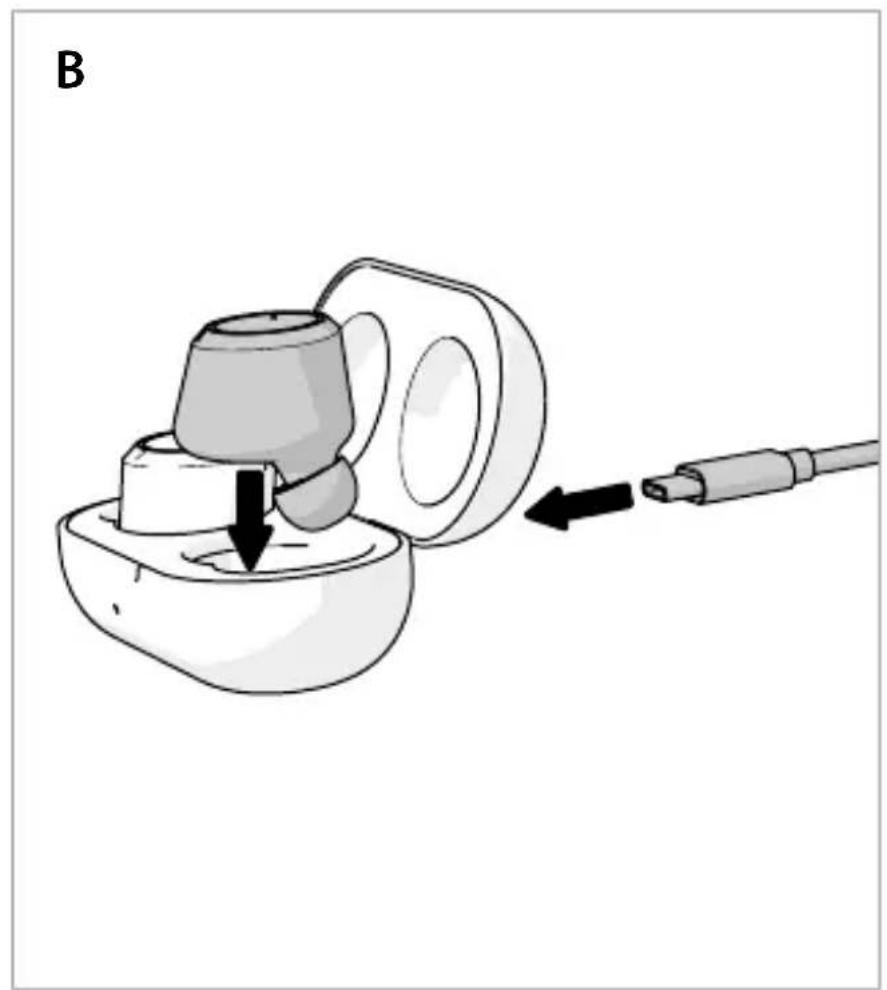

devices on your device. Charging the product (image B)

into the USB-C port A

of the charging case.

2. Plug the other end of A

into a computer or power adapter.

3. Plug the power adapter into a power outlet.

4. The charging indicator LED A

indicates the charging progress of the battery.

5. Place the earphones into the respective slots A

to charge the earphones.

on the earphones lights up red.

switches o when the earphones are fully charged.

The earphones and the charging case can charge simultaneously. Switching on the product

for 3 seconds to switch the product on or o. Making phone calls With the earphones connected to a mobile phone via Bluetooth, phone calls will automatically be redirected to the earphones.

• To answer an incoming call, tap A

• To reject an incoming call, double tap A

• To cancel an outgoing phone call, tap A

Controlling the music

to play or pause the music.

to skip to the next track.

to skip to the previous track.7 Add Siri/Google Assistant function

• Tap and hold A or A for 1.5 seconds to activate Siri/Google Assistant. Restore to default settings

1. Make sure that the earphones are switched o.2. Tap and hold A

and A for 8 seconds. This function is suggested to be used when the earphones can not connect to each other under the conditions of common use. Declaration of Conformity We, Nedis B.V. declare as manufacturer that the product HPBT3050BK from our brand Nedis , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via webshop.nedis.com/hpbt3050bk#supportFor additional information regarding the compliance, contact the customer service:Web: www.nedis.comE-mail: [e-mail]: [phone] (during oce hours)Nedis B.V., de Tweeling 285215 MC ’s-Hertogenbosch, the Netherlands
