USER MANUAL Bluefield 4032 tepro

Operating Instructions: ELECTRIC GRILL "Bluefield"

FR

Before using the appliance. 28

Components 28

Intended Use 28

For your Safety 29-31

Warning Symbols 29

Safety Instructions 29-31

Assembly. 32-34

Preparation 32

Assembling the BBQ 32-34

Before Initial Use 35

Operation 35

Grill Tips 36

Maintenance and Cleaning 36-37

Disposal 37

Declaration of Conformity 37

Specifications 37

Warranty 38

Service 38

Distributing Company 38

Before using the appliance

After unpacking and before each use, check the appliance for defects.

If a defect should be found, do not use the appliance, but notify your dealer.

The operating instructions are based on the standards and regulations applicable in the European Union. In countries outside the European Union, also observe country-specific directives and legislation!

Before initial use, read the safety instructions and the operating instructions carefully. Only then will you be able to use all functions safely and reliably.

Keep the operating instructions at a safe place and pass them on to any subsequent owners.

Components

1 Warming rack (1)
1 Wind/spray deflector (2)
1 Grill plate (3)
1 On/off switch and temperature control (4)
1 Power cable with plug (5)
1 Insulation (6)
1 Grill holder (7)
1 Cooling tray (8)
1 Stand tube (upper) (9)
1 Decorative ring (10)
1 Stand tube (bottom) (11)
5 Stand foot (12A)
1 Stand foot base (12B)

1 Grill (13)
1 Drip pan (14)
2 Heat-insulated handle (15)
5 Washers (16)
5 Screws (17)

Please check that the contents of the box are complete and undamaged. Please contact your dealer if a part should be missing or defective.

Claims lodged after the appliance has been completely or partly assembled in regard to damage or missing parts will not be processed.

Intended Use

This electric grill is designed for cooking food.

It is designed solely for private use.

Use the appliance only as described in these operating instructions. Any other use is considered not as intended and may lead to damage to property or possibly personal injury.

The manufacturer shall not be liable for damage caused by use other than the intended purpose.

For your Safety

Warning Symbols

DANGER high risk!

Failure to observe the warning can lead to damage to life and limb.

ATTENTION moderate risk!

Failure to observe the warning may cause damage to property.

CAUTION minor risk!

Facts which should be considered when using the appliance.

Safety Instructions

• Before initial use, check that the current type and the mains voltage match the details on the rating plate.
• This appliance is an electric grill for household use, and it is not designed for industrial or professional use.
• Do not use the appliance if the appliance or the power cable is damaged or has been dropped.
• Always connect the electric grill to an AC socket with a voltage of 220 240 V~, 50-60 Hz. The fuse for the plug socket should be at least 10 A.
• The installation of an earth leakage circuit-breaker with a rated trip current of not more than 30mA into the domestic wiring offers additional protection. Seek advice from your electrician.

If you should notice damage to the appliance or malfunctions, immediately disconnect the mains plug from the socket.
- Incorrect use of electricity can be lethal.
- Do not use the cable to disconnect the mains plug from the socket.
Periodically check the mains plug and the power cable for damage.
- Do not move the appliance during operation.
- If the appliance is operated on a table, make sure that it does not protrude beyond the table edge.
- Set the appliance onto a heat-resistant surface.
- Keep inflammable materials like textiles away from the appliance.
- Do not place food wrapped in plastic or metal foil onto the grill while it is in use. This could cause damage to the grill or a fire.
- Operate the appliance in a safe area, at a sufficient distance from playing children or pets.
- Always use the supplied connector plug with controller for this appliance. Do not connect a different plug with controller to this appliance. The supplied connector plug with controller may not be used with other appliances.

• Never try to repair the appliance yourself. In the event of a problem, have the appliance repaired by qualified specialists. Never open the housing yourself. There is a risk of electric shock!
• If the power cable of the appliance is damaged, it must be replaced by the manufacturer or their service department to avoid hazards.
• Prevent damage to the power cable from crushing, kinking, or rubbing on sharp edges, and keep it away from hot surfaces.
• If an extension cable is used, it must match the respective rating.
• Route the cable and if required, the necessary extension cable to prevent accidental pulling on the cable or to prevent a trip hazard.
• Do not immerse the appliance in water or other liquids.
• Never touch the mains plug with wet or moist hands.
• Operate the electric grill on a level, dry, and non-slip surface.
• Do not place the appliance onto mobile items on which the appliance may topple.
• Do not insert items into the appliance.
• Always disconnect the mains plug after use and before cleaning.
• Use only accessories supplied with the appliance.
• Move the appliance only after it has cooled down.
• Do not place the appliance onto a hot surface. Do not store the appliance near hot devices like hotplates, fireplaces, etc.

• Do not use the appliance near bathtubs, showers, or swimming pools.

• Do not operate the appliance in rooms with inflammable liquids or gases.

• Do not set up the grill near entrances or areas used frequently for pedestrian access.
• Always exercise extreme caution. Distractions may cause loss of control over the appliance. Never leave the appliance unattended.
• Do not place items filled with liquids, for example vases, onto the appliance.
• Use the appliance only in temperate latitudes. The tropics and especially humid climates should be avoided.
• The appliance must not be set up directly under a wall socket.
• Do not use the appliance with a timer switch or a separate remote control system.
• WARNING: Do not use charcoal or similar fuels in this device.
• Connect the device via a residual-current device (RCD) with a trip current of less than 30mA .
• Connect the device to a grounded power outlet (for protection class IPX0 devices).
• Check the connecting cable regularly for damage; do not operate the device with a damaged connecting cable.

DANGER risk of accidents!

This appliance is not intended for use by persons (including children) with limited physical, sensory or mental abilities or lacking experience and/or knowledge.

Inform this group of persons about the dangers of the appliance and have them supervised by a person responsible for their safety.
- Any modification to the product represents a major safety hazard and is thus prohibited. Do not carry out repairs yourself. In case of damage, repair, or other problems with the appliance, contact our service centre or a local specialist.
- Keep children and pets away from the appliance.
- Never use the grill without a drip pan.

Danger Risks to children!

Playing children may get caught in the plastic packaging and may suffocate

• Do not let children play with the plastic packaging.
• Make sure that children do not place small assembly parts into their mouth. They could swallow the parts and suffocate.

DANGER Risk of fire!

To prevent overheating of the appliance and fire, the appliance must not be covered.

• The appliance remains hot for a considerable time after switching it off. Take care not to burn yourself and do not place any objects onto it. There is a risk of fire.

DANGER risk of burns!

This electric grill becomes very hot during operation. For prevention of burns, do not touch the hot surfaces directly with your skin. Always hold the appliance with the heat-insulated handles (9).

• Keep a minimum distance of 1m from inflammable material like wallpaper, curtains, and blinds.
• Always be attentive and exercise caution. Do not use the appliance when you cannot concentrate or are tired or under the influence of drugs, alcohol, or medication. Even the slightest distraction during use of the product can lead to serious injuries.

Assembly

Preparation

DANGER risk of accidents!

Failure to follow these instructions can lead to problems and risks while using the BBQ.

• Follow all of the assembly instructions listed here.

• First read through the assembly instructions completely.

• Allow yourself enough time for assembly and find an even working space of two to three square meters.
• Small parts such as handles will probably be preassembled.
• If the device is used as a table BBQ, the stand foot does not have to be assembled.

Assembling the BBQ

Unpack the BBQ and dispose of all packaging materials. Keep the packaging materials out of the reach of children and dispose of them according to regulations after BBQ assembly.

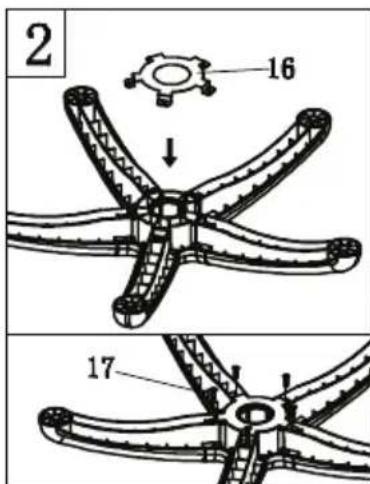

Insert the 5 stand feet (12A) into the stand foot basis (12B). The feet must engage audibly.

Connect the parts using the screws (17) and washers (16).

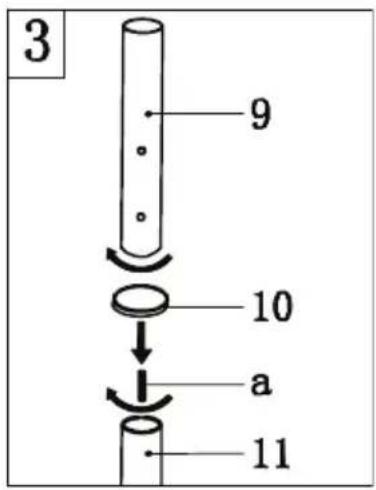

Screw in the screw (a) up to half the length into the upper end of the bottom stand tube (11).

Place the decorative ring (10) between the upper (9) and bottom (11) stand tubes.

Screw both tubes using the screw (a) firmly together.

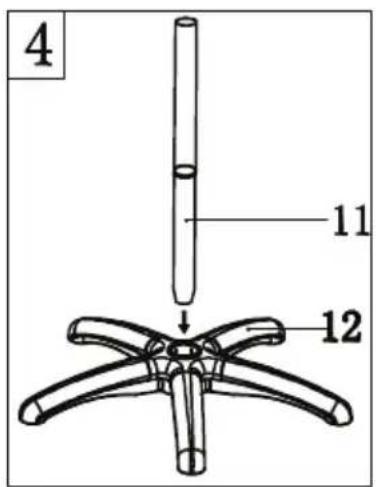

Insert the bottom end of the stand tube (11) into the stand foot base (12).

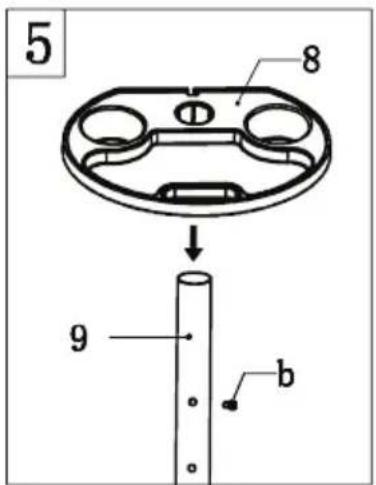

Screw in the screw (b) into the stand tube (9) at the level, where the cooling tray (8) should be placed.

Put the upper end of the stand tube (9) through the cooling tray (8).

Put the grill holder (7) onto the upper end of the stand tube (9).

The grill stand is now assembled.

Please note: The grill can also be used without this stand as a table-top grill.

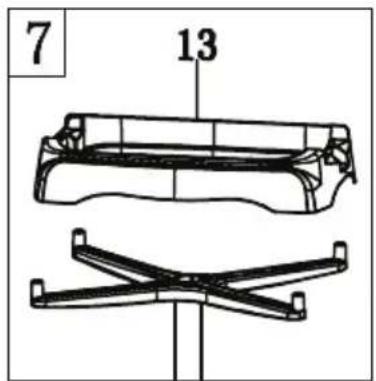

Place the grill (13) on the grill holder (7).
Make sure that the grill is lying flush on the grill holder.

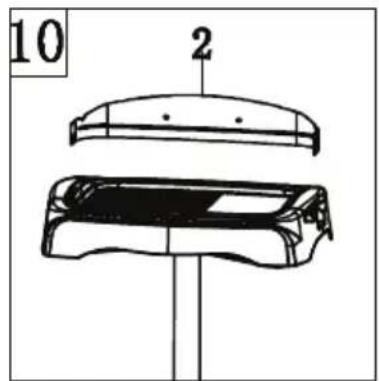

Fasten the wind/spray deflector (2).

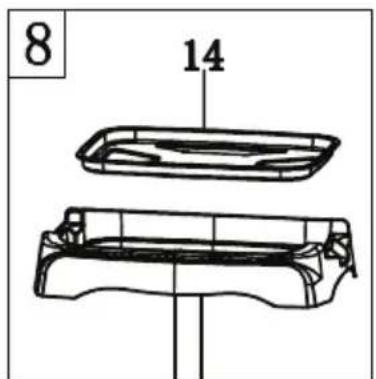

Place the drip pan (14) in the grill (13).

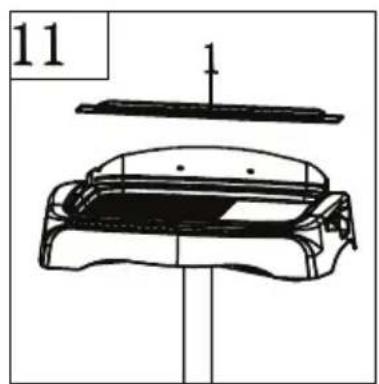

Fasten the warming rack (1) to the wind/ spray deflector (2).

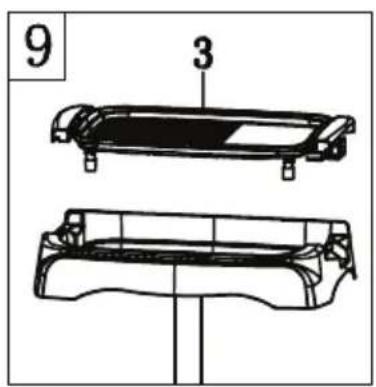

Insert the grill plate (3) into the grill.

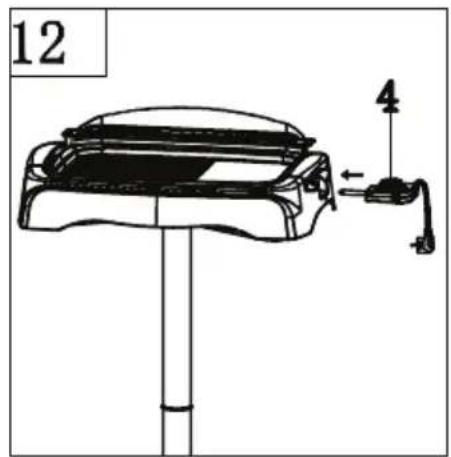

Insert the on/off switch and temperature control (4) all the way into the grill.

Before Initial Use

1. Clean the grill grate and the drip pan as described in the section Maintenance and cleaning.
2. Set the appliance onto a level, dry, and non-slip surface.
3. Use a heat-resistant base for use of the appliance.
4. Let the appliance warm up for at least 10 min without food in order to burn off residues.
5. Some smoke and corresponding smell may occur on initial use. This is normal and is caused by the burning of production residues. The smoke and the smell disappear after a short time. Please ensure sufficient ventilation of the room.
6. The appliance is ready for use.
7. When using the grill, please protect the floor and surrounding walls from possible soiling e.g. through grease splatters.

Operation

1. Lift the grill plate (3).
2. Add approx. 1 litre of cold water into the drip pan (8) to avoid increased smoke emission during grilling.
3. If the water level reduces during the grilling, refill it carefully. Make absolutely sure that no water gets onto the heating element.
4. Insert the grill plate (3) into the grill.
5. Connect the mains plug (5) to a suitable power outlet.
6. Turn the on/off switch and temperature control (4) to the desired posi

tion. The indicator light glows while the heating element heats up. Warm up the appliance for approx. 10-15 minutes, before you start grilling.

1. You can adjust the temperature with the temperature control settings 1-5 (just above 1 = low temperature, 5 = very high temperature). As soon as the set temperature is reached, the indicator light goes out.
2. Now the food can be placed onto the grill plate. If necessary, you can distribute a bit of cooking oil over the grill plate.

Please note: Frozen food should be defrosted completely before grilling.

1. The drip pan (14) catches run-off fat and cooking juices. Never operate the BBQ without the drip pan.
2. The handles (15) of the grill are heat-insulated. Always wear oven or BBQ gloves when grilling. (Glove Category II with regard to heat protection, e.g. DIN-EN 407).
3. Use long-handled cutlery for placing the food.

CAUTION! To avoid heat build-up, do not place aluminium foil or other grilling utensils onto the grill plate.

1. To switch the grill off, turn the on/off switch temperature control (4) to 0 and disconnect the mains plug (5) from the socket.
2. Let the appliance cool down for approx. 20 minutes before moving it.
3. The grill plate (3) and the temperature control (4) may be removed only after the appliance has cooled down completely.

Grill Tips

Cooking Times

The following table lists some guide values for the cooking times of different foods. The grill time may differ depending on the thickness of the meat and your personal taste.

Cooking Times Table

Meat type Grilling time
Beef fillet 8 - 18 min
Beef hamburger 8 - 12 min
Veal cutlet 5 - 8 min
Pork cutlet 12 min
Lamb chop 4 - 8 min

Always turn the BBQ meat using a pair of tongs or a spatula and never with a fork or other tools that have sharp corners or tips. These will damage the non-stick coating of the BBQ plate. Always pre-heat the grill plate before use. Only put the food onto the heating plate after it has been sufficiently preheated.

Use a lower temperature setting to slowly prepare delicate foods like fish fillet. Use a high temperature setting to brown meat, to seal the meat, and to grill vegetables or an entire fish.

Meat becomes softer when marinaded overnight. Marinade is prepared with oil to introduce moisture, vinegar to soften the meat, and a mixture of spices.
Turn the fish or the meat only once.
Multiple turning is not required and dries the grilled food.

Use the temperature control to switch off the appliance after use, and disconnect the mains plug from the socket. Let the appliance cool well before transporting or cleaning it.

Wipe the grill grate occasionally with a paper kitchen towel soaked with oil, so that the grilled food will not stick to it.

Maintenance and Cleaning

Your grill has been manufactured from quality materials. Please observe the following instructions when cleaning and maintaining the surfaces.

DANGER Risk of burns!

Let the grill cool down completely before you clean it.

DANGER Health hazard!

Do not use paint solvents or thinners to remove spots.

These are hazardous to your health and must not come into contact with food.

ATTENTION Risk of damage!

Do not use strong or polishing solvents or scouring pads, as these attack the surfaces and leave scouring marks.

• Turn the temperature controller to 0 each time before you clean it, and unplug the mains plug from the socket.

Warning! Never immerse the grill into water or other liquids. When cleaning, take care that no liquid gets onto the heating element or comes into contact with live parts.

• Wipe the surfaces of the appliance with a lightly moistened cloth and then wipe it dry.

Take off the grill plate. Then disconnect the temperature control from the grill plate.
- Remove the drip pan from the appliance and empty it. Clean the drip pan with warm water and a little dishwasher detergent.
- Wipe the grill grate with a cloth lightly moistened with warm water. Add a little detergent to dissolve the fat more easily.
- Stubborn food residue can be removed more easily if first soaked for several minutes in cooking oil. Dab the respective locations with kitchen paper soaked with cooking oil. After approx. 5-10 minutes, wipe off the food residue with a clean cloth.
- Clean all parts carefully after cleaning, before you reassemble the appliance following the steps in reverse and use it again.
- When the appliance is not in use, store it in a dry place, protected from dust and direct sunlight.
- IMPORTANT: The grill always should be protected against moisture during storage.

Disposal

The packaging is composed of environmentally friendly materials which can be disposed of via local recycling stations.

Never dispose of the appliance with normal household waste. Dispose of the appliance through your authorized disposal company or local waste disposal facility. Comply with the current regulations. In case of doubt, contact your local waste disposal facility.

Declaration of Conformity

This product complies with the applicable European and global Directives. This is verified by the CE marking (corresponding declarations have been deposited with the manufacturer).

Specifications

Product: Item No. 4032

Electric Grill "Bluefield"

Rated voltage: 220 - 240V ,50-60 Hz

Rated power

consumption: 1650-1950 W

Weight: approx. 5.5kg

Overall dimensions: approx. 62 × 62 × 90 cm

(W × D × H)

Grill area: approx. 41 × 29 cm

Protection class: IPX0

Warranty

You have purchased a high-quality product. TEPRO GARTEN GmbH offers a warranty for their products within the scope of the warranty terms, for normal, recreational, and non-commercial use for 24 (twenty-four) months from the date of purchase for all parts in regard to defects and manufacturing flaws.

Excluded from the warranty are all wear parts, like grill grates, coal grates, or burners, as well as unevenness and discoloration of the enamel, peeling paint caused by burned-in fat, and slight corrosion, for example surface rust. All other expenses like labor, transport, freight, and packaging in a warranty claim will be charged to the buyer.

The distributor reserves the right to bear any costs incurred himself or to charge them to the buyer.

This warranty does not cover failure or use problems caused by intentional damage, abuse, modification, improper use, negligence, wear, incorrect assembly, or poor maintenance.

Service

If you have any technical queries, please contact our service department. This product has been carefully manufactured and packaged. If you should have a claim, our employees will be glad to help you. Technical changes and errors excluded.

Distributing Company

tepro Garten GmbH

(Largh. x Prof. x Alt.)

Area grigliatura: circa 41 × 29 cm

Classe di IPX0

protezione:

Garanzia

FARA Risker for barn!
