MO15 - Oven TELEFUNKEN - Free user manual and instructions

Product type	Electric oven
Brand	Telefunken
Model	MO15
Capacity	28 liters
Power	1600 W
Supply voltage	220-240 V ~ 50/60 Hz
Thermostat	Adjustable from 100 °C to 230 °C
Cooking modes	Bottom heat, top heat, top and bottom heat
Timer	0-60 minutes with automatic shut-off and audible signal
Included accessories	Grid, drip tray, accessory handle
Interior light	Not specified
Door	Glass door
Dimensions (approx.)	Approximately 45 x 35 x 30 cm (W x D x H)
Weight (approx.)	Approximately 8 kg
Safety	Automatic shut-off at timer end, hot exterior surface (precautions)
Cleaning	Do not use metal sponges or abrasive products; clean with a soft cloth and mild dish soap
Maintenance	Unplug and let cool for at least one hour before cleaning
First use	Heat empty at 200 °C for 10 minutes to eliminate new odors
Power supply	Grounded outlet required
Warranty	Warranty valid subject to proper use
Recycling	Do not dispose of with household waste; deposit at an approved collection center (WEEE)

Frequently Asked Questions - MO15 TELEFUNKEN

How to use my Telefunken MO15 oven for the first time?

Before first use, remove all packaging, stickers and protective films. Plug the appliance into a grounded outlet. Heat the empty oven at 200°C for 10 minutes with the grid and drip tray inside. This operation eliminates protective odors and fumes. Let cool, then clean the interior with a damp cloth and wash the accessories with dish soap.

What are the available cooking modes?

The cooking mode selector offers three positions: bottom heat (bottom heating element), top heat (top heating element for browning and grilling) and top and bottom heat (both elements). Turn the knob clockwise to choose the mode suitable for your dish.

How to set the temperature and timer?

Turn the thermostat knob clockwise to select the temperature (from 100°C to 230°C). For the timer, turn the dedicated knob from 0 to 60 minutes. Once the time is up, an audible signal sounds and the oven stops automatically. You can also cut it manually by turning the timer to 0.

Can I use glass or plastic containers?

Only use containers suitable for oven cooking. Bottles or boxes not intended for the oven may break and cause burns. Avoid paper, cardboard and plastic inside the oven, unless otherwise indicated on the packaging.

How to clean my Telefunken MO15 oven?

Unplug the appliance and let it cool for at least one hour. Remove the grid and drip tray, wash them with a sponge and mild dish soap, rinse and dry. Clean the interior and exterior surfaces with a soft cloth or sponge soaked in mild soapy water. Never use metal sponges, sharp objects or aggressive products like denatured alcohol. For the glass, use a special glass cleaner.

What to do if the oven does not heat up?

Check that the appliance is properly plugged into a functional grounded outlet. Make sure the thermostat knob and mode selector are not in the off position. Check that the timer is set to a cooking time (it must be turned beyond the 0 position). If the problem persists, contact an authorized after-sales service.

Does the indicator light stay on permanently?

No, the operation indicator light turns on when the oven is heating and turns off when the set temperature is reached. It turns back on if the oven needs to maintain the temperature. This is normal.

What safety distances to observe around the oven?

Place the oven on a flat, stable surface that is heat-resistant (minimum 90°C). Leave a free space of at least 50 cm above and 20 cm on the sides for good air circulation. Keep it away from curtains, textile furniture and flammable materials.

Can I leave the oven plugged in unattended?

No, it is not recommended to leave the appliance plugged in without use. Unplug it in case of long absence. During cooking, stay nearby to monitor cooking and avoid any fire risk.

Where to find spare parts or have my oven repaired?

For spare parts, visit the website pieces-detachees.sogedis.fr or contact the retailer. Use only original parts so as not to void the warranty. For any repair, contact a qualified professional. The appliance is imported by Vestel France.

USER MANUAL MO15 TELEFUNKEN

Safety advices and warnings 4

Warning. 4
Danger of electrocuon 6
Danger of burns. 7
Standards 9

Set-up and Use 10

Before rst use 10
√ Using your oven 10
Cleaning and maintenance 12

Technical informaon 12

Environment and recycling 12

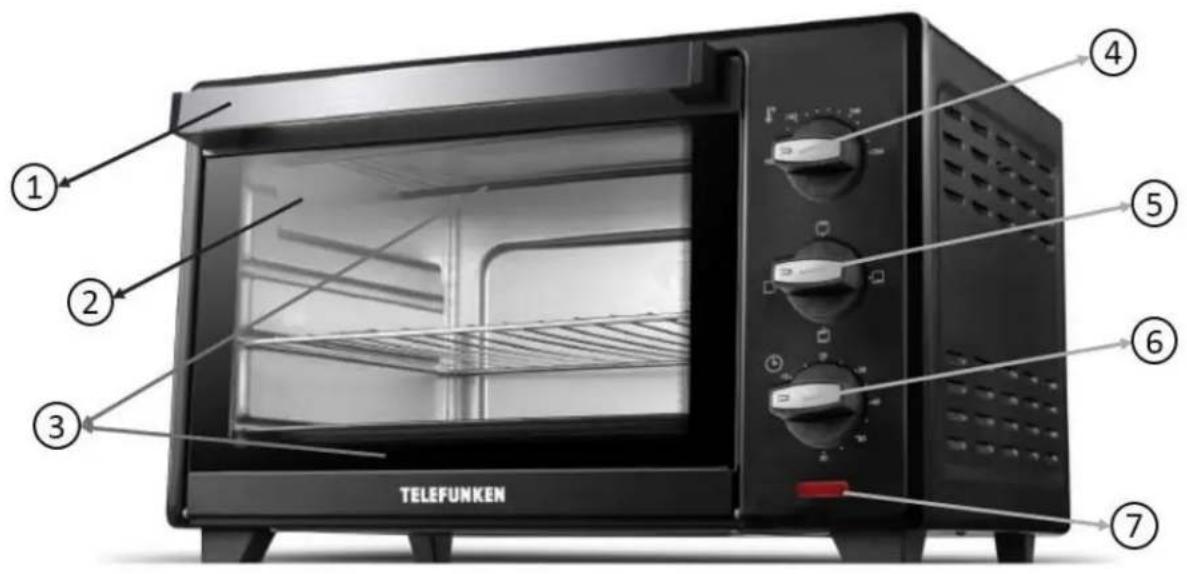

DESCRIPTION

1. Door handle
2. Door glass
3. Heang elements
4. Thermostat buon

5. Cooking method buon

6. Timer buon

7. Light indicator
8. Grill/roasng pan
9. Wire grill rack
10. Tray handle

SAFETY ADVICES AND WARNINGS

WARNING

• READ CAREFULLY THE INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE. IN THE CASE YOU RESELL THIS APPLIANCE, PLEASE MAKE SURE TO PROVIDE THIS INSTRUCTION MANUAL TO YOUR BUYER.
• THIS APPLIANCE IS INTENDED FOR DOMESTIC HOUSEHOLD USE ONLY AND SHOULD NOT BE USED FOR ANY OTHER PURPOSE OR IN ANY OTHER APPLICATION, SUCH AS FOR NON-DOMESTIC USE OR IN A COMMERCIAL ENVIRONMENT. ANY COMMERCIAL USE, INAPPROPRIATE USE OR FAILURE TO COMPLY WITH THE INSTRUCTIONS, THE MANUFACTURER ACCEPTS NO RESPONSIBILITY AND THE GUARANTEE WILL NOT APPLY.
• AFTER UNPACKING THE APPLIANCE, MAKE SURE IT IS NOT DAMAGED. IN CASE OF DOUBT, DO NOT USE THE APPLIANCE AND CONTACT YOUR SUPPLIER OR A QUALIFIED TECHNICIAN.
• THE USE OF ACCESSORY AND ATTACHMENTS NOT RECOMMENDED BY THE MANUFACTURER MAY CAUSE INJURIES.

• THE APPLIANCE MUST NOT BE USED IF IT HAS BEEN DROPPED, IF IT HAS ANY VISIBLE DAMAGE, IF IT LEAKS OR IF IT FUNCTIONS ABNORMALLY IN ANY WAY.

• ALWAYS UNPLUG THE APPLIANCE IF NOT USING IT FOR A PERIOD OF TIME.

• REMOVE ALL PACKAGING AND DO NOT LEAVE THE PACKAGING MATERIAL SUCH AS PLASTIC BAGS, POLYSTYRENE AND ELASTIC BANDS IN EASY REACH OF CHILDREN AS THEY MAY CAUSE SERIOUS INJURIES.
• AFTER UNPACKING YOUR APPLIANCE, MAKE SURE YOU HAVE PUT IT ON A FLAT, STABLE AND HEAT-RESISTANT WORK PLAN OR KITCHEN COUNTER WHICH CAN ALSO STAND A MINIMUM TEMPERATURE OF 90^ . CHECK YOU HAD LEAVE ENOUGH SPACE BETWEEN YOUR APPLIANCE AND SURROUNDING WALL TO LET THE AIR CIRCULATE AROUND THE OVEN. THERE SHOULD BE AT LEAST 50CM ON THE TOP AND 20CM ON SIDES APART FROM THE OVEN.
• CHILDREN FROM 0 TILL 8 YEARS SHALL NOT USE THIS APPLIANCE. THE APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN ABOVE 8 YEARS OLD) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. KEEP AWAY THIS APPLIANCE AND ITS ELECTRIC PLUG AWAY FROM CHILDREN UNDER 8 YEARS OLD. CLEANING AND MAINTENANCE SHALL NOT BE MADE BY CHILDREN.
• CHILDREN SHALL NOT PLAY WITH THE APPLIANCE.

DANGER OF ELECTROCUTION!

• THIS APPLIANCE MUST BE EARTHED. IF YOU NEED TO USE AN EXTENSION LEAD, IT IS IMPORTANT THAT YOU USE A MODEL FITTED WITH AN EARTH PLUG.
• THIS APPLIANCE SHALL NOT BE USED WITH AN EXTERNAL TIMER OR A SEPARATE REMOTE CONTROL SYSTEM.
• CHECK THAT THE VOLTAGE MARKED ON THE RATING PLATE MATCHES TO YOUR LOCAL SUPPLY. IF NOT THE CASE, DO NOT USE THE APPLIANCE AND SEEK FOR EXPERT ADVICE.
• CHECK THAT YOUR ELECTRICAL INSTALLATION IS SUFFICIENT FOR SUPPLYING AN APPLIANCE OF THIS WATTAGE.
• TAKE ALL NECESSARY MEASURE WITH CORDS AND EXTENSIONS TO AVOID ANY INJURIES WHILE IN USE.
• NEVER IMMERSE IN WATER OR ANY OTHER LIQUID THIS APPLIANCE, ITS ELECTRIC PLUG AND CORD.
• ALWAYS UNPLUG THE APPLIANCE AND LET IT COOL DOWN COMPLETELY BEFORE ANY CLEANING OPERATION.
• FOR YOUR OWN SAFETY, WE RECOMMEND YOU NEVER LEAVE THE APPLIANCE IN A PLACE THAT IS EXPOSED TO HUMIDITY OR INCLEMENT WEATHER CONDITION.

• NEVER USE APPLIANCE AS AN ADDITIONAL HEATING SOURCE.
  DO NOT PUT THIS APPLIANCE ON TOP OF OTHERS.

• NEVER LEAVE APPLIANCE PLUGGED IN WHEN NOT IN USE.

• IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
• THE SUPPLY CORD SHOULD BE REGULARLY EXAMINED FOR SIGNS OF DAMAGE AND THE APPLIANCE IS NOT TO BE USED IF THE CORD IS DAMAGED.
• NEVER PLUG THE APPLIANCE AND TOUCH THE THERMOSTAT WITH WET HANDS.
• NEVER USE THE APPLIANCE WITH BARE OR WET FEET.
• NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CABLE.
• ALWAYS UNPLUG THE APPLIANCE FROM THE MAINS SOCKET.
• NEVER MOVE THE APPLIANCE WHEN IN USE.
• DO NOT USE THE APPLIANCE CLOSE TO ANY FABRICS.

DANGER OF BURNS!

• THE APPLIANCE MUST BE USED AND PLACED ON A FLAT, STABLE, HEAT AND WATER RESISTANT SURFACE.

• WHEN IN USE, THE SURFACES OF YOUR APPLIANCE CAN REACH VERY HIGH TEMPERATURES, WHICH MAY CAUSE BURNS. DO NOT TOUCH THE HOT SURFACES OF THE APPLIANCE (ACCESSIBLE METAL PARTS AND GLASS DOOR).

• WHEN IN USE, ALWAYS THINK OF USING THE DOOR HANDLE AND A PAIR OF GLOVES TO OPEN THE DOOR.

• DO NOT REHEAT ANY FOOD PACKAGED IN GLASS BOTTLE OR TINS, THEY ARE NOT SUITABLE TO BE USED IN A OVEN AND COULD BROKE INSIDE THE OVEN.
• HANDLE WITH CARE THE DOOR OF YOUR OVEN: ANY STRONG SHOCK OR EXCESSIVE THERMAL CONSTRAINTS MAY CAUSE THE GLASS TO BREAK.
• IN THE CASE OF SOME PARTS OF THE OVEN OR FOODS DURING THE COOKING CATCH FIRE, DO NOT ATTEMPT TO EXTINGUISH IT WITH WATER. USE A DAMP CLOTH OR A BLANKET TO CHoke THE FLAMES OR USE AN EXTINGUISHER BY SPRAYING THE FOAMS TOWARDS THE OVEN AND ON THE SAME DIRECTION THAN THE WIND.
• DO NOT STORE ANY FLammable PRODUCTS CLOSE TO OR UNDER THE UNIT WHERE YOU PLACED THE OVEN. DO NOT PLACE AND USE THE OVEN CLOSE TO ANY FURNITURE WITH FABRICS, CURTAINS OR DRAPES.
• NE PLACEZ JAMAIS DE PAPIER, CARTON OU PLASTIQUE DANS L'APPAREIL AINSI QUE SUR SON DESSUS.
• DO NOT PUT PAPER, CARDBOARD OR PLASTIC IN THE APPLIANCE AND DO NOT PLACE ANYTHING ON TOP (USTENSILS, RACKS, OBJECTS, ETC.).

• DO NOT PUT ANYTHING INTO THE VENTILATION SLITS, OR OBSTRUCT THEM.

• NEVER LEAVE THE OVEN UNATTENDED WHEN IN USE AND UNTIL IT HAS COOLED DOWN (AROUND 1 HOUR).

• BEFORE ANY CLEANING OPERATION, WAIT UNTIL THE APPLIANCE IS COMPLETELY COLD AND HAS BEN UNPLUGGED FOR AT LEAST 1 HOUR.
• DO NOT LIFT OR MOVE THE APPLIANCE WHEN IN USE TO AVOID BURNS.

STANDARDS

THESE APPLIANCES CONFORM TO DIRECTIVES 73/23/EEC, 89/336/EEC, DEE 2002/96/CE, ROHS 2002/95/CE, CE 1935/2004.

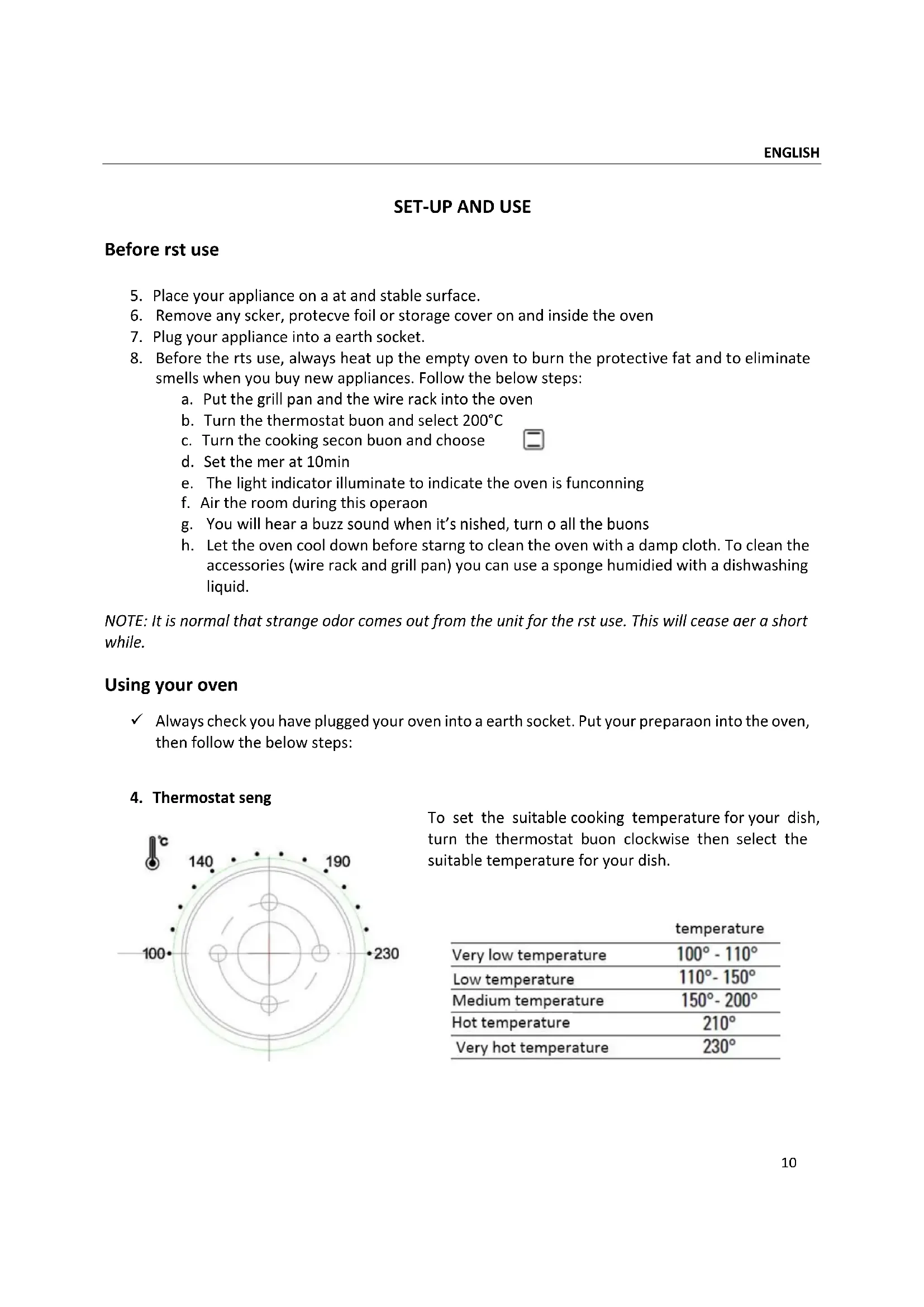

SET-UP AND USE

Before rst use

1. Place your appliance on a at and stable surface.
2. Remove any scker, protecve foil or storage cover on and inside the oven
3. Plug your appliance into a earth socket.
4. Before the rts use, always heat up the empty oven to burn the protective fat and to eliminate smells when you buy new appliances. Follow the below steps:

a. Put the grill pan and the wire rack into the oven
b. Turn the thermostat buon and select 200^
c. Turn the cooking secon buon and choose
d. Set the mer at 10min
e. The light indicator illuminate to indicate the oven is funconning
f. Air the room during this operaoon
g. You will hear a buzz sound when it's nished, turn o all the buons
h. Let the oven cool down before starng to clean the oven with a damp cloth. To clean the accessories (wire rack and grill pan) you can use a sponge humidied with a dishwashing liquid.

NOTE: It is normal that strange odor comes out from the unit for the rst use. This will cease aer a short while.

Using your oven

Always check you have plugged your oven into a earth socket. Put your preparaon into the oven, then follow the below steps:

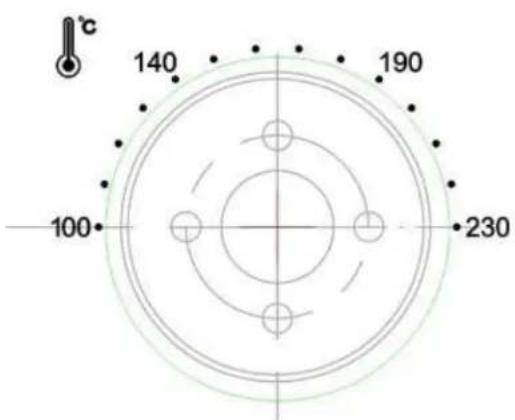

4. Thermostat seng

To set the suitable cooking temperature for your dish, turn the thermostat buon clockwise then select the suitable temperature for your dish.

	temperature
Very low temperature	100° - 110°
Low temperature	110° - 150°
Medium temperature	150° - 200°
Hot temperature	210°
Very hot temperature	230°

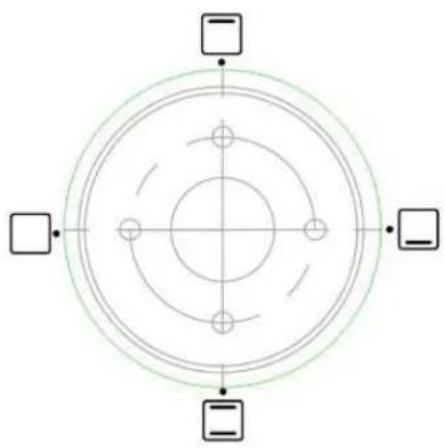

5. Cooking method seng

To set the suitable cooking method for your dish, turn the cooking selecon buon clockwise then select the suitable cooking method for your dish.

OFF posion

Upper heang posion, perfect for toasng or grilling some bread

Lower heang posion, that posion means the heang of the lower heang elements

Upper and Lower heang posion, that posion means the heang of the both heang elements

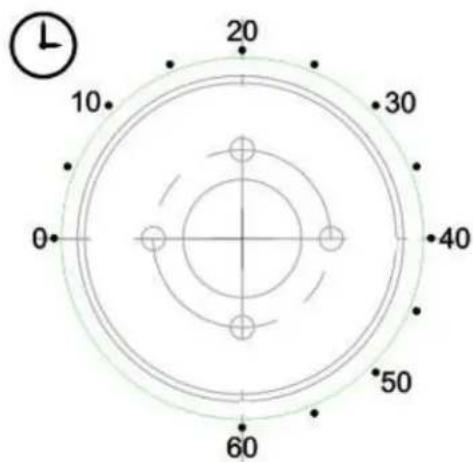

6. Timer seng

The mer buon allows you to set up the correct me for your dish. To set the suitable me for your dish, turn the mer buon clockwise then select the suitable me for your dish.

As soon as you have selected your me, the light indicator will illuminate to indicate the oven is functioning.

The oven will turn o automatically at the end of the selected me and a bell will ring.

You can turn o manually your oven during cooking by turning the mer buon an-clockwise to the OFF posion.

Tips for beer use of your oven:

√ Do not overload your oven.
Put your dish in the center of the oven.
√ Do not open too frequently your oven during the cooking to prevent heat loss.
Try to keep an eye from me to me when baking your dish.

Cleaning and maintenance

At the end of your cooking, check you have turn o all the buons.
Unplug the oven.
✓ Always let the appliance to cool down for at least one hour before starng any cleaning operaon.
- Take out the wire rack and the grill pan, wash them with a sponge humidied with a neutral pH dishwashing liquid, rinse them under clear water and dry them with clean cloth.
✓ When cleaning, use a so cloth (or sponge) and neutral cleaner on the interior and exterior surfaces of the oven.
- Do not use a hard brush or any others cleaners to avoid scratching or damaging the interior surface of the oven, tray, wire rack and the rosserie fork.
To clean the door glass, use a damp cloth with a glass product cleaner then dry the glass door with a clean cloth.
Never put the oven under the water.
To optimise your oven heang system, clean regularly your oven to take o the dirt, grease and food stains.

WARNING: Always let your oven unplugged and cool down for at least one hour before cleaning operaon! Do not use any toxic, solvent, industrial or harsh cleaning products.

TECHNICAL INFORMATION

Model	MO-15
Capacity	28L
Rated voltage	220V-240V ~50Hz/60Hz
Rated power input	1600W

ENVIRONMENT AND RECYCLING

For EU product versions and/or in case that it is requested in your country:

• The materials of which the packaging of this appliance consists are included in a collecon, classicaon and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

The product does not contain concentrates of substances that could be considered harmful to the environment

• The following informaon concerns the energy labeling and the ecological design:

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorized waste agent for the selecve collecon of waste electrical and electronic equipment (WEEE)

This appliance complies with Direcve 2012/19/EC on Low Voltage and Direcve 2004/108/EC on Electromagnec Compatibility.

Imported by Vestel France, 17 rue de la Couture - 94563 Rungis CEDEX

This manual instruction is also available on the following website:

http://pieces-detachees.sogedis.fr/
