MO21SR - Oven TELEFUNKEN - Free user manual and instructions

Brand	Telefunken
Model	MO21SR
Product type	Electric table oven
Capacity	44 liters
Supply voltage	220-240 V ~50/60 Hz
Power	2000 W
Temperature range	100°C - 230°C
Maximum temperature	230°C (very hot oven)
Cooking modes	Top heat, bottom heat, top and bottom heat
Timer	0 to 60 minutes, automatic shut-off at end of cooking
Supplied accessories	Wire rack and drip tray
Door	Glass
Power indicator light	Yes
Cleaning	Interior and exterior with soft cloth and mild detergent; do not use metal sponges
Safety	Unplug before cleaning, wait at least 1 hour for cooling
Spare parts	Available on the website pieces-detachees.sogedis.fr
Recycling	Compliant with WEEE directive 2012/19/EU; do not dispose of with household waste
First use	Heat empty at 200°C for 10 minutes to burn off manufacturing residues

Frequently Asked Questions - MO21SR TELEFUNKEN

How to set the cooking temperature?

Turn the thermostat knob clockwise to select the desired temperature. Temperatures range from 100°C (very low oven) to 230°C (very hot oven).

What are the available cooking modes?

The cooking mode selector knob allows you to choose among three positions: top heat (heat from above), bottom heat (heat from below), and top and bottom heat (both heating elements).

How to use the timer?

Turn the timer knob clockwise to set the time between 0 and 60 minutes. The oven turns off automatically at the end of time. To turn it off manually, turn the knob counterclockwise to position 0.

How to clean the glass door?

Use a cloth dampened with a special glass cleaner, then dry with a clean dry cloth. Do not use metal sponges or sharp objects.

What to do before first use?

Before first use, heat the empty oven at 200°C for 10 minutes in top and bottom heat mode to burn off manufacturing residues. Air out the room during operation.

Why does the oven emit an odor during first uses?

Odors and particles may be released during first uses. This is normal and will stop quickly after a few heating cycles.

How to turn off the oven manually during cooking?

Turn the timer knob counterclockwise to position 0. The oven turns off immediately.

What is the power and capacity of the oven?

The oven has a power of 2000 W and a capacity of 44 liters. It operates at a voltage of 220-240 V ~50/60 Hz.

Where to find spare parts?

Spare parts are available on the website pieces-detachees.sogedis.fr. You can also visit the site for more information.

How to recycle the oven at end of life?

Do not dispose of the oven with household waste. In accordance with the WEEE directive 2012/19/EU, take it to an approved collection center for recycling. Contact your local council or retailer for collection points.

USER MANUAL MO21SR TELEFUNKEN

SAFETY ADVICES AND WARNINGS

WARNING

• READ CAREFULLY THE INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE. IN THE CASE YOU RESELL THIS APPLIANCE, PLEASE MAKE SURE TO PROVIDE THIS INSTRUCTION MANUAL TO YOUR BUYER.
• THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD AND SIMILAR APPLICATIONS SUCH AS:

STAFF KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKING ENVIRONMENTS;
FARM HOUSES;
BY CLIENTS IN HOTELS, MOTELS AND OTHER RESIDENTIAL TYPE OF ENVIRONMENTS;
BED AND BREAKFAST TYPE ENVIRONMENTS.

• ANY COMMERCIAL USE, INAPPROPRIATE USE OR FAILURE TO COMPLY WITH THE INSTRUCTIONS, THE MANUFACTURER ACCEPTS NO RESPONSIBILITY AND THE GUARANTEE WILL NOT APPLY.
• AFTER UNPACKING THE APPLIANCE, MAKE SURE IT IS NOT DAMAGED. IN CASE OF DOUBT, DO NOT USE THE APPLIANCE AND CONTACT YOUR SUPPLIER OR A QUALIFIED TECHNICIAN.
• THE USE OF ACCESSORY AND ATTACHMENTS NOT RECOMMENDED BY THE MANUFACTURER MAY CAUSE INJURIES.

• THE APPLIANCE MUST NOT BE USED IF IT HAS BEEN DROPPED, IF IT HAS ANY VISIBLE DAMAGE, IF IT LEAKS OR IF IT FUNCTIONS ABNORMALLY IN ANY WAY.

• ALWAYS UNPLUG THE APPLIANCE IF NOT USING IT FOR A PERIOD OF TIME.

• REMOVE ALL PACKAGING AND DO NOT LEAVE THE PACKAGING MATERIAL SUCH AS PLASTIC BAGS, POLYSTYRENE AND ELASTIC BANDS IN EASY REACH OF CHILDREN AS THEY MAY CAUSE SERIOUS INJURIES.
• AFTER UNPACKING YOUR APPLIANCE, MAKE SURE YOU HAVE PUT IT ON A FLAT, STABLE AND HEAT-RESISTANT WORK PLAN OR KITCHEN COUNTER WHICH CAN ALSO STAND A MINIMUM TEMPERATURE OF 90^ . CHECK YOU HAD LEAVE ENOUGH SPACE BETWEEN YOUR APPLIANCE AND SURROUNDING WALL TO LET THE AIR CIRCULATE AROUND THE OVEN. THERE SHOULD BE AT LEAST 50CM ON THE TOP AND 20CM ON SIDES APART FROM THE OVEN.
• CHILDREN FROM 0 TILL 8 YEARS SHALL NOT USE THIS APPLIANCE. THE APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN ABOVE 8 YEARS OLD) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. KEEP AWAY THIS APPLIANCE AND ITS ELECTRIC PLUG AWAY FROM CHILDREN UNDER 8 YEARS OLD. CLEANING AND MAINTENANCE SHALL NOT BE MADE BY CHILDREN.

• CHILDREN SHALL NOT PLAY WITH THE APPLIANCE.
  FOR THE DETAILS ON HOW TO CLEAN SURFACES IN CONTACT WITH FOOD, PLEASE SEE SECTION "CLEANING AND MAINTENANCE"

• REGARDING THE INFORMATION FOR INSTALLATION, OPERATING TIMES AND SETTING, THANKS TO REFER TO THE BELOW PARAGRAPH OF THE MANUAL.

DANGER OF ELECTROCUTION!

• THIS APPLIANCE MUST BE EARTHED. IF YOU NEED TO USE AN EXTENSION LEAD, IT IS IMPORTANT THAT YOU USE A MODEL FITTED WITH AN EARTH PLUG.
• THIS APPLIANCE SHALL NOT BE USED WITH AN EXTERNAL TIMER OR A SEPARATE REMOTE CONTROL SYSTEM.
• CHECK THAT THE VOLTAGE MARKED ON THE RATING PLATE MATCHES TO YOUR LOCAL SUPPLY. IF NOT THE CASE, DO NOT USE THE APPLIANCE AND SEEK FOR EXPERT ADVICE.
• CHECK THAT YOUR ELECTRICAL INSTALLATION IS SUFFICIENT FOR SUPPLYING AN APPLIANCE OF THIS WATTAGE.
• TAKE ALL NECESSARY MEASURE WITH CORDS AND EXTENSIONS TO AVOID ANY INJURIES WHILE IN USE.
• NEVER IMMERSE IN WATER OR ANY OTHER LIQUID THIS APPLIANCE, ITS ELECTRIC PLUG AND CORD.
• ALWAYS UNPLUG THE APPLIANCE AND LET IT COOL DOWN COMPLETELY BEFORE ANY CLEANING OPERATION.
• FOR YOUR OWN SAFETY, WE RECOMMEND YOU NEVER LEAVE THE APPLIANCE IN A PLACE THAT IS EXPOSED TO HUMIDITY OR INCLEMENT WEATHER CONDITION.
• NEVER USE APPLIANCE AS AN ADDITIONAL HEATING SOURCE.
  DO NOT PUT THIS APPLIANCE ON TOP OF OTHERS.
• NEVER LEAVE APPLIANCE PLUGGED IN WHEN NOT IN USE.

• NEVER USE THE APPLIANCE WITH BARE OR WET FEET.

• NEVER MOVE THE APPLIANCE WHEN IN USE.

• IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
• THE SUPPLY CORD SHOULD BE REGULARLY EXAMINED FOR SIGNS OF DAMAGE AND THE APPLIANCE IS NOT TO BE USED IF THE CORD IS DAMAGED.
• NEVER PLUG THE APPLIANCE AND TOUCH THE THERMOSTAT WITH WET HANDS.
• NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CABLE. ALWAYS UNPLUG THE APPLIANCE FROM THE MAINS SOCKET.
• DO NOT USE THE APPLIANCE CLOSE TO ANY FABRICS.

DANGER OF BURNS!

• THE APPLIANCE MUST BE USED AND PLACED ON A FLAT, STABLE, HEAT AND WATER RESISTANT SURFACE.
• WHEN IN USE, THE SURFACES OF YOUR APPLIANCE CAN REACH VERY HIGH TEMPERATURES, WHICH MAY CAUSE BURNS. DO NOT TOUCH THE HOT SURFACES OF THE APPLIANCE (ACCESSIBLE METAL PARTS AND GLASS DOOR).
• WHEN IN USE, ALWAYS THINK OF USING THE DOOR HANDLE AND A PAIR OF GLOVES TO OPEN THE DOOR.
• DO NOT REHEAT ANY FOOD PACKAGED IN GLASS BOTTLE OR TINS, THEY ARE NOT SUITABLE TO BE USED IN AN OVEN AND COULD BROKE INSIDE THE OVEN.

• NEVER LEAVE THE OVEN UNATTENDED WHEN IN USE AND UNTIL IT HAS COOLED DOWN (AROUND 1 HOUR).

• HANDLE WITH CARE THE DOOR OF YOUR OVEN: ANY STRONG SHOCK OR EXCESSIVE THERMAL CONSTRAINTS MAY CAUSE THE GLASS TO BREAK.

• IN THE CASE OF SOME PARTS OF THE OVEN OR FOODS DURING THE COOKING CATCH FIRE, DO NOT ATTEMPT TO EXTINGUISH IT WITH WATER. USE A DAMP CLOTH OR A BLANKET TO CHOKE THE FLAMES OR USE AN EXTINGUISHER BY SPRAYING THE FOAMS TOWARDS THE OVEN AND ON THE SAME DIRECTION THAN THE WIND.
• DO NOT STORE ANY FLammable PRODUCTS CLOSE TO OR UNDER THE UNIT WHERE YOU PLACED THE OVEN. DO NOT PLACE AND USE THE OVEN CLOSE TO ANY FURNITURE WITH FABRICS, CURTAINS OR DRAPES.
• DO NOT PUT PAPER, CARDBOARD OR PLASTIC IN THE APPLIANCE AND DO NOT PLACE ANYTHING ON TOP (USTENSILS, RACKS, OBJECTS, ETC.).
• DO NOT PUT ANYTHING INTO THE VENTILATION SLITS, OR OBSTRUCT THEM.
• BEFORE ANY CLEANING OPERATION, WAIT UNTIL THE APPLIANCE IS COMPLETELY COLD AND HAS BEEN UNPLUGGED FOR AT LEAST 1 HOUR.
• DO NOT LIFT OR MOVE THE APPLIANCE WHEN IN USE TO AVOID BURNS.

STANDARDS

THIS APPLIANCE IS CONFORMED TO DIRECTIVES LVD 2014/35/UE, EMC 2014/30/UE, ERP 2009/125/CE, DEEE 2012/19/UE, ROHS 2011/65/UE ET REACH 1907/2006

TABLE OF CONTENTS

DESCRIPTION 1

SET-UP AND USE 2

Before rst use 2
Using appliance 2

CLEANING AND MAINTENANCE 3

TECHNICAL INFORMATION 4

ENVIRONMENT AND RECYCLING 5

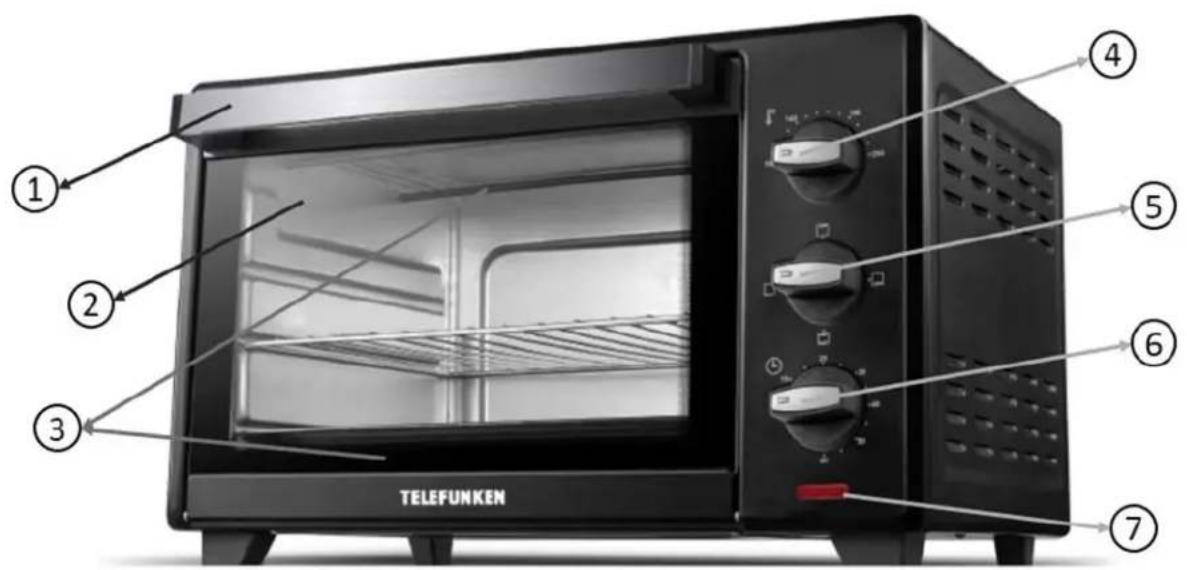

DESCRIPTION

1. Door handle
2. Door glass
3. Heang elements
4. Thermostat buon

5. Cooking method buon

6. Timer buon

7. Light indicator
8. Grill/roasng pan
9. Wire grill rack
10. Tray handle

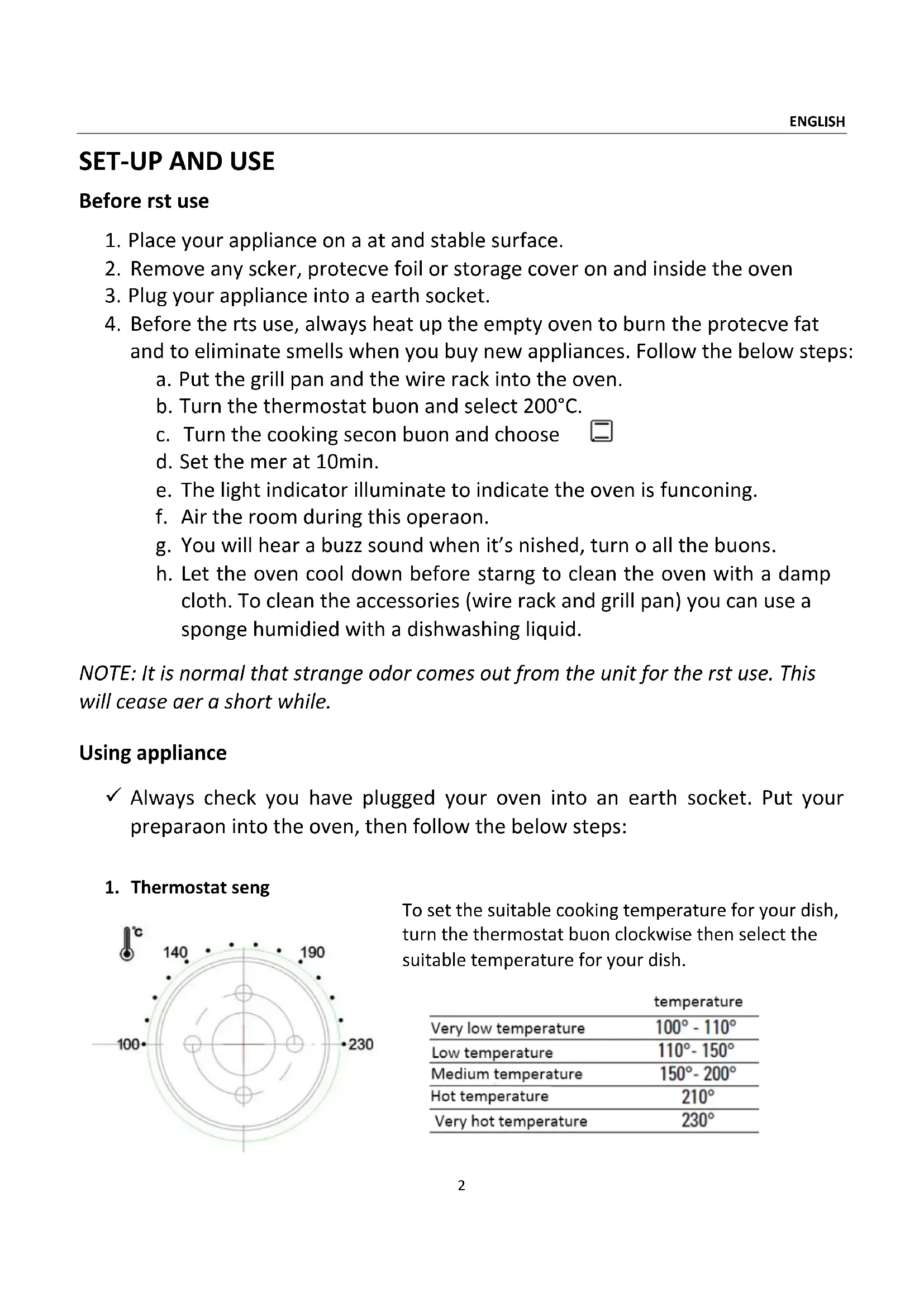

SET-UP AND USE

Before rst use

1. Place your appliance on a at and stable surface.

2. Remove any scker, protece foil or storage cover on and inside the oven

3. Plug your appliance into a earth socket.

4. Before the rts use, always heat up the empty oven to burn the protecve fat and to eliminate smells when you buy new appliances. Follow the below steps:

a. Put the grill pan and the wire rack into the oven.
b. Turn the thermostat buon and select 200^
c. Turn the cooking secon buon and choose
d. Set the mer at 10min.
e. The light indicator illuminate to indicate the oven is functioning.
f. Air the room during this operaoon.
g. You will hear a buzz sound when it's nished, turn o all the buons.
h. Let the oven cool down before starng to clean the oven with a damp cloth. To clean the accessories (wire rack and grill pan) you can use a sponge humidied with a dishwashing liquid.

NOTE: It is normal that strange odor comes out from the unit for the rst use. This will cease aer a short while.

Using appliance

• Always check you have plugged your oven into an earth socket. Put your preparaon into the oven, then follow the below steps:

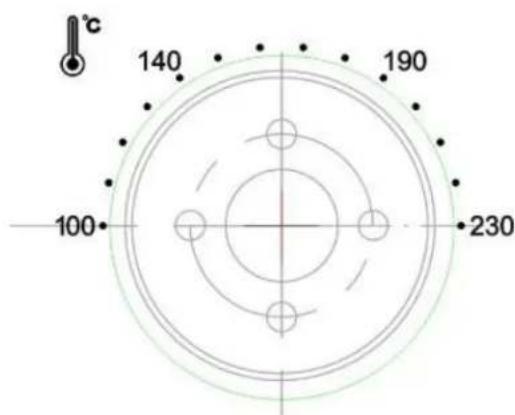

1. Thermostat seng

To set the suitable cooking temperature for your dish, turn the thermostat buon clockwise then select the suitable temperature for your dish.

	temperature
Very low temperature	100° - 110°
Low temperature	110° - 150°
Medium temperature	150° - 200°
Hot temperature	210°
Very hot temperature	230°

2. Cooking method seng

To set the suitable cooking method for your dish, turn the cooking selecon buon clockwise then select the suitable cooking method for your dish.

OFFposion
Upper heang posion, perfect for toasng or grilling some bread
Lower heang posion, that posion means the heang of the lower heang elements
Upper and lower heang posion, that posion means the heang of the both heang elements

3. Timer seng

The mer buon allows you to set up the correct me for your dish. To set the suitable me for your dish, turn the mer buon clockwise then select the suitable me for your dish.

As soon as you have selected your me, the light indicator will illuminate to indicate the oven is funconing.

The oven will turn o automatically at the end of the selected me and a bell will ring.

You can turn o manually your oven during cooking by turning the mer buon an-clockwise to the OFF posion.

CLEANING AND MAINTENANCE

Your oven is equipped with permanent self-cleaning coang that automacally, cleans itself during normal operaon. Any spaering that occurs while cooking and spaering the self-cleaning coang is oxidized during the cooking operaon.

To preserve the permanent self-coang, do not use a metallic scouring pads, hard brush or any others harsh cleaners to avoid scratching or damaging the interior surface of the oven.

At the end of your cooking, check you have turn o all the buons.
Unplug the oven.
Always let the appliance to cool down for at least one hour before starng any cleaning operaoon.
- Take out the wire rack and the grill pan, wash them with a sponge humidied with a neutral pH dishwashing liquid, rinse them under clear water and dry them with clean cloth.
✓ When cleaning, use a so cloth (or sponge) and neutral cleaner on the interior and exterior surfaces of the oven.
- Do not use a hard brush or any others cleaners to avoid scratching or damaging the interior surface of the oven, tray, wire rack and the rosserie fork.
- To clean the door glass, use a damp cloth with a glass product cleaner then dry the glass door with a clean cloth.
Never put the oven under the water.
To optimize your oven heang system, clean regularly your oven to take o the dirt, grease and food stains.

WARNING: Always let your oven unplugged and cool down for at least one

hour before any cleaning operaon! Do not use any toxic, solvent, industrial

or harsh cleaning products.

TECHNICAL INFORMATION

Model	MO-21SR
Capacity	44L
Rated voltage	220V-240V ~50Hz/60Hz
Rated power input	2000W

ENVIRONMENT AND RECYCLING

For EU product versions and/or in case that it is requested in your country:

• The materials of which the packaging of this appliance consists are included in a collecon, classicaon and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of materials.

The product does not contain concentrates of substances that could be considered harmful to the environment

• The following informaon concerns the energy labeling and the ecological design:

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorized waste agent for the selecve collecon of waste electrical and electronic equipment (WEEE)

This appliance complies with Direcve 2012/19/EC on Low Voltage and Direcve 2004/108/EC on Electromagnec Compability.

Imported by Vestel France, 17 rue de la Couture - 94563 Rungis CEDEX
