Product Type	PTC Fan Heater
Model	Telefunken TFH1500
Voltage	220V~ / 50Hz
Rated Power	1500W (Max)
Heating Element	PTC (Positive Temperature Coefficient)
Power Settings	2: Low (approx. 900W), High (approx. 1500W)
Thermostat	Adjustable, with automatic temperature regulation
Oscillation	Yes, +/-45° side-to-side
Indicator Light	Red pilot light when operating
Safety Features	Tip-over switch, non-self-resetting thermal cutout, overheat protection
Reset After Overheat	Unplug, wait 10 minutes, then plug back in
Airflow	Oscillation for even heat distribution
Control Type	Rotary knobs for power and thermostat
Housing Material	Plastic with metal grille
Cleaning	Wipe with damp cloth; do not immerse in water
Storage	Keep in original box in cool, dry place
Warranty	Covered under normal use; contact TELEFUNKEN Service Center

Frequently Asked Questions - TFH1500 TELEFUNKEN

How do I reset the heater after it shuts off due to overheating?

Unplug the heater and wait 10 minutes for it to cool down. Inspect for any obstructions. After 10 minutes, plug it back in and operate normally. If it still doesn't work, contact a service center.

Can I use this heater in a bathroom or near water?

No, this heater is not suitable for use in bathrooms, showers, or swimming pools. Keep it away from water to avoid electric shock.

What are the power settings and how do I select them?

Turn the power knob to 'I' for low heat (approx. 900W) or 'II' for high heat (approx. 1500W). 'O' turns the heater off. The thermostat knob regulates room temperature.

How do I activate the oscillation feature?

Press the oscillation switch located on the base of the heater. The heater will oscillate side to side. Press again to stop oscillation.

What does the indicator light mean?

The red pilot light indicates that the heater is operating. It turns on when the heater is powered and heating.

How should I clean the heater?

Always unplug before cleaning. Do not immerse in water. Wipe the exterior with a soft, damp cloth. Do not use harsh chemicals like gasoline or thinners.

Is it safe to leave the heater unattended?

The heater has safety features like tip-over switch and overheat protection, but it is recommended to turn it off when leaving the room. Keep flammable objects away.

Why does the heater smell when first used?

A slight smell is normal during initial use due to manufacturing residues. Ensure good ventilation; the smell will disappear quickly.

What should I do if the power cord is damaged?

The cord must be replaced by the manufacturer, its service agent, or a qualified person to avoid hazard. Do not use a damaged cord.

Does the heater have a warranty?

Yes, it comes with a warranty from the date of purchase. Keep the warranty card and invoice. Contact TELEFUNKEN Service Center for service.

USER MANUAL TFH1500 TELEFUNKEN

White and black digital power heater with 'TELEFUNKEN' branding on top (no other text or symbols visible)

Thank you for selecting TELEFUNKEN products.

Please read this manual carefully before use, and keep it properly for future reference.

目錄

操作說明 2

調節溫度

安全裝置 3

維護和清潔

特徵

1. The core part of this appliance is a PTC heating element which have characteristic of heating quickly, no clear fire, high efficiency and stabilize.
2. The appliance has a adjustable thermostat.
3. The appliance has a non-self-resetting thermal. When internal of temperature of the appliance raise very high, Non-self-resetting thermal will cut out. So there is protection function.

SAFETY AND WARNING

Read all the instructions carefully before you use the appliance and keep it for future use.

1. This appliance is not suitable to be used outside the house.
2. Warning: in order to avoid overheating, do not cover the heater.
3. Don't use it on the carpet with long fluff.
4. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
5. Don't insert sticks or any other objects to either the air inlet or the outlet of the appliance.
6. The Heater must not be located immediately below a socket-outlet.
7. Don't put the appliance near a fire.
8. Keep children away from the heater.

9. Children should be supervised to ensure that they do not play with the appliance.

10. Keep flammable and explosive objects away from the heater.

11. In case of malfunction or abnormal operation, don't attempt to open or repair the appliance at home, send the heater to appointed service agent for inspection and repair.

12. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
13. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

OPERATION INSTRUCTIONS

1. When the appliance is switched on for the first time, a slight smell may be emitted. Please ensure sufficient ventilation. This smell will disappear very quickly.
2. Place the power selector in "O" position, the thermostat on its minimum position and put the plug in a AC220-240V power socket
3. The selector allows you to choose the desired power. The higher the power, the faster the heating.

4. The thermostat regulates the temperature in the room. A red pilot light will indicate that the appliance is operating.

5. In order to spread the heat and to optimise the heating of the rooms, you appliance is equipped with an oscillation feature of +/-45° that can simply be activated by pressing the switch situated on the base.

6. OPERATION:

• Ventilation only: turn the power knob to setting
• Heating at low power: turn the power knob to setting I (about 900W).
• Heating at full power: turn the power knob to setting II (about 1500W).
• Switching off: turn the power knob to setting O.
• The indicator light will be on while the Heater is working.

ADJUSTING TEMPERATURE: When the room has reached the required temperature turn the right thermostat knob (where included) in an anti-clockwise direction up to the point where the appliance switches off and not beyond. The temperature fixed in this way will be automatically regulated and kept at a constant level by the thermostat.

OSCILLATION FUNCTION: Pressing the Oscillate switch will allow the Heater to oscillate side by side. To stop the oscillation, press the Oscillate switch once more.

SAFETY TIP-OVER SWITCH: This unit is equipped with a Safety Tip-Over switch located inside the Heater. This feature cuts the main power to the unit if the Heater gets knocked over. If the unit does tip over, simply stand it up right to resume operation.

Product specification Product specification

Model no: TFH1500

Voltage: 220V\~ /50Hz

Rated power: 1500W

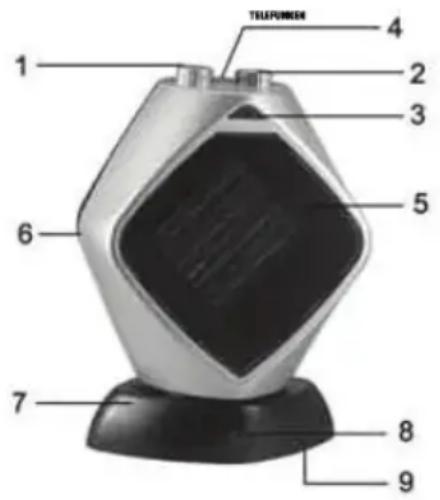

1. Thermostat
2. Heat select switch
3. Indicator light
4. Handle
5. Air outlet
6. Air inlet
7. Base
8. Oscillation switch
9. Tip over switch

SAFETY FEATURES

1. A thermal overload protector is built in to prevent overheating;
2. When an overheat temperature is reached, the Heater will be automatically shut off. It can only resume operation when the user resets the unit.(See Reset) instructions below)

To Reset Heater:

1. Unplug the Heater and wait 10 minutes for the unit to cool down. Inspect it and remove any objects on or adjacent to the heater that may cause overheating.
2. After the 10 minutes plug the unit in again and operate normally.
3. Plug in the appliance and switch it on. If the appliance can't operate normally, remove the plug immediately from the socket and have the Heater serviced by an appointed service only.

SECURITY SYSTEM

1.1 To avoid risk to human being or damage to internal components, the Heater has a security system which will automatically switch off the appliance if the heat reaches the safety limit. If overheating occurs:
1.2 Turn the heat select switch to "O" position, turn the thermostat switch to the minimal position and remove the plug from the socket.
1.3 Check if the air flows smoothly before the outlet and inlet, and if the appliance is put in right position. If so, get it in order before restart the appliance.
1.4 Let the Heater cool down for 8 to 10 minutes before you start it again.
1.5 Plug in the appliance and switch it on. If the appliance can't operate normally, remove the plug immediately from the socket and have the fan Heater serviced by an appointed service only.

MAINTENMANCE & CLEANING

WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING

DO NOT IMMERSE HEATER IN WATER!

CLEANING: IMPORTANT! DO NOT IMMERSE HEATER IN WATER! DO NOT ATTEMPT TO TAKE APART HEATER. DO NOT REMOVE GRILL.

CAUTION: DO NOT USE GASOLINE, BENZINE, THINNER, HARSH CLEANERS, ETC. AS THEY WILL DAMAGE THE HEATER, NEVER USE ALCOHOLOR SOLVENTS.

STORAGE: Store the Heater with these instructions in the original carton in a cool, dry place.

KEEP THIS INSTRUCTION MANUL FOR FURTHER USE!

售後服務 AFTER-SALES SERVICE

1. 本公司備有配件，費用由用戶自理。
2. 保修期滿後，本公司將繼續根據用戶的要求進行有償服務。
3. 有關具體維修事宜，請與德律風根客戶服務中心聯絡。

4. 本產品今後如有結構，性能參數變化，恕不另行通知。

5. The warranty period of this product will be started from the date of purchase. The valid warranty card and purchase invoice must be presented and verified at the TELEFUNKEN Service Center.

6. In the warranty period, service will be covered all damages which are caused under normal operation and subject to our technicians' judgment. Any of the following circumstances, a service charge for repairing and replacing parts will be paid by users:

Improper move, and/or improper use.
② Disassemble the washing machine and replace parts or components.
③ External factors such as abnormal voltage and fire.
④ Operation does not follow the Instruction Manual.
⑤ Failures due to use for business or public service purpose. (such as hotels or stores).

1. You may order Parts and Accessories at TELEFUNKEN Service Center.
2. After the expiration of the warranty, we will continue to provide the repair service with charges.
3. For the specific maintenance issue, please contact TELEFUNKEN Service Center.
4. Product structure and function will be changed without notice.

如果電源線損壞，為避免危險，必須由製造廠或其維修部或合資格的專職人員來更換 In order to avoid dangerous, please contact qualified technician for replacing power cords

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Special announcement:

All the data are checked carefully. If any misunderstanding occurs due to printing failure or misunderstanding of the content, our company withholds the right of the final explanation. Note:

If technical improvement occurs, it will be included in new version of user manual without notice. For the product appearance and color, please refer to the actual product.
