USER MANUAL CF30 TUNTURI

CF30 OWNER'S MANUAL p. 2-8

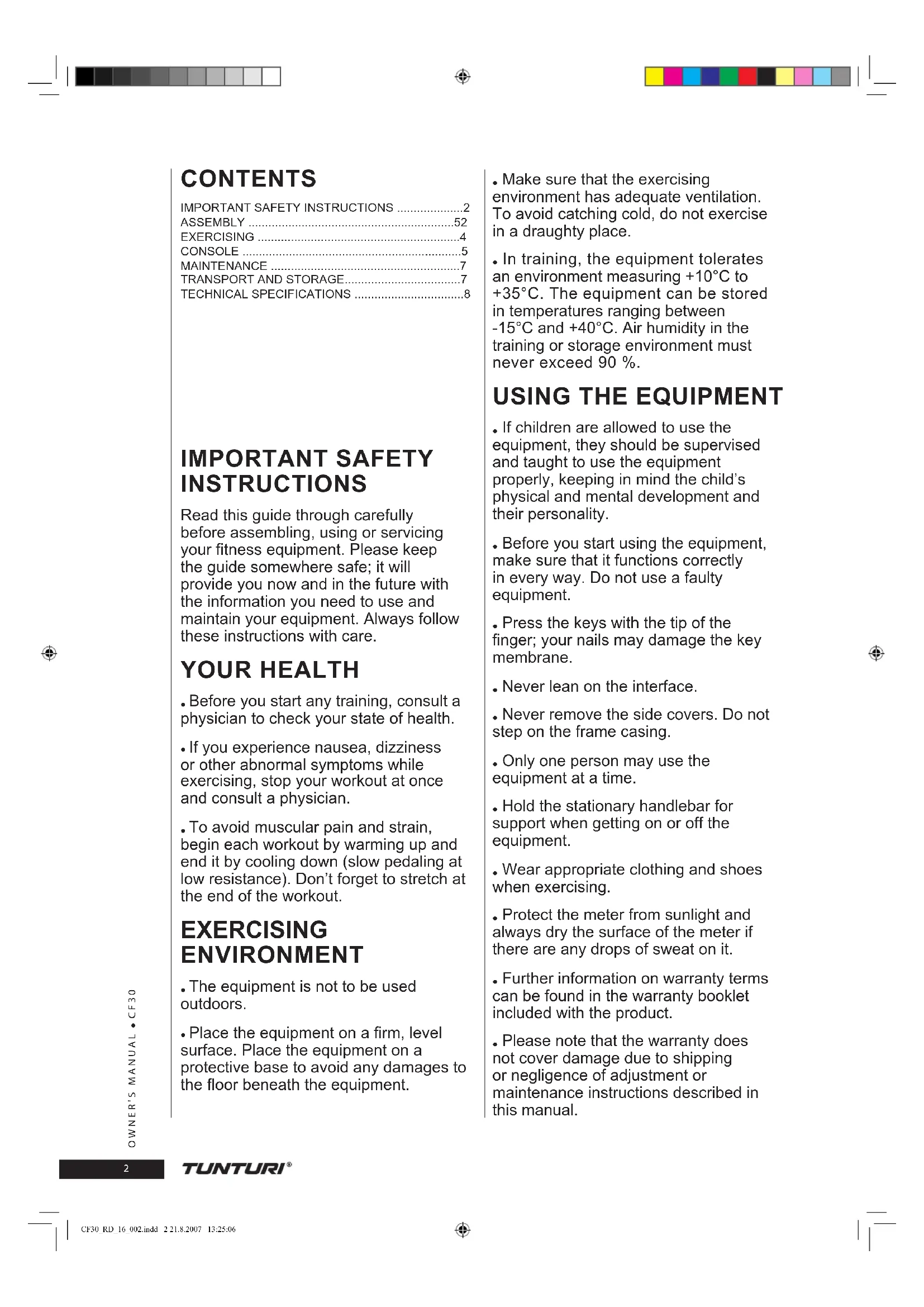

CF30 IMpORTANT SAFETY INSTRUCTIONS Read this guide through carefully before assembling, using or servicing your fitness equipment. Please keep the guide somewhere safe; it will provide you now and in the future with the information you need to use and maintain your equipment. Always follow these instructions with care. YOUR HEALTH

Before you start any training, consult a physician to check your state of health.

If you experience nausea, dizziness or other abnormal symptoms while exercising, stop your workout at once and consult a physician.

To avoid muscular pain and strain, begin each workout by warming up and end it by cooling down (slow pedaling at low resistance). Don’t forget to stretch at the end of the workout. EXERCISING ENVIRONMENT

The equipment is not to be used outdoors.

Place the equipment on a firm, level surface. Place the equipment on a protective base to avoid any damages to the floor beneath the equipment.

Make sure that the exercising environment has adequate ventilation. To avoid catching cold, do not exercise in a draughty place.

In training, the equipment tolerates an environment measuring +10°C to +35°C. The equipment can be stored in temperatures ranging between -15°C and +40°C. Air humidity in the training or storage environment must never exceed 90 %. USING THE EQUIpMENT

If children are allowed to use the equipment, they should be supervised and taught to use the equipment properly, keeping in mind the child’s physical and mental development and their personality.

Before you start using the equipment, make sure that it functions correctly in every way. Do not use a faulty equipment.

Press the keys with the tip of the finger; your nails may damage the key membrane.

Never lean on the interface.

Never remove the side covers. Do not step on the frame casing.

Only one person may use the equipment at a time.

Hold the stationary handlebar for support when getting on or off the equipment.

Wear appropriate clothing and shoes when exercising.

Protect the meter from sunlight and always dry the surface of the meter if there are any drops of sweat on it.

Further information on warranty terms can be found in the warranty booklet included with the product.

Please note that the warranty does not cover damage due to shipping or negligence of adjustment or maintenance instructions described in this manual. CONTENTS

The equipment must not be used by persons weighing over 150 kg.

Make sure the equipment is unplugged before carrying out any assembly or maintenance procedures.

Do not attempt any servicing or adjustments other than those described in this guide. Everything else must be left to someone familiar with the maintenance of electromechanical equipment and authorized under the laws of the country in question to carry out maintenance and repair work.

This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of the equipment- grounding conductor can result in a risk of electric shock. Check with a qualified electrician or technician if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

SAVE THIS INSTRUCTION MANUAL

ELECTRICAL pOWER Before connecting the equipment to a power source, make sure that the local voltage matches that indicated on the type plate: the equipment operates at either 230 v or 115 v (north american version). Note! The equipment must be connected to a grounded wall socket. Do not use extension wires when connecting the equipment to the power source. Always switch off the power and unplug the equipment from the electrical outlet immediately after using! To reduce the risk of burns, fire, electric shock or injury to persons:

1. The equipment should never

be left unattended when plugged in. Unplug the equipment from the outlet when not in use, before carrying out any maintenance or repair procedures, and before moving the unit.

2. Do not operate the equipment

under a blanket or other combustive material. Excessive heating can occur and cause fire, electric shock or injury to persons.

3. Do not connect the equipment

to a power source, or operate the equipment if there is any sort of damage to the power cord or the unit itself.

4. Do not connect the equipment

to a power source or operate the equipment outdoors or in damp locations.

5. Keep the power cord away from

6. Do not route the power cord

beneath a carper or place any objects on the cord. Also make sure that the power cord does not run underneath the equipment.

7. Do not alter (for example

lengthen) the cord between the transformer and the unit. NOTE ABOUT ASSEMBLING THE EQUIpMENT Start by unpacking the equipment. The detailed assembly instructions can be found at the back of this guide. Follow the instructions in given order. Before assembly, check the contents of the package. If a part is missing, please contact your dealer with the model, equipment serial no. and spare part no. of the missing part. You’ll find a spare part list at the back of this guide. The CF30_RD_16_002.indd 3 21.8.2007 13:25:074 OWNER'S MANUAL CF30 hardware kit contents are marked with

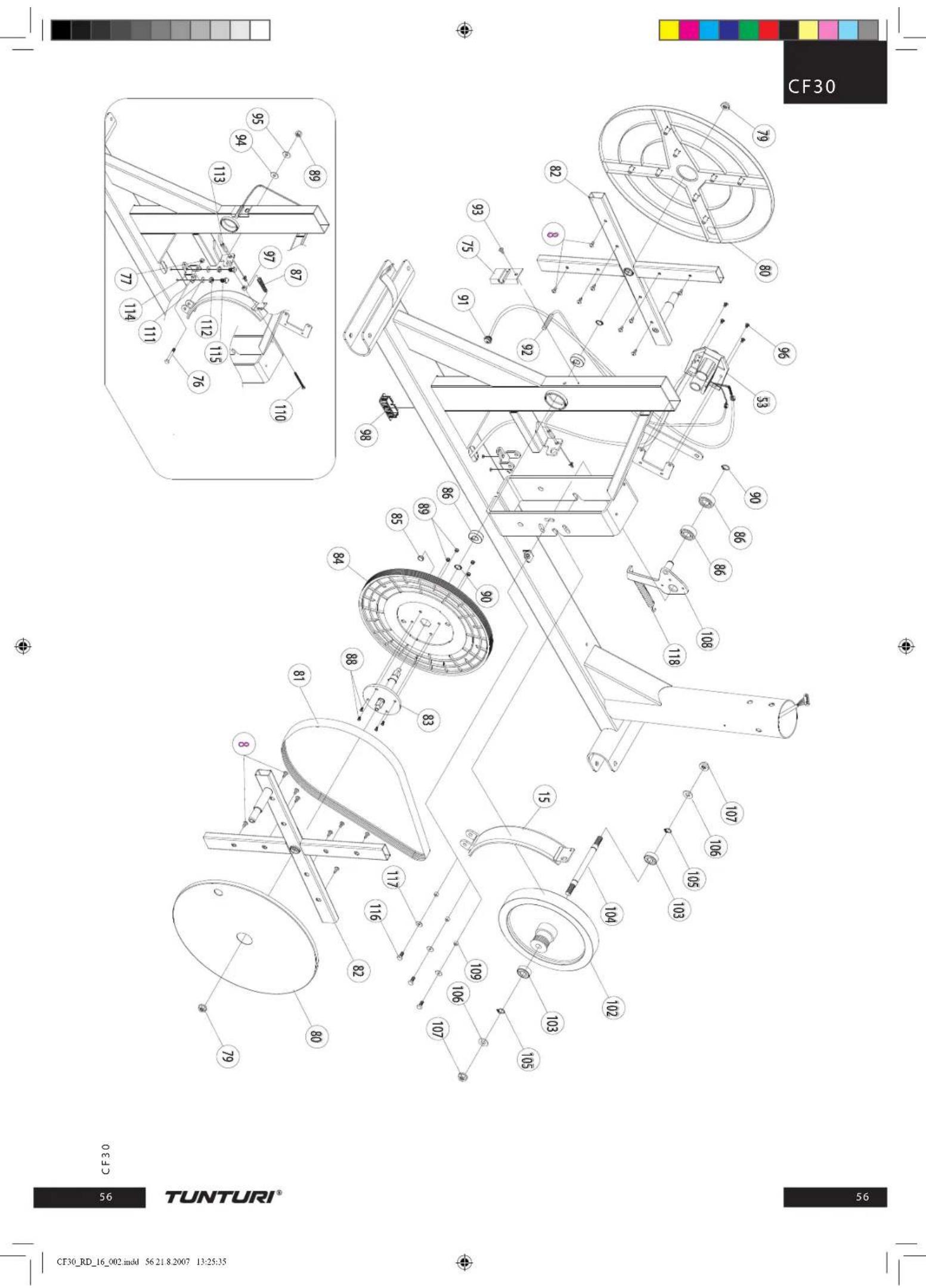

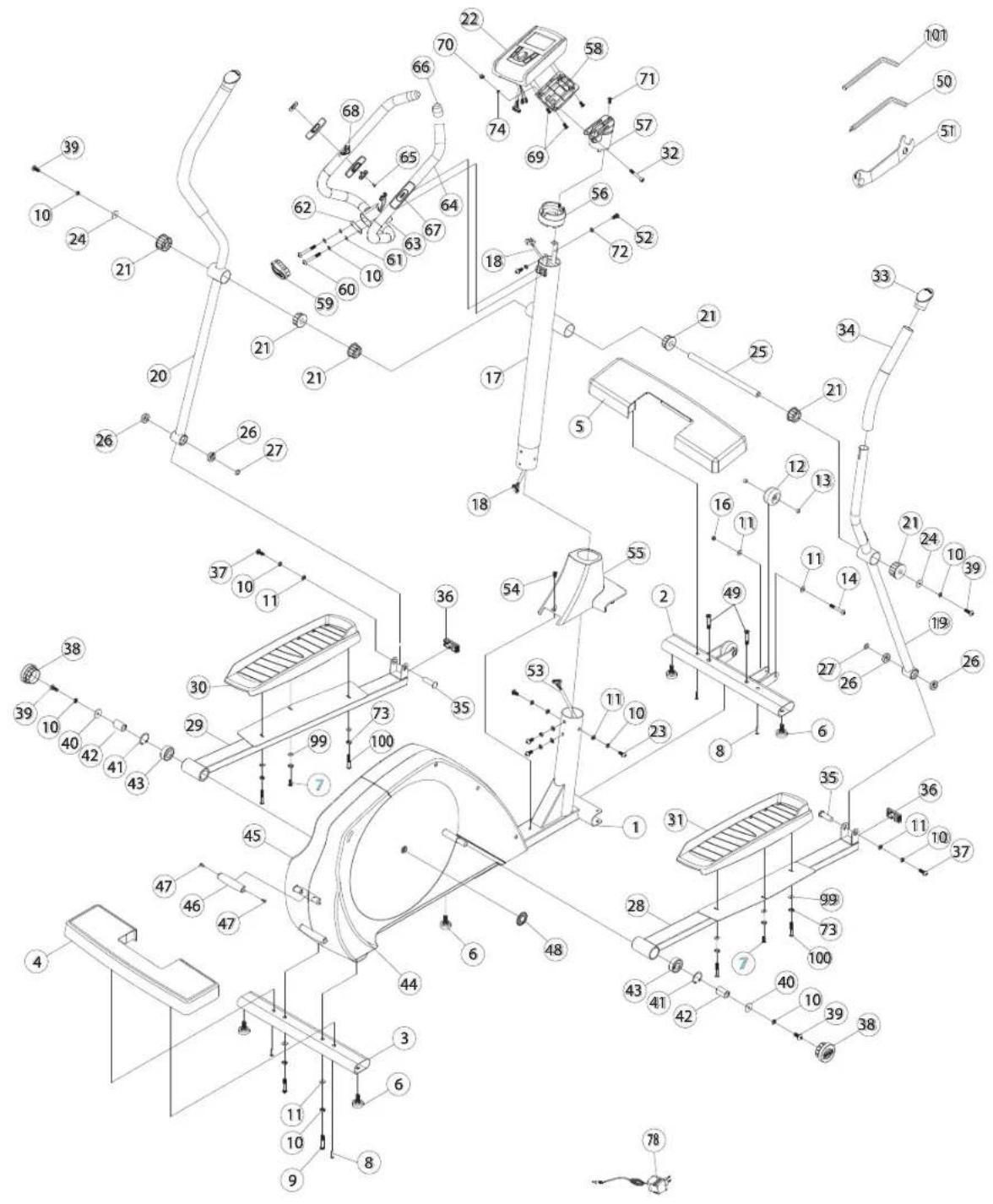

• in the spare parts list. The directions left, right, front and back are defined as seen from the exercising position. Keep the assembly tools, as you may need them e.g. for adjusting the equipment. Note that two people are needed for the assembly. The packaging includes a silicate bag for absorbing moisture during storage and transportation. Please dispose of the bag once you have unpacked the equipment. Allow at least 100 cm of clearance around the equipment. We also recommend opening the package and assembling the product on a protective base.

WELCOME TO THE WORLD OF

TUNTURI EXERCISING! Your choice shows that you really want to invest in your well being and condition; it also shows you really value high quality and style. With Tunturi Fitness Equipment, you’ve chosen a high quality, safe and motivating product as your training partner. Whatever your goal in training, we are certain this is the training equipment to get you there. You’ll find information about using your exercise equipment and what makes for efficient training at Tunturi’s website at WWW.TUNTURI. COM. EXERCISING Working out using an elliptical trainer is excellent aerobic exercise, the principle being that the exercise should be suitably light, but of long duration. Aerobic exercise is based on improving the body ‘s maximum oxygen uptake, which in turn improves endurance and fi tness. The ability of the body to burn fat as a fuel is directly dependent on its oxygen-uptake capacity. Aerobic exercise should above all be pleasant. You should perspire, but you should not get out of breath during the workout. You must, for example, be able to speak and not just pant while pedaling. You should exercise at least three times a week, 30 minutes at a time, to reach a basic fi tness level. Maintaining this level requires a few exercise sessions each week. Once the basic condition has been reached, it is easily improved simply by increasing the number of exercise sessions. Exercise is always rewarding for weight loss, because it is the only way of increasing the energy spent by the body. This is why it is always worthwhile to combine regular exercise with a healthy diet. A dieter should exercise daily, at fi rst 30 minutes or less at a time, gradually increasing the daily workout time to one hour. You should start slowly at a low pedaling speed and low resistance, because for an overweight person strenuous exercise may subject the heart and circulatory system to excessive strain. As fitness improves, resistance and pedaling speed can be increased gradually. Exercise efficiency can be measured by monitoring the pulse. The pulse meter helps you monitor your pulse easily during exercise, and thus to ensure that the exercise is sufficiently effective but not over-strenuous. Start your workout with slow tempo and low resistance. Gradually increase tempo and resistance according to your own condition. Keep your head up and neck long in order to avoid stress on your neck, shoulders and back. Keep also your back straight. Make sure that your feet are centered on the foot pedals and that your hips, knees, ankles and toes are facing forward. Keep your body weight centered over your lower body regardless of whether you lean forward or stand upright. Stop your workout by gradually decreasing tempo and resistance. Don’t forget to stretch afterwards. To strengthen cardiovascular system, maintain low resistance but high tempo. Exercising with higher resistance and slow tempo strengthens correspondingly your back and hips. HEART RATE No matter what your goal, you’ll get the best results by training at the right level of effort, and the best measure is your own heart rate. The CF30 meter has a heart rate receiver compatible with Polar equipment, so you can also use Polar uncoded heart rate transmitter belts for heart rate measurement. NOTE! If you are fitted with a pacemaker, please consult a physician before using a heart rate transmitter belt. The most reliable heart rate measurement is achieved with a telemetric device, in which the electrodes of the transmitter fastened to the chest transmit the pulses from the heart to the console by means of an electromagnetic field. If you want to measure your heart rate this way during your workout, moisten the grooved electrodes on the transmitter belt with saliva or water. Fasten the transmitter just below the chest with the elastic belt, firmly enough so that the electrodes remain in contact with the skin while exercising, but not so tight that normal breathing is prevented. If you wear the transmitter and belt over a light shirt, moisten the shirt slightly at the points where the electrodes touch the shirt. The transmitter automatically transmits the heart rate reading to the console up to a distance of about 1 m. If the electrode surfaces are not moist, the heart- CF30_RD_16_002.indd 4 21.8.2007 13:25:07GB

CF30 rate reading will not appear on the display. If the electrodes are dry, they must be moistened again. Allow the electrodes warm up properly to ensure accurate heart rate measurement. If there are several telemetric heart rate measurement devices next to each other, the distance between them should be at least 1.5 m. Similarly, if there is only one receiver and several transmitters in use, only one person with a transmitter should be within transmission range. the transmitter is switched to an active state only when it is being used for measurement. sweat and other moisture can, however, keep the transmitter in an active state and waste battery energy. therefore it is important to dry the electrodes carefully after use. When selecting training attire, please note that some fibers used in clothes (e.g. polyester, polyamide) create static electricity, which may prevent reliable heart rate measurement. Please note that a mobile phone, television and other electrical appliances form an electromagnetic field around them, which will cause problems in heart rate measurement. HAND GRIp pULSE MEASUREMENT (HGp-VERSION) Pulse is measured by sensors in the handlebars. Pulse is measured when the user of CF30 is touching both sensors simultaneously. Reliable pulse measurement requires that the skin is constantly touching the sensors and that the skin is slightly moist. Too dry or too moist skin weakens the reliability of hand pulse measurement.

HEART RATE IN TRAINING

First find your maximum heart rate i.e. where the rate doesn’t increase with added effort. If you don’t know your maximum heart rate, please use the following formula as a guide:

The formula gives an average value, the maximum varies from person to person. The maximum heart- rate diminishes on average by one point per year. If you belong to a risk group, ask a doctor to measure your maximum heart rate for you. We have defined three different heart-rate zones to help you with targeted training. BEGINNER

50-60 % of maximum heart-rate Also suitable for weight-watchers, convalescents and those who haven’t exercised for a long TIME. Three sessions a week of at least a half-hour each is recommended. Regular exercise considerably improves beginners’ respiratory and circulatory performance and you will quickly feel your improvement. TRAINER

60-70 % of maximum heart-rate Perfect for improving and maintaining fitness. Even reasonable effort develops the heart and lungs effectively, training for a minimum of 30 minutes at least three TIMEs a week. To improve your condition still further, increase either frequency or effort, but not both at the same time! ACTIVE TRAINER

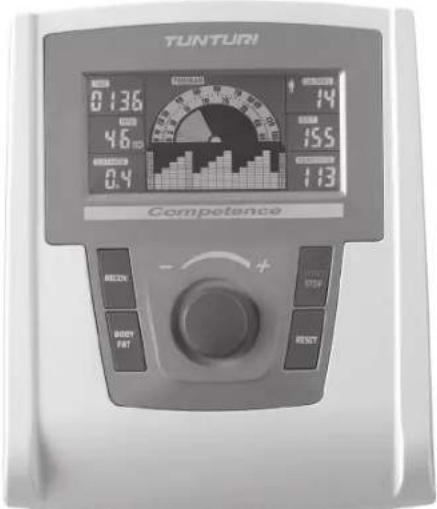

70-80 % of maximum heart- rate Exercise at this level suits only the fittest and presupposes long-endurance workouts. CONSOLE BUTTONS

The selection dial functions in two ways: A) Rotating the dial (+ / -). By rotating the dial clockwise, you can scroll the menus to the right, and increase values or resistance. By rotating the dial counter-clockwise, you can scroll the menus to the left, and decrease values or resistance. B) Pressing the dial (ENTER). By pressing the dial, you can accept the selection you made when rotating the dial.

Starts, pauses, and stops training. During training, pressing this button once activates the pause mode. Pressing the button again starts the program again.

CF30 DISpLAY Time (mm:ss), speed (km/h or ml/h), RPM (revolutions per min), distance (km or ml), energy consumption (kcal), power(W) and heart rate (bpm) are displayed. pROGRAMS 1.MANUAL PROGRAM Set target time and/or distance and/or energy consumption and/or upper heart rate limit by using the SELECTION DIAL. Start training by pressing START/STOP button. If you have set target/targets, the target/targets start to count down. Adjust resistance with SELECTION DIAL.

Preset program profile is shown for two seconds while programs are browsed. Select desired preset program by using the SELECTION DIAL. Set time for training and/or target distance and/or energy and/or upper heart rate limit by SELECTION DIAL. Start training by pressing START/STOP button. If you have set target/targets, the target/targets start to count down. During training you can scale the load by SELECTION DIAL.

The program profile used last time is displayed. You can either start training with your personal memorized training targets by pressing START/ STOP or modify the program. The program profile bar (1/20) that can now be modified blinks. If you want to change, modify the blinking bar and confirm. Next bar will blink. After the last bar, the display switches back to the first bar. By pressing the ENTER button for 2 seconds you can finish the profile modifying. Now program is ready with your memorized personal training data (time, distance, energy targets and heart rate limit). Modify your targets if needed. Start training by pressing START/ STOP button. If you have set target/targets, the target/targets start to count down. During training you can scale the load by SELECTION DIAL

4. HEART RATE CONTROL (H.R.C.)

Select between four different training intensities (55%, 75%, 90% or TARGET). By selecting TARGET you can insert target heart rate. Start training by pressing START/STOP button. During the training the equipment will automatically adjust the resistance so that your target will be reached and maintained.

Set target power in watts and target time and/or distance and/or energy consumption and/or upper heart rate limit by SELECTION DIAL. Start training by pressing START/STOP button. If you have set target/targets, the target/targets start to count down. During training the equipment will adjust resistance dependently on your pedaling speed, so that target power level is achieved and maintained. You can change the target power by SELECTION DIAL.

Start the recovery calculation after training by pressing RECOVERY button. Recovey heart rate calculation can be started only if the heart rate measurement is activated and the heart rate value is shown on the display The measurement takes 60 seconds. After 60 seconds, the display shows your recovery index F1-F6 (F1 = best result). To get back to main menu, press RECOVERY button once again.

Press BODY FAT button to start measurement. Hold both hands on the handgrips and wait for 8 seconds. The meter will show body fat advice symbol, body fat % and BMI for 30 seconds.

Right after restarting the meter or reset (long push) you can enter to the user menu. Select the user and confirm. Set your sex, age, height and weight. Confirm by selection dial. Personal exercise target data (time, distance, energy, heart rate limit) will be memorized and recalled as defaults every time when the user is selected. If you modify your personal training data, it will automatically be memorized. ADDITIONAL NOTES

1. For speed and distance you can choose either

metric or English units by using the KM/ML switch located on the back cover of the meter. The power cord has to be unplugged and replugged to apply the change.

2. If you are not training and buttons are not

pressed, the meter switches into the Sleep mode after about four minutes. Room temperature is displayed.

3. Training is paused for a maximum of 4 minutes

by pressing the START/STOP button. Pressing the button again allows you to continue the paused training session using the previous training data.

4. Entering training targets (time, distance, energy,

heart rate limit) is possible only in the STOP mode (not during training).

5. If you don’t want to change your user data every

time you start training, press START/STOP to skip user data editing. You’ll enter to the training in Manual mode.

6. This equipment cannot be used for therapeutic

7. Energy consumption is calculated based on

average values. The energy expenditure is displayed in kilocalories. To convert this into joules, use the formula: 1 Kcal = 4.187 KJ.

8. If you are training with heart rate measurement

CF30 while training meter will give alarm beeps.

9. Preset programs are divided into 16 steps.

Duration of the one step depends on the time set for the whole training. If time is not set, duration of one step will be 100 m in distance.

10. If you have set targets to count down, a signal

sounds and training automatically stops when any of target reaches zero. You can restart training by pressing START/STOP

11. Note that recovery index is in relation to the

heart rate frequency in both the beginning and the end of the measurement.

12. In H.R.C program heart rate target ranges (55%,

75% and 90%) are calculated as percent from your age predicted maximum heart rate (calculation formula: maximum heart rate = 220 – age).

13. Automatic adjustment of the resistance during

H.R.C program occurs upwards every 30 seconds and downwards every 15 seconds, if needed.

14. BODY FAT is a personal measurement and the

result is based on average european population values. B.M.I. (Body Mass Index) table: LOW < 20 LOW / MEDIUM 20 – 24 MEDIUM 24 - 26,5 MEDIUM / HIGH > 26,5 Formula for BMI = weight (kg) / height^2 (m) BODY FAT % (average european population) table: Male: LOW < 13 LOW / MEDIUM 13 – 26 MEDIUM 26 – 30 MEDIUM / HIGH > 30 Female: LOW < 23 LOW / MEDIUM 23 – 36 MEDIUM 36 – 40 MEDIUM / HIGH > 40 MAINTENANCE The equipment requires very little maintenance. Check, however, from time-to-time that all screws and nuts are tight.

After exercising, clean the equipment with a soft, absorbent cloth. Do not use solvents.

Never remove the equipment’s protective casing.

The electromagnetic brake forms a magnetic field that may damage the mechanism of a watch, or the magnetic identification strip on a credit or cash card, should they come into immediate contact with the magnets. Never attempt to detach or remove the electromagnetic brake!

The electromagnetic brake is based on electromagnetic resistance; resistance level is electronically measured and shown as watt reading on the display. Due to the measurement system, your Tunturi crosstrainer need not be re-calibrated when assembled, serviced and used according to this Owner’s Manual. MALFUNCTIONS Despite continuous quality control, defects and malfunctions caused by individual components may occur in the equipment. In most cases it’s unnecessary to take the whole device in for repair, as it’s usually sufficient to replace the defective part. If the equipment does not function properly during use, contact your Tunturi dealer immediately. Always give the model and serial number of your equipment. Please state also the nature of the problem, conditions of use and purchase date. If you require spare parts, always give the model, serial number of your equipment and the spare part number for the part you need. The spare part list is at the back of this manual. Use only spare parts mentioned in the spare part list. TRANSpORT AND STORAGE Please follow these instructions when carrying and moving the equipment about, because lifting it incorrectly may strain your back or risk other accidents: Always switch the power off and unplug the power cord before you start moving the equipment around! For transportation or moving of the device, two grown-ups are needed. Remain standing in front of the device on each side and take a sturdy grip at the handles. Lift the front of the device so as to lift the rear of the device on the wheels. Move the device and carefully put it down to its new place. NOTE! Transport the equipment with caution over uneven surfaces, for example over a step. The equipment should never be transported upstairs using the wheels over the steps, instead it must be carried. We recommend that you use a protective base when transporting the equipment. To prevent the equipment malfunctioning, store in a dry place with as little temperature variation as possible and protected from dust. CF30_RD_16_002.indd 7 21.8.2007 13:25:098 OWNER'S MANUAL

• CF30 TECHNICAL SpECIFICATIONS Length p. 144
• cm Width p. 61
• cm Height p. 165
• cm Weight kg The Tunturi CF30 meets the requirements of the EU’s EMC Directives on electromagnetic compatibility (89/336/EEC) and electrical equipment designed for use within certain voltage limits (73/23/EEC). This product therefore carries the CE label. The Tunturi model CF30 meets EN precision and safety standards (Class A, EN-957, parts 1 and 9) for fitness devices. The precision of the capacity measurement is secured during manufacturing by adjusting the brake with a dynamometer. Calculation of exercise capacity is based on rotation speed and moment. Due to our continuous policy of product development, Tunturi reserves the right to change specifications without notice. NOTE! The instructions must be followed carefully in the assembly, use and maintenance of your equipment. The warranty does not cover damage due to negligence of the assembly, adjustment and maintenance instructions described herein. Changes or modifications not expressly approved by Tunturi Oy Ltd will void the user’s authority to operate the equipment! WE WISH YOU MANY ENJOYABLE TRAININGS WITH YOUR NEW TUNTURI TRAINING pARTNER! CF30_RD_16_002.indd 8 21.8.2007 13:25:099 p. 58

SENSORI NEL MANUBRIO

TOOL(1)TOOL(1)TOOL(1) M8*58mm ALLEN HEAD BOLT M5*1.5mm WASHERM5 SPRING WASHER

M5*42mm SCREW M8*15mm ALLEN HEAD BOLTM8*20mm ALLEN HEAD BOLTM8*2.0mm WASHER15.5*20*3.0T WASHERM8*42mm ALLEN HEAD SCREW

M5*12mm SCREWM8*25mm ALLEN HEAD BOLTM8*1.2mm WASHER M8*58mm SCREW
