Product Type	Elliptical Bike
Brand	Tunturi
Model	Cross R 2.1
Dimensions (L x W x H)	160 x 70 x 165 cm
Device Weight	70 kg
Maximum User Weight	130 kg
Power Supply	Self-powered (built-in generator) or optional mains adapter
Resistance System	Magnetic, manually adjustable (16 levels)
Stride Length	40 cm
Training Programs	12 preset programs, including 1 manual, 5 profiles, 4 HRC, 2 watts
Display	Backlit LCD, displays time, distance, calories, heart rate, speed
Heart Rate Sensor	Integrated hand grips + chest strap (optional)
Bluetooth Functions	Compatible with fitness apps (e.g., Kinomap)
Bottle Holder	Integrated
Transport Wheels	Yes, at the front
Pedals	Non-slip with adjustable straps
Maintenance	Clean with a damp cloth; occasional lubrication of bearings
Noise Level	Quiet (magnetic system)
Warranty	2 years (parts and labor)

Frequently Asked Questions - Cross R 2.1 TUNTURI

How to assemble the Tunturi Cross R 2.1?

Follow the detailed instructions in the provided assembly manual. Generally, first attach the central frame, then the moving arms and pedals. Tighten all screws with the included Allen key.

How to adjust the resistance?

Turn the resistance knob located on the frame, between the fixed arms. Turn clockwise to increase difficulty, counterclockwise to decrease.

How to use the training programs?

Turn on the display and press the 'Program' button. Use the +/- keys to select a program (manual, profile, or HRC). Confirm with 'Enter' and follow the instructions.

How to connect Bluetooth?

Enable Bluetooth on your mobile device. Open a compatible app (like Kinomap), then select 'Tunturi Cross R 2.1' from the device list. The display will show a confirmation.

What to do if the screen does not turn on?

Check that the power cable is properly plugged in (if mains powered) or that the unit is being used (built-in generator). If the problem persists, contact customer service.

How to maintain the elliptical bike?

Regularly clean the device with a damp cloth. Lubricate the bearings every 6 months with a silicone lubricant. Check the tightness of screws after the first few uses.

The elliptical bike makes noise, what to do?

Check that all screws are tight. If the noise persists, inspect the bearings and lubricate them. A rubbing noise may come from the pedals: tighten them or adjust the straps.

How to move the device?

Tilt the front of the Cross R 2.1 slightly backward so that the transport wheels touch the ground. Then pull by the handlebar or frame to move it.

What is the maximum user weight?

The recommended maximum weight is 130 kg. Do not exceed this limit to avoid damaging the device and ensure your safety.

Where to find spare parts?

Contact Tunturi customer service or visit the official website. Common parts (pedals, grips, chest strap) are available online.

USER MANUAL Cross R 2.1 TUNTURI

User Manual Pure Cross R 2.1

USER MANUAL....03-17

It's easy to feel good!

Contents

WELCOME....3

SAFETY WARNINGS......3

ELECTRICAL SAFETY ......4

ASSEMBLY....5

Parts out of box 5

Hardware kit 5

Assembly steps 6

USE 9

Adjusting the support feet....9

WORKOUTS 9

Pulse rate measurement 9

Heart rate measurement 9

Maximum heart rate.... 10

USER INTERFACE ....11

Display functions ......11

Key functions....11

Extra functions....11

Power on 12

PROGRAMS 12

Manual mode....12

Beginner mode 13

Advance mode.... 13

Sporty mode 14

Cardio mode....14

Watt mode 15

Body fat 15

Recovery 16

CLEANING AND MAINTENANCE .... 16

TRANSPORT AND STORAGE......16

DISCLAIMER....17

WARRANTY....17

SPECIFICATIONS......63

Parts list....63

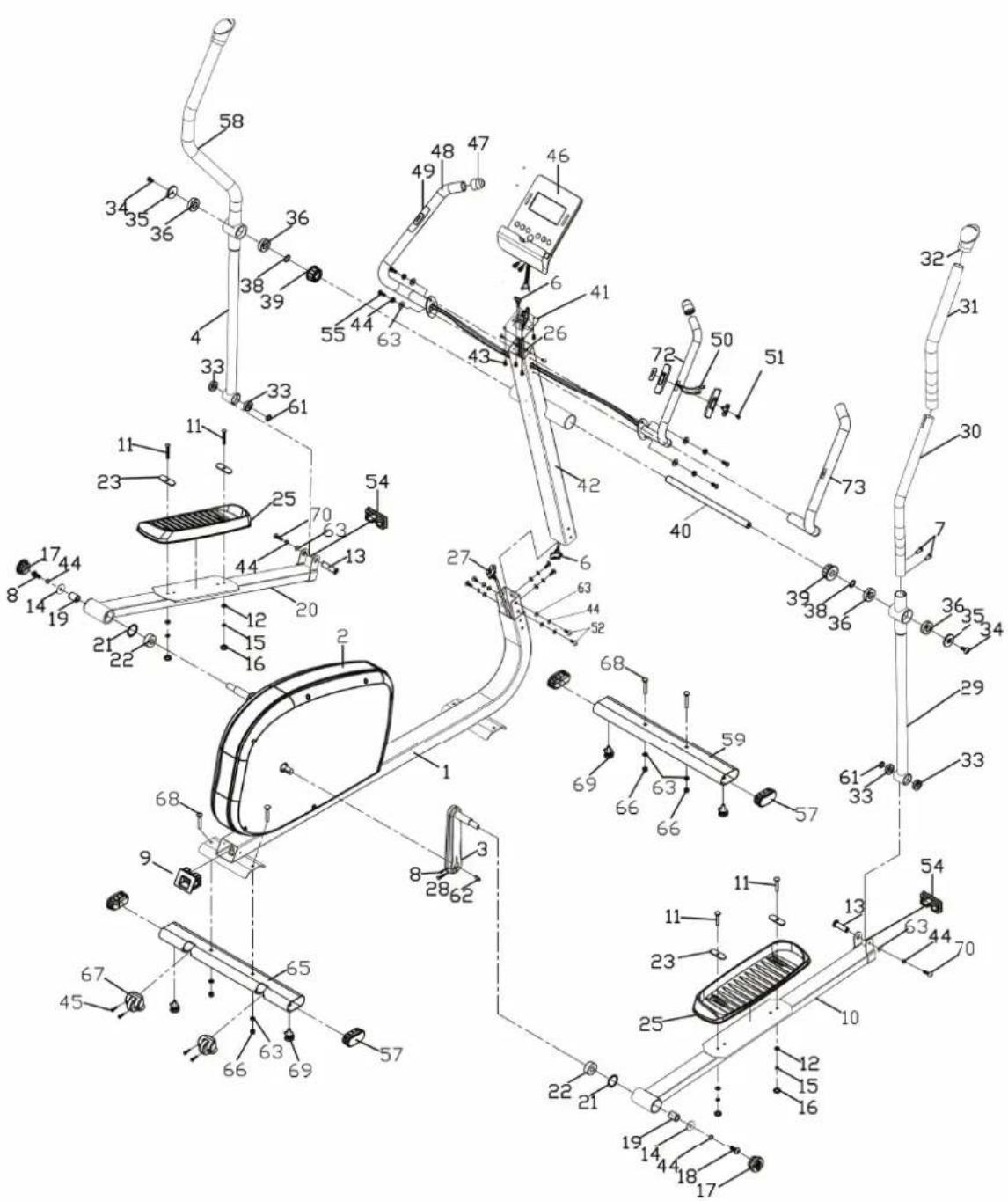

Exploded view 65

Welcome

Welcome to the world of Tunturi New Fitness!

Thank you for purchasing this piece of Tunturi equipment. Tunturi offers a wide range of professional fitness equipment, including cross trainers, treadmills, exercise bikes, and rowers. The Tunturi equipment is suitable for the entire family, no matter what fitness level.

For more information, please visit our website www.tunturi.com

Safety warnings

WARNING

Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.

WARNING

Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death. If you feel faint stop exercising immediately.

- The equipment is suitable for home use only. Max. usage is limited to 3 hrs a day. The equipment is not suitable for full commercial use (e.g. large gyms).

- The use of this equipment by children or persons with a physical, sensory,

- mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.

- Before starting your workout, consult a physician to check your health.

- If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.

• To avoid muscular pain and strain

start each workout by warming up and finish each workout by cooling down. Remember to stretch at the end of the workout.

• The equipment is suitable for indoor use only. The equipment is not suitable for outdoor use.
• Only use the equipment in environments with adequate ventilation. Do not use the equipment in draughty environments in order not to catch a cold.
• Only use the equipment in environments with ambient temperatures between 10 °C and 35 °C. Only store the equipment in environments with ambient temperatures between 5 °C and 45 °C.
• Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80%.
• Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.
• Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.
• Keep your hands, feet and other body parts away from the moving parts.
• Keep your hair away from the moving parts.
• Wear appropriate clothing and shoes.
• Keep clothing, jewellery and other objects away from the moving parts.
• Make sure that only one person uses the equipment at a time. The equipment must not be used by persons weighing more than 135kg (300 lbs).
• Do not open equipment without consulting your dealer.

Electrical safety

(only for equipment with electric power)

• Before use, always check that the mains voltage is the same as the voltage on the rating plate of the equipment.
• Do not use an extension cable.
• Keep the mains cable away from heat, oil and sharp edges.
• Do not alter or modify the mains cable or the mains plug.
• Do not use the equipment if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, contact your dealer.
  • Always fully unwind the mains cable.
• Do not run the mains cable underneath the equipment. Do not run the mains cable underneath a carpet. Do not place any objects on the mains cable.
• Make sure that the mains cable does not hang over the edge of a table. Make sure that the mains cable cannot be caught accidentally or tripped over.
• Do not leave the equipment unattended when the mains plug is inserted into the wall socket.
• Do not pull the mains cable to remove the mains plug from the wall socket.
• Remove the mains plug from the wall socket when the equipment is not in use, before assembly or disassembly and before cleaning and maintenance.

Assembly

Parts out of box

			1	M8*60mm SCREW		2
				M8*16*2.0T WASHER		2
				M8 NYLON NUT		2
				M8*60mm SCREW		2
				M8*16*1.2T WASHER		2
				M8 NYLON NUT		2
			1	M8*16*1.2T WASHER		6
				M8 SPRING WASHER		6
			1/1	M8*20mm SCREW		6
				M8*25mm ALLEN HEAD BOLT		2
				M6*50mmSCREW		4
				M6*16*1.2T WASHER		4
				M6 SPRING WASHER		4
				M6'4mm KNOB DAWL		4
	1		1	M8*16*1.2T WASHER		4
				M8 SPRING WASHER		4
				M8*20mm SCREW		4
	1		1/1
	1/1		1
	2		4
	1/1		1		4

The package contains the parts as shown in figure.

If a part is missing, contact your dealer.

Hardware kit

Cartilage bolt M8*60mm	Nylon nut M8	Spring washer M8	Flat washer M8*16*1.2T		Flat washer M6*16*1.2T
Round allen head bolt M8*15mm	Pedal washer	Screw M8*25mm	Spring washer M6	Carriage bolt M8*30mm
Metal plate for sw handlebar	Knob dawl		Tools (3)

The package contains the fasteners as shown in figure.

If a part is missing, contact your dealer. General assembly information

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.
• Allow at least 100 cm of clearance around the equipment.

Refer to the illustrations for the correct assembly of the equipment.

Assembly steps

Assembly step A

• Fit height adjustment pads to the front stabilizer.
• Fit front stabilizer by using the shown hardware.

Remark:

First put all screws/ bolts in correct place before tightening them fully.

Assembly step B

• Fit height adjustment pads to the rear stabilizer.
• Fit rear stabilizer by using the shown hardware.

Remark:

First put all screws/ bolts in correct place before tightening them fully.

Assembly step C

• Connect the wires from upright tube and main frame before sliding the upright tube in position.
• Use the enclosed Allen key to tighten the fastening screws, turning them clockwise.

Remark:

Do not remove screws from the frame before siding the upright tube in position.

• Use the enclosed Allen key to tighten both fastening screws through the holes in the tube from inside out.
• Tighten the fastening screws by turning them counter-clockwise.

Remark:

First tighten all 6 bolts hand tight before tightening them fully. This to avoid miss alignment

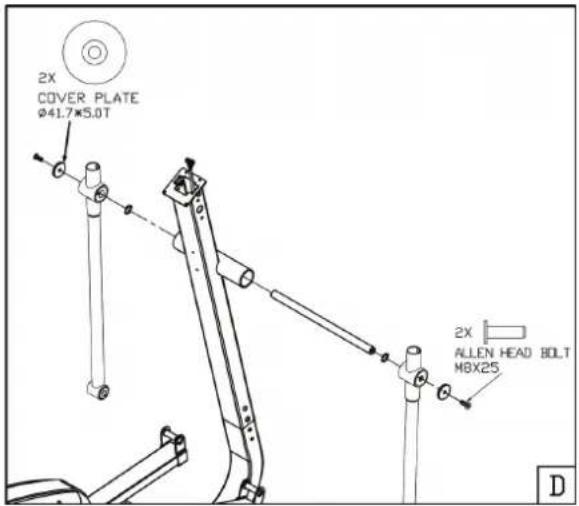

Assembly step D

- Push the metal shaft through the bracket housing of the left arm. Attach now the left arm to the front frame tube by pushing the metal shaft through the opening in the tube. Push the right arm on the shaft and lock it by tightening a large washer, and a screw to the both ends of the shaft. Tighten the arms using two Allen keys.

Remark:

A think shim washer is in between both swivel arms and front frame tube.

Assembly step E

Technical line drawing of a mechanical exercise machine (no text or symbols)

• Fix pedal tube to lower arms as shown in picture.

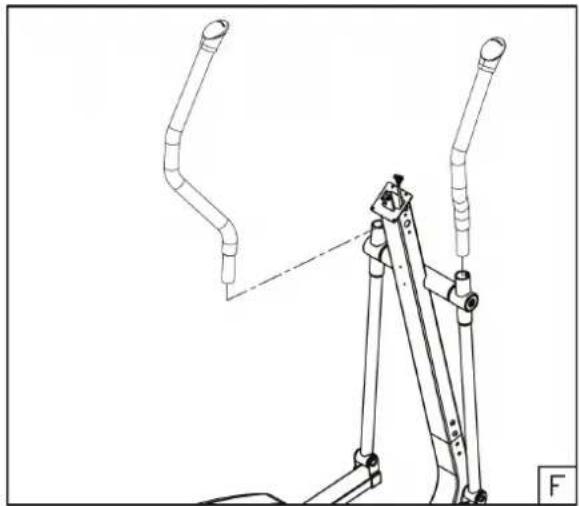

Assembly step F

Technical line drawing of a mechanical linkage system with two curved pipes and a base mount (no text or symbols)

• Fix upper moving handle bars as shown in picture.

Assembly step G

- Fix both foot rests to the pedal tubes as shown in picture.

Remark:

There is a difference between right and left pedal, do not misplace them.

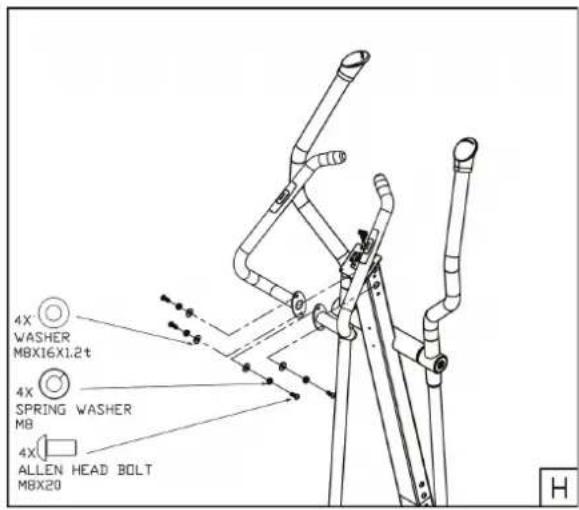

Assembly step H

• Fix both fixed handle bar tubes as shown in picture.

Remark:

First put all screws/ bolts in correct place before tightening them fully.

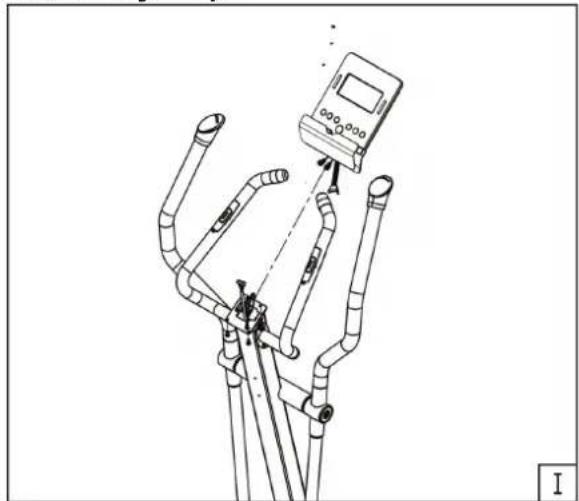

Assembly step I

Technical line drawing of a mechanical device with articulated arms and a digital multimeter (no text or symbols)

• Guide the hand pulse wires coming from the handlebar and data cable coming form upright tube through the console bracket hole.
• Remove the 4 assembly screws from the consoles rear cover.
• Connect the hand pulse wires and data cable with the console.
  • Fix the console to the console bracket.

Remark:

Avoid the wires to damage during assembly

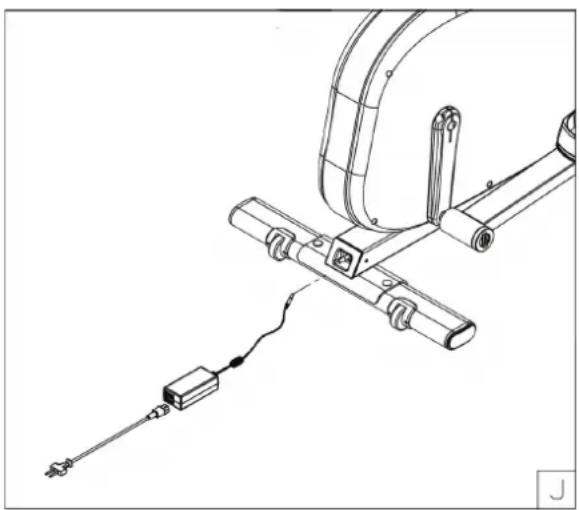

Assembly step J

Technical line drawing of a mechanical device with a cable and connector (no text or symbols)

- Attach the transformer to the cross trainer before connect it to the wall outlet.

Remark:

Always remove power cord when machine is not in use.

Use

Adjusting the support feet

The equipment is equipped with 4 support feet. If the equipment is not stable, the support feet can be adjusted.

1. Turn the support feet as required to put the equipment in a stable position.
2. Tighten the locknuts to lock the support feet.

NOTE

The machine is the most stable when all support feet are turned fully in. Therefore start to level the machine by turning all support feet fully in, before turning out the required support feet to stable the machine.

Workouts

The workout must be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. You should perspire, but you should not get out of breath during the workout.

To reach and maintain a basic fitness level, exercise at least three times a week, 30 minutes at a time. Increase the number of exercise sessions to improve your fitness level. It is worthwhile to combine regular exercise with a healthy diet. A person committed to dieting should exercise daily, at first 30 minutes or less at a time, gradually increasing the daily workout time to one hour. Start your workout at low speed and low resistance to prevent the cardiovascular system from being subjected to excessive strain. As the fitness level improves, speed and resistance can be increased gradually. The efficiency of your exercise can be measured by monitoring your heart rate and your pulse rate.

Pulse rate measurement

(hand pulse sensors)

The pulse rate is measured by sensors in the handlebars when the user is touching both sensors at the same time.

WARNING

Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death. If you feel faint stop exercising immediately.

Most accurate pulse measurement is achieved when the skin is slightly moist and constantly touching the hand pulse sensors. If the skin is too dry or too moist, the pulse rate measurement might become less accurate.

NOTE

Do not use the hand pulse sensors in combination with a heart rate chest belt. If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.

Heart rate measurement

(heart rate chest belt)

The most accurate heart rate measurement is achieved with a heart rate chest belt. The heart rate is measured by a heart rate receiver in combination with a heart rate transmitter belt. Accurate heart measurement requires that the electrodes on the transmitter belt are slight moist and constantly touching the skin. If the electrodes are too dry or too moist, the heart rate measurement might become less accurate.

WARNING

If you have a pacemaker, consult a physician before using a heart rate chest belt.

CAUTION

If there are several heart rate measurement devices next to each other, make sure that the distance between them is at least 2 meter.

If there is only one heart rate receiver and several heart rate transmitters, make sure that only one person with a transmitter is within transmission range.

NOTE

• Do not use a heart rate chest belt in combination with the hand pulse sensors.
• Always wear the heart rate chest belt under your clothes directly in contact with your skin. Do not wear the heart rate chest belt above your clothes. If you wear the heart rate chest belt above your clothes, there will be no signal.
• If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.
• The transmitter transmits the heart rate to the console up to a distance of 1,5 meter. If the electrodes are not moist, the heart rate will not appear on the display.
• Some fibres in clothes (e.g. polyester, polyamide) create static electricity which can prevent accurate heart rate measurement.
• Mobile phones, televisions and other electrical appliances create an electromagnetic field which can prevent accurate heart rate measurement.

Maximum heart rate

(during training)

The maximum heart rate is the highest heart rate a person can safely achieve through exercise stress. The following formula is used to calculate the average maximum heart rate: 220 - AGE. The maximum heart rate varies from person to person.

WARNING

Make sure that you do not exceed your maximum heart rate during your workout. If you belong to a risk group, consult a physician.

Beginner: (50-60% of max. heart rate)

Suitable for beginners, weight-watchers, convalescents and persons who have not exercised for a long time. Exercise at least three times a week, 30 minutes at a time.

Advance: (60-70% or max. heart rate)

Suitable for persons who want to improve and maintain fitness. Exercise at least three times a week, 30 minutes at a time.

Expert: (70-80% or max. heart rate)

Suitable for the fittest of persons who are used to long-endurance workouts.

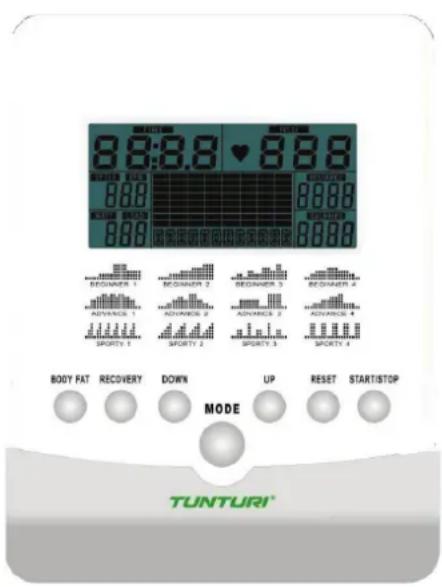

User interface

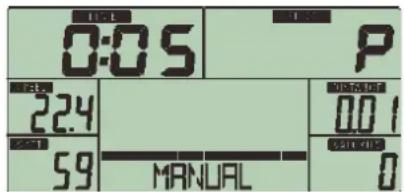

Display functions

Time window :

Shows workout time during exercise

Range: 0:00 \~ 99:59

Speed window :

Shows actual speed during exercise

Range: 0.0 \~ 99.9

RPM window :

Shows revolutions per minute during exercise

Range: 0 \~ 999

Watt window :

Shows workout watt power during exercise.

In watt program ode, console will show preset watt value.

Setting range: 0 \~ 350

Pulse window :

Shows pulse in bpm during exercise

Distance window :

Shows workout distance during exercise.

Range: 0.0 \~99.9

Calories window :

Shows burned calories during exercise

Range: 0 \~999

Key functions

Body fat key :

Test body fat in % and BMI.

Recovery key :

Test heart rate recovery status.

Down key :

Decrease resistance level during workout.

In setting selection lower value.

Mode key :

Confirm setting or selection

Up key :

Increase resistance level during workout. In setting selection upper value.

Reset key :

When press and hold for 2 seconds, display will reboot and start from main menu. (all shown data will be lost)

Start/ stop key :

Start workout when in idle mode.

Stop/ pause workout when in active mode.

Extra functions

- Choose settings for units by using the Metric/ Imperial switch located on the back cover of the console Console needs to reboot to apply the change.

- When setting one or more targets, the target value starts to count up when reached "0"

Power on

Plug in power supply, computer will power on and display all segments on LCD for 2 seconds.

Console shows units settings and software version installed in display for a second before display shows start up window

Note:

After 4 minutes without pedaling or pulse input, console will enter into power saving mode.

In power save mode press any key to wake the console up.

Programs

• Power on the display or use reset key function to go to main menu.
• Press Up key or Down Key to select workout program.
  • Available programs are: Quick start, Manual, beginner, Advance, Sporty, Cardio and Watt program.

Manual mode

For Quick start you can

• Press Start/ stop key to start workout without any preset setting..
  During workout you can press Up/ Down key to adjust resistance level.
  Quick start mode stops when, no input for longer than 4 minutes or when Start/stop key is pressed.

When settings in manual mode are required than you;

• Press Up/ Down key to select workout program, choose Manual mode and press mode key to enter next setting entry for manual mode program.
• Press Up/ Down key to preset training time, and press Mode key to confirm the setting.
  • After confirm you can set also (also): distance, Calories, and Pulse.

Note:

When setting more than one goal, the training will end at first achieved goal. Leave a goal blank and it will not be seen as a preset limit.

• Press Start/ Stop key to start workout
• Press Up/ Down key to adjust resistance level
• Press Start/ stop key to pause workout.
• Press Reset key to return to main menu. (active training data will be lost)

Beginner mode

• Press Up/ Down key to select workout program, choose beginner mode and press Mode key to enter. next setting menu for beginner mode.
• There can be 4 beginner modes selected: beginner 1, beginner 2, beginner 3, and beginner 4. Select one by using the Up/ Down key and confirm selected by pressing Mode key.

BEGINNER 1

BEGINNER 2

BEGINNER 3

BEGINNER 4

• Press Up/ Down key to preset training time, and press Mode key to confirm the setting.
  • After confirm you can set also (also): distance, Calories, and Pulse.

Note:

When setting more than one goal, the training will end at first achieved goal. Leave a goal blank and it will not be seen as a preset limit.

• Press Start/ Stop key to start workout
• Press Up/ Down key to adjust resistance level
• Press Start/ stop key to pause workout.
• Press Reset key to return to main menu. (active training data will be lost)

Advance mode

• Press Up/ Down key to select workout program, choose advance mode and press Mode key to enter. next setting menu for advance mode.
• There can be 4 advance modes selected: advance 1, advance 2, advance 3, and advance 4. Select one by using the Up/ Down key and confirm selected by pressing Mode key.

ADVANCE1

ADVANCE 2

ADVANCE 3

ADVANCE 4

• Press Up/ Down key to preset training time, and press Mode key to confirm the setting.
  • After confirm you can set also (also): distance, Calories, and Pulse.

Note:

When setting more than one goal, the training will end at first achieved goal. Leave a goal blank and it will not be seen as a preset limit.

• Press Start/ Stop key to start workout
• Press Up/ Down key to adjust resistance level
• Press Start/ stop key to pause workout.
• Press Reset key to return to main menu. (active training data will be lost)

Sporty mode

• Press Up/ Down key to select workout program, choose sporty mode and press Mode key to enter next setting menu for sporty mode.
• There can be 4 Sporty modes selected: sporty 1, sporty 2, sporty 3, and sporty 4. Select one by using the Up key or Down key and confirm selected by pressing Mode key.

SPORTY 1

SPORTY 3

SPORTY 2

SPORTY 4

• Press Up/ Down key to preset training time, and press Mode key to confirm the setting.
  • After confirm you can set also (also): distance, Calories, and Pulse.

When setting more than one goal, the training will end at first achieved goal. Leave a goal blank and it will not be seen as a preset limit.

• Press Start/ Stop key to start workout
• Press Up/ Down key to adjust resistance level
• Press Start/ stop key to pause workout.
• Press Reset key to return to main menu. (active training data will be lost)

Cardio mode

- Press Up/ Down key to select workout program, choose cardio mode and press Mode key to enter next setting menu for advance mode.

- Press Up/ Down key to set your age and confirm by pressing mode key.

- There can be 4 cardio modes selected: 55%, 75%, 90% or TAG (target heart rate) default set on 100 (us Up/ Down key to change, and confirm by pressing mode key). Select one by using the Up/ Down key and confirm selected by pressing Mode key.

• Press Up/ Down key to preset training time, and press Mode key to confirm the setting.
• Press Start/ stop key to pause workout.
• Press Reset key to return to main menu. (active training data will be lost)

Note:

After 6 seconds without pulse input, LCD will show "Pulse Input" to notify the user.

Watt mode

• Press Up/ Down key to select workout program, choose watt mode and press Mode key to enter next setting menu for advance mode.
• Press Up/ Down key to set watt target (default set on 120) and confirm by pressing mode key.

• Press Up/ Down key to preset training time, and press Mode key to confirm the setting.
• Console will adjust tension level by the watt target and workout status (rpm)

• User can use Up/ Down key to adjust watt target during workout.
• Press Start/ stop key to pause workout.
• Press Reset key to return to main menu. (active training data will be lost)

Body fat

In stop mode, press Body fat key to start this function.

• Set Gender by using Up/ Down key and confirm by Mode key.
• Set Age by using Up/ Down key and confirm by Mode key.
• Set Height by using Up/ Down key and confirm by Mode key.
• Set Weight by using Up/ Down key and confirm by Mode key.

After confirm user must grab and hold both hand pulse sensors.

Note:

If hand grips are grabbed incorrectly, display cannot read and show “----” ““----”. re grab hand pulse sensors again to see if improves.

When console can read the display will show a progress bar.

display will show after finished body fat in percentage and BMI as a number by turns in every 3 seconds.

•

Note:

Error codes in body fat program are:

LCD show “---- “ “ ----”: hand grips search for reading

E1: There is no heart rate signal input detected for at least 5 seconds.
E4: Occurs when FAT% is below 5% or exceeds 50%. occurs when BMI result is below 5 or exceeds 50.

Recovery

• After exercising for a period of time, keep holding on hand grips until display shows the actual pulse reading.
- Press Recovery key, and re grab hand grips
- All display functions will stop except "TIME" that will start counting down from 00:60 to 00:00.

- LCD will display your heart rate recovery status with the F1, F2....to F6.

F1 is the best result and F6 is the worst. Press the RECOVERY button again to return the main display.

During the recovery time, re-press "RECOVERY" and console will go back to previous page.

Cleaning and maintenance

Defects and malfunctions Despite continuous quality control, defects and malfunctions caused by individual parts can occur in the equipment. In most cases, it will be sufficient to replace the defective part.

• If the equipment does not function properly, immediately contact the dealer.
• Provide the model number and the serial number of the equipment to the dealer. State the nature of the problem, conditions of use and purchase date.

Transport and storage

WARNING

Carry and move the equipment with at least two persons.

• Remain standing in front of the equipment on each side and take a sturdy grip at the handlebars. Lift the front of the equipment so as to lift the rear of the equipment on the wheels. Move the equipment and carefully put the equipment down. Place the equipment on a protective base to prevent damage to the floor surface.
• Move the equipment carefully over uneven surfaces. Do not move the equipment upstairs using the wheels, but carry the equipment by the handlebars.
• Store the equipment in a dry place with as little temperature variation as possible.

Disclaimer

2014 Tunturi Fitness BV. All rights reserved

The product and the manual are subject to change. Specifications can be changed without further notice

Warranty

The product has a warranty from the date of delivery (to be documented by invoice or delivery note). Further information on warranty terms can be obtained from your local dealer. The warranty terms may vary from one country to another. Damages caused by normal wear, overloading or improper handling are excluded from the warranty. Damages caused by material or manufacturing faults are covered by the warranty and will repaired or replaced at no cost.

Index

WILLKOMMEN 18

Carriage bolt MB*60mm	Nylon nut MB	Spring washer MB	Flat washer MB*16*1.2T		Flat washer MB*16*1.2T
Round allen head bolt MB*15mm	Pedal washer	Screw MB*25mm	Spring washer M6	Carriage bolt MB*50mm
Metal plate for sw handlebar	Knob dawl		Tools (3)

Technical line drawing of a mechanical exercise machine (no text or symbols)

Technical line drawing of a mechanical linkage system with two curved pipes and a base mount (no text or symbols)

Technical line drawing of a mechanical device with articulated arms and a control panel (no text or symbols)

Avoid the wires to damage during assembly

Montageschritt J

Technical line drawing of a mechanical device with a cable and connector (no text or symbols)

Technical line drawing of a mechanical exercise machine (no text or symbols)

Technical line drawing of a mechanical linkage system with two pipes and a base mount (no text or symbols)

Technical line drawing of a mechanical device with articulated arms and a digital meter (no text or symbols)

Technical line drawing of a mechanical device with a cable and connector (no text or symbols)

Remarque :

VEILIGHEIDS WAARSCHUWINGEN 49

MONTAGE 50

TRANSPORT EN OPSLAG....62

GARANTIE....62

DISCLAIMER 62

Nederlands

Technical line drawing of a mechanical exercise machine (no text or symbols)

Technical line drawing of a mechanical linkage assembly with two curved pipes and a base mount (no text or symbols)

Technical line drawing of a mechanical device with multiple pipes and a digital meter (no text or symbols)

Technical line drawing of a mechanical device with a cable and connector (no text or symbols)

Operating system ...Servo motor + PMS

Resistance levels 32

Flywheel weight 6 kg

Rotating mass 33 kg

Power output @ 60 rpm .....220 Watt

Power output @100 rpm ..... 510 Watt

Power supply 6V DC / 500mA

Height 168 cm

Length 150 cm

Width 67cm

Weight 54 kg / 120 lbs

Max user weight ...... 135 kg / 300 lbs

MONITOR

Program display .... 5,5"screen, monochrome

Programs total 17

Pre-set programs 12

User programs ...... -

Watt program .... 1 (10 - 350 Watt)

Hrc programs 4 (55% / 75% / 90% + target)

Recovery HR 1

Max HR.... 1

Quick start/ manual 1

Body fat + bmi 1

User register....

Fitness test ...... Body fat ...... BMI

Recovery

Control buttons .... Yes

ERGONOMICS

Stride length 16" (±40cm)

Handlebar ...... Fixed, Multi Grip

Bottle holder ....Option

HR chest belt ..... Option (5,4 kHz)

HR hand sensor .... Yes

Transport wheels .... Yes

QUALITY

Operating environment ......Home

En-957 class ...... HB

Parts list

NO.	DESCRIPTION QTY
1	Base frame 1
2	Side cover metal strip 1
3	Crank arm (16") 2
4	Lower swivel handlebar (LH) 1
5	PH machine screw (M4x15) 14
6	Upper computer wire 1
7	Allen head bolt (M8x20) 10
8	Grub screw (M6x15) 2
9	Dc cover 1
10	Pedal post (RH) 1
11	Carriage bolt (M6x50) 4
12	Flat washer (M6x16xt1.2) 4
13	Pedal tube shaft 2
14	Flat washer (M8x18xt2.0) 2
15	Spring (M6) 4
16	Knob dawl 4
17	Rear pedal tube round cover 2
18	Allen head bolt (M8x25) 2
19	Spacer for turning shaft 2
20	Pedal post (LH) 1
21	Retaining ring (40x1.75) 2
22	Self-aligning bearing (2203) 2
23	Pedal washer 4
25	Pedal 2
26	Nylon nut (M6) 2
27	Lower computer wire 1
28	Screw (M10x30) 2
29	Lower swivel handlebar (RH) 1
30	Upper swivel handlebar (RH) 1
31	Sw handlebar foam grip 2
32	Handlebar end cap 2
33	Bearing (6002zz) 4
34	Screw (M8x25) 2
35	Metal plate for sw handlebar 2
36	Bearing (6004zz) 6
37	Sensor bracket 1
38	Wave washer ( φ 20 × φ 27 × 0.4) 2
39	Plug axle support 2
40	Pivot shaft 1
41	Console bracket 1
42	Front post 1
43	PH machine screw (M5x12) 4
44	Spring (M8) 14
45 Screw (#0816b)	4
46 User interface (SM2527-82)	1
47 Fix handbar end cap	2
48 Fix handlebar (LH) 1
49 Hand pulse sensor set w/o wire	2
50 Hand pulse wire (700mm)	2
51 PH self tapping screw (M4x5)	2
52 Allen head bolt (M8x15)	10
54 Pedal front end cap	2
55 Small spring	1
56 Wire rop	1
58 Upper swivel handlebar (LH)	1
59 Front stabilizer 1
60 Nylon nut (M8)	1
61 Flat washer ( φ 15.5x20x2.5t)	2
62 Bil et (8x8x28l)	2
63 Flat washer (M8x16x1.2t)	16
65 Rear stabilizer 1
66 Nylon nut (M8)	4
67 Moving wheel	2
68 Carriage bolt (M8x60)	4
69 Height adjust foot	4
70 Allen head bolt (M8x20)	2
71 Hex head bolt (M8x52)	1
72 Fix handlebar (RH)	1
73 Fix handlebar foam grip	2
74 Side cover (LH)	1
75 Side cover (RH)	1
76 Screw (M6x15)	2
77 PH self tapping screw	1
78 Hex head bolt (M6x60)	1
79 Pulley ( φ 350)	1
80 Nylon nut (M6)	5
81 Magnet	1
82 Pulley shaft	1
83 Hex taper screw (M6x16)	4
84 Hex head bolt (M6x14)	3
85 Retaining ring C12 2
86 Flat washer (M6x16x1.2t)	4
87 Flat washer (M10x21x1.2t)	2
88 Rubber washer (M7x φ 22x2.5t) 1
89 Hex taper nut (M6)	1
90 Sensor wire (250mm)	1
91 Cover clip (M4)	14

92 Retaining ring C17 1
93 Bearing (6001zz) 2
94 Flywheel complete 1
95 Flywheel shaft 1
96 PH machine screw (M6x10) 4
97 Servo motor 1
98 Adaptor 6V DC/ 500ma 1
99 Drive belt (Poly-v 6pj1428) 1
100 Retaining ring C20 2
101 Bearing (6203zz) 2
102 PH machine screw (M5x12) 6
103 Large spring 1
104 Idle wheel bracket 1
105 Spacer sleeve 3
106 Wh nut (3/8"x26) 2
107 Dc wire (650mm) 1
108 Magnet shoe assembly 1

Exploded view

Owner's manual. PURE 2.1

Notes

TUNTURI®

Tunturi New Fitness B.V.

P.O. Box 60001

1320 AA

The Netherlands

www.tunturi.com

20141027
