Product type	Photoelectric smoke detector
Brand	Brennenstuhl
Model	RM L 3100
Power supply	3V DC lithium battery permanently integrated
Battery life	10 years
Alarm sound level	85 dB at 3 meters
Operating temperature	0 °C to 39 °C
Protection rating	IP20
Standards	DIN EN 14604, VDS, label Q/G216044
Functions	Function test, silent mode, LED indicator, audible alarm
Mounting	On ceiling, horizontal position, minimum distance 0.5 m from walls and objects
Maintenance	Dust with a soft cloth, do not use cleaning agents
Safety	Do not paint, battery not replaceable, replace after 10 years
Replacement	After 10 years or in case of defect
Manufacturer	Brennenstuhl, 4 rue de Bruxelles, F-67170 Bernolsheim
After-sales service	lectra technik ag, Blegistrasse 13, CH-6340 Baar
Estimated dimensions	Diameter approx. 10 cm, height approx. 4 cm
Estimated weight	Approx. 150 g

Frequently Asked Questions - RM L 3100 BRENNENSTUHL

How to activate the RM L 3100 smoke detector?

Before mounting, press the test button for 3 seconds until the indicator lights up. Release immediately (within 2 seconds). A beep confirms activation. Then install the detector on the base screwed to the ceiling.

What to do in case of false alarm?

Press the test button for about 1 second. Two beeps sound and the LED flashes every 8 seconds: the detector switches to silent mode for 10 minutes, reducing its sensitivity. It remains operational in case of persistent smoke.

How to test the smoke detector?

Press the test button. The alarm should sound three times, followed by a 1.5-second pause, and this cycle repeats as long as the button is pressed. Release to stop. If no signal or a different signal, the device is defective.

What does a beep every 40 seconds mean?

This indicates either a low battery (the LED also flashes every 40 seconds) or an error (beep only). In both cases, activate the test button to silence the beep for 10 seconds, then replace the detector without delay.

Is the RM L 3100 battery replaceable?

No, the 3V lithium battery is permanently integrated and cannot be replaced. When the battery is depleted (after about 10 years), the detector must be completely replaced.

What is the lifespan of the RM L 3100 detector?

The detector has a lifespan of 10 years from the manufacturing date (indicated on the device). After this period, it must be replaced. A beep every 10 seconds with flashing LED indicates end of life.

Where to install the smoke detector?

Mount it on the ceiling, horizontally, preferably in the center of the room. Keep a distance of at least 0.5 m from walls and objects. Avoid areas with drafts, roof peaks (install 30 to 50 cm lower), bathrooms, and within 1.5 m of fluorescent tubes.

How to clean the smoke detector?

Dust the detector with a soft cloth. If necessary, use a slightly damp cloth, but without cleaning agent. Perform this maintenance at least once a year, in accordance with DIN EN 14676.

What to do if the detector does not function correctly?

If the function test does not trigger the alarm or if abnormal beeps persist, the device is defective. Contact the after-sales service at the address: lectra technik ag, Blegistrasse 13, CH-6340 Baar. Replace the detector without delay.

How to put the detector in silent mode?

In case of false alarm, briefly press the test button (about 1 second). Two beeps confirm activation of silent mode. The LED flashes every 8 seconds and sensitivity is reduced for 10 minutes, after which the detector resumes normal operation.

USER MANUAL RM L 3100 BRENNENSTUHL

ATTENTION - The battery is not replaceable - see operating instructions.

Do not paint over smoke detector! Art.-No.1290050

Date of manufacture: 20230905 203401 Replacement date:

Activate the smoke alarm before installation - See "Installing and commissioning the smoke alarm" chapter in the operating instructions.

Battery operated photoelectric smoke detector RM L 3100 with mute function

IMPORTANT:

Read these operating instructions and store them in a safe place.

Heed and follow the safety instructions.

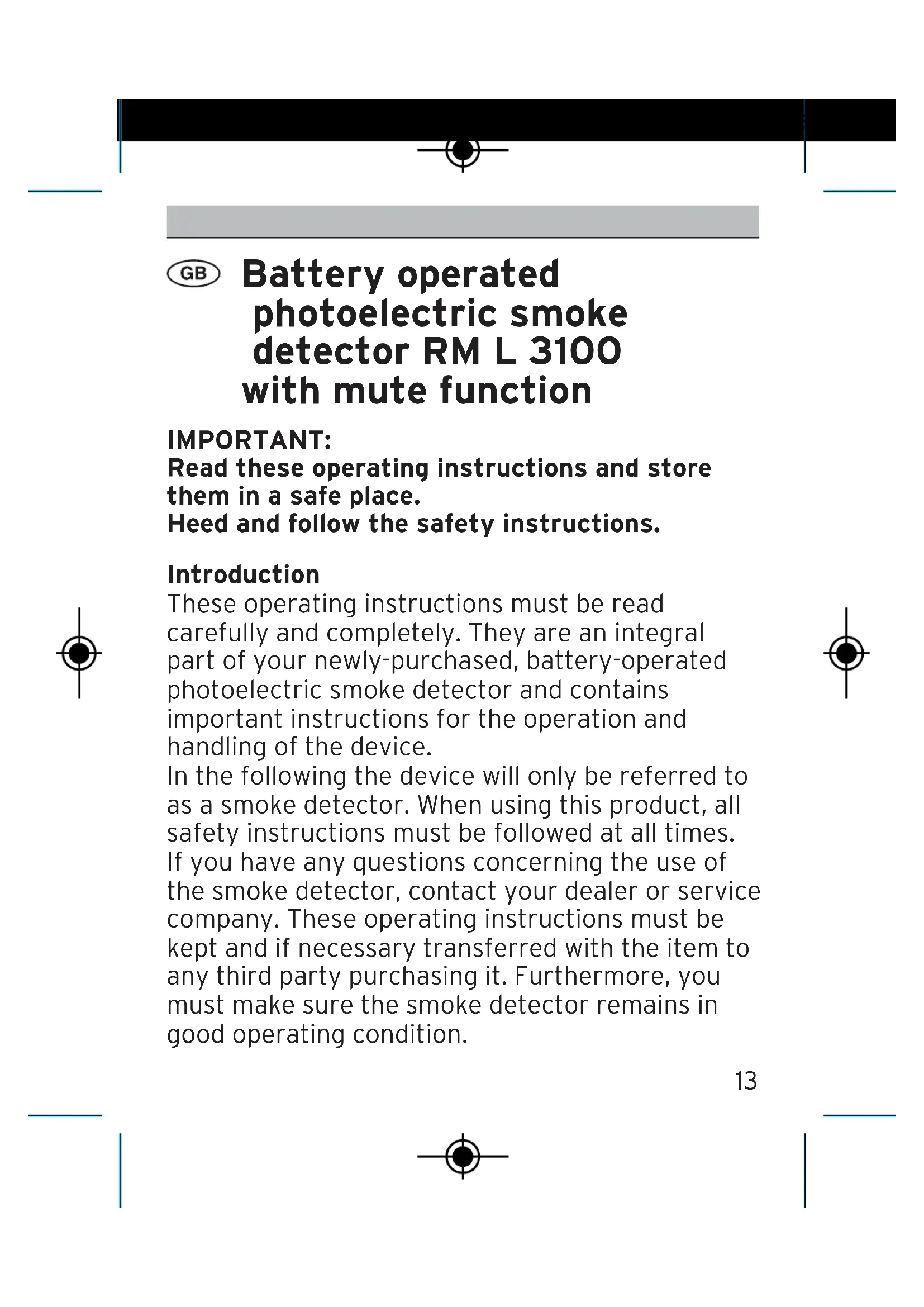

Introduction

These operating instructions must be read carefully and completely. They are an integral part of your newly-purchased, battery-operated photoelectric smoke detector and contains important instructions for the operation and handling of the device.

In the following the device will only be referred to as a smoke detector. When using this product, all safety instructions must be followed at all times. If you have any questions concerning the use of the smoke detector, contact your dealer or service company. These operating instructions must be kept and if necessary transferred with the item to any third party purchasing it. Furthermore, you must make sure the smoke detector remains in good operating condition.

Operating Instructions RM L 3100

Technical specifications

Device:

VDS approval:

RML3100

DIN EN 14604/VDS +

Q label/G216044

Range of application:

Audible alarm:

according to DIN 14676

85dB (at a distance of 3 m)

Power supply:

integrated 3V DC

Battery life:

lithium battery

Ambient temperature:

10 years

Protection class:

0°C to 39°C

IP 20

Choosing the installation site

Installation sites for smoke detectors are regulated in the binding application standard DIN EN 14676, which is applicable in Germany.

1. To provide comprehensive protection smoke detectors should be installed in all rooms, corridors, storage areas and basements. It may be necessary to install more than one smoke detector per area, especially in corridors longer than 15m . We recommend using several smoke detectors for rooms larger than 60m^2 and corridors longer than 10m .
2. You should at least provide minimum protection and install a smoke detector in every bedroom and children's room, as well as in corridors used as emergency routes.

RM L 3100 Operating Instructions

1. For optimal protection there should be at least one smoke detector installed in every room and corridor.
2. Because smoke rises, smoke detectors must always be installed on the ceiling, preferably in the centre of the room, in a horizontal position. According to DIN EN 14676, a distance of at least 0.5m from all furniture and the ceiling and walls must be observed.
3. Do not install under the ridge of a roof (place at least 30 - 50 cm below the ridge), near air ducts, or in areas with a severe draught.

Installation sites to be avoided

1. Do not install smoke detectors in areas subject to draught, such as near air conditioner or ventilation intakes.
2. Bathrooms, showers, and rooms where the temperature exceeds 39^ C or falls below 0^ C .
3. Under the ridge of a roof, since smoke-free air can accumulate there in the event of a fire.
4. Kitchens, garages, laundry or boiler rooms, where cooking fumes, vehicle exhaust, dust and humidity may trigger a false alarm.
5. Very dusty or dirty areas. Dirt and dust may accumulate in the smoke alarm and hinder its reliability during operation.
6. Less than 1.50m from a fluorescent lamp.

Minimum protection One smoke detector per floor in the hallway, children's room and bedroom.
Optimum protection all common rooms.
Special protection for the kitchen Smoke detector with mute function.

Smoke detector installation and start-up

The mounting parts included are designed for concrete ceilings. If you have a different mounting surface you will need to purchase appropriate mounting parts at a specialist store.

1. Mark the position of the smoke detector on the ceiling.
2. Drill holes to a depth of approx. 25 - 30mm with a 5.5mm drill, or to a depth of approx. 20mm using a 2.5mm drill (for wood panelling or beams).
3. Insert dowels into the holes.
4. If necessary, use a screwdriver to remove the mounting grommet from the holder.

1. Screw the holder onto the ceiling.
2. Activate the smoke alarm before installation by pressing the test button for 3 seconds until the LED lights up. Release the button immediately afterwards (within 2 seconds). The device beeps to indicate that it is activated.

Operating Instructions RM L 3100

1. Place the smoke detector onto the holder and turn clockwise until it snaps in place.
2. If necessary, push the mounting grommet into the opening between the holder and the bottom of the case to secure the smoke detector.

Mute Function

If the smoke detector goes off accidentally, e.g. because of cooking fumes, dirt and the like, the alarm can be muted for 10 minutes, or acknowledged, with the test button. After pressing the test button (approx. 1 second), the device beeps twice and the red LED flashes ever 8 seconds to show that the smoke detector has been muted. Its sensitivity is reduced until the false alarm stops. However, the smoke detector remains on standby, so it will trigger another alarm if the smoke concentration continues to increase. The temporary de-sensitisation of the smoke chamber is cancelled automatically after 10 minutes.

The smoke detector then returns to normal sensitivity.

Important:

If a malfunction is detected the device will beep every 40 seconds.

Function test

The smoke detector is equipped with a test button. Press the test button. The alarm sounds three times, followed by a 1.5 second pause. This interval is repeated until the button is released. If there is no additional or other signal a defect has been detected.

Remark:

If the smoke detector does not function properly please contact our service department.

Maintenance and care

To ensure the functional reliability of the smoke detector it must be serviced at least once a year, as specified in DIN EN 14676. The following procedure must be used:

• Dust the smoke detector with a soft cloth.
• If necessary, remove dirt with a damp cloth. Do not use cleaning agents.
• Carry out a function test (see function test).

Operating Instructions RM L 3100

• If you do not get a response the smoke detector must be replaced.

Battery life

The battery is integrated in the smoke detector and cannot be replaced.

When the battery begins to weaken the device will beep every 40 seconds, and the red LED will flash at the same time. At the end of the battery's 10-year lifetime the device will beep, and the red LED will flash every 10 seconds. In those cases you should install a new smoke detector.

Interpreting signals/troubleshooting

Display Meaning Solution
LED flashes once every 40 seconds.	Indicates that the smoke detector is working properly.	-
Continuous, pulsating tone. LED flashes once per second.	Alarm or test function has been triggered.	- Leave the danger zone at once. -Release the test button (if testing).
LED flashes once every 8 seconds.	The smoke detector has been muted.	The smoke detector is de-sensitised for approx. 10 minutes.
LED flashes once every 40 seconds, and the device beeps.	The integrated battery is weakening.	-This message can be deactivated for 10 hours by pressing the test button. -The device must be replaced at once.
The device beeps every 40 seconds	An error has occurred	-This message can be deactivated for 10 hours by pressing the test button. -The device must be replaced at once.
The device beeps three times every 1.5 seconds.	The smoke detector is in test mode.	Release the test button to end the test.
LED flashes once every 10 seconds, and the device beeps.	The product has reached the end of its lifespan.	The device must be replaced at once.

Operating Instructions RM L 3100

Important:

Smoke detectors should be replaced after 10 years.

Evacuation plan

We recommend establishing an evacuation plan together with the other residents.

Think carefully about your evacuation route to make sure it cannot be blocked under any circumstances in the event of a fire. It must also be the quickest and safest route into the open air.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

Service address:

Declaration of performance

Important: The Declaration of Performance is available for downloading on www.brennenstuhl.com, right next to item RM L 3100 / item no 1290050.

Manufacturer:

m = 311 ;
