Product type	Electric grater
Brand	Steba
Model	MG 150
Power supply	220-240 V ~ 50/60 Hz
Power	150 W
Hopper capacity	Approx. 1 L
Main functions	Fine slices, wavy cut, coarse grating, fine grating, grating cheese/nuts, french fries, sorbet
Included accessories	Hopper, pusher, green/red/orange/yellow/black blades, fixing
Housing material	Plastic
Dimensions (L x W x H)	20 x 15 x 30 cm
Weight	1.5 kg
Cleaning	Hopper, blades and pusher dishwasher safe; housing cleaned with a damp cloth
Safety	Automatic shutoff in case of overload; blades very sharp, only touch by the colored edge
Repairability	Repairs only by an authorized service center
Continuous operating time	2 minutes max, then 5-minute break
Warranty	2 years

Frequently Asked Questions - MG 150 STEBA

How to change the cutting accessories?

Unplug the appliance. Remove the white fixing by turning clockwise, then change the blade by handling it by the colored edge. Replace the fixing and turn counterclockwise to lock.

Can the appliance grate meat?

No, the appliance is not designed for meat or hard foods like coffee beans or rock candy.

What to do if the appliance stops working?

Check that the cord is not damaged and the socket works. If the problem persists, contact customer service.

Can I wash the blades in the dishwasher?

Yes, the hopper, blades and pusher can be washed in the dishwasher. Dry them well before storing.

How to make sorbet with this appliance?

Use the black blade (sorbet). Let frozen fruits thaw for 3 to 5 minutes, sprinkle with sugar, put them in the hopper and push lightly.

What is the motor power?

The power is approximately 150 W.

Is the appliance suitable for professional use?

No, it is designed for private and domestic use only.

How to clean the housing?

Use a damp cloth. Never immerse the appliance in water.

Which foods can be processed with the yellow blade?

The yellow blade is for grating hard cheese, coconut, almonds, walnuts and for making french fries (potatoes).

Can I use an extension cord?

Yes, with a cable cross-section of at least 1.5 mm². Ensure it does not present a tripping hazard.

USER MANUAL MG 150 STEBA

Instructions for use 10

Mode d'emploi 17

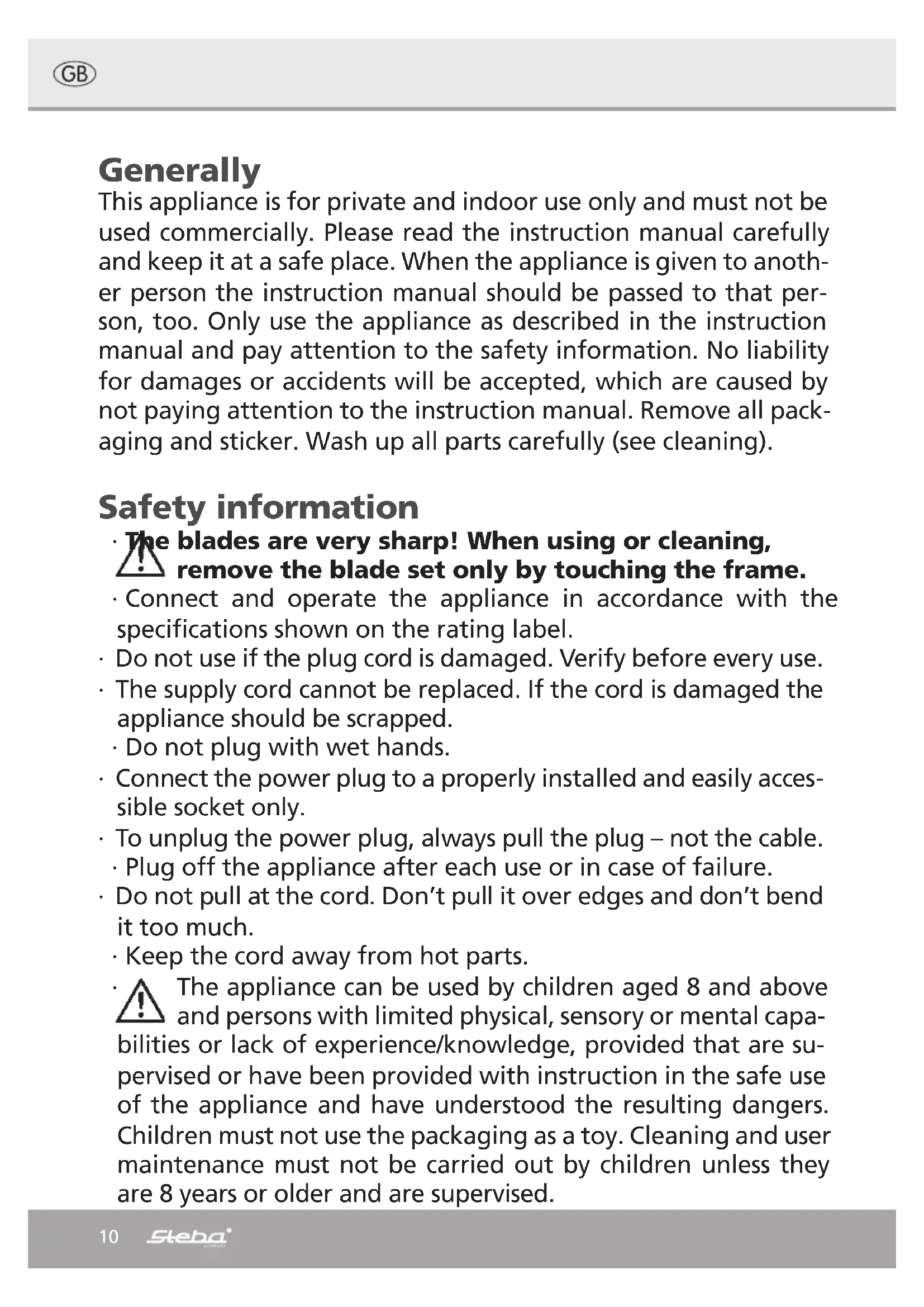

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

The blades are very sharp! When using or cleaning, remove the blade set only by touching the frame.

• Connect and operate the appliance in accordance with the specifications shown on the rating label.

• Do not use if the plug cord is damaged. Verify before every use.

• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.

• Do not plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.

• To unplug the power plug, always pull the plug – not the cable.

• Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.

• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.

• Never immerse the unit in water.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

• Only use the device as described in this manual.

• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments

o by clients in hotels, motels and other residential type environments

o bed and breakfast type environments.

• Before initial use: clean all parts carefully and leave to dry.

• If an extension cable is used, it has to have a cross-section of 1.5mm^2 . A cable drum must always be unwound.

• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more then 3680 watts due to fire hazard.

• Make sure that children do not tease the cable or that a trip hazard occurs.

• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.

Cleaning

·Attention!

Pull the plug before cleaning.

• Never immerse the unit into water.

• Food residues must be removed for reasons of hygiene.

• The funnel tube, the stodger and blades can be cleaned by hand or in the dish-washer. Leave to dry.
• Only touch the blade attachments on the colored plastic edge. Frequent cleaning / use may reduce the sharpness of the blades.
• Attention! Blades are sharp!
• Clean the housing with a damp cloth.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

1) Stodger
2) Funnel tube
3) On/Off switch
4) Motor part
5) Blade attachment
6) Mounting of the blade

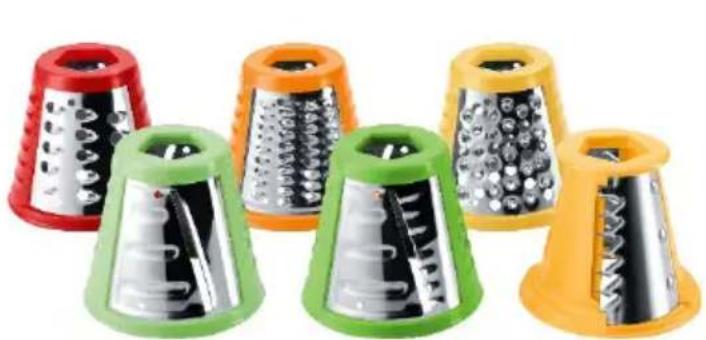

Accessories:

Blade attachments

	Result Suitable for...
Green	Thin slices	Carrots, zucchini, potatoes, cucumber, pepper, onions, cabbage
Green	Wave slices	Carrots, zucchini, potatoes, cucumber, pepper, onions, cabbage, apple, parmesan
Red	Coarse grating	Carrots, zucchini, potatoes, pepper, celery, chocolate, hard cheese
Orange	Fine grating	Carrots, zucchini, celery, hard cheese, coconut, dry bread, chocolate
Yellow Grating Hard cheese		coconut, almonds, walnut
Yellow Fries Potatoes
Black Sorpet		Frozen fruits,frozen milk or yoghurt cubes

The listed food is exemplary. The device is not suitable for processing meat or hard food such as coffee beans or rock sugar.

Getting started

• Only plug in the device once it is ready assembled.
• Fasten the funnel tube with a rotary move to the motor part.

• Place the blade attachment on the square journal in the funnel tube.

• Insert the white mounting to the square journal and audibly click into place with a rotary move to the left. Note: touch the blades only on the coloured edges.

• When changing the attachments, make sure that the pin is clean.

• Now the food can be put into the funnel tube and pushed down slightly with the stodger.

• Do not put any other objects into the funnel, otherwise the blade attachments will be damaged.

In order not to damage the gearbox, a working time of 2 minutes must be observed. After a break of 5 minutes, the work can be resumed.

It is recommended to prepare the food ans then quickly put it into the funnel.

• Do not operate the device if empty.

Sorbet Attachment

• Fasten the sorbet attachment with a rotary move to the motor part.

Production of ice cream

Place a bowl underneath the outlet.

Let the frozen fruit thaw for about 3 - 5 minutes and add some powdered sugar, depending on your taste. Put the thawed fruit into the funnel and slightly push it down with the stodger.

Frozen cubes of milk, cream or yoghurt can also be mixed with the frozen fruit.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
