USER MANUAL CDXC8050X SONY

For installation and connections, see the supplied installation/connections manual.En ce qui concerne l’installation et les connexions, consulter le manueld’installation/raccordement fourni.Para obtener información sobre la instalación y las conexiones, consulte el manualde instalación/conexiones suministrado. FM/AM Compact Disc Player CDX-C8050X FM/AM MiniDisc Player MDX-C8500X2 Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/ TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. CAUTION The use of optical instruments with this product will increase eye hazard. Owner’s Record The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. Serial No. Welcome ! Thank you for purchasing the Compact Disc Player/MiniDisc Player. This unit lets you enjoy a variety of features using the following controller accessories: Supplied accessory Card remote commander RM-X91 Optional accessory Rotary commander RM-X4S In addition to the CD/MD playback and radio operations, you can expand your system by connecting an optional CD/MD unit*

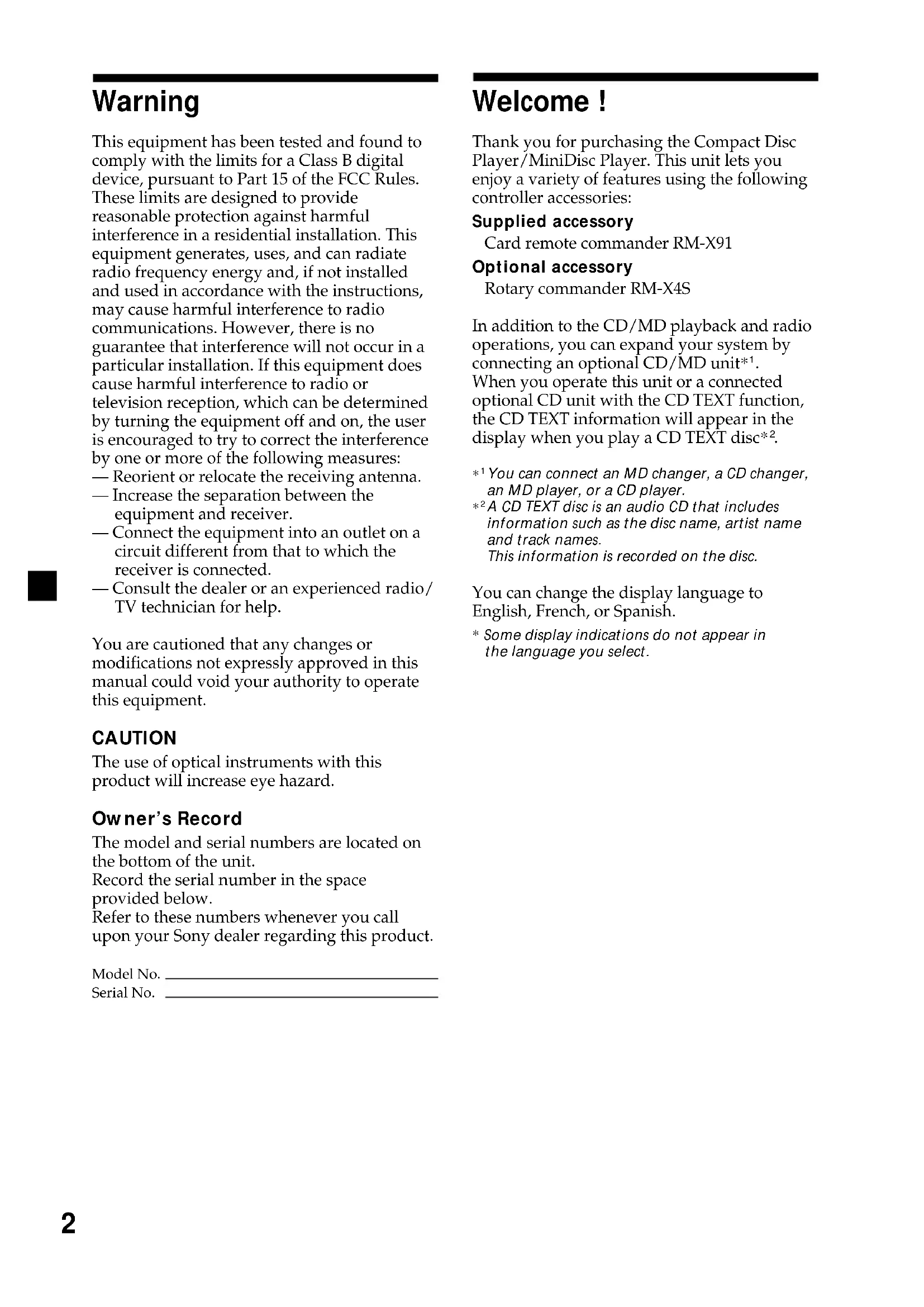

When you operate this unit or a connected optional CD unit with the CD TEXT function, the CD TEXT information will appear in the display when you play a CD TEXT disc*

You can connect an MD changer, a CD changer, an MD player, or a CD player.

A CD TEXT disc is an audio CD that includes information such as the disc name, artist name and track names. This information is recorded on the disc. You can change the display language to English, French, or Spanish.

• Some display indications do not appear in the language you select.3 Precautions

• If your car was parked in direct sunlight resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it.

• If no power is being supplied to the unit, check the connections first. If everything is in order, check the fuse.

• If no sound comes from the speakers of the two-speaker system, set the fader control to the center position.

• If your car is equipped with a power antenna, it will extend automatically while the unit is operating.

• Do not use the Custom file feature while driving, or perform any other function which could divert your attention from the road. If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer. Moisture condensation On a rainy day or in a very damp area, moisture may condense on the lenses inside the CD/MD player. Should this occur, the unit will not operate properly. In this case, remove the disc and wait for about an hour until the moisture has evaporated. To maintain high quality sound If you have drink holders near your audio equipment, be careful not to splash juice or other soft drinks onto the unit and CD/MD. Sugary residues on the unit or CD/MD may contaminate the lenses inside the unit, reduce the sound quality, or prevent sound reproduction altogether. Notes on CDs A dirty or defective disc may cause sound dropouts while playing. To enjoy optimum sound, handle the disc as follows. Handle the disc by its edge. To keep the disc clean, do not touch the surface. Do not stick paper or tape on the labeled surface. If you use the discs explained below, the sticky residue can cause the CD to stop spinning and may cause malfunction or ruin your discs. Do not use second-hand or rental CDs that have a sticky residue on the surface (for example from peeled-off stickers or from ink, or glue leaking from under the stickers). There are paste residue Ink is sticky Do not use rental CDs with old labels that are beginning to peel off. Stickers that are beginning to peel away, leaving a sticky residue Do not use your CDs with labels or stickers attached. Labels are attached continue to next page t4 Notes on MDs Since the disc itself is housed in a cartridge, free from accidental contact with your fingers and dust, MDs can withstand a certain degree of the rough handling. However, dirt or dust on the surface of the cartridge or a warped cartridge may cause a malfunction. Observe the following for best results. Never touch the surface of the disc itself by deliberately opening the shutter on the cartridge. When you eject the MD, the shutter may be open. In such a case, close the shutter immediately. Do not expose the MD to direct sunlight or heat sources such as hot air-ducts. Do not leave it in a car parked in direct sunlight where there can a considerable rise in temperature. Make sure the MD is not left on the dashboard or rear tray of a car etc. where the temperature can also be excessive. Do not expose the discs to direct sunlight or heat sources such as hot air-ducts, or leave them in a car parked in direct sunlight where there can be a considerable rise in the temperature inside the car. Before playing, clean the discs with an optional cleaning cloth. Wipe each disc from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners or antistatic spray intended for analog discs. Notes on CD-R discs

• You can play CD-Rs (recordable CDs) on this unit. However depending on the conditions of the recording equipment or the CD-R disc itself, some CD-Rs cannot be played on this unit.

• You cannot play a CD-R that is not finalized (Finalization is necessary for a recorded CD-R disc to be played on the audio CD player).

• You cannot play CD-RWs (rewritable CDs) on this player. When you play 8 cm (3 in.) CDs Use the optional Sony compact disc single adaptor (CSA-8) to protect the CD player from damage.5 Notes on attaching labels Be sure to attach labels on cartridges correctly, as failing to do so may cause the MD to become stuck in the unit.

• Attach the label in a suitable position.

• Remove old labels before putting new ones on.

• Replace labels that are beginning to peel away from the MD. Cleaning Wipe the surface of the MD cartridge from time to time with a soft dry cloth.6 Table of contents Location of controls ................................................. 7 Getting Started Resetting the unit ................................................ 9 Detaching the front panel .................................. 9 Turning the unit on/off ................................... 10 How to use the menu ....................................... 10 Setting the clock ................................................ 10 CD/MD Listening to a CD with CDX-C8050X only ............................... 11 Listening to an MD with MDX-C8500X only .............................. 12 Playing a CD or MD (with optional CD/MD unit) ..................... 12 Playing tracks repeatedly — Repeat Play .............................................. 14 Playing tracks in random order — Shuffle Play .............................................. 14 Labeling a CD — Disc Memo (For a CD unit with the custom file function).................................... 15 Locating a disc by name — List-up (For a CD unit with the custom file function or an MD unit) ....................... 16 Selecting specific tracks for playback — Bank (For a CD unit with the custom file function) ................................................. 17 Radio Memorizing stations automatically — Best Tuning Memory (BTM) ................. 18 Memorizing only the desired stations ........... 18 Receiving the memorized stations.................. 19 Storing the station names — Station Memo .......................................... 20 Locating a station by name — List-up ...................................................... 21 DSP Setting the equalizer ......................................... 21 Selecting the listening position ....................... 22 Selecting a soundstage menu — Dynamic Soundstage Organizer (DSO) .......................................... 23 Adjusting the balance (BAL) ........................... 23 Adjusting the front and rear fader ................. 24 Adjusting the volume of the subwoofer(s).... 25 Listening to each programme source in its registered DSO — Source Sound Memory (SSM) ............... 25 Selecting the spectrum analyzer ..................... 26 Other Functions Labeling the rotary commander ..................... 26 Using the rotary commander .......................... 27 Attenuating the sound ..................................... 28 Changing the sound and display settings ..... 29 TV/Video Watching the TV ............................................... 30 Watching a video .............................................. 30 Memorizing TV channels automatically ....... 30 Memorizing only the desired TV channels ... 30 Storing the TV channel names ........................ 31 Displaying the information stored on discs .............................................. 31 Watching the TV or video while listening to a CD or MD — Simultaneous Play .................................. 32 Additional Information Maintenance ....................................................... 33 Dismounting the unit ....................................... 34 Specifications ..................................................... 35 Troubleshooting guide ..................................... 367 Location of controls Refer to the pages listed for details. 1 Volume control dial 2 MENU button 10, 13, 15, 16, 17, 18, 19, 20, 22, 24, 25, 26, 29, 30, 32 3 DISC/PRST +/– (cursor up/down) button 10, 13, 15, 16, 17, 18, 19, 20, 21, 22, 24, 25, 26, 29, 30, 32 During radio reception: Preset stations select 19 During CD/MD playback: Disc change 13, 16 During TV reception: Channel select 30 4 Z (eject) button (located on the front side of the unit behind the front panel) 11, 12 5 DSPL (display mode change) button 12, 13, 15, 20 6 LIST button Station Memo 20 Disc Memo 15 List-up 16, 21, 31 7 SOURCE (Tuner/CD/MD/TV) button 10, 11, 12, 13, 16, 18, 19, 21, 22, 23, 24, 25, 26, 30, 32 8 Display window 9 OPEN button 9, 11, 12, 33 0 DSO button 23 qa SOUND button 21, 22, 23, 24, 25 qs Reset button (located on the front side of the unit behind the front panel) 9 qd OFF button* 9, 10, 11, 12 qf SEEK/AMS –/+ (cursor left/right) button 10, 13, 15, 17, 19, 20, 21, 22, 23, 24, 25, 26, 29, 30, 32 Seek 18, 19 Automatic Music Sensor 13 Manual Search 13, 19 qg ENTER button 10, 13, 15, 16, 17, 18, 19, 20, 21, 22, 24, 25, 26, 29, 30, 32 qh MODE button During radio reception: BAND select 18, 19 During CD or MD playback: CD/MD unit select 12, 16 During TV reception: TV1/TV2 select 30 qj Receptor for the card remote commander qk Number buttons During radio reception: Preset number select 18, 19 During CD/MD playback: (1) REP 14 (2) SHUF 14 During TV reception: Preset number select 30

• Warning when installing in a car without ACC (accessory) position on the ignition key switch Be sure to press (OFF) on the unit for two seconds to turn off the clock display after turning off the engine. When you press (OFF) only momentarily, the clock display does not turn off and this causes battery wear.

SEEK/AMS REP SHUF OPEN MODE DSO8 Location of controls Card remote commander RM-X91 Replacing the lithium battery When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Notes on lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.

• Wipe the battery with a dry cloth to assure a good contact.

• Be sure to observe the correct polarity when installing the battery.

• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur. WARNING Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire. The corresponding buttons of the card remote commander control the same functions as those on this unit. 1 OFF button 2 MENU button 3 SOURCE button 4 SEEK/AMS (cursor </,) buttons 5 SOUND button 6 DSPL button 7 ATT button 8 LIST button 9 DISC/PRST (cursor M/m) buttons 0 ENTER button qa MODE button qs VOL buttons OFF

+ side up A unit turned off by pressing (OFF) for two seconds cannot be operated with the card remote commander unless (SOURCE) on the unit is pressed or a disc is inserted to activate the unit first.9 Attaching the front panel Place the hole A in the front panel onto thespindle B on the unit as illustrated, then pushthe left side in.Notes• Be careful not to attach the front panel upsidedown.• Do not press the front panel too hard against theunit when attaching it.• Do not press too hard or put excessive pressureon the display window of the front panel.• Do not expose the front panel to direct sunlightor heat sources such as hot air ducts, and do notleave it in a humid place. Never leave it on thedashboard of a car parked in direct sunlight orwhere there may be a considerable rise intemperature. Caution alarm If you turn the car ignition off withoutremoving the front panel, the caution alarmwill beep for a few seconds. Getting Started Resetting the unit Before operating the unit for the first time orafter replacing the car battery, you must resetthe unit.Remove the front panel and press the resetbutton with a pointed object, such as a ball-point pen. Note Pressing the reset button will erase the clocksetting and some memorized functions. Detaching the front panel You can detach the front panel of this unit toprotect the unit from being stolen. 1 Press (OFF). 2 Press (OPEN), then slide the front panel to the right side, and pull out the leftside of the front panel.Notes• Do not put anything on the inner surface of thefront panel.• Be sure not to drop the panel when detaching itfrom the unit.• If you detach the panel while the unit is stillturned on, the power will turn off automaticallyto prevent the speakers from being damaged.• When carrying the front panel with you, use thesupplied front panel case.Reset button

B10 Turning the unit on/off Turning on the unit Press (SOURCE) or insert a disc in the unit. For details on operation, refer to page 11 (CD/ MD) and page 18 (Radio). Turning off the unit Press (OFF) to stop CD/MD playback or FM/ AM reception (the key illumination and display remains on.) Press (OFF) for two seconds to completely turn off the unit. Note If your car has no ACC position on the ignition key switch, be sure to turn the unit off by pressing (OFF) for two seconds to avoid car battery wear. How to use the menu This unit is operated by selecting items from a menu. To select, first enter the menu mode and choose up/down (+/– of (DISC/PRST)), or choose left/right (–/+ of (SEEK/AMS)). (DISC/PRST) (+) : To select upwards (–) : To select downwards (SEEK/AMS) (+) : To select rightwards (–) : To select leftwards SOURCESOURCE Setting the clock The clock uses a 12-hour digital indication. Example: To set the clock to 10:08 1 Press (MENU), then press either side of (DISC/PRST) repeatedly until “Clock” appears. 1 Press (ENTER). The hour indication flashes. 2 Press either side of (DISC/PRST) to set the hour. 3 Press (+) side of (SEEK/AMS). The minute indication flashes. 4 Press either side of (DISC/PRST) to set the minute. 2 Press (ENTER). The clock starts. After the clock setting is completed, the display returns to normal playback mode. Note In the initial setting, the clock indication appears while the unit is turned off. When you select the “on” setting of the “D.Info” item (page 29), you can see the clock indication in the upper part of the display while you are enjoying any source.11 CD/MD CDX-C8050X: In addition to playing a CD with this unit alone, you can also control external CD/MD units. MDX-C8500X: In addition to playing an MD with this unit alone, you can also control external CD/MD units. If you connect an optional CD unit with the CD TEXT function, the CD TEXT information will appear in the display when you playback a CD TEXT disc. Listening to a CD with CDX-C8050X only 1 Press (OPEN) and insert the CD. Playback starts automatically. 2 Close the front panel. Tip To play back an 8 cm (3 in.) CD, use the optionalSony compact disc single adapter (CSA-8).Labeled side upCD indicationElapsed playing timeTrack number If a CD is already inserted, press (SOURCE) repeatedly until “CD” appears to start playback. When the last track on the CD is over The track number indication returns to “1, ” and playback restarts from the first track of the CD. To Press Stop playback (OFF) Eject the CD (OPEN) then Z For details on operation, refer to “Changing the display item” (page 12), “Automatically scrolling a disc name,” “Locating a specific track,” “Locating a specific point in a track,” and “Locating a disc” (page 13).12 Listening to an MD with MDX-C8500X only 1 Press (OPEN) and insert the MD. Playback starts automatically. 2 Close the front panel. If an MD is already inserted, press (SOURCE) repeatedly until “MD” appears to start playback. The title of the MD* and the track title will appear in the display window, then the playing time will appear.

• Only if these titles are prerecorded on the MD. When the last track on the MD is over The track number indication returns to “1, ” and playback restarts from the first track of the MD. To Press Stop playback (OFF) Eject the MD (OPEN) then Z For details on operation, refer to “Changing the display item ,” “Automatically scrolling a disc name,” “Locating a specific track,” “Locating a specific point in a track,” and “Locating a disc” (page 13). Playing a CD or MD (with optional CD/MD unit) 1 Press (SOURCE) repeatedly to select “CD” or “MD”. 2 Press (MODE) until the desired unit appears. CD/MD playback starts. All the discs in the current CD/MD unit is played from the top. Changing the display item Each time you press (DSPL) during MD, CD or CD TEXT disc playback, the item changes as follows:

While an optional CD/MD unit is connected.

If you have not labeled the CD or CD TEXT disc, or if there is no disc name prerecorded on the MD, “NO D.Name” appears in the display.

If you playback a CD TEXT disc, the artist name appears in the display after the disc name. (Only for CD TEXT discs with the artist name.)

If the track name of a CD TEXT disc or MD is not prerecorded, “NO T.Name” appears in the display. Labeled side up MD indication Elapsed playing timeTrack number

When you connect an optional CD unit, you can label CD and CD TEXT discs with a personalized name using the disc memo function. Refer to “Labeling a CD” (page 15). However, if you use personalized labels, they will always take priority over the original CD TEXT information when such information is displayed. After you select the desired item, the display will automatically change to the Motion Display mode after a few seconds. In the Motion Display mode, all the items are scrolled in the display one by one in order. Tip The Motion Display mode can be turned off. (See “Changing the sound and display settings” on page 29). Automatically scrolling a disc name — Auto Scroll If the disc name, artist name, or track name on an MD or a CD TEXT disc exceeds 10 characters and the Auto Scroll function is on, information automatically scrolls across the display as follows:

• The disc name appears when the disc has changed (if the disc name is selected as the display item).

• The track name appears when the track has changed (if the track name is selected as the display item).

• The disc or track name appears depending on the setting when you press (SOURCE) to select an MD or CD TEXT disc. If you press (DSPL) to change the display item, the disc or track name of the MD or CD TEXT disc is scrolled automatically whether you set the function on or off. 1 During playback, press (MENU). 2 Press either side of (DISC/PRST) repeatedly until “A.Scrl” appears. 3 Press (+) side of (SEEK/AMS) to select “A.Scrl on.” 4 Press (ENTER). To cancel Auto Scroll, select “A.Scrl off” in step 3 above. To search backward To locate preceding tracks SOURCESOURCE To locate succeeding tracks To search forward Note For some CD TEXT discs with very many characters, the following cases may happen: — Some of the characters are not displayed. — Auto Scroll does not work. Locating a specific track — Automatic Music Sensor (AMS) During playback, press either side of (SEEK/AMS) momentarily for each track you want to skip. Locating a specific point in a track — Manual Search During playback, press and hold either side of (SEEK/AMS). Release when you have found the desired point. Note If “ ” or “ ” appears in the display, you have reached the beginning or the end of the disc and you cannot go any further. Locating a disc — Disc Selection When an optional CD/MD unit is connected, press either side of (DISC/PRST) to select the desired disc. The desired disc in the current optional CD/MD unit begins playback.14 LIST DSPLPTYENTER

MODE Playing tracks in random order — Shuffle Play You can select:

• Shuf 1 - to play the tracks on the current disc in random order.

• Shuf 2 - to play the tracks in the current optional CD/MD unit in random order.

• Shuf All - to play all the tracks in all the optional CD/MD units in random order. During playback, press (2) (SHUF) repeatedly until the desired setting appears in the display.

“Shuf 2” is only available when you connect one or more optional CD/MD units.

“Shuf All” is only available when:

• you connect one or more optional CD units, or two or more MD units (CDX-C8050X).

• you connect one or more optional MD units, or two or more CD units (MDX-C8500X). Shuffle Play starts. To return to normal playback mode, select “Shuf off” in the step above. LIST DSPLPTYENTER

MODE Playing tracks repeatedly — Repeat Play The disc in the main unit will automatically repeat itself when it reaches the end. As repeat play, you can select:

• Repeat 1 - to repeat a track.

• Repeat 2 - to repeat a disc in the optional CD/MD unit. During playback, press (1) (REP) repeatedly until the desired setting appears in the display. *“Repeat 2” is only available when you connect one or more optional CD/MD units. Repeat Play starts. To return to normal playback mode, select “Repeat off” in the step above. B Repeat 1 B Repeat 2* Repeat off b B Shuf 1 B Shuf 2*

Shuf off b15 Labeling a CD — Disc Memo (For a CD unit with the custom file function) You can label each disc with a personalized name. You can enter up to eight characters for a disc. If you label a CD, you can locate the disc by name (page 16) and select the specific tracks for playback (page 17). 1 Press (MENU), then press either side of (DISC/PRST) repeatedly until ”Name Edit” appears. 2 Press (ENTER). Name edit mode 3 Enter the characters. 1 Press (+) side of (DISC/PRST) repeatedly to select the desired characters. (A t B t C t ··· Z t 0 t 1 t 2 t

• ·· 9 t + t – t * t / t \ t > t < t . t ) If you press (–) side of (DISC/PRST) repeatedly, the characters will appear in reverse order. If you want to put a blank space between characters, select “ ” (under-bar). 2 Press (+) side of (SEEK/AMS) after locating the desired character. The next character flashes. If you press (–) side of (SEEK/AMS), the previous character flashes. 3 Repeat steps 1 and 2 to enter the entire name. 4 To return to normal CD playback mode, press (ENTER). Tips

• To erase or correct a name, enter “ ” (under- bar) for each character.

• There is another way to start labeling a CD. Press and hold (LIST) for two seconds instead of steps 1 and 2. You can also complete the operation by pressing and holding (LIST) for two seconds instead of step 4. Displaying the disc memo Press (DSPL) during CD or CD TEXT disc playback. Each time you press (DSPL) during CD or CD TEXT disc playback, the item changes as follows:

While an optional CD unit is connected.

If you connect an optional CD unit with the CD TEXT function, the CD TEXT information will appear in the display when you play a CD TEXT disc. Note Do not use the Custom file feature while driving, or perform any other function which could divert your attention from the road.16 Erasing the disc memo 1 Press (SOURCE) repeatedly to select “CD.” 2 Press (MODE) repeatedly to select the CD unit. 3 Press (MENU), then press either side of (DISC/PRST) repeatedly until “NameDel” appears. 4 Press (ENTER). 5 Press either side of (DISC/PRST) repeatedly to select the disc name you want to erase. 6 Press (ENTER) for two seconds. The name is erased. Repeat steps 5 and 6 if you want to erase other names. 7 Press (MENU) twice. The unit returns to normal CD playback mode. Notes

• When a personalized label is erased, the original CD TEXT information will appear in the display.

• When you erase all of the disc names, “No Data” appears in step 5. Locating a disc by name — List-up (For a CD unit with the custom file function or an MD unit) You can use this function for discs that have been assigned a custom name. For more information on disc names, refer to “Labeling a CD” (page 15). 1 Press (LIST). The name assigned to the current disc appears in the display. When you assign a disc memo label to a CD TEXT disc, it takes priority over the original CD TEXT information. 2 Press either side of (DISC/PRST) repeatedly until you find the desired disc. 3 Press (ENTER) to play the disc. Notes

• After a disc name has been displayed for five seconds, the display returns to normal playback mode. To turn off the display, press (LIST).

• The track names are not displayed during MD or CD TEXT disc playback.

• If there are no discs in the magazine, “NO Disc” appears in the display.

• If a disc has not been assigned a custom file, “********” appears in the display.

• If the disc information has not been read by the unit, “?” appears in the display. To load a disc, first press the number button, then choose the disc that has not been loaded.

• Some letters cannot be displayed (during MD or CD TEXT disc playback). SOURCE To locate preceding discs To locate succeeding discs17 Playing specific tracks only You can select:

• “Bank on” - to playback the tracks with the “Play” setting.

• “Bank inv” (Inverse) - to playback the tracks with the “Skip” setting. 1 During playback, press (MENU), then press either side of (DISC/PRST) repeatedly until “Bank off” appears. 2 Press (+) side of (SEEK/AMS) repeatedly until the desired setting appears. B Bank on B Bank inv Bank off b 3 Press (MENU). Playback starts from the track following the current one. To return to normal playback mode, select “Bank off“ in step 2 above. Selecting specific tracks for playback — Bank (For a CD unit with the custom file function) If you label the disc, you can set the unit to skip or play the tracks of your choice. 1 Start playing the disc you want to label. 2 Press (MENU), then press either side of (DISC/PRST) repeatedly until “Bank sel“ appears. 3 Press (ENTER). Bank edit mode 4 Label the tracks. 1 Press either side of (SEEK/AMS) repeatedly to select the track you want to label. 2 Press (ENTER) repeatedly to select “Play” or “Skip.” 5 Repeat step 4 to set “Play” or “Skip” for all the tracks. 6 Press (MENU) twice. The unit returns to normal CD playback mode. Notes

• “NO Name” flashes for five seconds when an unlabeled disc is selected in step 3.

• You can set “Play” and “Skip” for up to 24 tracks.

• You cannot set “Skip” for all the tracks on a CD.18 Memorizing only the desired stations You can preset up to 18 FM stations (6 each for FM1, FM2, and FM3), up to 12 AM stations (6 each for AM1 and AM2) in the order of your choice. 1 Press (SOURCE) repeatedly to select the tuner. 2 Press (MODE) repeatedly to select the band. 3 Press either side of (SEEK/AMS) to tune in the station that you want to store on the number button. 4 Press and hold the desired number button ((1) to (6)) until “MEM” appears. The number button indication appears in the display. Note If you try to store another station on the samenumber button, the previously stored station willbe erased. Radio Memorizing stations automatically — Best Tuning Memory (BTM) The unit selects the stations with the strongest signals and memorizes them in the order of their frequencies. You can store up to 6 stations on each band (FM1, FM2, FM3, AM1, and AM2). Caution When tuning in stations while driving, use Best Tuning Memory to prevent accidents. 1 Press (SOURCE) repeatedly to select the tuner. Each time you press (SOURCE), the source changes as follows: B Tuner B CD* B MD* B TV*
• If the corresponding optional equipment isnot connected, this item will not appear. 2 Press (MODE) repeatedly to select the band. Each time you press (MODE), the band changes as follows: B FM1 B FM2 B FM3AM2 b AM1 b 3 Press (MENU), then press either side of (DISC/PRST) repeatedly until “BTM” appears. 4 Press (ENTER). The unit stores stations in the order of their frequencies on the number buttons. A beep sounds when the setting is stored. Notes• The unit does not store stations with weaksignals. If only a few stations can be received,some number buttons will retain their formersetting.• When a number is indicated in the display, theunit starts storing stations from the one currentlydisplayed.• If a disc is not in the unit, only the tuner bandappears even if you press (SOURCE).19 Receiving the memorized stations 1 Press (SOURCE) repeatedly to select the tuner. 2 Press (MODE) repeatedly to select the band. 3 Press the number button ((1) to (6)) on which the desired station is stored. Tip Press either side of (DISC/PRST) to receive the stations in the order they are stored in the memory (Preset Search Function). If you cannot tune in a preset station Press either side of (SEEK/AMS) to search for the station (automatic tuning). Scanning stops when the unit receives a station. Press either side of (SEEK/AMS) repeatedly until the desired station is received. Note If the automatic tuning stops too frequently, press (MENU), then press either side of (DISC/PRST) repeatedly until “Local” (local seek mode) is displayed. Then press (+) side of (SEEK/AMS) to select “Local on.” Press (ENTER). Only the stations with relatively strong signals will be tuned in. Tips

• When you select the “Local on” setting, “LCL Seek” appears while the unit is searching for a station.

• If you know the frequency of the station you want to listen to, press and hold either side of (SEEK/AMS) until the desired frequency appears (manual tuning). If FM stereo reception is poor — Monaural Mode 1 During radio reception, press (MENU), then press either side of (DISC/PRST) repeatedly until “Mono” appears. 2 Press (+) side of (SEEK/AMS) until “Mono on“ appears. The sound improves, but becomes monaural (“ST” disappears). 3 Press (ENTER). To return to normal mode, select “Mono off” in step 2 above. If FM stereo broadcast becomes monaural If interference occurs, the “IF Auto” function of this unit will automatically avoid noise and narrow the reception frequency. In such cases, some FM stereo broadcasts may become monaural. If you would like to listen to such broadcasts in stereo, manually switch to the “Wide” setting. 1 During radio reception, press (MENU), then press either side of (DISC/PRST) repeatedly until “IF Auto” appears. 2 Press (+) side of (SEEK/AMS) repeatedly to select desired setting. IF Auto y Wide 3 Press (ENTER). Note When you widen the frequency signal reception setting (“Wide“ mode), some interference may occur.20 Storing the station names — Station Memo You can assign a name to each radio station and store it in memory. The name of the station currently tuned in appears in the display. You can assign a name of up to eight characters for a station. Storing the station names 1 Tune in a station whose name you want to store. 2 Press (MENU), then press either side of (DISC/PRST) repeatedly until “Name Edit” appears. 3 Press (ENTER). 4 Enter the characters. 1 Press (+) side of (DISC/PRST) repeatedly to select the desired characters. (A t B t C t ··· Z t 0 t 1 t 2 t

• ·· 9 t + t – t * t / t \ t > t < t . t ) If you press (–) side of (DISC/PRST) repeatedly, the characters appear in the reverse order. If you want to put a blank space between characters, select “ ” (under- bar). 2 Press (+) side of (SEEK/AMS) after locating the desired character. The next character flashes. If you press (–) side of (SEEK/AMS), the previous character flashes. 3 Repeat steps 1 and 2 to enter the entire name. 5 To return to the normal radio reception, press (ENTER). Tips

• To erase or correct a name, enter “ ” (under- bar) for each character.

• When storing station names, there is an alternative method; press and hold (LIST) for two seconds instead of doing steps 2 and 3. Likewise, you can complete the operation by pressing and holding (LIST) for two seconds instead of doing step 5. Displaying the station name Press (DSPL) during radio reception. Each time you press (DSPL), the item changes as follows: Station name* y Frequency

• If the station name of a station is not stored, “NO Name” appears in the display for one second. Erasing the station name 1 Tune in a station you want to erase. 2 Press (MENU), then press either side of (DISC/PRST) repeatedly until “NameDel” appears. 3 Press (ENTER). 4 Press either side of (DISC/PRST) to select the station name you want to erase. 5 Press (ENTER) for two seconds. The name is erased. Repeat steps 4 through 5 if you want to erase other names. 6 To return to the normal radio reception, press (MENU). Note When you erase all of the station names, “NO Data” appears in step 5.21 Locating a station by name — List-up 1 Press (LIST). The name assigned to the station currently tuned appears in the display. 2 Press either side of (DISC/PRST) repeatedly until you find the desired station. When no name is assigned to the selected station, the frequency appears in the display. 3 Press (ENTER) to tune in the desired station. Notes• Once the station name or frequency has beendisplayed for five seconds, the display goes backto its normal mode. To turn off the display, press(LIST).• When you connect a TV tuner, the list-upindication will not appear in the display of theunit. DSP Setting the equalizer You can select an equalizer curve for five music types (Rock, Vocal, Groove, Techno, and Custom). You can store and adjust the equalizer settings for frequency and level. Selecting the equalizer curve 1 Press (SOURCE) to select a source (tuner, CD, or MD). 2 Press (SOUND) repeatedly until “EQ” appears. Each time you press (SOUND), the item changes as follows: EQ (equalizer curve) t POS (listening position)t BAL (right-left) t F (front speaker volume)t R (rear speaker volume) tSUB (subwoofer volume) t VOL (volume) tEQ (equalizer curve) 3 Press either side of (SEEK/AMS) to select the desired equalizer curve. Each time you press (SEEK/AMS), the item changes as follows: Rock y Vocal y Groove y Techno y Custom y off y Rock To cancel the equalizing effect, select “off.” After three seconds, the display returns to the normal playback mode.22

Selecting the listening position You can set a delayed time for the sound to reach the listeners from the speakers. In this way, the unit can simulate a natural sound field so that you feel as if you are in the centre of the sound field no matter where you sit in the car. 1 Press (SOURCE) to select a source (tuner, CD, or MD). 2 Press (SOUND) repeatedly until “POS” appears. 3 Press either side of (SEEK/AMS) to select the desired listening position. Each time you press (SEEK/AMS), the item changes as follows: All y Front y Front-R y Front-L y Rear y off y All To cancel the POS mode, select “off.” After three seconds, the display returns to the normal playback mode. Adjusting the equalizer curve 1 Press (MENU). 2 Press either side of (DISC/PRST) repeatedly until “EQ Tune” appears, then press (ENTER). 3 Press either side of (SEEK/AMS) to select the desired equalizer curve, then press (ENTER). Each time you press (SEEK/AMS), the item changes as follows: Rock y Vocal y Groove y Techno y Custom y off y Rock 4 Select the desired frequency and level. 1 Press either side of (SEEK/AMS) to select the desired frequency. Each time you press (SEEK/AMS), the frequency changes as follows: 62 Hz y 157 Hz y 396 Hz y 1.0kHz y 2.5kHz y 6.3kHz y 16.0kHz 2 Press either side of (DISC/PRST) to adjust the desired volume level. The volume is adjustable by 1 dB steps from –12 dB to +12 dB. To restore the factory-set equalizer curve, press (ENTER) for two seconds. 5 Press (MENU) twice. When the effect setting is complete, the normal playback mode appears. Displaywindow POS All POS Front POS Front-R POS Front-L POS Rear POS off Centre of soundfieldNormal setting (1 + 2 + 3) Front part(1 + 2)Right front (2)Left front (1)Rear part (3)Cancel23 Selecting a soundstage menu — Dynamic Soundstage Organizer (DSO) If your speakers are installed into the lower part of the doors, the sound will come from below and may not be clear. The DSO (Dynamic Soundstage Organizer) function creates a more ambient sound as if there were speakers in the dashboard (virtual speakers). Soundstage menu Memory presetsMeaningDSO 1, 2, and 3 Virtual speakers (Standard)Wide Virtual speakers (Wide)off Cancel Image of virtual speakers

Acutual speakers position(lower part of the front doors). Selecting the DSO 1 Press (SOURCE) to select a source (tuner, CD, or MD). 2 Press (DSO) repeatedly to select the desired DSO mode. Each time you press (DSO), the mode changes as follows: B 1 B 2 B 3 B Wide off b To cancel the DSO mode, select “off.” After three seconds, the display returns to the normal playback mode. Adjusting the balance (BAL) You can adjust the sound balance from the left and right speakers. 1 Press (SOURCE) to select a source (tuner, CD, or MD). 2 Press (SOUND) repeatedly until “BAL” appears. 3 Press either side of (SEEK/AMS) to adjust the balance. After three seconds, the display returns to the normal playback mode.24 Adjusting the front and rear fader 1 Press (SOURCE) to select a source (tuner, CD, or MD). 2 Press (SOUND) repeatedly until “F” for the front speakers or “R” for the rear speakers appears. 3 Press either side of (SEEK/AMS) to adjust the volume of front/rear speakers. 4 Press (MENU) twice. After three seconds, the display returns to the normal playback mode. Adjusting the cut-off frequency and the output volume level for the front/rear speakers To match the characteristics of the installed speaker system, you can adjust the output volume level and the cut-off frequency of the speakers. 1 Press (MENU). 2 Press either side of (DISC/PRST) repeatedly until “Front HPF” or “Rear HPF” appears, then press (ENTER). Level Frequency (Hz) Cut-off frequency 3 Select the desired frequency and level. 1 Press either side of (SEEK/AMS) to select the cut-off frequency. Each time you press (SEEK/AMS), the frequency changes as follows: off y 78 Hz y 99 Hz y 125 Hz y 157 Hz y 198 Hz 2 Press either side of (DISC/PRST) to adjust the volume level . The volume is adjustable by 1 dB steps from –12 dB to +12 dB. 4 Press (MENU) twice. When the effect setting is complete, the normal playback mode appears. Tip When you lower the volume all the way down, “ATT” appears and the cut-off frequency is disabled.25 Adjusting the volume of the subwoofer(s) 1 Press (SOURCE) to select a source (tuner, CD, or MD). 2 Press (SOUND) repeatedly until “SUB” appears. 3 Press either side of (SEEK/AMS) to adjust the volume level. 4 Press (MENU) twice. After three seconds, the display returns to the normal playback mode. Tip When you lower the volume all the way down, “ATT” appears and the cut-off frequency of the subwoofer is disabled. Adjusting the frequency of the subwoofer(s) To match the characteristics of the connected subwoofer(s), you can cut out the unwanted high and middle frequency signals entering the subwoofer(s). By setting the cut-off frequency (see the diagram below), the subwoofer(s) will output only low frequency signals so you can get a clearer sound image. 1 Press (MENU). 2 Press either side of (DISC/PRST) repeatedly until “SUB LPF” appears, then press (ENTER). Level Cut-off frequency Frequency (Hz) 3 Select the desired frequency and level. 1 Press either side of (SEEK/AMS) to select the desired frequency. Each time you press (SEEK/AMS), the frequency changes as follows: 62 Hz y 78 Hz y 99 Hz y 125 Hz y 157 Hz y off 2 Press either side of (DISC/PRST) to adjust the desired volume level. The volume is adjustable by 1 dB steps from –12 dB to +12 dB. 4 Press (MENU) twice. After the frequency setting is complete, the display returns to the normal playback mode. Tip When you lower the volume all the way down, “ATT” appears and the cut-off frequency is disabled. Listening to each programme source in its registered DSO — Source Sound Memory (SSM) Each time you return to the same source, you can hear the same DSO menu and equalizer curve registered for that source, even after changing the programme source or turning the unit off and then on again.26 Other Functions You can also control this unit with the rotary commander (option). Labeling the rotary commander Depending on how you mount the rotary commander, attach the appropriate label as shown in the illustration below. SOUND DSPL MODE SOUND DSPL MODE Selecting the spectrum analyzer The sound signal level is displayed on a spectrum analyzer. You can select a display pattern from 1 to 6, or the automatic display mode. Mode Display patterns SA 1 SA 2 SA 3 SA 4 SA 5 SA 6 off Cancel SA Auto All of these display patterns appear one by one automatically. 1 Press (SOURCE) to select a source (tuner, CD, or MD). 2 Press (MENU). 3 Press either side of (DISC/PRST) repeatedly until “SA” appears. 4 Press (+) side of (SEEK/AMS) repeatedly to select the desired setting. Each time you press (+) side of (SEEK/AMS), the setting changes as follows: B SA 1 B … SA 6 SA Auto b SA off b 5 Press (ENTER).27 Using the rotary commander The rotary commander works by pressing buttons and/or rotating controls. You can control also an optional CD/MD unit with the rotary commander. By pressing buttons (the SOURCE and MODE buttons) Each time you press (SOURCE), the source changes as follows: Tuner t CD* t MD* t TV*

• If the corresponding optional equipment is not connected, this item will not appear. Pressing (MODE) changes the operation in the following ways:

• If the corresponding optional equipment is not connected, the item will not appear. (SOURCE) (MODE) By rotating the control (the SEEK/AMS control) Rotate the control momentarily and release it to:

• Locate a specific track on a disc. Rotate and hold the control until you locate the specific point in a track, then release it to start playback.

• Tune in stations automatically. Rotate and hold the control to find a specific station. By pushing in and rotating the control (the PRESET/DISC control) Push in and rotate the control to:

• Receive the stations memorized on the number buttons.

• Change the disc.28 Other operations Tip If your car has no ACC (accessory) position on the ignition key switch, be sure to press (OFF) for two seconds to turn off the clock indication after turning off the engine. Changing the operative direction The operative direction of controls is factory- set as shown below. OFF Rotate the VOL control to adjust the volume. Press (OFF) to turn off the unit. Press (ATT) to attenuate the sound. Press (DSPL) to display the memorized names. Press (SOUND) to adjust the volume and sound menu. To increase To decrease If you need to mount the rotary commander on the right hand side of the steering column, you can reverse the operative direction. Press (SOUND) for two seconds while pushing the VOL control. Tip You can also change the operative direction of these controls with the unit (see “Changing the sound and display settings” on page 29). Attenuating the sound Press (ATT) on the rotary commander or the card remote commander. “ATT on” flashes momentarily. To restore the previous volume level, press (ATT) again. Tip When the interface cable of a car telephone is connected to the ATT lead, the unit decreases the volume automatically when a telephone call comes in (Telephone ATT function).29 Changing the sound and display settings The following items can be set: SET

• Beep - to turn on or off the beeps.

• RM (Rotary Commander) - to change the operative direction of the controls of the rotary commander. — Select “norm” to use the rotary commander as the factory-set position. — Select “rev” when you mount the rotary commander on the right side of the steering column.

• Multi language (language selection) - to change the display language to English, French, or Spanish.

• D.Info (Dual Information) - to display the clock and the play mode at the same time (on) or to display the information alternately (off). DIS

• SA (Spectrum Analyzer) - to change the display pattern of the equalizer display.

• Dimmer - to change the brightness of the display. — Select “Auto” to dim the display only when you turn the lights on. — Select “on” to dim the display. — Select “off” to deactivate Dimmer.

• Contrast - to adjust the contrast if the indications in the display are not recognisable because of the unit’s installed position.

• M.Dspl (Motion display) - to turn the motion display to 1, 2 , or off.

• A.Scrl (Auto Scroll) (page 13) SND

• EQ Tune (Equalizer tuning) - to adjust the frequency and volume level of the equalizer curve.

• Front HPF (High pass filter for the front pre- output) - to select the cut-off frequency of the front pre-output.

• Rear HPF (High pass filter for the rear pre- output) - to select the cut-off frequency of the rear pre-output.

• SUB LPF (Low pass filter for the subwoofer output) - to select the cut-off frequency of the subwoofer output. 1 Press (MENU). 2 Press either side of (DISC/PRST) repeatedly until the desired item appears. Each time you press (–) side of (DISC/PRST), the item changes as follows: Example: Clock t Beep t RM t Multi language t D.Info t SA t Dimmer t Contrast t M.Dspl t A.Scrl t Local t Mono t IF t EQ Tune t Front HPF t Rear HPF t SUB LPF t Name edit t NameDel t BTM Note The displayed item will differ depending on the source. Tip You can easily switch among categories (“SET”, “DIS”, “P/M”, “SND” and “EDT”) by pressing and holding either side of (DISC/PRST) for two seconds. 3 Press either side of (SEEK/AMS) to select the desired setting (Example: “on” or “off”). 4 Press (ENTER). After the mode setting is complete, the display returns to normal playback mode.30 TV/Video You can connect an optional TV tuner and TV monitor to this unit. Watching the TV 1 Press (SOURCE) repeatedly until “TV” appears. 2 Press either side of (DISC/PRST) repeatedly to select the desired TV band. Watching a video 1 Press (SOURCE) repeatedly until “TV” appears. 2 Press (MODE) repeatedly to select “Video 1.” Playback the video. Note “Video 2” appears if the VIDEO 2 terminal of theTV monitor is selected. Memorizing TV channels automatically The unit selects the TV channels with the strongest signals and memorizes them in the order of their frequency. Caution When tuning in a station while driving, use Best Tuning Memory to prevent accidents. 1 Press (SOURCE) repeatedly until “TV” appears. 2 Press (MENU), then press either side of (DISC/PRST) until “Auto Mem” appears. 3 Press (ENTER). The unit stores TV channels in the order of their frequencies on the number buttons. A beep sounds when the setting is stored. Notes• The unit does not store TV channels with weaksignals. If only a few TV channels can bereceived, some number buttons will remainempty.• When a preset number is indicated in the display,the unit starts storing TV channels from the onecurrently displayed. Memorizing only the desired TV channels You can store up to 6 channels on the number buttons in the order of your choice. 1 Press (SOURCE) repeatedly until “TV” appears. 2 Press either side of (SEEK/AMS) to tune in the TV channel you want to store on each number button. 3 Press and hold the desired number button ((1) to (6)) until you hear a beep sound. The number button indication appears in the display. Note If you try to store another channel on the samenumber button, the previously stored channel willbe erased.31 Storing the TV channel names Follow the steps in “Storing the station names” (page 20). Displaying the TV or radio station names Press (LIST) during TV or radio reception. Example: When receiving the FM1 band 1 Preset number 2 Stored station names 3 Frequencies*

• If the name of a station is not stored, the frequency of that station will be displayed instead. Notes

• It may take some time before all indications appear in the display.

• The TV channel does not appear during list display.

• The contents of the preset memory cannot be listed when the unit is in simultaneous play mode (page 32). Turning off the display During radio reception, press (LIST) again. During TV reception, the list display on the TV monitor will automatically turn off after a few seconds. Displaying the information stored on discs Press (LIST) during CD/MD playback. Example: When CD unit 1 is selected. 1 Disc numbers 2 Titles stored as custom files 3 No disc is loaded*

5 TOC information has not been identified yet*

A blank space is displayed next to a disc number represents empty slots in the disc magazine.

If a title is not registered in the custom file, “******” is displayed.

If the disc information has not been read yet by the unit, “?” is displayed. Notes

• It may take some time until all indications appear in the display.

• The TV channel does not appear during list display.

• The contents of the preset memory cannot be listed when the unit is in the simultaneous play mode. Turning off the display Press (LIST) again.

Watching the TV or video while listening to a CD or

— Simultaneous Play The simultaneous play function does not work while you are listening to the radio. 1 Press (MENU), then press either side of (DISC/PRST) repeatedly until “Simul Sel” appears. 2 Press (ENTER). 3 Press (–) side of (SEEK/AMS). 4 Press (SOURCE) repeatedly to select CD or MD. 5 Press (+) side of (SEEK/AMS). 6 Press (SOURCE) repeatedly to select a TV or video. 7 Press (ENTER). Simultaneous Play starts. If you are already watching the TV or video and want to listen to a CD or MD as well, follow the same steps above. Returning to normal mode To cancel the CD or MD, follow the steps above and select “– – –” in step 4. To cancel the TV or video, follow the steps above and select “– – –” in step 6. Note If you press Z (EJECT) on a CD/MD unit while the unit is in simultaneous play mode, Simultaneous Play is canceled.33 Additional Information Maintenance Fuse replacement When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer. Warning Never use a fuse with an amperage rating exceeding the one supplied with the unit as this could damage the unit. Fuse (10 A) Cleaning the connectors The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, open the front panel by pressing (OPEN), then detach it and clean the connectors with a cotton swab dipped in alcohol. Do not apply too much force. Otherwise, the connectors may be damaged. Main unit Back of the front panel Notes

• For safety, turn off the engine before cleaning the connectors, and remove the key from the ignition switch.

• Never touch the connectors directly with your fingers or with any metal device.34 Dismounting the unit 1 Press the clip inside the front cover with a thin screwdriver, and gently pry the front cover free. 2 Repeat step 1 on the left side. The front cover is removed. 3 Use a thin screwdriver to push in the clip on the left side of the unit, then pull out the left side of the unit until the catch clears the mounting. 4 Repeat step 3 on the right side. 5 Slide the unit out of the mounting.35 Specifications Other specifications Disc player section CD player (CDX-C8050X): System Compact disc digital audio system Signal-to-noise ratio 90 dB Frequency response 10 – 20,000 Hz Wow and flutter Below measurable limit MD player (MDX-C8500X): Signal-to-noise ratio 90 dB Frequency response 10 – 20,000 Hz Wow and flutter Below measurable limit Laser Diode Properties Material GaAlAs Wavelength 780 nm Emission Duration Continuous Laser output power Less than 44.6 W*

• This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block. Tuner section

Tuning range 87.5 – 107.9 MHz Antenna terminal External antenna connector Intermediate frequency 10.7 MHz/450 kHz Usable sensitivity 8 dBf Selectivity 75 dB at 400 kHz Signal-to-noise ratio 66 dB (stereo), 72 dB (mono) Harmonic distortion at 1 kHz

Separation 35 dB at 1 kHz Frequency response 30 – 15,000 Hz

Tuning range 530 – 1,710 kHz Antenna terminal External antenna connector Intermediate frequency 10.7 MHz/450 kHz Sensitivity 30 µV Power amplifier section Outputs Speaker outputs (sure seal connectors) Speaker impedance 4 – 8 ohms Maximum power output 50 W × 4 (at 4 ohms) General Outputs Audio outputs Power antenna relay control lead Power amplifier control lead Telephone ATT control lead Power requirements 12 V DC car battery (negative ground) Dimensions Approx. 178 × 50 × 183 mm

in.) (w/h/d) Mass CDX-C8050X: Approx. 1.3 kg (2 lb 14 oz) MDX-C8500X: Approx. 1.2 kg (2 lb 10 oz) Supplied accessories Card remote commander RM-X91 Parts for installation and connections (1 set) Front panel case (1) Optional accessories Rotary commander RM-X4S BUS cable (supplied with an RCA pin cord) RC-61 (1 m), RC-62 (2 m) Optional equipment Compact disc single adaptor CSA-8 CD changer (10 discs) CDX-838, CDX-737, CDX-636 MD changer (6 discs) MDX-65 Other CD/MD changers with the Sony-BUS system Source selector XA-C30 TV tuner XT-40V U.S. and foreign patents licensed from Dolby laboratories Licensing Corporation. Design and specifications are subject to change without notice.

19 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 10 Hz to 20 kHz with no more than 1% total harmonic distortion.36 Troubleshooting guide Problem No sound. The contents of the memory have been erased. Indications do not appear in the display. No beep sound. The card remote commander does not function. Cause/Solution

• Cancel the ATT function.

• Set the front or rear fader control to the center position for two-speaker system.

• Rotate the dial clockwise to adjust the volume.

• The power cord or battery has been disconnected.

• The reset button has been pressed. t Store again into the memory. Remove the front panel and clean the connectors. See “Cleaning the connectors” (page 33) for details. The beep sound is canceled (page 29).

• Remove any obstacles blocking the signal path from card remote commander to the unit.

• Point the card remote commander at the receptor on the unit. The following checklist will help you remedy the problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures. General37 CD/MD playback Cause/Solution

• Another MD is already loaded.

• The MD is forcibly inserted upside down or in the wrong way. Defective MD or dirty CD. You have closed the front panel or pushed the disc forcibly into the unit while the unit was ejecting the disc after you pressed (Z). t Press the reset button to initialize the unit. Press the reset button.

• CDX-C8050X: The unit is installed at an angle of more than 60°. MDX-C8500X: The unit is installed at an angle of more than 20°.

• The unit is not installed in a sturdy part of the car. A dirty or defective disc. You cannot label CDs unless you connect a CD unit with the custom file function. t Press (LIST) for two seconds. Problem A disc cannot be loaded. Playback does not begin. CD/MD will not be ejected. The operation buttons do not function. The sound skips due to vibration. The sound skips. Cannot turn off the “--------” indication.38 Cause/Solution The volume of the speakers may have been automatically lowered in order to maximize the effect of the listening position adjustment. t Press either side of (SEEK/AMS) to adjust the balance. The speaker balance can be set separately for DSP on mode and DSP off mode (page 23). The DSO function is activated and all the filters for the volume level are adjusted to +12 dB. Problem No sound, or sound is too low. The volume level cannot be increased. DSP functions Radio reception Problem Preset tuning is not possible. Automatic tuning is not possible. The stations cannot be received. The sound is hampered by noises. The “ST” indication flashes. Interference occurs during FM reception. Cause/Solution

• Memorize the correct frequency.

• The broadcast signal is too weak. The broadcast signal is too weak. t Use manual tuning. Connect an power antenna control lead (blue) or accessory power supply lead (red) to the power supply lead of a car’s antenna booster. (When your car has built-in FM/AM antenna in the rear/side glass only.)

• Tune in the frequency accurately.

• The broadcast signal is too weak. t Set to the Mono mode (page 19). The Wide mode is selected. t Set the IF mode to IF Auto (page 19).39

The disc number of the disc causing the error appears in the display. If the above-mentioned solutions do not help improve the situation, consult your nearest Sony dealer. Error displays (when an optional CD/MD unit is connected) The following indications will flash for about five seconds, and an alarm sound will be heard. Solution Insert the magazine in the CD/MD unit. Insert discs in the CD/MD unit. Insert another CD/MD. Clean or insert the CD correctly. Insert another MD. Play an MD with recorded tracks on it. Press the reset button on the unit. Close the lid or insert the MDs properly. Display NO Mag NO Disc NG Discs Error Blank PushReset Not Ready Cause The disc magazine is not inserted in the CD/MD unit. No disc is inserted in the CD/MD unit. A CD/MD cannot play because of some problem. (A dirty or defective disc.). A CD is dirty or inserted upside down.* An MD does not playback because of some problem.* No tracks have been recorded on an MD.* The CD/MD unit cannot be operated because of some problem. The lid of the MD unit is open or the MDs are not inserted properly.
