Brand Ninja
Model SP101
Appliance Type Air Fryer / Digital Convection Oven
Supply Voltage 120 V~, 60 Hz
Power 1800 W
Cooking Functions Air Fry, Air Roast, Air Broil, Bake, Toast, Bagel, Dehydrate, Keep Warm
Temperature Range (Air Fry/Roast) 121 °C – 232 °C (250 °F – 450 °F)
Temperature Range (Dehydrate) 40 °C – 91 °C (105 °F – 195 °F)
Maximum Capacity (Toast/Bagel) Up to 9 slices
Maximum Timer (Air Fry/Roast) Up to 2 hours (120 minutes)
Maximum Timer (Dehydrate) Up to 12 hours
Keep Warm Timer Up to 2 hours
Included Accessories Air Fry Basket, Baking Pan, Wire Rack, Removable Crumb Tray
Interior Light Yes (turns on automatically at end of cooking or manually)
Control Type Digital with rotating dial and buttons
Display Digital LED
Material Stainless steel, tempered glass (door)
Cord Management 3 routing options (left, right, back)
Cleaning Basket and pan dishwasher safe; manual cleaning for rest
Warranty 1 year limited (household use)

Frequently Asked Questions - SP101 NINJA

How to use the Air Fry function?
Select the Air Fry function with the dial. Adjust the time (up to 1 hour) and temperature (121-232 °C). Press Start to preheat. Place food in the Air Fry Basket and insert it into the upper rails after the preheat signal. For fatty foods, place the Baking Pan under the basket.
Can I use the baking pan instead of the basket for air frying?
Yes, but crispiness may vary. The basket is designed for better air circulation and crispier results with less oil.
Is preheating required for all functions?
The Air Fry, Air Roast, Bake, and Air Broil functions require preheat. The Toast, Bagel, Dehydrate, and Keep Warm functions do not preheat. Preheating is indicated by a blinking PRE light.
How to adjust time and temperature during cooking?
Press Time/Slice to change the time or Temp/Darkness to change the temperature, then turn the dial. You can adjust at any time during the cooking cycle.
Why does steam come out of the oven door?
This is normal. The door has vents to release steam created by high-moisture foods, such as frozen bread. This does not affect cooking.
Can I put aluminum foil in the oven?
No. Never place aluminum foil on top of the baking pan or drip tray, as it traps grease and may cause a fire. Do not use paper, cardboard, plastic, or roasting bags either.
How to clean the oven after use?
Unplug the appliance and let it cool. Empty the crumb tray frequently. The air fry basket and baking pan are dishwasher safe. Clean the interior and exterior with a damp cloth and mild cleaner. Never immerse the main unit in water.
What is the maximum capacity for toast and bagels?
You can toast up to 9 slices of bread or bagels at once. Select the exact number of slices to avoid over- or under-toasting. The browning level is adjustable.
How to restore the oven's default settings?
Press and hold the Time/Slice and Temp/Darkness buttons simultaneously for 5 seconds. This resets default settings for each function.
Why does the control panel fan make noise?
When the oven is hot, a fan turns on to cool the control panel. This is normal and protects the electronic components.

User questions about SP101 NINJA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Deep fryer in PDF format for free! Find your manual SP101 - NINJA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SP101 by NINJA.

USER MANUAL SP101 NINJA

an QR code using mobile device

RECORD THIS INFORMATION

Model Number: ____

Serial Number:

Date of Purchase:

(Keep receipt)

Store of Purchase: ____

TECHNICAL SPECIFICATIONS

Voltage: 120V, 60Hz

Watts: 1800W

TIP: You can find the model and serial numbers on the QR code label on the base of the unit.

CONTENTS

Important Safeguards....2

Parts....4

Accessory Placement....5

Before First Use....5

Using the Control Panel....6

Functions 7

Control Panel Display & Operating Buttons....7

Power Cord Management....8

Using Your Foodi™ Digital Air Fry Oven 9

Using the Cooking Functions....9

Air Fry 9

Air Roast 10

Air Broil 10

Bake 11

Toast....11

Bagel 12

Dehydrate 12

Keep Warm....12

Cleaning, Maintenance & Storage....13

Everyday Cleaning 13

Deep Cleaning 13

Flip-Up-And-Away Storage 14

Accessories for Purchase....15

Troubleshooting 16

FAQ 16

Replacement Parts 16

Warranty 17

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE

i Read and review instructions for operation and use.

Take care to avoid contacts with hot surface. Always use hand protection to avoid burns.

For indoor and household use only.

Read all instructions before using your Ninja' Foodi ^™ Digital Air Fry Oven.

When using electrical appliances, basic safety precautions should always be followed, including the following:

⚠ WARNING

1 Read all instructions prior to using the oven and its accessories.

2 This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3 To eliminate a choking hazard for young children, remove and discard the protective cover fitted on the power plug of this oven.

4 Take inventory of all contents to ensure you have all parts needed to properly and safely operate your oven.

5DONOT use an extension cord. A short power-supply cord is used to reduce the risk of children grabbing the cord or becoming entangled and to reduce the risk of people tripping over a longer cord.

6NEVER use outlet below counter

7 Keep the appliance and its cord out of reach of children. Do not allow the appliance to be used by children. Close supervision is necessary when used near children.

8DONOT let cord hang over edges of tables or counters or touch hot surfaces, including stoves and other heating ovens.

9NEVER leave the oven unattended while in use.

10 DO NOT cover crumb tray or any part of the oven with metal foil. This will cause the oven to overheat or cause a fire.

11 NEVER place aluminum foil on top of the sheet pan or broil pan. This traps grease and can cause a fire.

13 To protect against electrical shock DO NOT immerse cord, plugs, or main unit housing in water or other liquid.

14 DO NOT use the oven with damage to the power cord or plug. Regularly inspect the oven and power cord, if the oven malfunctions or has been damaged in any way, immediately stop use and call Customer Service.

15 DO NOT cover the air intake vents or air outlet vents while unit is operating. Doing so will prevent even cooking and may damage the unit or cause it to overheat.

16 DO NOT insert anything in the ventilation slots and do not obstruct them.

17 DO NOT place items on top of surface while unit is operating except for authorized recommended Ninja accessories.

18 Before placing any accessories into the oven ensure they are clean and dry.

19 Intended for countertop use only. DO NOT place the oven near the edge of a countertop. Ensure the surface is level, clean and dry.

20 This oven is for household use only. DO NOT use this oven for anything other than its intended use. Misuse may cause injury.

21 DO NOT store any materials, other than supplied accessories, in this oven when not in use.

22 DO NOT use outdoors. DO NOT use in moving vehicles or boats.

23 DO NOT use accessory and attachments not recommended or sold by SharkNinja.

24 When using this oven, provide adequate space above and on all sides for air circulation.

25 A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, or the like when in operation. DO NOT place anything on the oven during operation.

26 This oven has a tempered glass door and is more resistant to breakage. Avoid scratching door surface or nicking edges.

27 DO NOT use the oven without the wire rack installed.

28 DO NOT spray any type of aerosol spray or flavoring inside the oven while cooking.

29 Use caution when inserting and removing anything from the oven, especially when hot.

30 Outlet voltages can vary, affecting the performance of your product. To prevent possible illness, use a thermometer to check that your food is cooked to the temperatures recommended.

31 Prevent food contact with heating elements. Excessive food loads may cause personal injury or property damage or affect the safe use of the oven.

32 DO NOT place any of the following materials in the oven: paper, cardboard, plastic, roasting bags and the like.

33 Extreme caution should be exercised when using containers constructed of any materials other than metal or glass.

34 DO NOT touch not surfaces. Oven surfaces are hot curing and after operation. To prevent burns or personal injury, ALWAYS use protective hot pads or insulated oven mirts and use available handles and knobs.

35 Spilled food can cause serious burns. Extreme caution must be used when the oven contains hot food. Improper use may result in personal injury.

36 Please refer to the Cleaning & Maintenance section for regular maintenance of the oven.

37 Cleaning and user maintenance shall not be made by children.

38 Press the power button to turn oven off and allow to cool completely before cleaning, moving and flipping for storage.

39 Unplug from outlet when not in use. To unplug, grasp the plug by the body and pull from the outlet. Never unplug by grasping and pulling the flexible cord.

40 DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, causing a risk of electrical shock.

41 DO NOT use the oven as a source of heat or for drying.

SAVE THESE INSTRUCTIONS

PARTS

A

Main Unit

(attached power cord not shown)

NINJA SP101 - PARTS - 1

natural_image Line drawing of a portable air conditioner unit (no text or symbols)

B

Removable Crumb Tray

NINJA SP101 - PARTS - 2
C

Wire Rack

NINJA SP101 - PARTS - 3
D

Sheet Pan

NINJA SP101 - PARTS - 4
E

Air Fry Basket

NINJA SP101 - PARTS - 5

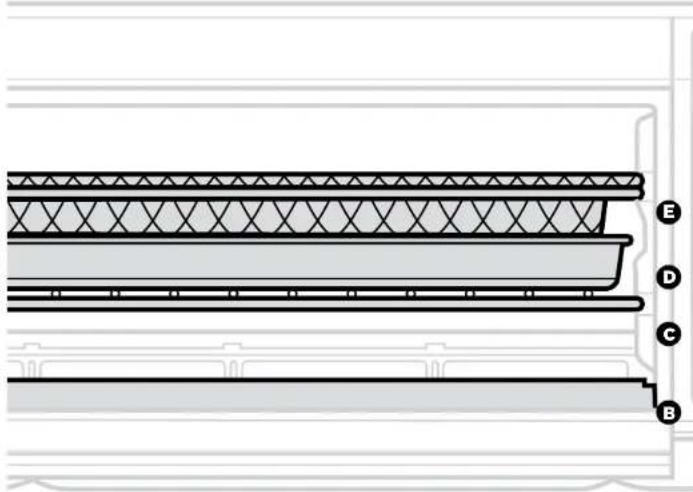

ACCESSORY PLACEMENT

NINJA SP101 - ACCESSORY PLACEMENT - 1

text_image E D C B

B Removable Crumb Tray - Always place below the bottom heating elements
Wire Rack - Keep in the bottom rail position
D Sheet Pan - Always layer on top of the wire rack
E Air Fry Basket - Use in the top rail position

BEFORE FIRST USE

1 Remove and discard any packaging material, promotional labels, and tape from the unit.
2 Remove all accessories from the package and read this manual carefully. Please pay particular attention to operational instructions, warnings, and important safeguards to avoid any injury or property damage.
3 Wash the air fry basket, sheet pan, wire rack, and removable crumb tray in warm, soapy water, then rinse and dry thoroughly. NEVER clean the main unit in the dishwasher.

NOTE: ONLY the sheet pan and air fry basket are dishwasher safe. DO NOT use metal utensils on the sheet pan.

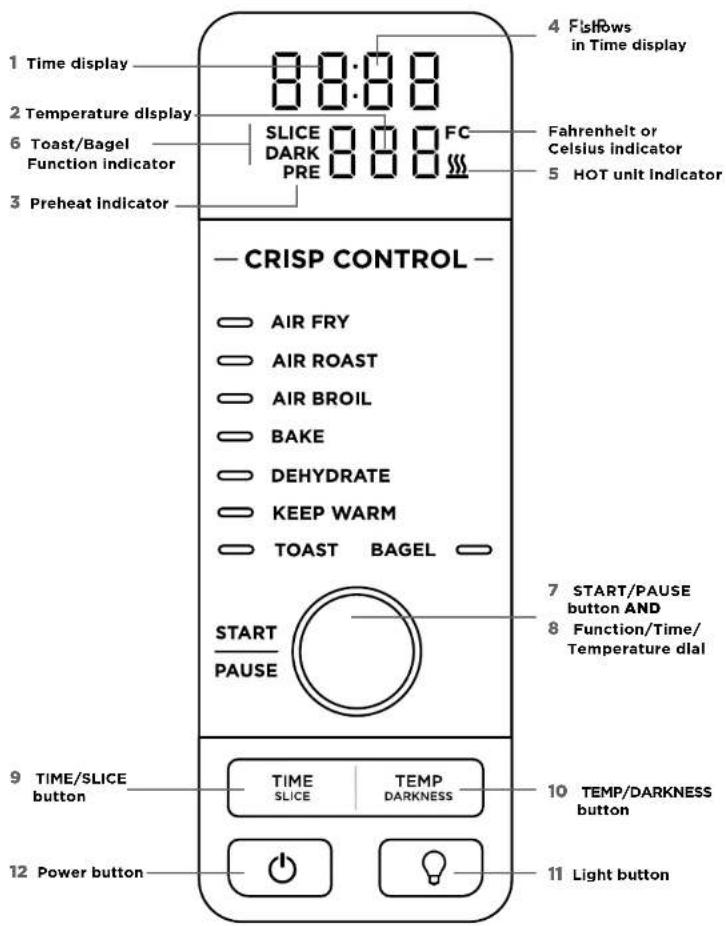

USING THE CONTROL PANEL
NINJA SP101 - BEFORE FIRST USE - 1

text_image 1 Time display 2 Temperature display 3 Toast/Bagel Function indicator 4 Fishflows in Time display 5 Fahrenbelt or Celsius indicator 6 PRE 8.8.8 FC 7 START/PAUSE button AND 8 Function/Time/ Temperature dial 9 TIME/SLICE button 10 TEMP/DARKNESS button 11 Light button 12 Power button CRISP CONTROL START PAUSE TIME SLICE TEMP DARKNESS

FUNCTIONS

AIR FRY: Make foods that would traditionally be fried—such as chicken wings, French fries, and chicken nuggets—with little to no added oil.

AIR ROAST: Achieve a crispy outside and perfectly cooked inside for full-sized sheet pan meals, thicker proteins, and roasted veggies.

AIR BROIL: Broils meat and fish and evenly browns the tops of casseroes.

BAKE: Evenly bakes everything from your favorite cookies to homemade pizzas.

TOAST: Evenly toasts up to 9 slices of bread to your perfect level of darkness.

BAGEL: Perfectly toast up to 9 slices of bagels halves when they're placed cut-side up on the wire rack.

DEHYDRATE: Dehydrates meats, fruits, and vegetables for healthy snacks.

KEEP WARM: Keeps food warm up to 2 hours.

NOTE: The Dehydrate and Keep Warm functions are not included on all models.

CONTROL PANEL DISPLAY & OPERATING BUTTONS

1 Time display: Shows the cook time. The time will count down when cooking is in progress.
2 Temperature display: Shows the cook temperature.

NOTE: Time and temperature will always return to the cook time and temperature that was set the last time the oven was in use.

3 PRE flashes when the unit is preheating.
4 FLB appear on the time display when the unit is cool enough to flip up for storage or cleaning.
5 🌐 illuminates when the unit is hot and will turn off when the oven is cool enough to be flipped up for storage or cleaning.

6 SLICE and DARK will illuminate when using the Toast or Bagel function.
7 START/PAUSE button: Press to start or pause cooking.
8 Function/Time/Temperature dial: Turn to select a cooking function or adjust time and temperature (or number of slices and darkness level when using the Toast and Bagel functions).

NOTE: Press and hold the START/PAUSE button for 3 seconds to return to the function selection.

9 TIME/SLICE button: To select a cook time, press the TIME button, then use the dial to adjust the time. When using the Toast or Bagel function, this button will adjust the number of slices instead of the time.
10 TEMP/DARKNESS button: To adjust temperature, press the TEMP button and use the dial to adjust the temperature. When using the Toast or Bagel function, this button will adjust the darkness level instead of the temperature.

NOTE: The cook time and temperature may be adjusted at any time during the cooking cycle.

NOTE: To switch from Fahrenheit to Celsius, press and hold the TEMP/DARKNESS button for 3 seconds while the unit is not in cook mode.

11 (Light) button: Press to turn the oven's interior light on and off.

NOTE: The light will automatically turn on when there are 30 seconds of cook time remaining.

12 ⏻ (Power) button: Press to turn the unit on and off.

POWER CORD MANAGEMENT

Our cord-management system is designed so it will not interfere with the oven's flip-away functionality.

Option 1 Outlet on the left
NINJA SP101 - POWER CORD MANAGEMENT - 1

natural_image Simple line drawing of a battery pack with a wire and plug, no text or symbols present

Option 2 Outlet on the right
NINJA SP101 - POWER CORD MANAGEMENT - 2

Option 3 Outlet behind the oven
NINJA SP101 - POWER CORD MANAGEMENT - 3

natural_image Line drawing of a device with a cable inserted into a grid (no text or symbols)

USING YOUR FOODI™ DIGITAL AIR FRY OVEN

USING THE COOKING FUNCTIONS

To turn on the unit, plug the power cord into the wall, flip oven down into cooking position, and press the ⏻ button.

NOTE: The unit preheats quickly, so we recommend prepping all ingredients before turning on the oven.

Air Fry

1 To select the function, turn the dial until AIR FRY illuminates. The default time and temperature settings will display.
2 Press the TIME/SLICE button and use the dial to select your time up to 1 hour. To set the time, press the TIME/SLICE button again.
3 Then press the TEMP/DARKNESS button and use the dial to select a temperature between 250°F-450°F. To set the temperature, press the TEMP/DARKNESS button again.
4 Press START/PAUSE to begin preheating
5 Place ingredients in the air fry basket. If ingredients are fatty, oily, or marinated, place the basket on the sheet pan.

NINJA SP101 - Air Fry - 1

Use air fry basket for dry ingredients.

NINJA SP101 - Air Fry - 2

Use air fry basket with sheet pan underneath for fatty, oily, or marinated ingredients.

6 When the unit beeps to signify it has preheated, immediately slide the basket into the upper rails of the oven. If also using the sheet pan, slide both into the oven at the same time, with the basket in the upper rails and the pan on the wire rack beneath the basket. Close oven door.

NOTE: The timer will start counting down as soon as the unit has preheated. If ingredients are not ready to go into the oven, simply turn the dial to add more time.

7 For more even browning and crispiness, toss ingredients or turn the basket 180° halfway through cooking cycle.

NINJA SP101 - Air Fry - 3

NINJA SP101 - Air Fry - 4

text_image or Tum basket and speed as 180%

8 When cook time is complete, the unit will beep.

USING YOUR FOODI™ DIGITAL AIR FRY OVEN - CONT.

Air Roast

1 To select the function, turn the dial until AIR ROAST illuminates. The default time and temperature settings will display.
2 Press the TIME/SLICE button and use the dial to select your time up to 2 hours. To set the time, press TIME/SLICE button again.

NOTE: If cooking for 1 hour or less, the clock will count down by minutes and seconds. If cooking for more than 1 hour, the clock will count down by hours and minutes.

3 Press the TEMP/DARKNESS button and use the dial to select a temperature between 250°F–450°F. To set the temperature, press the TEMP/DARKNESS button again.
4 Press START/PAUSE to begin preheating

NOTE: Food cocks faster when using the Air Roast function than when using the Bake function, so for traditional oven recipes, lower the cook time 30% and lower the temperature 25°F.

5 Place ingredients on the sheet pan. When the unit beeps to signify it has preheated, immediately place the sheet pan on the wire rack. Close oven door.
NOTE: The timer will start counting down as soon as the unit has preheated. If ingredients are not ready to go into the oven, simply turn the dial to add more time.
6 During cooking, you can open the oven door to check on or flip ingredients.

NINJA SP101 - Air Roast - 1

7 When cook time is complete, the unit will beep.

Air Broil

1 To select the function, turn the dial until AIR BROI illuminates. The default time and temperature settings will display.
2 Press the TIME/SLICE button and use the dial to select your time up to 30 minutes. To set the time, press the TIME/SLICE button again.
3 Press the TEMP/DARKNESS button and use the dial to select either HI or LO. To set the temperature, press the TEMP/DARKNESS button again.
4 Place ingredients on the sheet pan. Place the sheet pan on the wire rack and close the oven door, press START/STOP to start cooking.

NINJA SP101 - Air Broil - 1

natural_image Line drawing of a kitchen grater with a tray holding a food item (no text or symbols)

5 During cooking, you can open the oven door to check on or flip ingredients.

NINJA SP101 - Air Broil - 2

natural_image Line drawing of hands operating a portable device with a tool, no text or symbols present

6 When cook time is complete, the unit will beep

Bake

1 To select the function, turn the dial until BAKE illuminates. The default time and temperature settings will display.
2 Press the TIME/SLICE button and use the dial to select your time up to 2 hours. To set the time, press the TIME/SLICE button again.

NOTE: If cooking for 1 hour or less, the clock will count down by minutes and seconds. If cooking for more than 1 hour, the clock will count down by hours and minutes.

3 Press the TEMP/DARKNESS button and use the dial to select a temperature between 250°F-450°F. To set the temperature, press the TEMP/DARKNESS button again.
4 Press START/PAUSE to begin preheating.
5 Place ingredients on the sheet pan. When the unit beeps to signify it has preheated, immediately place the sheet pan on the wire rack. Close oven door.

NOTE: The timer will start counting down as soon as the unit has preheated. If ingredients are not ready to go into the oven, simply turn the dial to add more time.

NINJA SP101 - Bake - 1

6 During cooking, you can open the oven door to check on or flip ingredients.

NINJA SP101 - Bake - 2

natural_image Line drawing of hands using a microwave oven to remove food from a tray (no text or symbols)

7 When cook time is complete, the unit will beep.

Toast

1 To select the function, turn the dial until TOAST illuminates. The default amount of slices and darkness will be displayed.
2 Press the TIME/SLICE button and use the dial to select the number of bread slices. You may toast up to 9 slices at once. To set the number of slices, press the TIME/SLICE button again.
3 Press the TEMP/DARKNESS button and use the dial to select a darkness level. To set the darkness level, press the TEMP/DARKNESS button again.

NOTE: There is no temperature adjustment available for the Toast function, and the unit does not preheat in Toast mode. It is very important to select the exact number of slices to avoid over- or under-toasting.

4 Place bread slices on the wire rack. Close oven door and press START/PAUSE to begin cooking.

NINJA SP101 - Toast - 1

natural_image Line drawing of a toaster oven with tray and control panel (no text or symbols)

5 You do not need to flip the slices during cooking. When cook time is complete, the unit will beep.

USING YOUR FOODI™ DIGITAL AIR FRY OVEN - CONT.

Bagel

1 To select the function, turn the dial until BAGEL illuminates. The default number of slices and darkness level will display.
2 Press the TIME/SLICE button and use the dial to select the number of slices. You may toast up to 9 bagel slices at once. To set the number of slices, press the TIME/SLICE button again.
3 Press the TEMP/DARKNESS button and use the dial to select a darkness level. To set the darkness level, press the TEMP/DARKNESS button again.

NOTE: There is no temperature adjustment available for the Bagel function, and the unit does not preheat in Bagel mode. It is very important to select the exact number of slices to avoid over- or under-toasting.

4 Place bagel slices, cut-side up, on the wire rack. Close oven door and press START/PAUSE to begin cooking.

NINJA SP101 - Bagel - 1

natural_image Line drawing of a toaster oven with a tray of round food items (no text or symbols)

5 You do not need to flip the slices during cooking. When cook time is complete, the unit will beep.

Dehydrate

NOTE: The DEHYDRATE function is not included on all models.

1 To select the function, turn the dial until DEHYDRATE illuminates. The default time and temperature settings will display.
2 Press the TIME/SLICE button and use the dial to select a time up to 12 hours. To set the time, press the TIME/SLICE button again.

3 Press the TEMP/DARKNESS button and use the dial to select a temperature between 105°F-195°F. To set the temperature, press the TEMP/DARKNESS button again.
4 Place ingredients in the air fry basket and place basket in oven. Close oven door and press START/PAUSE to begin cooking.

NINJA SP101 - Dehydrate - 1

5 During cooking, you can open the oven door to check on or flip ingredients.
6 When cook time is complete, the unit will beep.

Keep Warm

NOTE: The Keep Warm function is not included on all models.

1 To select the function, turn the dial until KEEP WARM illuminates. The default time setting will display.
2 Press the TIME/SLICE button and use the dial to select a time up to 2 hours. To set the time, press the TIME/SLICE button again.

NOTE: There is no temperature selection available for the Keep Warm function.

3 Place food on the sheet pan or in an oven-safe container and place the pan or container on the wire rack. Close oven door and press START/PAUSE to begin warming.
NOTE: The unit does not preheat in Keep Warm mode.
4 When warming time is complete, the unit will beep.

CLEANING, MAINTENANCE & STORAGE

EVERYDAY CLEANING

The unit should be cleaned thoroughly after every use.

1 Unplug the unit from the outlet and allow it to cool down before cleaning.
2 Empty crumb tray by sliding it out of the oven when the oven is in the flipped-down position.

NOTE: Empty crumo tray frequently. Hand-wash when necessary.

NINJA SP101 - EVERYDAY CLEANING - 1

NINJA SP101 - EVERYDAY CLEANING - 2

natural_image Illustration of a hand inserting a device into a microwave oven (no text or symbols visible)

3 To clean any food splatter on the interior walls of the unit, wipe them with a soft, damp sponge.
4 To clean the exterior of the main unit and the control panel, wipe them clean with a damp cloth. A non-abrasive liquid cleanser or mild spray solution may be used. Apply the cleanser to the sponge, not the oven surface, before cleaning.

NINJA SP101 - EVERYDAY CLEANING - 3

DEEP CLEANING

1 Unplug the unit from the outlet and allow it to cool down before cleaning.
2 Remove all accessories from the unit, including the crumb tray, and wash separately. Use a non-abrasive cleaning brush to more thoroughly wash the air fry basket.
3 Flip up the oven into the storage position.

NINJA SP101 - DEEP CLEANING - 1

4 Press the push button to release the back door to access the oven's interior.

NINJA SP101 - DEEP CLEANING - 2

5 Use warm, soapy water and a soft cloth to wash the oven's interior. DO NOT use abrasive cleaners, scrubbing brushes, or chemical cleaners, as they will damage the oven.

CAUTION: NEVER put the main unit in the dishwasher or immerse it in water or any other liquid.

NINJA SP101 - DEEP CLEANING - 3

NOTE: Deep cleaning instructions continued on next page.

CLEANING, MAINTENANCE & STORAGE - CONT.

6 Only the sheet pan and air fry basket are dishwasher safe.
7 Thoroughly dry all parts before placing them back in the oven.

NINJA SP101 - CLEANING, MAINTENANCE & STORAGE - CONT. - 1

NINJA SP101 - CLEANING, MAINTENANCE & STORAGE - CONT. - 2

NINJA SP101 - CLEANING, MAINTENANCE & STORAGE - CONT. - 3

NINJA SP101 - CLEANING, MAINTENANCE & STORAGE - CONT. - 4

FLIP-UP-AND-AWAY STORAGE

1 DO NOT flip oven up when 34 s illuminated. Wait for oven to cool down before handling. Hold handles on each side of the unit.

NINJA SP101 - FLIP-UP-AND-AWAY STORAGE - 1

natural_image Line drawing of hands installing or adjusting a device into a rectangular box (no text or symbols visible)

2 Lift and flip unit upward.

NINJA SP101 - FLIP-UP-AND-AWAY STORAGE - 2

natural_image Illustration of hands operating a device with an arrow indicating rotation (no text or symbols present)

3 Leave the unit in the upright position when storing or for deep cleaning.

NINJA SP101 - FLIP-UP-AND-AWAY STORAGE - 3

natural_image Line drawing of a rectangular electronic enclosure or housing unit (no text or symbols)

ACCESSORIES FOR PURCHASE

We offer a suite of accessories custom made for your Ninja® Foodi™ Digital Air Fry Oven. Visit nln]aaccessories.com to expand your capabilities and take your cooking to the next level.

- Broiling Rack

NINJA SP101 - ACCESSORIES FOR PURCHASE - 1

- Casserole Dish/Baking Pan (2" deep)

NINJA SP101 - ACCESSORIES FOR PURCHASE - 2

- Egg Bite/Muffin Tray

NINJA SP101 - ACCESSORIES FOR PURCHASE - 3

• Magnetic Cutting Board

NINJA SP101 - ACCESSORIES FOR PURCHASE - 4

TROUBLESHOOTING

ERROR MESSAGES

"CALL CUSt SrVC" followed by "Er1" - "Er7"

Power off the unit and call Customer Service at 1-877-646-5288. So we may better assist you, please register your product online at registeryourinja.com and have the product on hand when you call.

FAQ

Why won't the oven turn on?

- Oven needs to be in flipped-down position in order to power it on.

• Make sure the power cord is securely plugged into the outlet.

- Insert the power cord into a different outlet.

- Reset the circuit breaker if necessary.

- Press the power button.

Can I use the sheet pan instead of the air fry basket with air fry function?

• Yes, but crispiness results may vary.

Do I need to adjust the cook times and temperatures of traditional oven recipes?

- When preparing traditional oven recipes using the Air Roast function, lower cook time by 30% and temperature by 25°F.

Can I restore the unit to its default settings?

- The oven will remember the last setting used for each function, even if you unplug it. To restore the oven's default settings for each function, press the TIME/SLICE and TEMP/DARKNESS buttons simultaneously for 5 seconds.

Why do the heating elements appear to be turning on and off?

- This is normal. The oven is designed to control temperature precisely for every function by adjusting the heating elements' power levels.

Why Is steam coming out from the oven door?

- This is normal. The door is vented to release steam created by foods with a high moisture content.

Why is water dripping onto the counter from under the door?

- This is normal. The condensation created by foods with a high moisture content (such as frozen breads) may run down the inside of the door and drip onto the counter.

Why is there noise coming from the control panel?

- When the oven is hot, a fan turns on to cool down the control panel.

REPLACEMENT PARTS

To order additional parts and accessories, visit ninjaaccessories.com or contact Customer Service at 1-877-646-5288. So we may better assist you, please register your product online at registryourninja.com and have the product on hand when you call.

Shark NINJA

ONE (1) YEAR LIMITED WARRANTY

The One (1) Year Limited Warranty applies to purchases made from authorized retailers of SharkNinja Operating LLC. Warranty coverage applies to the original owner and to the original product only and is not transferable.

SharkNinja warrants that the unit shall be free from defects in material and workmanship for a period of one (1) year from the date of purchase when it is used under normal household conditions and maintained according to the requirements outlined in the Owner's Guide, subject to the following conditions and exclusions:

What is covered by this warranty?

The original unit and/or non-wearable parts deemed defective, in SharkNinja's sole discretion, will be repaired or replaced up to one (1) year from the original purchase date.

  1. In the event a replacement unit is issued, the warranty coverage ends six (6) months following the receipt date of the replacement unit or the remainder of the existing warranty, whichever is later. SharkNinja reserves the right to replace the unit with one of equal or greater value.

What is not covered by this warranty?

  1. Normal wear and tear of wearable parts (such as removable pots, racks, pans, etc.), which require regular maintenance and/or replacement to ensure the proper functioning of your unit, are not covered by this warranty. Replacement parts are available for purchase at ninjaaccessories.com.

  2. Any unit that has been tampered with or used for commercial purposes

  3. Damage caused by misuse, abuse, negligent handling, failure to perform required maintenance (e.g., failure to keep the oven clear of food spills and other debris), or damage due to mishandling in transit.

  4. Consequential and incidental damages

  5. Defects caused by repair persons not authorized by SharkNinja. These defects include damages caused in the process of shipping, altering, or repairing the SharkNinja product (or any of its parts) when the repair is performed by a repair person not authorized by SharkNinja.

  6. Products purchased, used, or operated outside North America.

How to get service

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, visit ninjakitchen.com/support for product care and maintenance self-help. Our Customer Service Specialists are also available at 1-877-646-5288 to assist with product support and warranty service options, including the possibility of upgrading to our VIP warranty service options for select product categories. So we may better assist you, please register your product online at registryourninja.com and have the product on hand when you call.

SharkNinja will cover the cost for the customer to send in the unit to us for repair or replacement. A fee of \$19.95 (subject to change) will be charged when SharkNinja ships the repaired or replacement unit.

How to initiate a warranty claim

You must call 1-877-646-5288 to initiate a warranty claim. You will need the receipt as proof of purchase. We also ask that you register your product online at registryournInJa.com and have the product on hand when you call, so we may better assist you. A Customer Service Specialist will provide you with return and packing instruction information.

How state law applies

This warranty gives you specific legal rights, and you also may have other rights that vary from state to state. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

MERCI

natural_image Line drawing of a portable air conditioner unit (no text or symbols)
natural_image Simple line drawing of a battery cell with an external plug, no text or symbols present
natural_image Line drawing of a device rear panel with a cable inserted (no text or symbols)

UTILISATION DE VOTRE FOUR À CONVECTION NUMÉRIQUE FOODI™

UTILISATION DES DIFFÉRENTES FONCTIONS DE CUISSON

natural_image Line drawing of a microwave oven with a tray holding a food item (no text or symbols)
natural_image Line drawing of hands using a microwave oven to open a tray with food items (no text or symbols)
natural_image Line drawing of a toaster oven with multiple food trays (no text or symbols)
natural_image Line drawing of a toaster oven with multiple food rolls (no text or symbols)
natural_image Illustration of hands using a toaster to clean food items (no text or symbols visible)
natural_image Line drawing of hands operating a portable electronic device (no text or symbols visible)
natural_image Illustration of hands installing or adjusting a device into a rectangular box (no text or symbols visible)
natural_image Line drawing of a rectangular battery pack with top and side compartments (no text or symbols)

ACCESSOIRES OFFERTS À L'ACHAT

natural_image Line drawing of a portable electronic device with ventilation grilles and control knobs (no text or symbols)

NINJA SP101 - ACCESSOIRES OFFERTS À L'ACHAT - 1

natural_image Simple line drawing of a battery pack with a wire and plug, no text or symbols present
natural_image Line drawing of a battery pack with a cord and plug, no text or symbols present

CÓMO USAR EL HORNO DIGITAL PARA FREÍR CON AIRE CALIENTE FOODI™

natural_image Line drawing of a toaster oven with a tray holding a food item (no text or symbols)
natural_image Line drawing of hands operating a portable device with a tray and a door (no text or symbols)
natural_image Line drawing of a toaster oven with multiple trays (no text or symbols)
natural_image Line drawing of a microwave oven with a tray of food items (no text or symbols)
natural_image Line drawing of hands installing or adjusting a device panel (no text or symbols visible)
natural_image Illustration of hands holding a device with an arrow indicating rotation (no text or symbols)
natural_image Line drawing of a rectangular electronic device housing (no text or symbols)

ACCESORIOS PARA COMPRAR

SharkNinja Operating LLC

US: Needham, MA 02494

1-877-646-5288

ninjakitchen.com

Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice.

NINJA is a registered trademark of SharkNinja Operating LLC.

FOODI is a trademark of SharkNinja Operating LLC.

For SharkNinja U.S. patent information, visit sharkninja.com/uspatents.

SharkNinja Operating LLC

SharkNinja Operating LLC

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : NINJA

Model : SP101

Category : Deep fryer
