INHALTSVERZEICHNIS

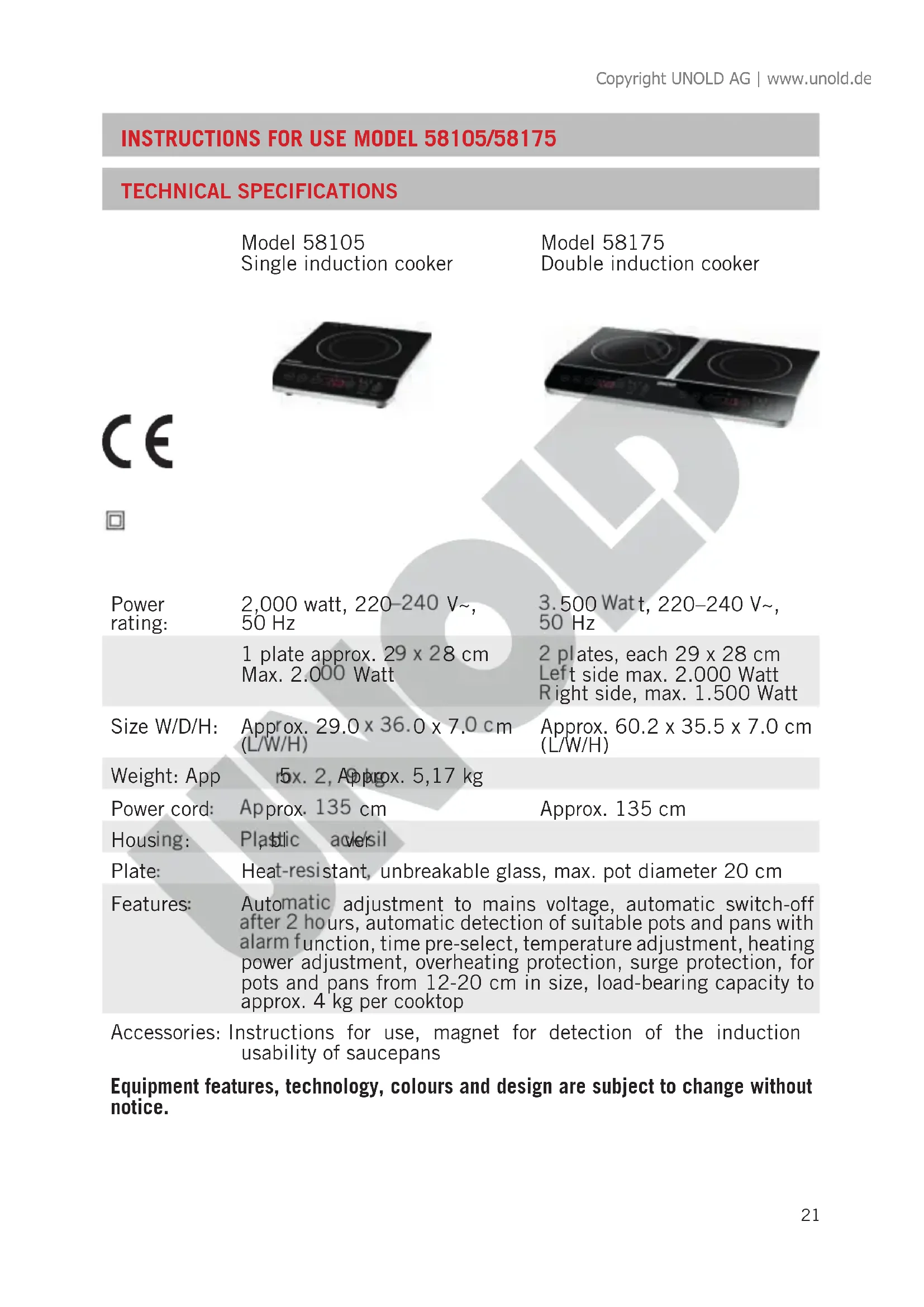

Technical Specifications....21

Explanation of symbols....22

Important Safeguards....22

Control panel....25

Preparing the appliance for operation ..... 26

Operation of the induction burner....26

Lock function/button lock 28

Cooking with time control 28

Cooking Utensil Selection 29

Functioning....30

Safety functions 30

Cleaning and Care 31

Trouble shooting 31

Guarantee Conditions....32

Waste Disposal / Environmental Protection .. 32

Service 20

Black electric stove with a circular top and control panel (no visible text or symbols)

Exterior view of a modern black electrical stove with two circular burners (no text or symbols visible)

Leistung:

2.000 Watt, 220–240 V\~, 50 Hz

3.500 Watt, 220–240 V\~, 50 Hz

1 Kochstelle ca. 29 x 28 cm Maximal 2.000 Watt

Single induction cooker

Model 58175

Double induction cooker

CE

Exterior view of a black electric stove with a circular top (no visible text or symbols)

Exterior view of a black electric stove with two circular burners (no text or symbols visible)

Power rating:	2,000 watt, 220-240 V~, 50 Hz	3.500 Watt, 220-240 V~, 50 Hz
	1 plate approx. 29 x 28 cm Max. 2.000 Watt	2 plates, each 29 x 28 cm Left side max. 2.000 Watt Right side, max. 1.500 Watt
Size W/D/H:	Approx. 29.0 x 36.0 x 7.0 cm (L/W/H)	Approx. 60.2 x 35.5 x 7.0 cm (L/W/H)
Weight: App	5x. 2, Approx. 5,17 kg
Power cord:	Approx. 135 cm	Approx. 135 cm
Housing:	Plastic cover/sil
Plate:	Heat-resistant, unbreakable glass, max. pot diameter 20 cm
Features:	Automatic adjustment to mains voltage, automatic switch-off after 2 hours, automatic detection of suitable pots and pans with alarm function, time pre-select, temperature adjustment, heating power adjustment, overheating protection, surge protection, for pots and pans from 12-20 cm in size, load-bearing capacity to approx. 4 kg per cooktop
Accessories: Instructions for use, magnet for detection of the induction usability of saucepans

Equipment features, technology, colours and design are subject to change without notice.

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

IMPORTANT SAFEGUARDS

Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Children of less than 3 years should be kept away unless continuously supervised.

3. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in

its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

1. CAUTION – Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
2. Children should be supervised in order to ensure that they do not play with the appliance.

3. Connect appliance only to an AC power supply to the voltage on the rating plate.

4. Do not operate this appliance with an external timer or remote control system.

5. Persons with pacemakers, especially older models, should ask their doctor before using the appliance, since the function of the pacemaker could be impaired.

6. Connect appliance only to an AC power supply with voltage corresponding to the voltage on the rating plate.

7. When using model 58105/58175, you should not connect any other electrical appliance to the same electrical circuit to avoid overloads.

8. The appliance is intended for household use only, or for similar areas of use, such as:

■ kitchenette businesses, offices or other workplaces,
■ agricultural enterprises,
■ for use by guests in hotels, motels or other lodgings,
■ irivate gues houses holiday homes.

1. Check the plug and the power cord regularly for wear or damage. In case of damage to the power cord, glass cooktop or other parts, please send the appliance for inspection and/or repair to our customer service department.

2. Unauthorized repairs can result in serious risks to the user and will void the warranty.

3. If the power cord of this appliance is damaged, it must be replaced by the manufacturer or his after sales service department or person with similar qualifications, to prevent hazards. Disconnect the power plug only after the fans in the appliance have stopped turning.

Information on setup and operation of the appliance

1. Place the appliance on a solid, level and dry surface. For safety reasons, never place the appliance on hot surfaces, metal surfaces or surfaces covered with textiles.
2. Maintain sufficient distance to objects which react to magnetic forces, e.g. bank cards, radios, televisions, or video cassettes, etc.
3. Do not use the appliance outdoors.
4. Do not immerse the appliance in water or other liquids. Protect the appliance from moisture.
5. During operation, leave sufficient space between the

appliance and walls and other flammable objects such as curtains.

1. Do not operate the appliance in the vicinity of heat sources.

2. Before heating, route the power cord so that it does not come into contact with hot parts of the appliance.

3. Installation of the appliance in a worktop is not permitted.

4. Use only pots and pans which are suitable for induction cooking.

5. The appliance heats very quickly. Heating empty pots can damage the appliance and the pots themselves.

6. Switch the appliance on only if a pot with contents is on the burner. Do not overfill pots, to prevent boiling over.

7. Do not leave any metal objects such as knives or forks on the burner, since they could become hot when the appliance is switched on.

8. Do not heat closed metal cans; they could explode.

9. Make sure that the ventilation slots in the appliance are unobstructed at all times.

10. Do not move the appliance while it is in operation. Before moving the appliance, switch

it off and remove any pots or pans.

1. Do not allow objects to fall onto the glass cooktop – danger of breakage! If the glass cooktop is cracked or otherwise damaged, do not continue to use the appliance; it must be sent in to our after sales service department for repair.

2. The appliance should not be operated for more than 4 hours continuously. If used longer than this, switch it off for at least 30 minutes in between.

3. The glass cooktop can become hot from the heat radiated from pots or pans. Therefore, do not touch the surface immediately after cooking.

4. Do not drag pots across the control buttons, since they could become damaged.

5. Do not place any objects such as foils, etc. between the pot and the burner.

6. The pot, when filled, should not be heavier than 4 kg to prevent damage to the cook-top.

7. Do not place any hot pots or pans on the control panel.

8. Before moving or cleaning the appliance after use, always switch off and unplug

the appliance and allow it to cool.

CAUTION:

The glass cooktop can become hot from the heat radiated from pots or pans. Therefore, do not touch the surface immediately after cooking.

Never open the housing of the appliance. This can result in electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

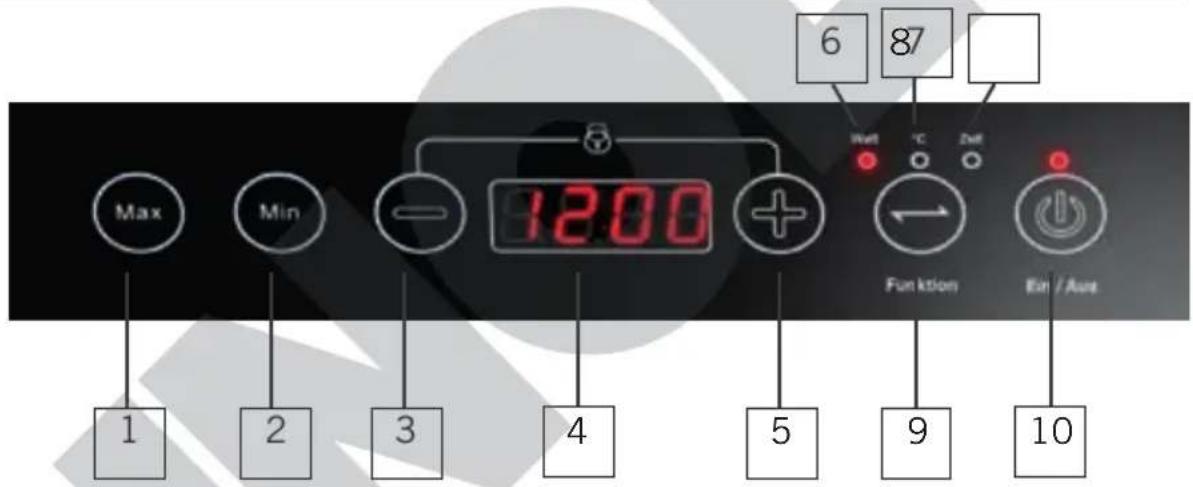

CONTROL PANEL

Max Min - 1200 + 6 87 Wet °C Delt Function Ex / Ave 1 2 3 4 5 9 10

1 Bon M AX

2 | BuntMIN

3 B | utton

4 Disp lay

5 Button +

6 Indicator lamp - Power (Watt)

7 Indicator lamp - C° (Temperature)

8 Indicator lamp - Time (Zeit)

9 Button Function

10 Button ON/OFF (EIN/AUS)

PREPARING THE APPLIANCE FOR OPERATION

1. Remove all packaging materials and transport safety devices. Keep packaging materials away from children - danger of suffocation!

2. Wipe off the appliance with a damp cloth.

3. Place the appliance on a level, solid and dry surface with sufficient clearance on all sides.

4. Plug the power cord into an electrical outlet.

OPERATION OF THE INDUCTION BURNER

Note: Your new burner is equipped with sensor buttons. All settings can be made with a light touch of the finger. Please do not operate the sensor buttons with wet fingers, and ensure that you do not place any objects on the buttons, in order to avoid malfunctions.

1. Plug the power plug into an electrical outlet use the EIN/AUS button to switch on the appliance.
2. A brief signal tone will sound, the indicator lamp of the EIN/AUS button will be illuminated, the power indicator light (Watt) will flash.
3. Caution: If you do not make any additional settings on the appliance within one minute, the appliance will switch off.

4. You can control the appliance either by power or by temperature. Press the “FUNCTION” button to switch between the two modes. The power level or temperature level can be changed at any time while you are cooking by pressing the “+” or “-” buttons. The basic setting for the appliance is 1,200 watt.

5. Place a suitable pot with food to be cooked in the middle of the burner.

Control via heating power

1. Press the “FUNCTION” button once. The “Watt” indicator lamp lights up. The power level will be shown in the display. Use the “+” and “-” buttons to change the power level.
2. The following settings are possible:

Model 58105

Model 58175 Left Right

1. Note: To quickly change between the lowest and highest power level, simply touch the "Max" or "Min" buttons. The appliance will immediately switch over to the selected power level.

Model	Modell
58105	58175

Min 200 W 500 W

Max 2,000 W 2,000 W

Control via temperature

1. To control the device via the temperature, press the "FUNCTION" button until the indicator lamp, "Temp", lights up and the basic setting "180" appears in the display.
2. The following settings are possible and can be set via the "+" and "-" buttons:

Level 1 60 °C

Level 28 0 °C

Level 3 100°

Level 4 120

Level 5 140 °C

Level 6 160 °C

Level 7 180^

Level 8 200 °C

Level 9 220 °C

Level 10 240 °C

1. If there is no pot or pan on the burner, a signal tone sounds at intervals, the display shows E 0 and the appliance automatically switches off after 30 seconds.
2. The appliance can be switched off at any time during the cooking process by pressing the EIN/AUS button.
3. The settings made are not saved at the end of the program or if the program is cancelled.
4. The fan continues to run for approx. 30 seconds after the end of the program.
5. If the program is not controlled via the time selection, the appliance automatically switches off after two hours at the latest.
6. After use, unplug the power plug from the electrical outlet to save energy.
7. Caution: Do not leave the appliance unattended while you are cooking with it.

CAUTION:

The glass cooktop can become hot from the heat radiated from pots or pans. Therefore, do not touch the surface immediately after cooking.

LOCK FUNCTION/BUTTON LOCK

The appliance can be locked to prevent unintentional operation of the appliance.

Switching on the lock function:

1. Simultaneously tap the “+” and “-” buttons.
2. When “L” is shown in the display, the lock function is active. The display will then alternately show the selected temperature or power level and “L”. Settings can no longer be made. Only the EIN/AUS button can be activated to switch off the appliance

Switching off the lock function

1. Simultaneously tap the “+” and “-” buttons again. When only the selected temperature level or power level is displayed, the lock function is switched off.
2. Note: As soon as the appliance is disconnected from the mains, the lock function is no longer switched on; if necessary it must be activated again.

COOKING WITH TIME CONTROL

This function makes it possible to program the appliance so that it automatically switches off after a specified time.

1. First, select t he desired function as described above (heating power or temperature).
2. Press the "FUNCTION" button until the indicator lamp, "ZEIT", is flashing and "0" appears in the display.

3. Then within five seconds press the “+” button or “-” button to enter the desired number of minutes. The minutes can be entered in 5-minute increments; the maximum time that can be set is 180 minutes.

4. If you do not make any settings within five seconds, the time programming is completed and the appliance returns to the initial state.

5. During the cooking process, the heat level or temperature level and the remaining time are displayed alternately.
6. When the programmed time is reached the appliance automatically switches off.
7. The appliance can be switched off at any time during the cook-

ing process by pressing the EIN/AUS button.

1. The programmed times are not saved at the end of the program or if the program is cancelled.

2. The fan continues to run for approx. 30 seconds after the end of the program.

3. If the program is not controlled via the time selection, the appliance

COOKING UTENSIL SELECTION

1. Only use cooking utensils, which are approved for induction cooking.
2. Useable pans are: stainless steel saucepans with ferro gastric bottom. cast iron pans and saucepans, enamelled iron saucepans and pans.
3. You can check with a magnet if your sauce-pans are useable for induction cooking. Whenever the magnet is adhering at the bottom outside, the saucepan can be used on the induction cooker.
4. Not use a re saucepans and pans made of aluminium, copper, glass, ceramic and some chrome nickel alloys.
5. The diameter of the saucepans should be min. 12 cm and max. 20 cm.
6. Attention:

Adapt the power or temperature setting to the used saucepans.

automatically switches off after two hours at the latest.

1. After use, unplug the power plug from the electrical outlet to save energy.
2. Caution: Do not leave the appliance unattended while you are cooking with it!

When using small saucepans you can already cook with 180 °C or 1.400 watts. A too high setting in combination with small saucepans can cause damages of the appliance.

1. The non-stick-coating of coated saucepans and frying pans can be damaged if used with too strong heating. Please follow the information of the saucepan manufacturer with regard to the application of the pots.
2. Choose in the case of doubt a lower power setting or temperature to avoid damages. Put the saucepan always precisely in the middle of the cooking field to avoid error messages and automatic switching off.

FUNCTIONING

Cooking on an induction cooker saves up to 50 % of electric power. The cooking time is reduced by up to 30 %.

When cooking on an induction cooker, not the hotplate is heated, but the saucepan on it, provided that the bottom is ferromagnetic. The heating is effected by a magnetic alternating field below the hotplate.

The advantages of induction cooking are:

■ Short reaction time, short preheating time, quick and exact heating.

■ Rapid heating, since the full amount of energy is immediately available.
■ Cool hotplate, which is only heated by the heat reflected from the saucepan.
■ Great energy saving of up to 50%.
■ Easyening, as food cannot burn in case of boiling over.
■ High safety: as soon as the saucepan is taken away from the plate, the heat supply is stopped automatically.

SAFETY FUNCTIONS

1. Overvoltage / low voltage protection

When power voltage is too high or too low, the induction cooker will compensate the voltage automatically and will adjust the output power.

2. Overheating protection

When the temperature of the hotplate is too high, the induction cooker will stop automatically and a long buzzer sound will be heard to alert you until the temperature returns to normal (fault E 5).

3. High voltage pulse protection

During operation, when power supply receives a transient high voltage pulse (e.g. lightning strike), the induction

cooker will stop automatically and in one minute will resume automatically.

4. Small metal part protection

If small iron metal parts with a diameter of less than 80 mm are detected on the hotplate, the appliance cannot be switched on.

5. Suitable pans

The appliance detects automatically if the used saucepan is suitable for induction cooking or not. If the saucepan is not suitable, a buzzer sound will be heard to alert you until an appropriate saucepan is put on the hotplate (fault E O).

CLEANING AND CARE

Unplug the appliance and let it cool down before cleaning it.

1. Do not immerse the appliance into water or any other liquid for cleaning.

2. Wipe the surface and the housing with a damp cloth.

3. Do not use any strong or abrasive cleansers or sponges.

4. Do not pour water or any other liquid on the hotplate.
5. If necessary you can use a cleanser or scraper for ceran glass cookers.
6. Please clean the ventilation slots regularly with a soft brush to prevent dust deposits.

TROUBLE SHOOTING

Fault Reason Reac

tion

EO No cookware on th e plate, cookware not fitted for induction, cookware not placed correctly in the middle

E01 Power circuit fault

E02 Te aturenper control fault control

E03 Variations of voltage

E05 Too surface temperature

E06 Overheating due to fan fault

EOA/EOB Overheating due to fault of the temperature sensor

Only use cookware approved for induction cooking with a diameter of at least 12 cm and max. 20 cm, Place the cookware in the middle of the respective cooking plate.

Send the appliance to our technical service for repair.

Send the appliance to our technical service for repair.

In case of sudden fluctuations of the voltage cooking is automatically interrupted. After approx. 1 minute cooking is continued.

If the surface temperature is too high, an acoustic signal is given and the appliance is shout off automatically. As soon as the temperature has fallen to the normal temperature range, cooking can be restarted.

In order to avoid overheating, we recommend to use low power or temperature settings for small saucepans and medium to high settings for large saucepans.

As soon as the temperature has fallen to the normal temperature range, cooking can be restarted.

Send the appliance to our technical service for repair.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODÈLE 58105/58175

SPÉCIFICATION TECHNIQUE

Modèle 58105

Plaque à induction

Modèle 58175

Black electric stove with a circular top and control panel (no visible text or symbols)

Exterior view of a modern black electrical stove with two circular burners (no text or symbols visible)

Puissance : 2 000 Watts, 220–240 V\~, 50 Hz

1 plaque env. 29 x 28 cm

Max. 2.000 Watt

3.500 Watt, 220–240 V\~, 50 Hz

Dimensions : Env. 29,0 x 36,0 x 7,0 cm

Poids : Env. 2,59 kg . 5,17 kg

Cordon : Env. 135 c v. 135 cm

Env. 60,2 x 35,5 x 7,0 cm

Env

CONDITIONS DE GARANTIE

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

Black electric stove with a circular top and control panel (no visible text or symbols)

Exterior view of a two-whe� electric stove with dual circular top lamps (no text or symbols visible)

Vermogen: 2.000 Watt, 220–240 V\~, 50 Hz

1 kookveld ca. 29 x 28 cm

Maximaal 2.000 Watt

3.500 Watt, 220–240 V\~, 50 Hz

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

ISTRUZIONI PER L'USO MODELLO 58105/58175

DATI TECNICI

Modello 58105

Black electrical induction cooktop with a circular top and control panel (no visible text or symbols)

Exterior view of a modern black electrical stove with two circular top lamps (no visible text or symbols)

Potenza: 2.000 Watt, 220–240 V\~, 50 Hz 3.500 Watt, 220–240 V\~, 50 Hz

Misure: Circa 29,0 x 36,0 x 7, lungh./largh./alt.

0 cm

Circa 60,2 x 35,5 x 7,0 cm lungh./largh./alt.

Peso: Circa 2,59 kg 5,17 kg

Circa

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

MANUAL DE INSTRUCCIONES MODELO 58105/58175

DATOS TÉCNICOS

Modelo 58105

Exterior view of a black electric stove with a circular top (no visible text or symbols)

Exterior view of a modern black electrical stove with two circular burners (no visible text or symbols)

Potencia: 2.000 Vatio, 220–240 V\~, 50 Hz 3.500 Vatio, 220–240 V\~, 50 Hz

Medidas: Aprox. 29,0 x 36,0 x 7,0 cm (L/An/Al) Aprox. 60,2 x 35,5 x 7,0 cm (L/An/Al)

Black electrical induction cooktop with a circular top and control panel (no visible text or symbols)

Exterior view of a two-whe� electric stove with dual circular top lamps (no text or symbols visible)

Výkon: 2.000 Watt, 220–240 V\~, 50 Hz 3.500 Watt, 220–240 V\~, 50 Hz

1 velikost desek cca. 29 x 28 cm

Max 2.000 Watt

2 veliko st desek ca. 29 x 28 cm

Vlevo max 2.000 Watt

Právo max 1.500 Watt

Rozměry D/Š/V: 29,0 x 36,0 x 7,0 cm Cca. 60,2 x 35,5 x 7,0 cm

Exterior view of a black electric stove with a circular top and control panel (no visible text or symbols)

Exterior view of a black two-whe� electric stove with dual circular top lamps (no visible text or symbols)

Moc: 2.000 Watt, 220–240 V\~, 50 Hz

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Aus dem Hause

UNOLD®
