USER MANUAL UltraMixKM4900 AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy Accessories and Consumables for www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

www.aeg.com

www.aeg.com

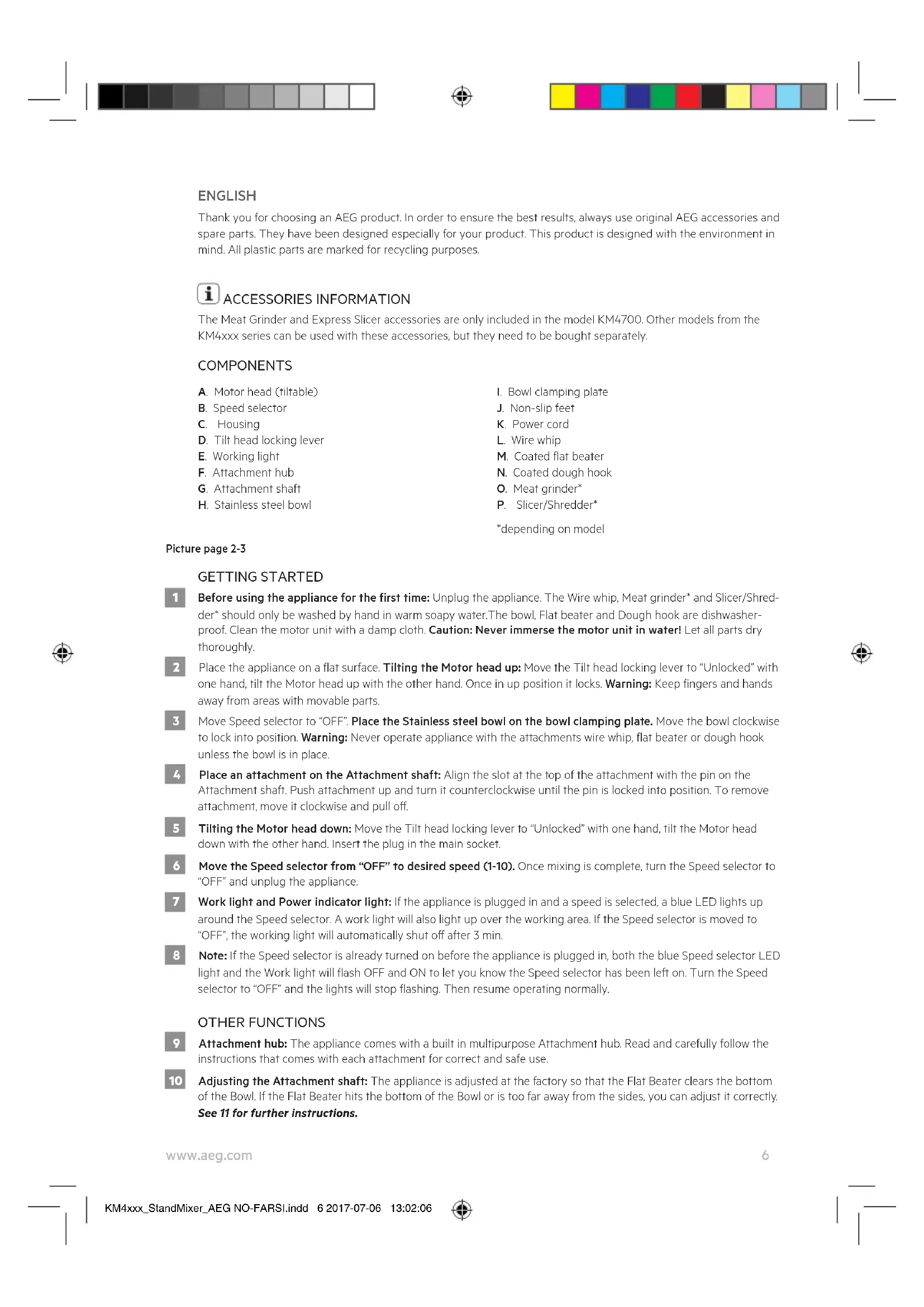

ENGLISH

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

i ACCESSORIES INFORMATION

The Meat Grinding and Express Slicer accessories are only included in the model KM4700. Other models from the KM4xxx series can be used with these accessories, but they need to be bought separately.

COMPONENTS

A. Motor head (tiltable)
B. Speed selector
C. Housing
D. Tilt head locking lever
E. Working light
F. Attachment hub
G. Attachment shaft
H. Stainless steel bowl

I. Bowl clamping plate
J. Non-slip feet
K. Power cord
L. Wire whip
M. Coated flat beater
N. Coated dough hook
O. Meat grinder
P. Slicer/Shredder

*depending on model

Picture page 2-3

GETTING STARTED

Before using the appliance for the first time: Unplug the appliance. The Wire whip, Meat grinder and Slicer/Shredder should only be washed by hand in warm soapy water. The bowl, Flat beater and Dough hook are dishwasher-proof. Clean the motor unit with a damp cloth. Caution: Never immerse the motor unit in water! Let all parts dry thoroughly.
2 Place the appliance on a flat surface. Tilting the Motor head up: Move the Tilt head locking lever to "Unlocked" with one hand, tilt the Motor head up with the other hand. Once in up position it locks. Warning: Keep fingers and hands away from areas with movable parts.
3 Move Speed selector to "OFF". Place the Stainless steel bowl on the bowl clamping plate. Move the bowl clockwise to lock into position. Warning: Never operate appliance with the attachments wire whip, flat beater or dough hook unless the bowl is in place.
4 Place an attachment on the Attachment shaft: Align the slot at the top of the attachment with the pin on the Attachment shaft. Push attachment up and turn it counterclockwise until the pin is locked into position. To remove attachment, move it clockwise and pull off.
5 Tilting the Motor head down: Move the Tilt head locking lever to "Unlocked" with one hand, tilt the Motor head down with the other hand. Insert the plug in the main socket.
6 Move the Speed selector from "OFF" to desired speed (1-10). Once mixing is complete, turn the Speed selector to "OFF" and unplug the appliance.
7 Work light and Power indicator light: If the appliance is plugged in and a speed is selected, a blue LED lights up around the Speed selector. A work light will also light up over the working area. If the Speed selector is moved to "OFF", the working light will automatically shut off after 3 min.
Note: If the Speed selector is already turned on before the appliance is plugged in, both the blue Speed selector LED light and the Work light will flash OFF and ON to let you know the Speed selector has been left on. Turn the Speed selector to "OFF" and the lights will stop flashing. Then resume operating normally.

OTHER FUNCTIONS

9 Attachment hub: The appliance comes with a built in multipurpose Attachment hub. Read and carefully follow the instructions that comes with each attachment for correct and safe use.
10 Adjusting the Attachment shaft: The appliance is adjusted at the factory so that the Flat Beater clears the bottom of the Bowl. If the Flat Beater hits the bottom of the Bowl or is too far away from the sides, you can adjust it correctly. See 11 for further instructions.

11 Turn the Speed selector to "OFF" and unplug the appliance. Tilt the Motor head back. Use a slotted point Head screwdriver to adjust the screw. Turn counter clockwise to raise the Attachment shaft, turn clockwise to lower it.

HOW TO USE THE MEAT GRINDER

12 How to use the Meat grinder: Insert the Grind screw (B) into the Grinding housing (A). Place the Knife (C) over the square shaft at the end of the Grind screw. Place the Grinding plate (D) (Medium or Coarse) over the Knife. Tighten the Ring (E) by hand until the Meat grinder is secured. Note: Do not over tighten the ring.
13 Open the Attachment hub lid on the Stand mixer. Fit the Power shaft of the attachment in the Attachment hub socket on the Stand mixer. Rotate the attachment back and forth if necessary. Tighten the Attachment hub knob until the attachment is fully fastened. Caution: Before attaching accessories turn off the appliance and unplug it.
14 Place the Food tray over the Grinding housing. Cut raw meat into small pieces and place it on the Food tray. Plug in the appliance and turn the Speed selector to desired speed (recommended speed: 6-8). Feed the meat into the Feed chute by using the Pusher. Caution: Do not put your fingers or other utensils in the Feed chute. Note: Meat should not contain bones, muscles or skin.

HOW TO USE THE SLICER/SHREDDER*

15 How to use the Slicer/Shredder: Choose a Slicer or a Shredder knife (Medium or Course). Insert the shaft (square end) of the selected Knife into the Slicer/Shredder housing so the shaft fits into square hub socket. Secure the Knife by pulling the Locking handle downwards. Caution: The blades and inserts are very sharp!
16 Assemble the Slicer/Shredder in the Attachment hub. Place a container under the attachment. Cut the food into small pieces. Plug in the appliance and turn the Speed selector to desired speed (recommended speed: 8).
Feed the food into the Feed chute by using the Pusher. When finished using your attachment, turn off the appliance and unplug it. Close the Attachment hub lid and tighten the Attachment hub knob.

CLEANING AND CARE

Unplug the appliance. The Wire whip, Meat grinder and Slicer/Shredder should only be washed by hand in warm soapy water. The bowl, Flat beater and Dough hook are dishwasher-proof. Clean the motor unit with a damp cloth. Caution: Never immerse the motor unit in water! Let all parts dry thoroughly.
19 Do not use abrasive cleaners or scouring pads when cleaning the appliance.

Enjoy your new AEG product!

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  Children shall not play with the appliance.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if
• the supply cord is damaged,
• the housing is damaged.

www.aeg.com

• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
• Always place the appliance on a flat, level surface.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Appliance is for indoor use only.
• Do not immerse the appliance, cord or plug in water or any other liquid.
• Do not let cord hang over edge of table or counter, do not let cord contact hot surface, including the stove.
• Never use accessories or parts made by other manufactures not recommended or sold; may cause a risk of injury to persons.
• Make sure the motor has completely stopped before disassembling and cleaning.
• Avoid contact with moving parts. Contact could result in injury! Do not use other tools or utensils during the appliance usage.
• Do not leave this product out of your sight when it is running.
• Ensure all loose matters and your clothes/accessories are kept away while using this product.
• Never process boiling liquids (max 90^ ).
• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Never operate appliance with the attachments wire whip, flat beater or dough hook unless the bowl is in place.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE	SOLUTION
The motor slows down during operation.	Amount of dough may exceed maximum capacity.	Remove half and process in two batches.
	Dough may be too wet, it sticks onto the side of the bowl.	Add more flour, 1 tablespoon at a time until the motor speeds up. Process until dough cleans the side of the bowl.
The motor does not work. The appliance is not connected to the mains. Make sure to plug in the appliance before operation.
The appliance vibrates/ moves during operation.	The rubber feet are wet. Make sure the rubber feet at the bottom of the unit are clean and dry.
	It is normal for heavy loads (e.g heavy dough, cheese).	Remove half and process in two batches.
The attachment scrapes the Stainless steel bowl during operation.	The height of the attachment shaft is incorrect. Adjust the height of the attachment shaft.

www.aeg.com

PROBLEM POSSIBLE CAUSE SOLUTION

The Work light and Power indicator light flashes on and off.

The Speed selector has been left turned on. Turn

the Speed selector to "Arrest".

RECIPES

WHISKING FUNCTION QUANITIES AND PROCESSING TIMES

Ingredients Quantity Unit Time Speed
Cream 21-61 dL 60~80s 8~10
Egg-white 1.2-2.4 dL At least 100s 8~10

BEATING FUNCTION QUANTITIES AND PROCESSING TIMES (MIXING LIGHT DOUGH (E.G: CAKE DOUGH))

Recipe	Ingredients	Quantity	Unit	Time	Speed
Cake sponge	Flour	6,0 dL		200~230s	Medium setting (5~6setting)
	Margarine	1,5	dL
	Sugar	1,7	dL
	Baking powder	1,0 tsp
Chocolate cake	Flour	8,0 dL		300~360s	Medium setting (4~6setting)
	Egg	4,0 pcs
	Butter	2,0 dL
	Sugar	1,7	dL
	Vanilla Sugar	2,0	tsp
	Sour cream 1,0 dL
	Nougat raw mixture	100	g
	Baking soda	3,0	tsp
	Method
	The butter should be soft not hard. Stir the soft butter with sugar until creamy. Add the eggs one after another. While stirring, add the sour cream and vanilla sugar. Finally stir in the flour together with baking soda.
Butter Cake	Flour	3,0 dL		200~230s	Medium setting (4~6setting)
	Margarine	1,5	dL
	Sugar	1,7	dL
	Fresh egg	3	pcs
	Baking powder	1,0 tsp
	Method
	Place all ingredients in the bowl, and mix them, till it is ready.

HOOKS FUNCTION QUANTITIES AND PROCESSING TIMES

Recipe Ingredients	Quantity Unit Time Speed
Yeast dough*(bread)min.Quantities	Flour 6,0 dL			350~380s	Low setting (1-2 setting)
	Water 2,0 dL
	Sugar 2,4 dL
	Margarine 1,0 tbs
	Salt 1,0 tsp
	Dry Yeast 1,0 tbs
	Method
	Place all the ingredients into the bowl and knead until satisfactory.
Yeast dough*(Pizza dough)max quantities	Wheat flour 16,0 dL			At least 480s	Low setting (1-2 setting)
	Water 4,0 dL
	Oil 1,0 dL
	Fresh egg 2,0 pcs
	Salt	3,0	tsp
	Sugar 2,0 tsp
	Dry Yeast 1,0 tbs
	Method
	1. In a container mix the half of yeast with the salt and the sugar and set aside;2. In the bowl of stand mixer put the remaining yeast, the water and the oil;3. This dough should be mixed with common beaters, at minimum speed until obtain a smooth mixture;4. After, add the egg and the yeast mixed with salt and sugar;5. The speed should be increased to medium and the flour should be added gradually;6. After realizing that the mass tends to rise by the beaters, they must be changed by the beaters for heavy mass;7. Put all the flour and mix until obtain a homogenous mixture;8. At this point you will need to monitor the input power of stand mixer, so that it not exceed the maximum value determined by the manufacturer;9. The mass reaches the point when no more paste in the hand.
	*Do not exceed Speed 2 when preparing yeast dough. This may damage the mixer.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.
